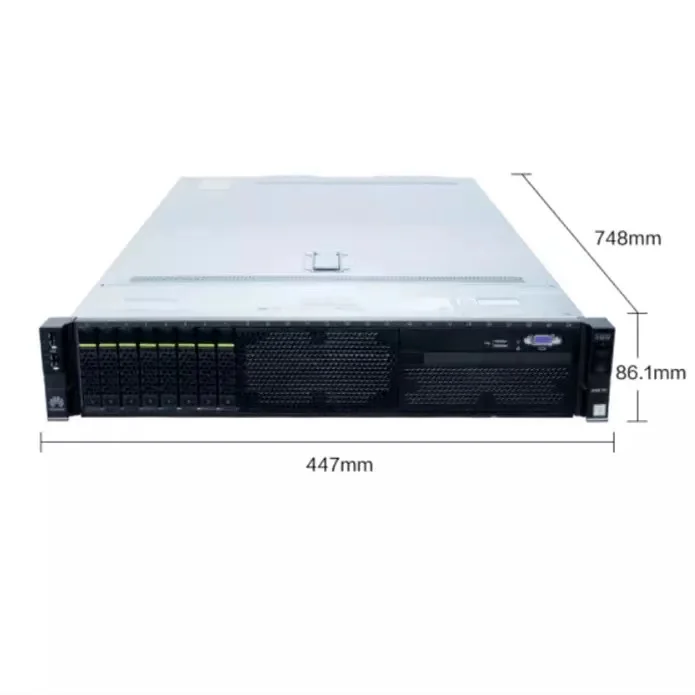

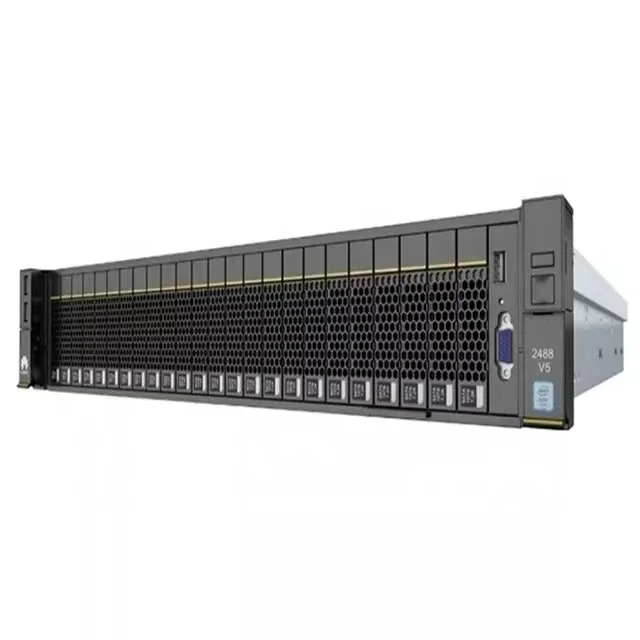

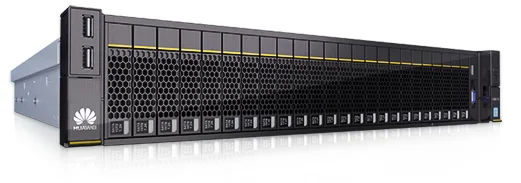

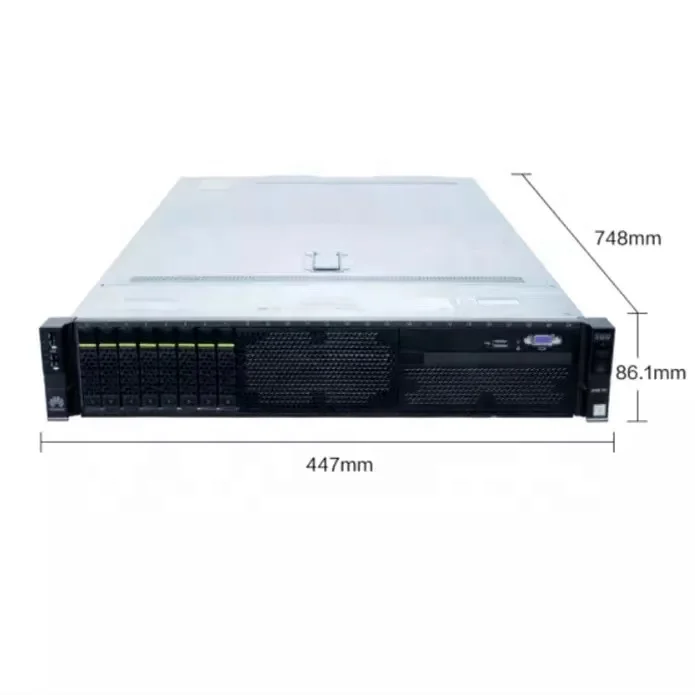

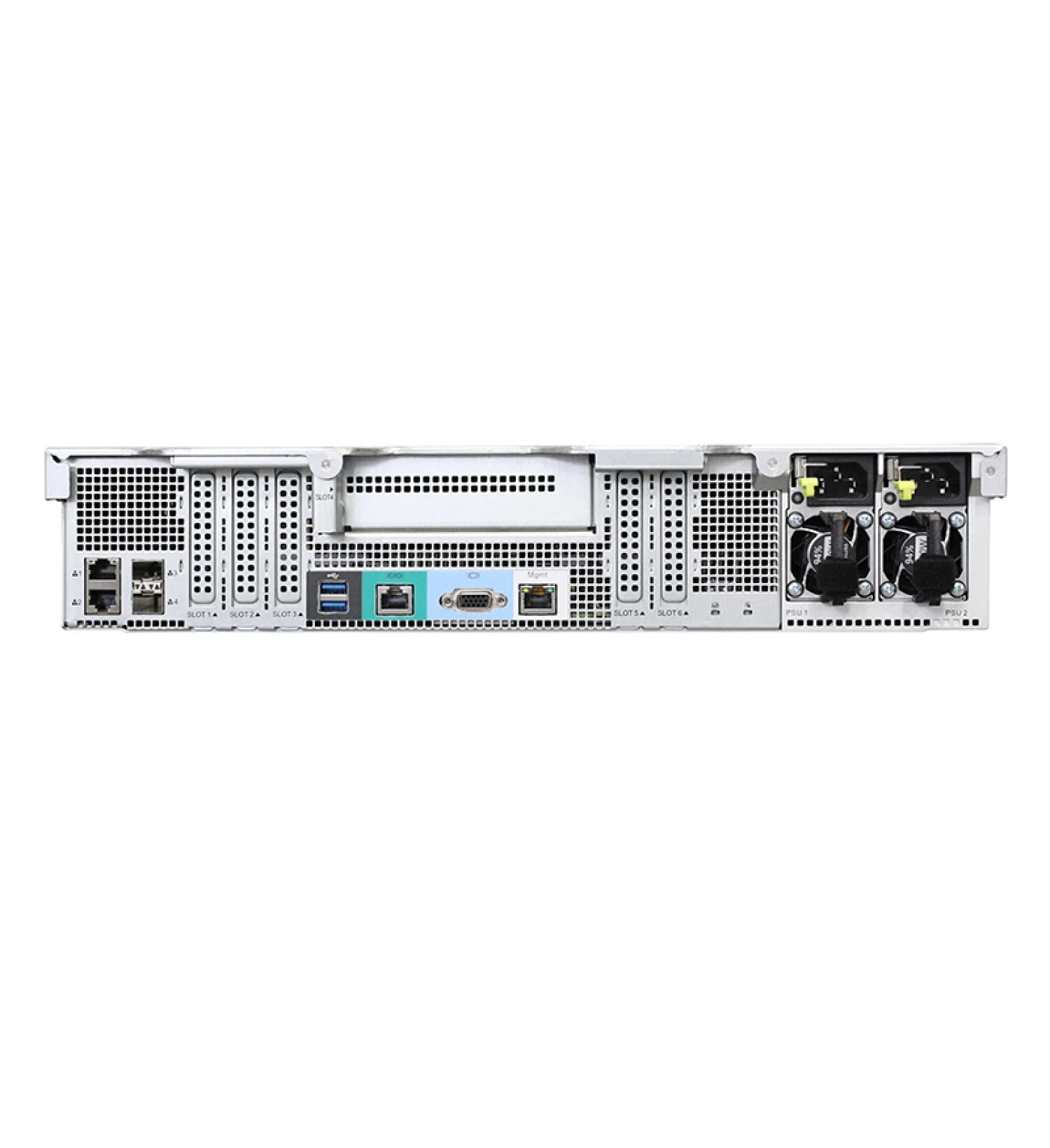

FusionServer Pro 2488H V5 intel xeon 5120 2.2 GHZ 2U Rack Server
- Category: >>>
- Supplier: Beijing Huamao Likun Technology Co. Ltd.
Share on (1600862007395):
Product Overview
Description
Product Description
PowerEdge Pro 2488H V5 Server Intel Xeon network rack server2U 24bay Intel Xeon Gold 6128 Processor
The FusionServer Pro 2488H V5 is latest 2U, 4-socket (4S) rack server, ideal for virtualization, HPC, database, and SAP HANA. In a virtualization application, one FusionServer Pro 2488H V5 reduces OPEX by about 32 percent* compared to two traditional.2488H V5 supports 4 Xeon scalable processors in 2U space, up to 48 DDR4 DIMMs and up to 25 2.5-inch hard drives for local storage (8 NVMe SSDs can be configured). It combines patented technologies such as dynamic energy management technology (DEMT) and fault diagnosis and management (FDM), and integrates eSight software for the entire life cycle management, which can help customers reduce operating costs and increase return on investment (ROI) .
Specification
Product Name | FusionServer Pro 2488H V5 |
Form Factor | 2U rack server |
Internal Storage | Supports the following hard drive configuration options: * 8 x 2.5-inch SAS/SATA HDDs on the front * 25 x 2.5-inch SAS/SATA HDDs on the front * 24 x 2.5-inch SAS/SATA HDDs on the front * 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front Supports flash storage: * 2 M.2 SSDs |
Processors | 2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W 2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W |
memory | 48 DDR4 DIMM slots, 2,933 MT/s; up to 24 DCPMMs, 2,666 MT/s |
Storage controllers | * Supports RAID 0, 1, 5, 6, 10, 50, or 60 * Supports a supercapacitor for cache power-off protection * Supports functions such as RAID level migration, drive roaming |
Power supplies | 2 hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported: * 2,000W AC Platinum PSUs. * 1,500W AC Platinum PSUs. * 900W AC Platinum PSUs. * 1,200W DC PSUs |
PCI Expansion slots | Up to 11 PCIe 3.0 slots |
Management | * iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. * iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. * (Optional) Configured with the eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management. |

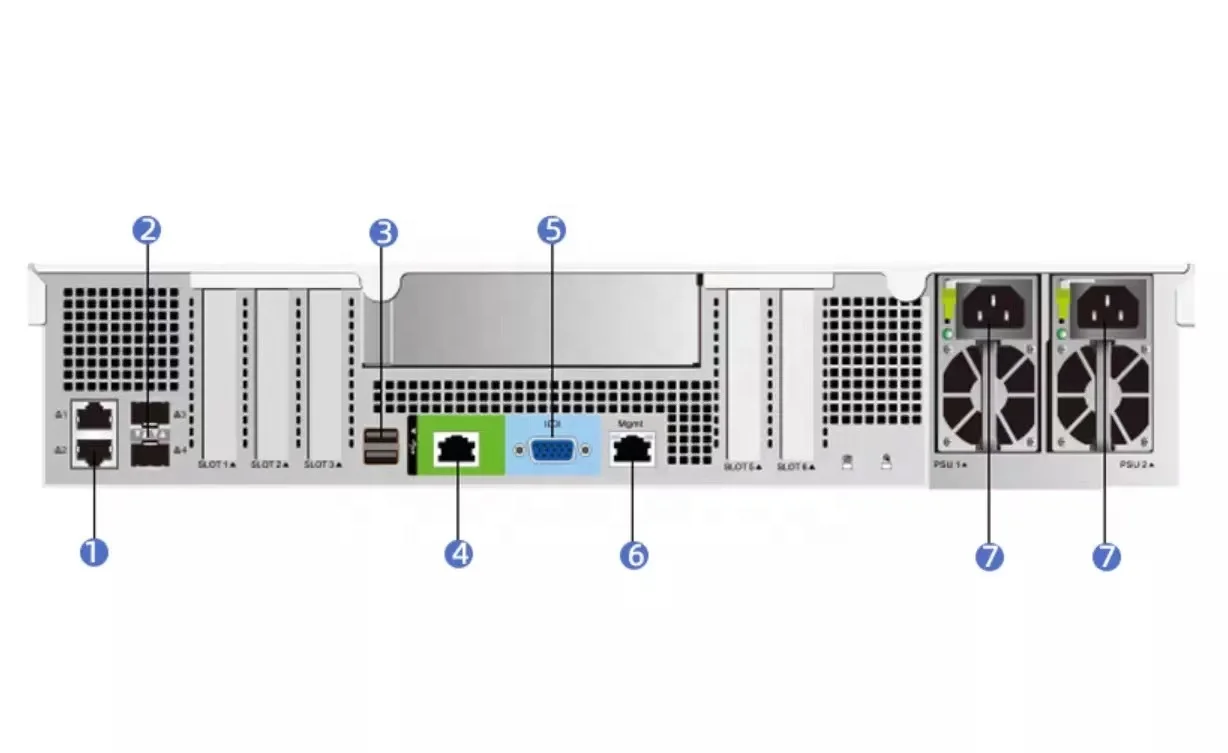

LOM Network Ports | 2 x GE + 2 x 10 GE ports |
Fan module | 4 hot-swappable fan modules, providing protection against single-fan failures |

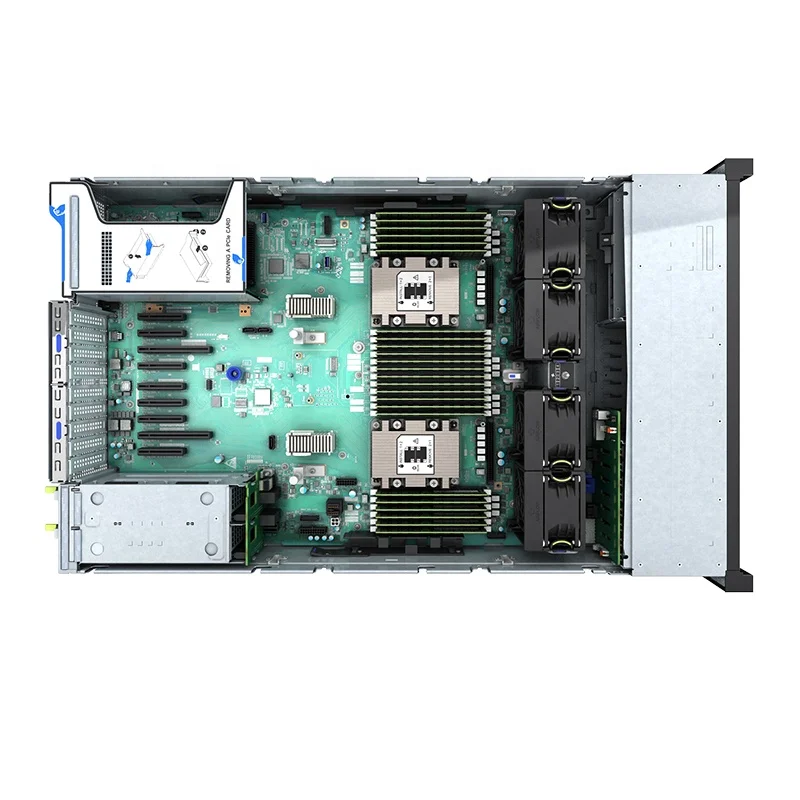

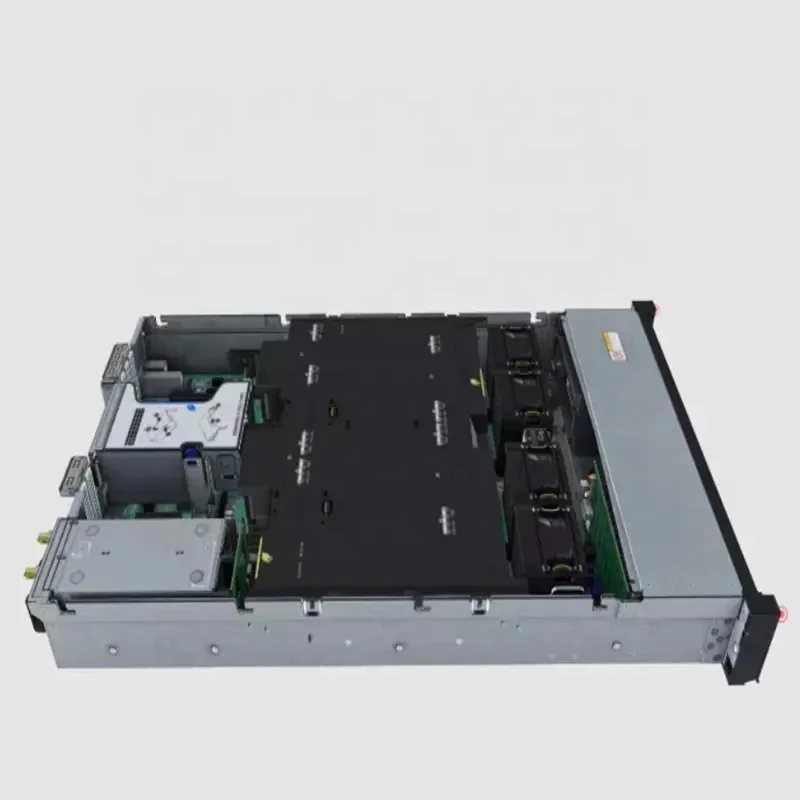

Detailed Images
