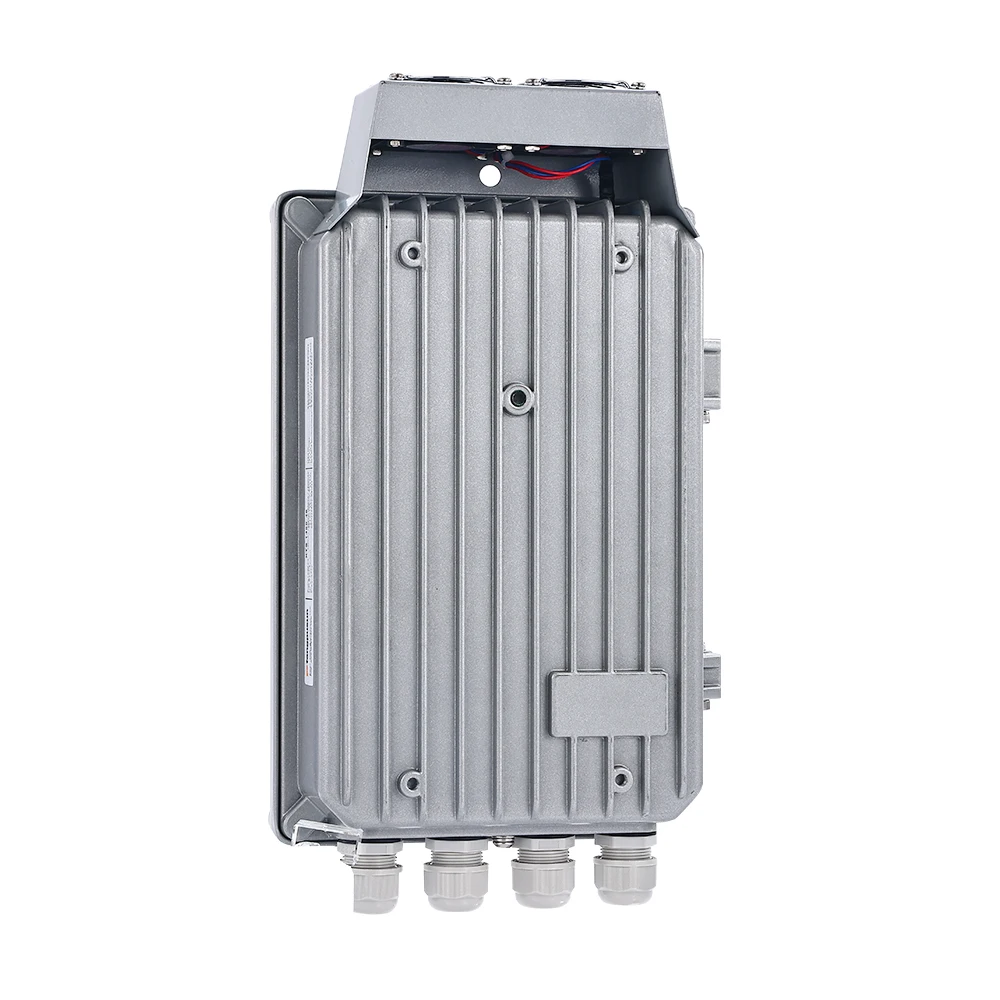

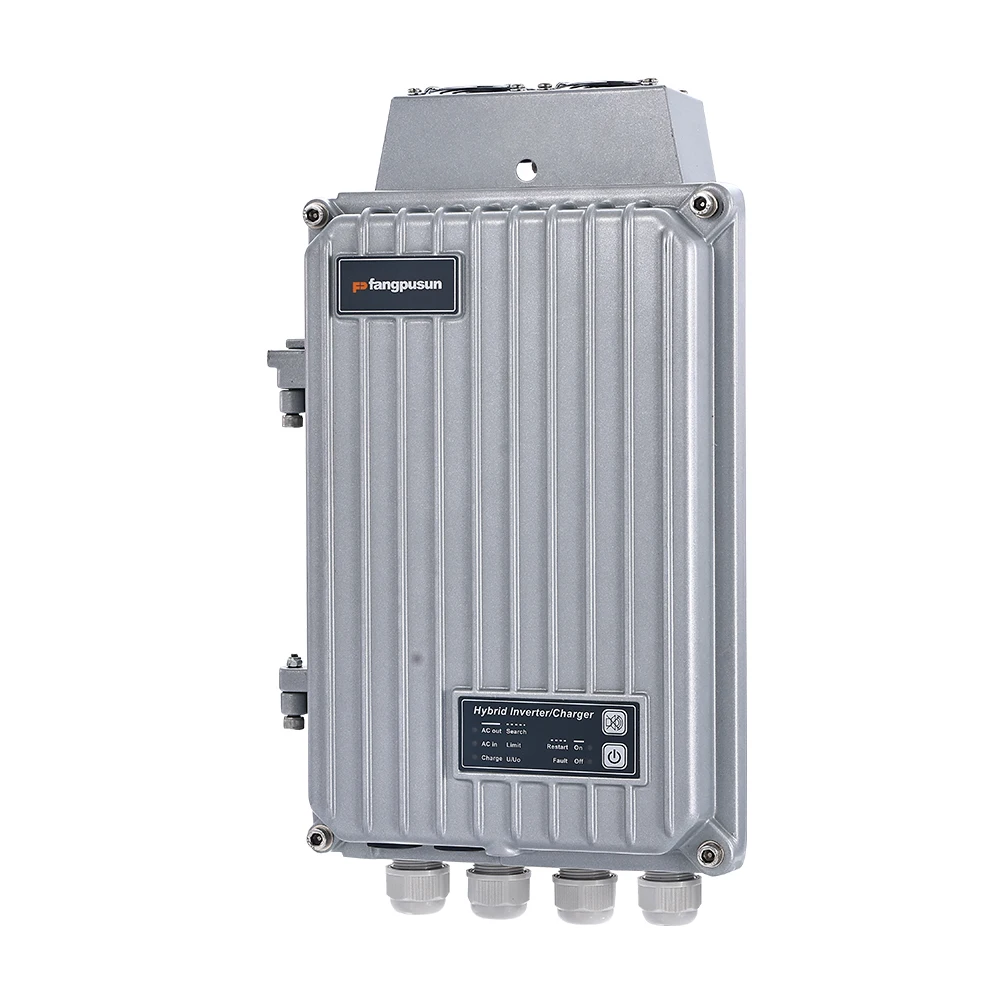

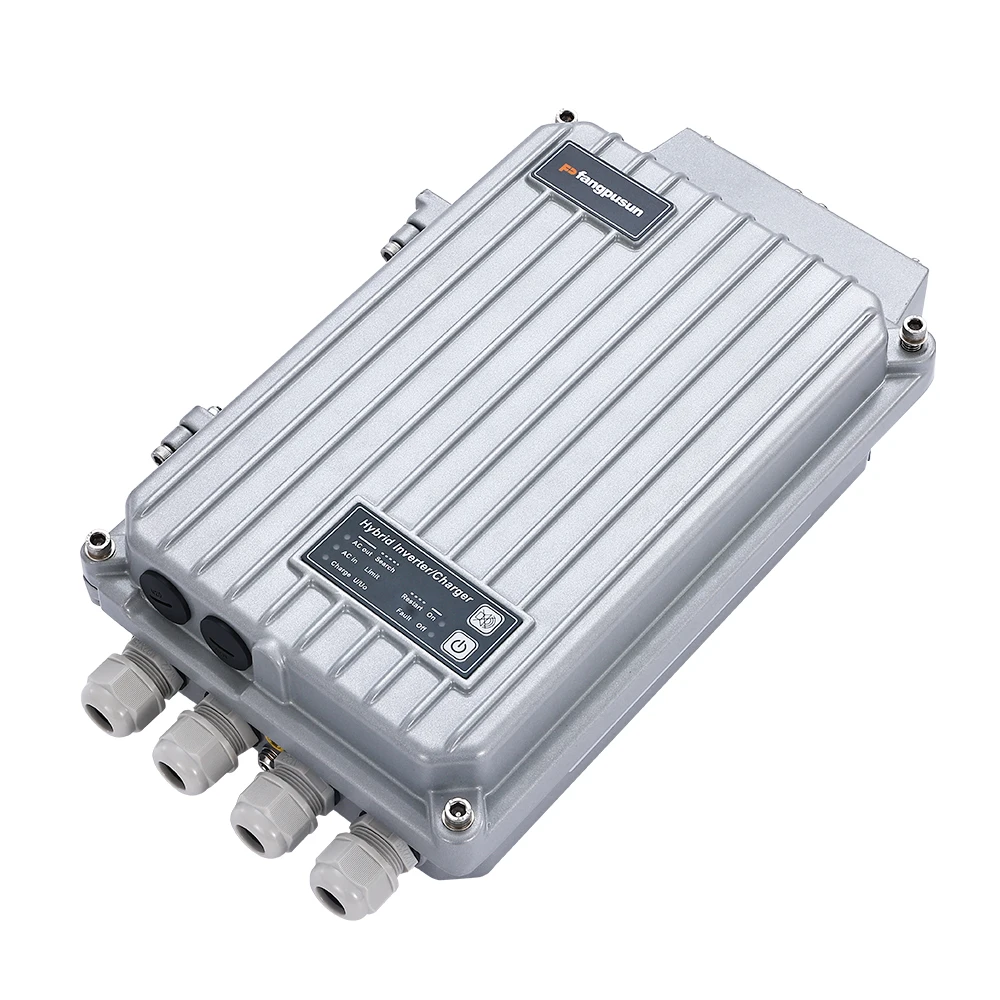

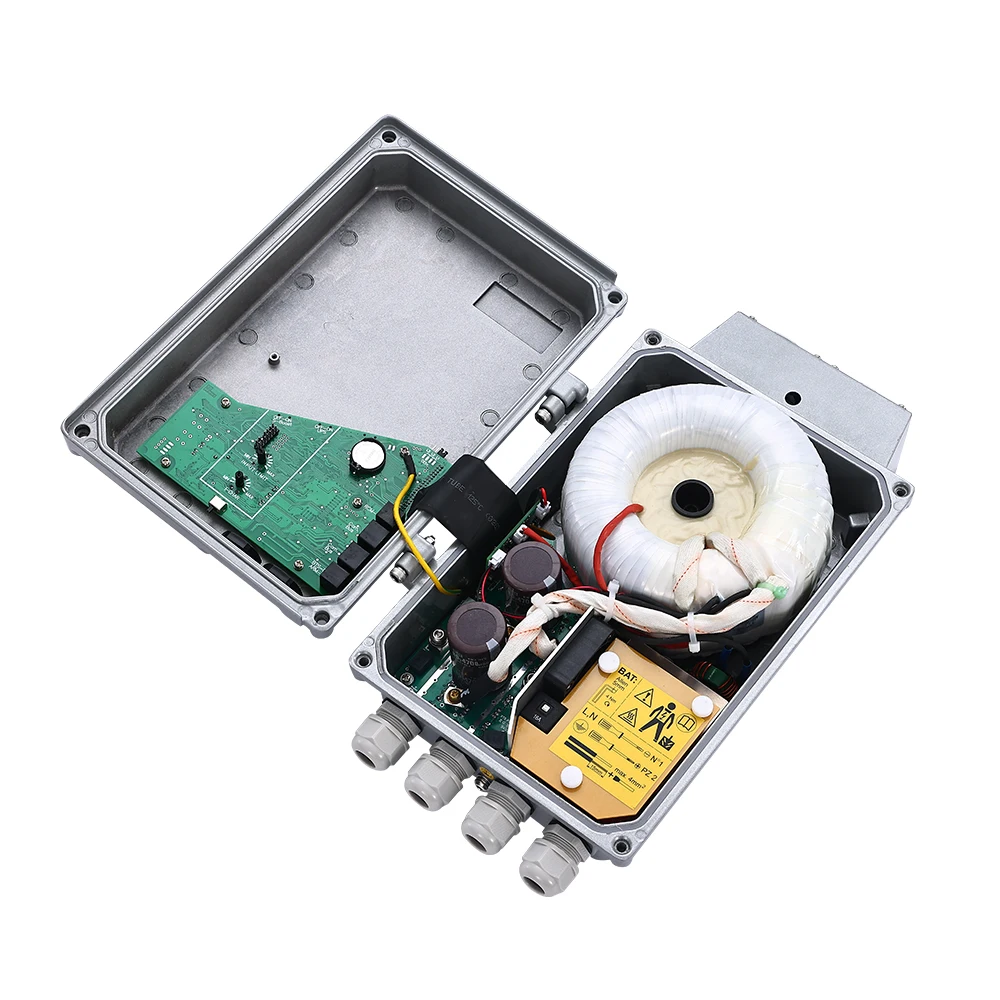

1 XTS mini size Hybrid battery charger Inverter 12V 24V 48V for grid generator wind or solar hybrid power system

Product Overview

Description

Fangpusun

XTS 900-12 XTS1200-24 XTS 1400-48

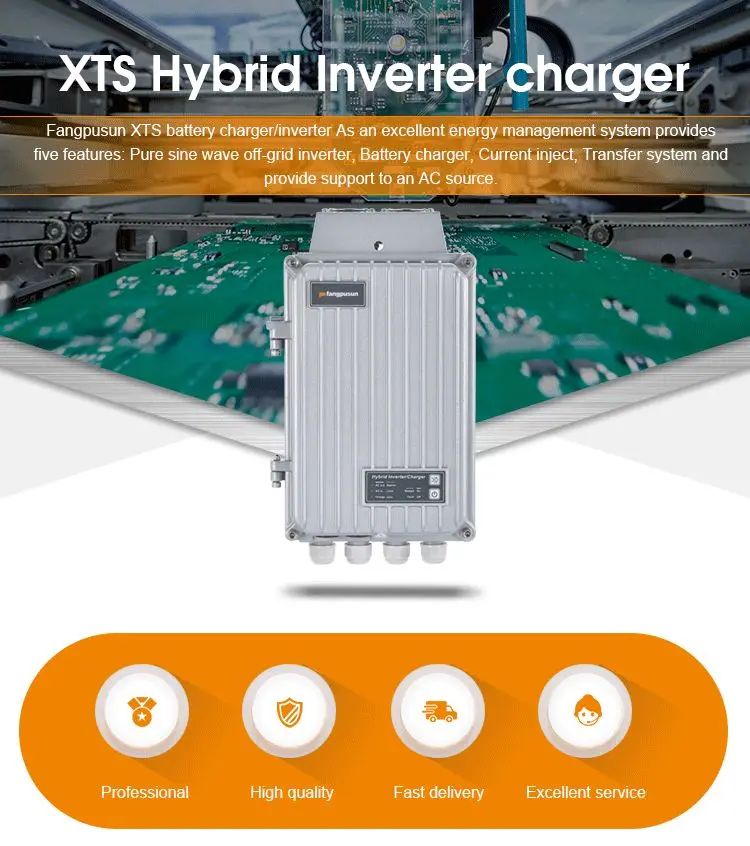

Same features as the big brother XTM in a robust IP54 enclosure.

The XTS, part of the Xtalent range, provides a great flexibility of use due to its many functions: bidirectional inverter,battery charger, transfer system, assistance to the source or feed back to the source,(Grid feeding).

These functions can be combined and controlled in a totally automatic way for an optimal management of available energy.

2 auxiliary contacts allow automatic control of a genset, second priority load disconnection or other programmable

functions.



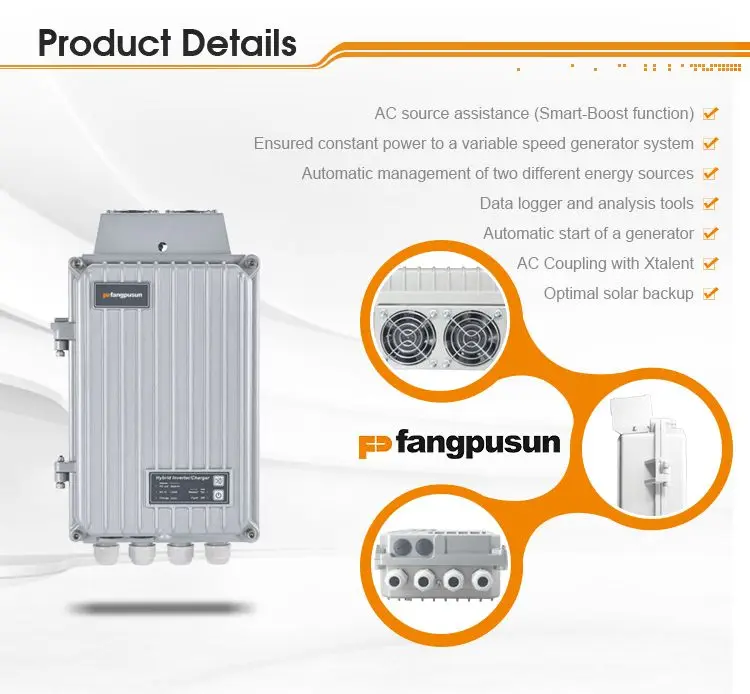

Product feature

·Robust IP 54 enclosure

·Electronically protected against reverse polarity

·Outstanding efficiency and overload

·Peak shaving with perfect power assist function

· Embedded basic settings for easy commissioning

·Extended setting, display, and data logging with RCC unit

·Parallel and/or three-phase setting up to 9 units

·Ultra-short transfer time (from O to 15ms max.)

·2 programmable auxiliary contacts

Electronic protection functions

Deep discharge protection

Battery over voltage shutdown

Short circuit protection

Over temperature and overload protection

Reverse polarity protection by internal fuse

Acoustic alarm at deep discharge or overheating



Certificates

Compliant with European Standards (CE) RoHS

Compliant SGS

ISO 9001

Made in China



Accessories

Remote control and display Fangpusun RCC-02

Remote control and display Fangpusun RCC-03

Battery temperature sensor Fangpusun BTS-01

Integrated cooling unit ECF-01 Communications cable

Fangpusun BSP 500/1200



Operation

Main switch

Adjustable load detection

Options

Type with 115 V/60 Hz Model with protective lacquered main board

Model	XTS900-12	XTS1200-24	XTS1400-48
Characterisation of the operating performance
Nominal battery voltage	12V	24V	48V
Input voltage range	9.5-17Vdc	19-34Vdc	38-60Vdc
Continuous power	650**/500 VA	800**/650 VA	900**/750 VA
Power 30 min.	900**/700 VA	1200**/1000 VA	1400**/1200 VA
Power 5 sec.	2.3 kVA	2.5kVA	2.8 kVA
Max.efficiency	93%	93%	93%
Own consumption stand by	1.4W	1.5W	1.6W
Own consumption ON	7W	8W	8W
Acoustic level without ventilation	40 dB
Acoustic level with ventilation	45 dB
Maximum load	Up to short-circuit
Maximum asymmetric load	Up to Pcont.
Load detection (stand-by)	2 to 25 W
Cos φ	0.1-1
Output voltage	Pure sine wave 230vac(±2%/120Vac(1)
Output frequency	45Hz-60Hz(1)±0.05%(crystal controlled)
Harmonic distortion	<2%
Overload and short-circuit protection	Automatic disconnection with 3 time restart attempt
Overheat protection	Warning before shut-off-with automatic restart
Battery charger
Charge Characteristic	6 steps: Bulk-Absorption-Floating-Equalization-reduced fl oating-periodic absorption Number of steps, thresholds,end current and times completely adjustable with the RCC-02/-03
Temperature compensation	With BTS-01 or BSP 500/1200
Power Factor Correction(PFC) according	EN 61000-3-2
Maximum charging current	35A	25A	12A
Input voltage range	150 to 265Vac/50 to 140vac(1)
Input frequency	45 to 65Hz
Input current max. (transfer relay)/Output current max.	16 Aac/20 Aac
Transfer time	<15ms
Multifunction contacts	Module ARM-02 with 2 contacts, in option
Dimension h×w×l [mm]	10×210×310
Protection index	IP54
Operating temperature range	—20 to 55℃
Relative humidity in operation	100%
Ventilation	Optional cooling module ECF-01
Warranty	2 years
Weight
