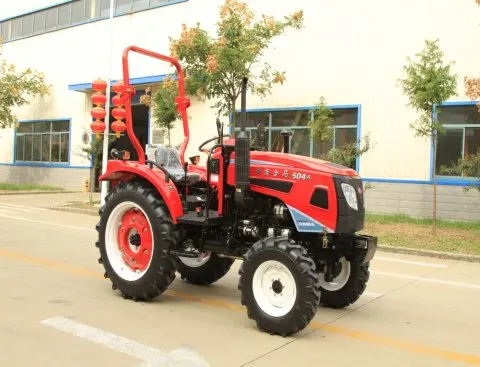

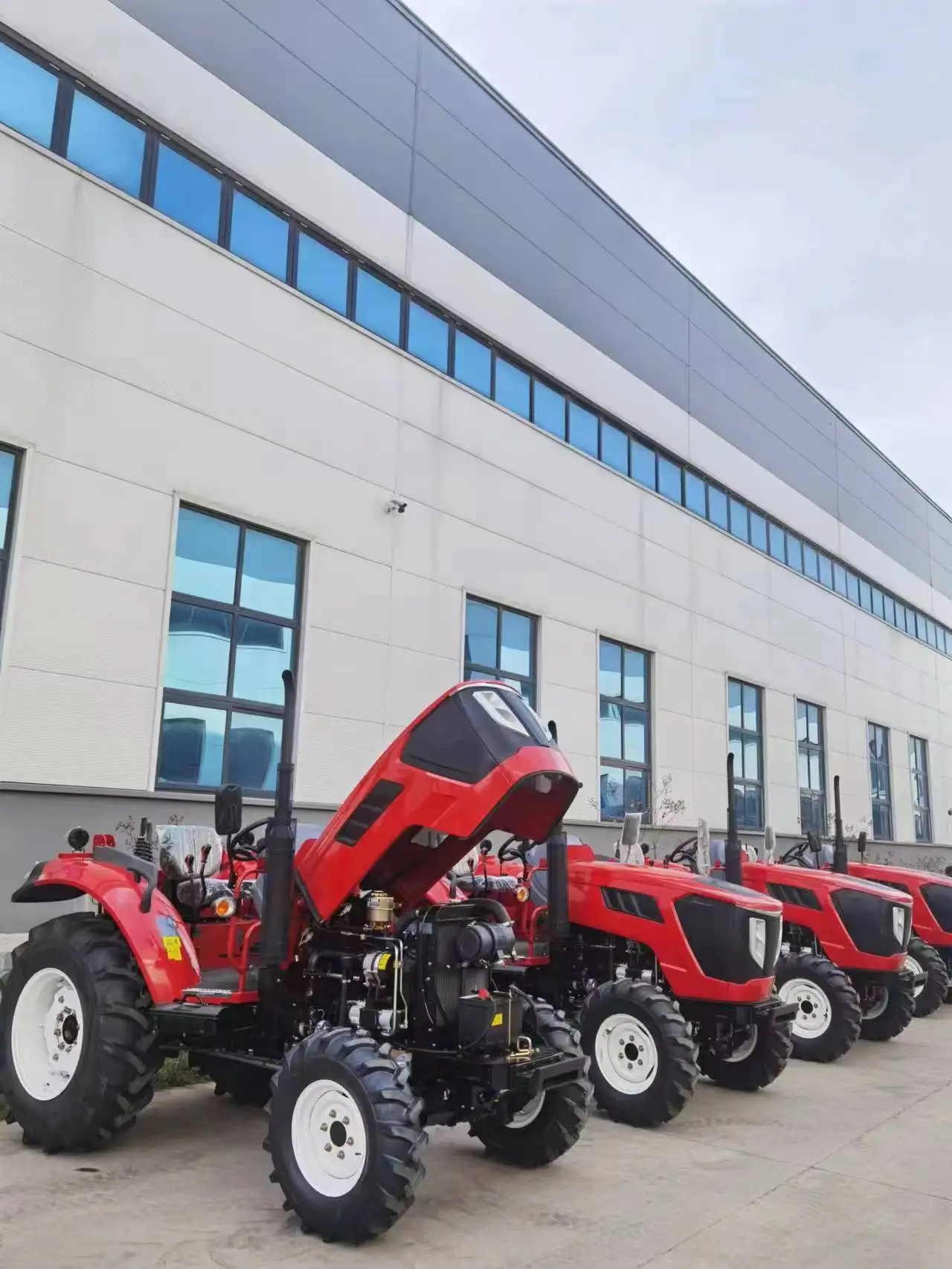

EPA small 4 wheel tractor with front end loader tractors trucks agriculture mini farm tractor lawn mower 4x4
- Category: >>>
- Supplier: Jiangsu Jitian International Trade Co. Ltd.
Share on (1600862255690):
Product Overview
Description
Product Description
This series of tractors are powered by vertical energy-saving diesel engines with 25，30, 40, and 45 horsepower respectively. Direct transmission is used between the engine and the transmission system. Single-acting clutches or double-acting clutches are optional. It has the advantages of suitable power, large traction, compact structure, high transmission efficiency, light operation, simple maintenance, easy matching, economical use and good comprehensive utilization performance. This series of products has the following characteristics:
①Traditional products have been produced for more than 30 years with excellent quality;
② Equipped with well-known brand engines, with high power and low fuel consumption;
③The operation is light and flexible, and the maneuverability is good;
④ The overall structure is compact and well-proportioned, and the operation is easy to pass;
⑤ The gear position and speed match reasonably, and the operation efficiency is high;
⑥Enhanced two-speed power output to meet various operating needs;
⑦New hood, popular and cost-effective;
①Traditional products have been produced for more than 30 years with excellent quality;
② Equipped with well-known brand engines, with high power and low fuel consumption;
③The operation is light and flexible, and the maneuverability is good;
④ The overall structure is compact and well-proportioned, and the operation is easy to pass;
⑤ The gear position and speed match reasonably, and the operation efficiency is high;
⑥Enhanced two-speed power output to meet various operating needs;
⑦New hood, popular and cost-effective;
Detailed parameters
Model | JM504 | |||
Tractor | Drive Type | 4WD | ||
Overall Dimensions L×W×H(mm): | 3980*1760*2800 | |||
Wheel Track (mm) | Front | 1400 | ||
Rear | 1200-1500 | |||
Wheel Base(mm) | 2010 | |||
Mini Ground Clearance (mm) | 308 | |||
Rated Traction Force(N) | 9.8KN | |||
Construction Mass(kg) | 1980 | |||
Theoretical Speed (km/h) | Forward | 2.46-32.73 (twelve speed ) | ||
2.15-28.69 (twelve speed) | ||||
Model | Xinchai or quanchai engine | |||
Engine | Type | 4-Cylinder | ||
Specifications | Vertical,water cooled, | |||
4 stroke cycle | ||||
Rated Power(kw/hp) | 36.8KW(50HP) | |||
Rated Speed (rpm) | 2300 | |||
Bore×Stroke (mm) | 98*105 | |||
Total Displacement(L) | 3.45 | |||
Clutch | 10" dual-acting | |||
Drive | Gear Box | 12+12 meshing sleeve | ||
System | ||||
Main Drive | One pair of spiral bevel gear | |||
Differential | Bevel gear | |||
Differential Lock | Sliding pin,foot operated | |||
Final Transmission | Planeatry reduction gear | |||
Traveling | Type Тип Escribe | Front | 8.3-20 | |
Mechanism | ||||
Rear | 12.4-28 | |||
Steering Gear | Hydraulic steering | |||
Brake | Oil immerszd multiplate disc | |||
Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 7500 | |
Device | ||||
3-Point Suspension | Category I | |||
Dispositivo | P.T.O Shaft | Rotating | 540/1000 | |
Speed (rpm) | ||||
Spline Size | 6-Φ35Rectangular Spline | |||

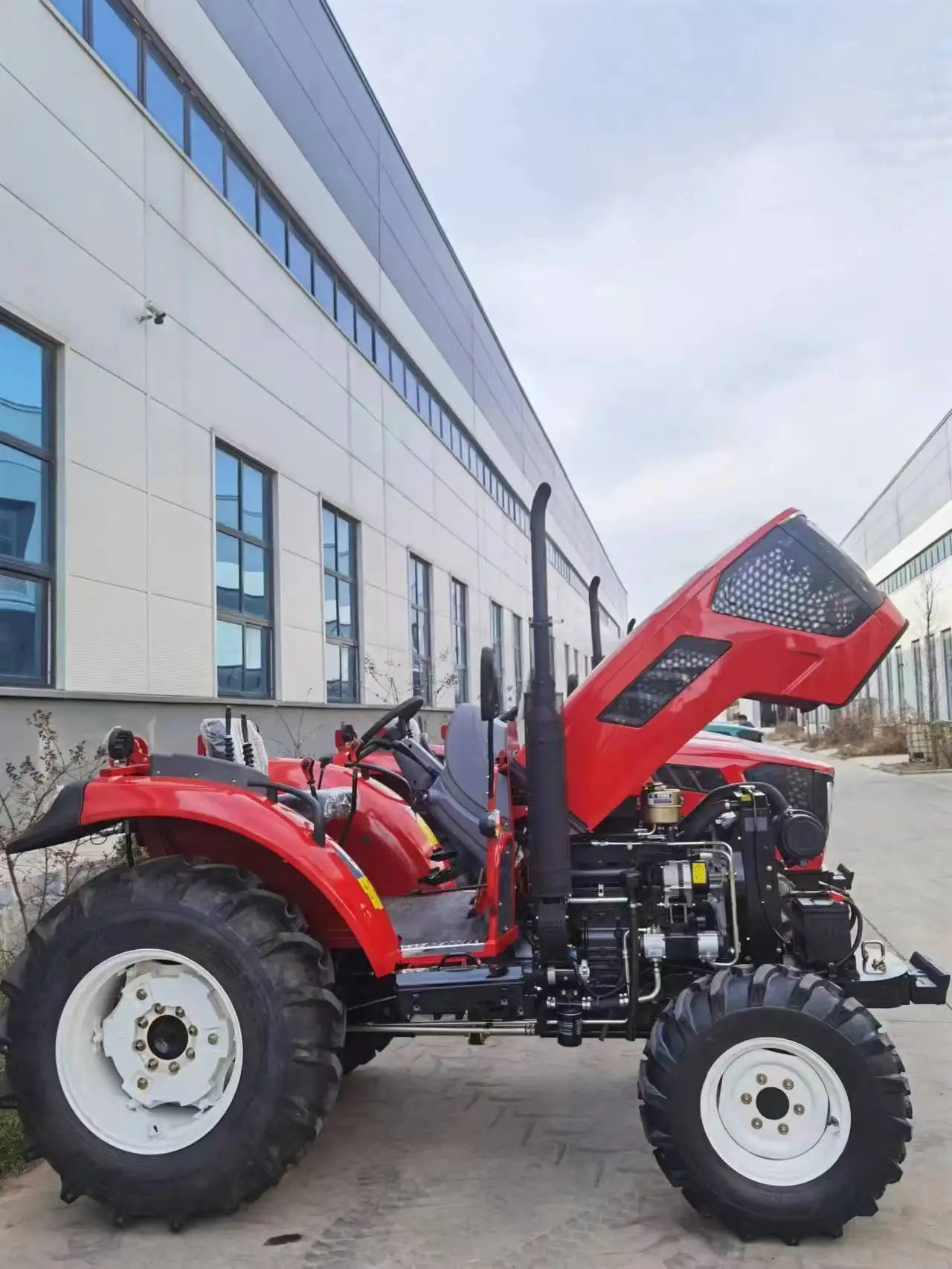

Details Images

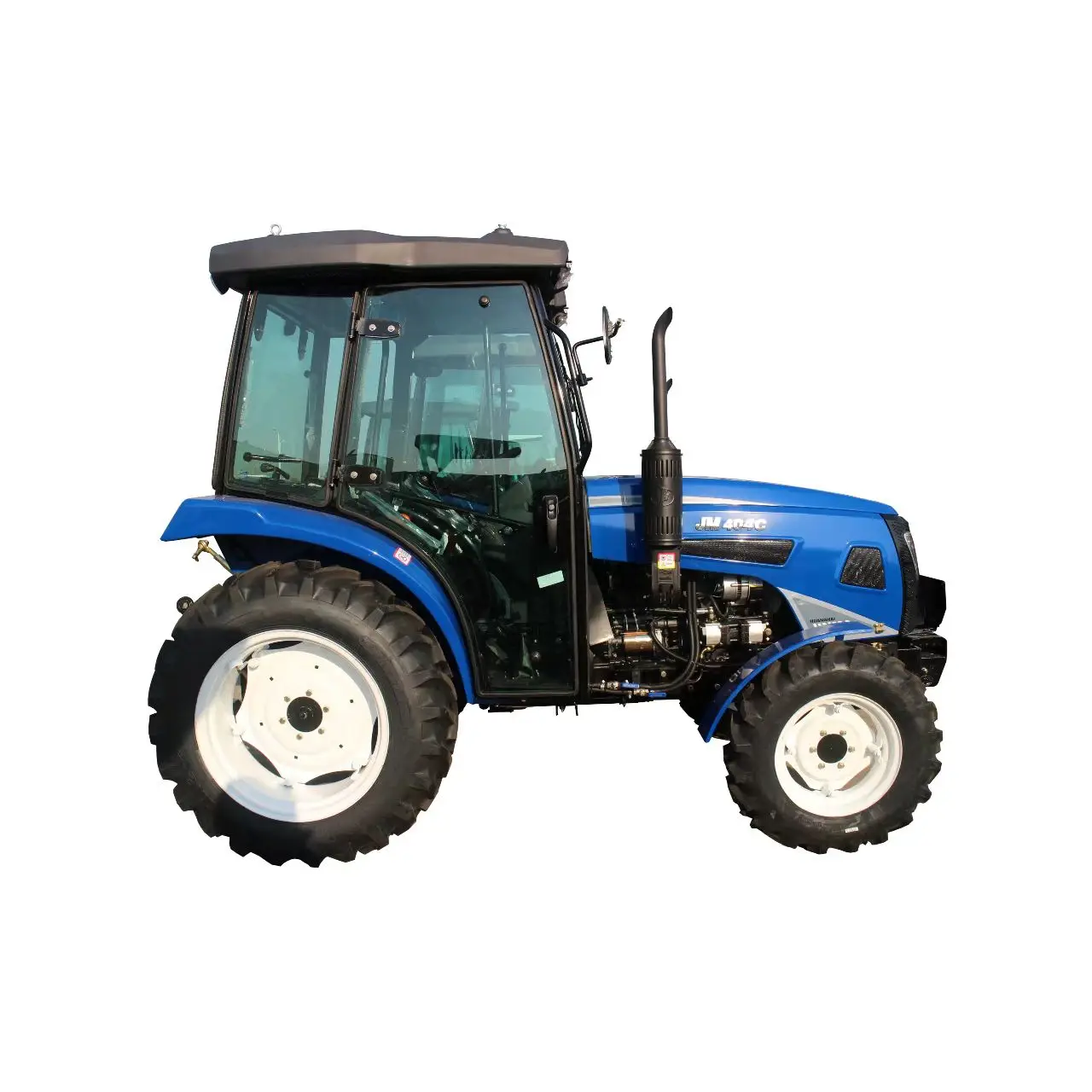

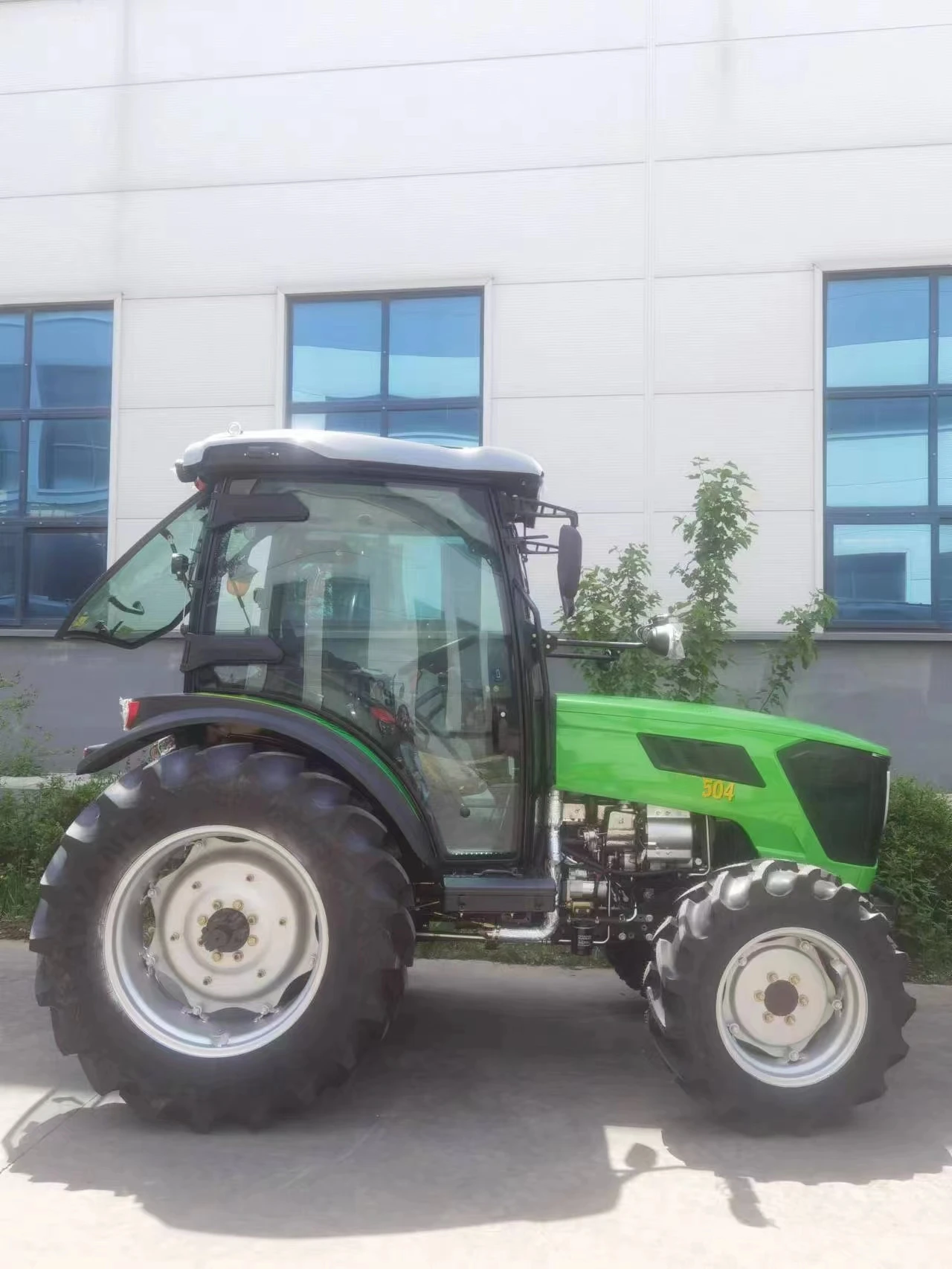

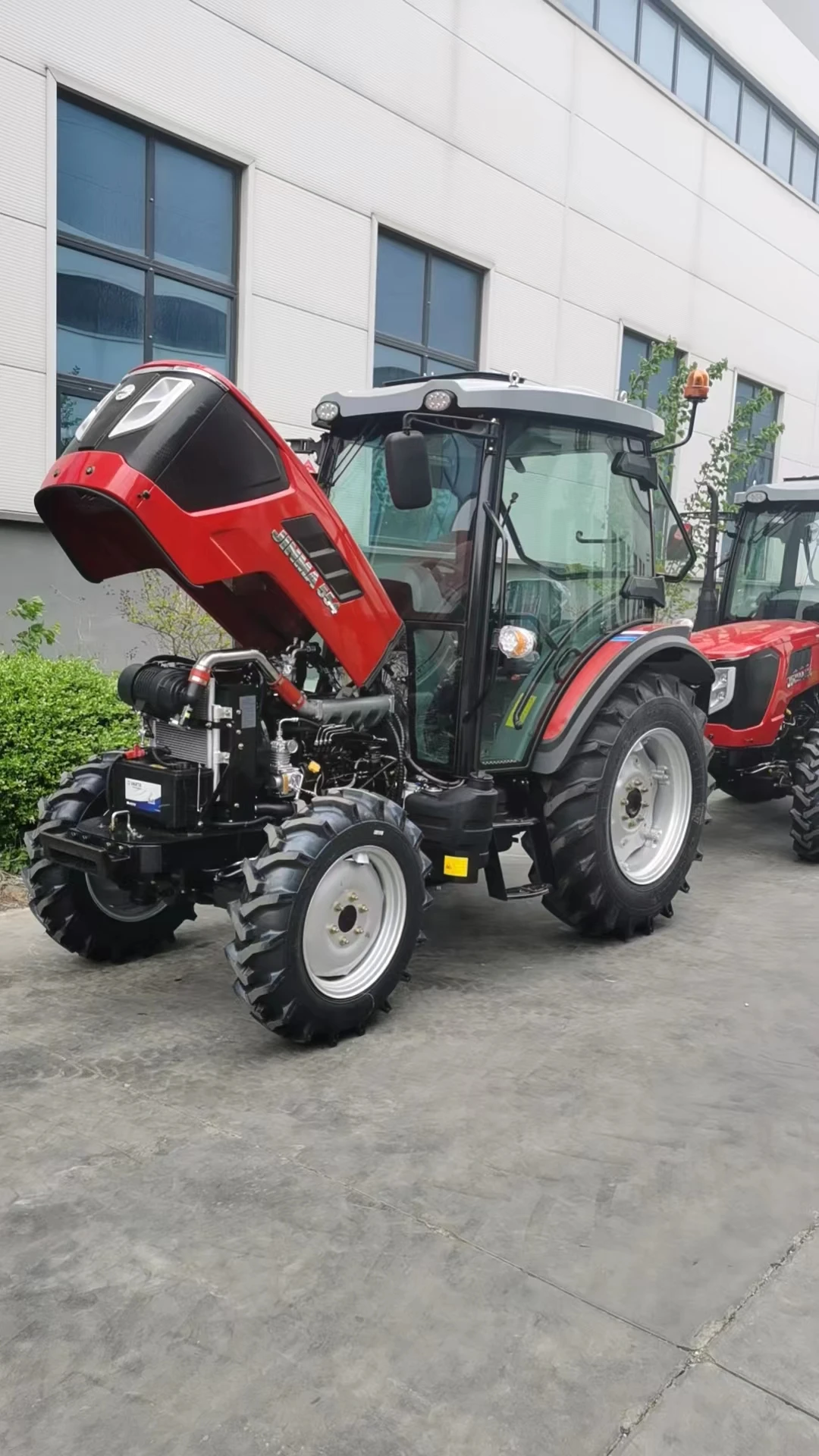

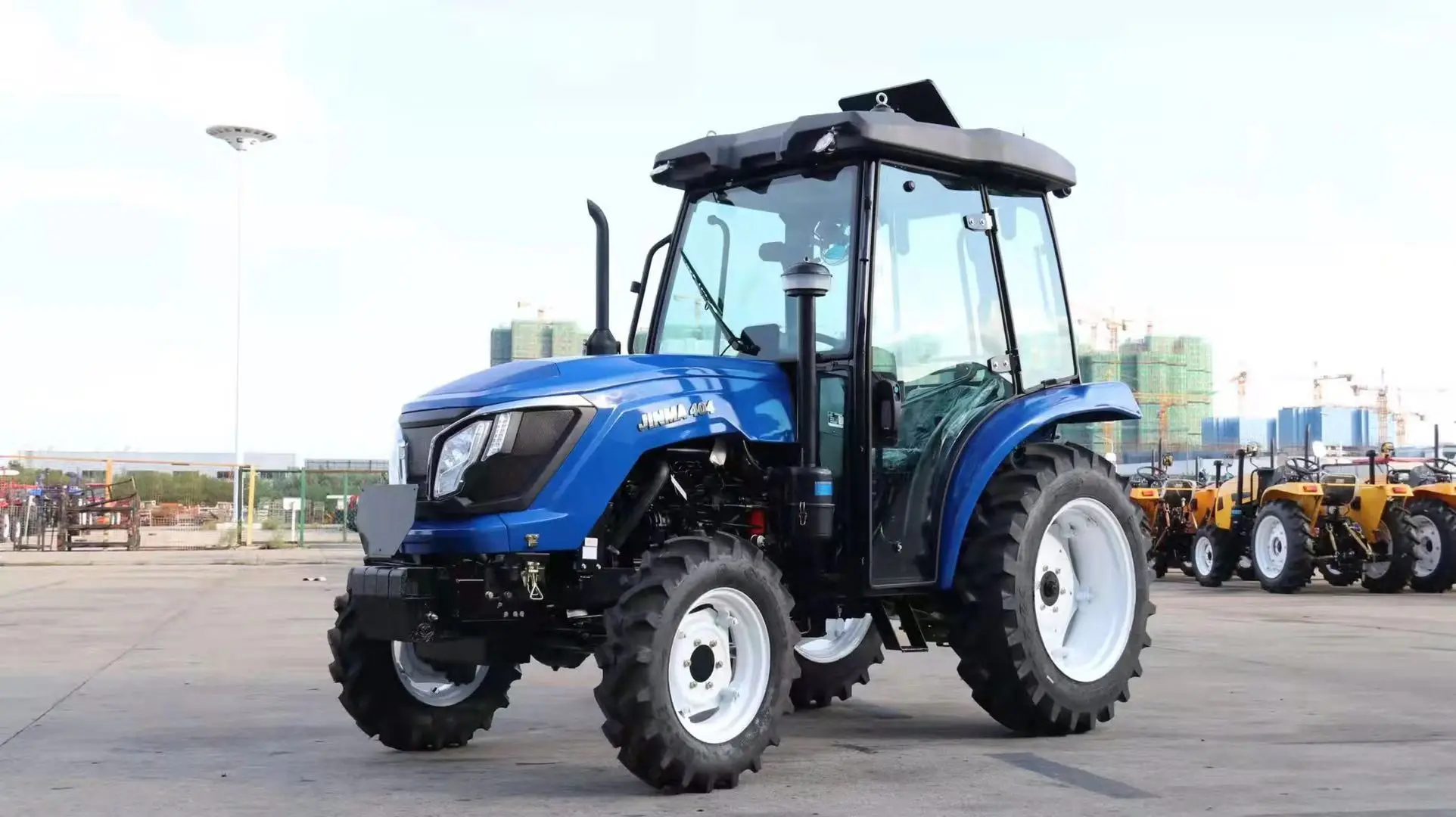

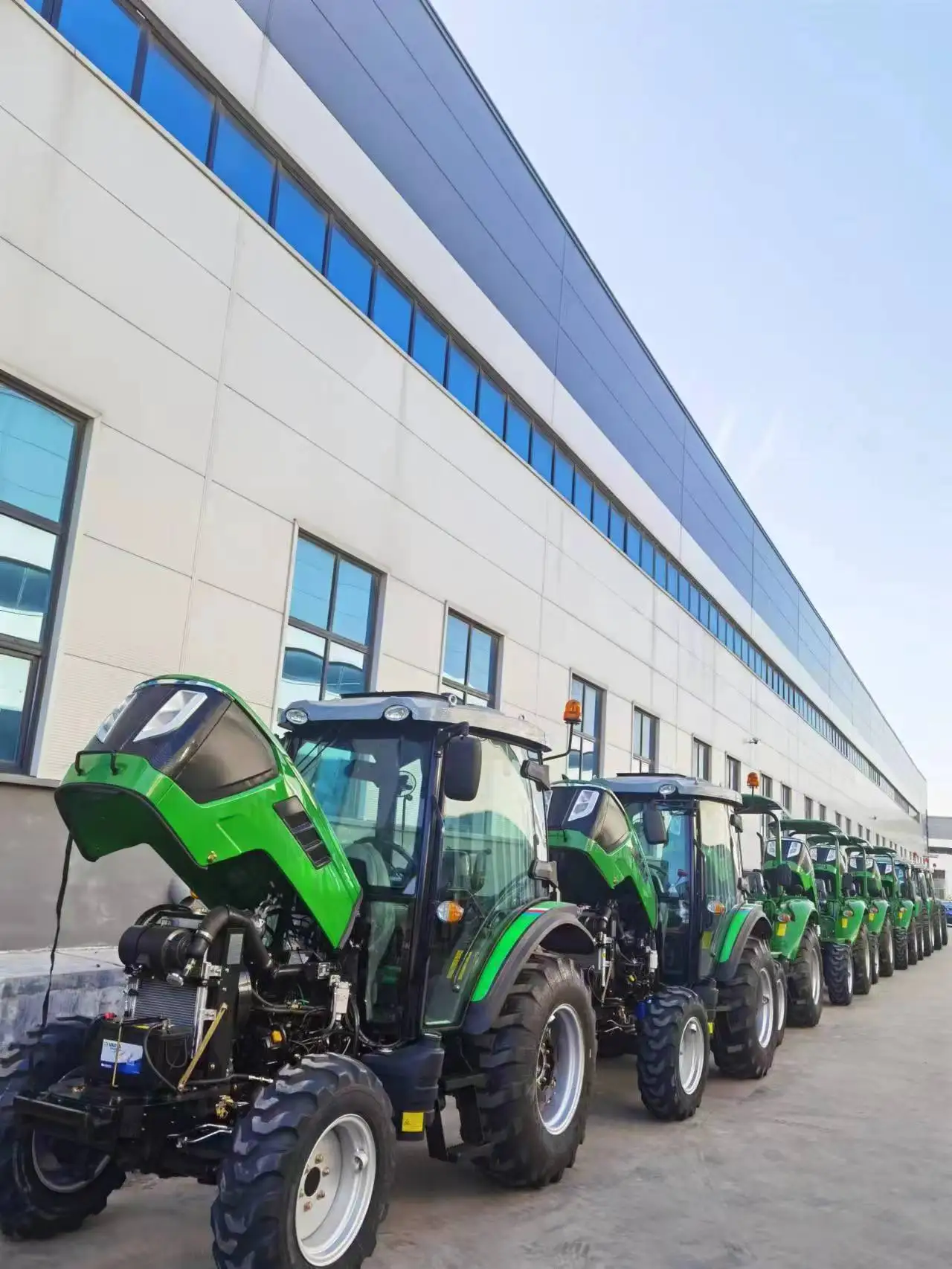

All our models are also offered with cab
TRACTORS SPECIFICATIONS
The nameplate of the tractor is installed on the side panel of the instrument panel
The steel stamp number of the tractor chassis is on the upper side of the left side of the transmission box.
The engine stamp number and the engine nameplate are on the right side of the diesel engine body
The front axle label is installed on the front right side of the front axle housing, with the name of the supplier and the drawing number of the front axle assembly on it.
clutch
Controls engine power transmission to drive wheels and PTO shaft. The clutch pedal is on the left front of the driver's seat.
Controls engine power transmission to drive wheels and PTO shaft. The clutch pedal is on the left front of the driver's seat.
service parking brake
Realize the deceleration of the tractor when walking and the inability to move when it is still.
The service brake pedal is on the right front of the right floor of the tractor, and the parking brake handle is placed next to the service brake pedal
Realize the deceleration of the tractor when walking and the inability to move when it is still.
The service brake pedal is on the right front of the right floor of the tractor, and the parking brake handle is placed next to the service brake pedal
Main and auxiliary gear lever
Control and change the speed and direction of the tractor, and stop for a short time.
The main and auxiliary gear levers are in front of the driver's seat.
Control and change the speed and direction of the tractor, and stop for a short time.
The main and auxiliary gear levers are in front of the driver's seat.
differential lock
Make the two rear drive wheels of the tractor run at the same speed. When a driving wheel slips severely and the tractor cannot move forward, put the differential lock on the low gear to make the tractor move forward.
The differential lock operating lever is arranged on the right side of the driver's seat of the tractor.
Make the two rear drive wheels of the tractor run at the same speed. When a driving wheel slips severely and the tractor cannot move forward, put the differential lock on the low gear to make the tractor move forward.
The differential lock operating lever is arranged on the right side of the driver's seat of the tractor.
READY FOR ALL TYPES OF WORKS
Company Profile
Equipped with a number of process equipment to ensure the assembly quality of the whole machine
50 meters long gearbox, rear axle load line
The 120-meter final assembly line ensures the production capacity and meets the production needs in peak season.
3000 square meters parts and accessories area
Full range of tractor accessoriesSpecializing in the production of tractor steel rims, large, medium and super large tractor steel rims, and automobile wheels, with a complete variety.
Excellent tire supplier, meeting various models and requirements
