Product Overview

Description

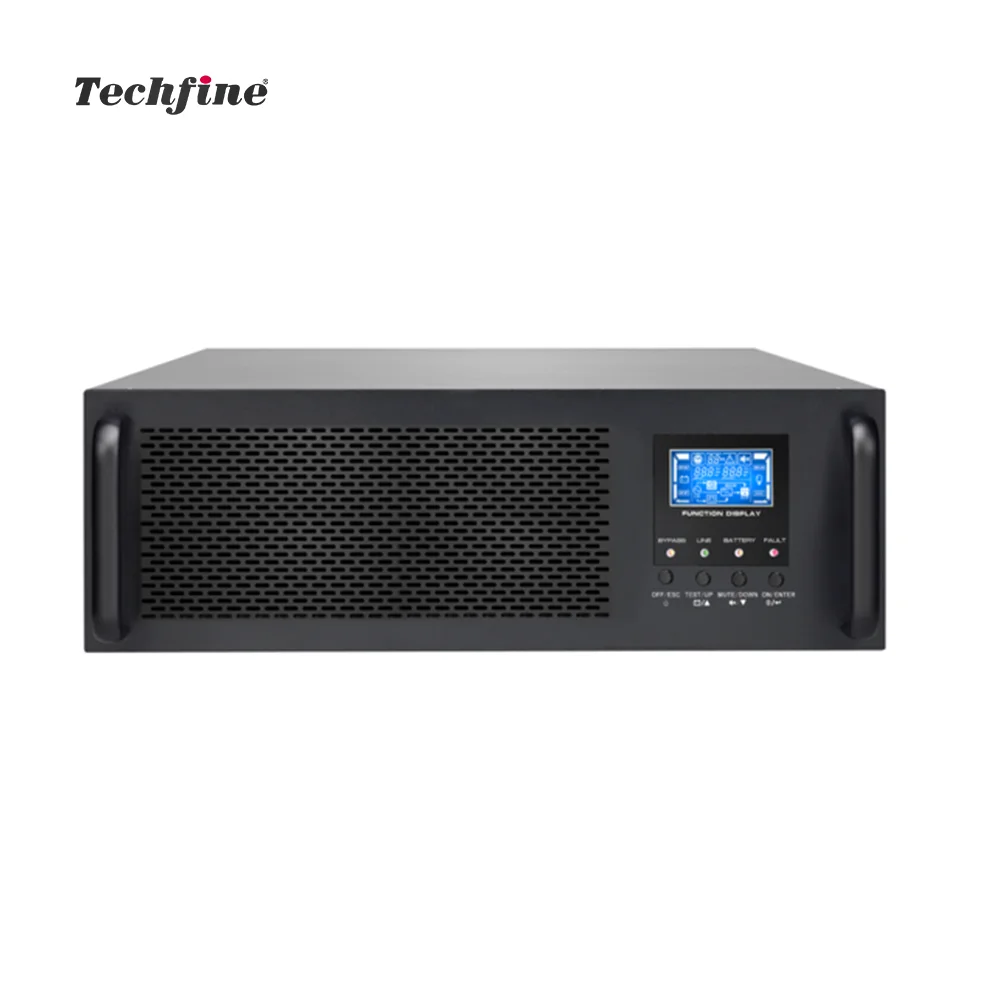

Factory direct 1kw 2kw 3kw 6kw 10kw Long Run rack mount online ups for server
Online high frequency UPS rackmount series


Model
CR1K (S)
CR2K (S)
CR3K (S)
CR6KS
CR10KS
Phase
Single-pahse to ground
Capacity
1000VA/1000W
2000VA/2000W
3000VA/3000W
6000VA/6000W
10000VA/10000W
Input
Rated voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
208/220/230/240VAC
Voltage Range
110-300VAC ±3% at 50% load
176-300VAC ±3% at 100% load
Frequency Range
40 ～60 Hz（50HZ system）/50 ～70 Hz（60HZ system）
Power Factor
100% load≧0.95
100% load≧0.97
100% load≧0.97
100% load≧0.99
Output
Output Voltage
220VAC±1%(208,220,230,240 adjustable)
Voltage Range (Batt. Mode)
± 1%
Frequency Range
47~53Hz or 57~63Hz
Frequency Range (Batt. Mode)
50 Hz/60 Hz ± 0.25 Hz
Current Crest Ratio
3:1
Voltage Distortion
≦ 3% THD (linear load),≦6% THD (nonlinear load)
Transfer Time
Utility to Battery
0ms
INV to Bypass
4 ms(standard)
Waveform (Batt. Mode)
Pure Sine Wave
Efficiency
Utility Mode
95.0%
Battery Mode
92.0%
94.8%
Battery
Standard Model Battery Model
12V / 9AH
/
Standard Model Battery Quantity
2
4
6
/
Standard Charging Time
Charge to 90% in 4 hours
/
Standard Model Charging Current
1.0A
/
Standard Model Charging Voltage
13.65*N( battery quantity)±1%
/
Long-run Model Battery Model
Depend on requirments
Long-run Model Battery Quantity
3
6
8
16-20（adjustable）
Long-run Model Charging Current
Preselect 6A (1~12A adjustable)
Long-run Model Charging Voltage
13.65*N( battery quantity)±1%
Indicators
LCD display
Load,Battery capacity,AC mode,Battery Mode,Bypass Mode,Fault indication
Alarm
Batt. Mode
Alarm beeps every four seconds
Low battery
Alarm beeps every second
Overload
Alarm beeps every second
Fault
Alarm beeps continuously
Working Environment
Temperature & Humidity
Relative humidity 20-90% and temperature 0-40(no condensation)
Relative humidity 0-95% and temperature 0-40 (no condensation)
Acoustic noise
at 1 meter distance
<50dBA
<55dBA
< 58dBA
Management
Smart RS-232
support Windows® 2000/2003/XP/Vista/2008,Windows®2008/7/8, Linux ,MAC
Dimension
Standard Model Dimension(mm)
310*438*88（2U）
380*438*88（2U）
506*438*88（2U）
/
Long Run Model Dimension(mm)
380*438*88（2U）
380*438*88（2U）
380*438*88(2U)
580*438*133（3U）
