PM18 AC DC Voltmeter NCV Live line Test Hand held Digital Multimeter Capacitance multimetro True RMS Ampere meter
- Category: >>>
- Supplier: Guilin Huayi Peakmeter Technology Co. Ltd.
Share on (1600862996342):
Product Overview
Description
Product Description
Product Name | PM18 AC DC Voltmeter NCV Live line Test Hand-held Digital Multimeter |
Function | current/voltage/resistance/continuity measurement |
Package | standard color box/ customized color box |

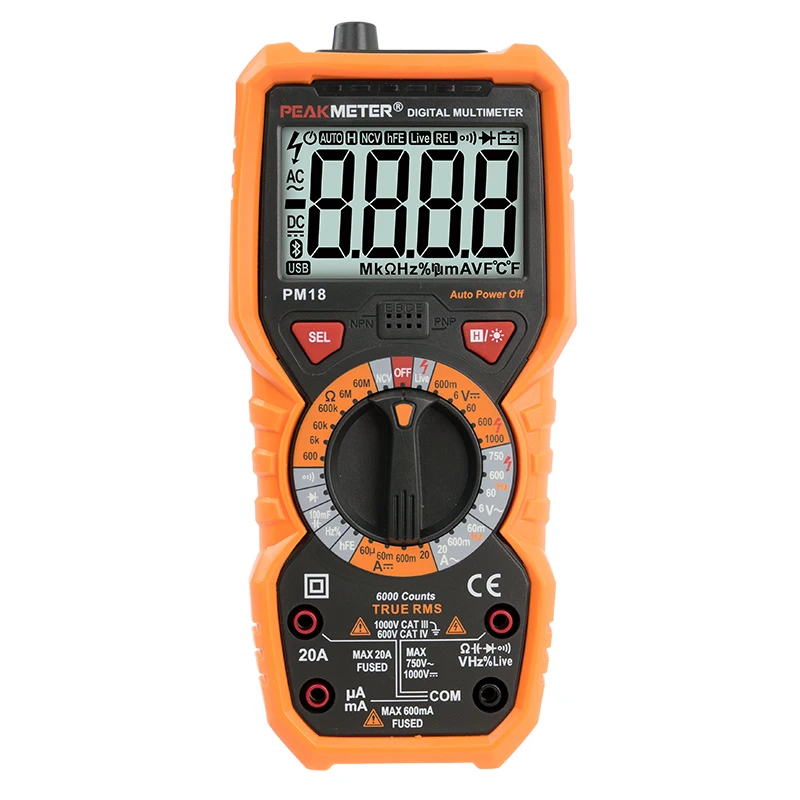

PM18 is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that the user can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. Either for professionals, factories, schools, enthusiasts or households, it is an ideal multi-functional meter.
Product Paramenters
Specification | Range | Accuracy | ||
DC Voltage | 600mV/6V/60V/600V | ±(0.5%+3) | ||
1000V | ±(0.5%+3) | |||
AC Voltage | 6V/60V | ±(0.8%+3) | ||
600V/750V | ±(1%+10) | |||
DC Current | 60uA/60mA/600mA | ±(0.8%+3) | ||
20A | ±(1.2%+3) | |||
AC Current | 60mA/600mA | ±(1%+3) | ||
20A | ±(1.5%+3) | |||
Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | ±(1%+3) | ||
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(0.8%+3) | ||
60MΩ | ±(1.2%+30) | |||
Capacitance | 6nF | ±(4.0%+30) | ||
60nF/600nF/6uF/60uF/600uF/6mF | ±(4.0%+3) | |||
100mF | ±(5.0%+3) | |||
Feature | ||||
Display | 6000 counts | |||
Transistor | √ | |||
Continuity test | √ | |||
Diode Test | √ | |||
Data Hold | √ | |||
Back Light | √ | |||
NCV | √ | |||
Live Line Test | √ | |||
Auto Power Off | √ | |||
General | ||||
Power | 4*1.5V AA Battery | |||
Size | 190mm*89mm*50mm | |||
Weight | Approx 380g | |||
Safety Rating | EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V | |||
