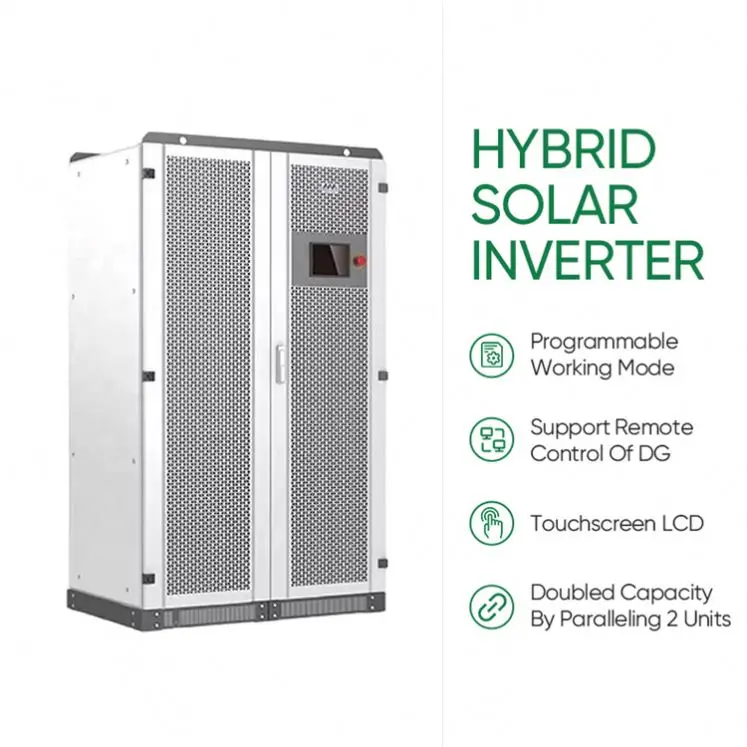

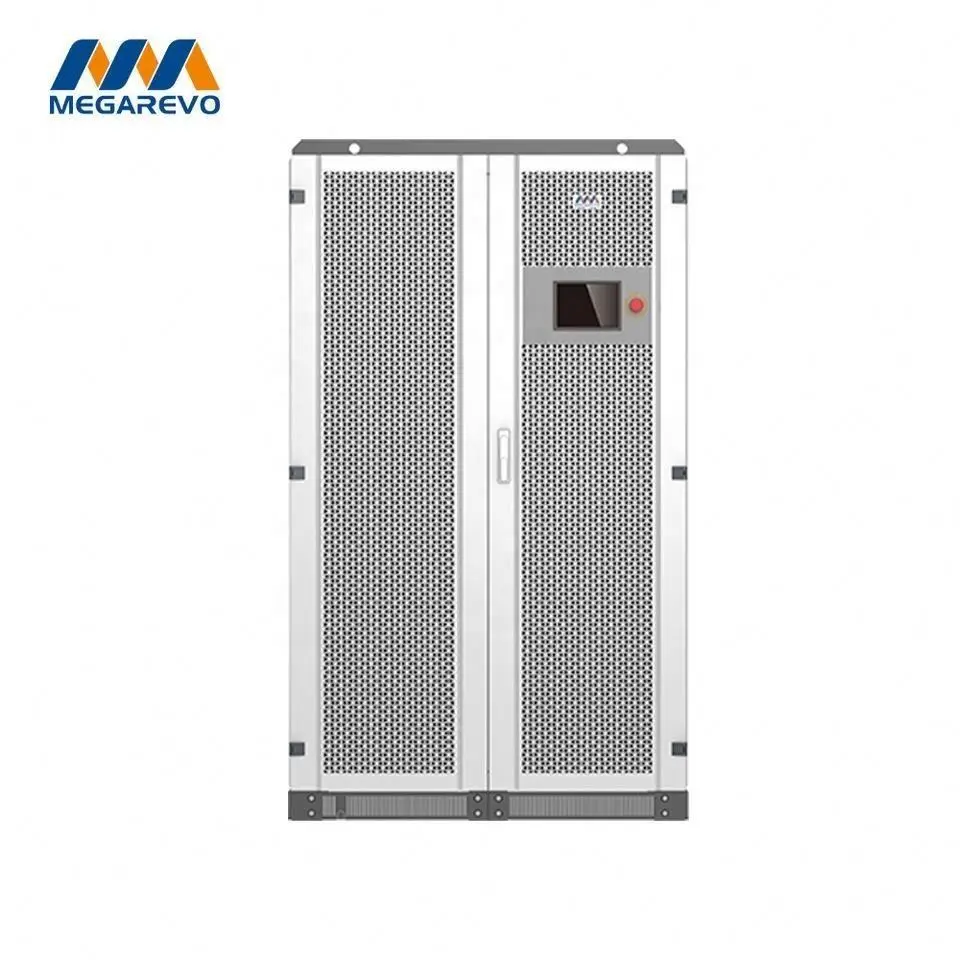

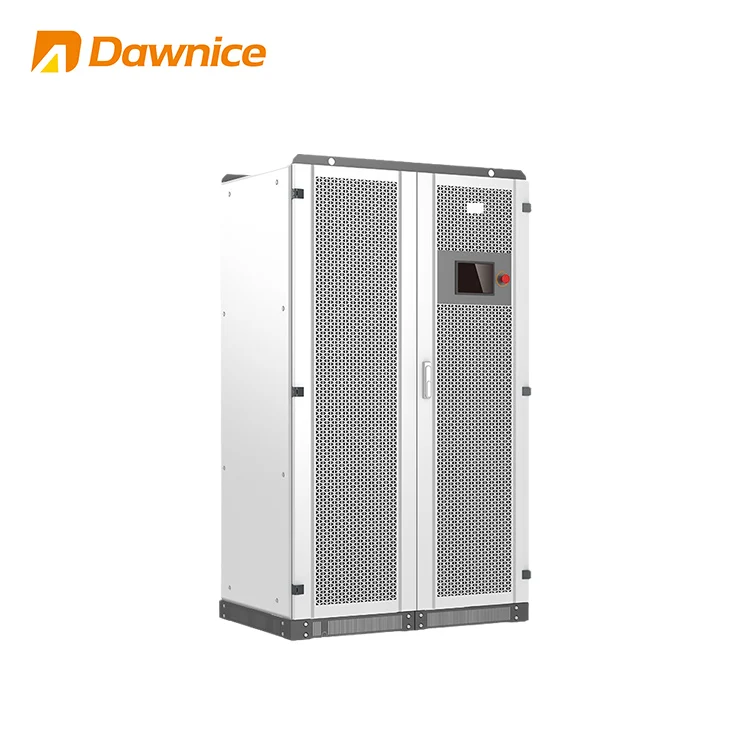

Dawnice 500kw 600kw 700kw 800kw Hybrid Solar Inverter1000kw 1000 KW Solar System PCS Power Conversion System Price With Bypass
- Category: >>>
- Supplier: Yichun Dawnice Manufacture & Trade Co. Ltd.
Share on (1600863217864):
Product Overview
Description
Product Details
Energy Storage Hybrid Inverter (High Battery Voltage)
1.Flexible
* Various working modes can be set flexibly.
* Flexible Battery Type(li-ion,lead-acid).
* PV controller can be expanded to facilitate flexible configuration of photovoltaic capacity.
2.Convenient

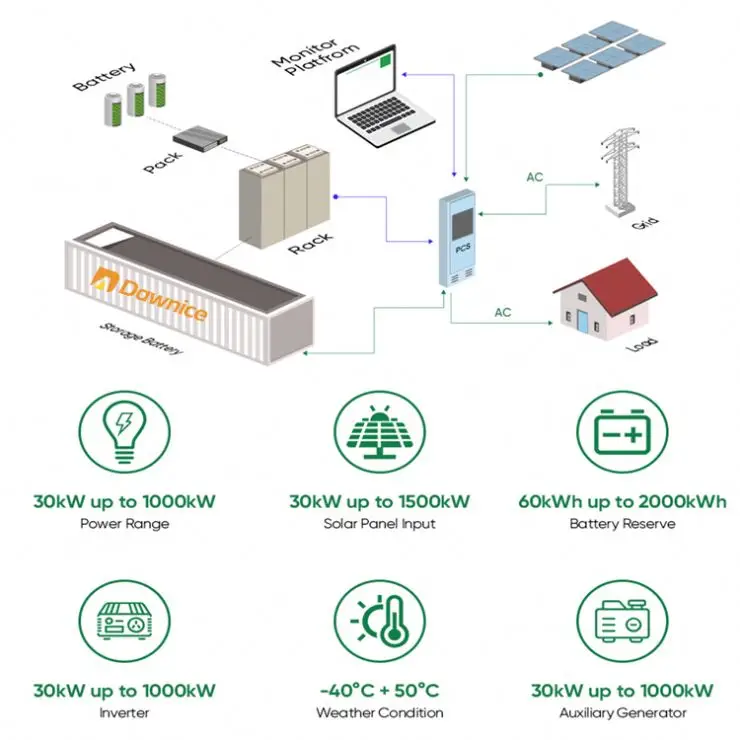

* Integrated design to support loads, batteries,power grids,diesel generators and PV be connected.
* Integrated EMS function, power supply security and stability,maximum utilization of new energy
3.Reliable
* Prediction intelligent battery management and discharge time.
* CAN and RS485 communication interface, modbus protocol.
* Seamless transfer between on and off grid.
* Strong load adaptability.
* Perfect protection function to protect inverters and batteries.
* Various working modes can be set flexibly.
* Flexible Battery Type(li-ion,lead-acid).
* PV controller can be expanded to facilitate flexible configuration of photovoltaic capacity.
2.Convenient
* Integrated design to support loads, batteries,power grids,diesel generators and PV be connected.
* Integrated EMS function, power supply security and stability,maximum utilization of new energy
3.Reliable
* Prediction intelligent battery management and discharge time.
* CAN and RS485 communication interface, modbus protocol.
* Seamless transfer between on and off grid.
* Strong load adaptability.
* Perfect protection function to protect inverters and batteries.

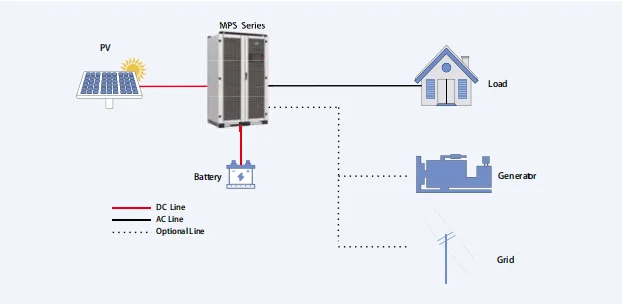

Application
Model | MPS0030 | MPS0050 | MPS0100 | MPS0150 | MPS0250 | MPS0500 | ||||||
AC(grid-connected) | ||||||||||||
Rated power | 30kW | 50kw | 100kw | 150kw | 250kw | 500kW | ||||||
Rated current | 43A | 72A | 144A | 217A | 361A | 722A | ||||||
Voltage range | 320V-460V | |||||||||||
Rated frequency | 50/60Hz | |||||||||||
Frequency range | 45-55/55-65Hz | |||||||||||
THDI | <3% | |||||||||||
PF | 0.8lagging-0.8leading | |||||||||||
AC connection | 3W+N+PE | |||||||||||
Transformer | Yes | |||||||||||
AC(off-grid) | ||||||||||||
Apparent power | 33KVA | 55KVA | 110KVA | 165KVA | 275KVA | 550KVA | ||||||
Rated power | 50KW | 50KW | 100KW | 150KW | 250KW | 500KW | ||||||
Rated Voltage | 400V | |||||||||||
Rated Current | 43A | 72A | 144A | 217A | 361A | 722A | ||||||
THDU | ≤ 2% linear | |||||||||||
Rated frequency | 50/60Hz | |||||||||||
Overload capability | 110%-10min120%-1min | |||||||||||
PV | ||||||||||||
Max. PV open-circuit voltage | 1000VDC | |||||||||||
Max Power | 60/120KW | 120/180/240KW | 300/360KW | 600/660/720KW | ||||||||
PV MPPT Voltage Range | 220-850V | |||||||||||
MPPT Number | 1/2 | 2/3/4 | 5/6 | 10/11/12 | ||||||||
Battery | ||||||||||||
Battery Voltage | 150V-850V | 420V-850V | 500V-850V | |||||||||
Battery Full Loading Operation Volaage Range | 150V-850V | 420V-850V | 500V-850V | |||||||||
General data | ||||||||||||
Dimension(WXDXH) | 800X800X1900mm | 1200X800X2050mm | 1800X800X2050mm | 2800X800X2050mm | ||||||||
Weight | 440kg | 620kg | 900kg | 1250kg | 1700kg | 3520kg | ||||||
Environmental temperature | -25ºC~+55ºC | |||||||||||
Relative humidity | 0-95%non-condensing | |||||||||||
Protection degree | IP20 | |||||||||||
Noise emission | 75dB(A)@1m | |||||||||||
Max.imum altitude | 5000m(derate over 3000m) | |||||||||||
Cooling | Forced-air | |||||||||||
Communication | ||||||||||||
Display | Touch screen LCD | |||||||||||
Communication interface | RS485/CAN | |||||||||||
