Vacuum Dehydration Degasificaton Transformer Oil Filtering Machine
- Category: >>>
- Supplier: Xinxiang North Filter Co. Ltd.Xinxiang Ltd.
Share on (1600863246151):
Product Overview
Description
Product Description
|
Product Description

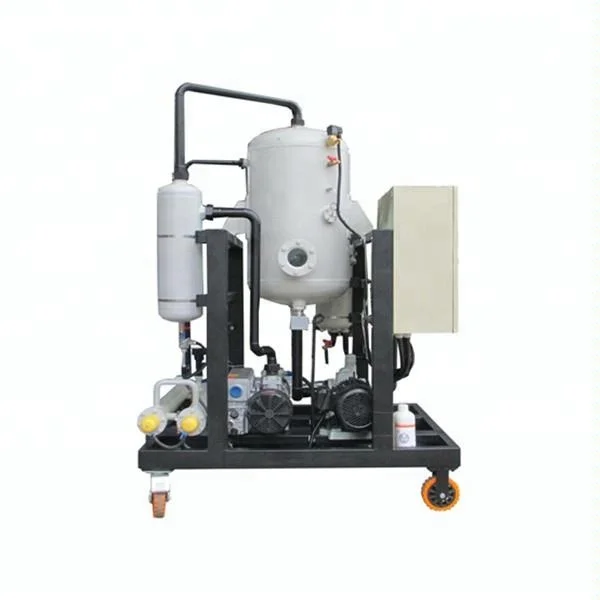

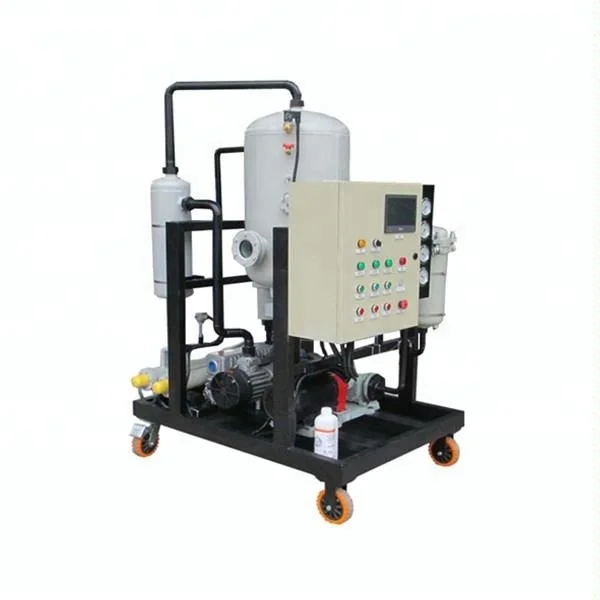

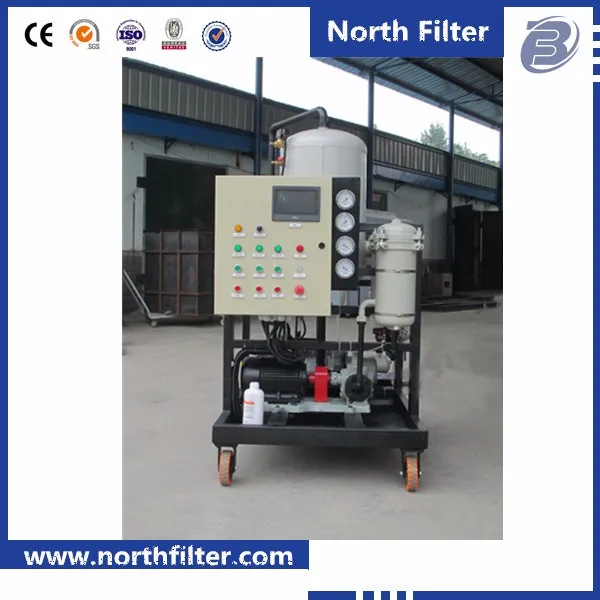

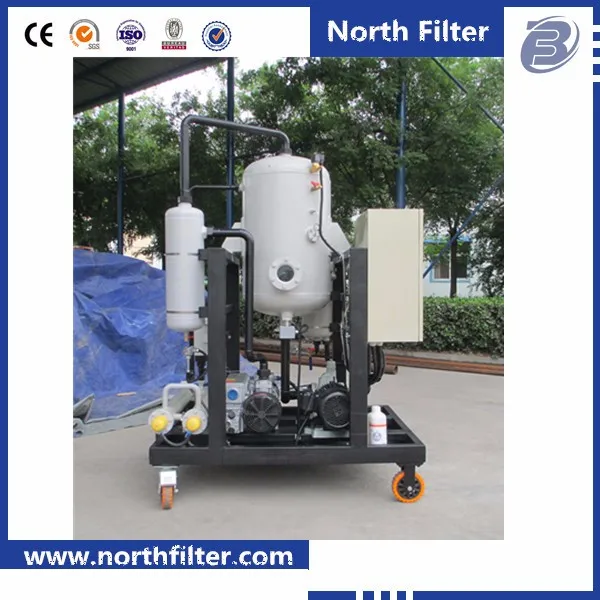

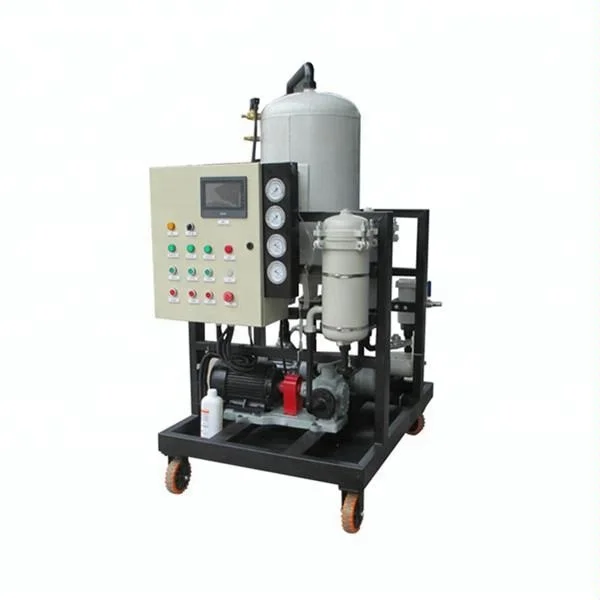

LYC-Z Series Movable Vacuum Oil Purifier Recycling Machine
Vacuum oil filtration equipment is one of the new generation oil purifying series, researched on the basis of the technology in domestic and oversea. It can remove the air, water and mechanical impurity from oil so as to meet the oil operation standard. Also, it operates simply.
| Working principle | The vacuum oil filtration equipment researched by our company has the function of precision filtration and efficient dehydration, removing the particles , emulsion water and free water effectively. 1. Particles Filtration System Particles filtration system adopts the way of preventing particles to filter. The elements adopt the metal knit mesh and micro glass fiber paper as the material with the features of high precision filtration, large capacity of the pollution and long service time. The device filters in three steps: absorption filter elements (120micro), high efficiency pre filter elements (20micro), high efficiency and precision filtration (3micro). 2. Vaccum Hydroextraction System Different saturated vapor pressure in different liquid. In 70ºC, the water will boil in the pressure of about 3X104Pa,but oil will boil under 5Pa.In the same temperature,the saturated vapor pressure of oil is much lower than water. So, when the oil liquid surface pressure is lowered under the saturated vapor pressure by the way of vacuum, the moisture existing in oil will be changed extremely, and escape from the oil as steam. According to the vacuum absorption, oil liquid runs into the vacuum box and spray down. The moisture existing in oil liquid is changed to be steam in the vacuum room and drew out by the vacuum pump, the oil liquid without moisture escape from the bottom. In the vacuum room, there are materials which is in harmony with oil. When the oil liquid sprays in the vacuum room, the oil form a film in the surface of the material, enlarge the area of the steam and liquid, prolong the time of delay time of oil liquid in the space. The efficiency of vacuum hydro extraction has relation with the working stable vacuum and the temperature of the oil liquid. Lower vacuum class and higher temperature result in better efficiency. Oil temperature is about 60ºC, if the oil temperature is too high, it will accelerated the oxidation of the oil liquid. For the hydraulic oil, working stable vacuum is about 600~700Pa, which can reduce the moisture to be under 100ppm. For the transformer insulating oil, it can adopts higher working vacuum class, the moisture existing in water could be under 10ppm. It can remove variety moisture ,air and volatile matter in oil effectively. |
| Working Process | The dirty oil runs into the system from the entrance ball valves under negative pressure, go through the absorption oil filter to remove the coarse particles to protect the pump, then heated by the heaters step by step to a permanent temperature controlled by the automatic temperature control unit ,comes to the vacuum separator to fall down by the allotter. It forms a oil film by he packing material, and the moisture and air in the oil liquid are boiled out of the vacuum environment, making the separation of oil and water. Most of the steam runs into the steam trap to be water, and the rest escape out of the vacuum pump together with the volatile air. The oil liquid without moisture runs out of the oil drain pump, filtered by two steps high precision for the delicate particles, and drain our from the oil pump to finish a working recycling. |
Performances & Technology Parameter:
1. Performance: emulsification, degassing, dehydration, purify the mechanical impurity.
2. Applicable scope: medium and low viscosity hydraulic oil and lubricating oil.
| Model | ZLYC-30-*/** | ZLYC-50-*/** | ZLYC-100J-*/** | ZLYC-200J-*/** |
| Rated flow L/min | 30 | 50 | 100 | 200 |
| Rated pressure MPa | 0.6 | |||
| Working vacuum Pa | ≤ -0.095 | |||
| Water content after filtration ppm | 5~30 | |||
| Gas content after filtration (Volume ratio) | ≤0.2% | |||
| Precision filtration μm | 3,5,10 | |||
| Acid number mgKOH/g | ≤0.03 | |||
| Total power kw | 26 | 36 | 65 | 135 |
| Voltage V | AC 380V 3 Phase | |||
| Weight kg | 560 | 680 | 960 | 1500 |

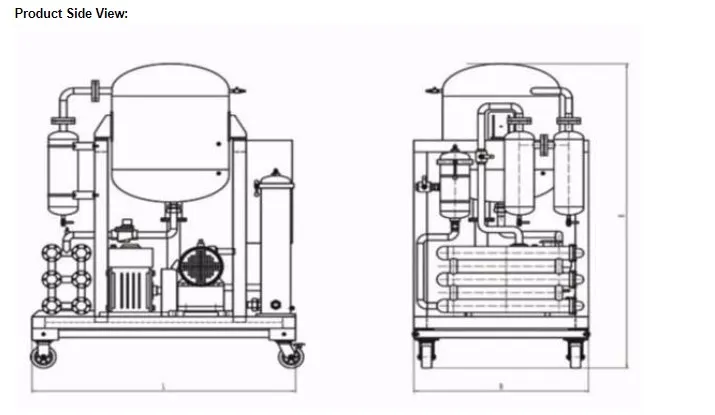

| Overall dimension | 1500*980*1600 | 1600*980*1800 | 1800*1080*2000 | 2200*1200*2200 |
Packaging & Shipping
Company Information

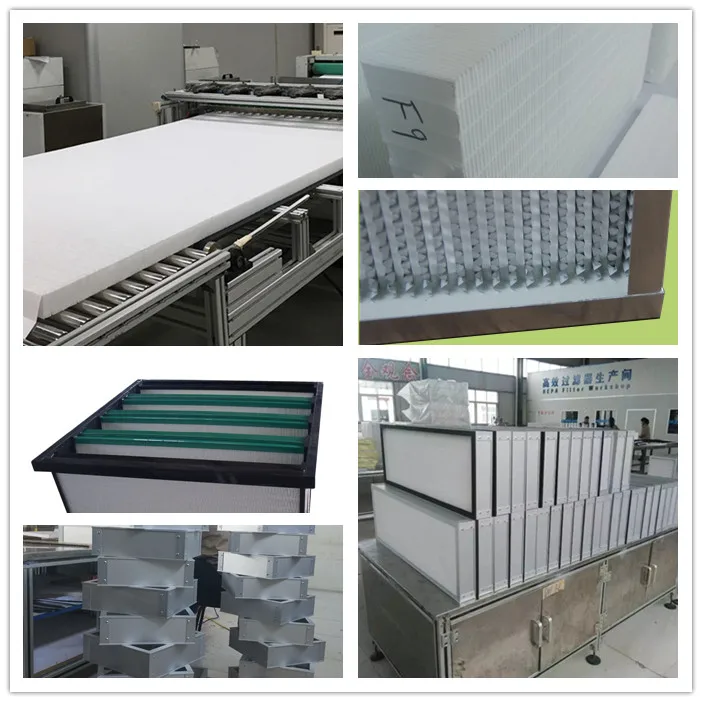

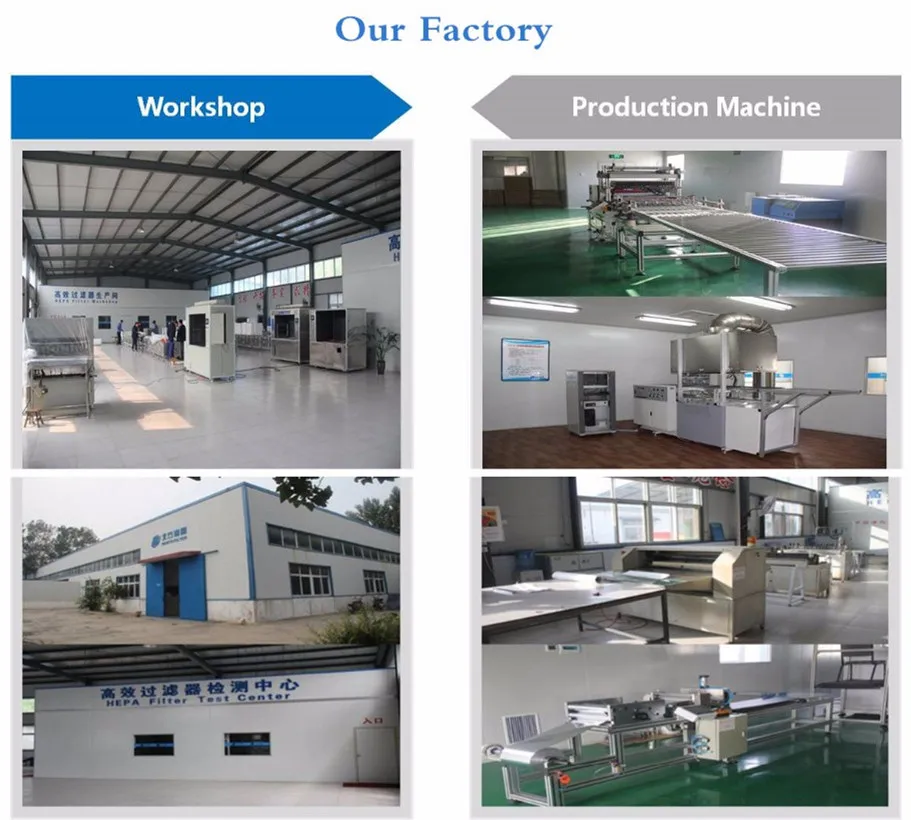

Our company is a professional manufacturer of various filters,especially air filter for purifying of the air for power plant and the cleaning system. We are a high technology enterprise in China. Our main products include: SYF series high-efficiency water-oil separation devices, high-accuracy water filters, prime/mid/high-efficiency air filters, (FFU) series high-efficiency air flow units, wound filters, large-flowing elimination filters, high/mid/low-pressure hydraulic oil filters, high-accuracy oil purifiers, oil filtration equipment, and filters and filtration equipment for chemical industry. Our company has advanced machines and 30 types of testing equipment. We have advanced air filters lines without clapboard and a 500-square-meter cleaning room for thousands of grade filtration. All the air filters will be processed and assembled in the cleaning room. We will test each filter in order to offer high-quality products to our clients. We would like to cooperate with clients both at home and abroad! Welcome to our company for supervision and visiting!
MP/WECHAT/WHATSAPP:0086-18603801112 Yuki-Donna yukifu12@@qq/163.com
Our Services
1. who are we?
We are based in Henan, China, start from 2000,sell to Domestic Market(60.00%),North America(10.00%),Southeast Asia(8.00%),Western Europe(5.00%),South Asia(3.00%),South America(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Mid East(2.00%),Central America(1.00%),Northern Europe(1.00%),Africa(1.00%),Eastern Europe(1.00%),Southern Europe(0.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Filter, Air Filtration Equipment, Water Filter, Oil Water Separator, Oil Purifier
4. why should you buy from us not from other suppliers?
1.complete and strict testing process, 2.third-party test report is avaliable. 3.OEM and samples are also can be offered. 4.More than 16 years manufacturing experience 5.Clients are all over the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Certifications
Exhibition

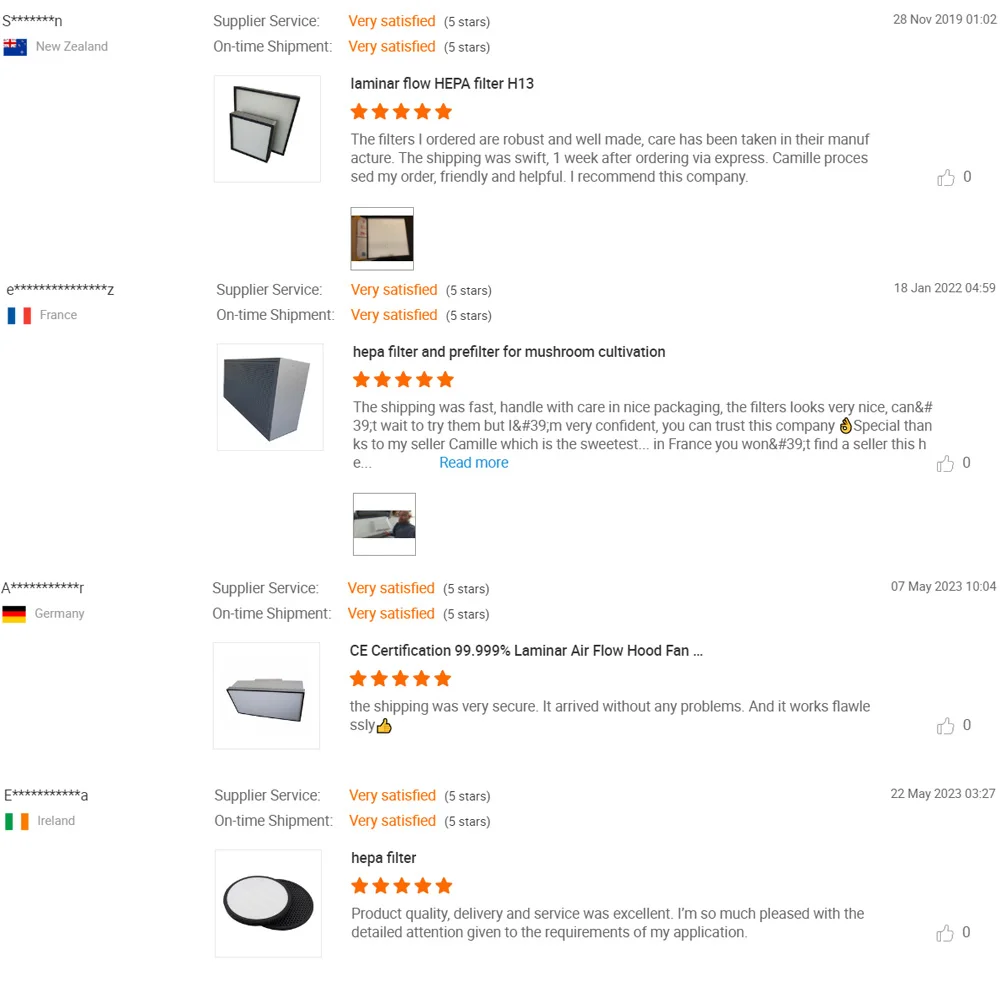

Customer praise
