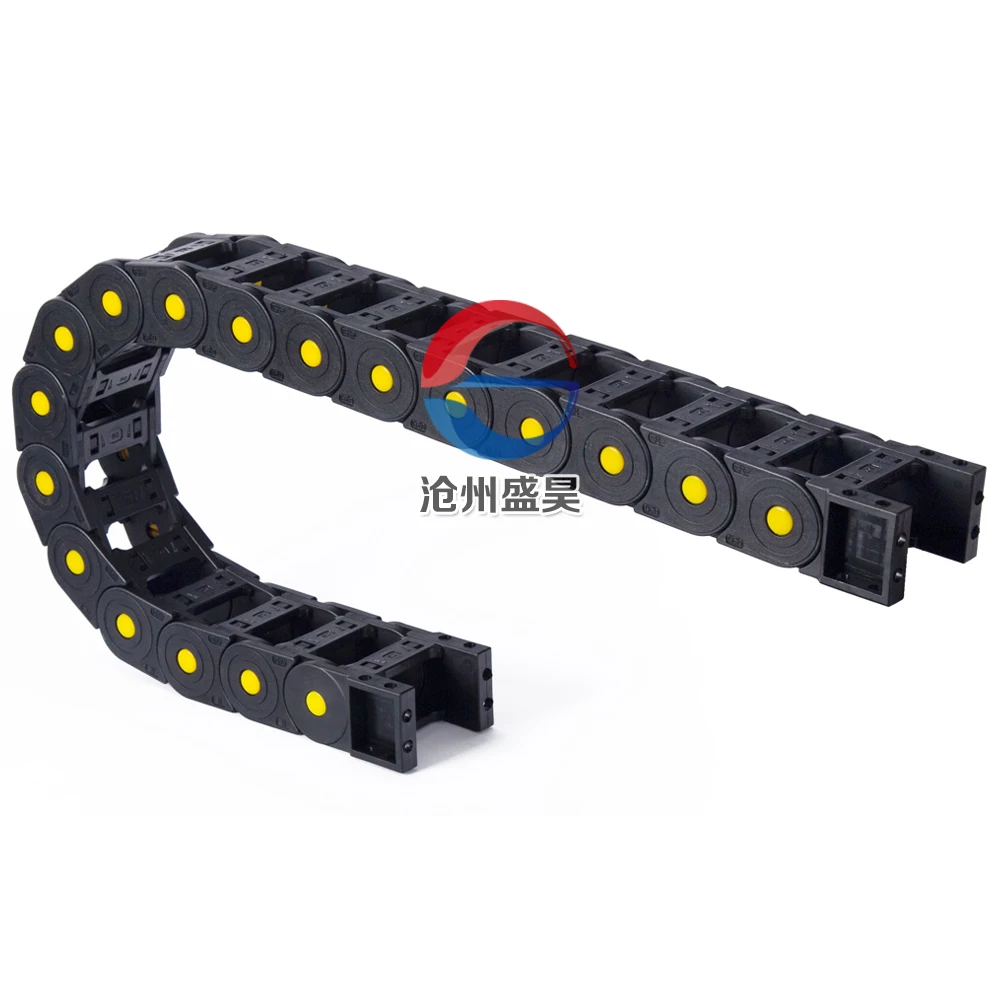

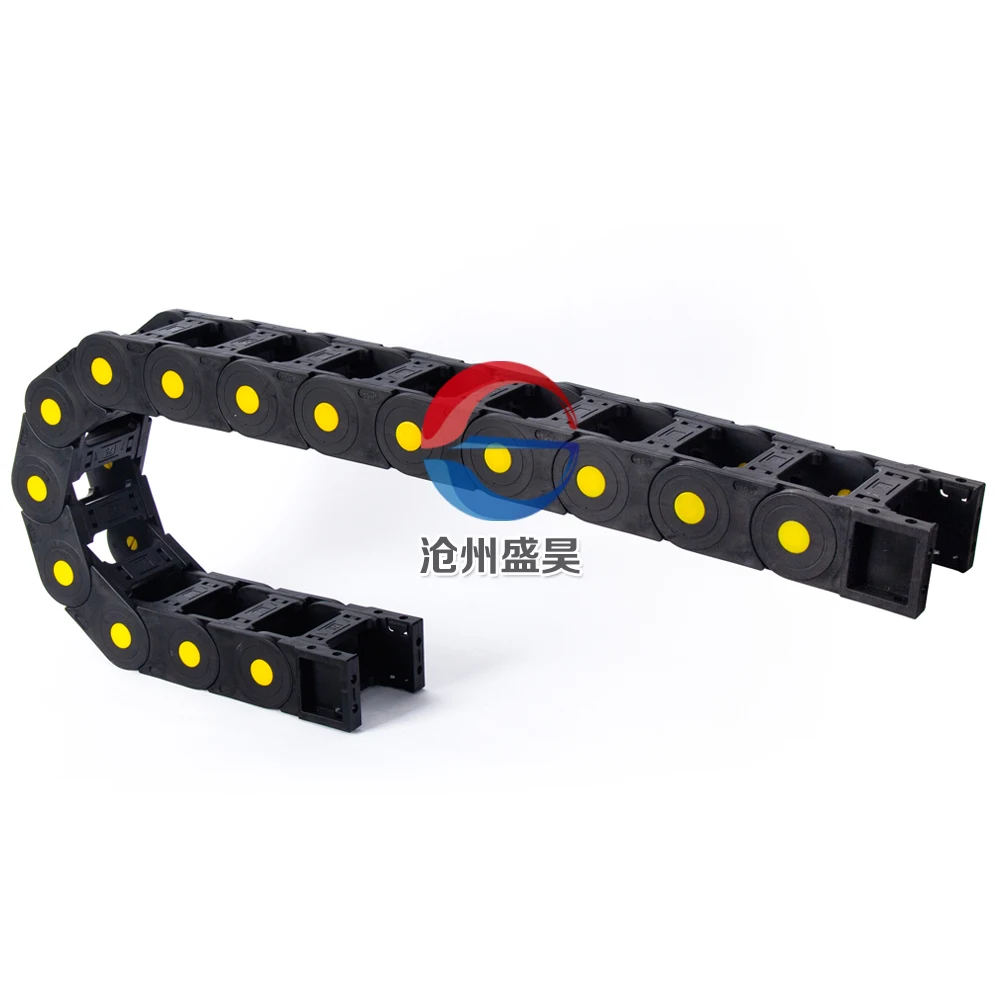

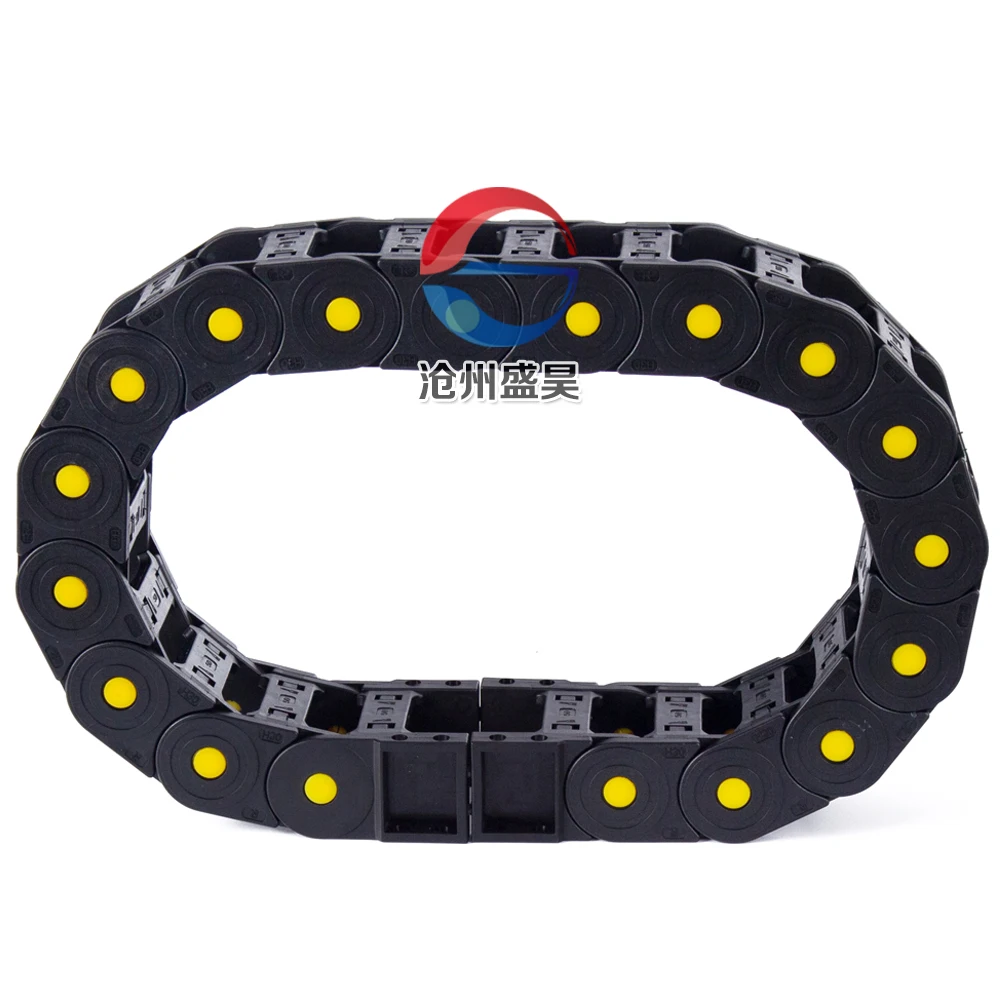

Bridge type flexible nylon machine tool plastic drag chain to CNC
- Category: >>>
- Supplier: Cangzhou Shenghao Machine Tool Accessories Co. Ltd.
Share on (1600863302091):
Product Overview
Description
Product Description

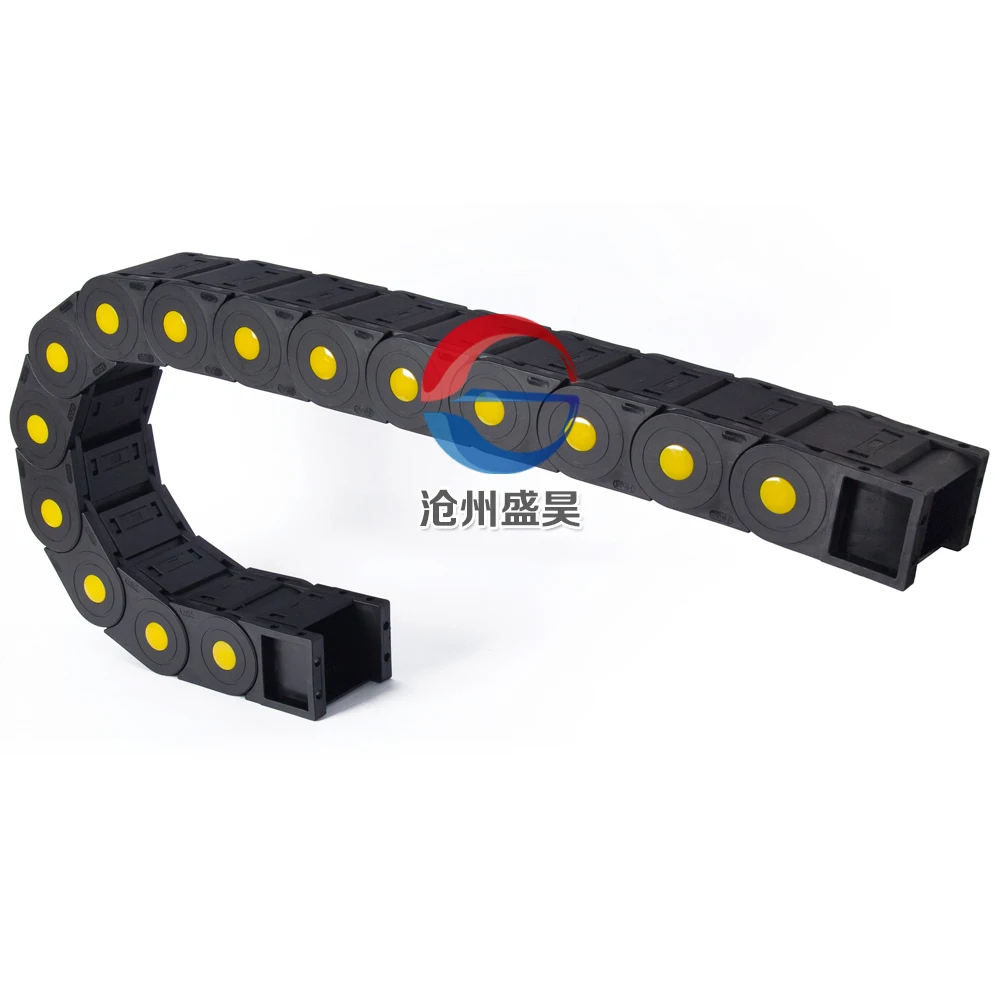

According to the structure, Bridge type flexible nylon machine tool plastic drag chain to CNC can be divided into bridge plastic drag chain and fully enclosed plastic drag chain;
According to the model, Bridge type flexible nylon machine tool plastic drag chain to CNC is divided into small drag chain, general drag chain and large drag chain;
According to the noise coefficient, Bridge type flexible nylon machine tool plastic drag chain to CNC can be divided into ordinary towline and silent towline;
According to the form, it can be divided into ordinary drag chains, parallel drag chains, and S-type drag chains;
According to raw materials, it is divided into original packaging plastics and recycled plastics, etc.

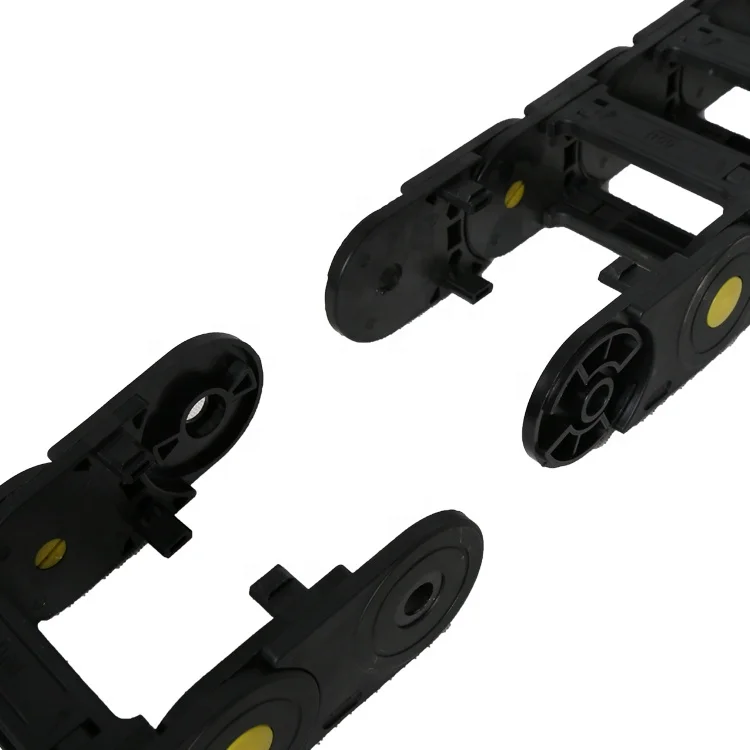

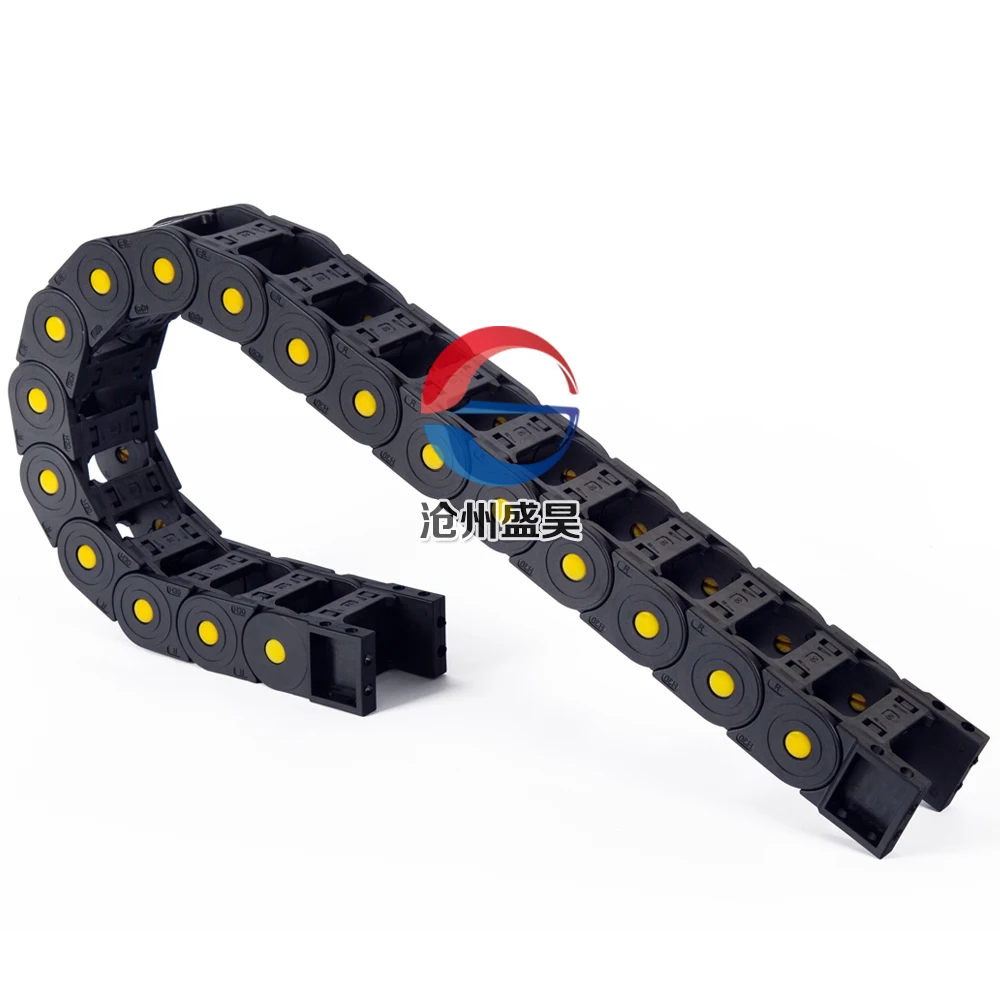

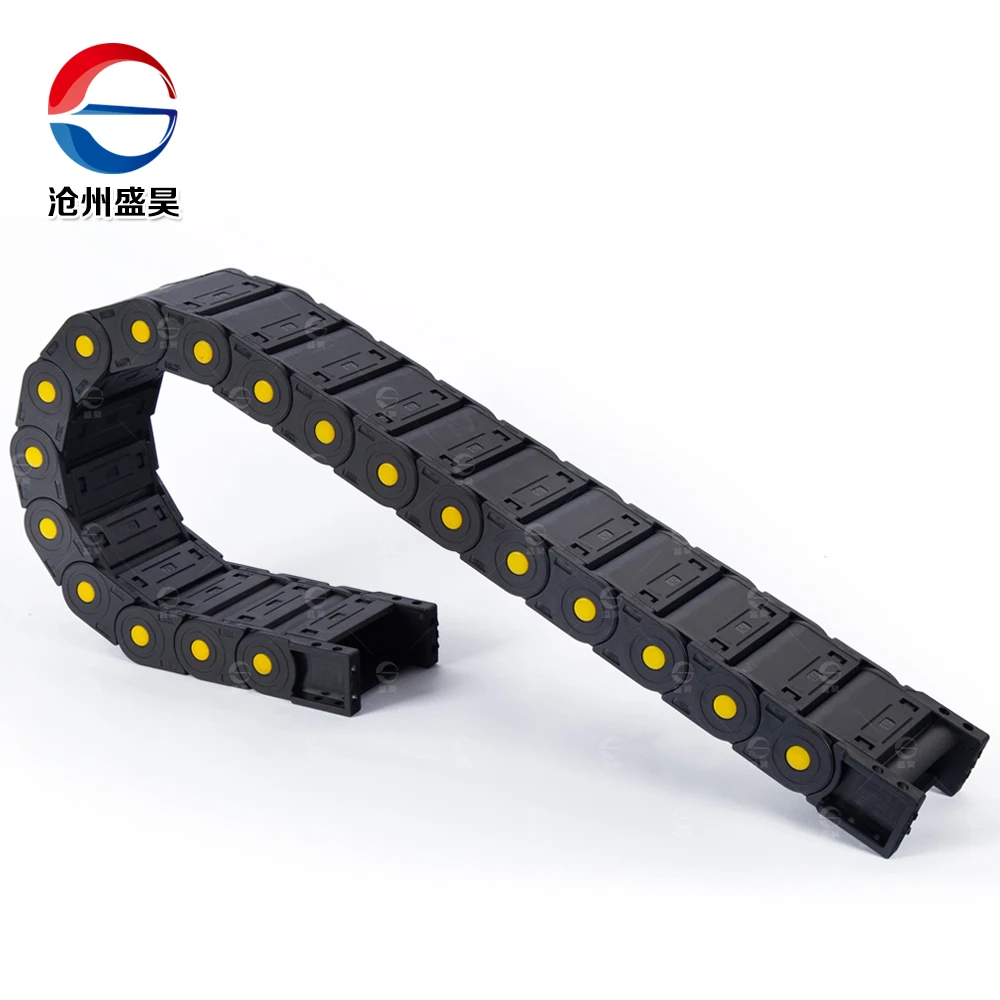

a. The Bridge type flexible nylon machine tool plastic drag chain to CNC looks like a tank chain, and it is composed of many unit links, and the links can rotate freely.
b. The inner height, outer height and pitch of the drag chains of the same series are the same, and the inner width and bending radius R of the drag chain can have different choices.

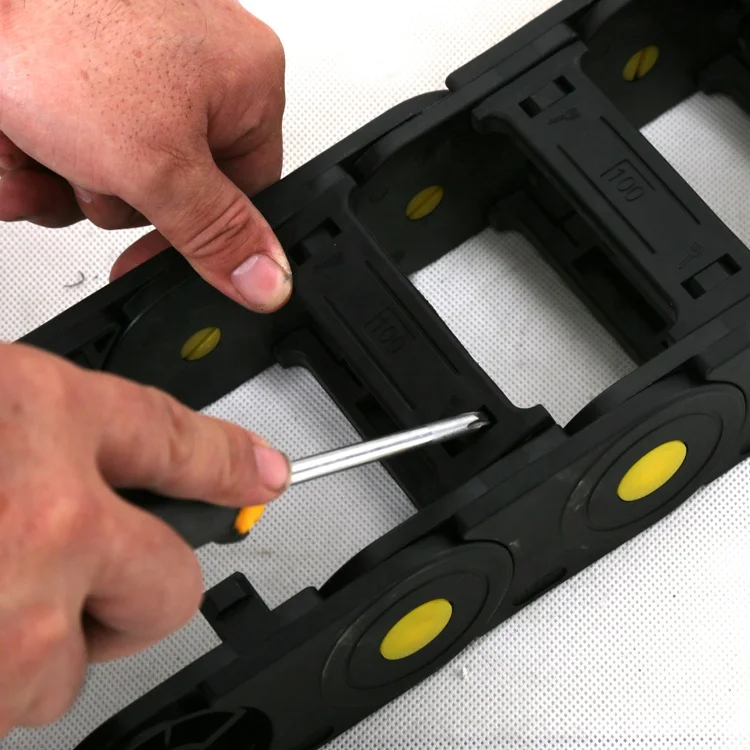

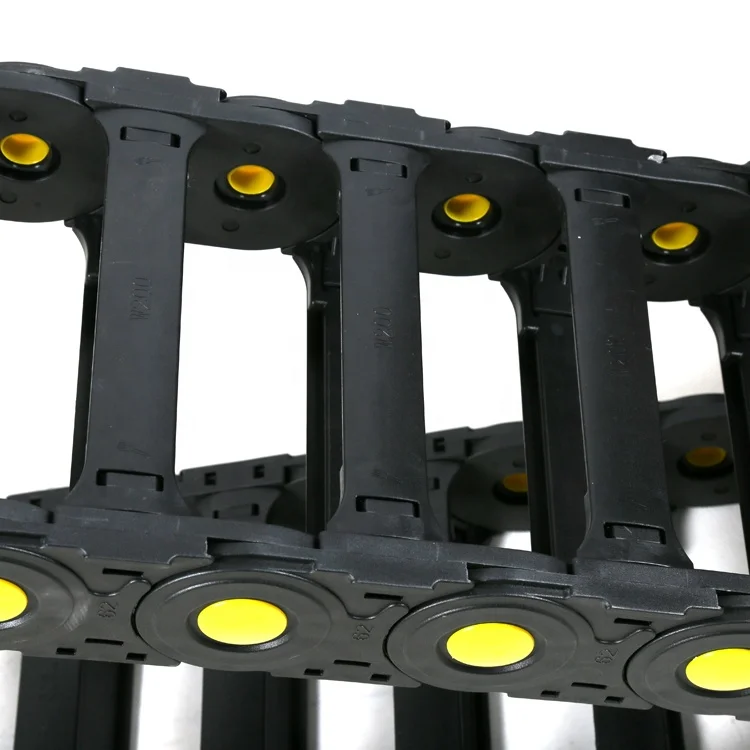

c. The unit chain link is composed of left and right chain plates and upper and lower cover plates. Each section of the drag chain can be opened, which is convenient for assembly and disassembly without threading. After opening the cover plate, cables, oil pipes, air pipes, water pipes, etc. can be put into the drag chain.
d. A separator can also be provided to separate the space in the chain as required.
b. The inner height, outer height and pitch of the drag chains of the same series are the same, and the inner width and bending radius R of the drag chain can have different choices.
c. The unit chain link is composed of left and right chain plates and upper and lower cover plates. Each section of the drag chain can be opened, which is convenient for assembly and disassembly without threading. After opening the cover plate, cables, oil pipes, air pipes, water pipes, etc. can be put into the drag chain.
d. A separator can also be provided to separate the space in the chain as required.
Detailed Images
Size Information
KQ 35*50 | 35*50 | 55*78 | Bridge type top and bottom lids can be opened | 75.100.125.150.175.200.250.300 | 67 | 3.5m |
KQ35*60 | 35*60 | 55*88 | ||||
KQ35*65 | 35*65 | 55*93 | ||||
KQ 35*75 | 35*75 | 55*103 | ||||
KQ35*100 | 35*100 | 55*128 | ||||
KQ35*125 | 35*125 | 55*153 | ||||
KQ 35*150 | 35*150 | 55*178 | ||||
KQ35*200 | 35*200 | 55*228 | ||||
KQ35*50 | 35*50 | 55*78 | ||||
KF35*60 | 35*60 | 55*88 | Totally enclosed top and bottom lids can be opened | |||
KF 35*65 | 35*65 | 55*93 | ||||
KF35*75 | 35*75 | 55*103 | ||||
KF 35*100 | 35*100 | 55*128 | ||||
KF35*125 | 35*125 | 55*153 | ||||
KF35*150 | 35*150 | 55*178 |
Related Products
Packing&Shipping
Certifications
Company Introduction

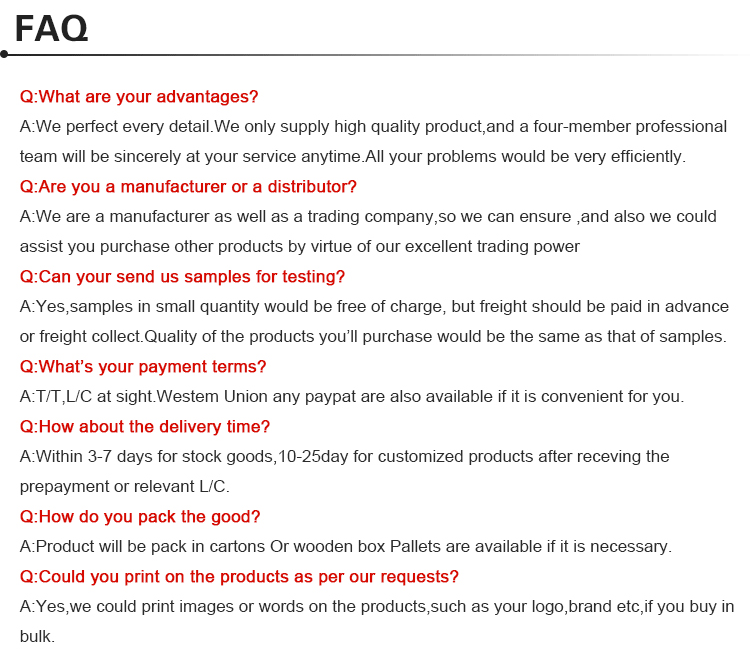

FAQ
