100w 150w 200w Electric underfloor heating heated driveway mat
- Category: >>>
- Supplier: Shaanxi Enoo Jujia Trading Co. Ltd.
Share on (1600863514005):
Product Overview
Description
Product Description

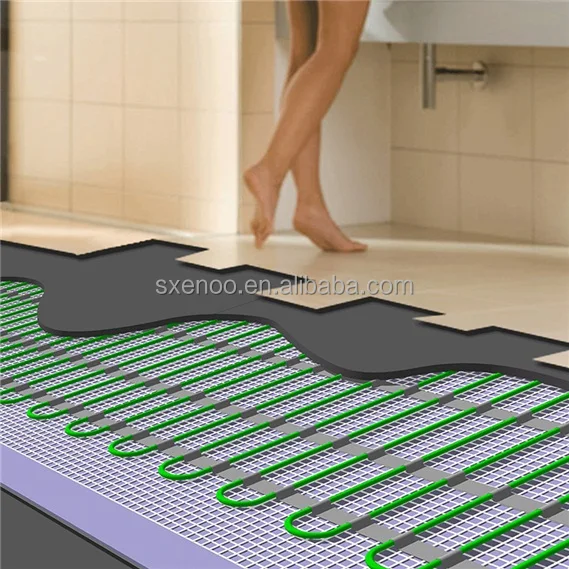

Electric radiant floor heating system save indoor space hidden underground heat walkway floor press mat indoor underfloor heating mat
SXENOO Floor Heating Mat -Imagine stepping onto a warm comfortable bathroom floor in the morning. As soon as you step on a floor with electric floor heat you will immediately feel the warmth. Since radiant heat rises from the electric floor heating system, it warms the objects in the room making the entire room comfortably warm for you and your family to enjoy.
We are a full-support manufacturer
- We manufacture the highest quality product.
- Offer design and layout assistance.
- Can answer all of you installation questions.
- Have engineers ready to answer your calls.
Specification
MANUFACTURER OF HEATING CABLE MATS

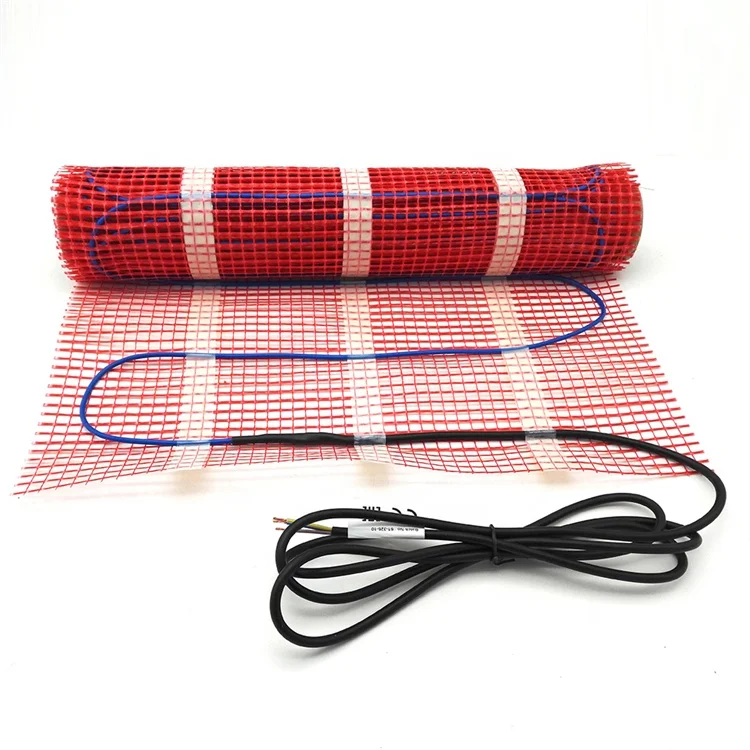

Product parameter: Name: electric heating cable mat
Cable Construction：Two conductor Rated
Voltage：220/230V Output：100w/m2 150w/m2 200w/m2
optional Cable spacing：100mm and 66.7mm
Cable Diameter：2.66mm
Conductor Insulation：Fluoropolymer
Max Ambient Temp：85℉(30℃)
Min Installation Temp：40℉(5℃)
cold lead：2.0m/2.5m length
Conductor Insulation: Fluoropolymer / XLPE
Outer insulation:Fluoropolymer or pvc
Features & Benefits :
1. Dual core with simple single connection point, easy to install.
2. The 3.6 mm thin heating cable keeps the raise in the floor height to minimum.
3. Various sizes of floor heating mats are designed to fit the heated area of any type floors.
4. Tough fluoro polymer conductor insulation with hard PVC outer insulation ensures the durability.
5. 100% armored earth coverage to entire wire offers safety & peace of mind.
6. Cold lead cable at 2.0 m length and 3x1.5 sqmm is connected to the heating cable end so to keep safety from the high temperature.
7. Two conductor construction emits no harmful EMF.

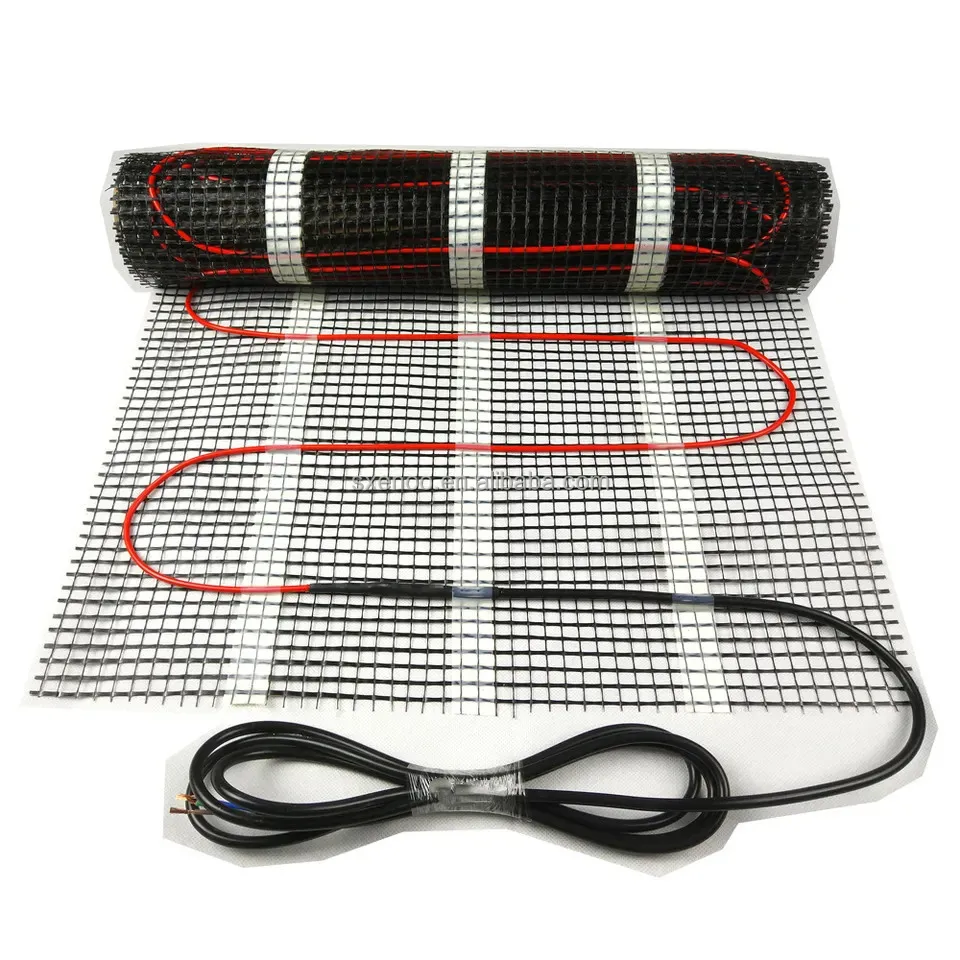

8. Complete all-in-one with mat (glass fiber mesh) and cable facilitates convenience in plastering finish.
9. Flexibility--possible to flexibly install in any shape at any place.
10. Separate control for each area.
11. Genuine full 10-year manufacture experience backs up the heating mat guarantee.
Cable Construction：Two conductor Rated
Voltage：220/230V Output：100w/m2 150w/m2 200w/m2
optional Cable spacing：100mm and 66.7mm
Cable Diameter：2.66mm
Conductor Insulation：Fluoropolymer
Max Ambient Temp：85℉(30℃)
Min Installation Temp：40℉(5℃)
cold lead：2.0m/2.5m length
Conductor Insulation: Fluoropolymer / XLPE
Outer insulation:Fluoropolymer or pvc
Features & Benefits :
1. Dual core with simple single connection point, easy to install.
2. The 3.6 mm thin heating cable keeps the raise in the floor height to minimum.
3. Various sizes of floor heating mats are designed to fit the heated area of any type floors.
4. Tough fluoro polymer conductor insulation with hard PVC outer insulation ensures the durability.
5. 100% armored earth coverage to entire wire offers safety & peace of mind.
6. Cold lead cable at 2.0 m length and 3x1.5 sqmm is connected to the heating cable end so to keep safety from the high temperature.
7. Two conductor construction emits no harmful EMF.
8. Complete all-in-one with mat (glass fiber mesh) and cable facilitates convenience in plastering finish.
9. Flexibility--possible to flexibly install in any shape at any place.
10. Separate control for each area.
11. Genuine full 10-year manufacture experience backs up the heating mat guarantee.
Item No.: | SXENOO |
Heating mat power supply: | 100w/m2 150w/m2 200w/m2 |
MOQ: | 2sqm |

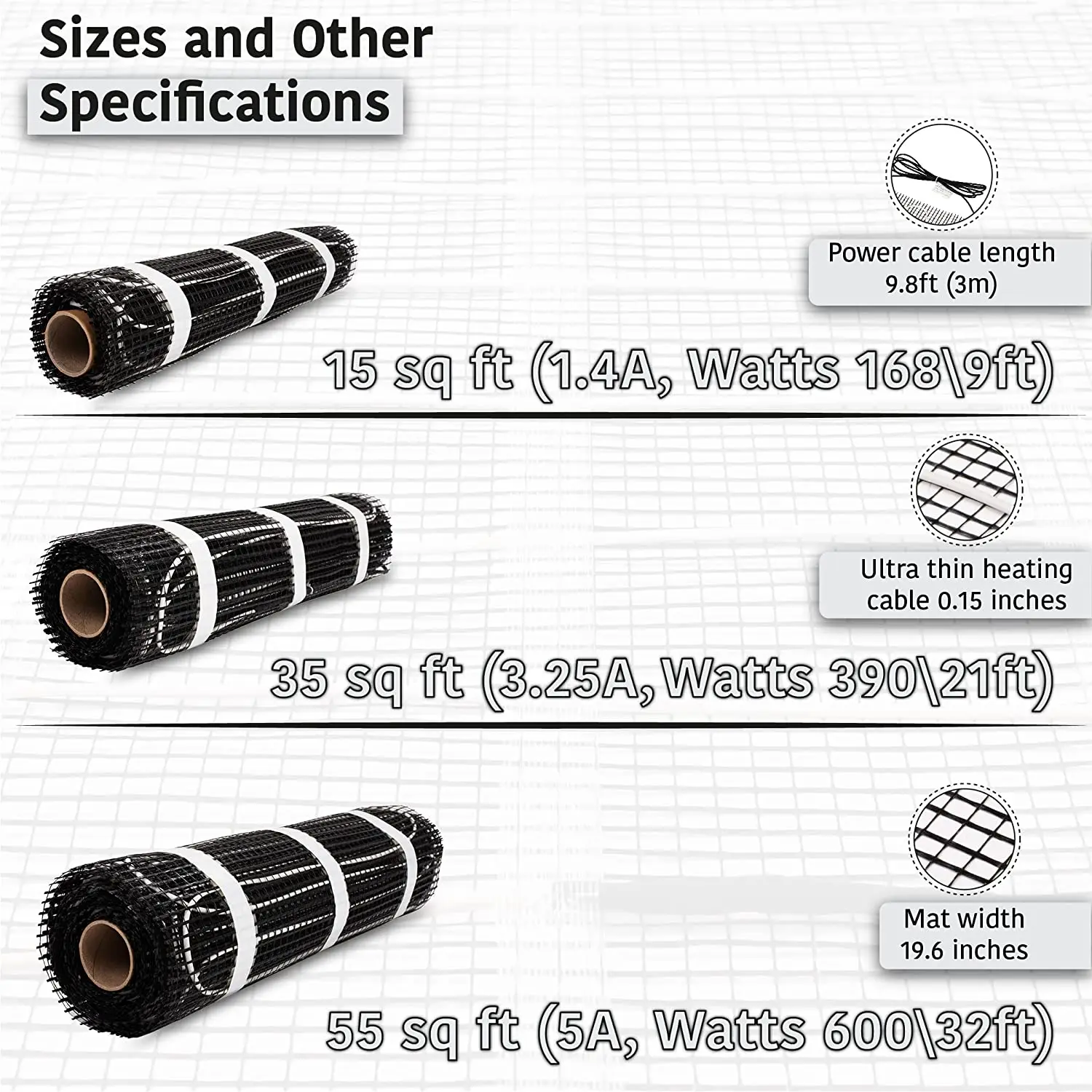

Mat size : | 0.5m2 .1m2 . 1.5m2 .........16m2 |
Colour : | Red , Blue ,Black |
Outer Insulation: | PVC /FEP |
Service: | OEM/ODM and Stock are available |
Delivery: | By sea/air/DHL/FedEx/EMS/UPS |
Payment Terms: | T/T, Trade Assurance, Credit Card |
Product Details Show
***IMPORTANT FOR YOU !!

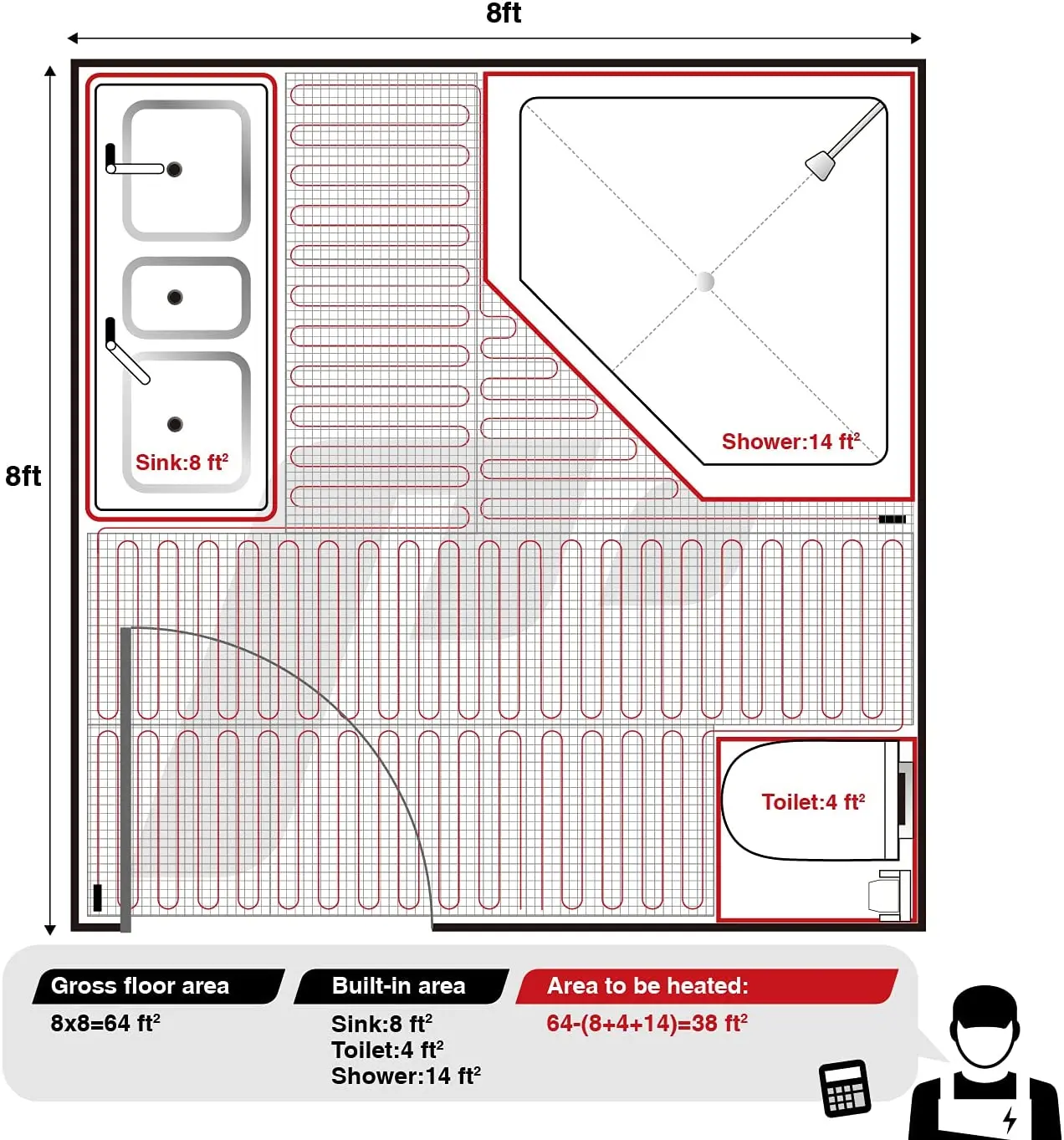

*CUSTOMIZE the layout to fit any area: Bathroom, kitchen, mud room, living room, etc.; Treat yourself to the LUXURY of heated floors; INSTALL UNDER ceramic tile, natural stone, laminate, linoleum, carpet, and more
REDUCE ENERGY COSTS more efficient than central forced-air heating; NO MAINTENANCE, one-time installation that operates completely silent; 12 WATTS/SQFT, 6.5 ft cold lead; Combine multiple systems to fit your area; *Technical details and electrical system requirements in description below

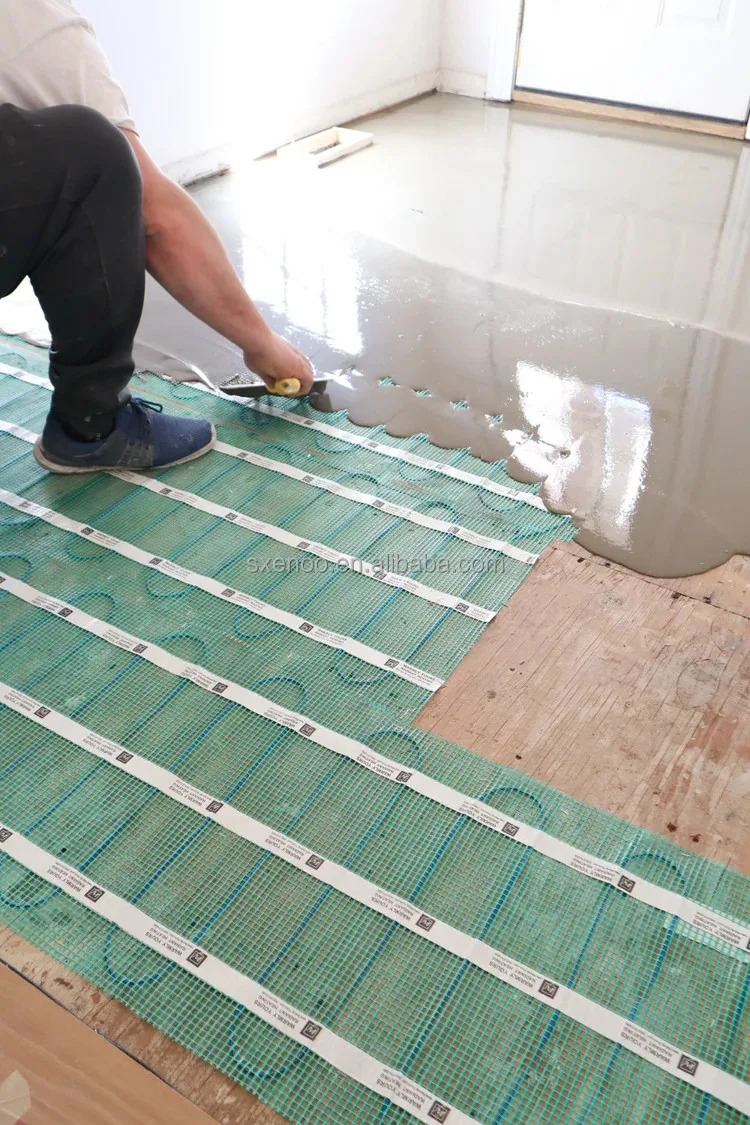

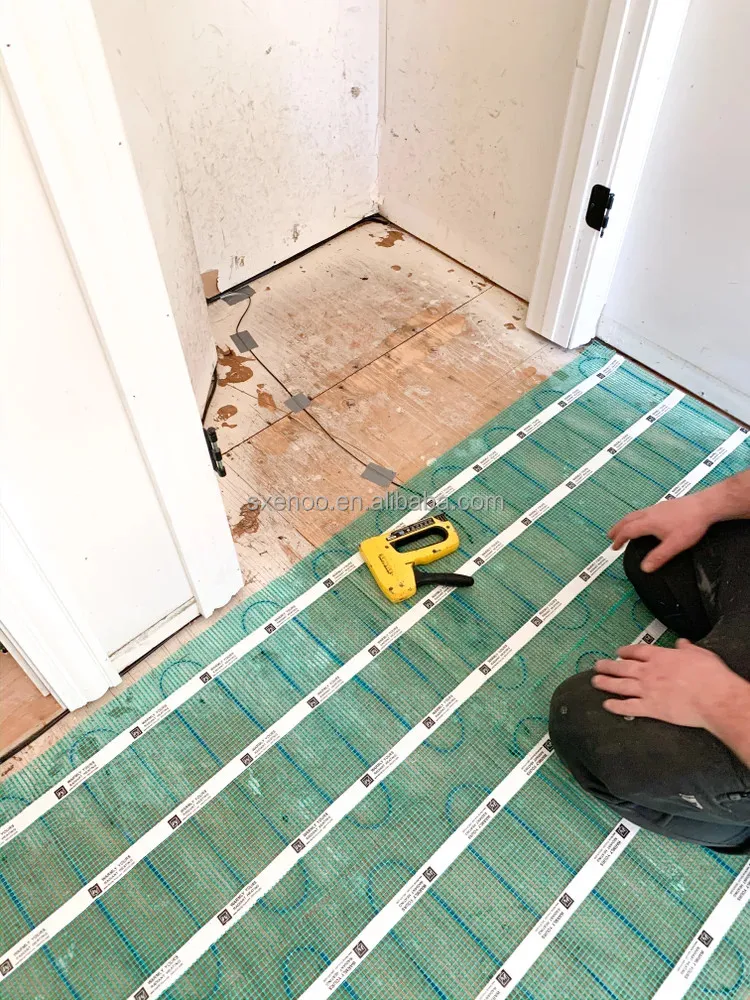

*HOW TO USE: After you've determined the size needed, clean and prime the subfloor; layout the system in the configuration you planned; connect the system to the thermostat, and the thermostat to the power source to check all connections; disconnect the power source, and then cover the system with the appropriate adhesive for your decorative flooring (cement, tile adhesive, etc.); then lay the decorative flooring; THERMOSTAT SOLD SEPARATELY

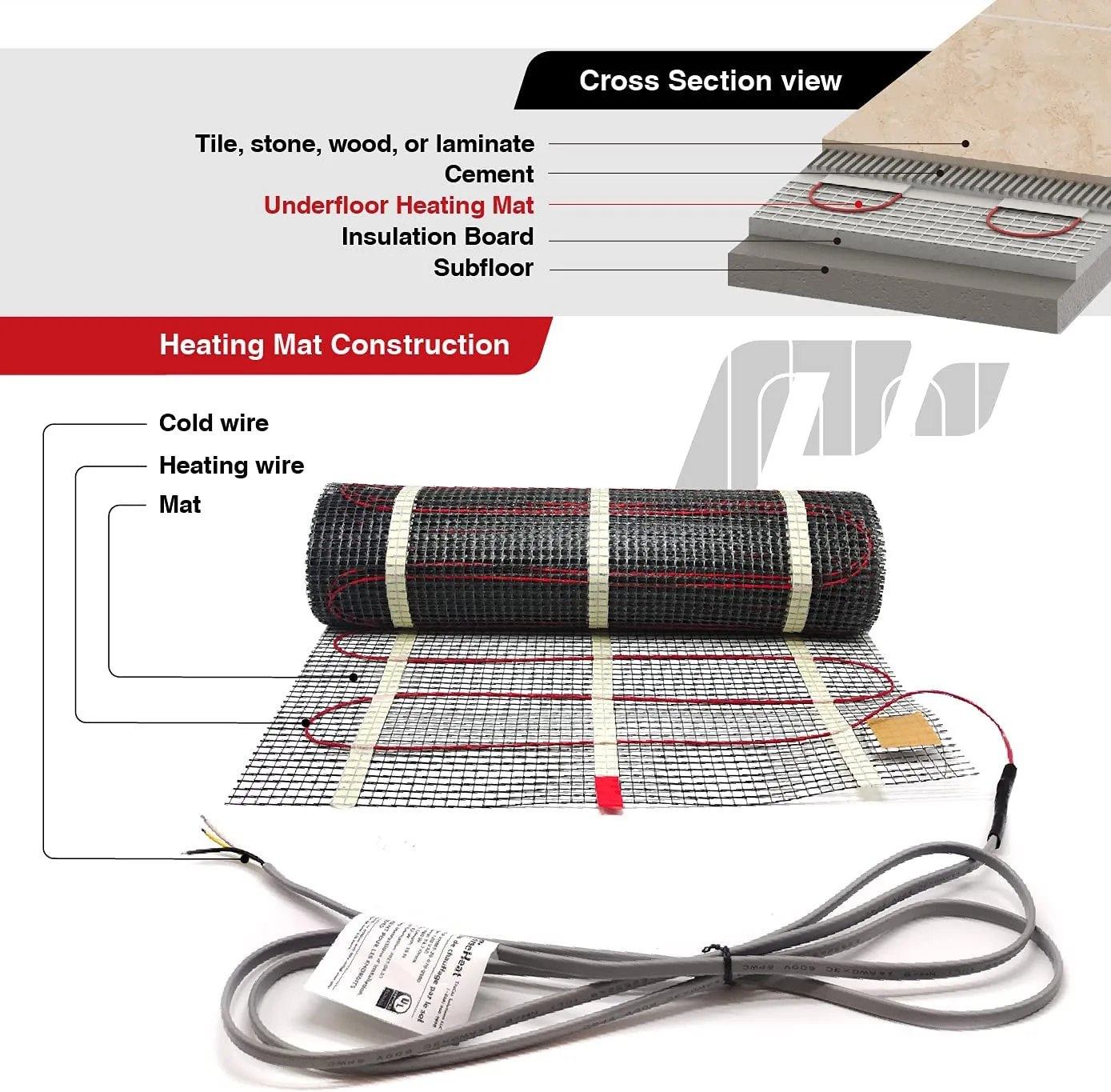

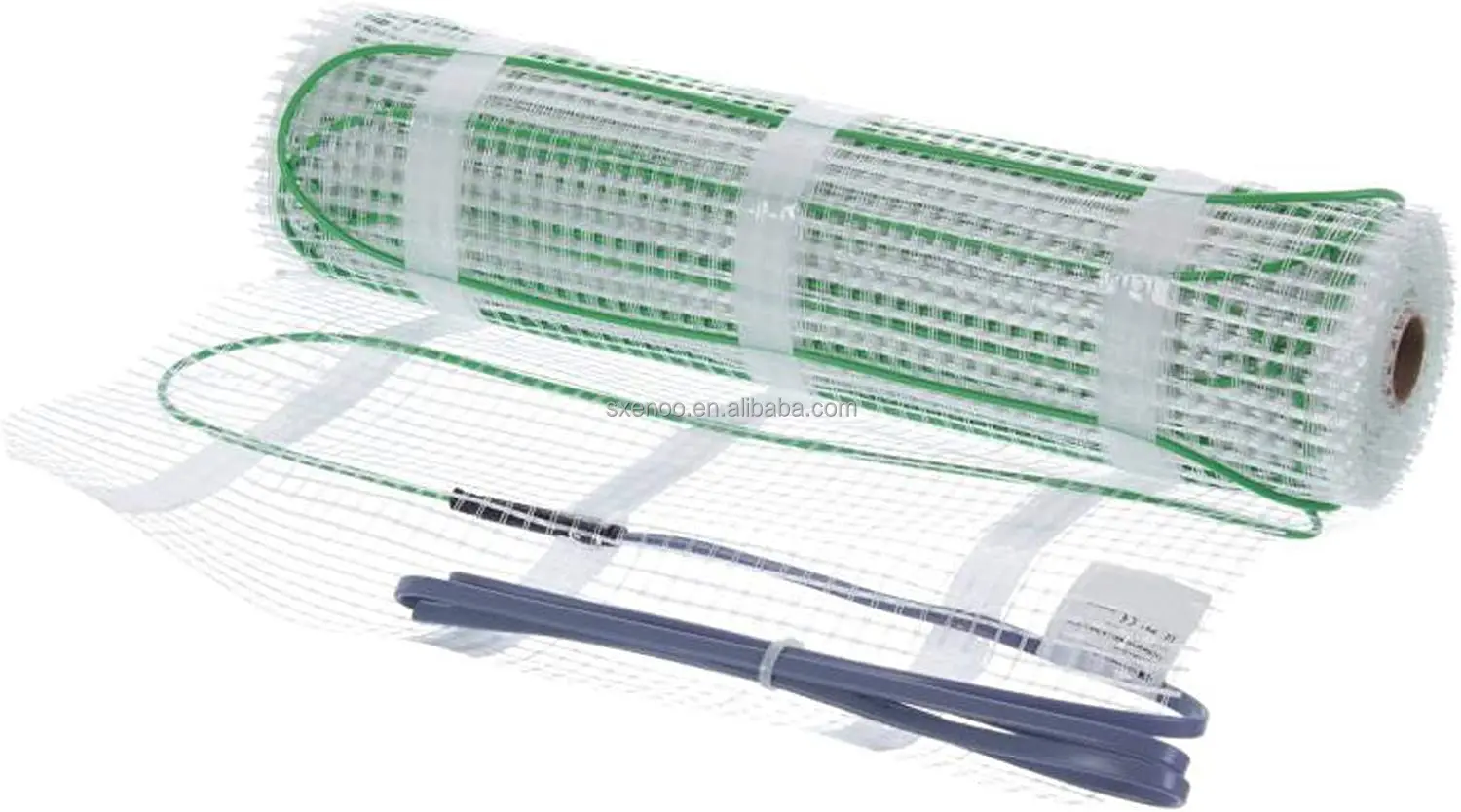

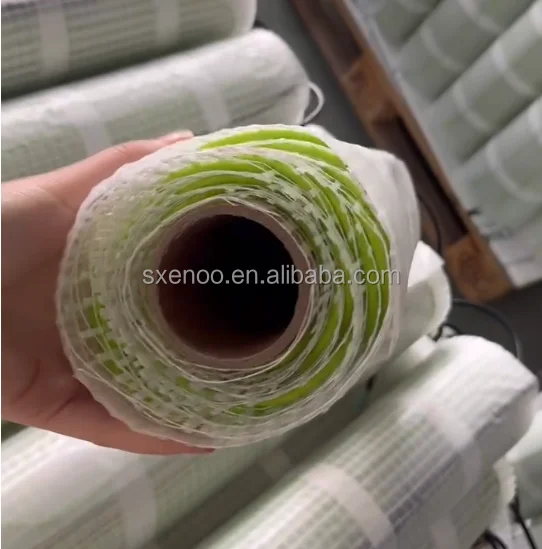

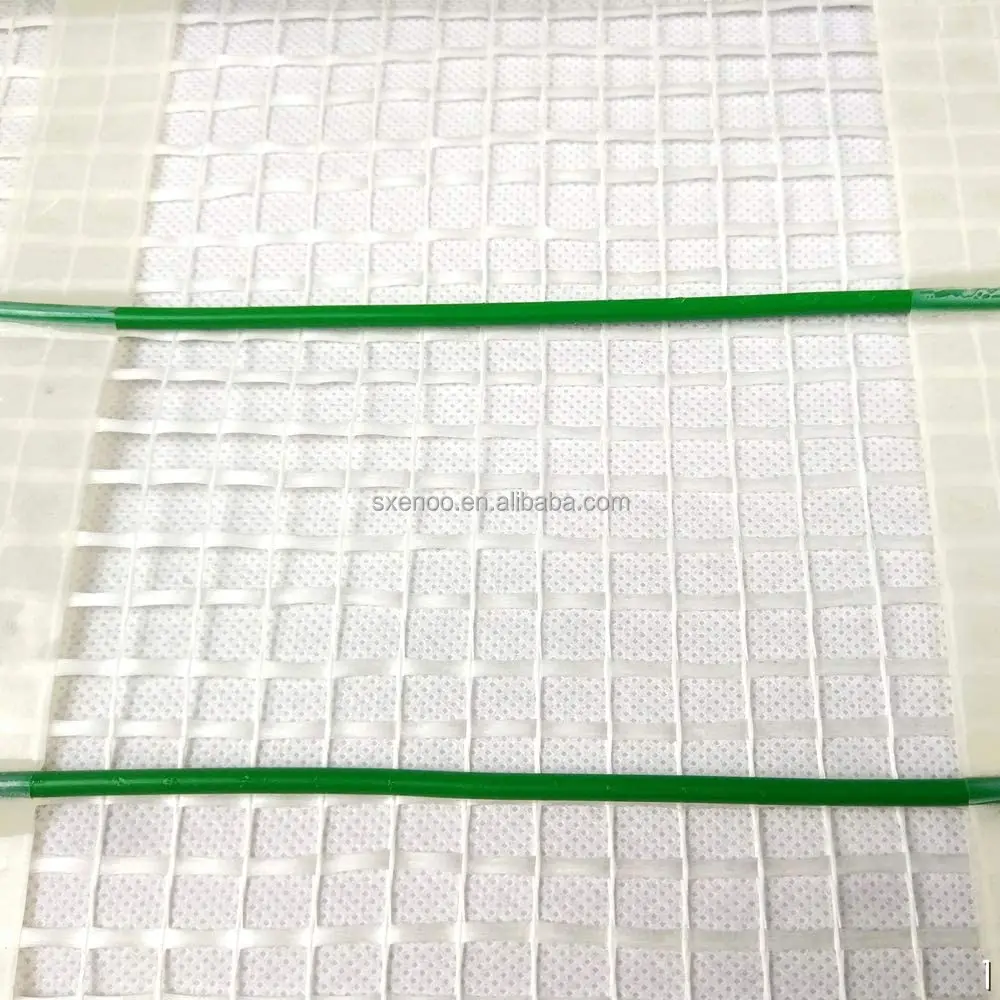

*FloorLace FIT is a heating cable attached to a fiberglass mesh (the mat); Entire mesh has adhesive backing, so it adheres to the floor and stays put during installation; EASY INSTALLATION for square or rectangle areas; Mats are 20-inches wide (and length varies by size selected – see product description); The mesh of the mat can be cut to better fit desired area, the cable cannot be cut or altered in any way; Kit includes: heating mat, and installation manual.
220v/230v | Heating Area | Mat Dimensions | Output Power / Watts (150W/m2) | Current/Amps | Resistance/Ω | ||||
Part Number | m2 | sq.ft. | m*m | in.*ft. | |||||
S-mat150-150 | 1 | 10.8 | 0.5*2 | 20*6.5 | 150 | 0.7 | 352.7 | ||
S-mat150-225 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 225 | 1 | 235.1 | ||
S-mat150-300 | 2 | 21.5 | 0.5*4 | 20*12.9 | 300 | 1.3 | 176.3 | ||
S-mat150-375 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 375 | 1.6 | 141.1 | ||
S-mat150-450 | 3 | 32.3 | 0.5*6 | 20*19.4 | 450 | 2 | 117.6 | ||
S-mat150-525 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 525 | 2.3 | 100.8 | ||
S-mat150-600 | 4 | 43.1 | 0.5*8 | 20*25.8 | 600 | 2.6 | 88.2 | ||
S-mat150-675 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 675 | 2.9 | 78.4 | ||
S-mat150-750 | 5 | 53.8 | 0.5*10 | 20*32.3 | 750 | 3.3 | 70.5 | ||
S-mat150-900 | 6 | 64.6 | 0.5*12 | 20*38.8 | 900 | 3.9 | 58.8 | ||
S-mat150-1050 | 7 | 75.3 | 0.5*14 | 20*45.2 | 1050 | 4.6 | 50.4 | ||
S-mat150-1200 | 8 | 86.1 | 0.5*16 | 20*51.7 | 1200 | 5.2 | 44.1 | ||
S-mat150-1350 | 9 | 96.9 | 0.5*18 | 20*58.1 | 1350 | 5.9 | 39.2 | ||
S-mat150-1500 | 10 | 107.6 | 0.5*20 | 20*64.6 | 1500 | 6.5 | 35.3 | ||
S-mat150-1800 | 12 | 129.2 | 0.5*24 | 20*77.5 | 1800 | 7.8 | 29.4 | ||
220v/230v | Heating Area | Mat Dimensions | Output Power / Watts (200W/m2) | Current/Amps | Resistance/Ω | ||||
Part Number | m2 | sq.ft. | m*m | in.*ft. | |||||
S-mat200-200 | 1 | 10.8 | 0.5*2 | 20*6.5 | 200 | 0.9 | 264.5 | ||
S-mat200-300 | 1.5 | 16.1 | 0.5*3 | 20*9.7 | 300 | 1.3 | 176.3 | ||
S-mat200-400 | 2 | 21.5 | 0.5*4 | 20*12.9 | 400 | 1.7 | 132.3 | ||
S-mat200-500 | 2.5 | 26.9 | 0.5*5 | 20*16.1 | 500 | 2.2 | 105.8 | ||
S-mat200-600 | 3 | 32.3 | 0.5*6 | 20*19.4 | 600 | 2.6 | 88.2 | ||
S-mat200-700 | 3.5 | 37.7 | 0.5*7 | 20*22.6 | 700 | 3 | 75.6 | ||
S-mat200-800 | 4 | 43.1 | 0.5*8 | 20*25.8 | 800 | 3.5 | 66.1 | ||
S-mat200-900 | 4.5 | 48.4 | 0.5*9 | 20*29.1 | 900 | 3.9 | 58.8 | ||
S-mat200-1000 | 5 | 53.8 | 0.5*10 | 20*32.3 | 1000 | 4.3 | 52.9 | ||
S-mat200-1200 | 6 | 64.6 | 0.5*12 | 20*38.8 | 1200 | 5.2 | 44.1 | ||
S-mat200-1400 | 7 | 75.3 | 0.5*14 | 20*45.2 | 1400 | 6.1 | 37.8 | ||
S-mat200-1600 | 8 | 86.1 | 0.5*16 | 20*51.7 | 1600 | 7 | 33.1 | ||
S-mat200-1800 | 9 | 96.9 | 0.5*18 | 20*58.1 | 1800 | 7.8 | 29.4 | ||
S-mat200-2000 | 10 | 107.6 | 0.5*20 | 20*64.6 | 2000 | 8.7 | 26.5 | ||
S-mat200-2400 | 12 | 129.2 | 0.5*24 | 20*77.5 | 2400 | 10.4 | 22 | ||
* Comfort - The most popular reason to add radiant heat is for comfort.
* Safety - All of our products are UL tested for safety, including for use in showers.

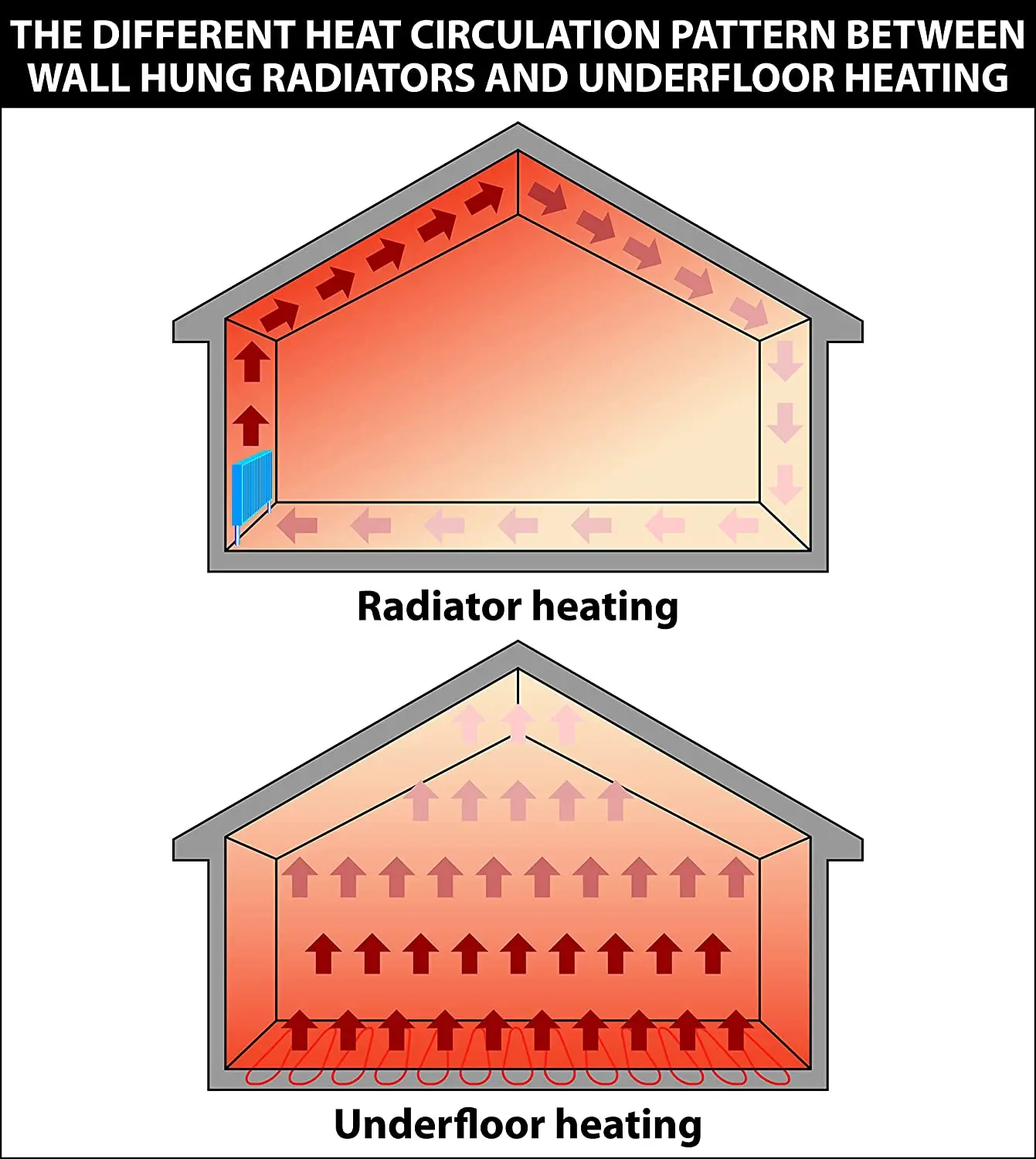

* Efficient - Electric floor heat has higher levels of energy efficiency than forced air because it heats the people and objects
in the room.
* Easy to Use - With the programmable floor sensing thermostat, it can easily be programmed to turn on and off when you desire.
Our heating mat is ideal for Bathrooms, Kitchens, Lounges,Dining Rooms and most other areas.
Please DO NOT cut, damage or shorten the heating cable!!!!!! Only cut and turn the fiber-glass mesh. Please DO NOT cross the sensor wire over the heating cable or cold lead wire!!!!!! Please DO NOT
make the heating cables cross or touch!!!!!!
All electrical connections must be performed by a fully qualified and certified electrician!!!
All electrical connections must be performed by a fully qualified and certified electrician!!!

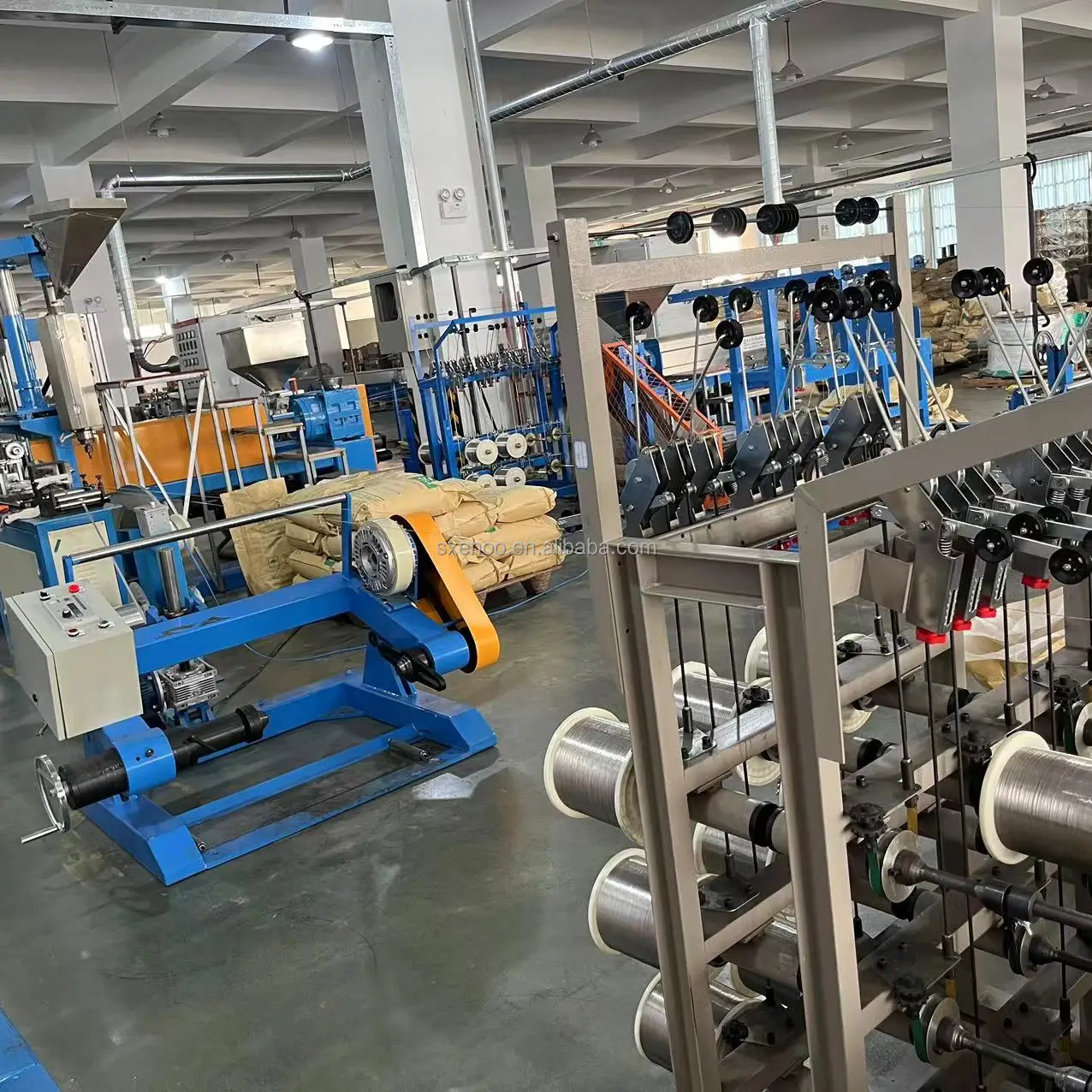

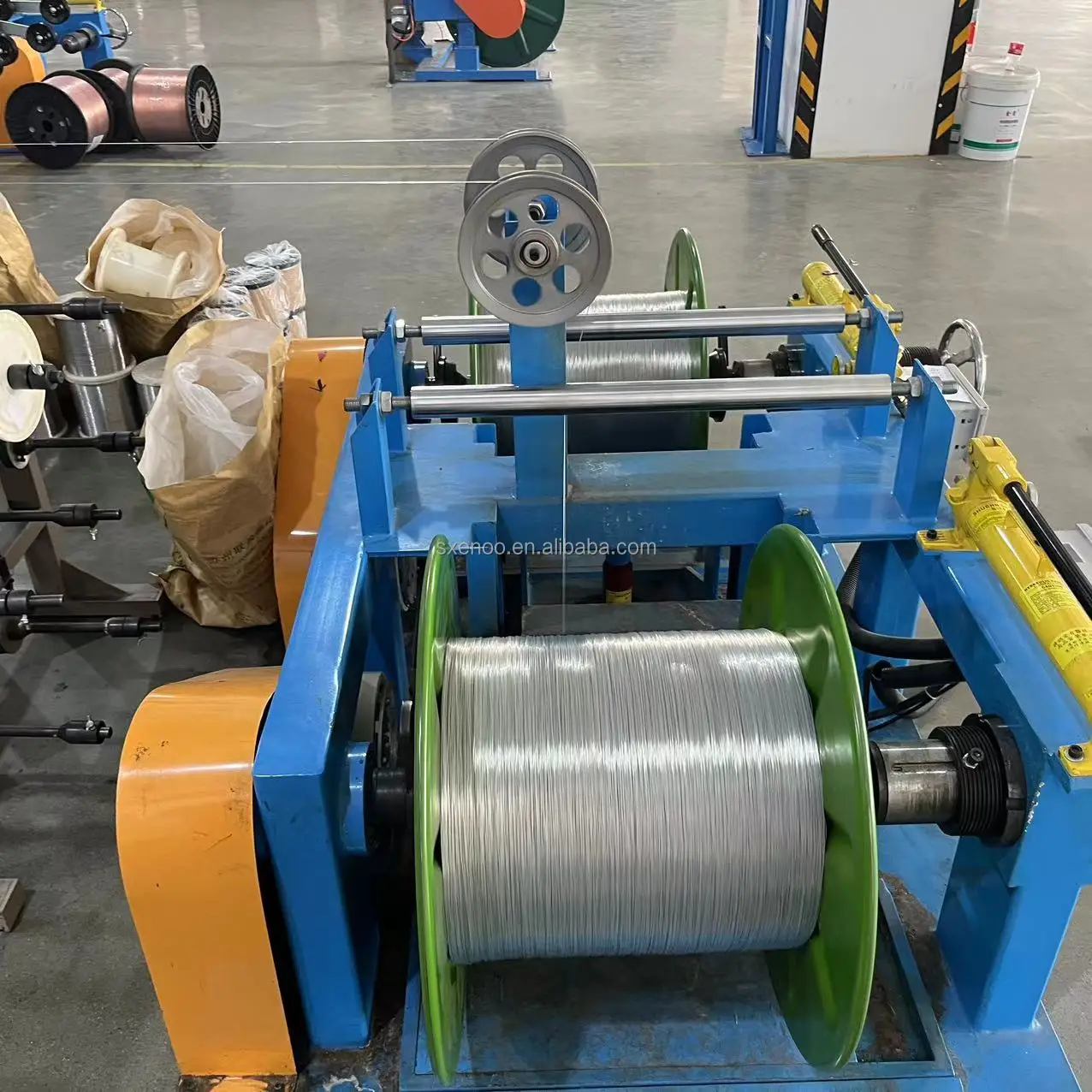

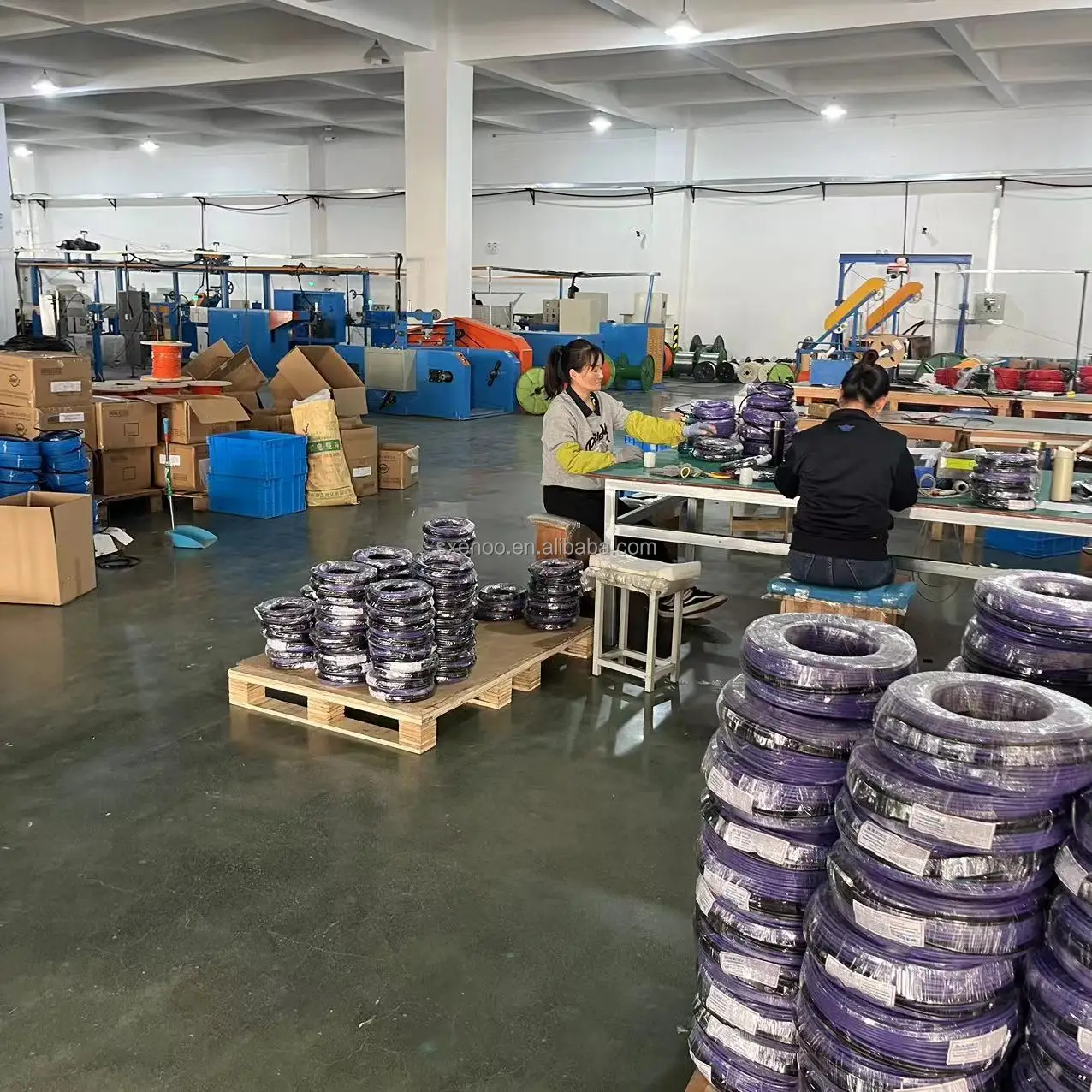

Production Line
Company Profile
FAQ
Question 1. Can you do ODM and OEM?
Question 4. Do you have quickly contact way ?
Answer: Of course! What we can do. Because we are a factory that aims to expand the global market, we cherish every opportunity ofevery customer and you.
Question 2. Do you provide samples?
Answer: Yes, we can provide samples. Please leave your address information and contact information.
Question 3. Are you a factory ?
Answer: Yes , We are a factory .Our company has been specializing in the design and production of Heating products are used in the home ,thermostat, thermotherapy massage pads, Sporting goods ,laser heating pads for 10 years of international trade experience and the excellent performance of our products helps us enjoy a high reputation in the Central Asia ,EU, Australia and North America.
Question 4. Do you have quickly contact way ?
Answer: Yes, You can directly contact our product manager and receive a timely response from a professional. Become our VIP and get more discounts
