12mm Acoustic gypsum Panel plasterboard Perforated acoustic panel 12X12mm Square hole
- Category: >>>
- Supplier: Jiangyin Dego Building Materials Co. Ltd.
Share on (1600863759908):
Product Overview
Description
DEGOTONE Perforated Gypsum Ceiling
20 years of factory direct supply
-Screw fixed acoustic panels Suspension by light steel keel
-Screw fixed acoustic panels Suspension by light steel keel
-High-density perforated perforated plaster with Round， square， irregular round holes
- Large size 1200*2400mm, two thicknesses 9.5MM and 12MM.
-Acoustic performance NRC 0.73, available in different perforation 9%-21%patterns.
-Fireproof A2 Class . RH70 Moisture resistance
-1555m2/540pcs/20GP
- Large size 1200*2400mm, two thicknesses 9.5MM and 12MM.
-Acoustic performance NRC 0.73, available in different perforation 9%-21%patterns.
-Fireproof A2 Class . RH70 Moisture resistance
-1555m2/540pcs/20GP
DEGOTONE boards bring a feeling of
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsumboards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsumboards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.
Perforated gypsum is a truly distinctive acoustic solution exclusive to Degotone® both absorb sound, allowing speech to carry without being distorted by echo or background noise.

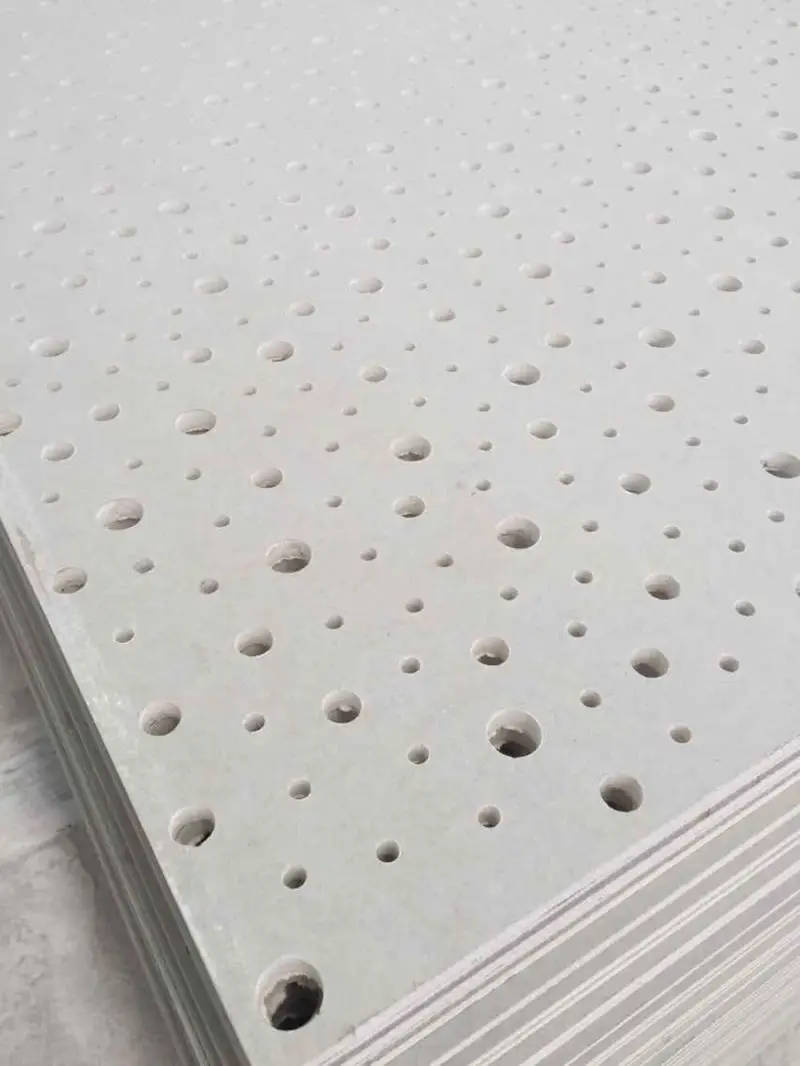

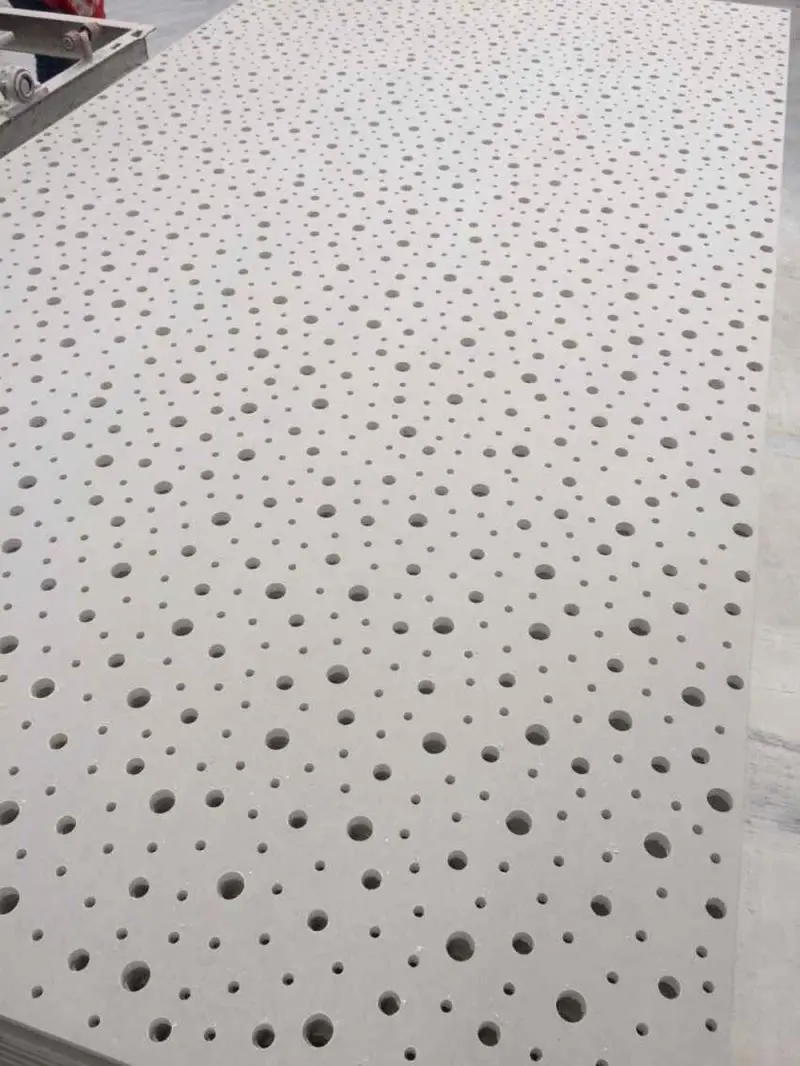

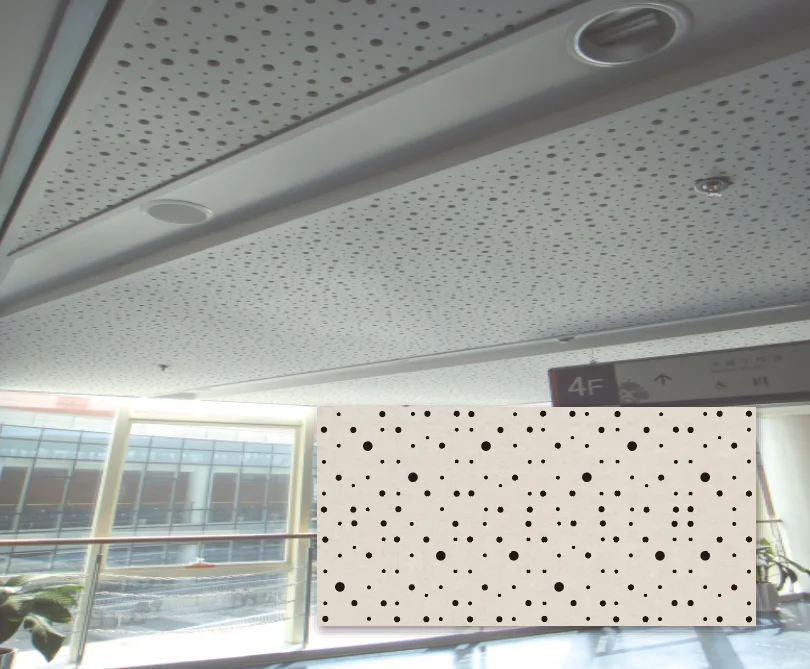

Degotone Galaxy (8-15-20R)
An irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area. Supplied with a white orblack acoustic fabric backing.
Size:2400X1200X12.5mm
Hole 8 15 20mm roud hole
Perforation rate：10%Sound absorption coefficient
αw= 0,50 Class D
Blace 32K wool
αw= 0,55 Class D
Degotone 8/18Q (Seamless)
DEGOTONE perforated plasterboard is a superior and modernacoustic solution that delivers a monolithic design due to its
edge to edge pattern layouts. The DEGOTONE range combines functionality and aesthetics in the modern design of ceilings.Integrating lighting, ventilation systems, loudspeakers and such is straightforward and simple. Due to the variety of perforationsizes and patterns, board dimensions vary slightly but are nominally 1200mm x 2000mm x 12.5mm
edge to edge pattern layouts. The DEGOTONE range combines functionality and aesthetics in the modern design of ceilings.Integrating lighting, ventilation systems, loudspeakers and such is straightforward and simple. Due to the variety of perforationsizes and patterns, board dimensions vary slightly but are nominally 1200mm x 2000mm x 12.5mm
Square Q2000
Size:2000X1200X12.5mm
Hole :8X8 square CC 18mm
Hole :8X8 square CC 18mm
Perforation rate：18%
Sound absorption
αw= 0,65 Class D
Blace 32K wool
αw= 0,55 Class D

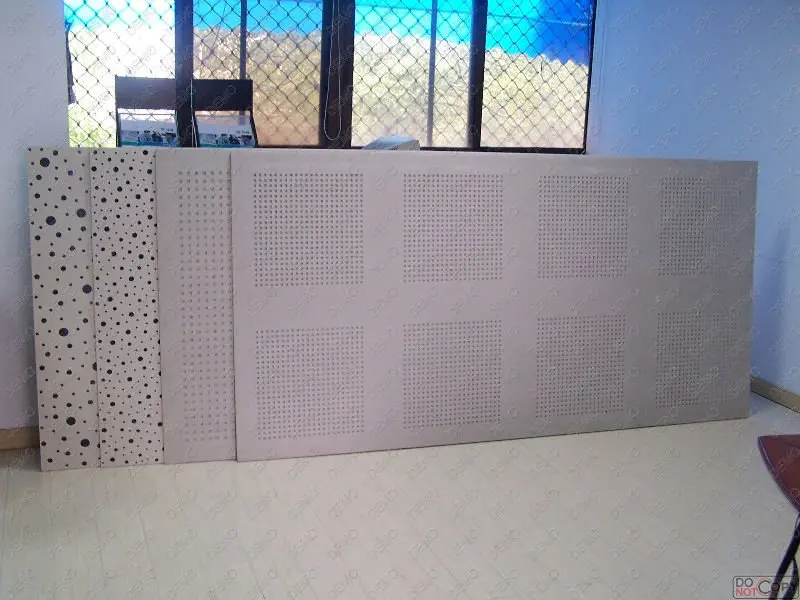

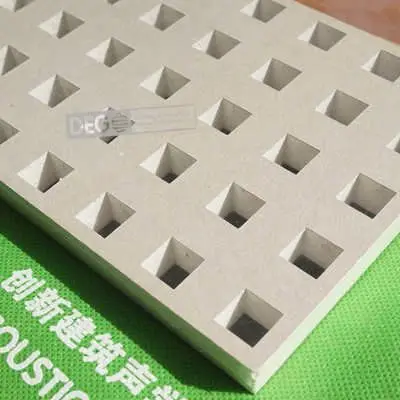

Degotone 12/25Q (Block)
DEGO perforated plasterboard pattern Regularly arranged and divided into a variety of pattern blocks, hole types are round holes square holes micro holes hexagonal holes
Square Q2000 12/25Q
All ceilings in the Perforated Plasterboard ceiling have been designed for use on ceilings where an increased level of sound
attenuation and a high level of aesthetic appeal is required. The design features 8 large rectangular groupings per sheet, each
with 12X12mm square perforations at 25mm centres to provide an open area of 16%.
attenuation and a high level of aesthetic appeal is required. The design features 8 large rectangular groupings per sheet, each
with 12X12mm square perforations at 25mm centres to provide an open area of 16%.
Material: | High-strength plasterboard Gypsumboard | ||||||
Surface: | Ivory white （No paint） | ||||||
Color | White | ||||||
Hole | Round 6 812 15mm，squarel 8x8 10x10 12 x 12 mm. Micro M 3 x 3 mm | ||||||
Sizs： | 1200*2400mm，2000*12OOmm | ||||||
Thickness | 12.5mm | ||||||
Weight | 7.7kg/m2 | ||||||
Edge | Square ,Tegular | ||||||
Perforation rate | 9-21.3% | ||||||
Back | 45g/m2 Sound absorption fabric | ||||||
Fireproof class | A2 -s1d0 ,China | ||||||
Acoustic performance | αwup to 0.65 - NRC up to 0.65 - Dncwup to 39dB | ||||||
Moisture resistance | RH70 | ||||||
Suspension system | Ceiling grid (Ceiling T bar) | ||||||
Loading
1555.2m2 40 pcs /20 GP 3110.4m2 1080 /40GP With wooden pallet
FOB SHANGHAI CHINA
For Wall
DEGO MANUFACTURING
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companiesOur acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers ，
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
FAQ
Q1: Are you a trading company or factory?
A1: Original factory. 100KM near Shanghai

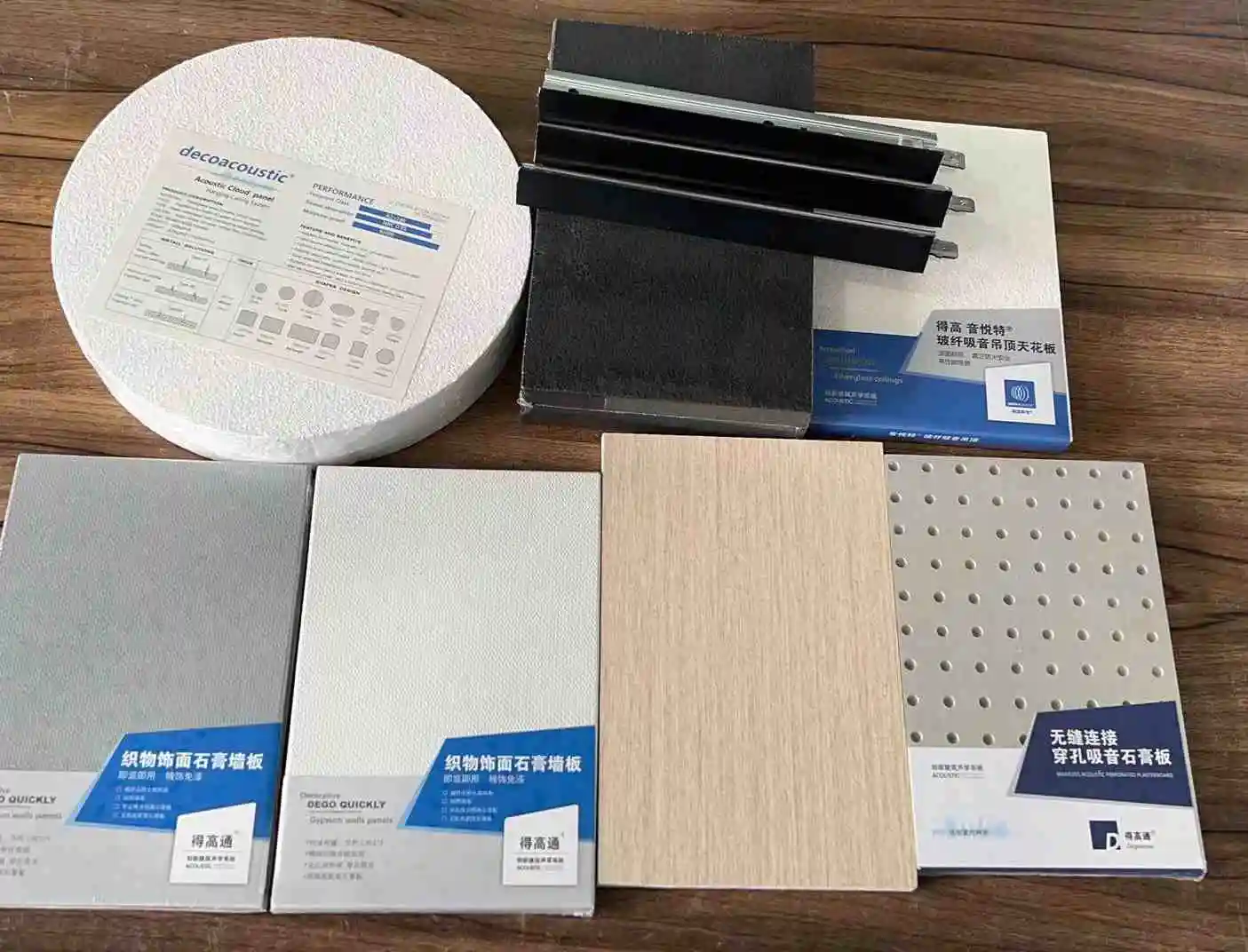

Q2: How can I get sample?
A2: We can supply samples as your requirement,but the freight will be collected.
Q3: What's the delivery time?
A3: It depends on the product type and order quantity. Usually we can ship within 14-21 days rafter receiving full payment.
Q4: Can the logo or company name be printed on the products or package?
A4: Yes, Your customized requirement for color,logo,design, package,carton mark ect, are very welcome.
Q5: Do you quality control?
A5: We attach great importance to quality control.Necessary test and certification can be obtainedas your
request.
request.
Q6: What is the payment term?
A6: Support T / T or LC or pay through Alibaba online shop , deposit 30% upon order
confirmation, the rest 70% after quality inspection and successful delivery on time.
confirmation, the rest 70% after quality inspection and successful delivery on time.
