  • Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM 1200 Watt On Grid Micro Inverters
Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM 1200 Watt On Grid Micro Inverters
Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM-1200 Watt On Grid Micro Inverters
Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM-1200 Watt On Grid Micro Inverters
Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM-1200 Watt On Grid Micro Inverters
Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM-1200 Watt On Grid Micro Inverters
Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM-1200 Watt On Grid Micro Inverters

Hot sale Hoymiles Micro inverter Solar Photovoltaic PV HM 1200 Watt On Grid Micro Inverters

Share on (1600863764776):


Price:$99.00 - $104.00

Quantity:


Product Overview

Description



Product Description




Specification


Model
HM-300
HM-350
HM-400
Input Data (DC)
Commonly used module power (W)
240 to 405+
280 to 470+
320 to 540+
Maximum input voltage (V)
60
MPPT voltage range (V)
16–60
Start-up voltage (V)
22
Maximum input current (A)
11.5
11.5
12.5
Maximum input short circuit current (A)
1 × 15
Number of MPPTs
1
Number of inputs per MPPT
1
Output Data (AC)
Rated output power (VA)
300
350
400
Rated output current (A)
1.30
1.52
1.74
Nominal output voltage/range (V)
230/180-275
Nominal frequency/range (Hz)
50/45–55
Power factor (adjustable)
> 0.99 default 0.8 leading…0.8 lagging
Total harmonic distortion
< 3%
Maximum units per branch
16
14
12
Efficiency
CEC peak efficiency
96.70%
CEC weighted efficiency
96.50%
Nominal MPPT efficiency
99.80%
Nighttime power consumption(mW)
< 50
Mechanical Data
Ambient temperature range (°C)
-40 to +65
Dimensions (W × H × D mm)
182 × 164 × 29.5
Weight (kg)
1.98
Enclosure rating
Outdoor IP67 (NEMA 6)
Cooling
Natural convection (no fans)
Features
Communication
2.4 GHz Proprietary RF (Nordic)
Type of isolation
Galvanically Isolated HF Transformer
Monitoring
S-Miles Cloud
Compliance
VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3

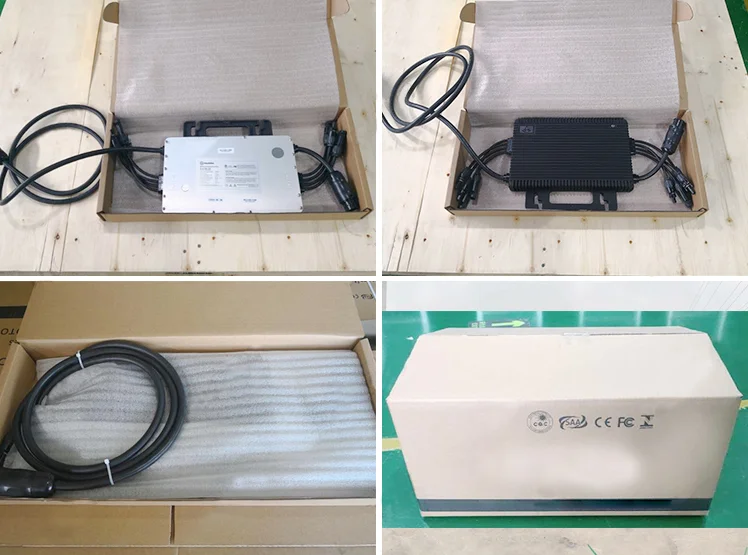

Packing & Delivery




Company Profile




Anhui Wingo Technology Co., Ltd. is a company integrating R&D, production and sales. It's located in Hefei, the capital city of Anhui province, China. There are about 150 employees, including 20 R&D personnel.The company's main business scope is the production of electric bicycles, which can realize OEM production for customers and also meet the customized needs of them.We are an authorized agent of some well-known brands.Anhui Wingo Technology Co,. Ltd. has always pursued the corporate culture and business philosophy of " integrity, win-win, efficiency, and gratitude", and will consistently provide global customers with the best products and best services, and become the most trusted cross-board service company for customers.


FAQ


1. who are we?
We are based in Anhui, China, start from 2020,sell to Western Europe(30.00%),South America(20.00%),Southeast Asia(20.00%),North America(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panels, Solar Inverters, Solar Mounting Bracket, Energy Storage Battery, Solar Energy System

4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:null
