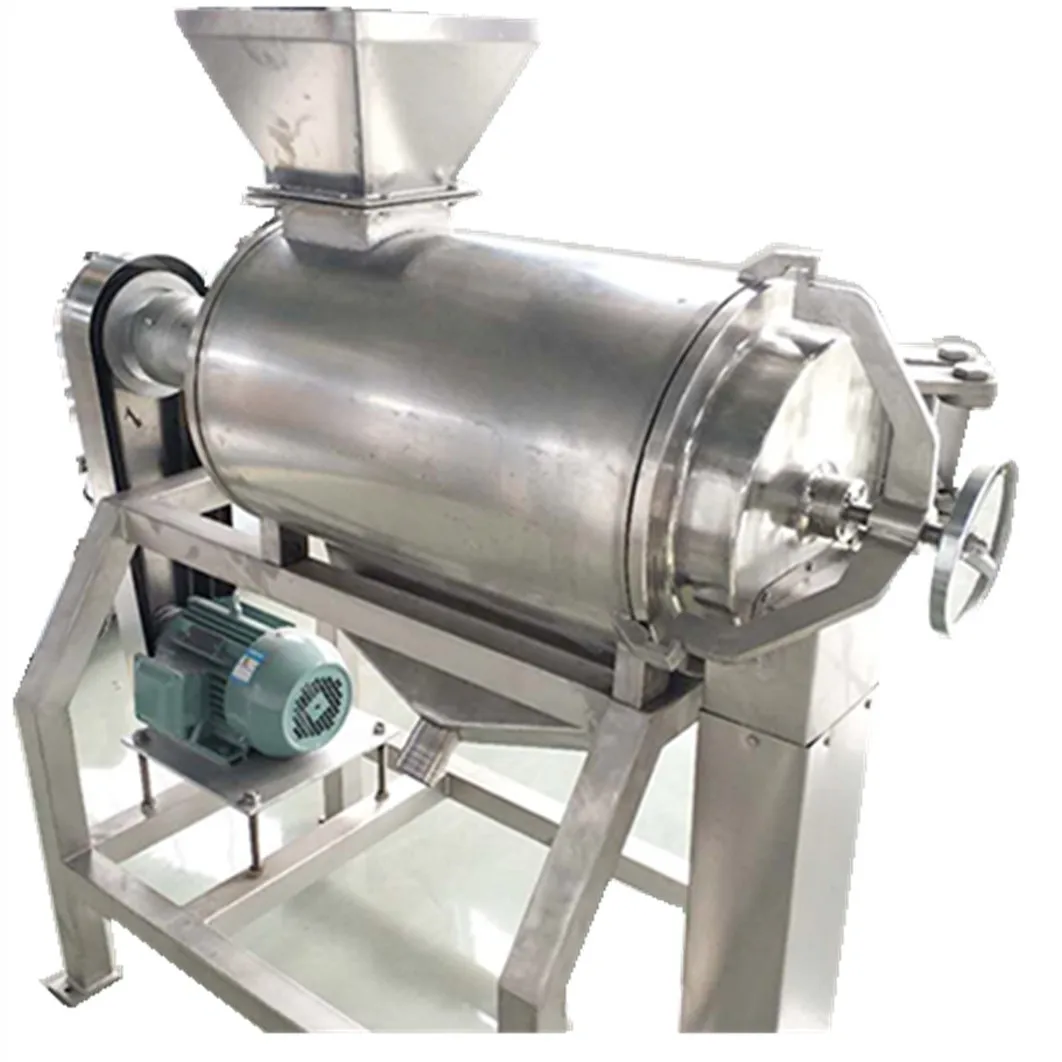

Automatic Machine Equipment To Make Small Mango Pulp Processing Making Machinery And Mango Jam Production Line
- Category: >>>
- Supplier: Kunshan Qianwei Machinery & Technology Co. Ltd.
Share on (1600863845760):
Product Overview
Description
Product Overview
TROPICAL TOMATO PASTE PRODUCTION LINE

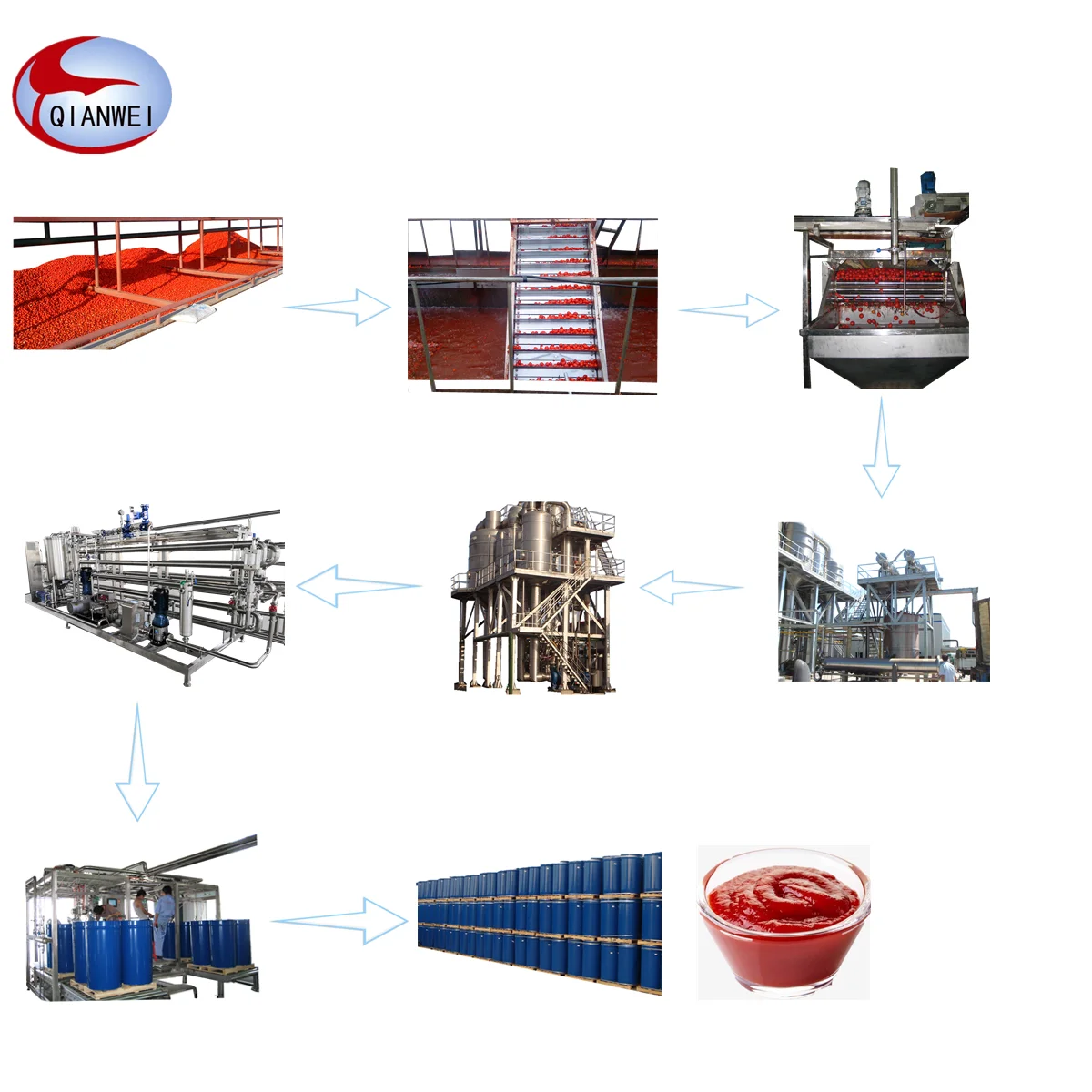

Processing flow：tomato receive -elevate-sort-pre crush-crush-pre heater-pulp-concentrate-sterilize-aseptic fill-store with normal temperature for 1 to 2 years
FEATURES AT A GLANCE
1、tomato receiving pot：
2、elevator
3、sorter and pre crushing machine

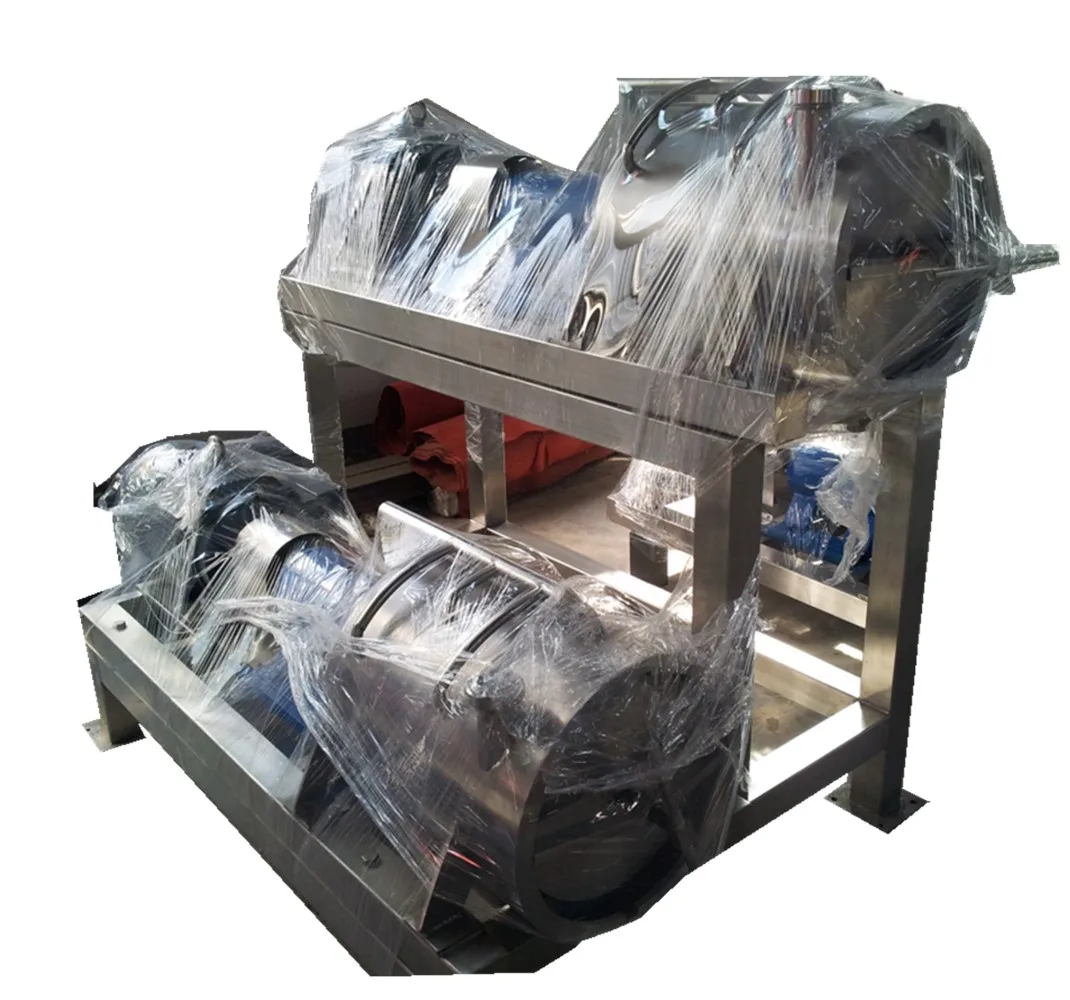

4、crushing machine 、pre heating machine and pulping machine
5、Forced external circulation vacuum concentration pot
6、tube in tube sterilization machine
7、aseptic filling machine
8、store with normal temperature for 1 to 2 years
receiving
processing
tomato paste
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Capacity | 3-50 T/H | ||
2 | Tomato Paste Kind | 28-30/36-38 | ||
3 | Package Style | Aseptic Tank | ||
4 | Need Steam Or Not | Yes | ||
5 | Need Compressed Air Or Not | Yes | ||
6 | Need Cooling Water Or Not | Yes | ||
7 | Shelf Time | 1-2 Years | ||
8 | Machines Material | Contact Part 304 |

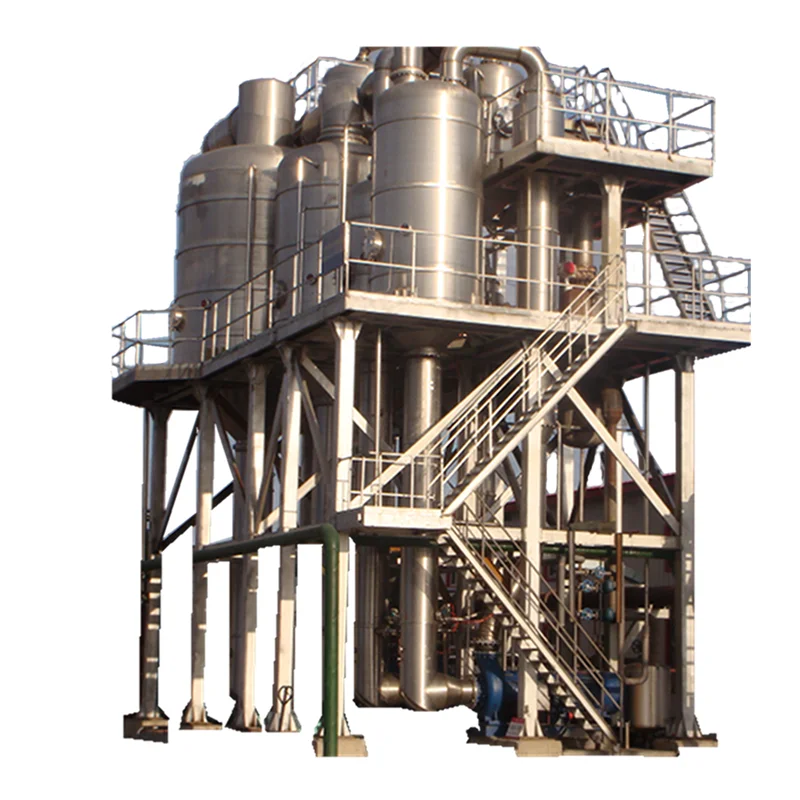

Main Machine-Concentrator
Continuous type Forced external circulation vacuum concentrating pot/single effect
concentration machine /double effect concentration machine/three effect concentration machine,auto control for temperature 、pressure、 outlet brix.
concentration machine /double effect concentration machine/three effect concentration machine,auto control for temperature 、pressure、 outlet brix.
The evaporator main structure is SUS 304 stainless steel, which is composed of tubular
heater, vacuum evaporating chamber, Condensate pump, pumps (product recycle pump, feed & outlet pump, vacuum pump, water pump),
PLC auto control system, man-machine interface, valves, Instrumentation and gauges, operating platform etc.
heater, vacuum evaporating chamber, Condensate pump, pumps (product recycle pump, feed & outlet pump, vacuum pump, water pump),
PLC auto control system, man-machine interface, valves, Instrumentation and gauges, operating platform etc.

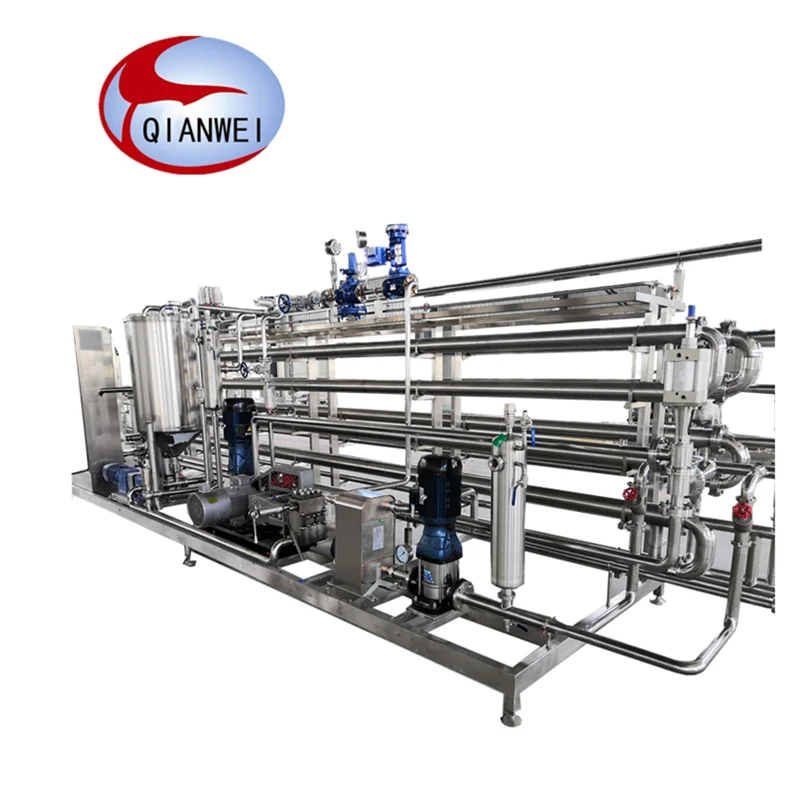

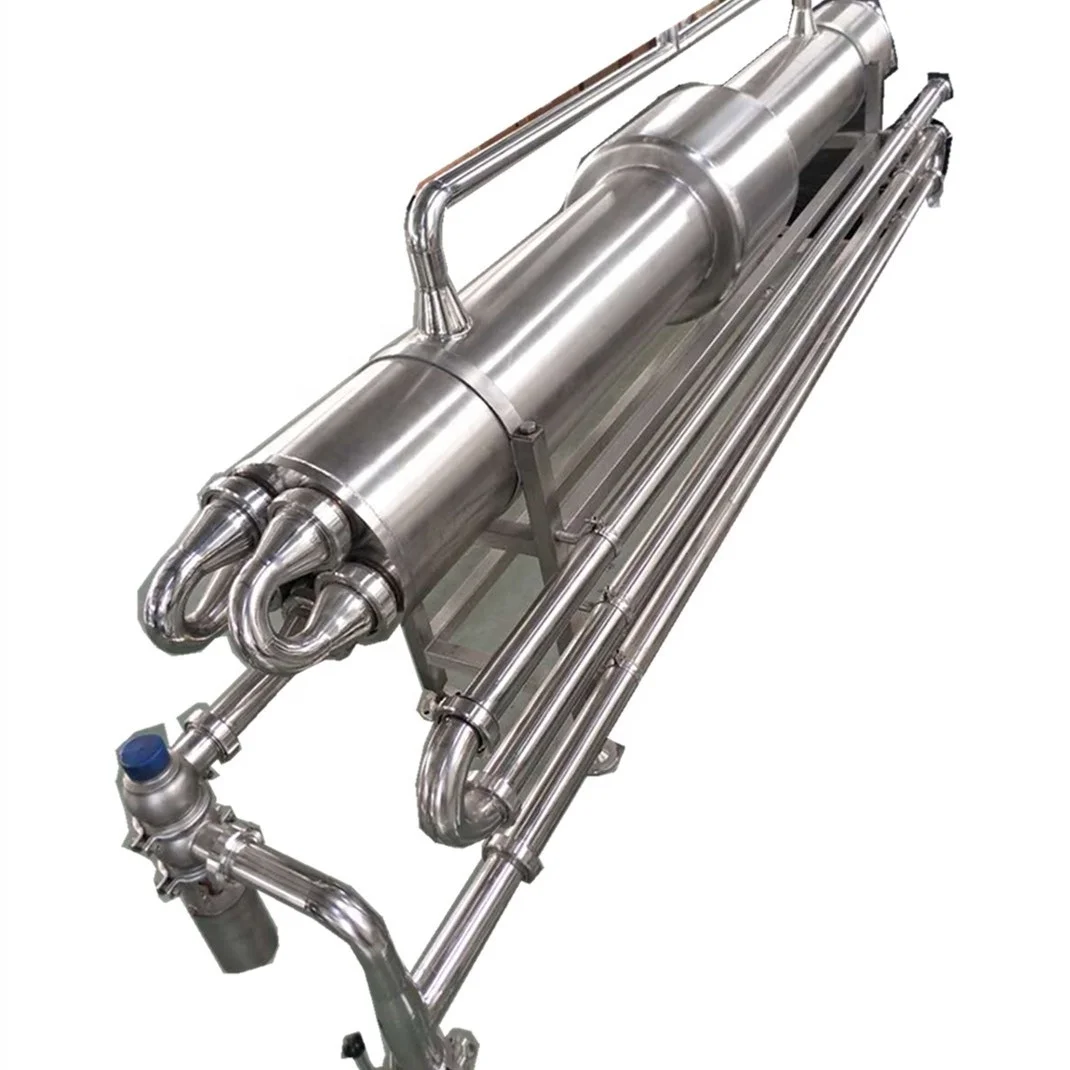

Machine-Tube In Tube Sterilization Machine
Used for tomato paste 、apple jam 、mango puree、chilli jam and other high viscosity and low
liquidity fruit & vegetables jam sterilization；the prouduct use tube in tube sterilizer work with aseptic filling machine together
can be stored for 1-2 years in room temperature.
liquidity fruit & vegetables jam sterilization；the prouduct use tube in tube sterilizer work with aseptic filling machine together
can be stored for 1-2 years in room temperature.
Full Automatic Configuration: It adopts the advanced computer program controlling the PLC technology.

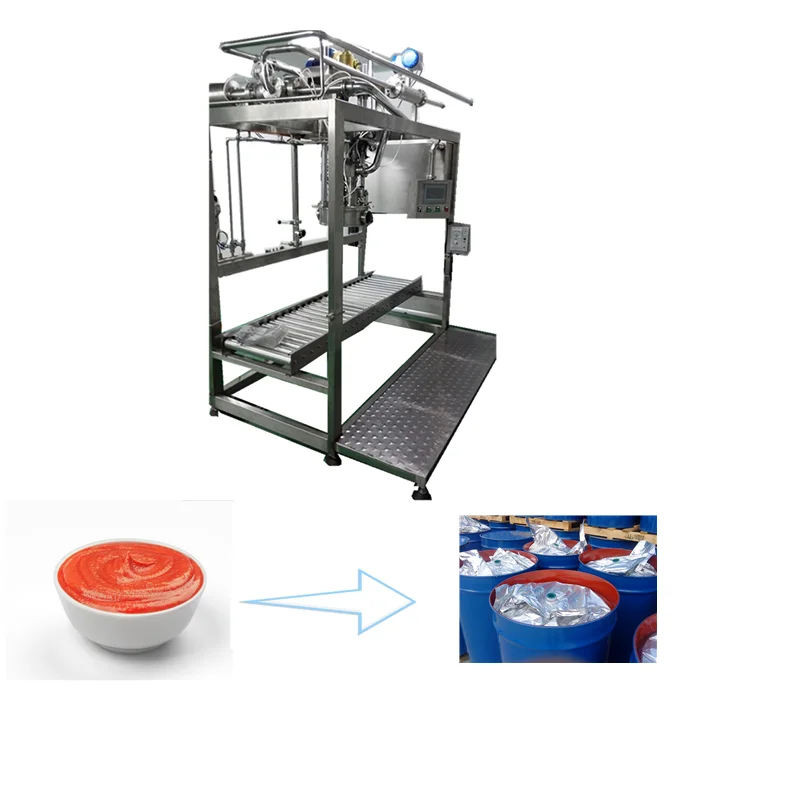

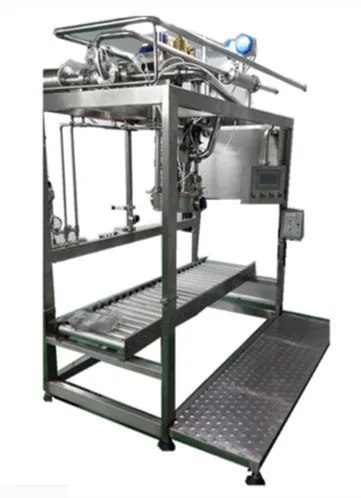

Main Machine- Aseptic Filling Machine
Online control with sterilizer, realize CIP and SIP. This aseptic filling machine mainly
consist by the aseptic filling head (one or two ), operating system, man-machine control system, flowmeter etc. the whole process
in a sterile environment.
The man-machine interface control, flow meter, Equipped with both manual and automatic two control system
Filling rooms unique design, avoid the condensed water dripping
consist by the aseptic filling head (one or two ), operating system, man-machine control system, flowmeter etc. the whole process
in a sterile environment.
The man-machine interface control, flow meter, Equipped with both manual and automatic two control system
Filling rooms unique design, avoid the condensed water dripping
PRODUCT CONFIGURATION
Main Processing machines
Auxiliary Equipment
Civil Engineering
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in Xinjiang
Project in Russia
Our company

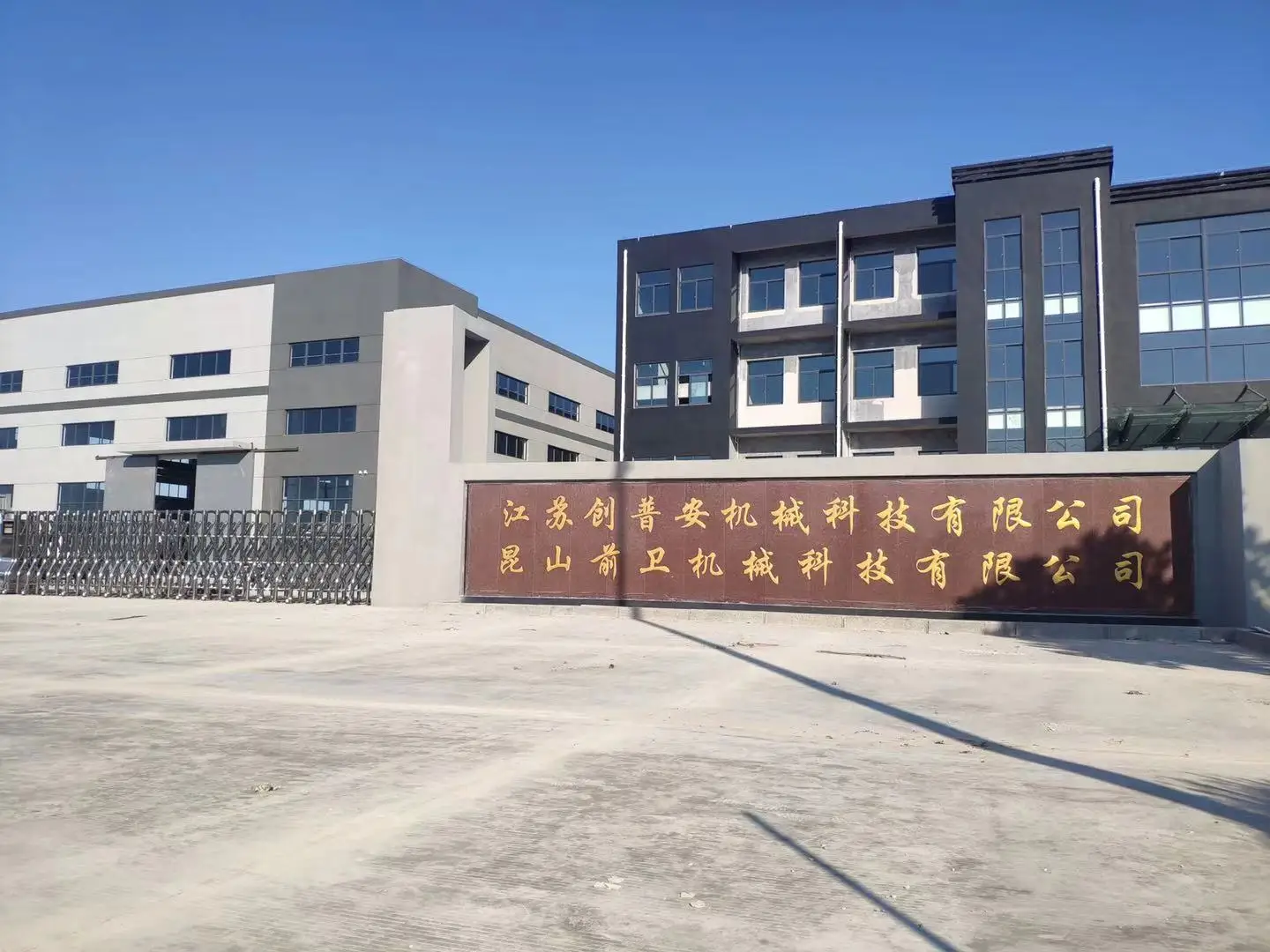

Company Profile
Kunshan Qianwei Machinery & Technology Co., Ltd. Was Established In 2011 With A Registered Capital Of 10 Million Yuan.
The Company Covers A Total Area Of 20000 Square Meters. It Has Complete Factory Buildings, Offices And Complex Buildings. The Company Consists Of Foreign Trade Dept (Kunshan), Domestic Trade Dept, Administration Dept, Design Dept, Procurement Dept, Engineering Dept, Quality Inspection Dept, After sales Dept, Finance and Accounting Dept, etc.
FAQ
Q1 :Are You Factory
A1 :Yes, Our Factory Is Located in Jiangsu Province With 20000 Square Meter
Q2 : Do You Have Technical Support After We Buy Your Machines
A2 : We Have Technical Support From Sales Part \\Design Part\\ Installation Part \\After Service Part Turn Key
Q3 : Will you install machine and training our workers overseas
A3 : Yes ,we will
