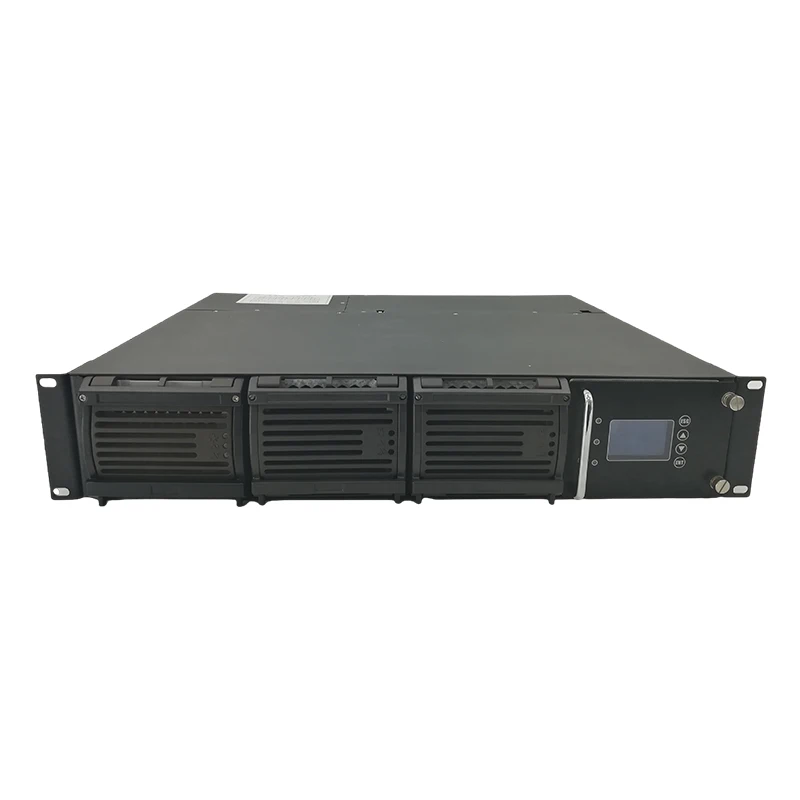

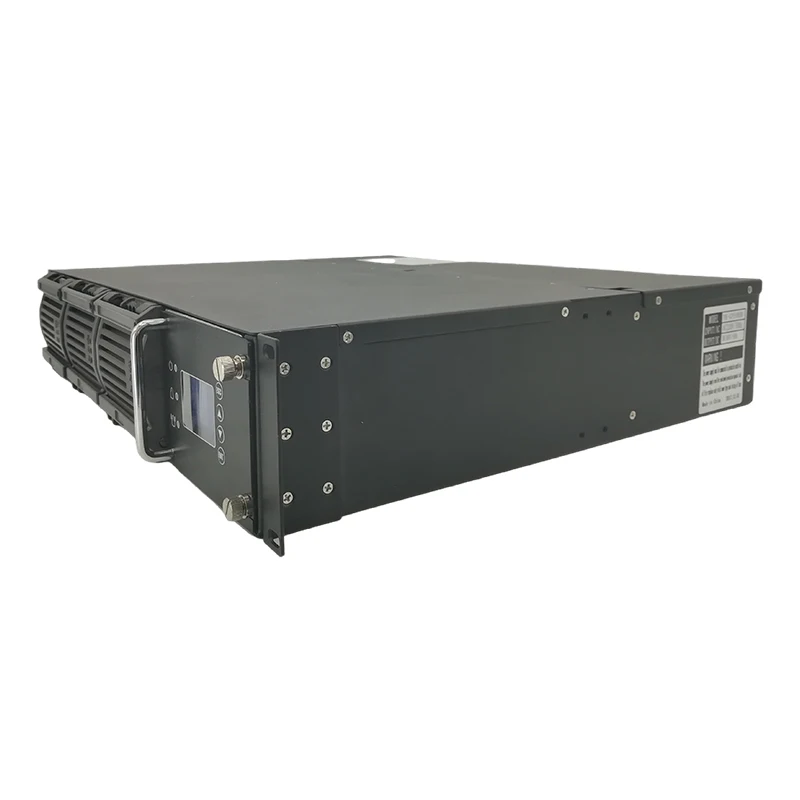

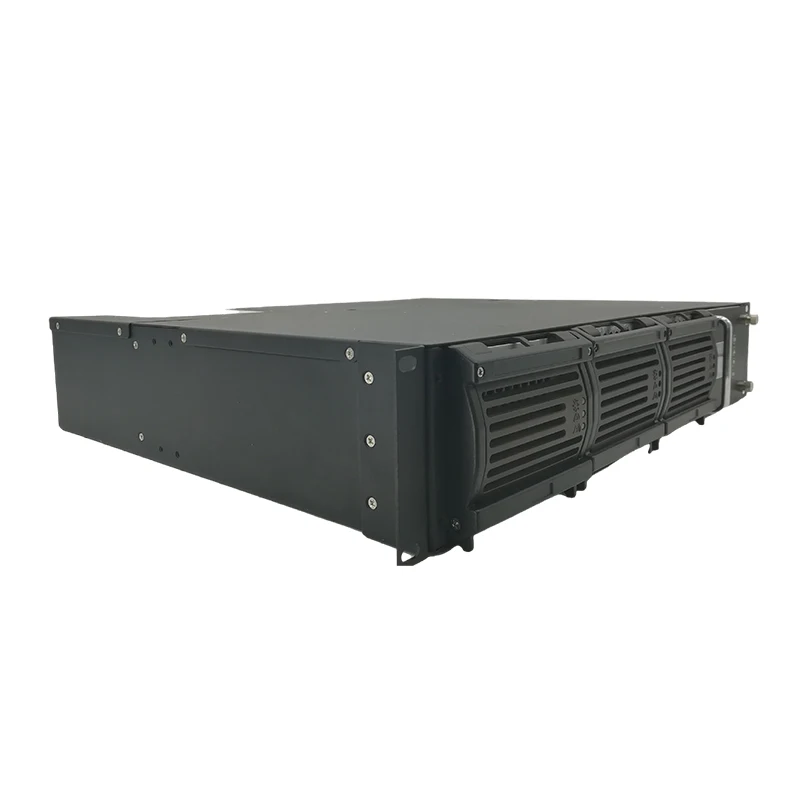

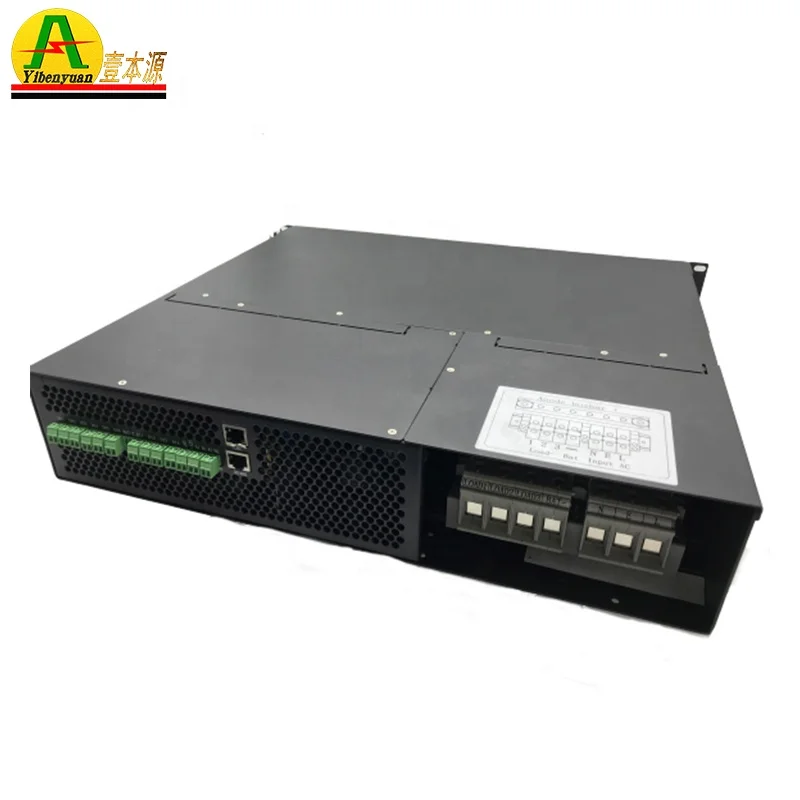

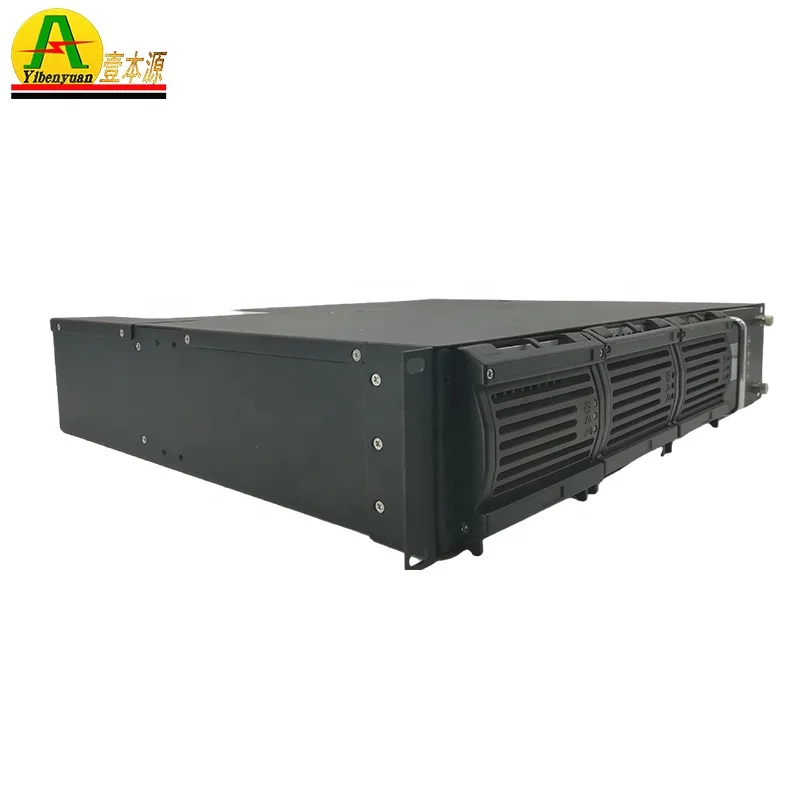

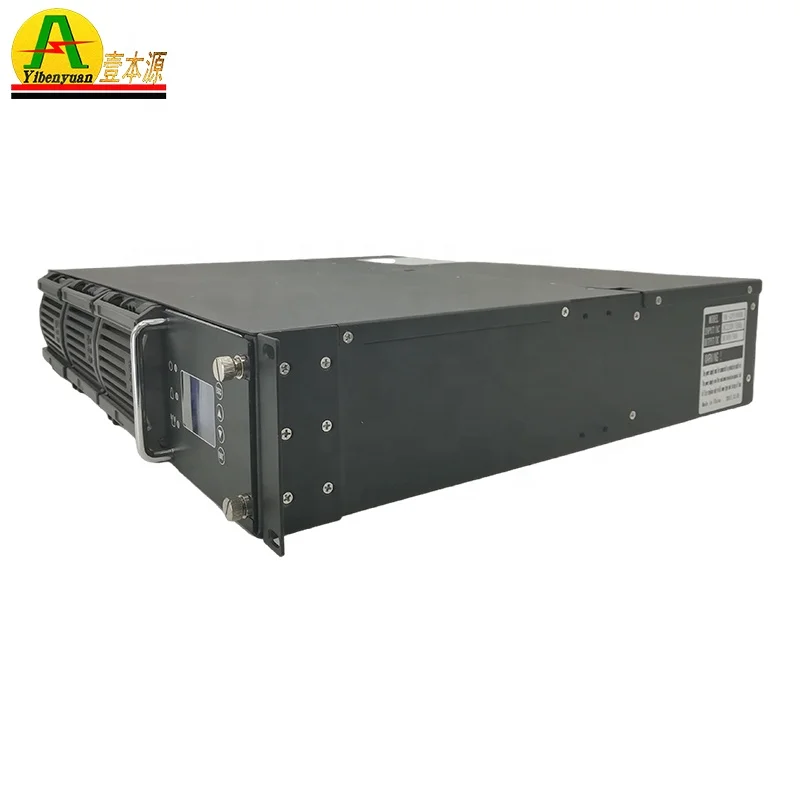

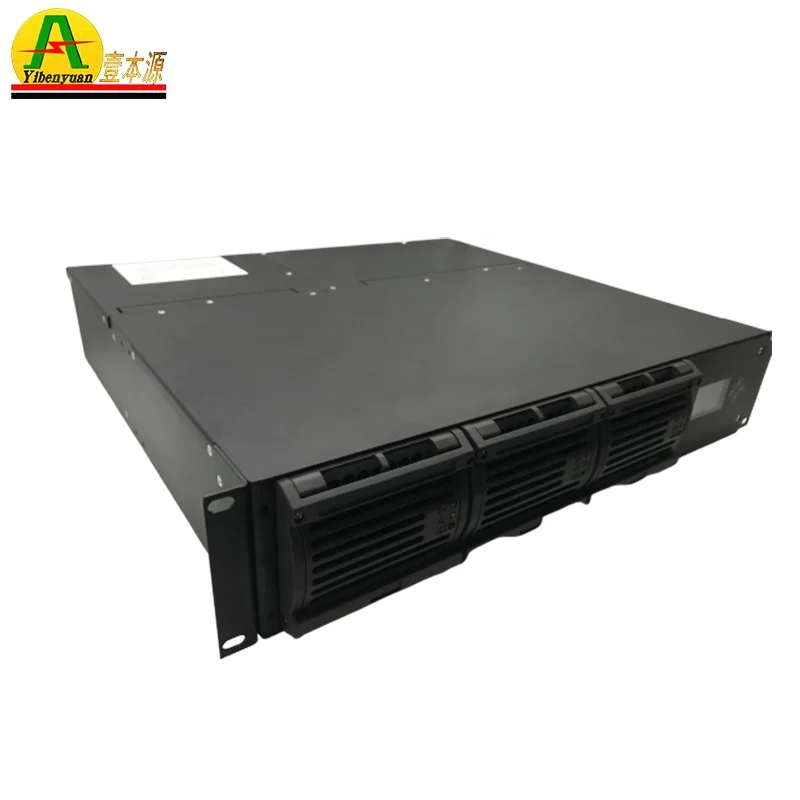

Chinese factory outlet rectifier system function 110v dc rectifier system 220VAC 110VDC 20A 2200W ac to dc rectifier

Product Overview

Description

Chinese factory outlet rectifier system function 110v dc rectifier system 220VAC 110VDC 20A 2200W ac to dc rectifier

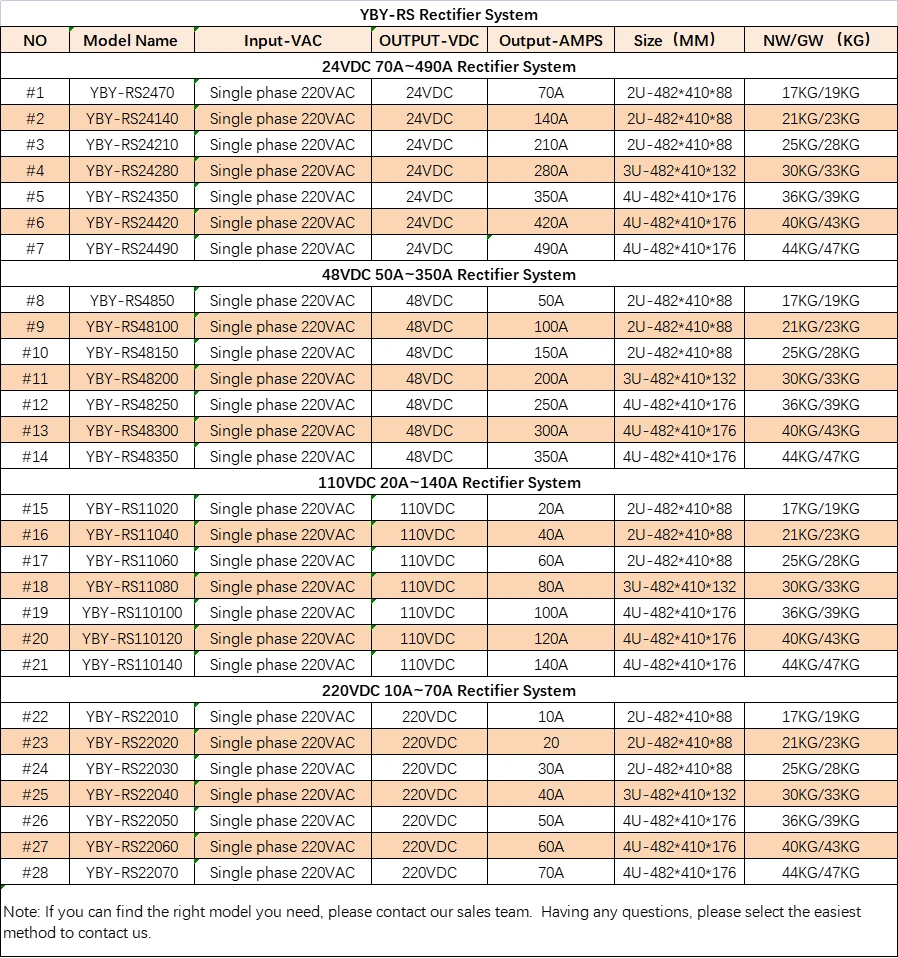

I. CUSTOMIZE RANGE:

Regard as HF Switching Power Supply/rectifier. we can customize are as follows
1. Input: 220VAC +/-15%, 50/60HZ
2. Output: 48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
3. Output : 24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A



II. FEATURES

Features 1 :

1. Hot swappable type operation;

2. Each individual rectifier module can be capable of operating independently;

3 .AC /DC distribution system for AC input/ DC output distribution and protection;

4 .Protections: short road, over load, battery over/under voltage protection.



Features 2 :

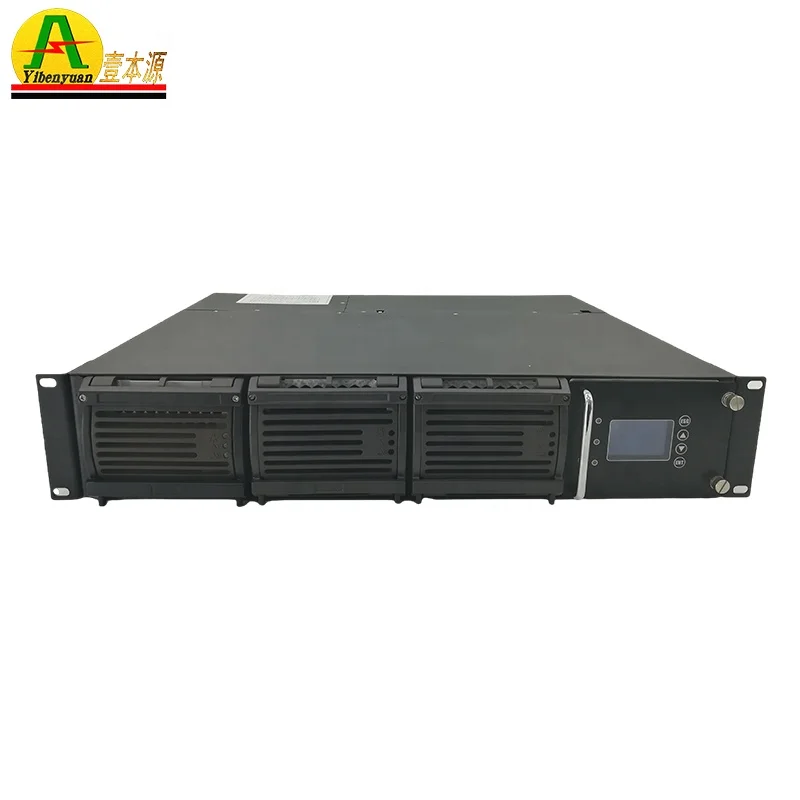

Appearances of monitoring module

Each front of M30 monitoring modules has LCD screen, keystroke, and indicators. It can display data of the system in real time; you also can change setup by keystroke

Indicators	Normal	Abnormal	Reasons
Power supply indicator	On	Off	No AC input or input
Equalized &floating	Off	On	Equalized charge(On)
Floating charge(Off)	Off	On	There is a damage



III. DATASHEET

Model	YBY-RS11020
Input
Rate voltage	220VAC
Input voltage	185-290VAC
Output
Rate voltage	110VDC
Output Voltage	90-130VDC
Rate current	20A
Rate power	2200W
Conversion efficiency	>95%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	< 60mA
Working temperature	-5~45℃
Protection	Over-current / voltage / load protection
	Overheat protection
	Lower voltage protection
	Intrusion protection
	Short-circuit protection and automatic recovery
	Full waterproof potting
Size	482*410*88mm (W*D*H)
N.W	17KG
