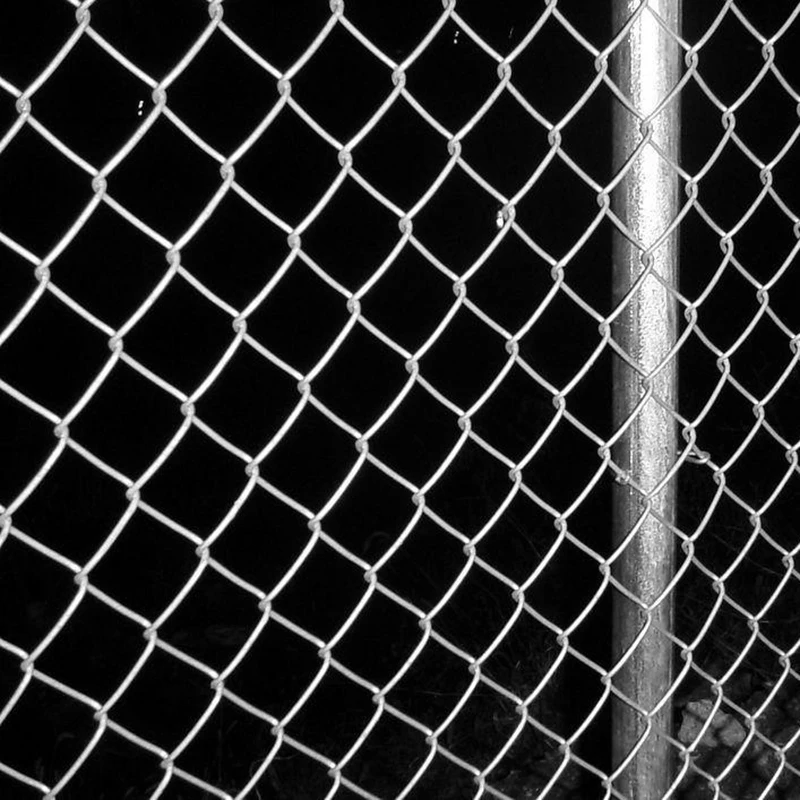

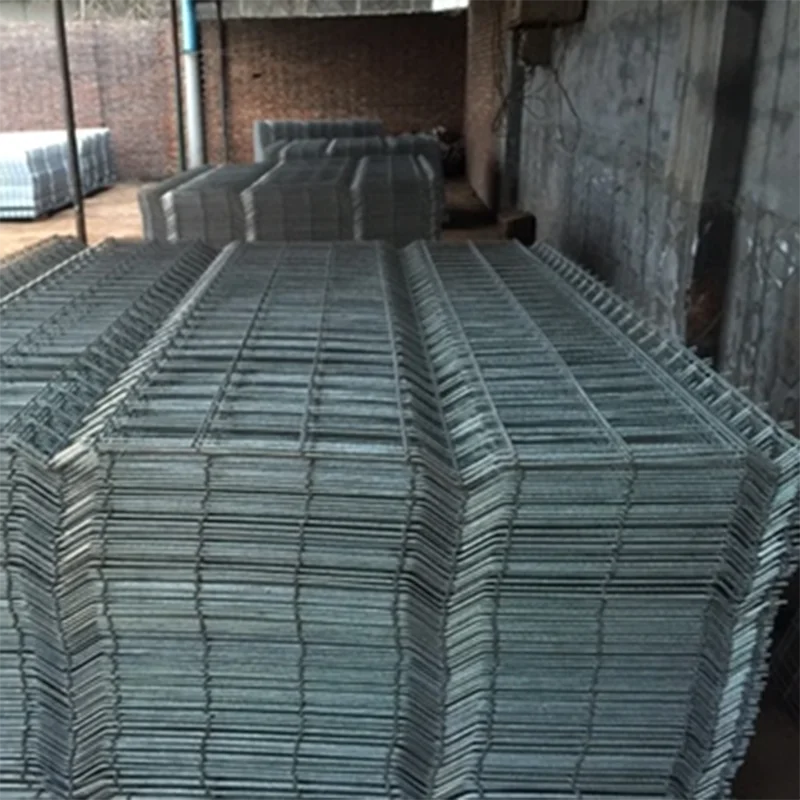

Galvanized Fence Panel Galvanized Meshwire For Fence Electro Welded Modular Panel In Galvanized Wire And Painted Green
- Category: >>>
- Supplier: Anping County Ou Shuang Wire Mesh Manufacturing Co. Ltd.
Share on (1600864069293):
Product Overview
Description

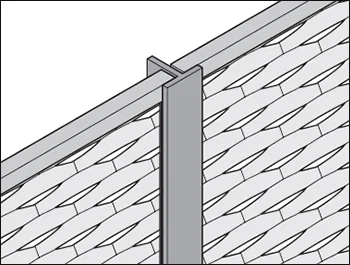

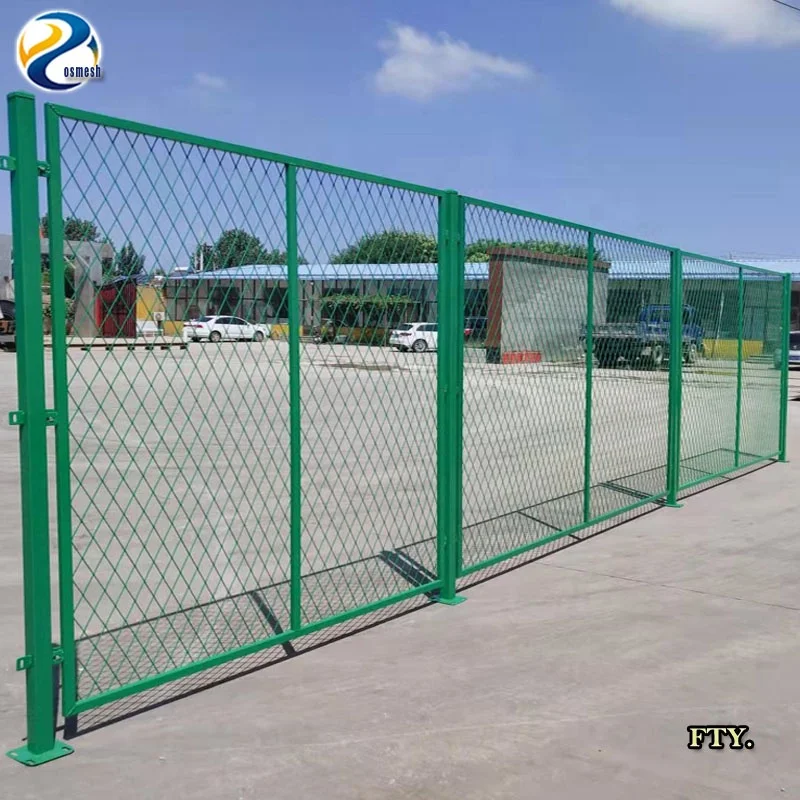

Expanded Metal Mesh fence.
1. Features

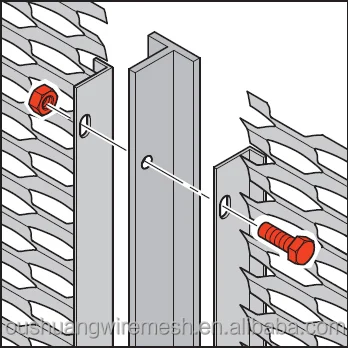

Easy to install, strong and safely, small contact surface, can be maintained for a long time.
2. Surface treatment
Galvanized, sprayed, rolled flat, Powder coated color.
3. Hole pattern
Diamond-shaped holes, hexagonal holes, round holes, Mega holes, etc., special specifications can be customized.
4.Material
Galvanized sheet, low carbon steel sheet.
5.Application

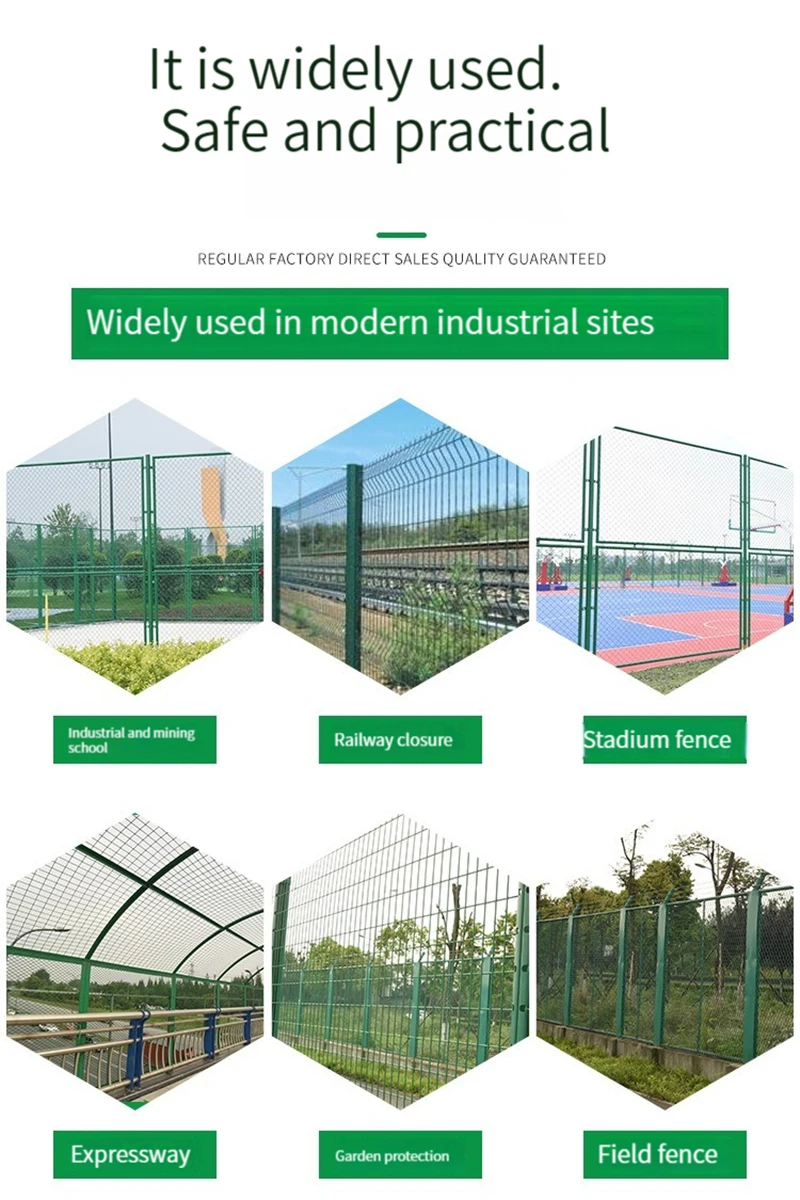

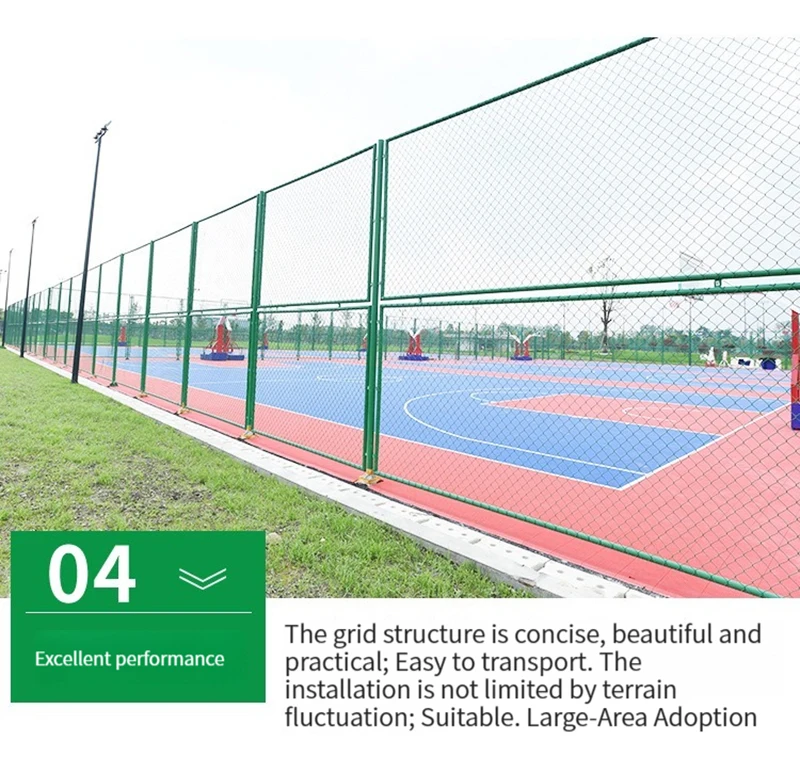

Expressway anti-vertigo nets, urban roads, military barracks, national defense borders, parks, buildings, villas, residential quarters, sports venues, airports, road green belts, etc., are used as barriers, fences, etc.
6. Panel Thickness
1.5mm-3mm
7. Hole Long pitch
25mm-100mm
8. Hole Short pitch
19mm-58mm
9: Panel size
2M*3M,2M*2M,1.8M*3M,1.5M*3M,1.2M*3M, Other size can be customized.
Product Description

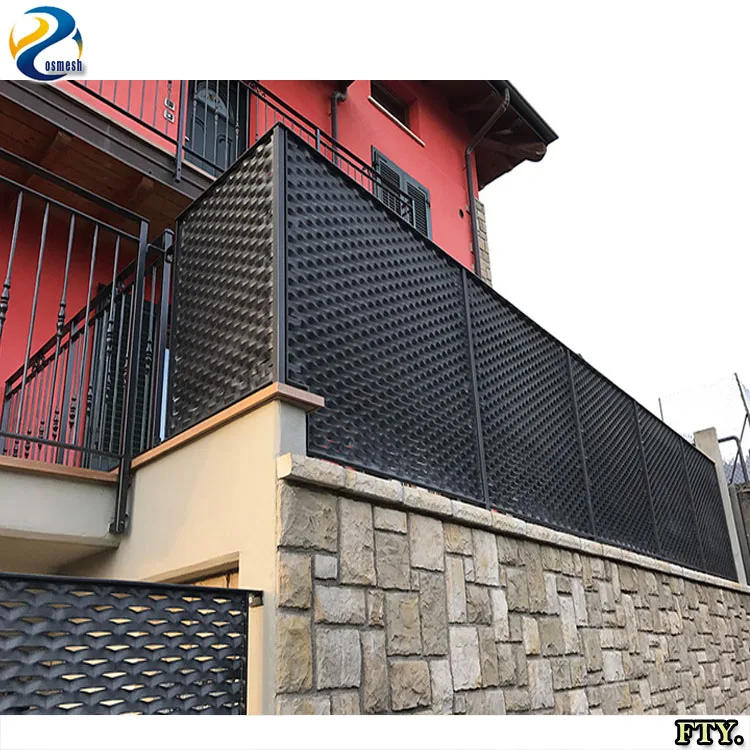

Expanded Metal Mesh.
Expanded Metal Material: stainless steel plate, aluminium plate, common carbon plate ,brass plate, nickle plate, titanium plate ,iron plate ,Al-Mg alloy plate
Weaving: punched and stretched, sturdy and durable with elegant appearance.
Metal Surface:
PVC coated, sprayed, plastic coated, hot dipped galvanized, electro galvanized, etc.
Application : Flooring,Ventilation,Architectural,Railing,Filtration,Decorative mesh,Wall facade and cladding,Building ceiling,Sun screen,Interior design,etc.
Benefits:
1. Economical
2. Lightweight
3. Durable
4. High strength-to-weight ratio
5. High electrical conductivity
Specification of Expanded Metal Ceiling panel: | ||||||
Size(mm) | Frame Height(mm) | Thickness(mm) | Edge Type | |||
300*300 | 20/25 | 0.5~1.0 | Beveled /Square Edge | |||
300*600 | 20/25 | 0.6~1.0 | Beveled / Square Edge | |||
300*1200 | 20/25 | 0.7~1.0 | Beveled / Square Edge | |||
400*400 | 20 | 0.6~1.0 | Beveled / Square Edge | |||
500*500 | 20 | 0.6~1.0 | Beveled / Square Edge | |||
600*600 | 20/25/28 | 0.6~1.2 | Beveled / Square Edge | |||
600*1200 | 20/25/28 | 0.7~1.2 | Beveled / Square Edge | |||

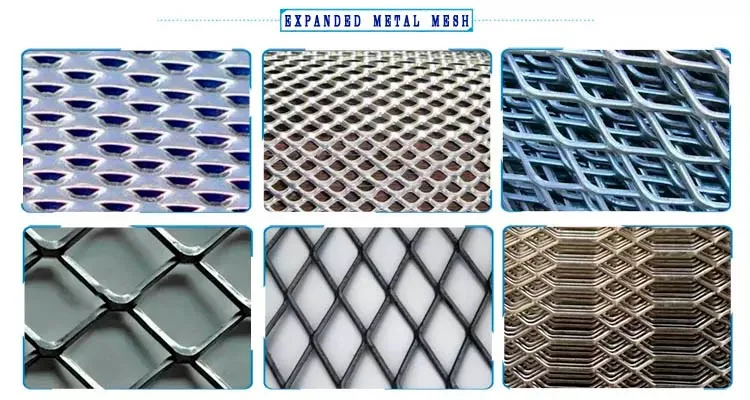

Detailed Images
Specification of Expanded Metal Mesh | ||||||||||||
Sheet Thickness | Opening in Width | Opening in Length | Stem | Roll Width | Roll Length | Weight | ||||||
mm | mm | mm | mm | kg/m2 | ||||||||
0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 | ||||||
0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 | ||||||
0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 | ||||||
0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 | ||||||
1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 | ||||||
1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 | ||||||
1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 | ||||||
1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 | ||||||
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 | ||||||
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 | ||||||
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 | ||||||
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 | ||||||
3 | 40 | 80 | 3.8 | 2 | 4 | 5 | ||||||
4 | 50 | 100 | 4 | 2 | 2 | 11.15 | ||||||
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 | ||||||
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 | ||||||
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 | ||||||
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 | ||||||

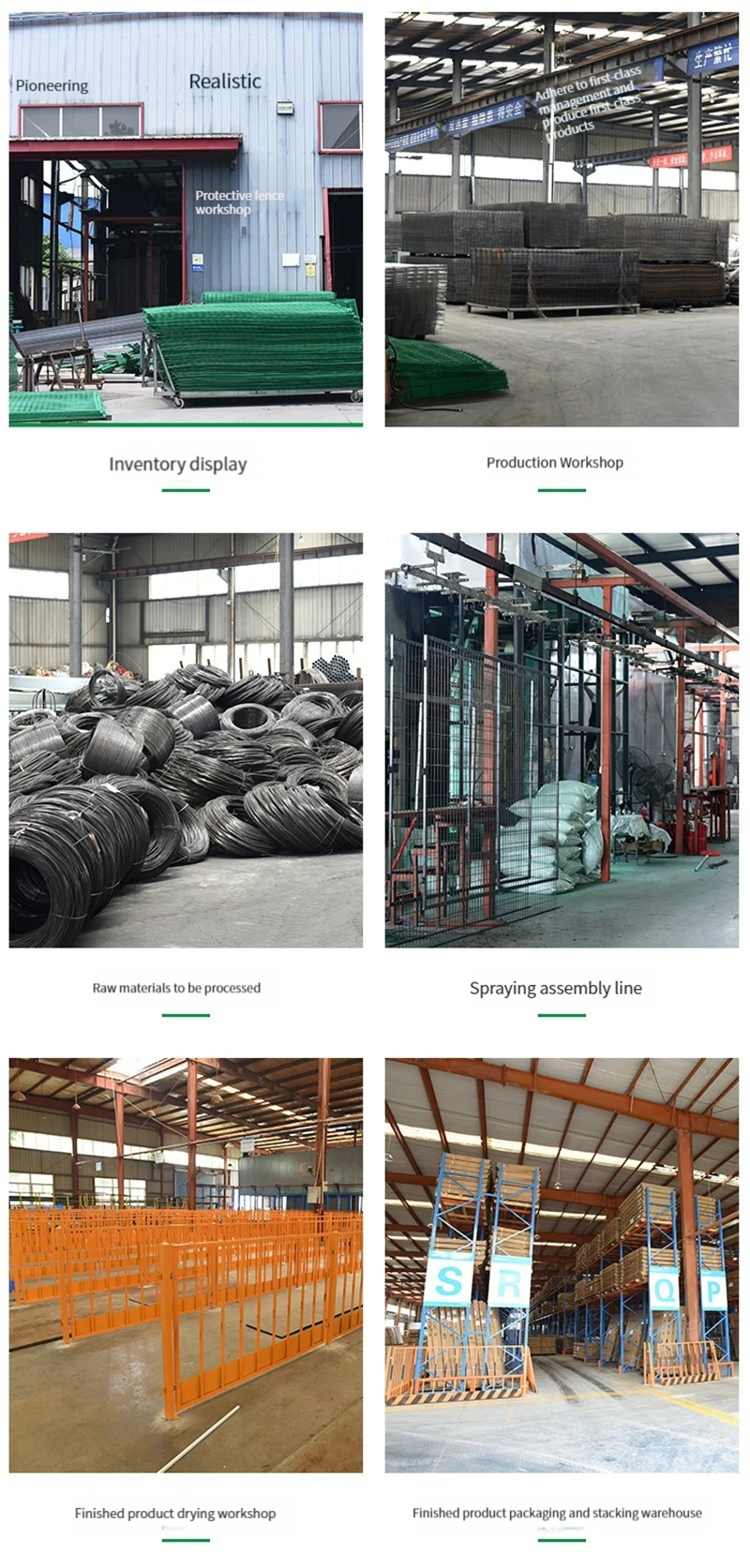

Manufacturing Technique

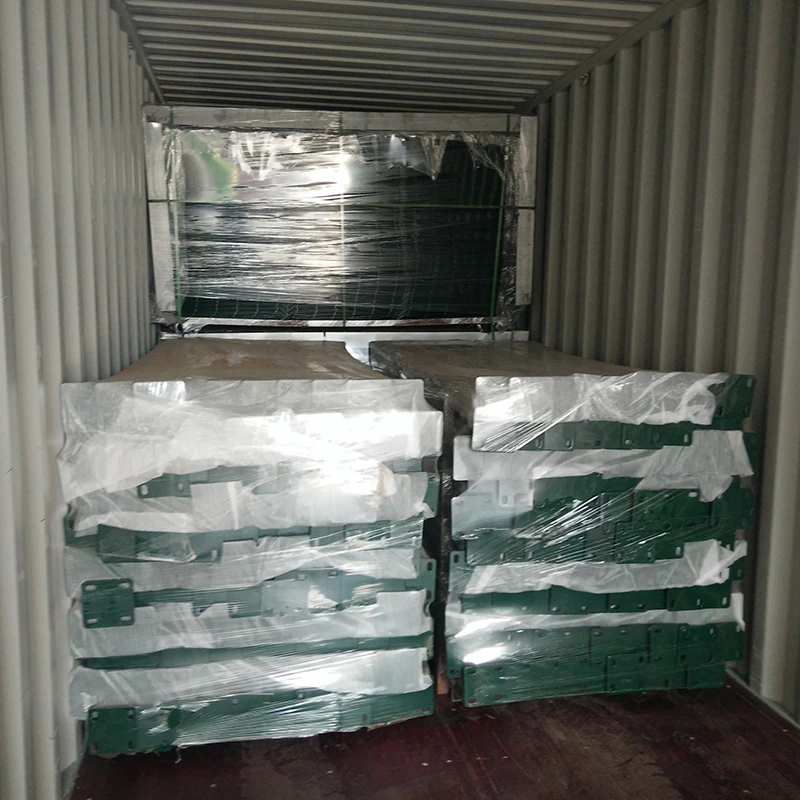

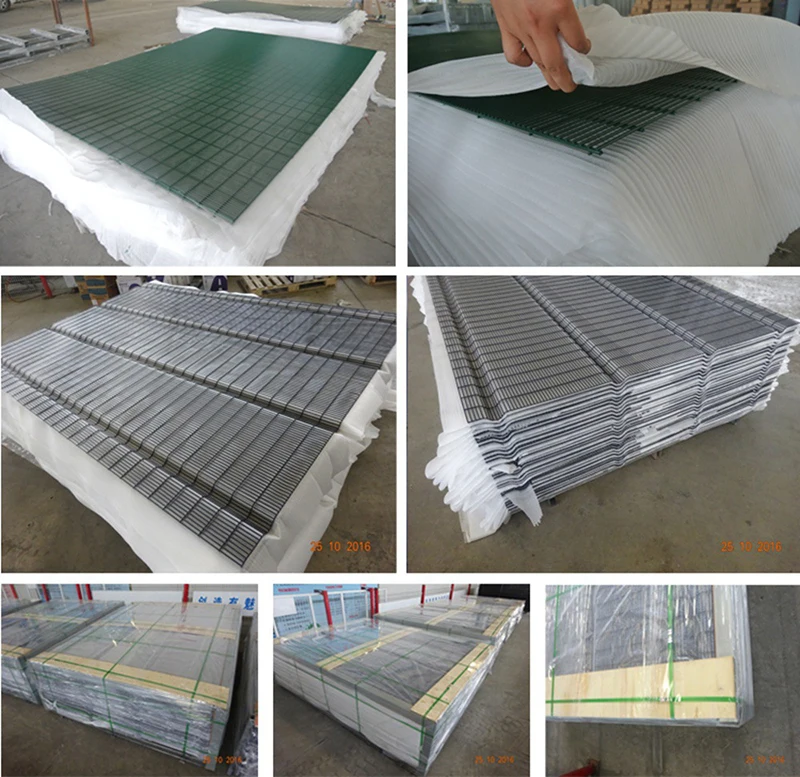

Packing & Delivery
FAQ
Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample?
A: es,we can provide sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back
the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample?
A: es,we can provide sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back
the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.
