SCBN Tools High Quality PCBN TOOLS Inserts DNMG1504 DNMG1506 DNMG150412 DNGA
PRODUCTS DESCRIPTION
SCBN Tools High Quality CBN Insert DNMG1504 DNMG1506 DNMG150412 DNGA
PCBN (polycrystalline cubic boron nitride) tools are advanced cutting tools that are designed to machine hardened steel, cast iron, and other tough materials. PCBN inserts are known for their excellent properties, such as high hardness, thermal stability, and resistance to wear. In this article, we will focus on PCBN tools inserts DNMG1504, DNMG1506, DNMG150412, and DNGA and describe their features and applications.
DNMG1504 is a PCD/CBN turning insert with four cutting edges and is designed for finishing and semi-finishing operations on hardened steels and cast irons. The 60-degree included angle provides greater clearance, which results in better surface finish and reduced cutting forces. DNMG1506 is also a turning insert with six cutting edges and is used for roughing and heavy cutting. It has a stronger and more stable design with a 60-degree included angle, allowing it to handle higher cutting forces.

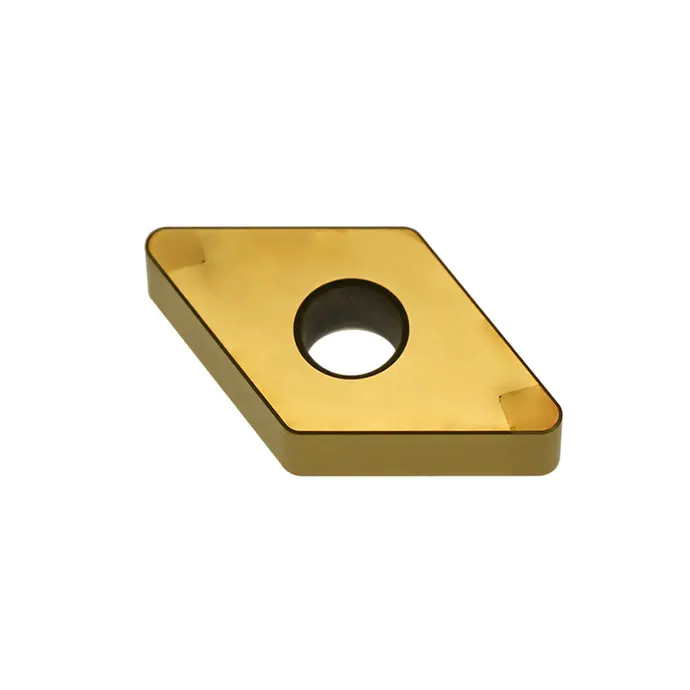

Tipped PCBN Inserts
This type tipped pcbn inserts are main Products For Hardened Steel Machining, we also have a variety of optional products and services can be offered: Double-sided composite welding head, Coating Service, Chipbreaker, Wiper, Longer Tips, Customized Chamfer and Other Customized Requirements.
SBH130 | SBH150 | SBH560 | |
Continuous Cutting For Finish | High-Performance Series | Excellent Cost-Effective Series | |
Machining hardened steel | SeriesContinuous Cutting~Light Interrupt Turning For semi-finish and finishing hardened steel | ||
SBH170 | SBH190 | SBH570 | |
Light Interrupt~Mid-Interrupt Cutting | High-Performance Series | Excellent Cost-Effective Series | |
Suitable For combined wear and impace resistance | Heavy Interrupt Turning For Heavy Interrupt Finishing Harded Steel | ||

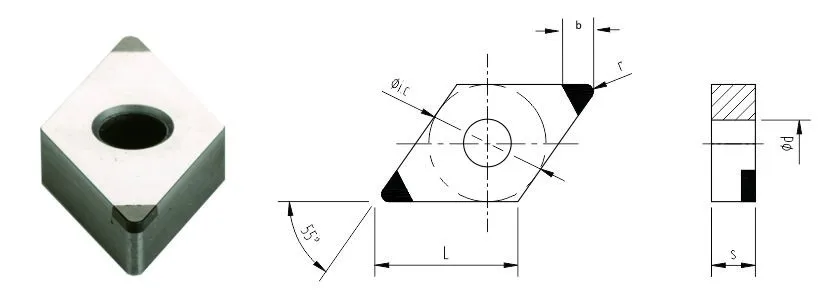

CBN Inserts DNGA/DNMG | ||||||||||
Model | L(mm) | d(mm) | t(mm) | Φd(mm) | r(mm) | |||||
DNGA110402-2N | 11 | 9.525 | 4.76 | 3.81 | 0.2 | |||||
DNGA110404-2N | 11 | 9.525 | 4.76 | 3.81 | 0.4 | |||||
DNGA110408-2N | 11 | 9.525 | 4.76 | 3.81 | 0.8 | |||||
DNGA150402-2N | 15 | 12.7 | 4.76 | 5.16 | 0.2 | |||||
DNGA150404-2N | 15 | 12.7 | 4.76 | 5.16 | 0.4 | |||||
DNGA150408-2N | 15 | 12.7 | 4.76 | 5.16 | 0.8 | |||||
DNGA150412-2N | 15 | 12.7 | 4.76 | 5.16 | 1.2 | |||||

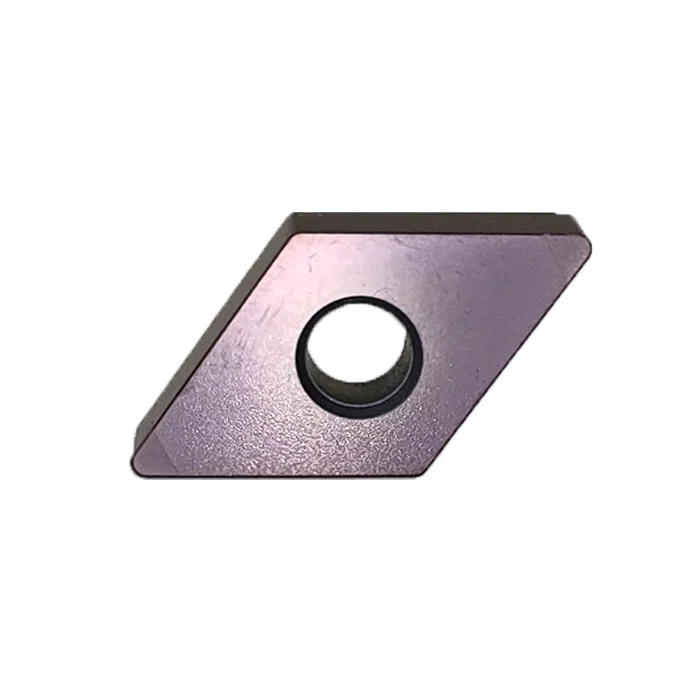

Brazed PCBN Inserts
We strongly recommend products for semi precision machining, which have excellent wear resistance and collapse resistance.
SBK600
Low hardness, Good Toughness
Suitable for Cast Iron Machining
SBK650
Moderate hardness and toughness
Suitable for cast iron and hardened steel machining, more universal.
SBK700
High hardness, low toughness.
Suitable for semi-finishing of hardened steel and other steel materials.

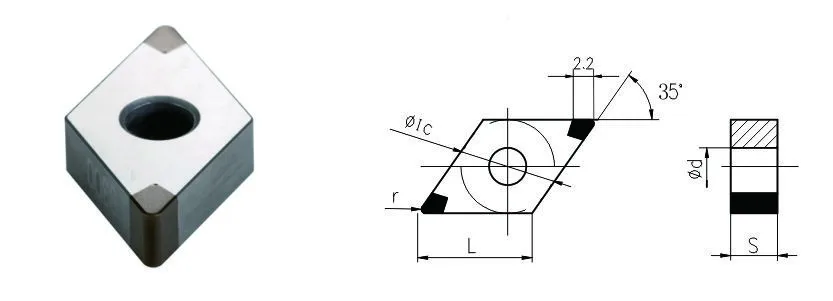

CBN Inserts DNGA/DNMG | ||||||||||
Model | L(mm) | d(mm) | t(mm) | Φd(mm) | r(mm) | |||||
DNGA110402-4N | 11 | 9.525 | 4.76 | 3.81 | 0.2 | |||||
DNGA110404-4N | 11 | 9.525 | 4.76 | 3.81 | 0.4 | |||||
DNGA110408-4N | 11 | 9.525 | 4.76 | 3.81 | 0.8 | |||||
DNGA150402-4N | 15 | 12.7 | 4.76 | 5.16 | 0.2 | |||||
DNGA150404-4N | 15 | 12.7 | 4.76 | 5.16 | 0.4 | |||||
DNGA150408-4N | 15 | 12.7 | 4.76 | 5.16 | 0.8 | |||||
DNGA150412-4N | 15 | 12.7 | 4.76 | 5.16 | 1.2 | |||||

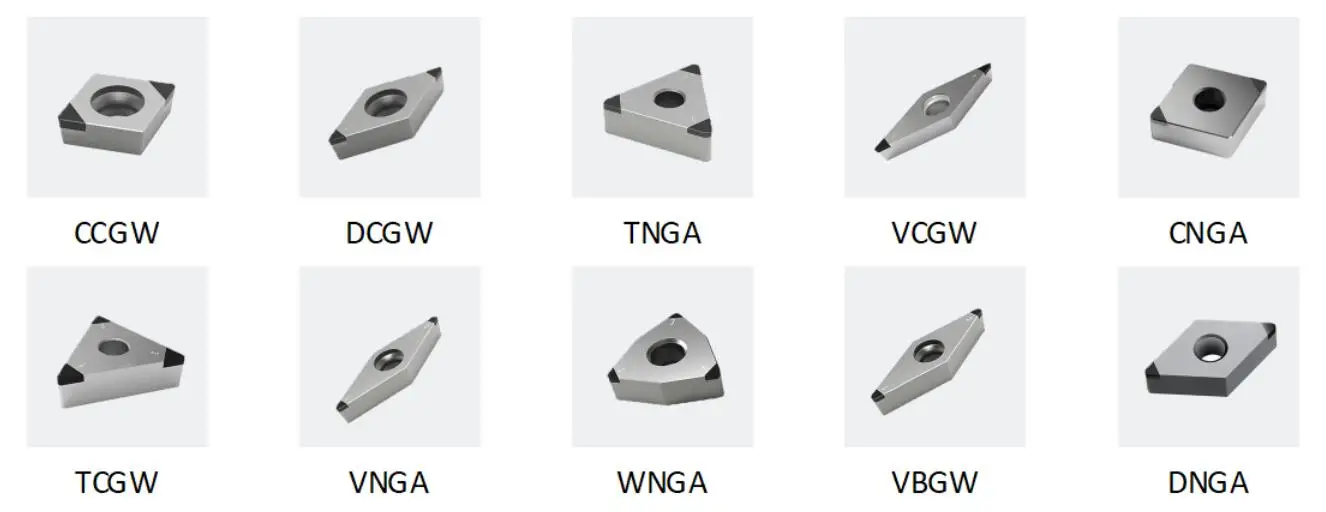

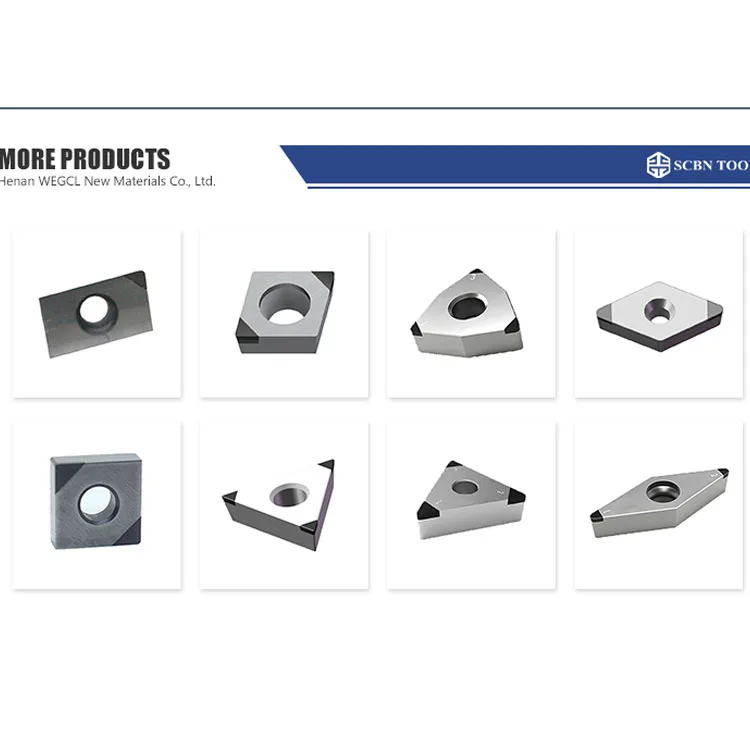

PRODUCT RANGE

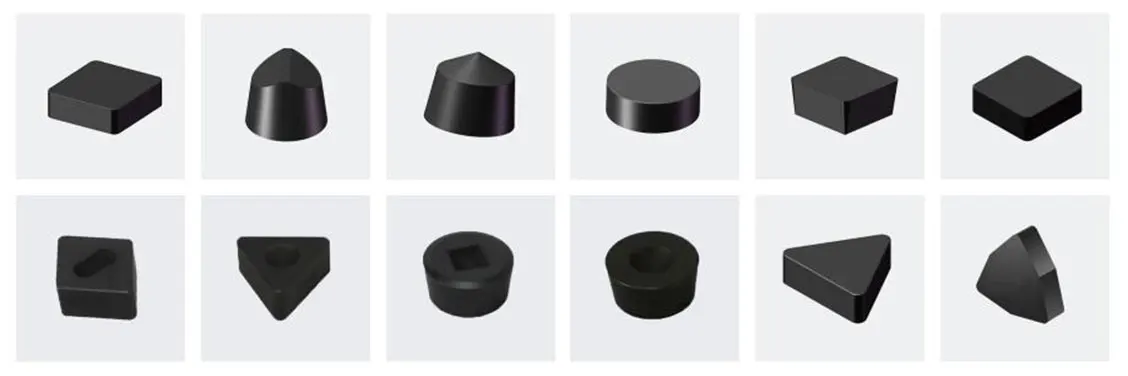

We also can offer various type CBN Inserts as followsl Tipped PCBN Inserts, Brazed PCBN Inserts and Solid CBN Inserts.
APPLICATION INDUSTRY
PCBN tools inserts DNMG1504, DNMG1506, DNMG150412, and DNGA are widely used in the automotive, aerospace, and machinery industries for turning, milling, and drilling. They are particularly suited for machining tough materials such as hardened steel, cast iron, and superalloys. The performance of these inserts can be greatly improved by selecting the appropriate cutting parameters, such as cutting speed, feed rate, and cutting depth.
Henan WEGCL New Materials Co., Ltd. (Named SCBN TOOLS), originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China), focusing on the research and development and production of superhard materials, is committed to providing the best cutting solutions and tools for global customers, and is regarded by customers as a reliable supplier of superhard material tools.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
