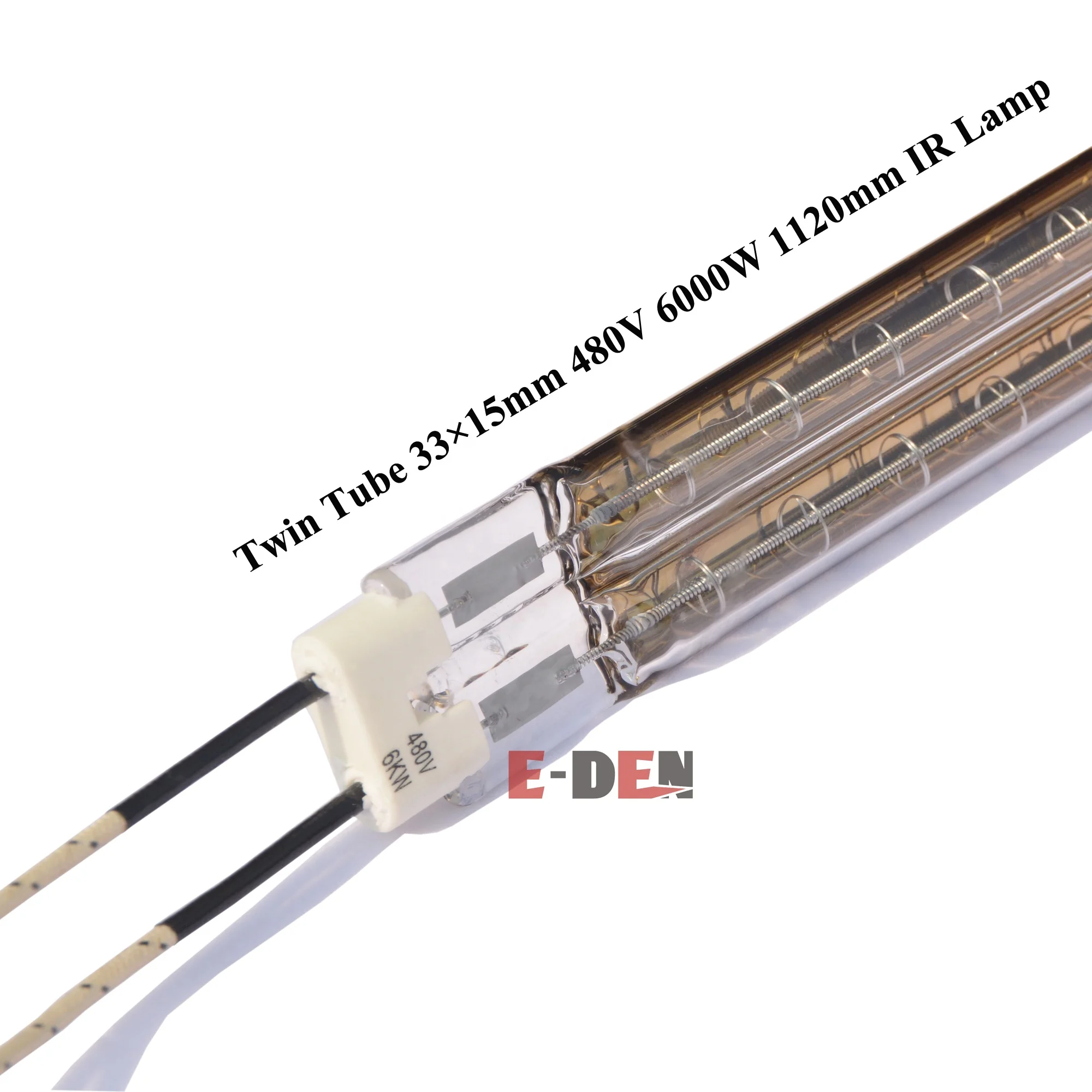

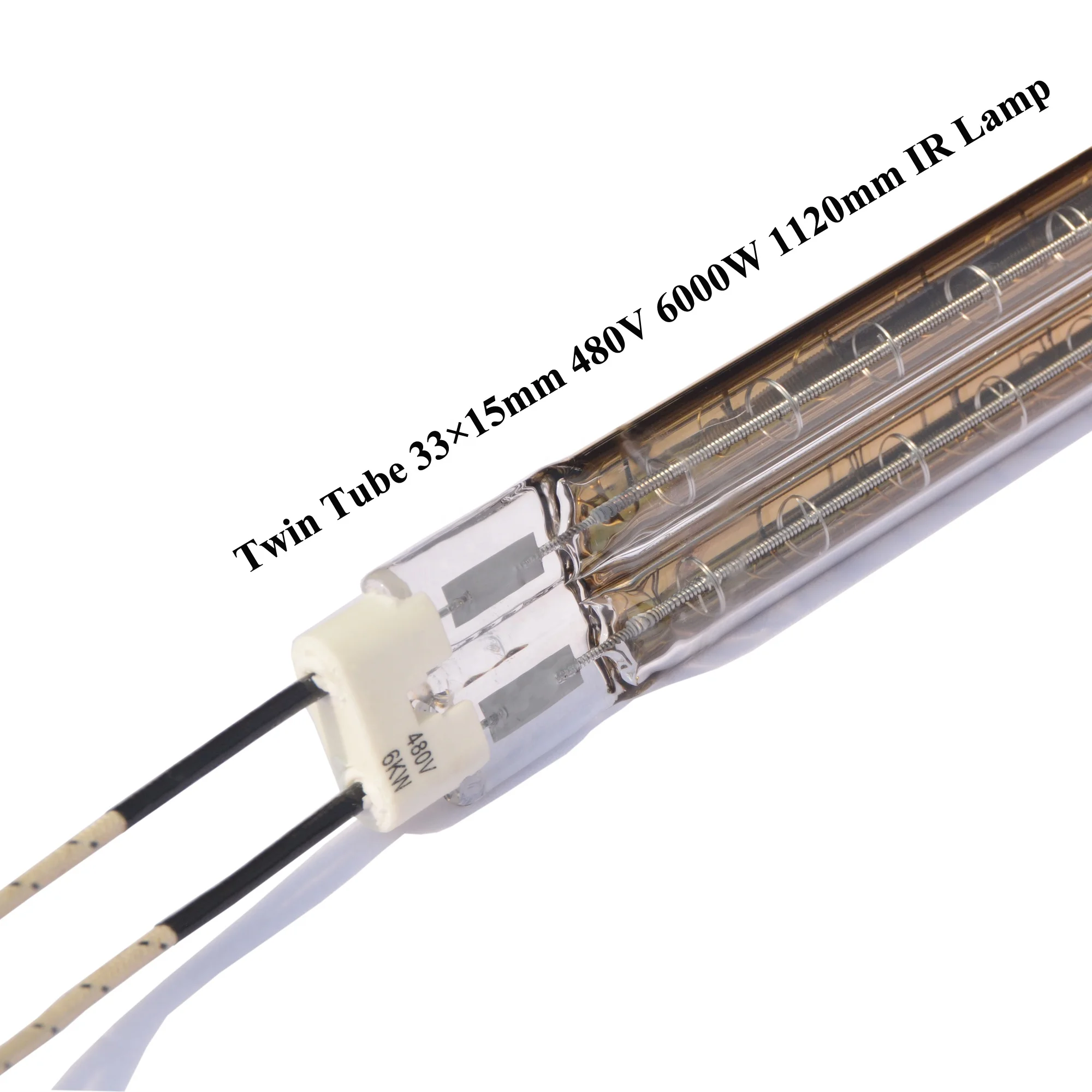

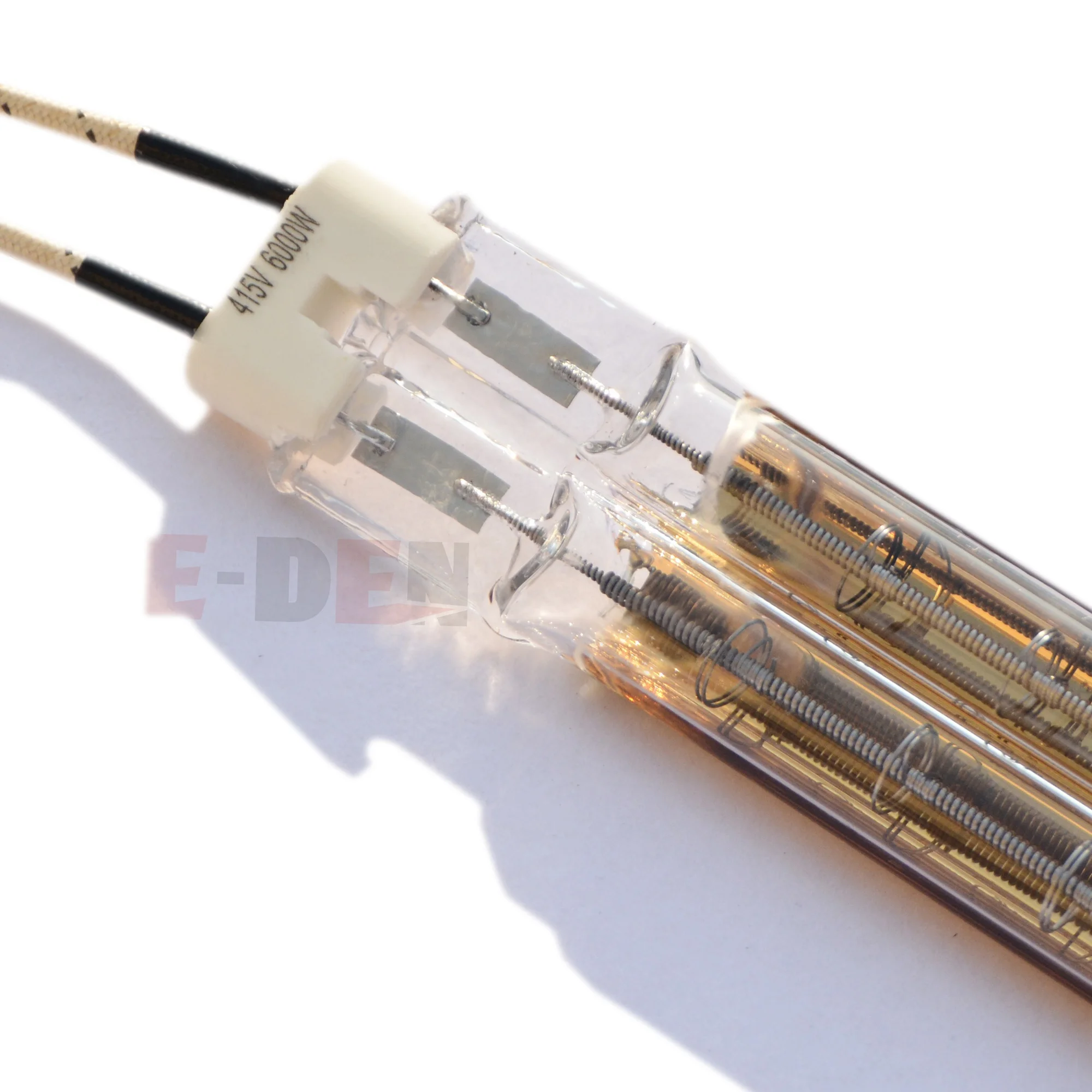

Fast Response Medium Wave 480V 6000W 1120mm Quartz Infrared Heater Tube Lamp Replacement Roland Printing Parts

1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: For all industrial applications, the highest working temperature up to 1000 ℃

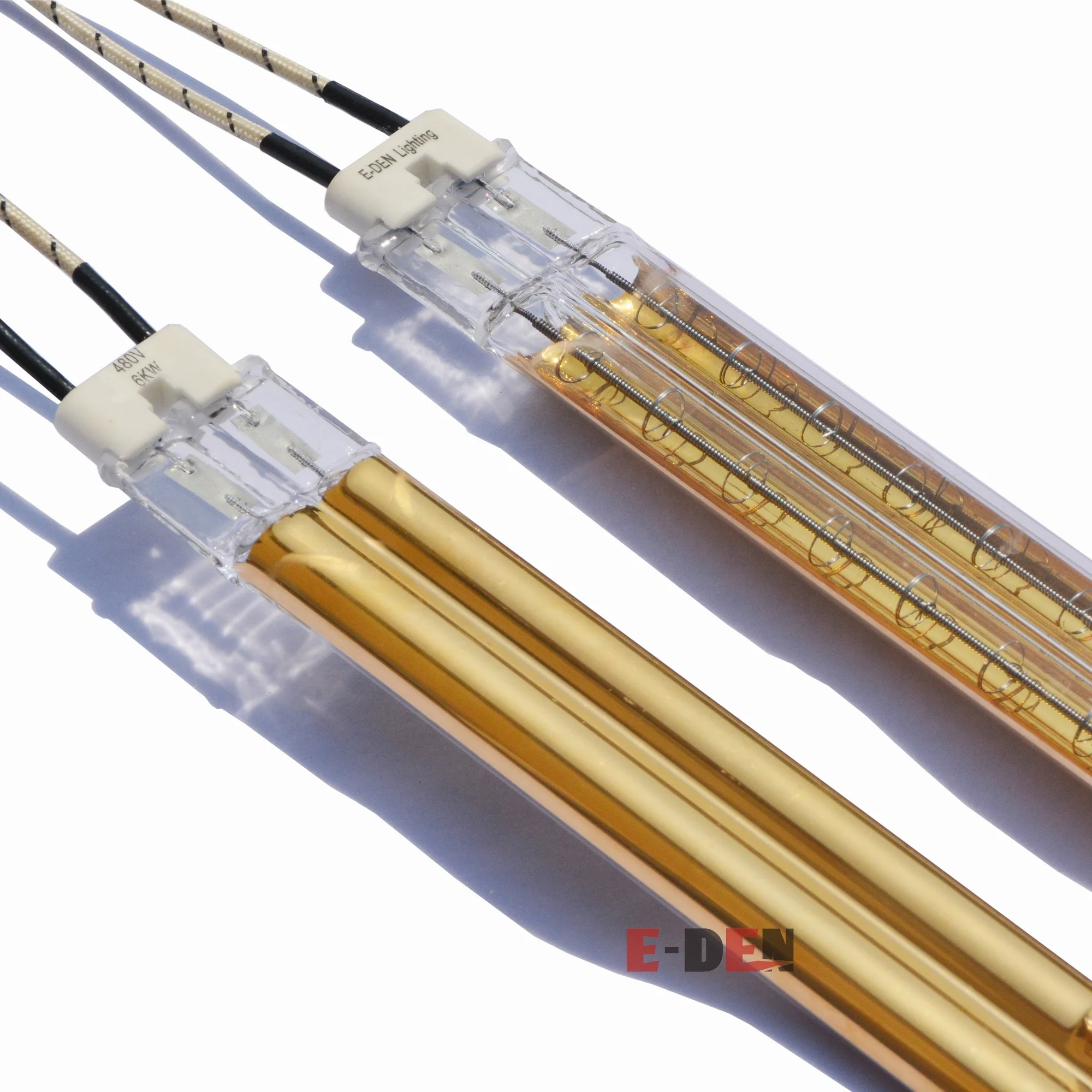

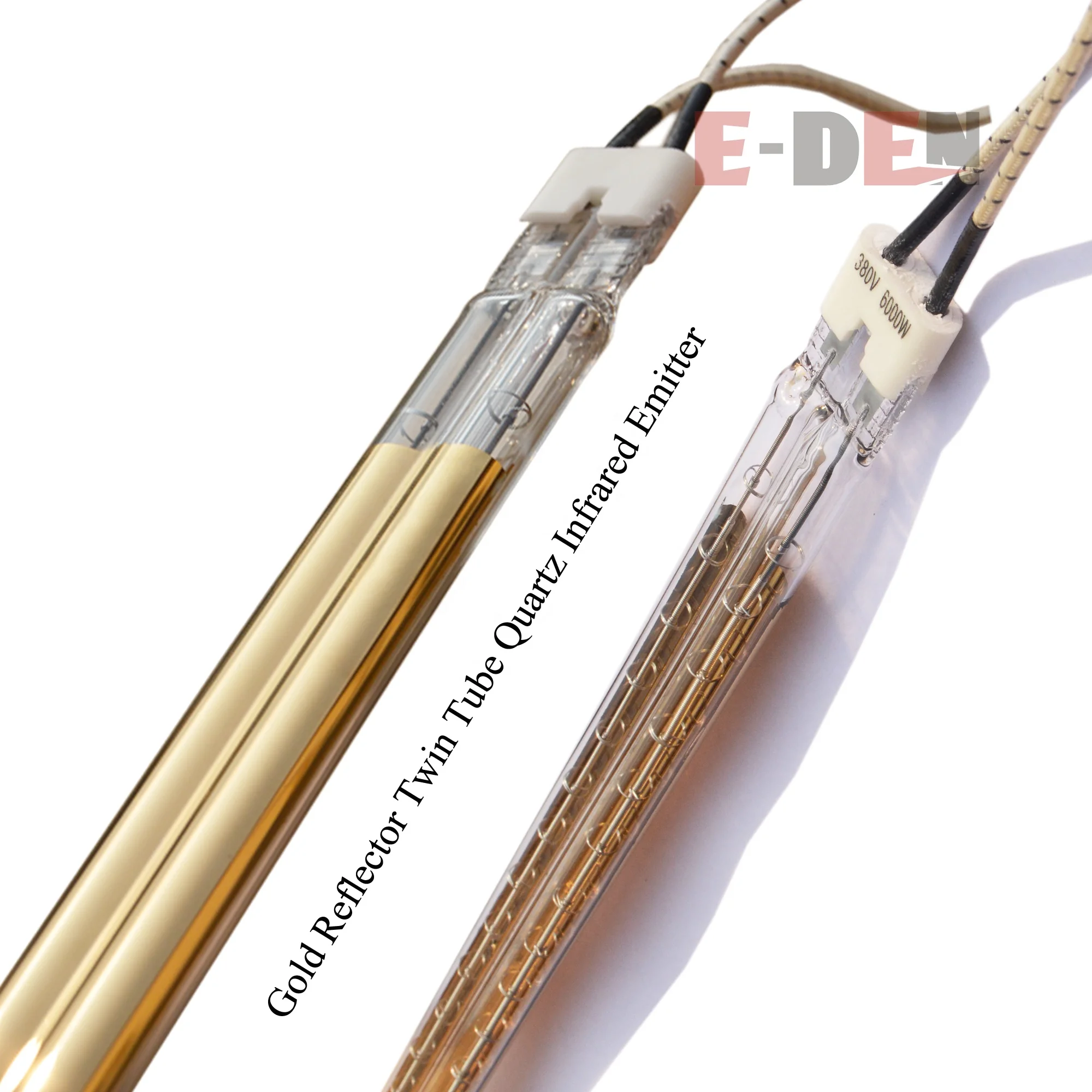

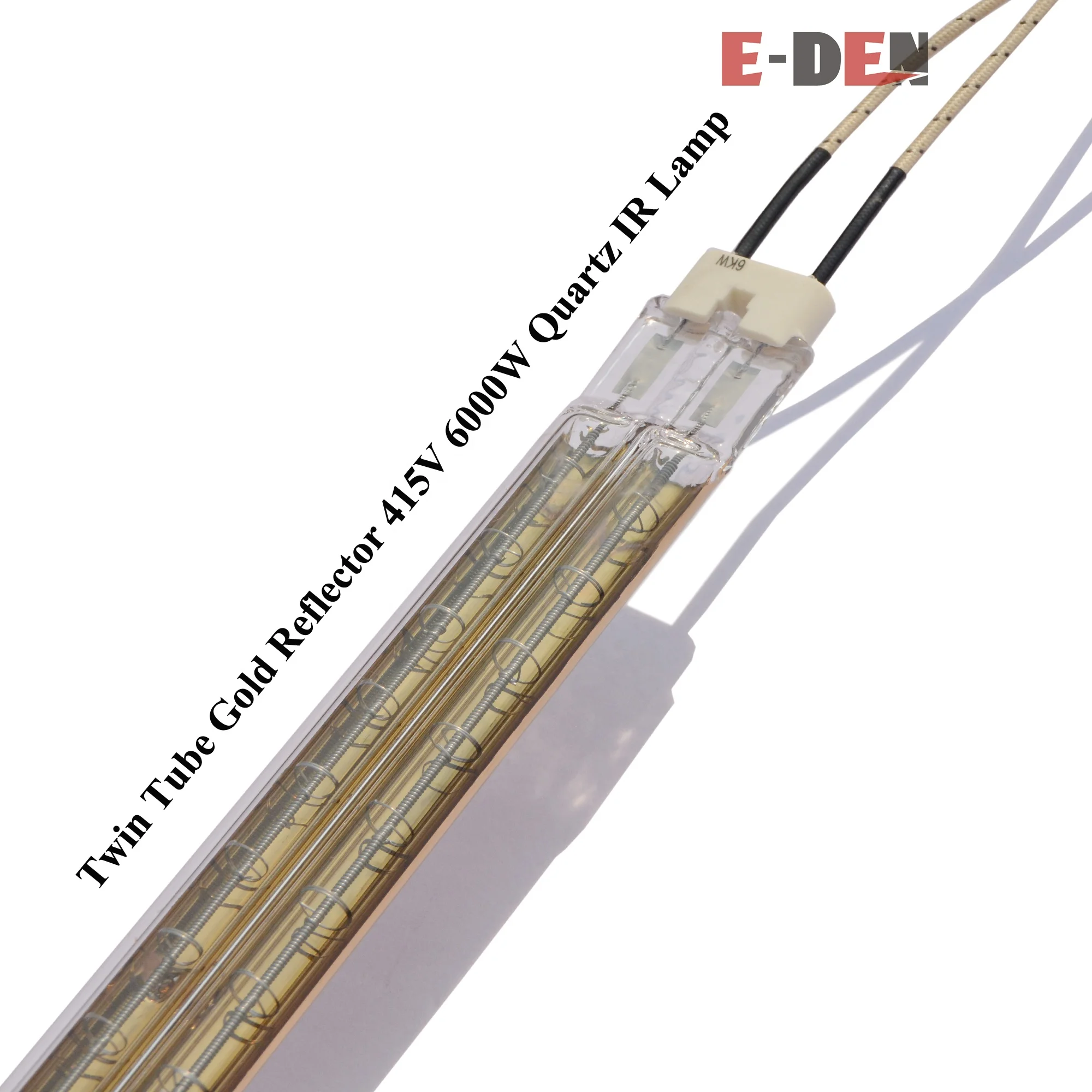

7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects

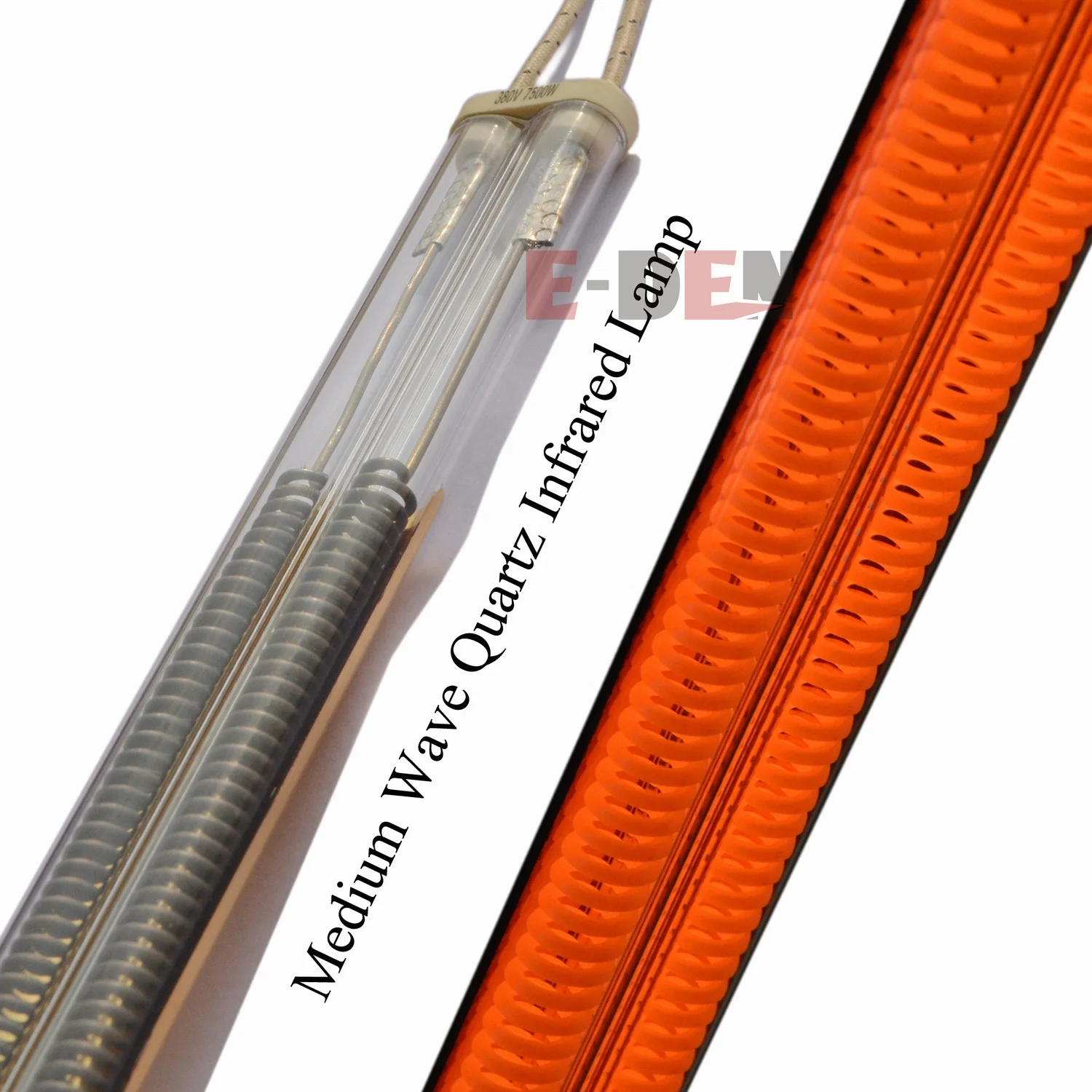

8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output The highest surface power output of short wave lamp is 200KW/M², Fast response medium wave lamp is 130KW/M², Carbon medium wave lamp is 100KW/M², Medium wave lamp is 60KW/M².
10: We guarantee 5000 hours average working life.

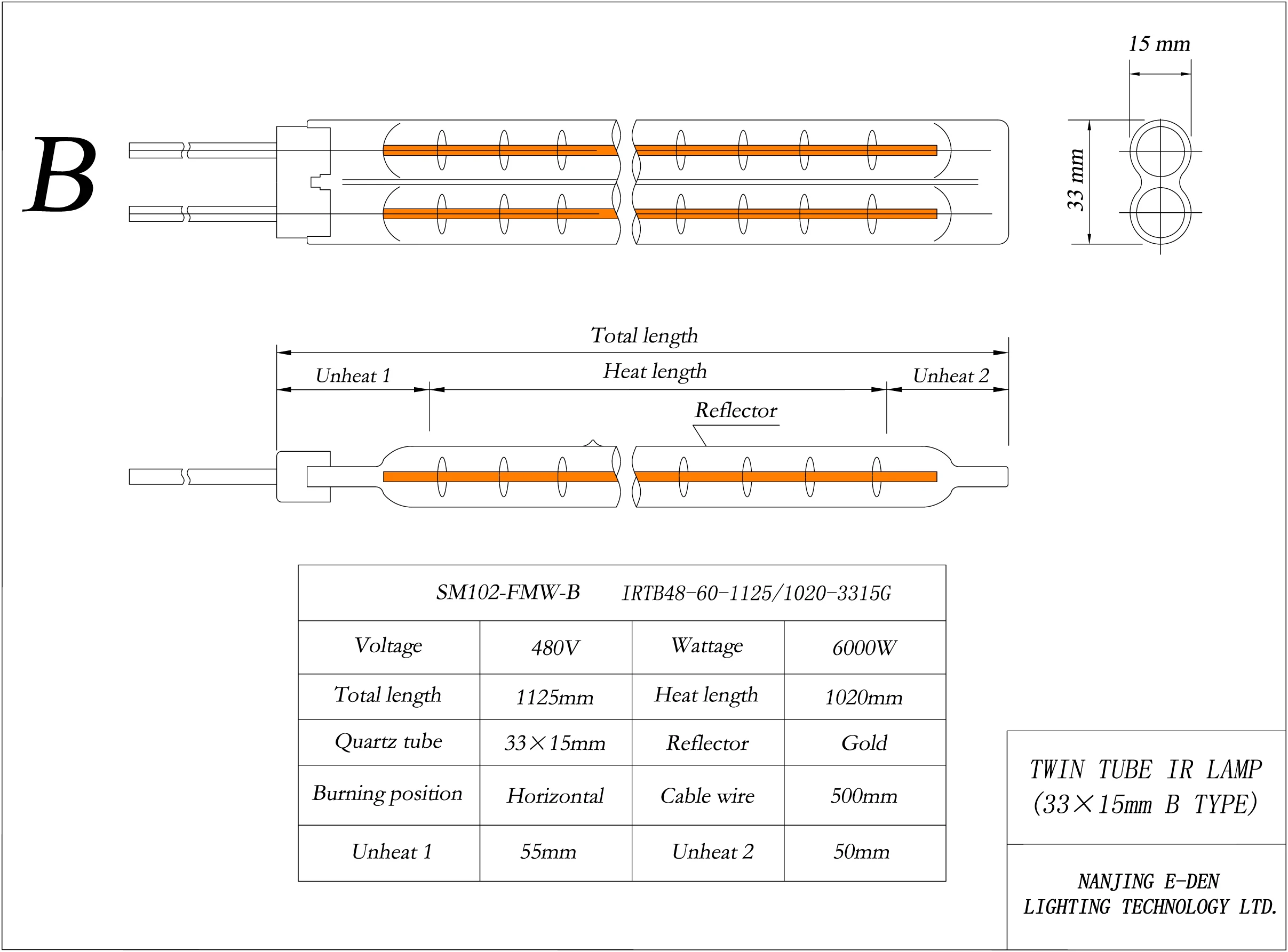

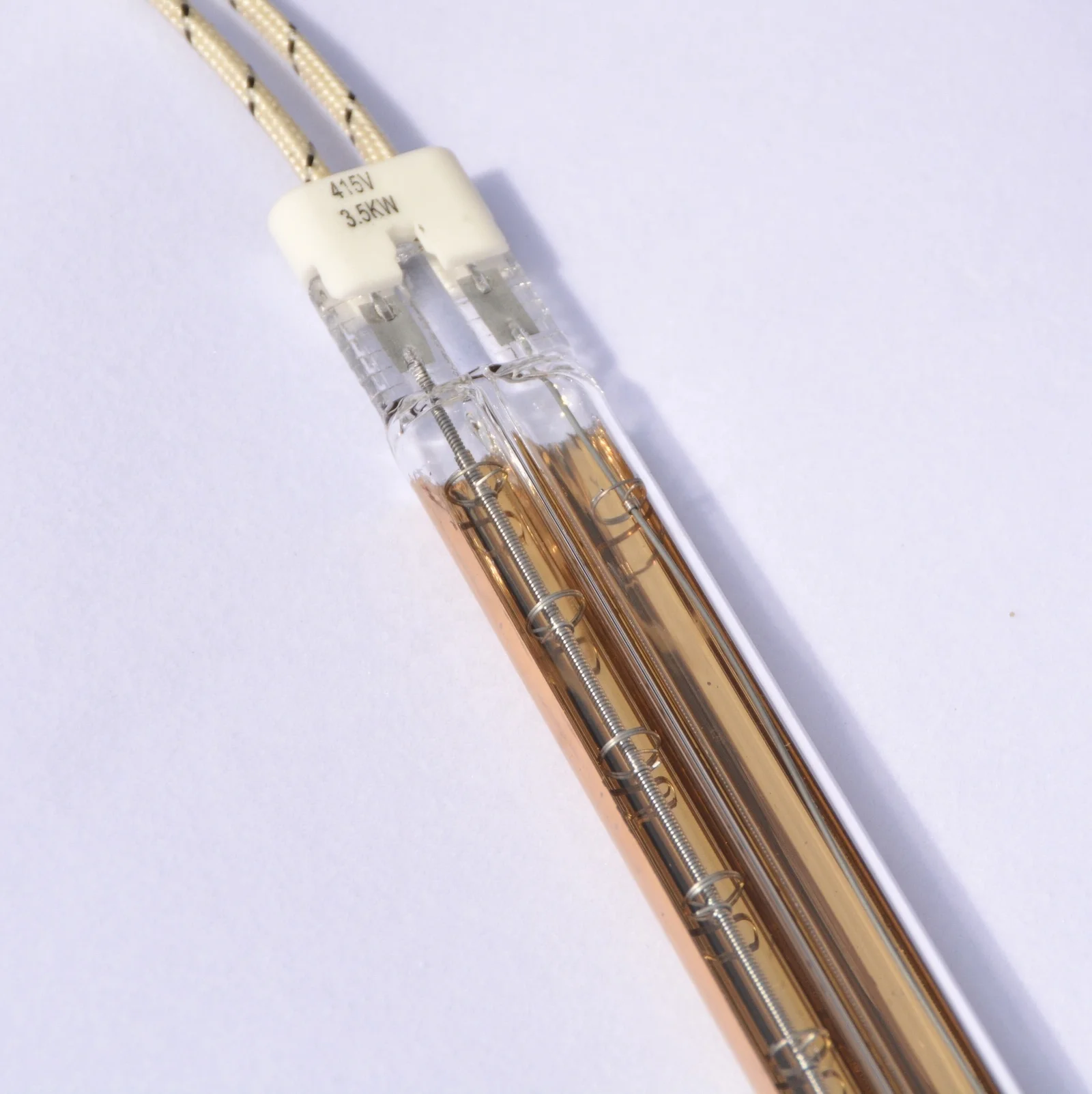

According to the configuration of different heating filament and ending cables, short wave twin tube infrared lamps can be produced in the following one side or two side connection configuration. And our infrared lamps can be competely as alternative lamps for Heidelberg machine.

                   One Side Connection                                            Two Side Connection

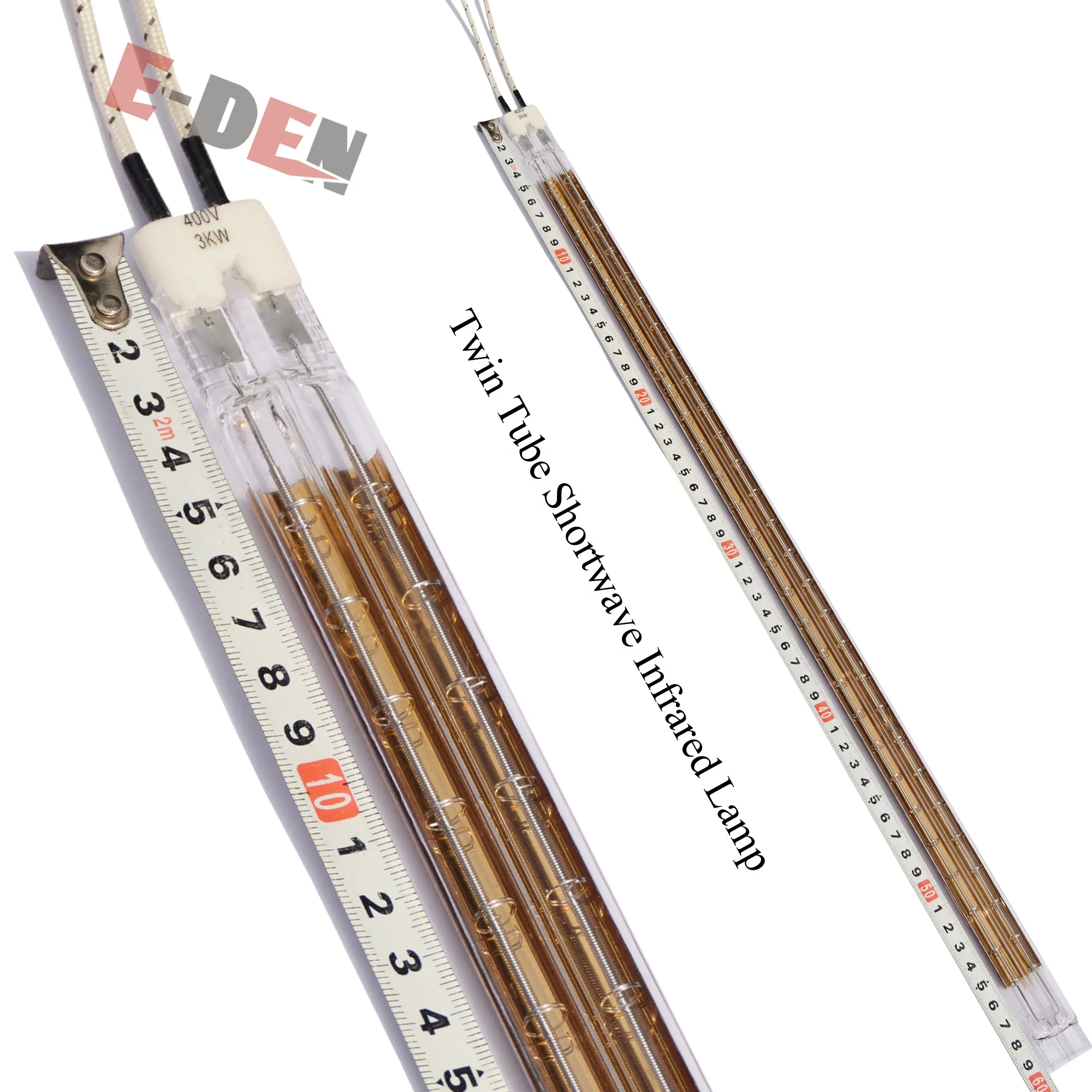

Short wave infrared lamp is designed with high heating power, the range of radiation wave is 1.0-1.4μm, it is particularly suited for fast response heating processes. This short wave infrared radiation penetrates more deeply into materials, as they can obtain their full-efficiency within seconds. In addition, a white or gold reflector can be fixed directly on the short wave infrared lamp to improve the energy radiation on the heating materials.
