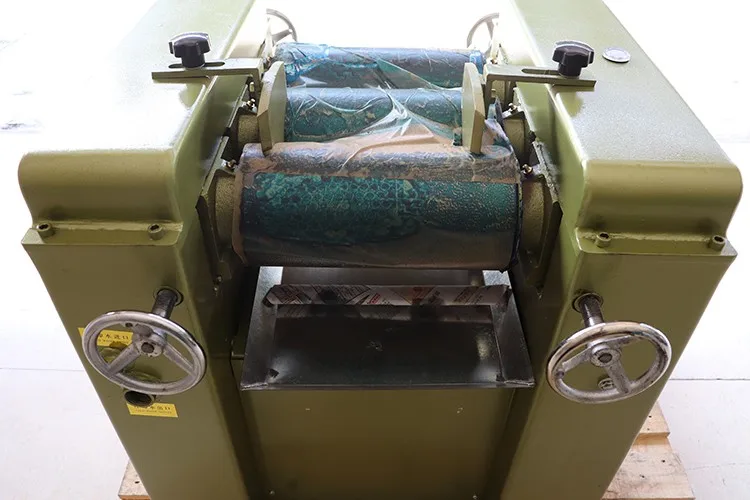

S 150 three roll mill Printing ink production Triple roller mill 2.2kw
- Category: >>>
- Supplier: Guangdong Leadmark Chemical Machinery Co. Ltd.
Share on (1600864168855):
Product Overview
Description
FEATURES AT A GLANCE

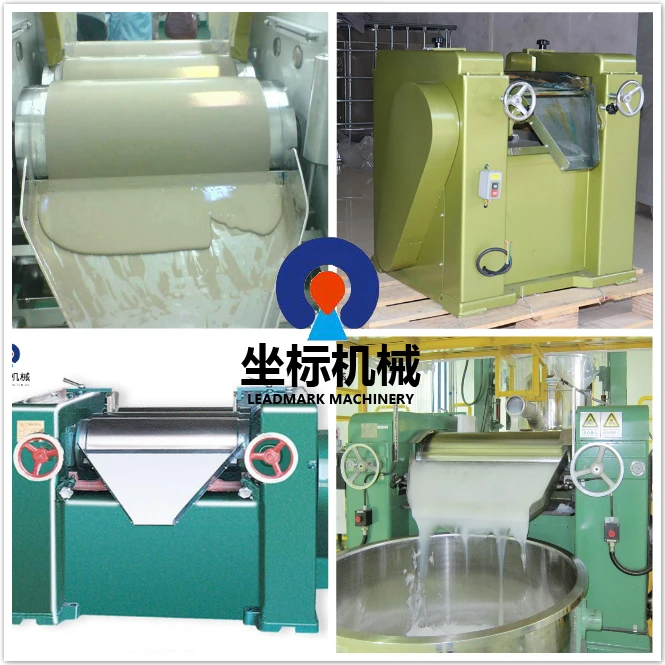

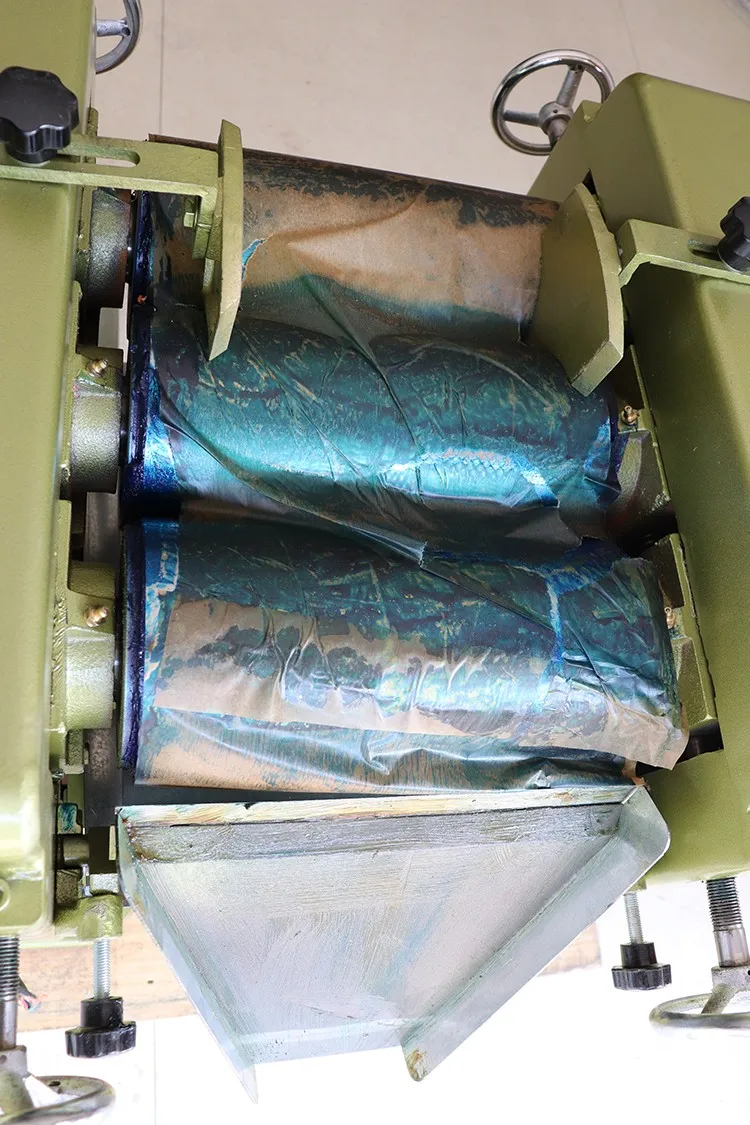

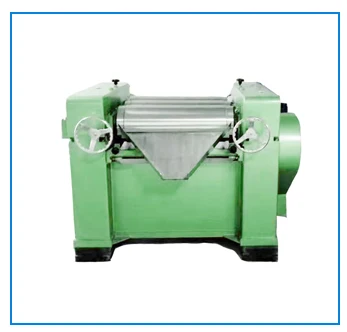

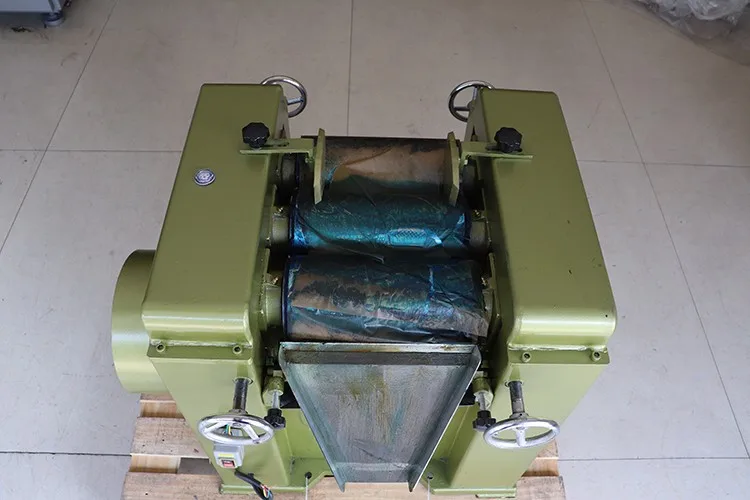

SG series machine of three rollers grinder this series is welded by high quality steel plate.The transmission gear adapts
oil-immersed by dear.It features beautiful appearance ,convenient to operate.Long life and so on.
Particularly it is suitable for
grinding the product that has high disperse viscosity and fine size.
grinding the product that has high disperse viscosity and fine size.
PRODUCT SPECIFICATIONS
type | S65/ST65 | S150 | S260 | SM405 | SM405(Lengthen) | |
Roller diameter(mm) | 65 | 150 | 260 | 405 | 405 | |
length of roller working surface(mm) | 130 | 300 | 675 | 810 | 1000 | |
Distance from discharge hole to ground(mm) | 220 | 530 | 530 | 760 | 760 | |
Roller rotating speed | Low speed roll | 26 | 34 | 23 | 14 | 14 |
Medium speed roll | 70 | 78 | 64 | 42 | 42 | |
High speed roll | 145 | 181 | 183 | 130 | 130 | |
Motor power(kw) | Engine displacement | 0.75 | 2.2 | 7.5 | 15 | 22 |
Ratio of speed | 1:2:3:5.5 | 1:2:3:5.38 | 1:2.85:8.13 | 1:3:9 | 1:3:9 | |
Overall dimension l*w*h(mm) | 440*400*450 | 830*839*930 | 1680*1320*1100 | 1950*1900*1450 | 2150*1900*1450 | |
Machine weight(kg) | 60 | 500 | 2100 | 5200 | 5800 | |
Packing dimension l*w*h(mm) | 500*500*530 | 1000*1000*1250 | 1800*1450*1400 | 2050*2000*1850 | 2250*2000*1850 |
Successful Project
5 years of experience in the foreign trade industry, with a professional R & D design team, good after-sales service
Strong technical support, professional production team
Flexible customization solutions can meet customers' various standard and non-standard equipment procurement needs
Company Profile
Guangdong Leadmark Chemical Machinery Co., Ltd. is specialized in the design, development, production and sales of chemical machinery and complete sets of non-standard chemical equipment. Our company mainly products: high-speed dispersing machine, vacuum dispersing machine, high-viscosity mixer, horizontal sanding machine, basket sanding machine, three-roller machine, reaction kettle, high-speed dispersion kettle, multi-functional dispersion Chemical equipment such as kettles and stainless steel pull cylinders. Our company have rich production experience, strong technical force, strong R & D team, flexible design and production of various standard and non-standard equipment base on the needs of users, our company adheres to the integrity-based, quality assurance, service quality, multi-variety Operating characteristics and service concept .Our professional and experienced service
engineers will give you the most professional solutions and services. Our company is based on the principle of "customer first, quality and service". In addition,we could supply products with high quality and reasonable price.Choosing us,we would not let you down.
engineers will give you the most professional solutions and services. Our company is based on the principle of "customer first, quality and service". In addition,we could supply products with high quality and reasonable price.Choosing us,we would not let you down.

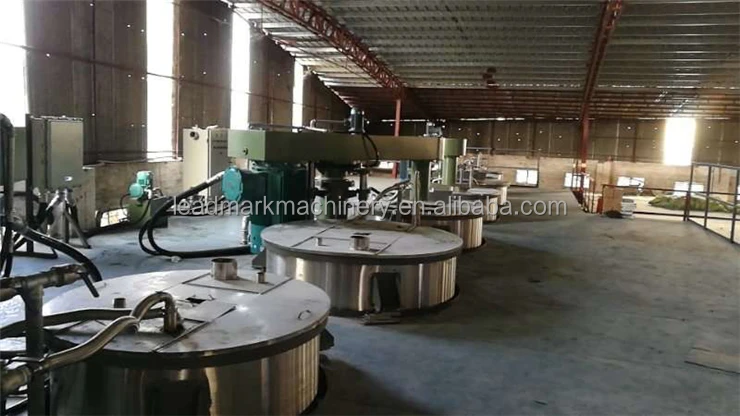

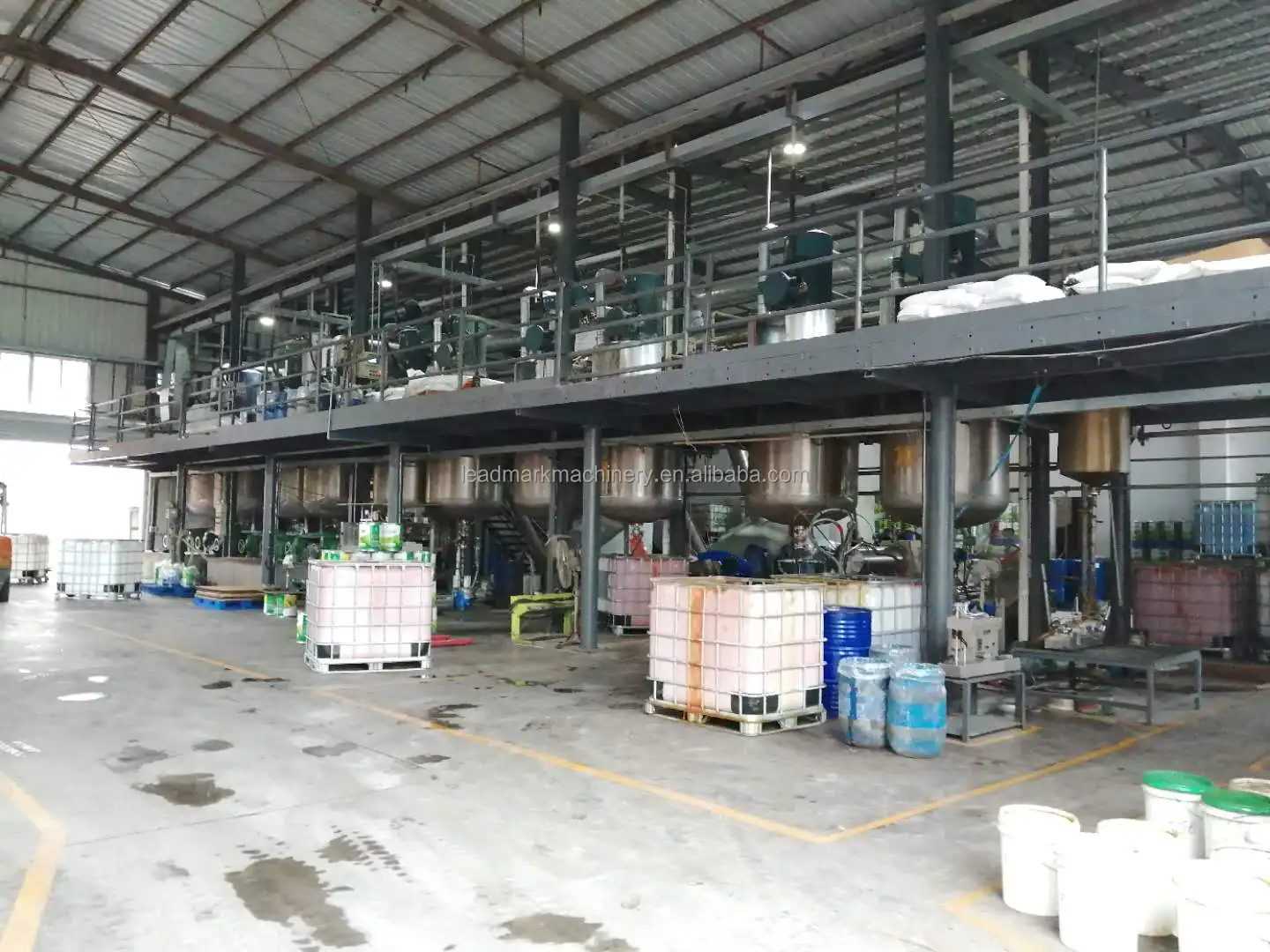

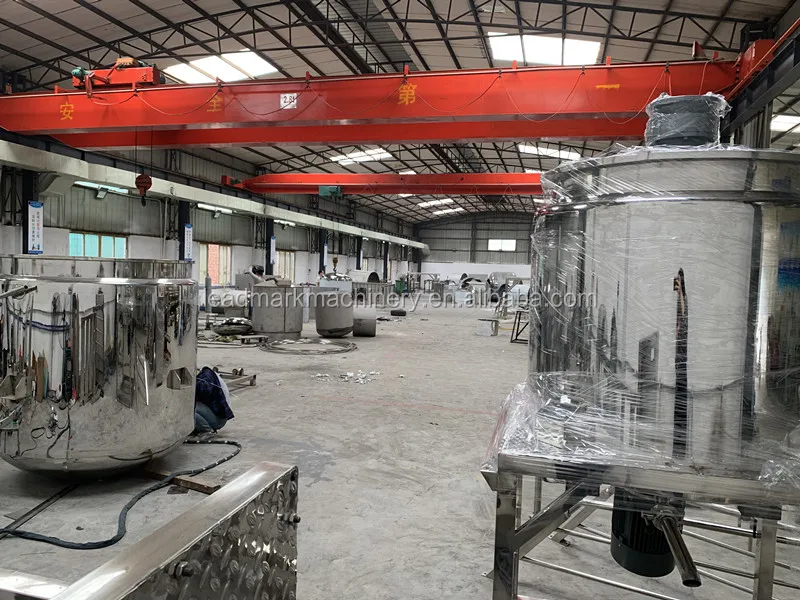

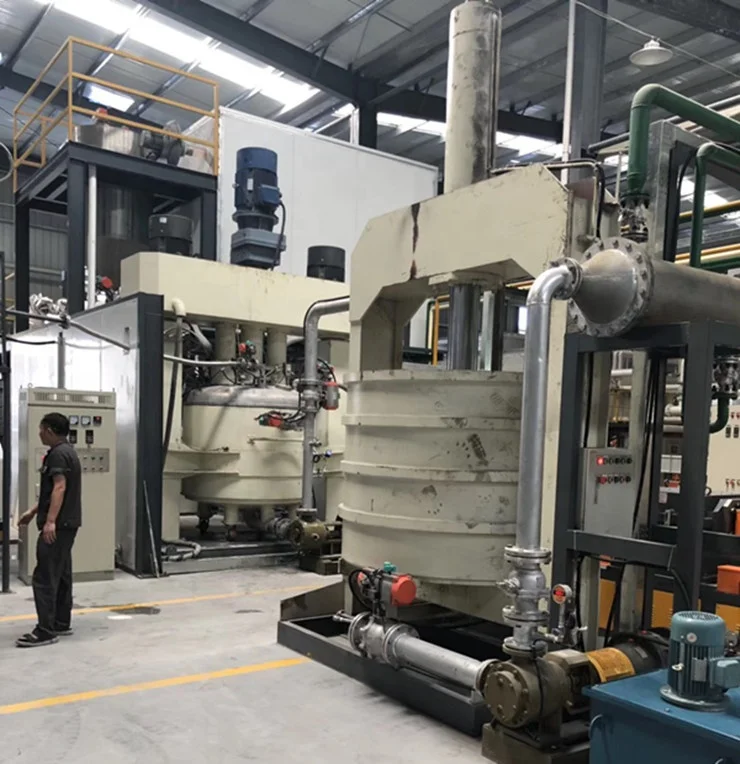

Our Factory

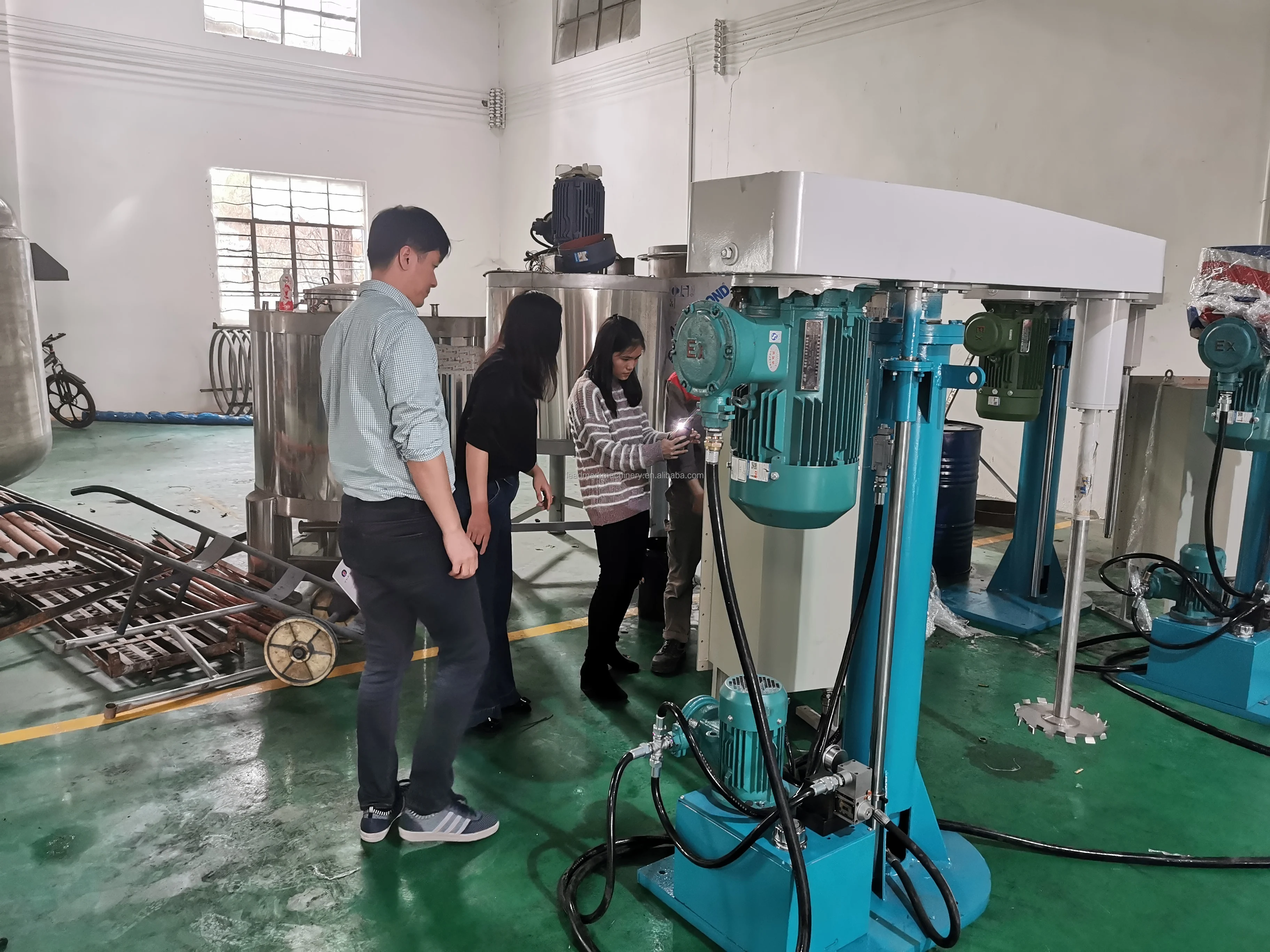

Our Customer

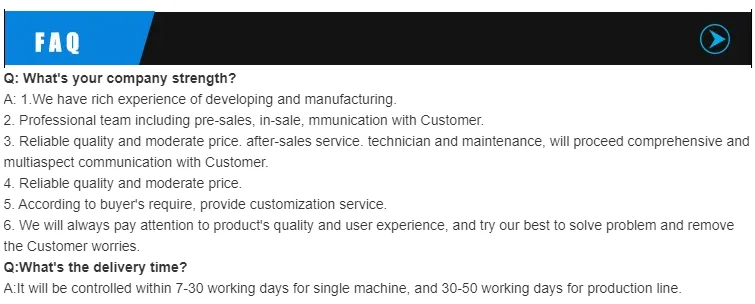

FAQ
