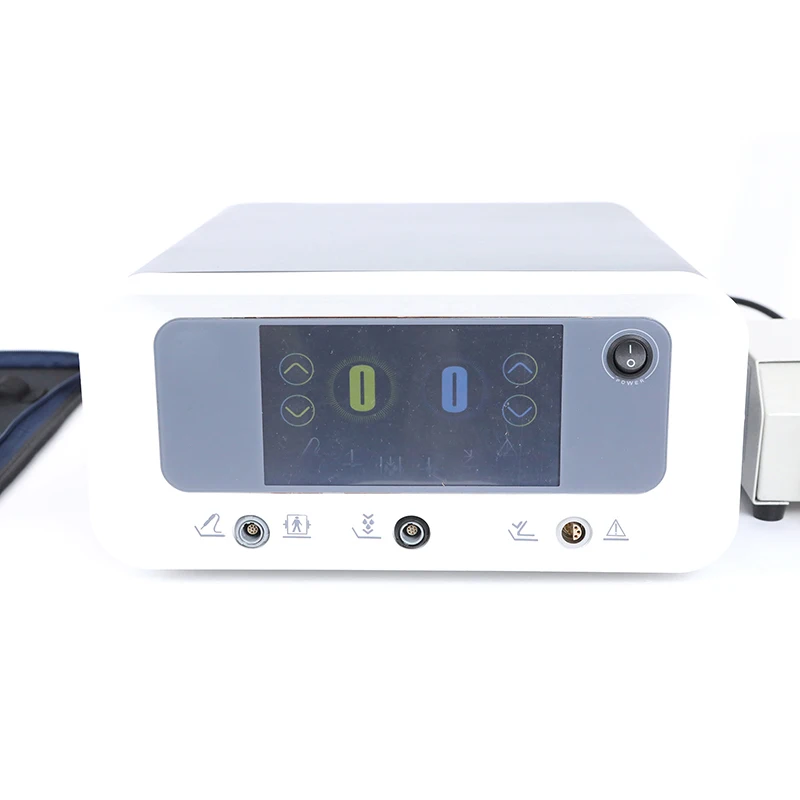

YSRFS 100A Medical Plasma Ablation Device Orthopedic Spine RF Plasma Surgical System
- Category: >>>
- Supplier: Guangzhou Yueshen Medical Equipment Co. Ltd.
Share on (1600864172710):
Product Overview
Description
Products Description
YSENMED YSRFS-100A Low Temperature RF Plasma Ablation Device Orthopedic Spine Radio Frequency Plasma Surgical System
Introduction:

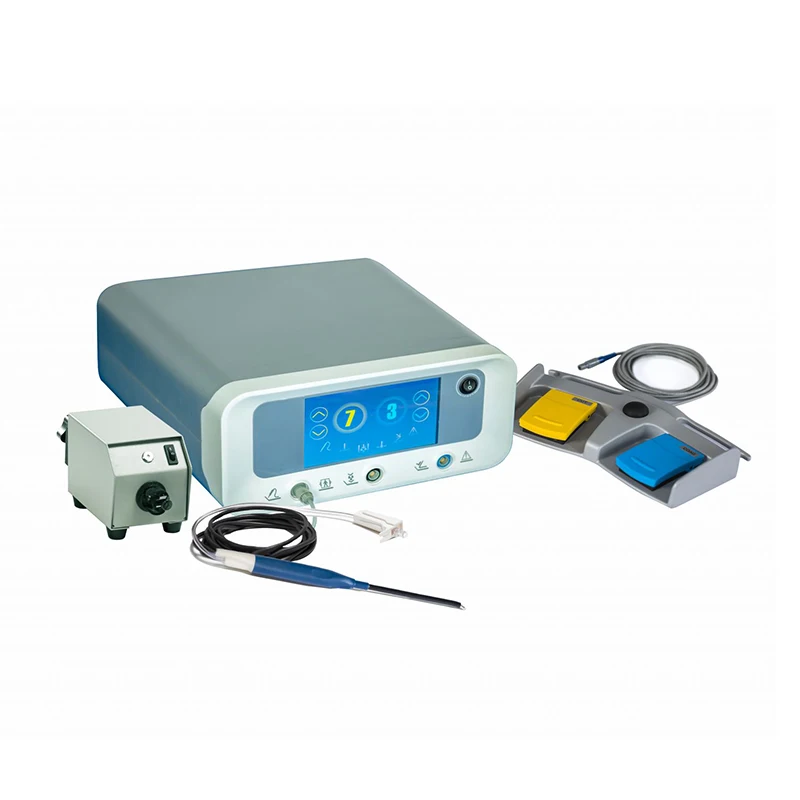

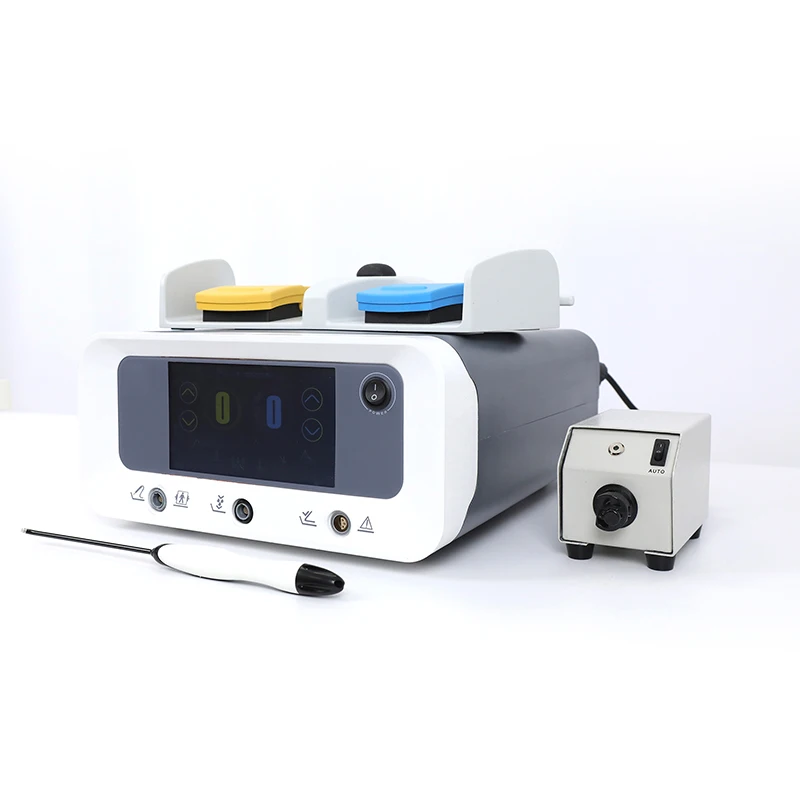

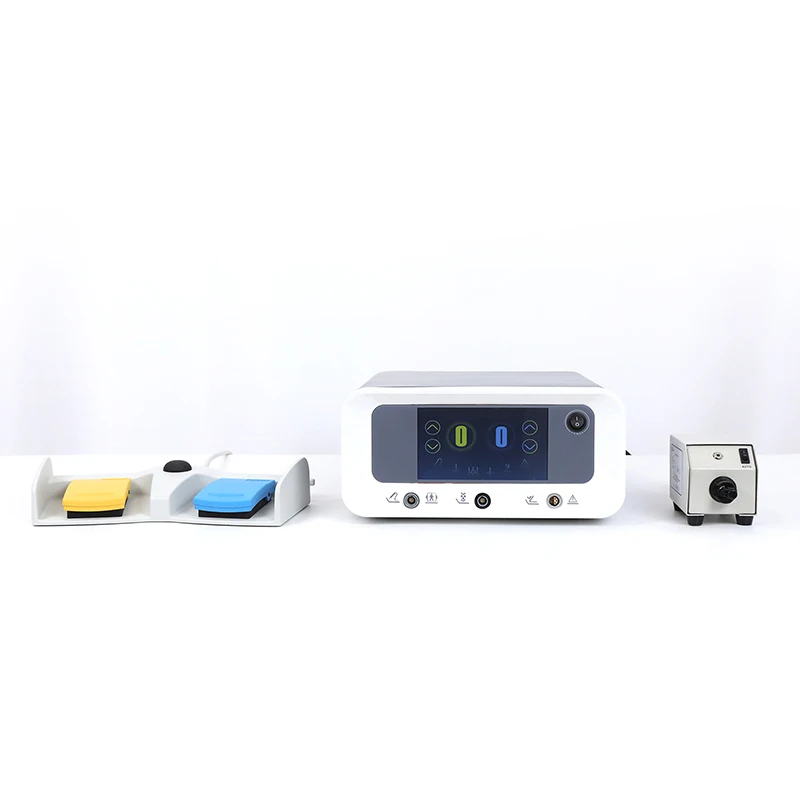

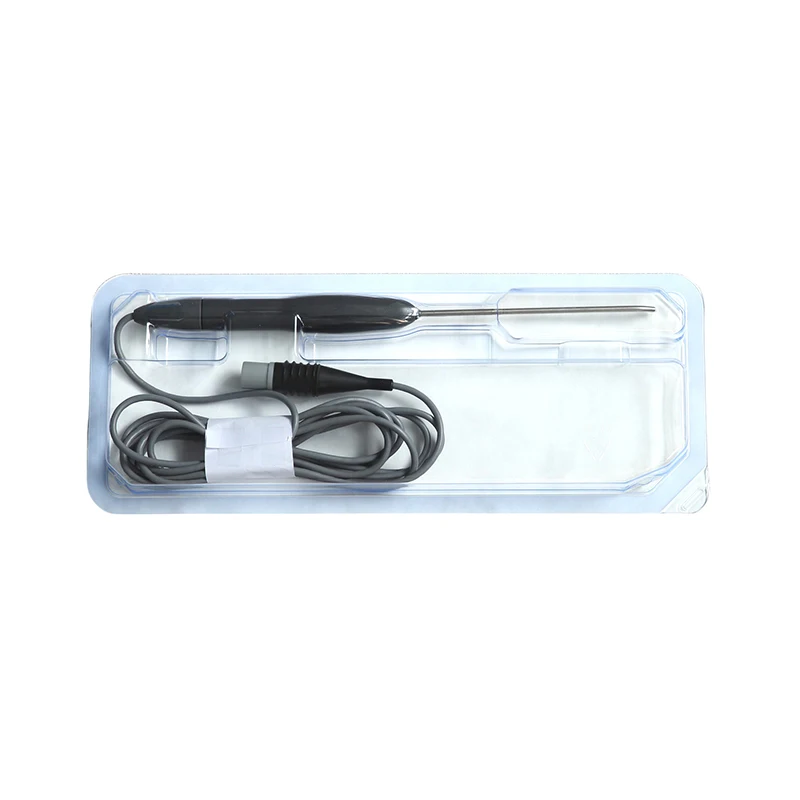

To address the need for an alternative to major surgery, we offer the Low Temperature Plasma Ablation System using low thermal plasma-mediated ablation technology to precisely cope with lesions of soft-tissue types via molecular disintegration. Such surgery system consists of a Controller which generates the ablation energy, Plasma Wand(s) and Patient Cable for single use, Foot Control, and a Flow Control Valve Unit. The Controller is designed to deliver ablation energy to the active electrode(s) at the distal end of the Plasma Wand. It works either at a lower voltage, creating a non-plasma-forming working condition, causing tissue shrinkage, or at a higher voltage plasma-forming condition that can cut tissue rapidly with minimal collateral tissue damage. The Controller functions under a radio frequency excitation frequency of 100 kHz. The Plasma Wand is a bipolar surgical device. It is disposable and available in different configurations consisting of multiple electrodes.
Functional Features:
• Universal utilities in ENT, Spinal and Arthroscopic surgeries
• Performing gentle, precise soft tissue removal at low temperatures (between 40° and 70°C) in the well defined area
• Multiple functions: ablation(low temperature plasma excision), cutting, coagulation and hemostasis
• Bipolar energy delivery provides enhanced control and precision, eliminating the need for patient return pad
• Multi-electrode technology
• Low operating frequency- 100kHz

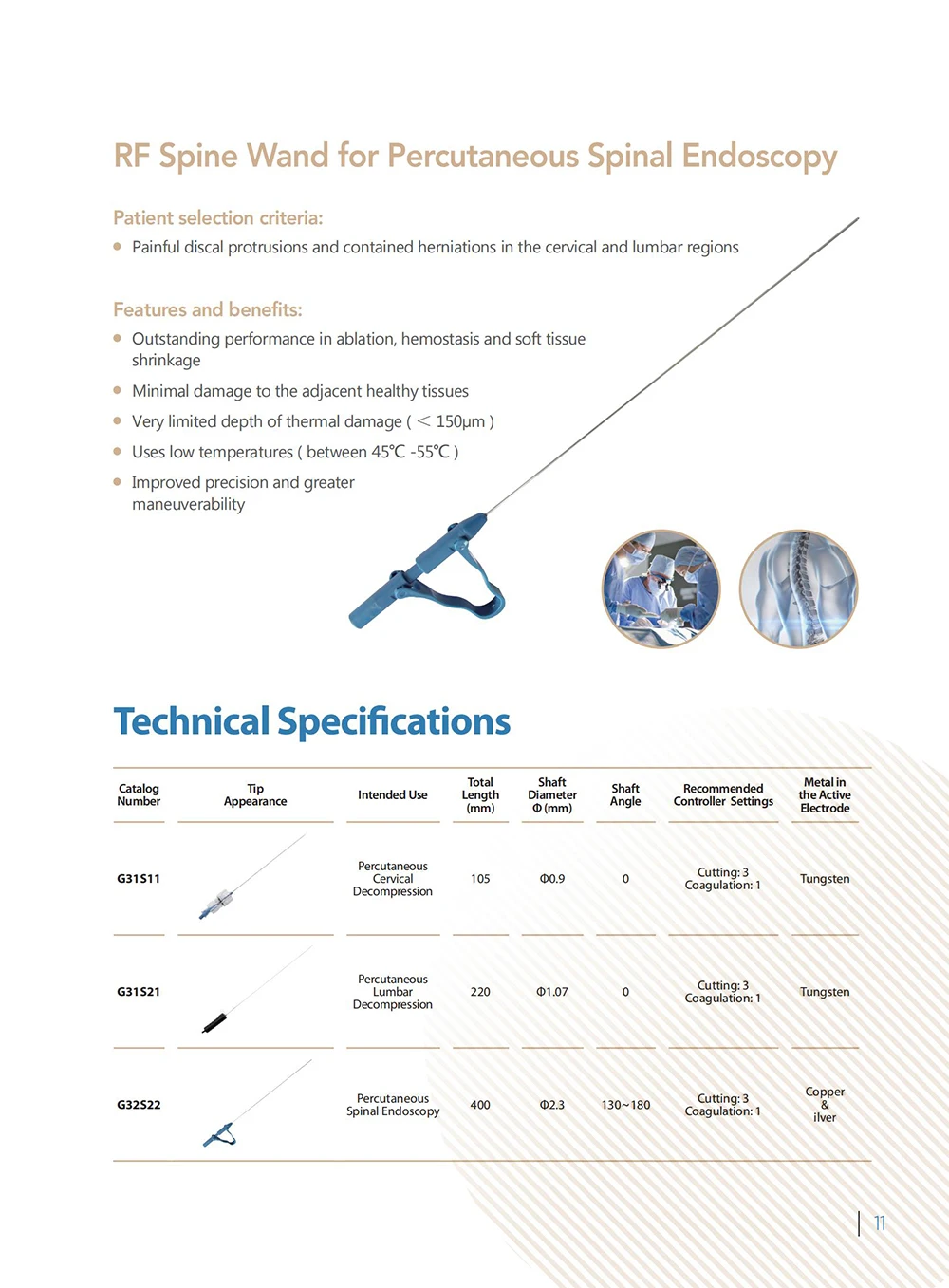

• A wide selection of Plasma Wands: available in different sizes and configurations to meet different anatomical needs of specific surgical procedures
• Versatile Wand combining integrated ablation, suction, saline irrigation, and hemostasis capabilities allows for efficient procedure
• All-screen LCD display demonstrates operating modes, Controller set points and error messages
• Flow control valve unit ensures procedural convenience
• Foot Control maximizes user efficiency and OR flexibility
• Unique square waveform delivers ablation energy more rapidly
• Easy set-up procedure guarantees OR efficiency
• PFC circuit helps reduce environmental risks
Introduction:
To address the need for an alternative to major surgery, we offer the Low Temperature Plasma Ablation System using low thermal plasma-mediated ablation technology to precisely cope with lesions of soft-tissue types via molecular disintegration. Such surgery system consists of a Controller which generates the ablation energy, Plasma Wand(s) and Patient Cable for single use, Foot Control, and a Flow Control Valve Unit. The Controller is designed to deliver ablation energy to the active electrode(s) at the distal end of the Plasma Wand. It works either at a lower voltage, creating a non-plasma-forming working condition, causing tissue shrinkage, or at a higher voltage plasma-forming condition that can cut tissue rapidly with minimal collateral tissue damage. The Controller functions under a radio frequency excitation frequency of 100 kHz. The Plasma Wand is a bipolar surgical device. It is disposable and available in different configurations consisting of multiple electrodes.
Functional Features:
• Universal utilities in ENT, Spinal and Arthroscopic surgeries
• Performing gentle, precise soft tissue removal at low temperatures (between 40° and 70°C) in the well defined area
• Multiple functions: ablation(low temperature plasma excision), cutting, coagulation and hemostasis
• Bipolar energy delivery provides enhanced control and precision, eliminating the need for patient return pad
• Multi-electrode technology
• Low operating frequency- 100kHz
• A wide selection of Plasma Wands: available in different sizes and configurations to meet different anatomical needs of specific surgical procedures
• Versatile Wand combining integrated ablation, suction, saline irrigation, and hemostasis capabilities allows for efficient procedure
• All-screen LCD display demonstrates operating modes, Controller set points and error messages
• Flow control valve unit ensures procedural convenience
• Foot Control maximizes user efficiency and OR flexibility
• Unique square waveform delivers ablation energy more rapidly
• Easy set-up procedure guarantees OR efficiency
• PFC circuit helps reduce environmental risks
→You can click here to inquiry for more information!
