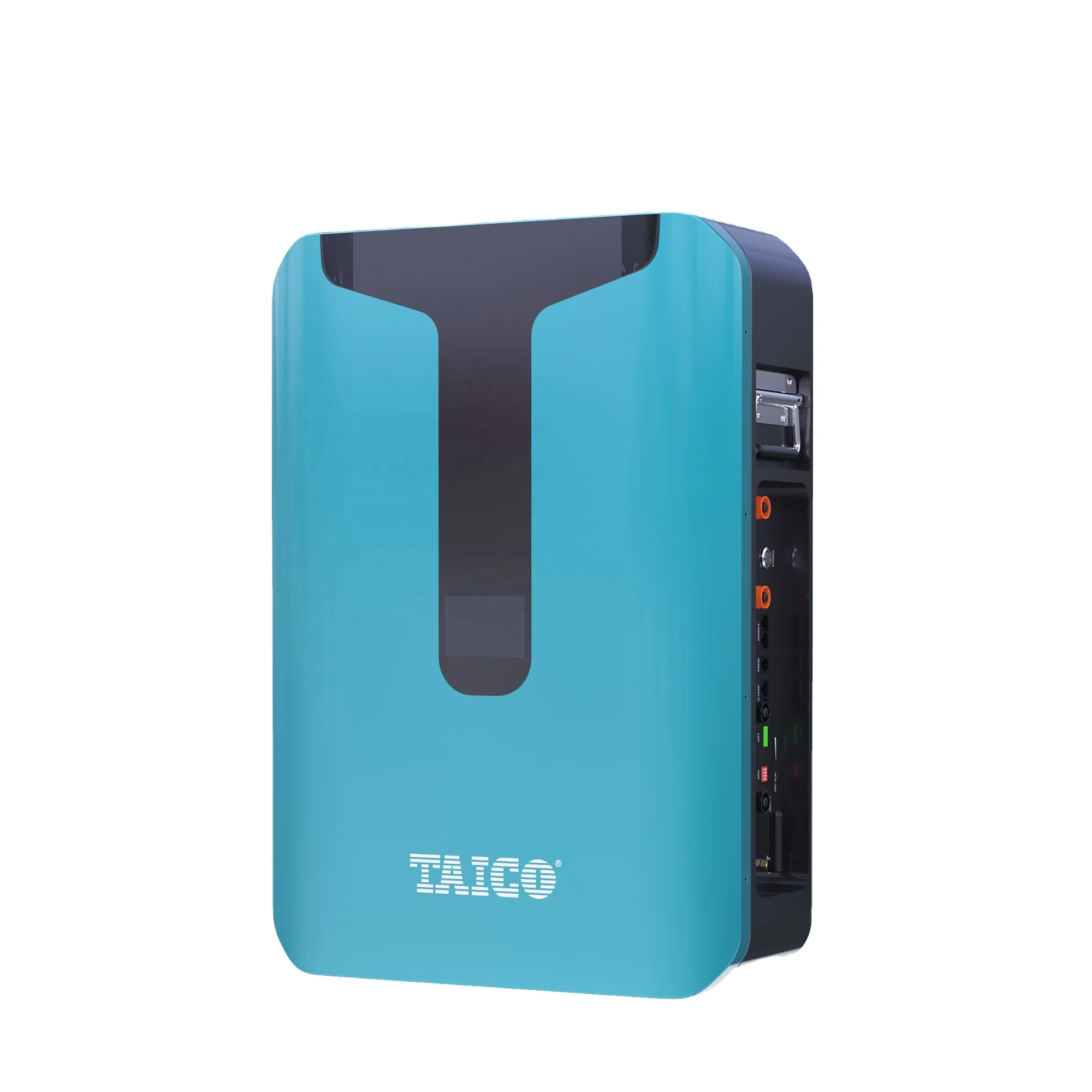

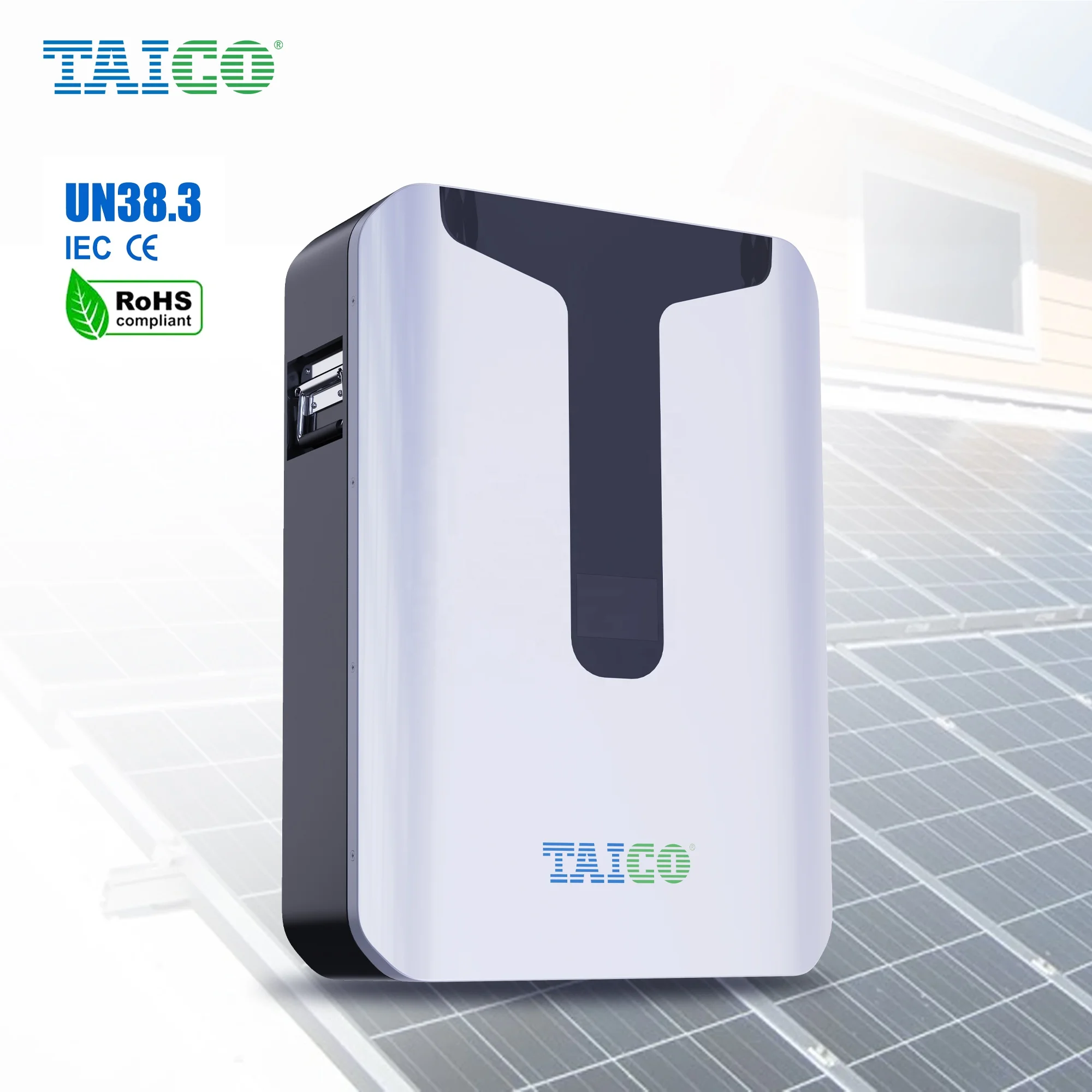

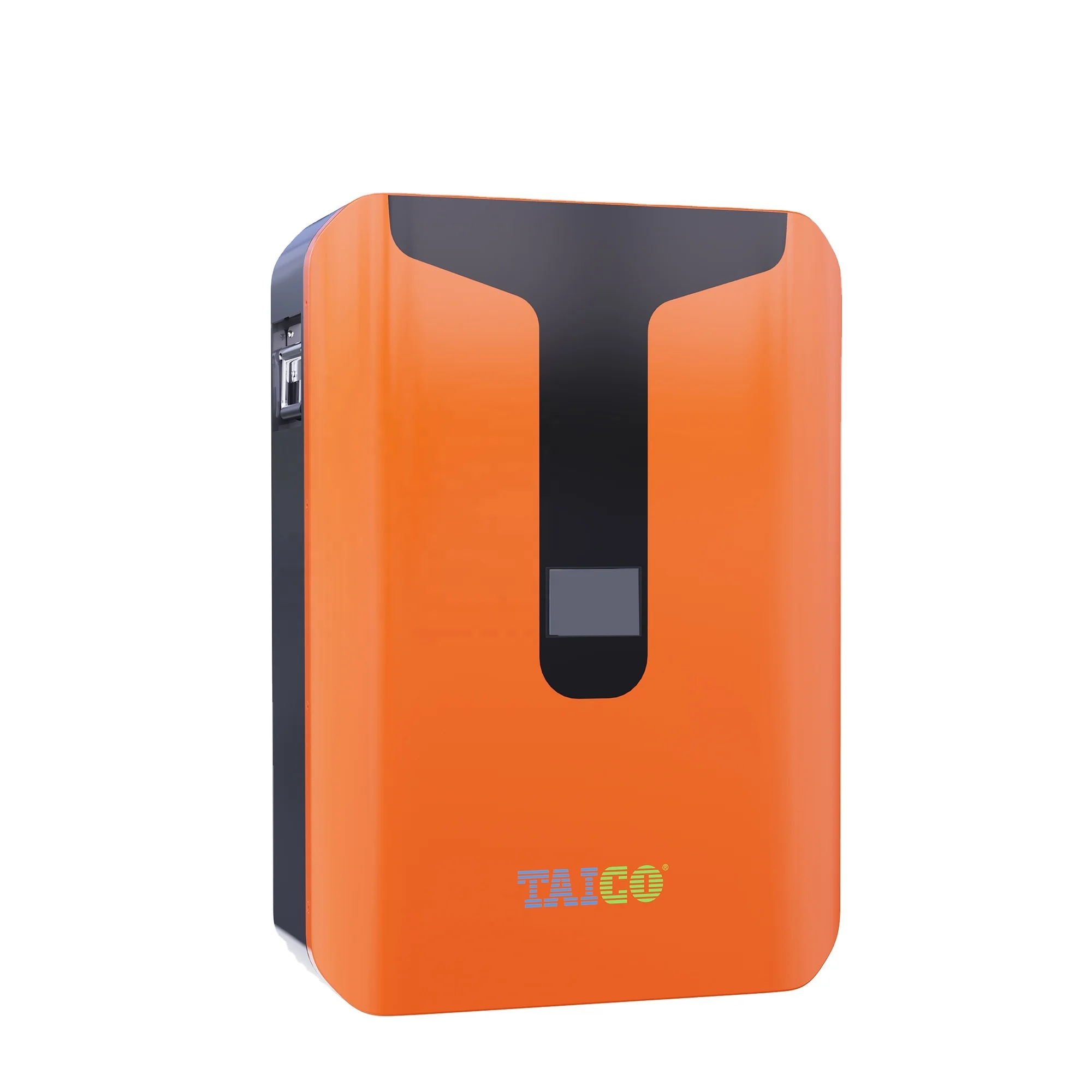

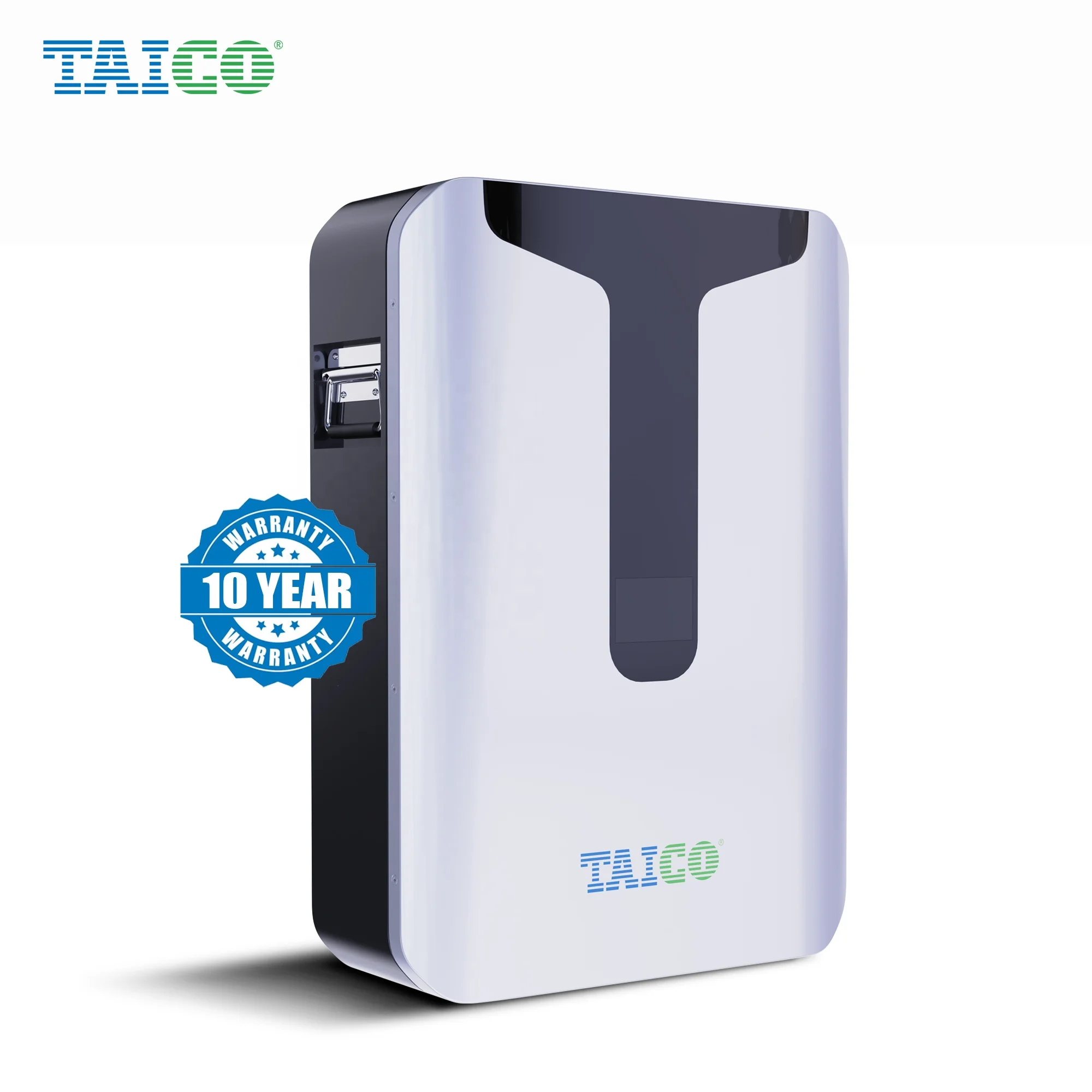

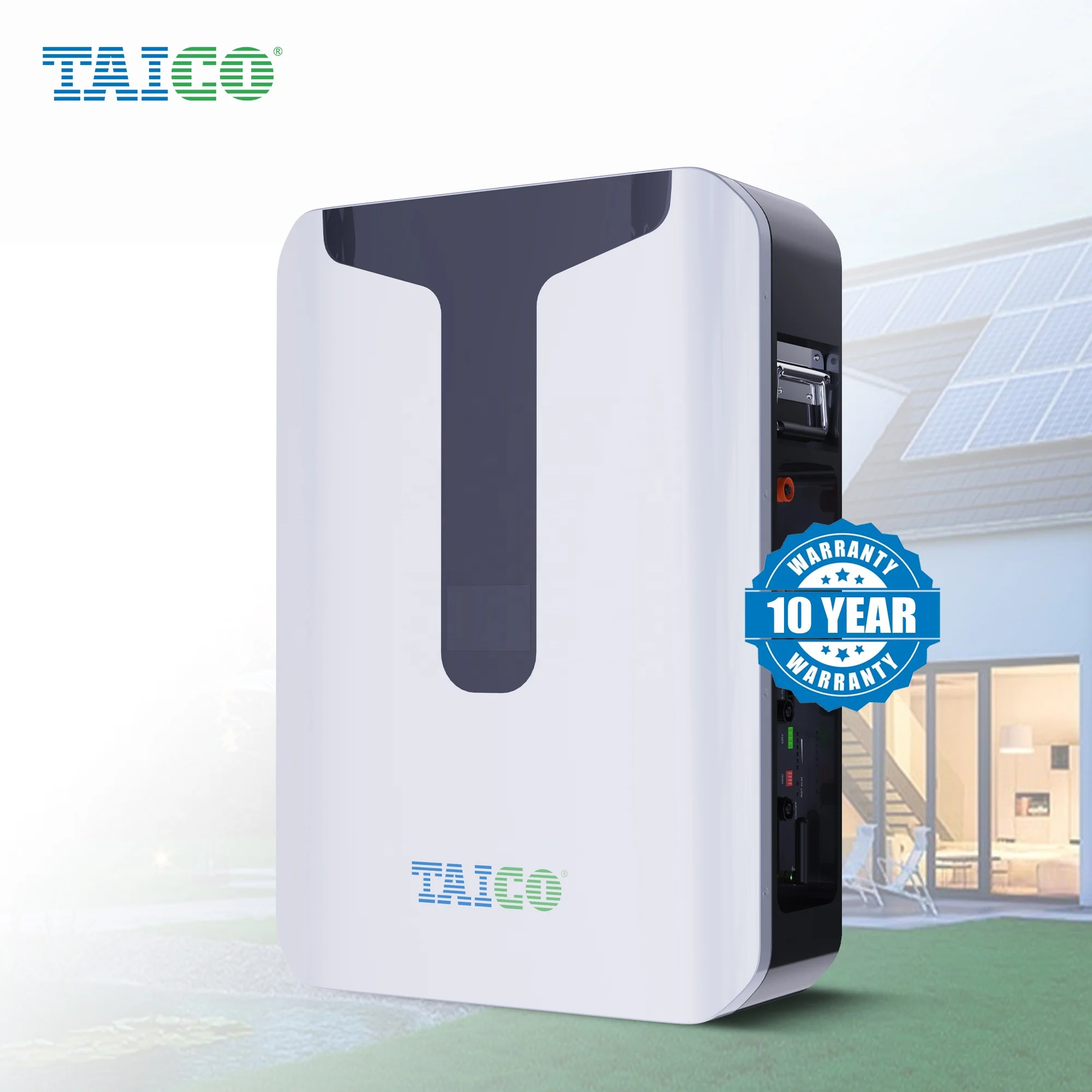

Taico Powerwall LiFePo4 10 Kwh Inverter Battery 10kwh Growatt Lithium Power Wall Batterie lithium battery 48v 200ah
- Category: >>>
- Supplier: Shenzhen Taico Technology Co. Ltd.
Share on (1600864186502):
Product Overview
Description
Product Description
Specification
Model Number | T-1-5000 | T-1-10000 | ||||||||||
Norminal Battery Energy | 5.12KWH | 10.24KWH | ||||||||||
Norminal Capacity | 100Ah | 200Ah | ||||||||||
Norminal Voltage | 51.2V | 51.2V | ||||||||||
Dimensions | 606X428X160MM | 774X534X160MM | ||||||||||
Internal Resistance | ≤30mΩ | ≤30mΩ | ||||||||||
Cycle Life | >6000 | |||||||||||
Months Self Discharge | <3% | |||||||||||
Charge Data | ||||||||||||
DC Normal Charge Voltage | 58.4±1Vdc | 29.2+1Vdc | 58.4±1Vdc | |||||||||
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV) | |||||||||||
Recommended Charger Current | <50A | 50A | ||||||||||
Allowed Max.Charge Current | 50A | 100A | 100A | |||||||||
Charge Cut-off Voltage | 58.4+1Vdc | 58.4+1Vdc | ||||||||||
Discharge Data | ||||||||||||
Continuous Discharge Current | 50A | |||||||||||
Allowed Max. discharge current | 100A | 200A | ||||||||||
Discharge cut-off voltage | 20V | 40V | ||||||||||
Working Condition | ||||||||||||
Continuous Discharge Current | 0°C to 45°C(32°F to113°F) | |||||||||||
Discharge Temperature | -20°C to 60°C(-4°F to 140°F) | |||||||||||
Storage Temperature | 0°C to 40°C(32°F to 104°F) | |||||||||||
Enclosure Protection Level | IP54 | |||||||||||
Mechanical Data | ||||||||||||
Cell&Capacity | LiFePO4 Battery | |||||||||||
Shell material | Iron shell | |||||||||||

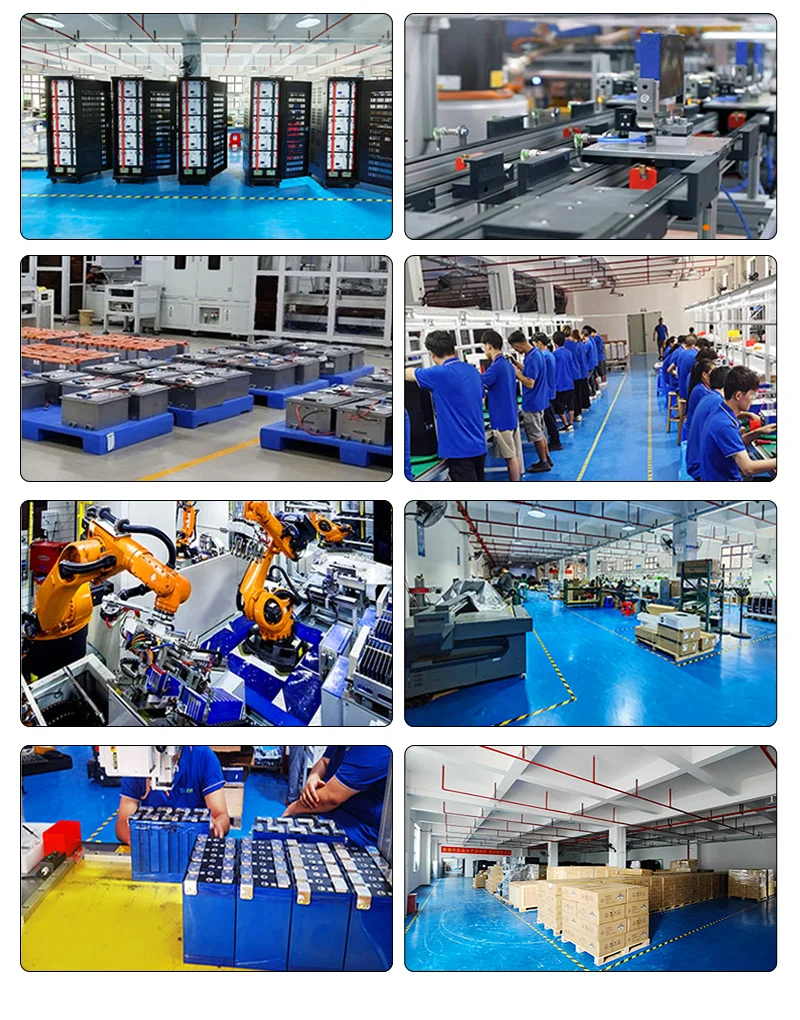

Our Factory
