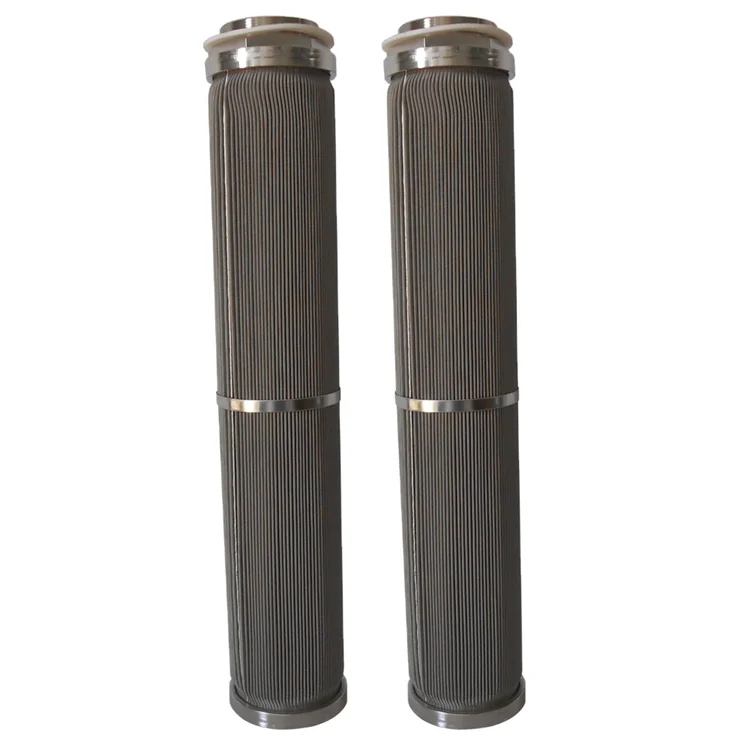

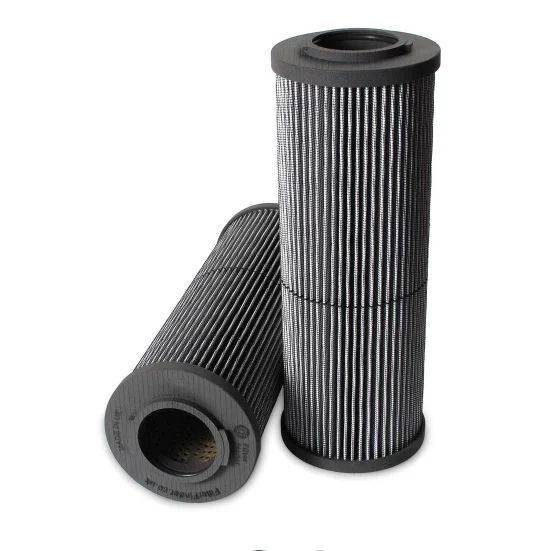

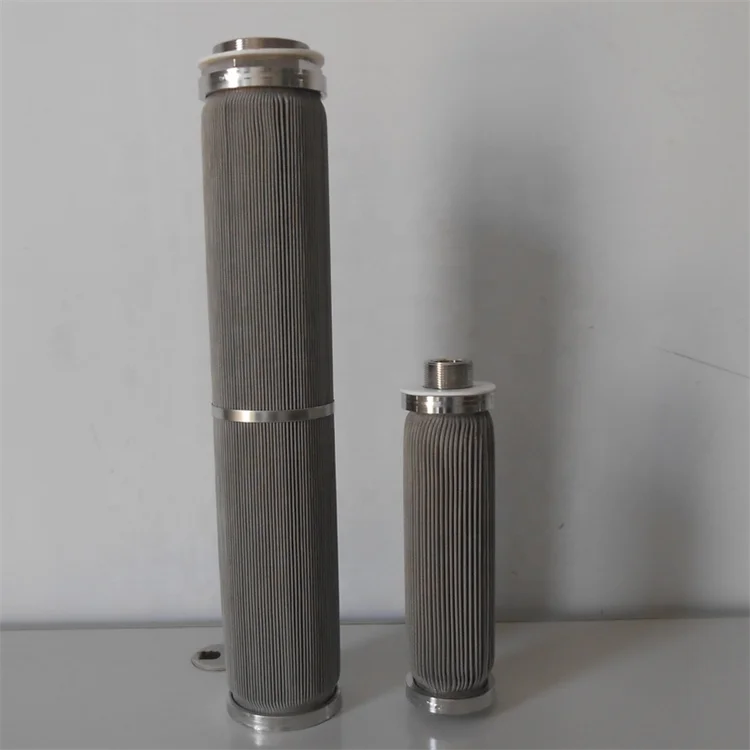

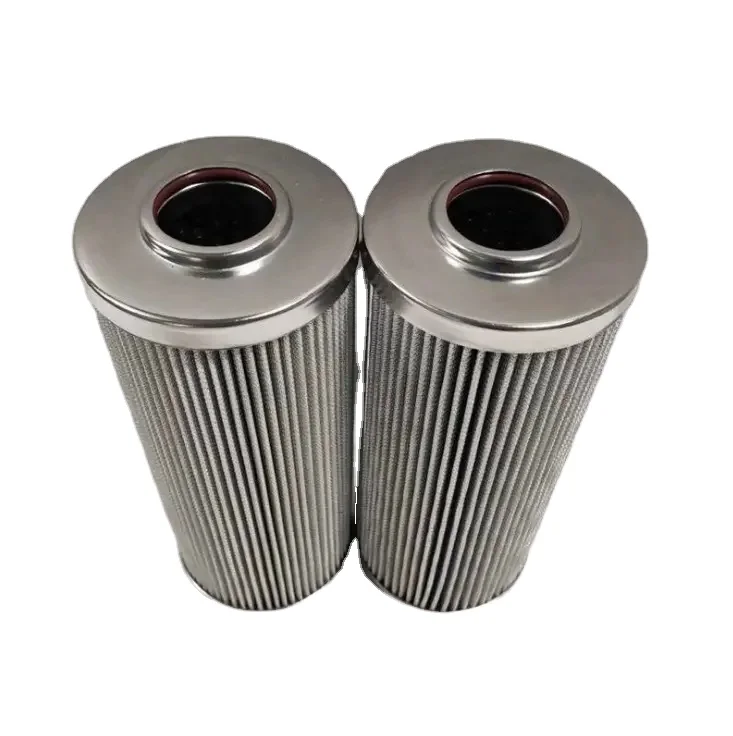

Custom made Stainless steel 316L mesh pleated filter cartridges pleated metal mesh filter/ sintered filter element
- Category: >>>
- Supplier: Hebei Slot Filter Technology Co. Ltd.
Share on (1600864280795):
Product Overview
Description
Product Paramenters

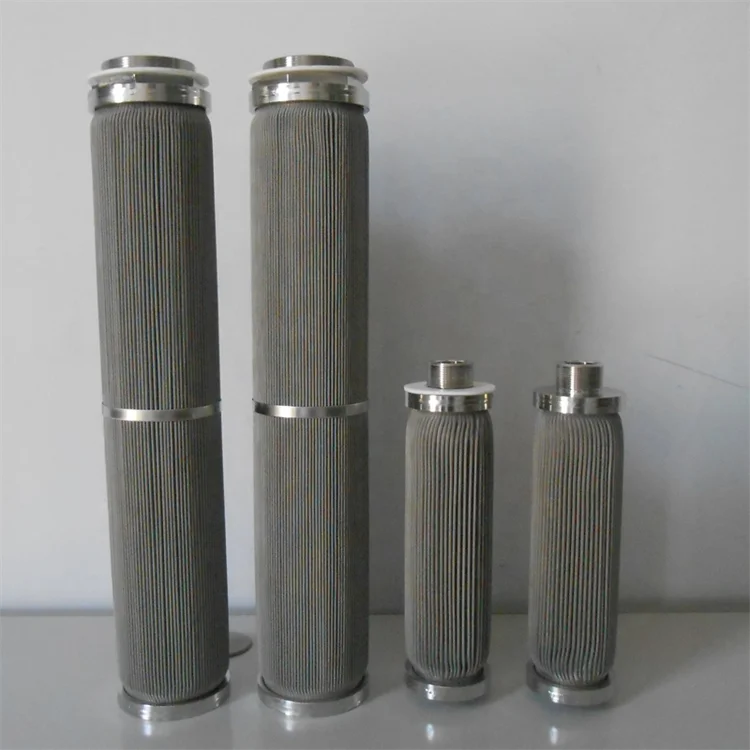

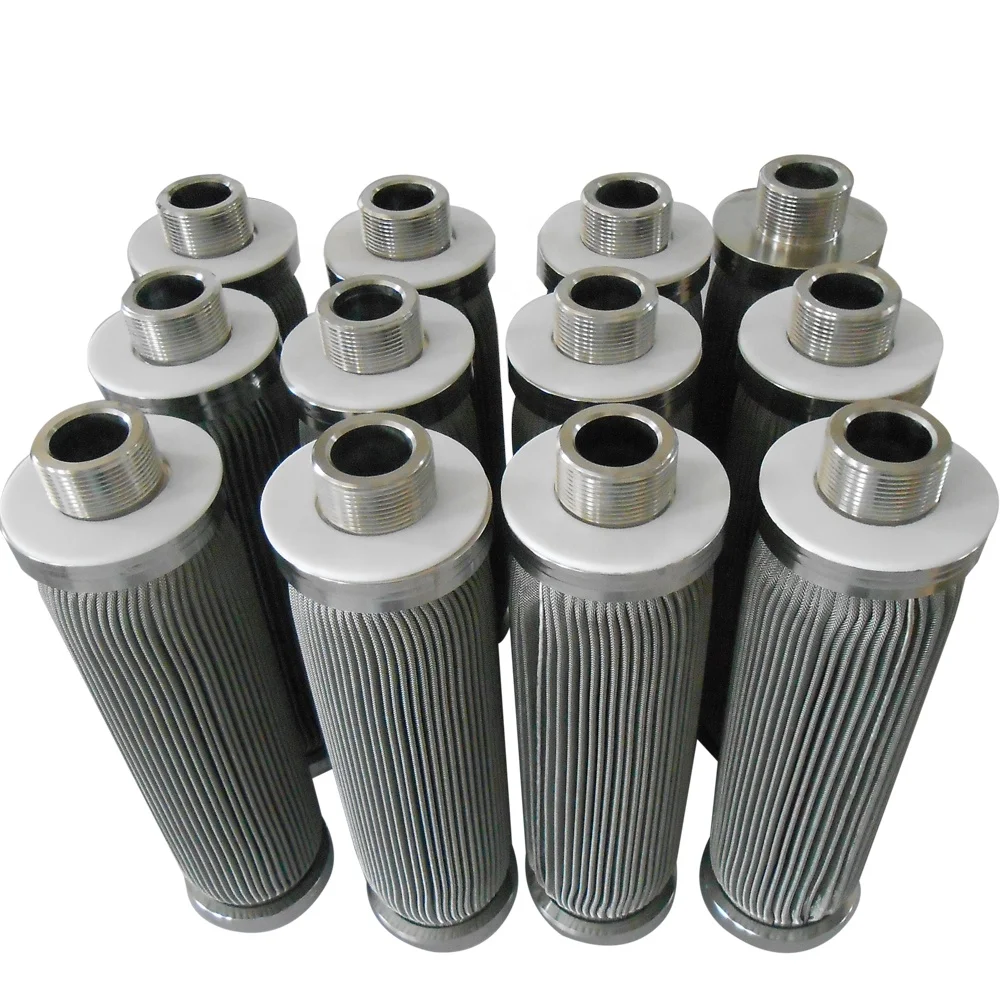

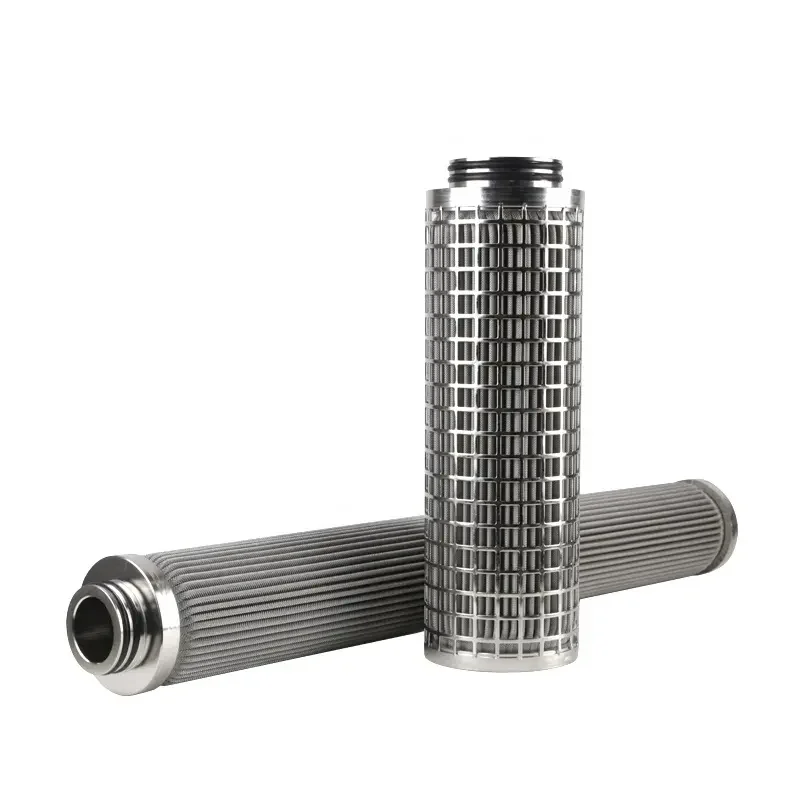

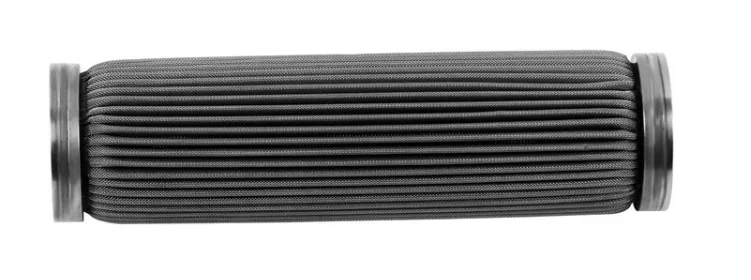

Custom made Stainless steel 316L mesh pleated filter cartridges pleated metal mesh filter/ sintered filter element
DESCRIPTION:
The stainless steel pleated filter made of stainless steel fiber sintered felt and stainless steel braided mesh processed by the refraction process, stainless steel fiber sintered felt can be made from coarse to fine multi-layer structure, with high porosity, high dirt holding capacity and other characteristics; stainless steel braid Is made of different diameter of stainless steel wire woven, made of filter with a good strength, easy to fall off, easy to clean, high temperature, the use of economic and so on.
The stainless steel pleated filter made of stainless steel fiber sintered felt and stainless steel braided mesh processed by the refraction process, stainless steel fiber sintered felt can be made from coarse to fine multi-layer structure, with high porosity, high dirt holding capacity and other characteristics; stainless steel braid Is made of different diameter of stainless steel wire woven, made of filter with a good strength, easy to fall off, easy to clean, high temperature, the use of economic and so on.
Absolute Filter Rating (μ) | Bubble Piont Pressure (Pa) | Average Air Permeability (l/dm2/min) | Thichness (mm) | Weight (g/m2) | Porosity (%) | Dirt Holding Capacity (mg/cm2) |
3 | 12300 | 9 | 0.35 | 975 | 65 | 6.40 |
5 | 7600 | 34 | 0.34 | 600 | 78 | 5.47 |
7 | 5045 | 57 | 0.27 | 600 | 72 | 6.47 |
10 | 3700 | 100 | 0.32 | 600 | 77 | 7.56 |
15 | 2470 | 175 | 0.37 | 600 | 80 | 7.92 |
20 | 1850 | 255 | 0.49 | 750 | 81 | 12.44 |
25 | 1480 | 320 | 0.61 | 1050 | 79 | 19.38 |
30 | 1235 | 455 | 0.63 | 1050 | 79 | 23.07 |
40 | 925 | 580 | 0.66 | 1200 | 77 | 25.96 |
60 | 630 | 1000 | 0.70 | 750 | 87 | 33.97 |
TECHNICAL DATA | Max Operate temp | 500Deg C | ||
Operating pressure | ≤ 31.7MPa | Filter pore size | 1-200um | |
Operating temperature: | ≤300℃ | Operate pressure | 0.1-30Mpa | |
Medium viscosity: | ≤260Pa.S | Filter length | 5-40inch or custom made according to user's request | |
Permissible pressure | ≤10MPa | Filter Adaptor | 222/226/215/M36/M28/M24/M22/M20/DOE | |

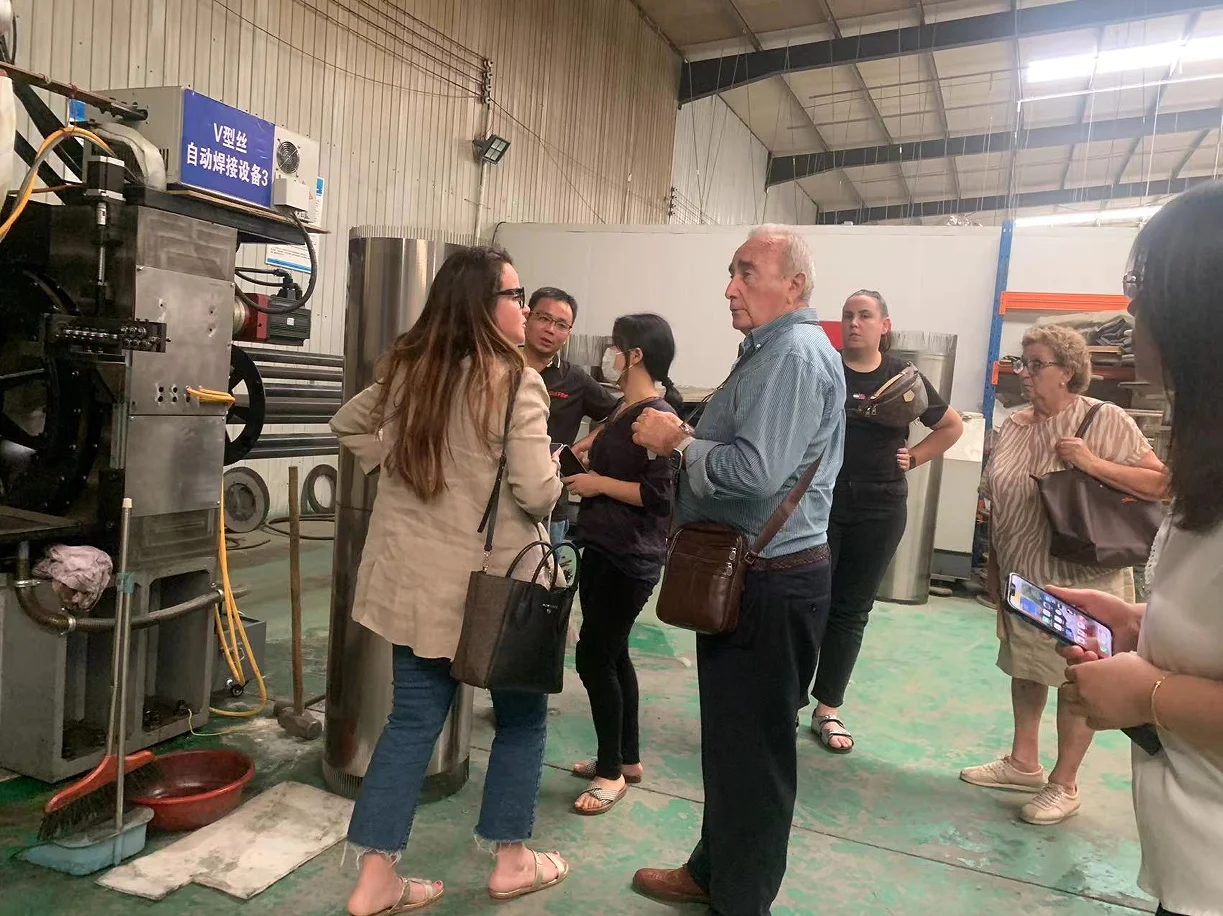

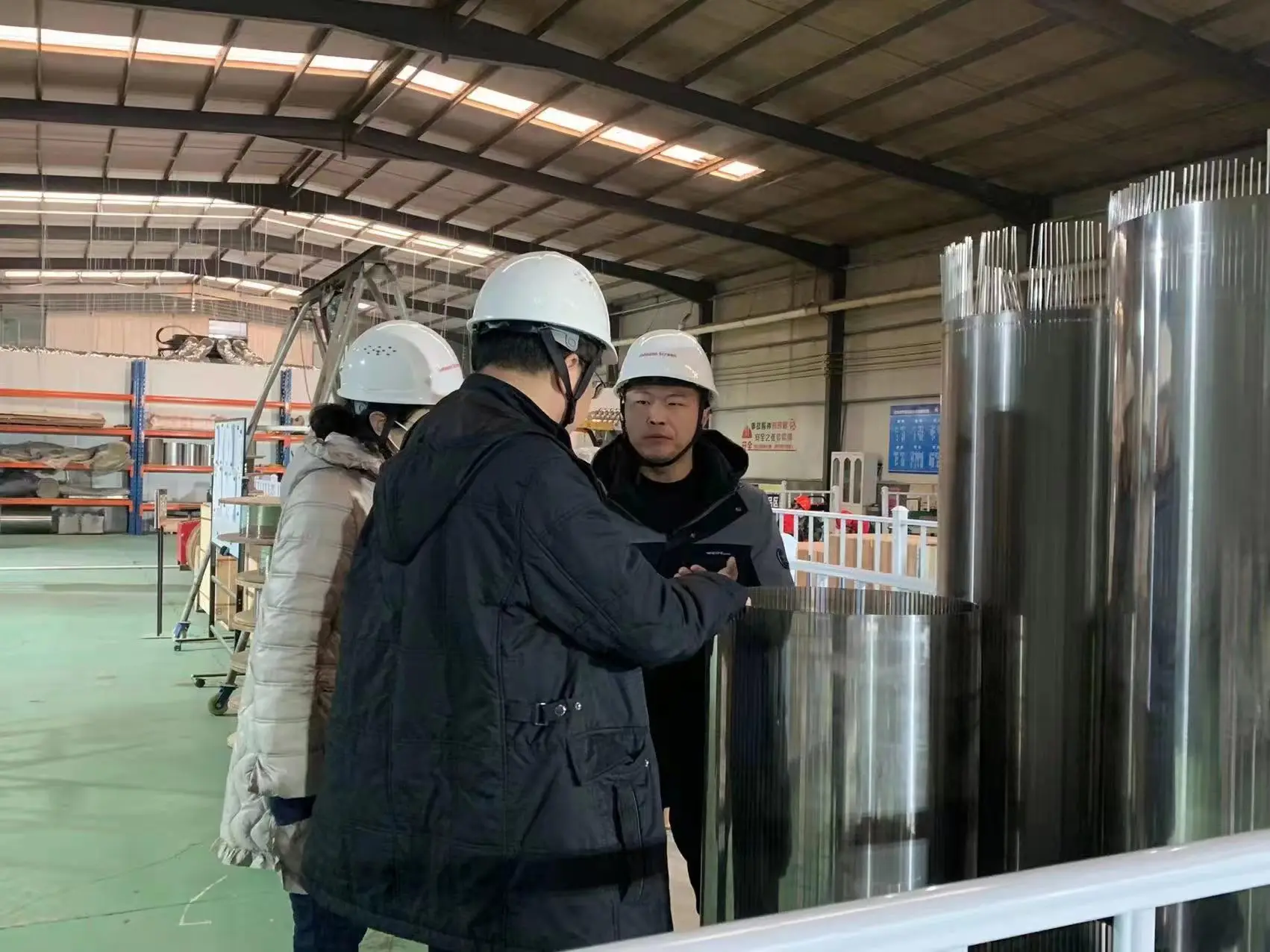

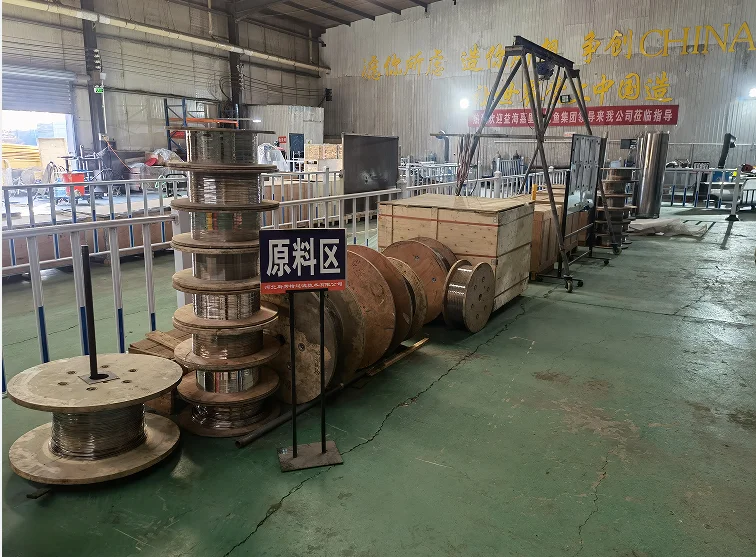

Factory and working
Product packaging
Application
1.water treatment industry in the ultrafiltration, RO, EDI system security filtering, ozone sterilization filter and zone
aeration.
aeration.
2. food and beverage drinks, liquor, beer, vegetable oil, mineral water, soy sauce, vinegar clarification filter.
3.the chemical industry liquid products, liquid raw materials, precision filtration, ultra-fine body, reminders The agent of the filtration recovery, the resin after the adsorption of precision
filtration and system heat conduction oil, the material of the impurity filter, catalytic gas Purification and so on.
4. oilfield water filtration, seawater desalination field of reverse osmosis before the security filter.
5.the dye industry, high temperature decarburization, off clay filter.
6.in the gas purification, including steam, compressed air, catalytic gas purification filter.
Shipping & Payment
Recommend Products
Company Profile

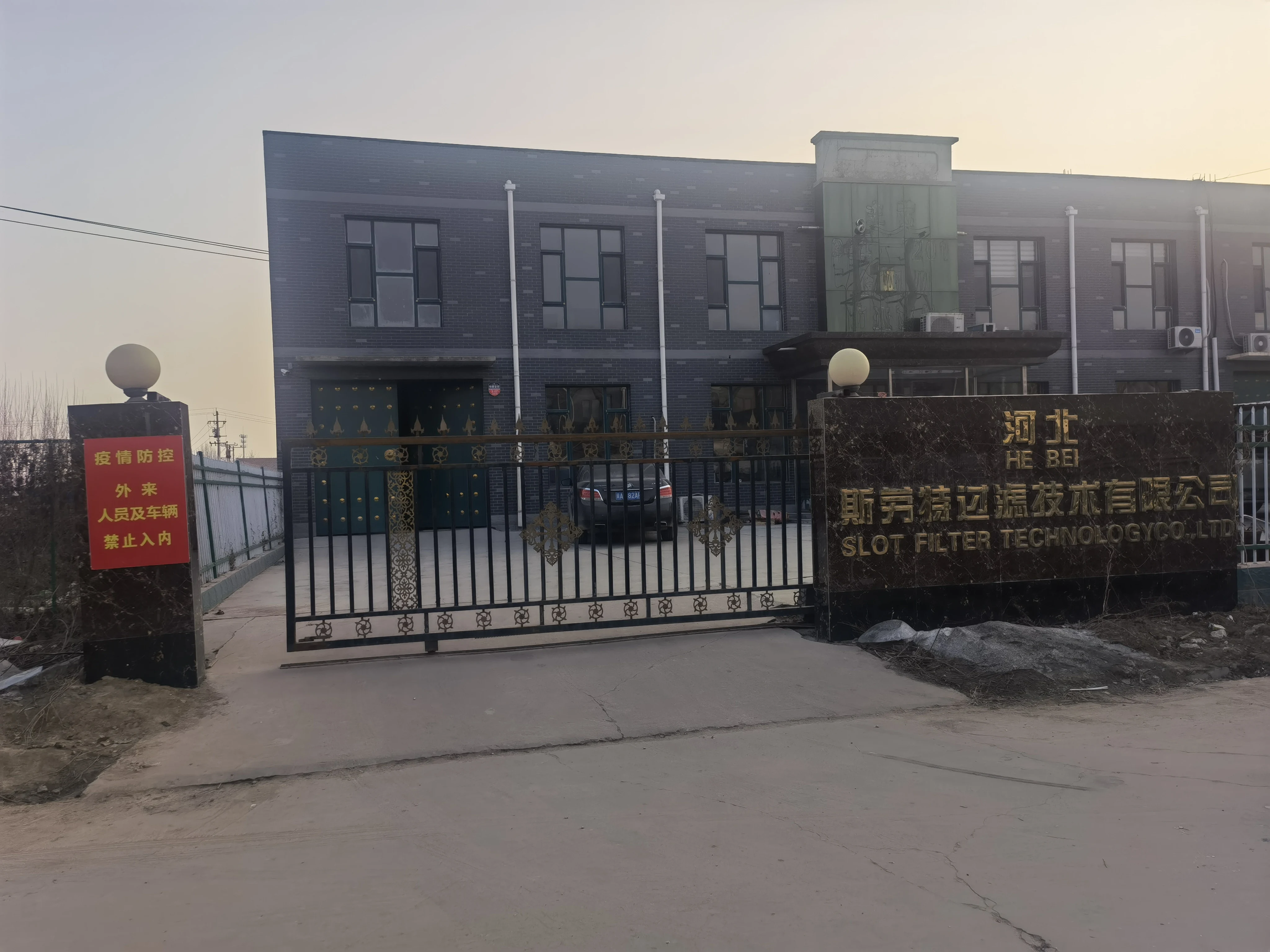

Hebei Slot Filter Technology Co., Ltd. was founded in 2014. The company introduces foreign advanced production and testing equipment, production technology,and adopts world-class quality filter materials as the main filter material,specializing in the production porous metal sintered materials and filter elements. (Melt filter, sintered mesh filter, filter disc, filter and other industrial filters such as air filter, water filter, oil filter), filter and filter system assembly.
OUR ADVANTAGE
Filtration Specialists with 15 years experience.
Quality guaranteed by ISO 9001:2015
Professional technical data systems guaranteed the correctness of filter.
OEM Service for you and satisfy different markets demand.
Carefully Test before delivery.
OUR SERVICE
1. 24-hour Response
We will reply your inquiry within 24 hours for saving your time and labor.
2. OEM service
OEM service is available, like product, package, etc.
3. Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
4. Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.
Filtration Specialists with 15 years experience.
Quality guaranteed by ISO 9001:2015
Professional technical data systems guaranteed the correctness of filter.
OEM Service for you and satisfy different markets demand.
Carefully Test before delivery.
OUR SERVICE
1. 24-hour Response
We will reply your inquiry within 24 hours for saving your time and labor.
2. OEM service
OEM service is available, like product, package, etc.
3. Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
4. Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.
FAQ
1. Are you a factory/manufacturer or trader?
We are a direct factory that owns production lines and workers. Everything is flexible and there is no need to worry about
extra charges by the middle man or trader.
2.what can you buy from us?

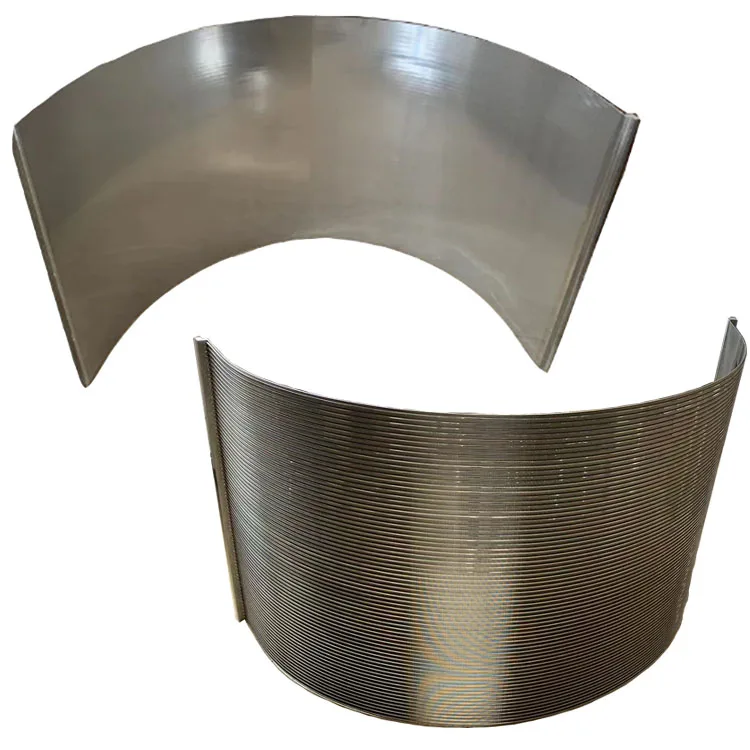

Sintered Mesh,Sintered Filter/Pleated Filter/Disc Filter/Basket Filter/sieve bend screen
