Product Overview
Description

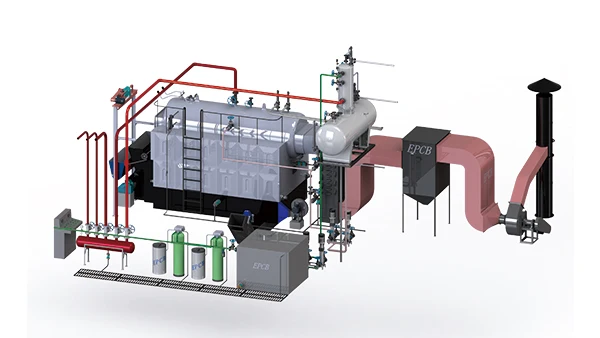

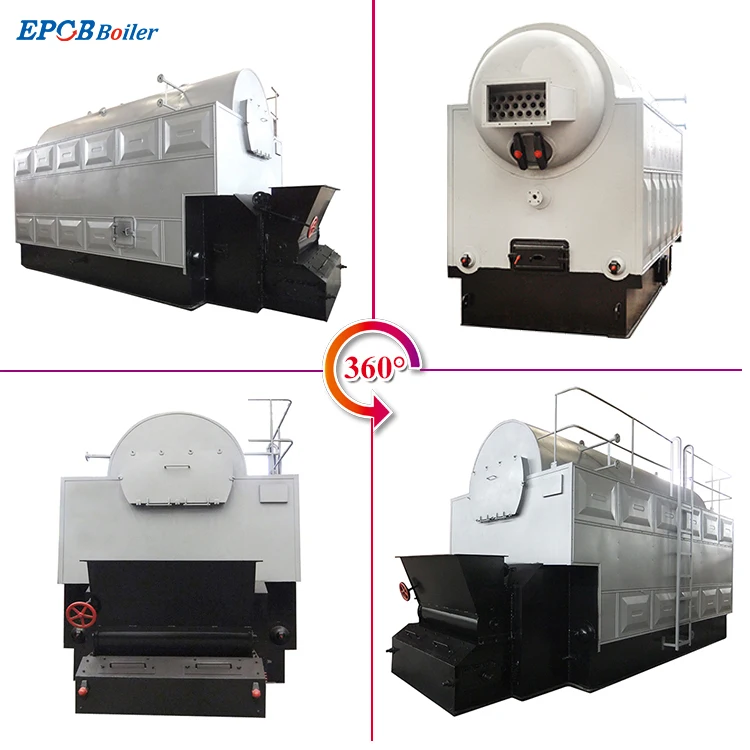

EPCB Industrial 1 to 20 Ton Fire and Water Tube Biomass Coal Fired Steam Boiler
Product Features
Item/Type | Single Drum Chain Grate Coal/Biomass Fired Steam Boiler | ||||||||||||||||
Rated capacity t/h | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 15 | |||||||||
Rated steam pressure MPa | 0.7/1.25 | 0.7/1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | |||||||||
Rated steam temperature ℃ | 170/194 | 170/194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | |||||||||
Feed water temperature ℃ | 20 | ||||||||||||||||
Boiler thermal efficiency % | 78.1 | 80.2 | 82.3 | 82.5 | 82.5 | 82.9 | 82.9 | 83.1 | |||||||||
Body heating area m2 | 22.99 | 48.7 | 96.34 | 148.15 | 174.4 | 226.2 | 276 | 374.5 | |||||||||
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, Rice Husk, Palm Kernel Shell, etc. | |||||||||||||||
Coal kg/h | 101.79 | 198.25 | 347.75 | 520.36 | 693.81 | 863.08 | 1035.70 | 1291.51 | |||||||||
Biomass kg/h | 147.11 | 286.52 | 502.57 | 752.03 | 1002.71 | 1247.34 | 1496.80 | 1866.50 | |||||||||
Size of boiler largest parts mm | Length | 4600 | 5800 | 6700 | 7000 | 7300 | 7600 | 7600 | 8500 | ||||||||
Width | 1900 | 2600 | 2700 | 3000 | 3000 | 3200 | 3200 | 3400 | |||||||||
Height | 2900 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |||||||||
Weight of boiler largest parts ton | 18 | 22 | 30.1 | 40 | 21/14 | 23/17 | 23/19 | 21/24 | |||||||||
