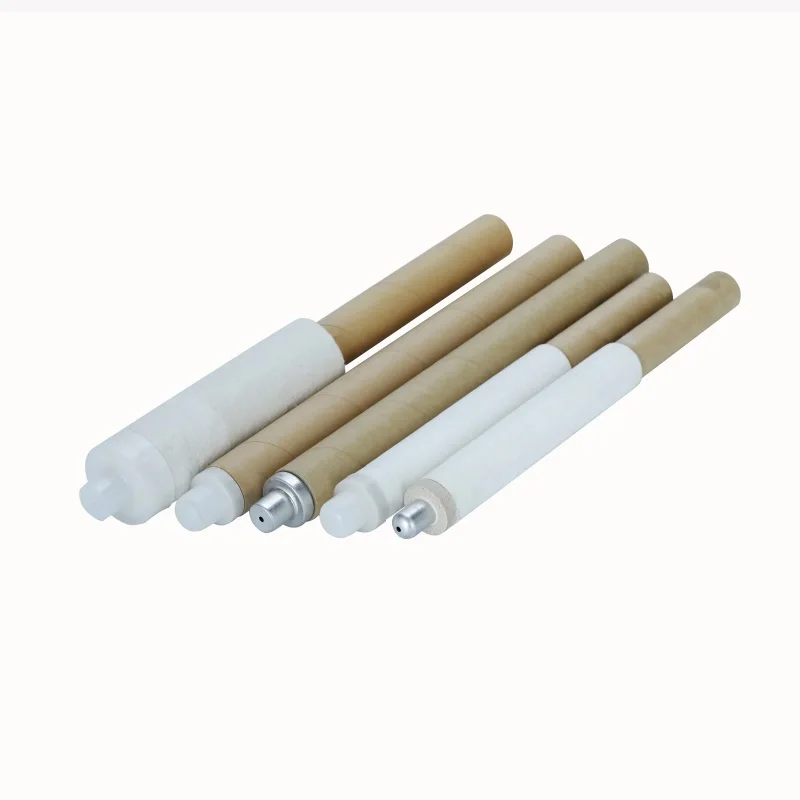

China thermocouple manufacturers Immersion Fast Response R Type safety splash proof reusable thermocouple for molten aluminum
- Category: >>>
- Supplier: Shijiazhuang Xingxin Instrument Co. Ltd.
Share on (1600864327712):
Product Overview
Description
Product Description
【 Structural Analysis 】

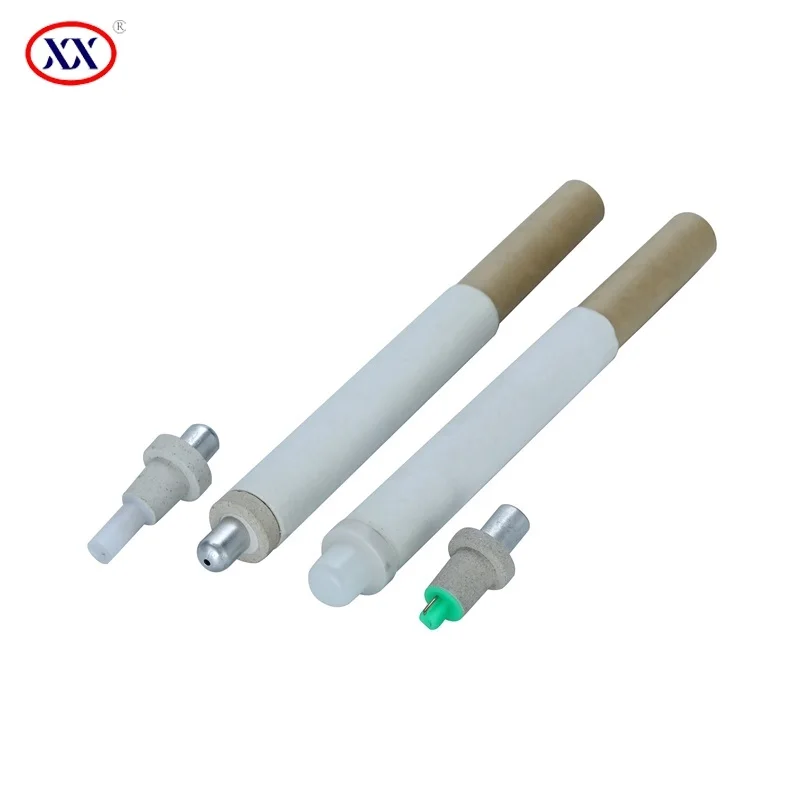

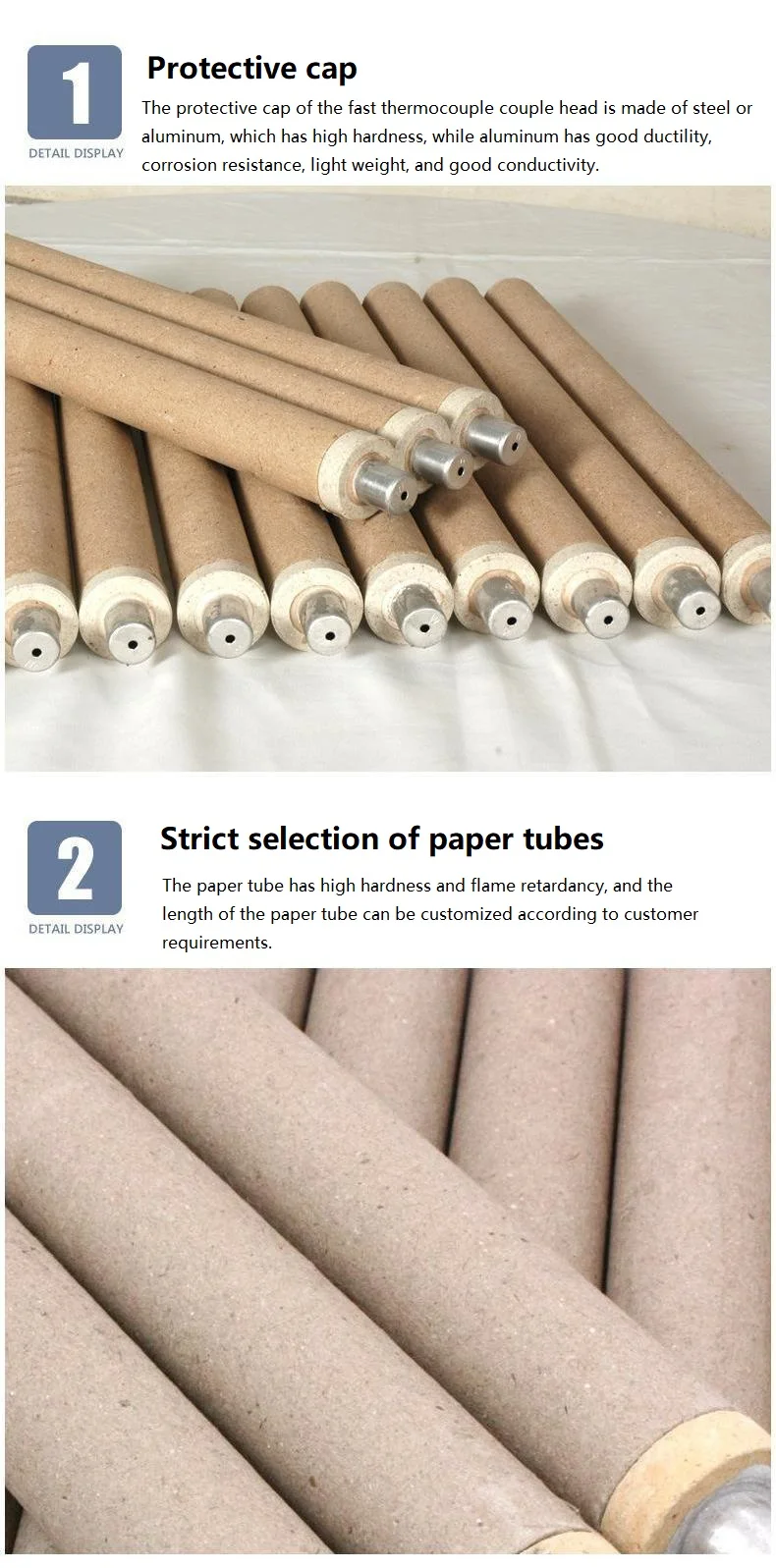

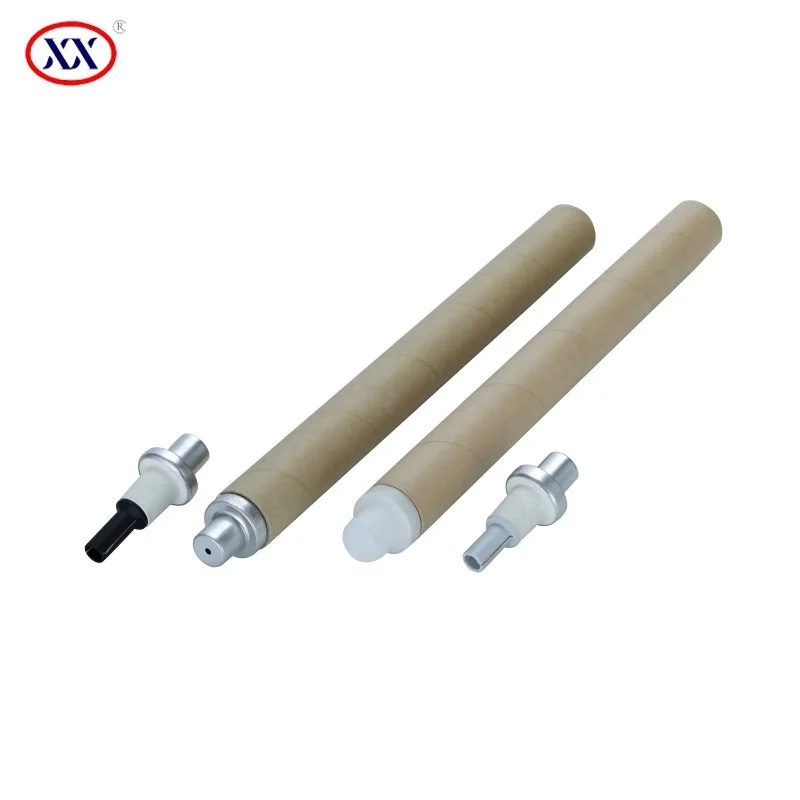

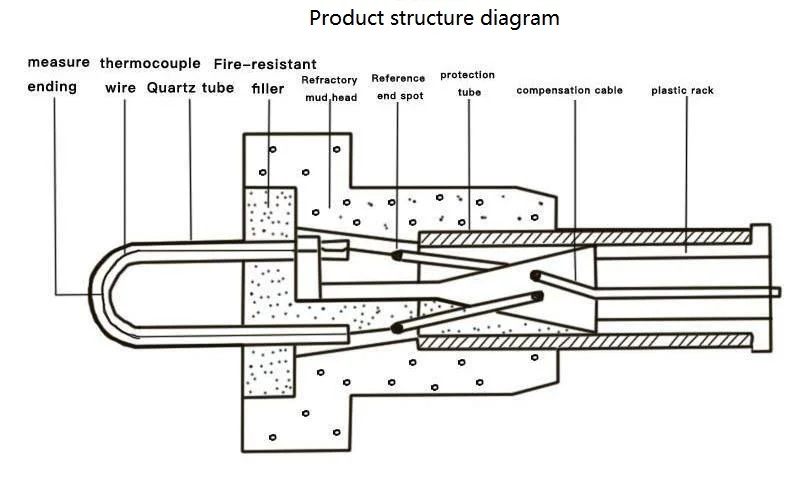

The structure of a fast thermocouple is mainly composed of a temperature thermocouple head and a large paper tube. The thermocouple head mainly consists of positive and negative thermocouple wires welded to the compensation wire for fast thermocouple, and the compensation wire is embedded in the bracket. The bracket is covered with a small paper tube, and the thermocouple wire is supported and protected by quartz. Equipped with an anti slag cap on the outside, all components are concentrated in the mud head and glued together with a fire-resistant filling agent, making it non detachable and therefore disposable.
【Working principle】
Based on the thermoelectric effect of metals, the temperature difference generated at both ends of thermocouples is used to measure the temperature of molten steel and high melting metals. Two different components of conductors are welded at both ends to form a circuit. The direct measurement end is called the working end (hot end), and the wiring terminal end is called the cold end. When there is a temperature difference between the hot end and the cold end, a thermal current will be generated in the circuit. When connected to a display instrument, the corresponding temperature value of the generated thermoelectric electromotive force will be indicated on the instrument, and the electromotive force will increase with the increase of temperature.【Instructions for use】
1. Based on the measurement object, select an appropriate length of protective paper tube and a suitable temperature measuring gun
2. Install the fast thermocouple on the temperature measuring gun and reset the secondary instrument pointer (or digital display) to zero. This indicates good contact and measurement is possible
3. It is advisable for steel mills to use a fast thermocouple to insert into the molten steel at a depth of 300mm to 400mm, and for casting small furnaces at a depth of 50mm to 60mm. When measuring, do not measure on the furnace wall or slag, and ensure that it is fast, stable, and accurate. When the secondary instrument obtains results, the gun should be immediately lifted. The immersion time of the fast thermocouple in the molten steel should not exceed 5 seconds, otherwise it is easy to burn the temperature measuring gun.
4. After removing the temperature measuring gun from the furnace, remove the used thermocouple and install a new one. Pause for a few minutes to prepare for the next measurement. It is not allowed to measure and disassemble continuously, otherwise it will cause temperature fluctuations.
2. Install the fast thermocouple on the temperature measuring gun and reset the secondary instrument pointer (or digital display) to zero. This indicates good contact and measurement is possible
3. It is advisable for steel mills to use a fast thermocouple to insert into the molten steel at a depth of 300mm to 400mm, and for casting small furnaces at a depth of 50mm to 60mm. When measuring, do not measure on the furnace wall or slag, and ensure that it is fast, stable, and accurate. When the secondary instrument obtains results, the gun should be immediately lifted. The immersion time of the fast thermocouple in the molten steel should not exceed 5 seconds, otherwise it is easy to burn the temperature measuring gun.
4. After removing the temperature measuring gun from the furnace, remove the used thermocouple and install a new one. Pause for a few minutes to prepare for the next measurement. It is not allowed to measure and disassemble continuously, otherwise it will cause temperature fluctuations.
Specification
Name | Type | Model | Recommended operating temperature | Measurement time |
PtRh10%/Pt | S | KS-602/604 | 1650° | 4-6s |
PtRh13%/Pt | R | KR-602/604 | 1650° | 4-6s |
PtRh30%/PtRh6% | B | KB-602/604 | 1750° | 4-6s |
WRe5%-WRe26% | C | KC(KW5/26)602/604 | 1750° | 4-6s |
WRe3%-WRe25% | D | KD(KW3/25)602/604 | 1750° | 4-6s |
Product Details

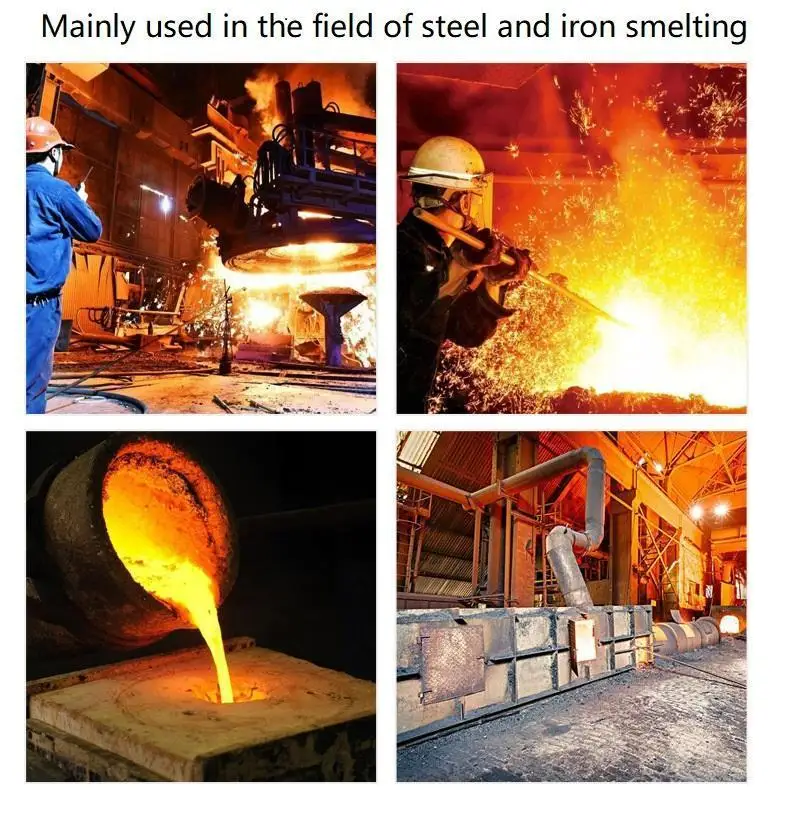

Product Application
FAQ
1.What is your product range?
Our factory specializes in fast thermocouples, Temperature Indicator and accessories, Molten Metal Sampler, Thermal Analysis Cups, carbon silicon analyzers, and other products
2.Can you provide free samples?
Yes, we can provide you with free samples before you buy our product, but you need to pay for shipping
3.How about your quality control?
We believe the quality is controlled through the whole process of order. Begin with detailed drawing and quality standard agreed by both party. Our full process inspection is composed of raw material inspection, mid-term inspection, final inspection and sampling inspection.
4. When can I get the quotation ?
We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please tell us in your mail, so that we could regard your inquiry priority.
5.Can you give me a preferential price?
A:We welcome every customer who likes our project to give preferential prices. Please contact us immediately to obtain a quotation for the project selected for your project.
Our factory specializes in fast thermocouples, Temperature Indicator and accessories, Molten Metal Sampler, Thermal Analysis Cups, carbon silicon analyzers, and other products
2.Can you provide free samples?
Yes, we can provide you with free samples before you buy our product, but you need to pay for shipping
3.How about your quality control?
We believe the quality is controlled through the whole process of order. Begin with detailed drawing and quality standard agreed by both party. Our full process inspection is composed of raw material inspection, mid-term inspection, final inspection and sampling inspection.
4. When can I get the quotation ?
We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please tell us in your mail, so that we could regard your inquiry priority.
5.Can you give me a preferential price?
A:We welcome every customer who likes our project to give preferential prices. Please contact us immediately to obtain a quotation for the project selected for your project.
