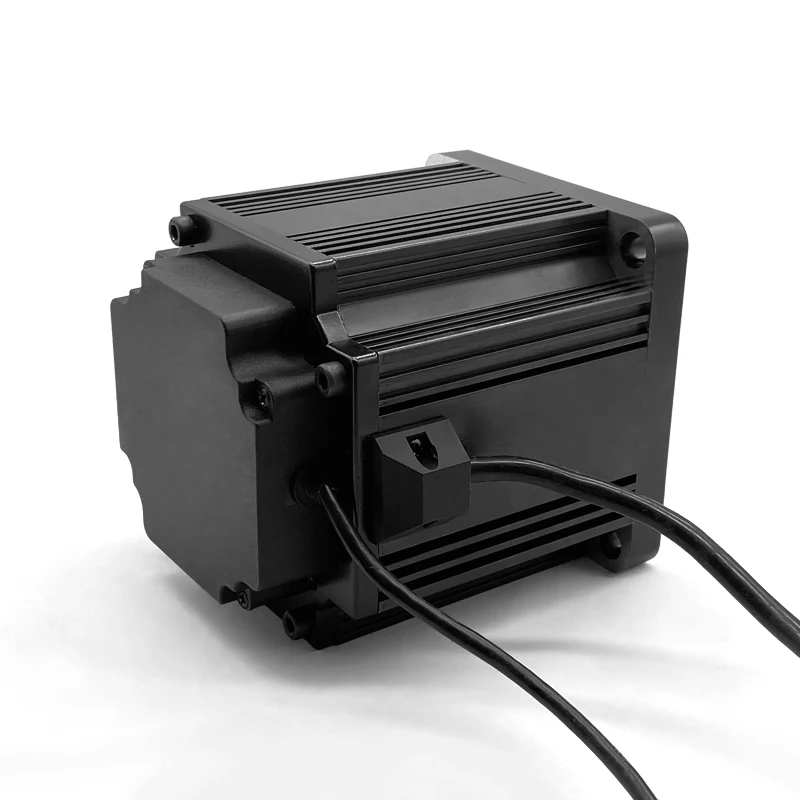

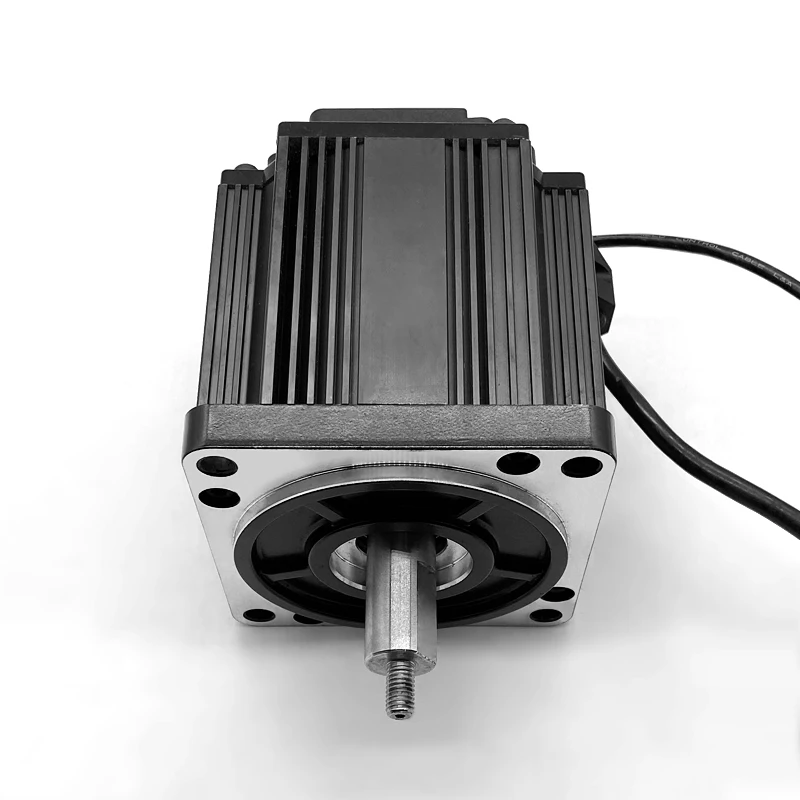

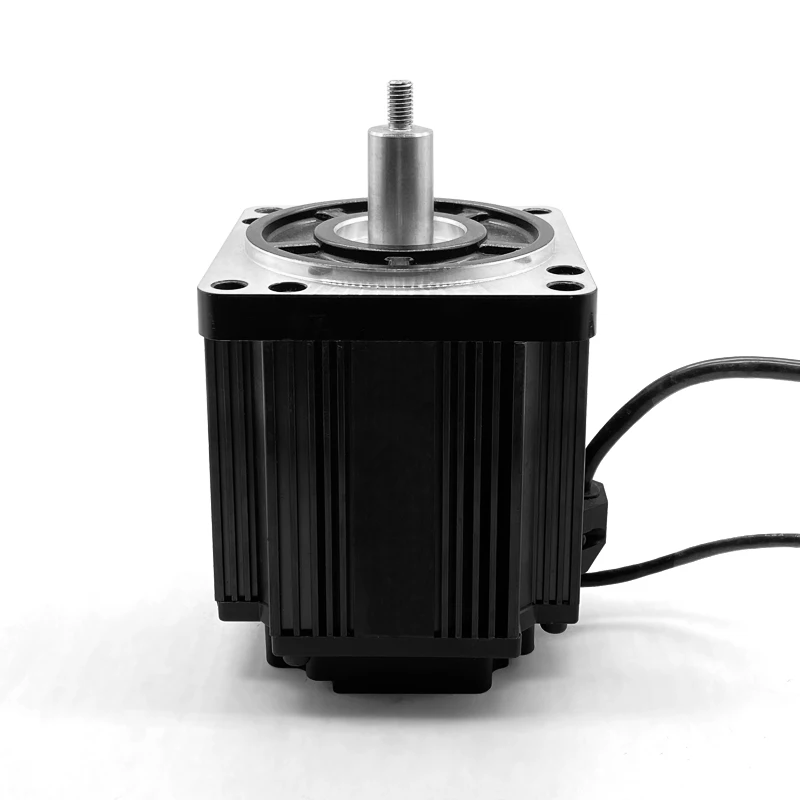

310VDC larger size 110*110mm 110BL 1.6KW 3000rpm brushless dc motor
- Category: >>>
- Supplier: Changzhou Maples Precision Electromechanical Co. Ltd.
Share on (1600864334453):
Product Overview
Description
310VDC larger size 110*110mm 110BL 1.6KW 3000rpm brushless dc motor
Product Description
Noted: If you need other motor, please send inquiry to us or contact us directly.
BLDC motors are replacing classic DC motors and stepper motors in more and more applications. The BLDC motors are three-phase and have digital Hall sensors in the standard version, so that speed control is possible with simple servo controllers. The most important features BLDC motors are:
high efficiency
◆ low operating voltage: the windings of BLDC motors are designed for low supply voltages
◆ flange sizes available: 42mm,57mm,60mm,80mm286mm,110mm can be customized
◆ customization options: encoder, shaft , flange, insulation, bearing, environmental conditions, etc
high efficiency
◆ low operating voltage: the windings of BLDC motors are designed for low supply voltages
◆ flange sizes available: 42mm,57mm,60mm,80mm286mm,110mm can be customized
◆ customization options: encoder, shaft , flange, insulation, bearing, environmental conditions, etc

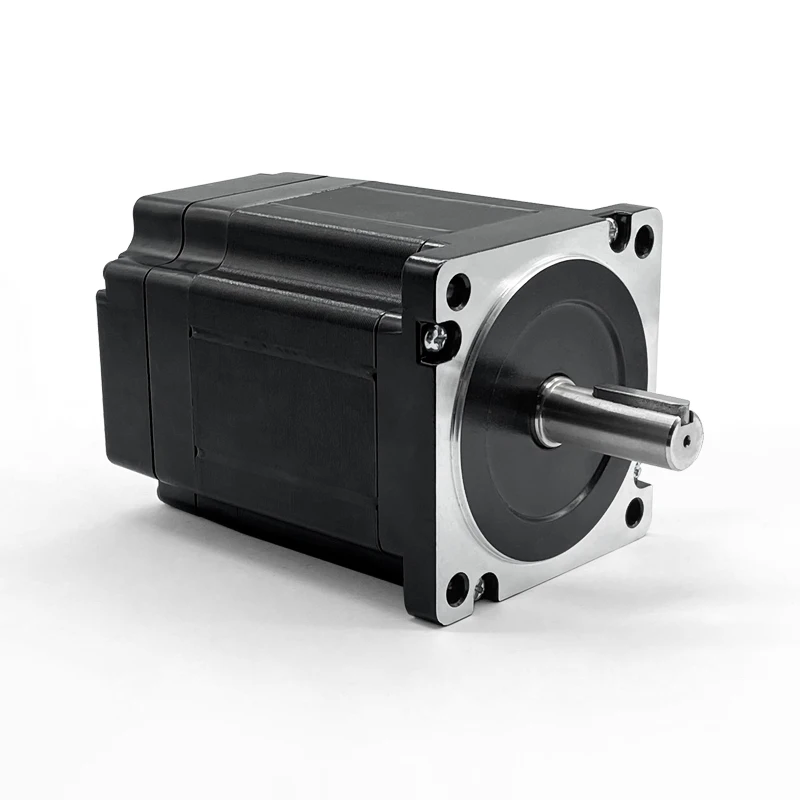

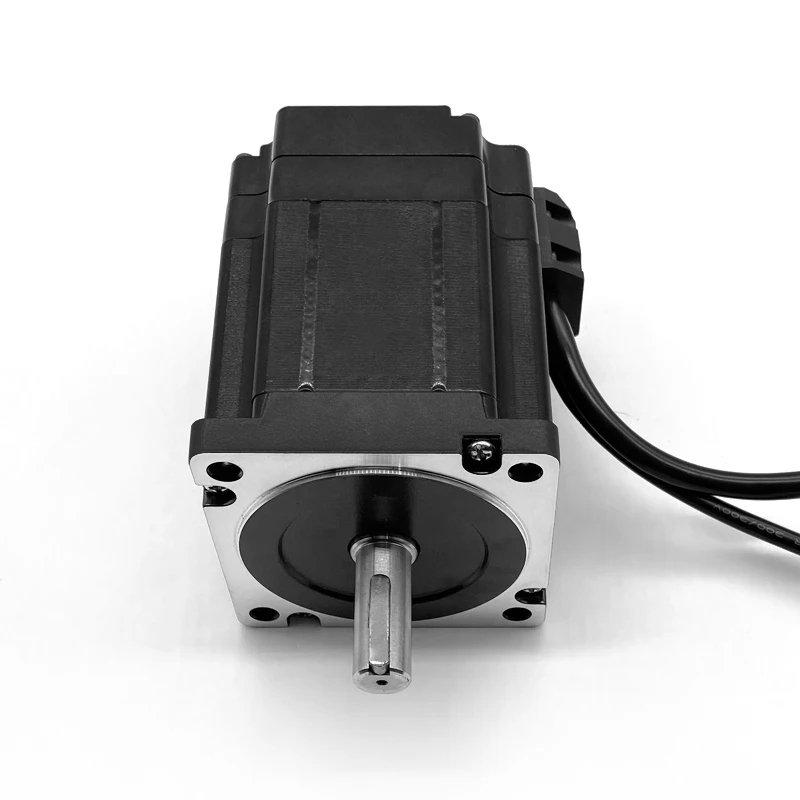

86mm brushless dc motor

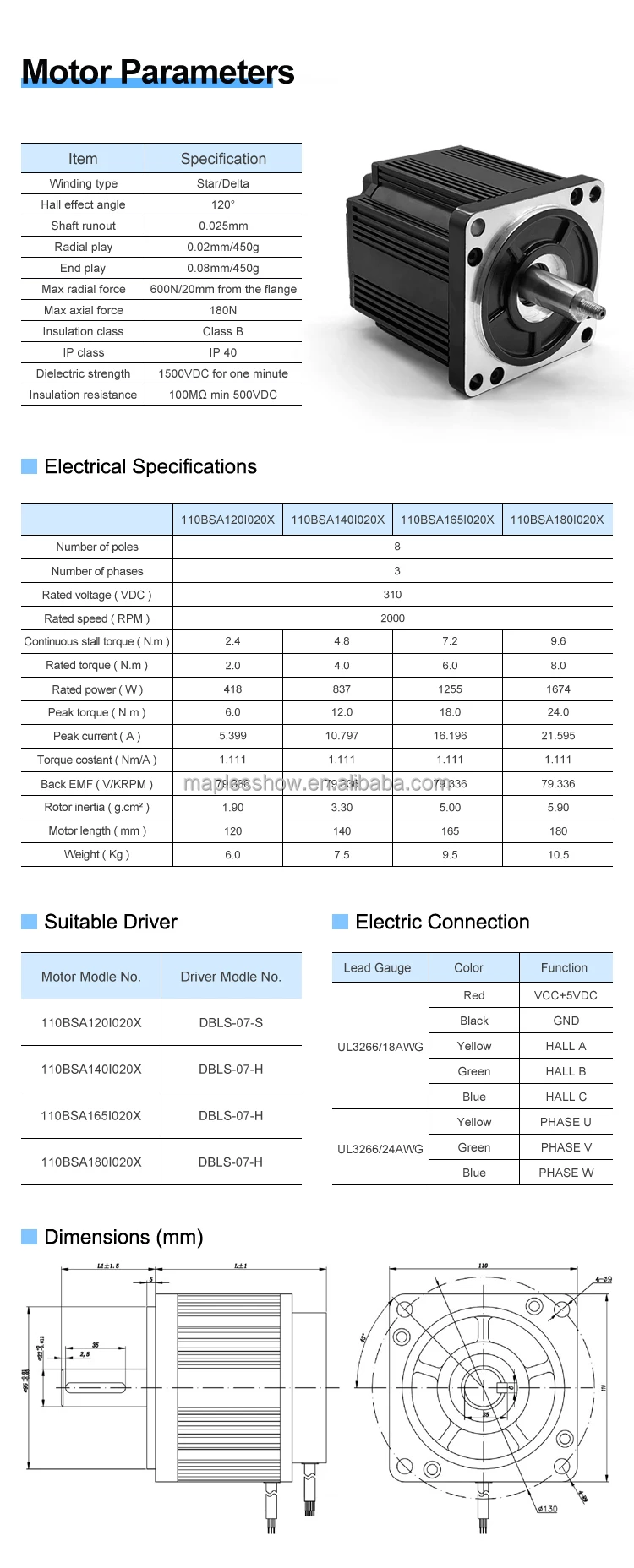

Motor Specification
Item | High Speed Brushless dc motor |
Model Number | 110BSA165I030X |
Rated Torque | 6N.m |
Speed(RPM) | 3000rpm |
Rated Voltage | 310VDC |
Power | 1574W |
Shaft type | 22MM Round,d-cut,keyway |
Sensor | Optional |
Insulation class | Class B |
Degree of protection | -25~ +70℃ |
Storage temperature | -15~ +50℃ |
-15~ +50℃ | -15~ +50℃ |
Working environment | No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust. |
Above only for representative products, products of special request can be made according to the customer request.
Customized Design
Packing & Delivery
Packing
Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.
Delivery
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptable.
Company Profile
Changzhou Maples Precision Electromechanical Co., Ltd is located in Changzhou close to Shanghai of China. It mainly sales hybrid stepper motors, stepper motor drives, brushless dc motors, brushless dc motor driver, and also agent servo motors, spindle motors, related drives, switching power supplies and accessories.
Our main goal is to become a professional supplier of mechanical and electrical products and provide customers with perfect after-sales service.
We have a professional technical team, who have extensive experience in the design and development of motor and motor drive products. We provide customers with a full range of services, including product customization and technical consultation. We have advanced equipment and experienced engineers that ensure our products meet customer needs and requirements. Our products are widely used in medical, industrial, commercial, and consumer applications. We strive to provide our customers with the highest quality products and services. We have a strict quality control system to ensure our products meet the industry standards. We are committed to providing our customers with the highest level of customer service. Our sales team is professional, knowledgeable, and dedicated to helping our customers achieve their goals.
FAQ
Q1: How to choose the suitable stepper motor? | ||||||||
A: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one. | ||||||||
Q2: Any other methods to finalize the model? | ||||||||
A: Sure, you can send us the model you are using, we can help you find the suitable one. | ||||||||
Q3: When can I get the drawing of stepper motor? | ||||||||
A: We will provide drawings of stepper motor after you place the order. | ||||||||
