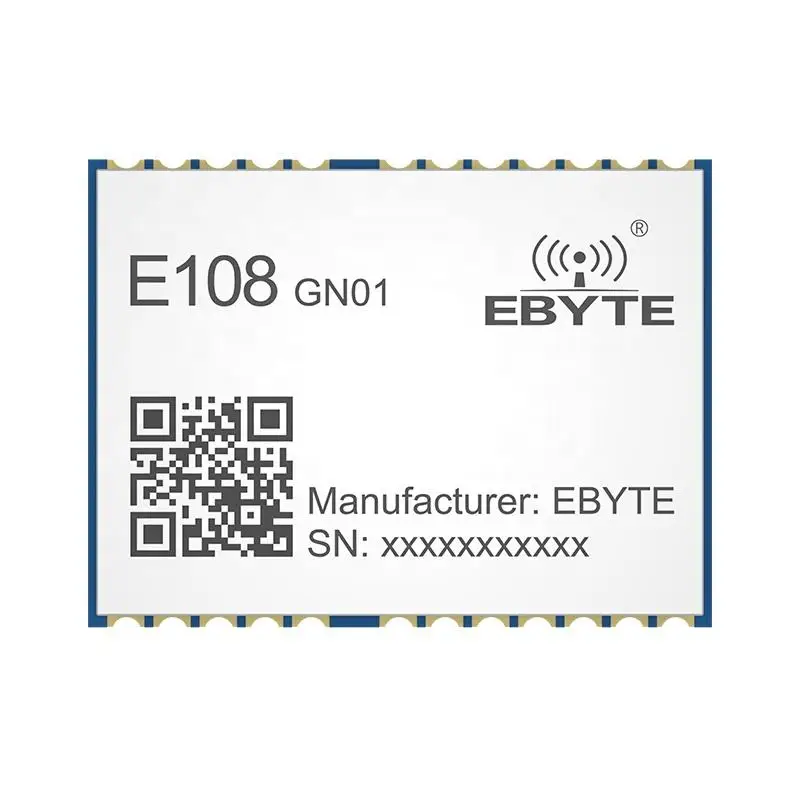

E108 GN01Free Sample GPS module Wireless Transmitter Receiver RF Low Price Gps Tracking Chip Module
- Category: >>>
- Supplier: Chengdu Coogex Electronic Technology Co. Ltd.
Share on (1600864349248):
Product Overview
Description
E108-GN01Free Sample GPS Tracker Wireless Transmitter Receiver RF Low Price Gps Tracking Chip Module
Product Description
GPS performance | ||||||
Type | Indicator | Typ. | Unit | |||
（test condition 1） | Cold start | 27.5 | S | |||
Hot start | ＜1 | S | ||||
Re-capture | ＜1 | S | ||||
A-GNSS | ＜10 | S | ||||
（test condition 2） | Cold start | -148 | dBm | |||
Hot start | -162 | dBm | ||||
Re-capture | -164 | dBm | ||||
Follow | -166 | dBm | ||||
（test condition 3） | Horizontal positioning accuracy | 2.5 | m | |||
Height positioning accuracy | 3.5 | m | ||||
Speed positioning accuracy | 0.1 | m/s | ||||
Timing accuracy | 30 | ns | ||||
Power consumption （test condition 4） | Capture current | 30 | mA | |||
Follow current | 20 | mA | ||||
Operating temperature | - | -35℃--85℃ | - | |||
Storage temperature | - | -55℃--100℃ | - | |||
Humidity | - | 5%-95%RH （Nocondensation） | - | |||
Basic parameter | ||||
Type | Details | |||
Protocol | NMEA0183 V4.1 and previous version，max updating frequency is 10Hz | |||
GPS system | BDS/GPS/GLONASS/GALILEO/QZSS/SBAS | |||
Peripheral interface | UART（TXD/RXD） or GPIO | |||
Low power | Available | |||
Ultra-low power | Available | |||
Periodical low power | Available | |||
Direct low power | Available | |||
Parameter setting software | Available | |||
Certification | Pending | |||
Size | 16*12*2.4mm(L*W*H) | |||
Package | Half hole（SMT） | |||
Power supply | VCC | 2.8V—4.3V（3.3V） | ||
Communication level | 2.8V | |||
Baud rate（bps） | 9600（default）、115200（customizable） | |||
Data bit | 8bit | |||
Stop bit | 1 | |||
Parity | None | |||
Related Products
Frequency | Power | Distance | Air | Package | Size | |||
Hz | dBm | km | Rate(bps) | (mm) | ||||
SX1268 | UART | 433M 470M | 30 | 8 | 0.3~62.5k | DIP | 24*43 | |
SX1268 | UART | 433M 470M | 22 | 5 | 0.3~62.5k | DIP | 21*36 | |
SX1262 | UART | 868M 915M | 30 | 10 | 0.3~62.5k | SMD | 40.5*25 | |
SX1268 | UART | 433M 470M | 30 | 10 | 0.3~62.5k | SMD | 40.5*25 | |
SX1262 | UART | 230M | 30 | 10 | 0.3~15.6k | SMD | 40.5*25 | |
SX1262 | UART | 230M | 22 | 5 | 0.3k~62.5 | SMD | 16*26 | |
SX1262 | UART | 868M 915M | 22 | 5 | 0.3~62.5k | SMD | 16*26 | |
SX1268 | UART | 433M 470M | 22 | 5 | 0.3~62.5k | SMD | 16*26 | |
SX1268 | SPI | 433M 470M | 30 | 12 | 0.018~300k | SMD | 24*38.5 | |
SX1262 | SPI | 868M 915M | 30 | 12 | 0.018~300k | SMD | 24*38.5 | |
SX1262 | SPI | 868M 915M | 22 | 7 | 0.018~300k | SMD | 14*20 | |
SX1268 | SPI | 433M 470M | 22 | 7 | 0.018~300k | SMD | 14*20 |
Our Advantages
Company Profile
Cojxu is a high-tech company,specializes in the developing and manufacturing wireless products such as Industrial DTU,UART Module,SPI Modul,Data Radio,PKE Module,Development Kits(Antenna,Multi-functional Adapter,Downloader and CC Debugger etc) Our company owns a number of independent research&development products and obtain unanimously approved customers.with powerful R&D team and marketing team. Cojxu always provide customers with perfect After-sales service and technical assistance. Quality is our culture,with us your money and business in safe.
Packing&Shipping
1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,it will take 3-7 working days to arrive in most countries.
2.We can alsohelp you ship the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive. 3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer. E108-GN01Free Sample GPS module Wireless Transmitter Receiver RF Low Price Gps Tracking Chip Module
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.Whether the product can be customized logo?
A3.For bulk orders, we support custom logo.
Q4: What about the delivery time?
A4: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q5: What is your delivery terms and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q7. How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough
information in the product page.
Q8. How can we get samples from you ?
A8.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q9.Can your module be connected with Arduino board? Can you provide Sample code?
A9: We don’t know the model of your Arduino, so we don’t sure if our module can be connected with it. Please be sure of the power supply when you connect your Arduino board with our module, 3.3V is ok. But for 5V, you need to add 4-10k pull-up resistor for the TXD&AUX pin. Sorry we don’t have the sample code to offer.
Q10.Can your module be connected with Raspberry Pi?
A10: Yes, our module can be connected with Raspberry Pi.E108-GN01Free Sample GPS module Wireless Transmitter Receiver RF Low Price Gps Tracking Chip Module
A1: We are a manufacturer. E108-GN01Free Sample GPS module Wireless Transmitter Receiver RF Low Price Gps Tracking Chip Module
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.Whether the product can be customized logo?
A3.For bulk orders, we support custom logo.
Q4: What about the delivery time?
A4: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q5: What is your delivery terms and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q7. How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough
information in the product page.
Q8. How can we get samples from you ?
A8.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q9.Can your module be connected with Arduino board? Can you provide Sample code?
A9: We don’t know the model of your Arduino, so we don’t sure if our module can be connected with it. Please be sure of the power supply when you connect your Arduino board with our module, 3.3V is ok. But for 5V, you need to add 4-10k pull-up resistor for the TXD&AUX pin. Sorry we don’t have the sample code to offer.
Q10.Can your module be connected with Raspberry Pi?
A10: Yes, our module can be connected with Raspberry Pi.E108-GN01Free Sample GPS module Wireless Transmitter Receiver RF Low Price Gps Tracking Chip Module
