ECO CE certificate desktop uv coating machine Good Performance uv curing spot uv coating machine
- Category: >>>
- Supplier: Shenzhen Eco Printing Co. Ltd.
Share on (1600864355880):
Product Overview
Description
Our Products
Product Name | LED UV curing light machine factory price UV curing tunnel |
Brand | YK |
Model No | YK-500UV-B |
Conveyor belt size | L2000* W500MM |
UV Lamp power | 2PCS*5.6KW /380V |
Total wattage | 13KW |
Wind fan wattage | 500W/380V |
motor wattage | 1000 W/1 P/380 V |
Conveyor speed | 0~30 m/min |
Speed change ways | Continue |
Max printing speed | 2000PCS/H |
Wattage | 380V/220V/ 50Hz 110V/60Hz |
Gross weight | 330 KG |
UV Machine Dimension | L*W*H2020*700*1350mm |
H.S.code | 8543709990 |
1，About This Item：
UV curing dryer oven machine suit for heidelberg offset Product Description
uv curing system manufacturers UV curing machine YK-500UV-B use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc.
Machine advantage:
1.It applies to the gold and silver cardboard, metal, glass, plastic and other substrates printed wrinkles, scrub, refraction,
light crystal stones, colorful powder, convex oil, snow and other special effects, and offset print UV offset ink light cured.
2.According offset parameters made. Required to provide matching offset spout length, the whole width, height and tilt angle of UV machine.
3.UV curing machine supporting offset printing must meet to UV lamp curing temperature should not exceed 45 ° C, it does not make prints telescopic deformation, curing speed must reach 9000 / hour.
4.Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing,
5.Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light emitting electrode, filled with high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%
High Speed UV curing machine
4.Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing,
5.Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light emitting electrode, filled with high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%
High Speed UV curing machine
UV curing dryer oven machine suit for heidelberg offset
Machine Features:
1. The conveyor speed can adjustment according to the products drying condition;
1. The conveyor speed can adjustment according to the products drying condition;
2. Conveyor belt make by teflon materials;
3.Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
Machine Parameters
Model | YK-500UV-B | YK-700UV-B | YK-800UV-B | YK-1050UV-B |
Belt width | 500mm | 700mm | 800mm | 1050mm |
Power(can be customized) | 2pcs*5.6kw | 2pcs*5.6kw | 2pcs*5.6kw | 2pcs*5.6kw |
Length size (can be customized) | 2meter | 2meter | 2meter | 2meter |

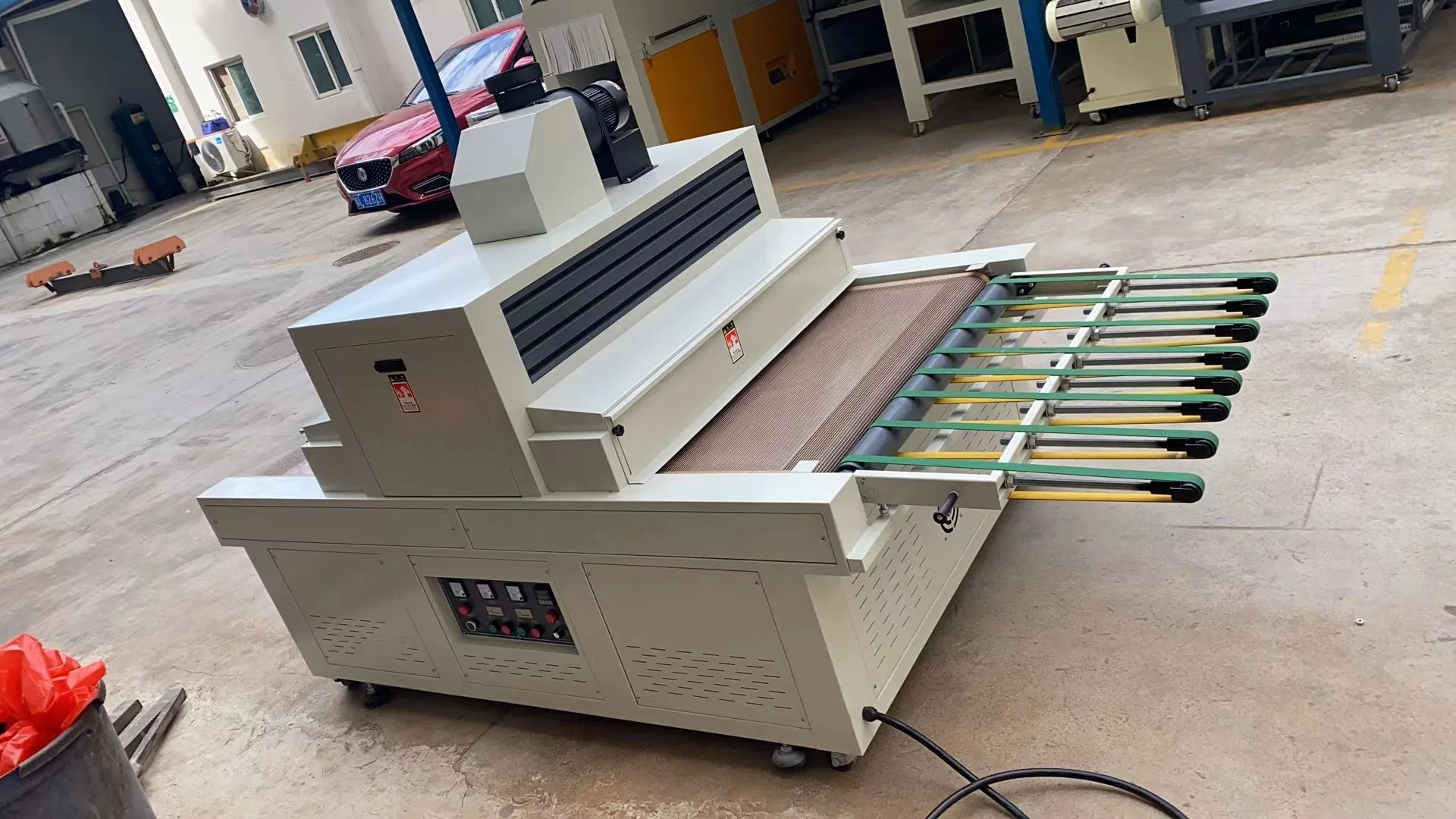

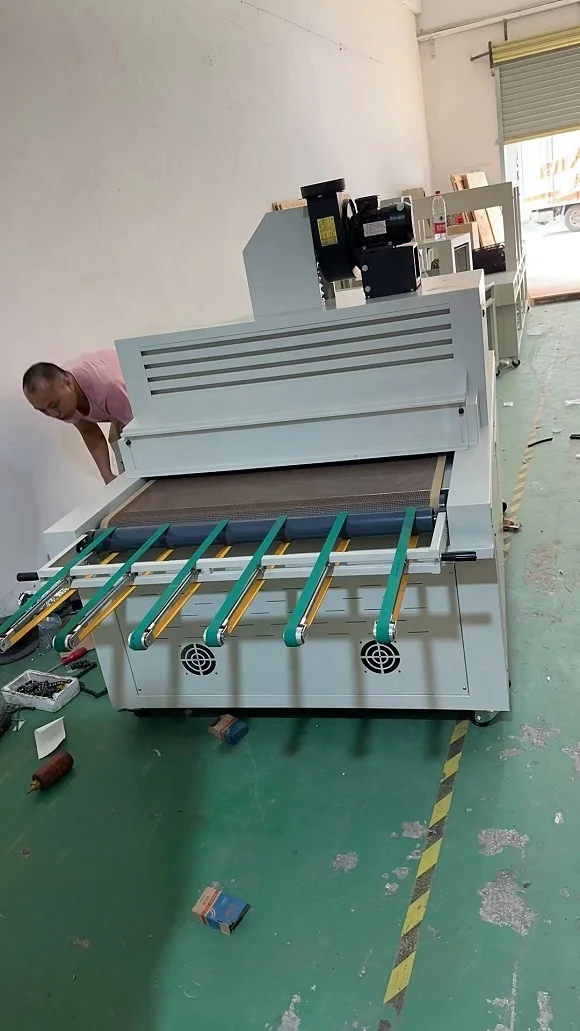

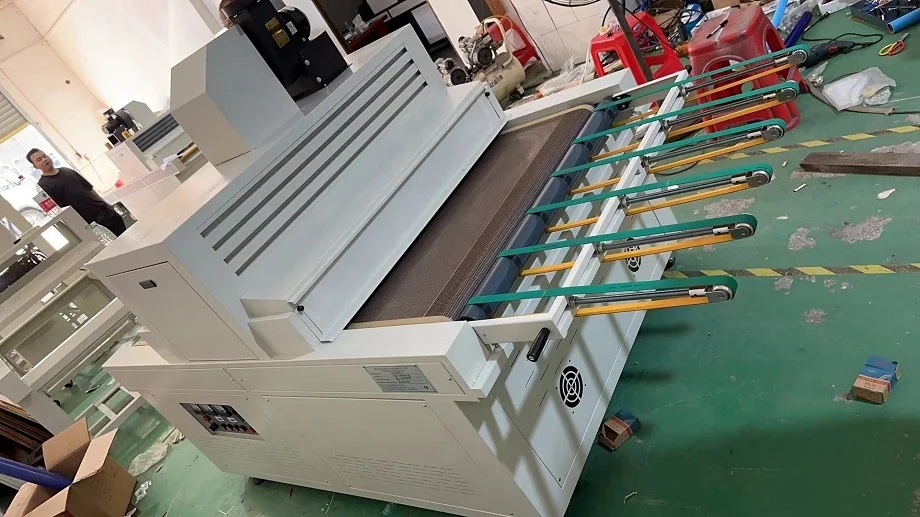

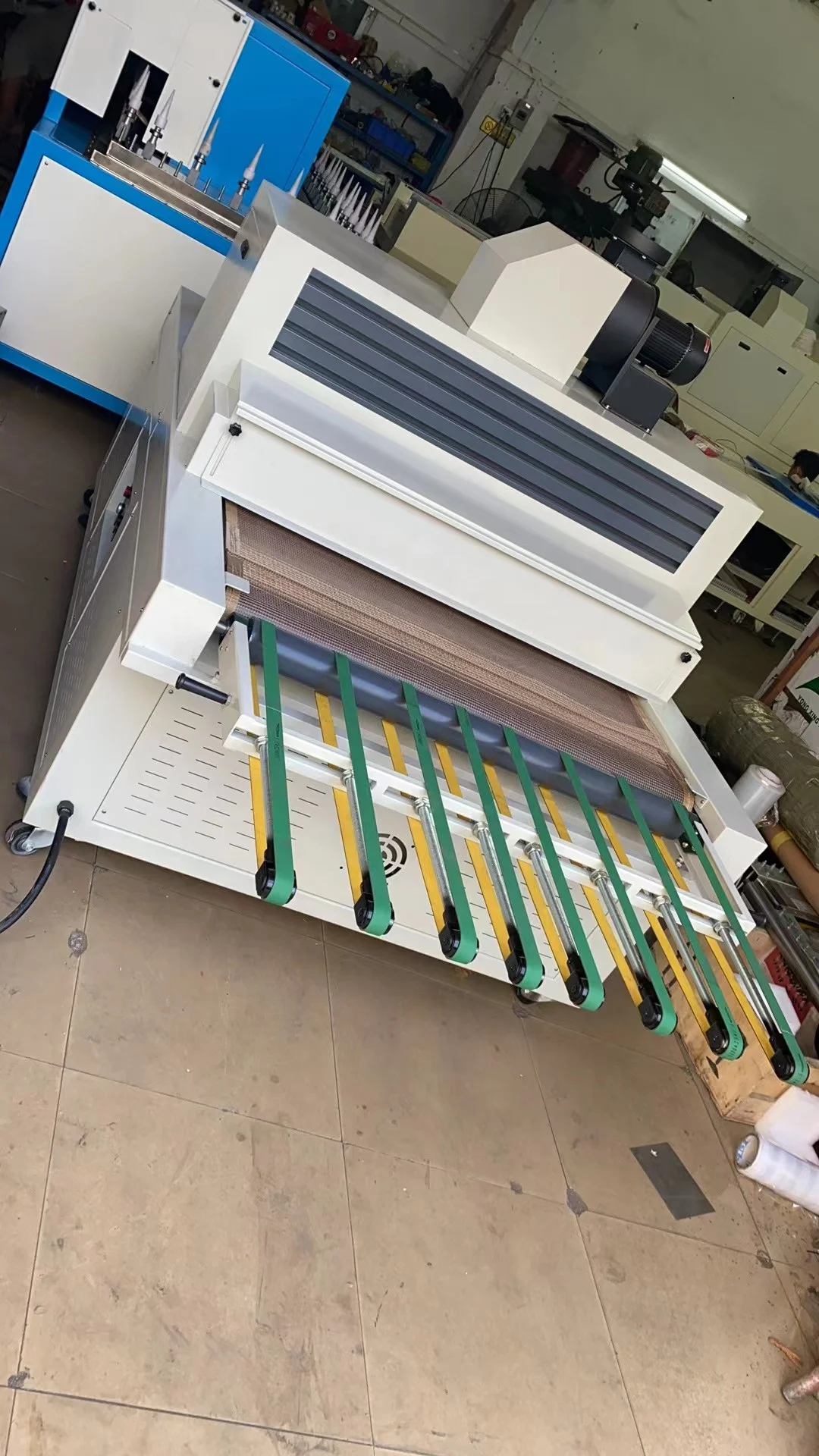

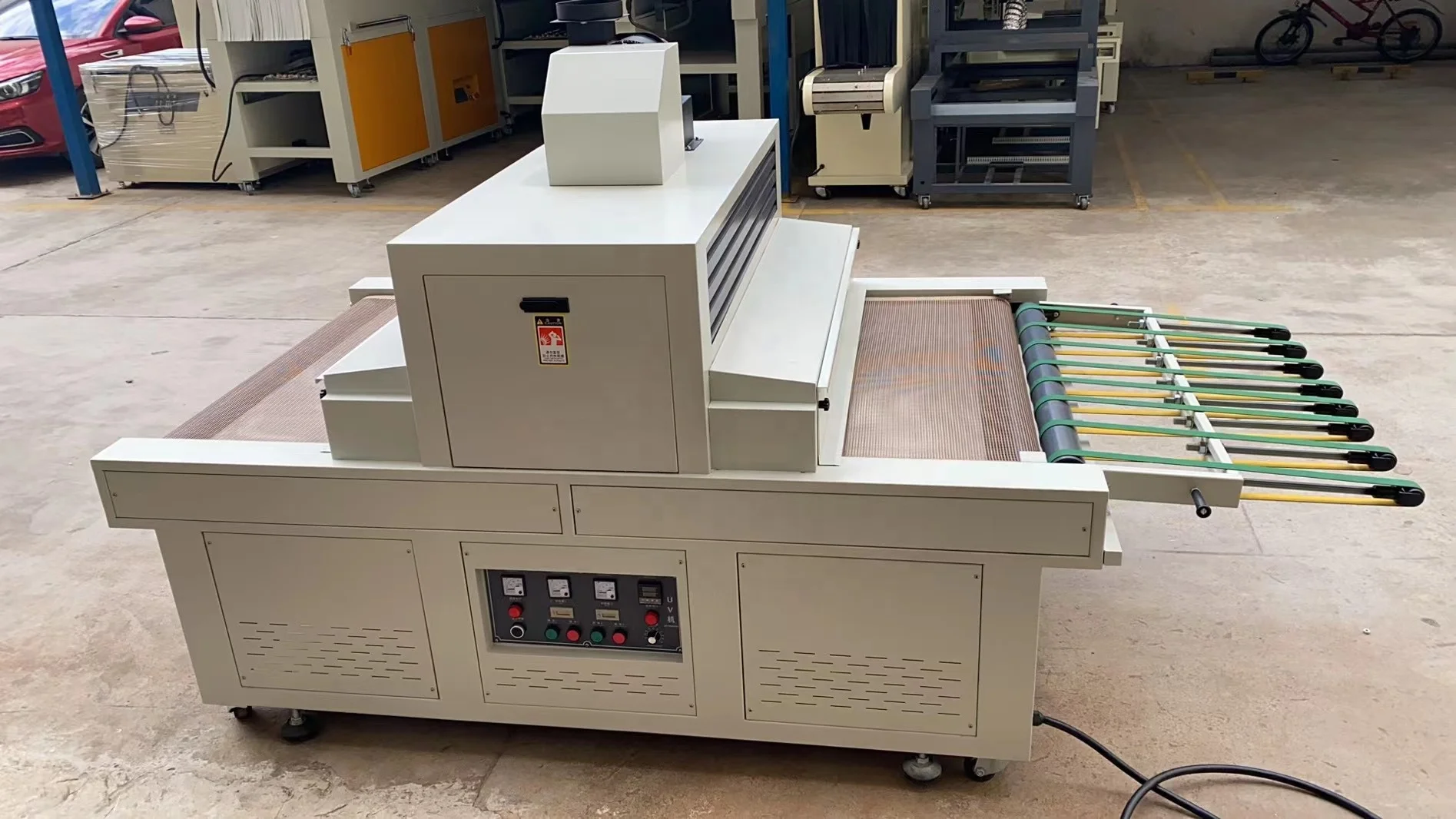

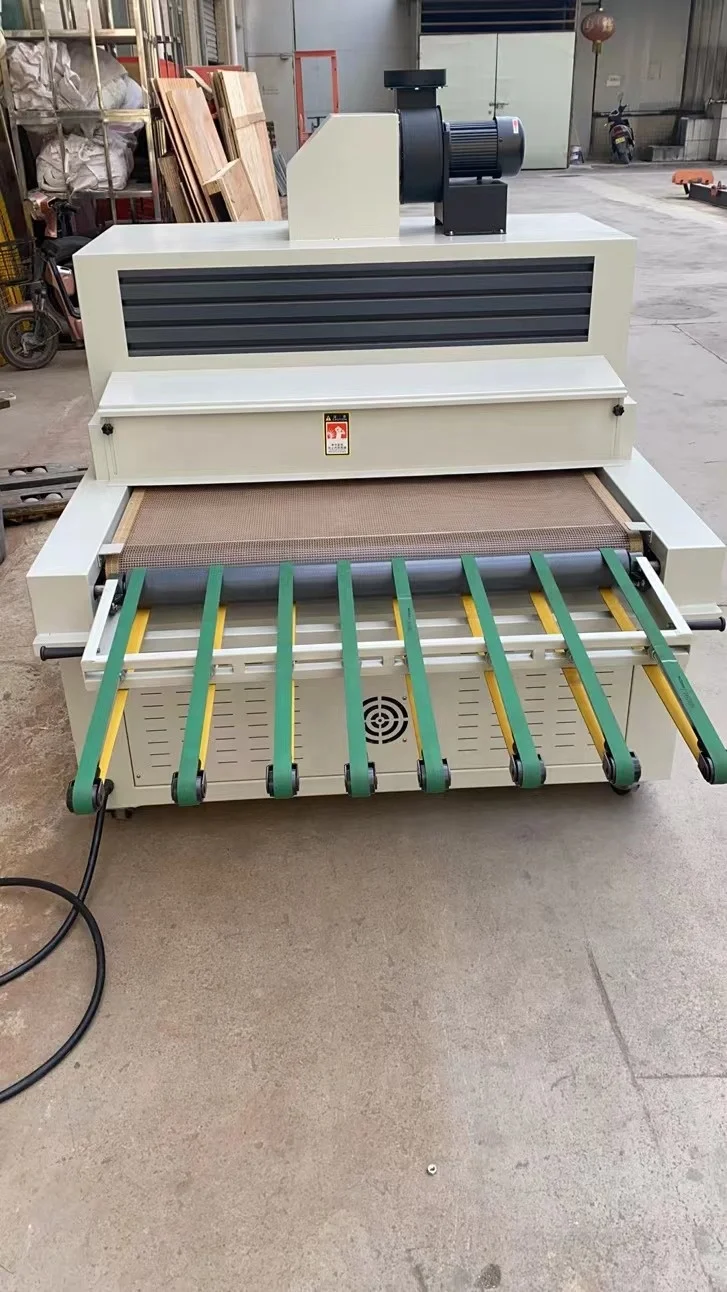

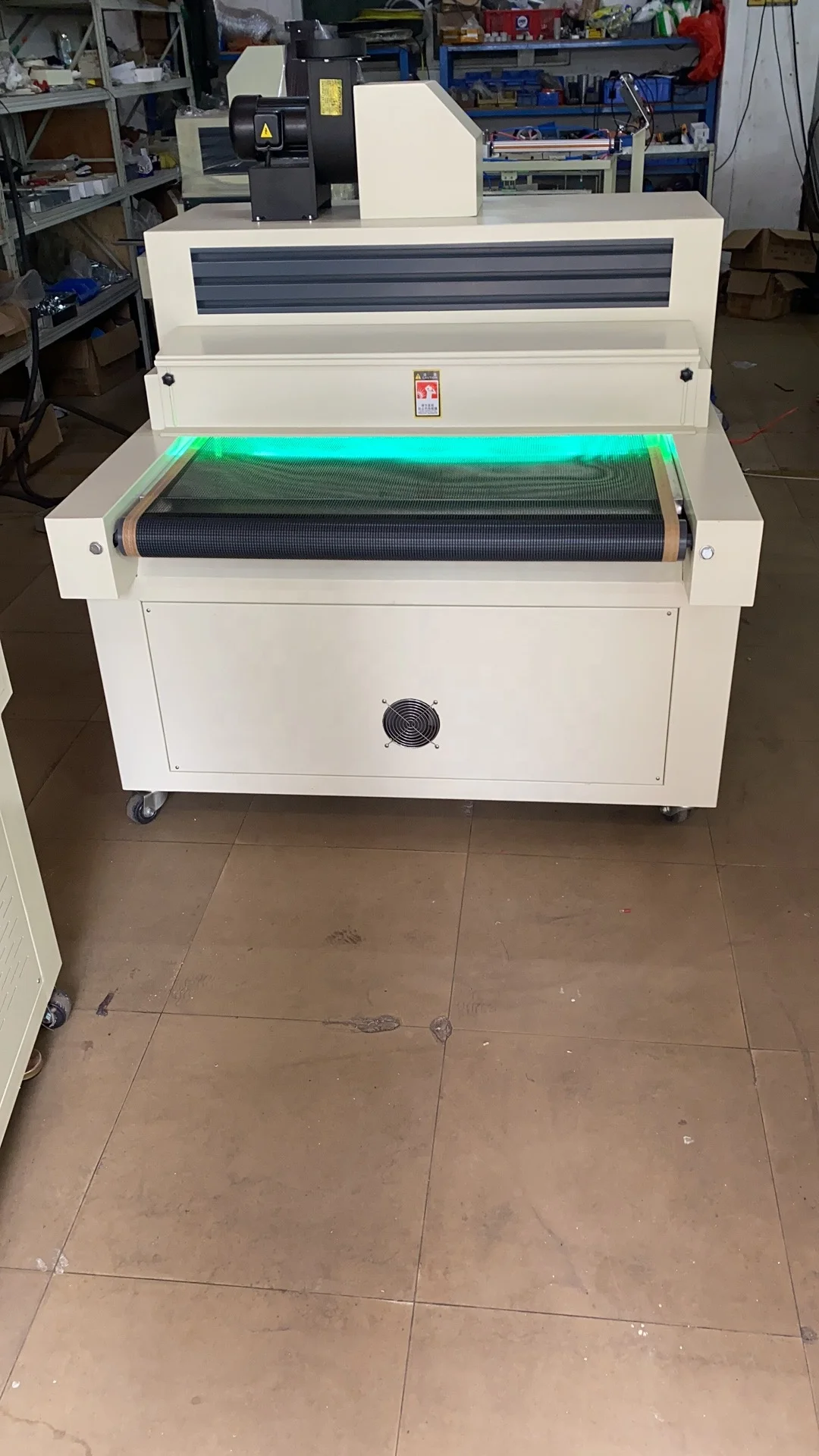

2，Detail Pictures:

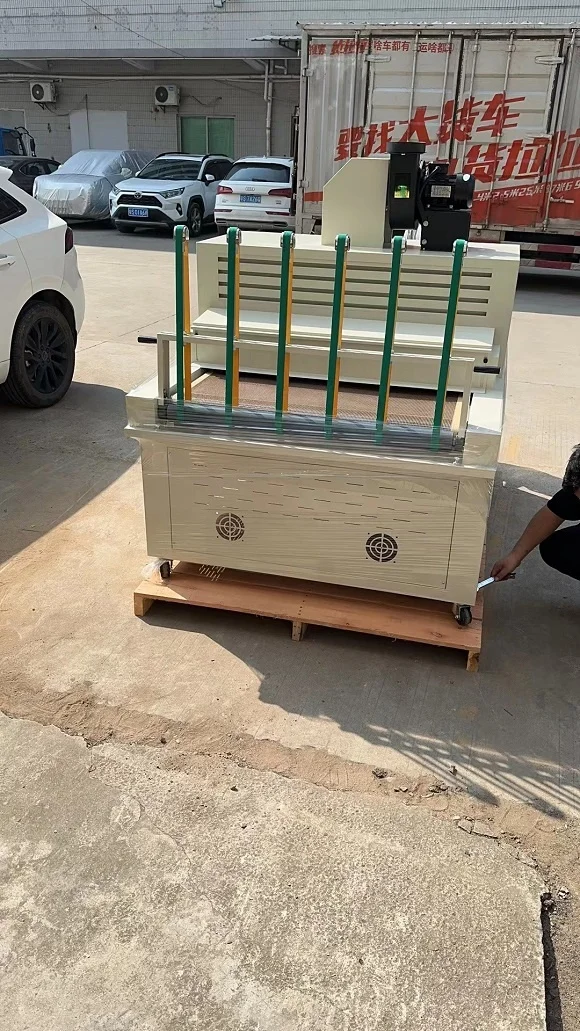

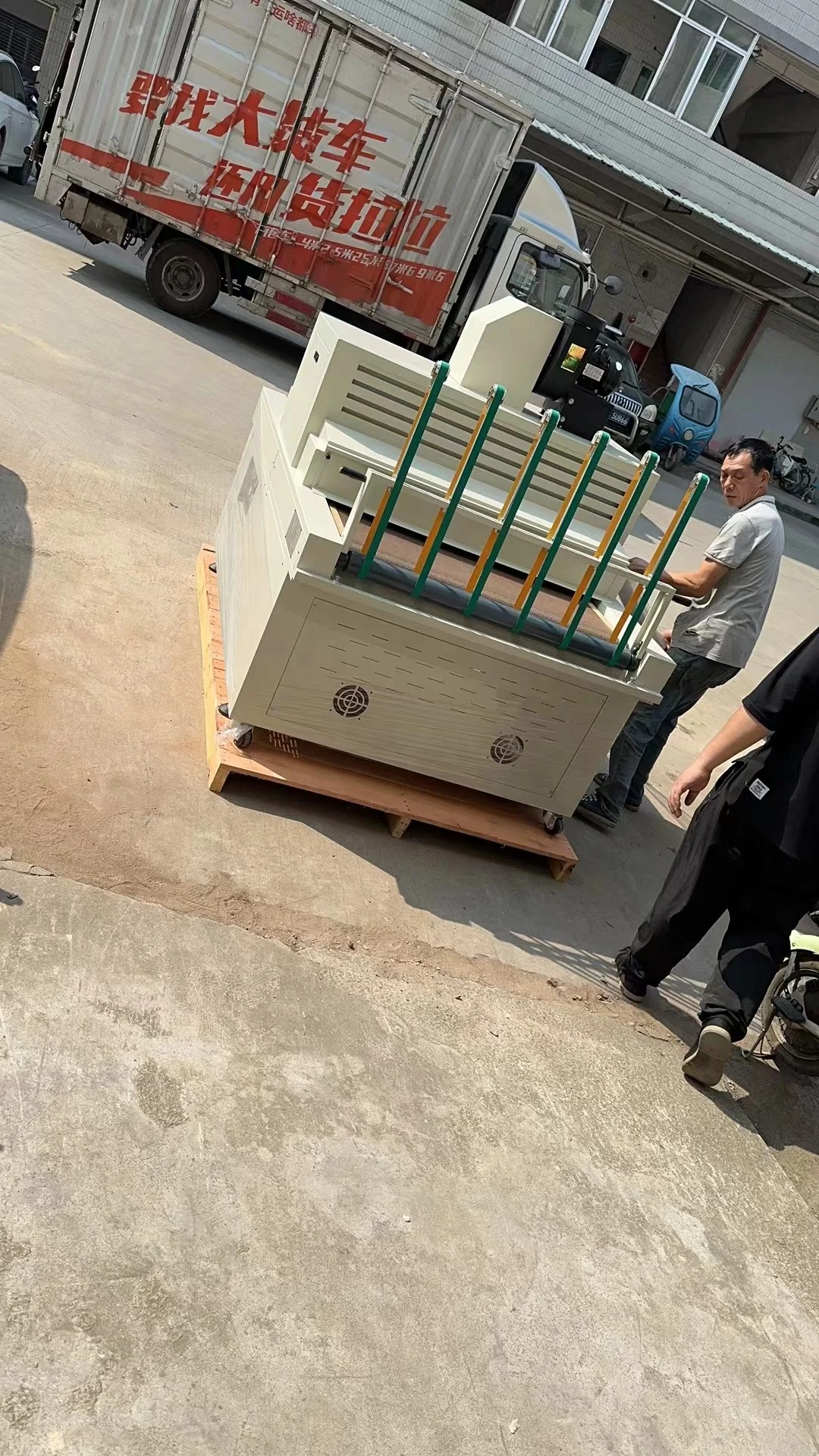

3，Packing and Shipping：
UV curing dryer oven machine suit for heidelberg offset
Machine fitting:1. 2pcs uv lamps
2. 1 set tooling box
3. English operating instruction
4. Package size :L*W*H2200*970*1550MM 380KG
4，Hot Sale Products：
Our Service
1，After Sales Service：
A.For all our machines, One-year warranty,lifelong maintenance and spare parts supply service.
B.After-sales service requires online support from sales staff. In general, machines are relatively simple machines, and most problems can be solved through online communication.
B.After-sales service requires online support from sales staff. In general, machines are relatively simple machines, and most problems can be solved through online communication.
Engineers available to service machinery overseas if need in auto machines.
2，Quality Assurance：
Our product quality is with high reputation among all our clients based on our decades experience.
1)Machine trial running at our site ,you can come and do the on-site check .
We will also offer some pictures and videos and finished samples FYR before shipping.
2)Filed installation and operator training is also available .It base on the auto machine kinds.
1)Machine trial running at our site ,you can come and do the on-site check .
We will also offer some pictures and videos and finished samples FYR before shipping.
2)Filed installation and operator training is also available .It base on the auto machine kinds.
3，Fast Shipping And On-Time Delivery：
Delivery time:Standard machines(normal have in stock): Within 7 days
Customized machines: 25-30 workdays after receiving 30% T/T deposit payment.
Customized machines: 25-30 workdays after receiving 30% T/T deposit payment.
We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
4，100% OEM&ODM：
Yes,we accept all OEM&ODM ,we could produce the machine depends on your requirements.
5，Professional Certificates：
we have CE certificates and some others Certificates for all the machines.
6，Questions about proofing test:
For direct users, it is very important to confirm whether the machine is suitable for their products and require the factory to carry out proofing as the standard for machine delivery, because pad printing machines, screen printing machines usually require fixtures as real samples, new printing plates and inks. For the proofing of the customer's confirmed order, we are free. For the proofing without the confirmed order, we will charge a certain proofing fee. When you confirm the order, the proofing fee will be deducted from the machine purchase price.
Our Team
Our Company
Shenzhen Eco Printing Co.,LTD Since establishment in 1998 the factory has won great reliance and good evaluations from the customers by good reputation,high quality service,reasonable price and fine quality.
Since 2000 years the factory development of the Automatically pad printing machines,screen printers ,uv curing machine,ir dryer machine ,uv exposure unit machine and accessories.
After more than 20 years,with good quality,competitive price,the perfect pre-sale after sale service,won the customer's reputation in the same indudery,full of success,to create well-known sea the famous brand.
With the spirit of "customer foremost and quality first" ,the factory elevates the product quality to satisfy the markets rapidly and achieve the goal of becoming the leading enterprise in cemented carbides industry. The factory will provide sincere service for the customers at home and abroad.
Mainly production:Automatically pad printing machines , pad printers Automatically Screen printing machines; screen printers,UV curing machine, pre-press equipment and Post-press equipment .
Mainly production:Automatically pad printing machines , pad printers Automatically Screen printing machines; screen printers,UV curing machine, pre-press equipment and Post-press equipment .
FAQ
1.After Sale Service:
One year warranty and life time maintain service.Normally, our machines are seldom with quality problems, but if you have some problems after use for long time, first send us pictures and videos, we have professional after sell service stuff to give you solutions.
One year warranty and life time maintain service.Normally, our machines are seldom with quality problems, but if you have some problems after use for long time, first send us pictures and videos, we have professional after sell service stuff to give you solutions.
2.Purchase Guidance:
If you are not sure which model is the best option within you budget, it is quite simple, just send us inquiry with your product pics and more request then we can recommend you suitable machine .
If you are not sure which model is the best option within you budget, it is quite simple, just send us inquiry with your product pics and more request then we can recommend you suitable machine .
3.Business Scopes:
A. Research, develop, produce and sell: Screen printer, Pre-post equipment (UV curing machine, Flame treatment machine, UV exposure machine, screen re-mesh stretch table, Screen stencil drying oven, Silk screen frame exposure machine, oven, IR dryer, conveyor printing drying machine )
B. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
A. Research, develop, produce and sell: Screen printer, Pre-post equipment (UV curing machine, Flame treatment machine, UV exposure machine, screen re-mesh stretch table, Screen stencil drying oven, Silk screen frame exposure machine, oven, IR dryer, conveyor printing drying machine )
B. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
