  • UL FM approved sidewall automatic fire fighting sprinkler head system manufacturers factory price for sale
UL FM approved sidewall automatic fire fighting sprinkler head system manufacturers factory price for sale
UL FM approved sidewall automatic fire fighting sprinkler head system manufacturers factory price for sale
UL FM approved sidewall automatic fire fighting sprinkler head system manufacturers factory price for sale

UL FM approved sidewall automatic fire fighting sprinkler head system manufacturers factory price for sale

Share on (1600864382599):


Price:$1.50 - $1.70

Quantity:


Product Overview

Description



Product Description


DESCRIPTION

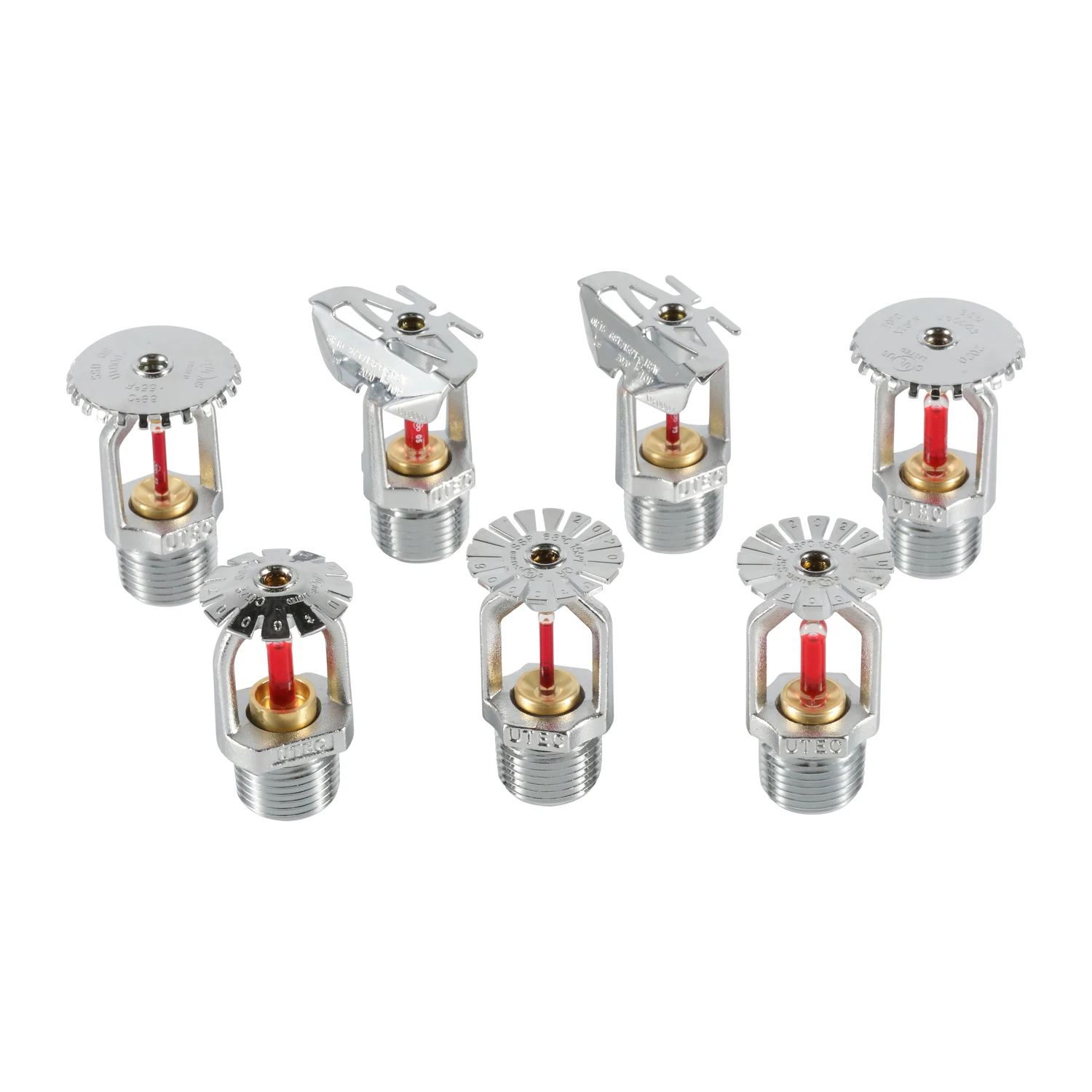

Sidewall sprinkler is designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13).

The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings.

The sprinklers body is made of brass forging copper alloy (DZR). The spring seat consists of a spring Belleville washer coated on both side with a Teflon tape.

Pendent and conventional and sidewall sprinklers are installed with adjustable or non-adjustable escutcheon plates. These are intended to be installed finished ceilings. Escutcheon plate adjustment provides convenience in pendent and conventional sprinkler installation in case of areas with finished ceiling or walls.


item
value
Place of Origin
China
Tpye
Sidewall
Brand Name
UTEC
Model Number
UT0001
Certificate
UL,ISO,CCC
Thread Size
1/2" NPT or 1/2" BSPT
Temperature Rating
57/68/79/93/141degree
Max. Working Pressure
175 PSI (12bar)
Factory Testing Pressure
500 PSI (35bar)
Min. Operating Pressure
7 PSI (0.5 bar)
K-Factor
5.6 Sprinkler Head
Material
Brass or Chrome Plated or White Plated Available




Specification




Packing & Delivery


Packaging Details: carton packing: 42cmx22cmx14.5cm and 100 pieces in one carton packing. 6.5KG weight each one carton.
Delivery Detail: 100,000 pieces can be ready for delivery within 40 days.


Company Profile




Yangzhou oner tools co., ltd locates in Yangzhou, Jiangsu. Our company is famous for the Multi-line laser, Rotary laser, and Decoration tools. We have experienced technical strength, advanced equipment and strict quality control. All of our products are for export. The main markets are Europe, Korea, Singapore, Japan, Taiwan, Southeast Asian countries etc.
Our company will follow the principle of "Pursuing the best quality, providing the best solution" . We warmly welcome customers all over the world communicate with us and visit our company.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2015,sell to Western Europe(40.00%),Eastern Asia(30.00%),Southeast Asia(10.00%),Northern Europe(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
rotary laser,laser level,3D laser,DIY laser,tripod

4. why should you buy from us not from other suppliers?
1) We have more than 10 years experiences of export of lasers.
2) Reply enquires within 24 hours.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
