AZE 1U 17inch rackmount 32 port Cat5e Switch IP Kvm Console

Product Overview

Description

AZE 1U 17inch rackmount 32 port Cat5e Switch Ip Kvm Console Network Kvm

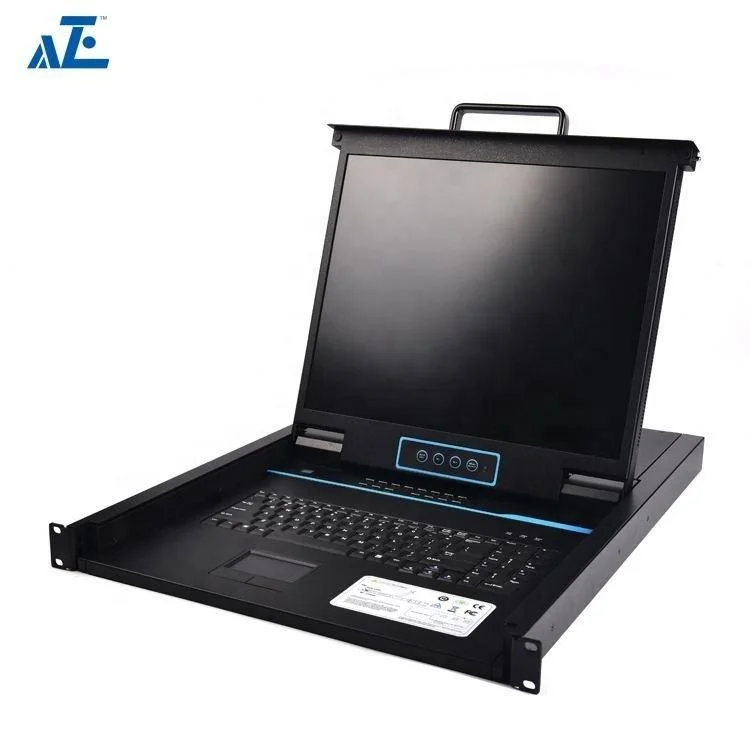

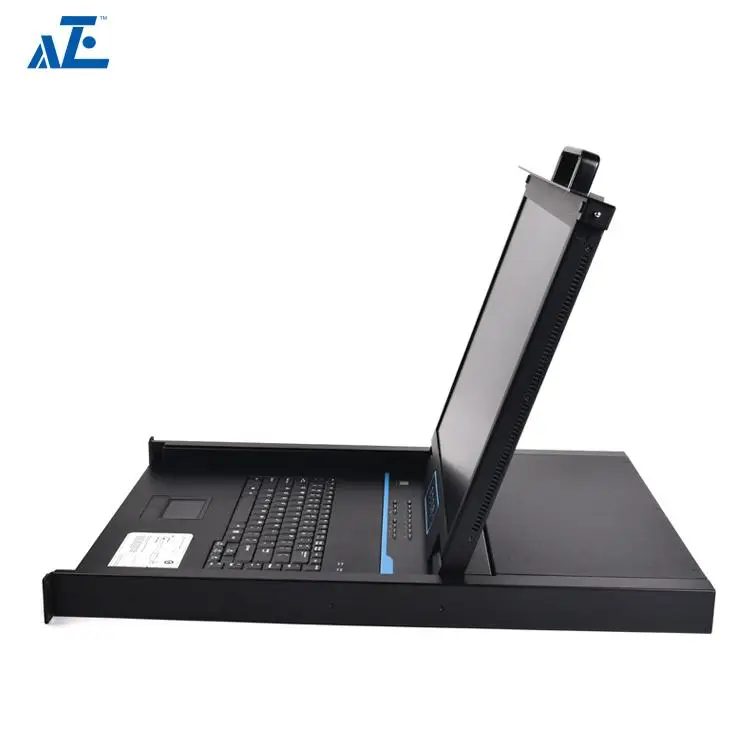

AZE Rack LCD Consoles are a keyboard, mouse, 17inch LCD console, and optional integrated 32 port analog KVM Switch all in a compact 1U design. This compact design allows a KVM switch to be mounted in the rear of the Rack LCD Console, or, eliminate the need for a separate KVM switch altogether by choosing a Rack LCD Console with Integrated 32 port analog KVM Switch. The ultra-thin LCD screen, touchpad technology, and easy-to-install single user rack mount kit combine to form a high-quality, streamlined solution built for rack monitoring and management. The Rack LCD Consoles can be used in a variety of IT environments, from computer rooms to large data centers.

AZE's 1RU rack-mountable KVM switch is a control unit that allows 32 computers from a PS/2 or USB KVM console. 32-port KVM Switch integrates 32 port analog KVM switch together with the LCD panel allowing access and controls up to 8/16/32 computers from 1 console.This rack-mountable KVM switch is well equipped with an integrated trackball and keyboard, making it easy to control and navigate.

AZE IP KVM console is designed to ease multi-server management in data centers, server rooms and other high-density environments,it provides secure IP remote access to connected servers/computers via LAN, WAN or Internet without requiring additional rack space.

• Hotplug


• 1U rack mount


• 17 inch LCD Screen

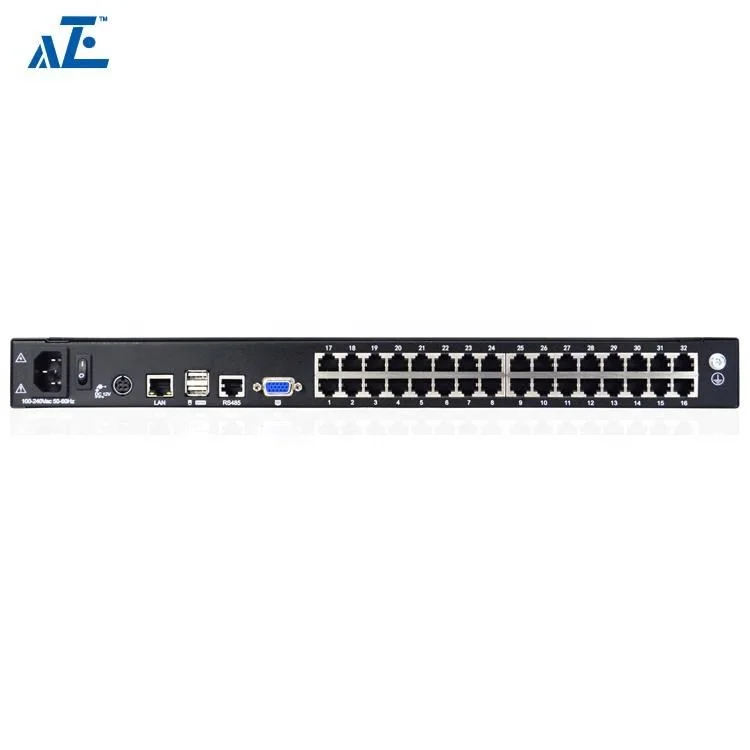

• 32 Port CAT5 RJ45 Connectors


• 1U Console KVM Switch with built-in IP access - integrated 17 in. LCD monitor, keyboard and touchpad.


• Remotely access computers via LAN, WAN or Internet via the Windows or Java browser clients.

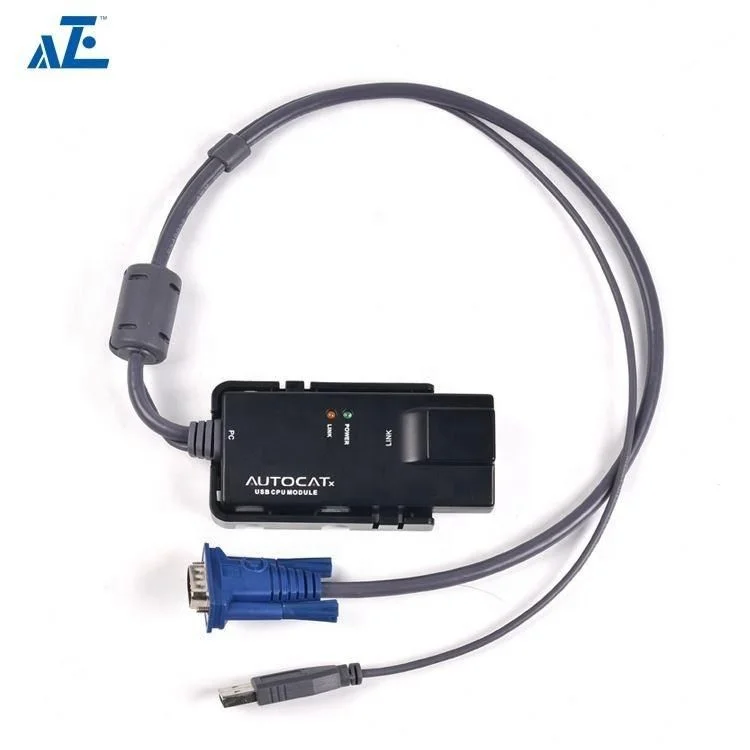

• KVM Cable and CAT5E Cable Included


• Multi-language support


• Two level password security


• Integrated touchpad with trackball


• Quick release tabs to insert or remove the device


• Full-size 99keys keyboard with integrated number pad


• Convenient computer switching via front panel LED, OSD menu and mouse


• Easily installed and minimizes support and maintenance costs, ensuring lower cost of ownership

Technical Specifications
Model	RMIPCON1732
General
KVM ports	32
Number of Monitors Supported	1
Max Connection	1024
Display Size	17inch
Cables Included	Yes
Panel Type	Active Matrix TFT LCD
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Users	2 (1 local, 1 remote)
IP Remote Access	Yes
Port Control	Button, Hotkeys, OSD, Mouse
Performance
Brightness	250cd/m²
Color Depth	16.7M colors
Contrast Ratio	1000:1
Max Resolution	1280 x 1024
Pixel Pitch Support	0.264 x 0.264mm
Connectors
Console Interface(s)	32  - RJ45 port
Host Connectors	1 - VGA
Network port	1 - RJ45
Keyboard/Mouse Interfaces	2 - USB Type-A (4 pin)
Serial Port	DB9 (Male)
Power
Input Current	1.5A
Input Voltage	100 – 240V AC
Power Consumption	25W
Environmental
Humidity	0-80% RH, non condensing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Product weight	13.2kg (29 lb)
Product Dimension(WxDxH)	448mmx581mmx42.5mm/17.6 inx22.9 inx1.7 in

Model	Description
RMIPCON1708	1U 17inch Rackmount LCD Console with Integrated 8 Port CAT5 IP KVM Switch
RMIPCON1716	1U 17inch Rackmount LCD Console with Integrated 16 Port CAT5 IP KVM Switch
RMIPCON1732	1U 17inch Rackmount LCD Console with Integrated 32 Port CAT5 IP KVM Switch
RMIPCON1908	1U 19inch Rackmount LCD Console with Integrated 8 Port CAT5 IP KVM Switch
RMIPCON1916	1U 19inch Rackmount LCD Console with Integrated 16 Port CAT5 IP KVM Switch
RMIPCON1932	1U 19inch Rackmount LCD Console with Integrated 32 Port CAT5 IP KVM Switch
