XT6201GHD DPM Data Matrix Reader Megapixel Industrial Barcode Scanner
- Category: >>>
- Supplier: Nanjing Chengben Electronic Technology Co. Ltd.
Share on (1600864454097):
Product Overview
Description
Megapixel Industrial Barcode Scanner

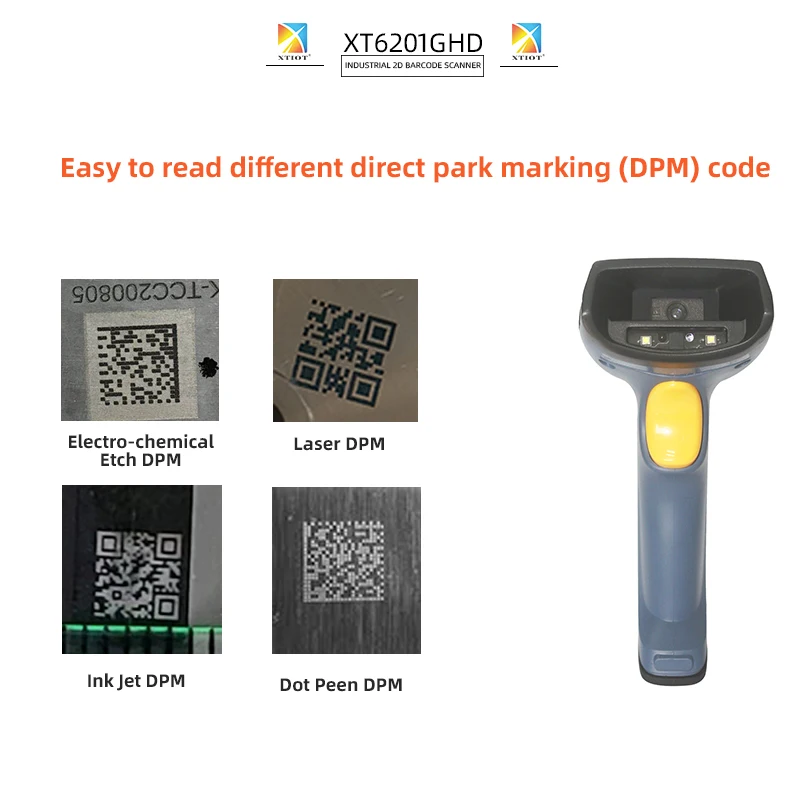

XT6201 is 1280*960 megapixel 2D barcode scanner which is industrial degree, it can read passport OCR code, Datamatrix DPM code, Aztec, QR code, etc.
Suitable for airport, abroad customs, smart factory, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x960 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control
Suitable for airport, abroad customs, smart factory, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x960 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control
Technical Specifications
Image Sensor | CMOS |
DPI(W*H) | 1280px*960px |
Illumination | White LED/Red LED |
Aiming | 650nm laser diode |
1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128,Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |
Postal | USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc. |
2D | PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc. |
Accuracy | ≥3mil |
Contrast Ratio | ≥25% |
Tilt | ±50° |
Rotate | 360° |
Deflection | ±50° |
Field of View Angle | Horizontal: 40.5° Vertical: 30.4° |
Prompt Mode | BEEP, LED |
Motion Tolerance | 2m/s |
XT6201SR | EAN-13 (13mil) 40~410mm Code 39 (5mil) 110~250mm PDF (6.7mil) 115~190mm Data Matrix (10mil) 100~250mm QR Code (20mil) 70~280mm |
XT6201HD | EAN-13 (13mil) 25~155mm Code 39 (5mil) 50~100mm PDF (6.7mil) 40~105mm Data Matrix (10mil) 40~110mm QR Code (20mil) 35~155mm |
XT6201GHD | EAN-13 (13mil) 25~160mm Code 39 (5mil) 40~100mm PDF (6.7mil) 0~150mm Data Matrix (10mil) 0~125mm QR Code (20mil) 20~180mm |
Update | USB/ serial connection online |
Data Editing | Support |
Data Interface | USB KBW, USB CDC, USB HID POS, RS232 |
Working Voltage | 5V±3% |
Sleep Current | 109mA |
Working Current | XT6201SR/XT6201HD: 266mA XT6201GHD: 401.5mA |
Relative Humidity | 5% ~ 95%(RH) |
Drop | 1.8m |
Sealing | IP42 |
ESD | ±8 KV (direct discharge) |
Cable Standards | USB, RS232 |
