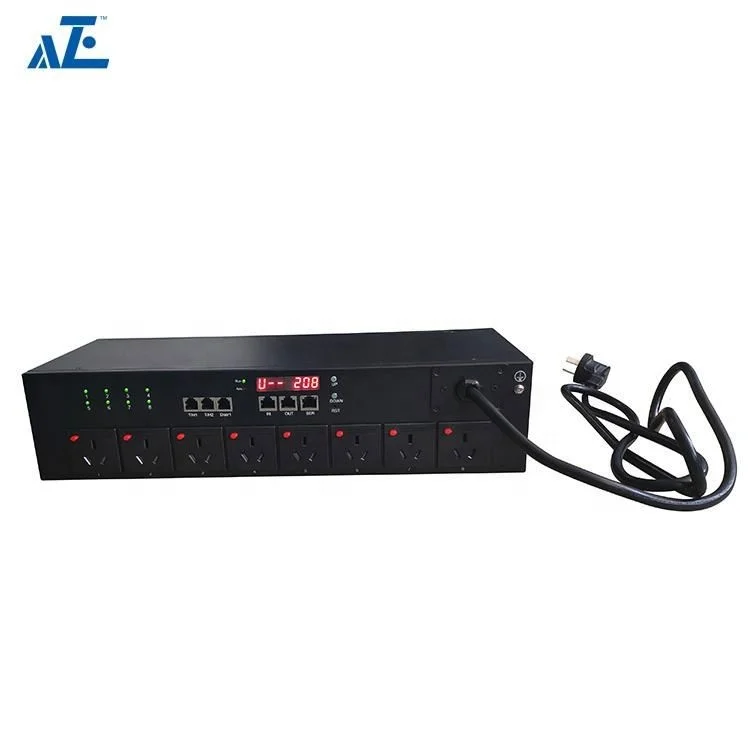

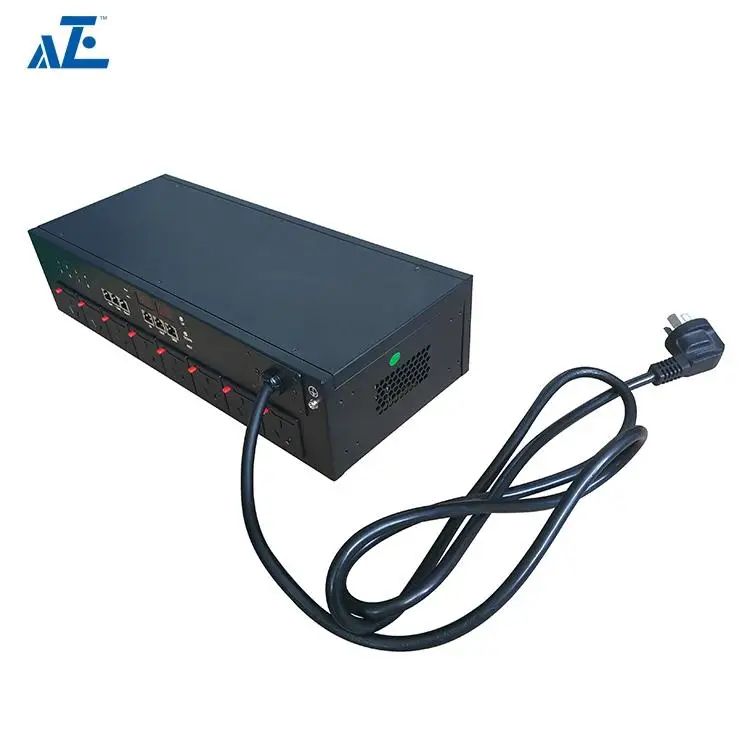

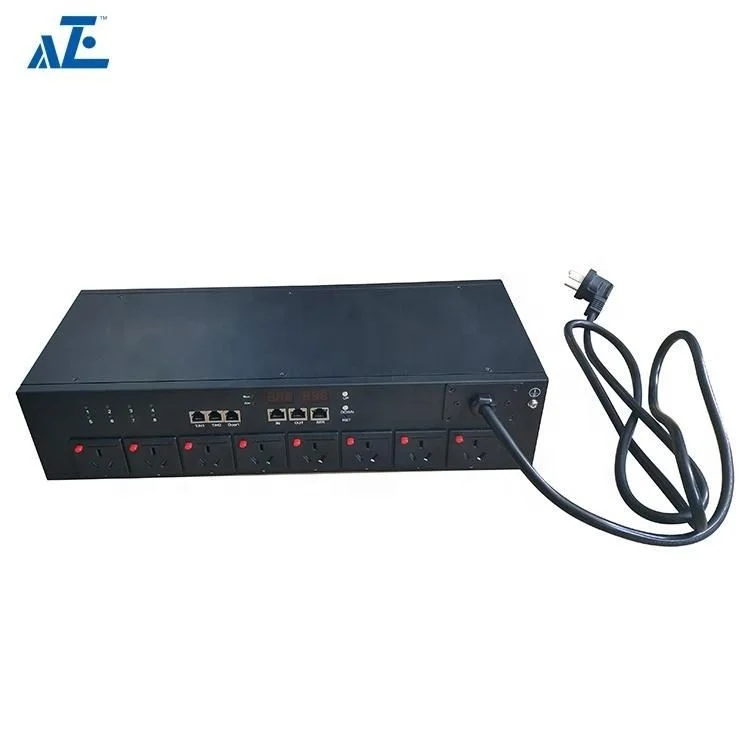

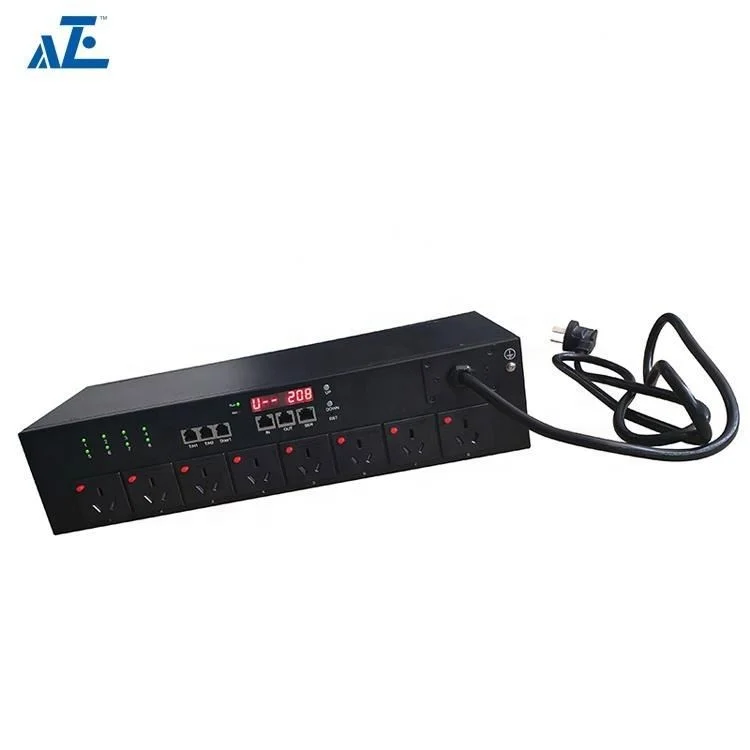

2U Rack Mount Switched Intelligent Pdu 8 Outlet C13 Remote Control

Product Overview

Description

2u Rackmount Switched Pdu 8 Outlet C13 Remote Control Intelligent metered Rack Pduu Rackmount Switched Pdu 8 Outlet Remote Control Intelligent Rack Pdu

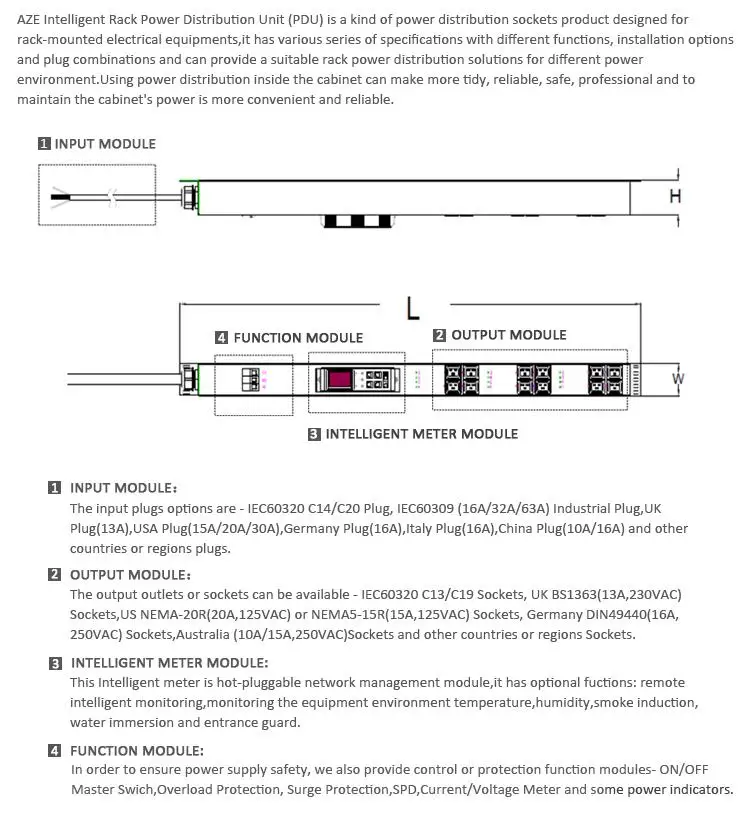

AZE Intelligent Rack Power Distribution Unit (PDU) is a kind of power distribution sockets product designed for rack-mounted electrical equipments,it has various series of specifications with different functions, installation options and plug combinations and can provide a suitable rack power distribution solutions for different power environment.Using power distribution inside the cabinet can make more tidy, reliable, safe, professional and to maintain the cabinet's power is more convenient and reliable.

- Rack-Mountable
- 0U,1U,2U Available
- Remote Individual Outlet Control
- Metering-by-Outlet capability
- Alarm Thresholds
- Network Management Capabilities
- Wide range of input and output connections

AZE Metered-by-outlet with switching Rack Power Distribution Units (PDUs) provide real-time remote monitoring of each individual outlet combined with remote on/off switching control of individual outlets to provide IT professionals the necessary tools for advanced data center energy management.

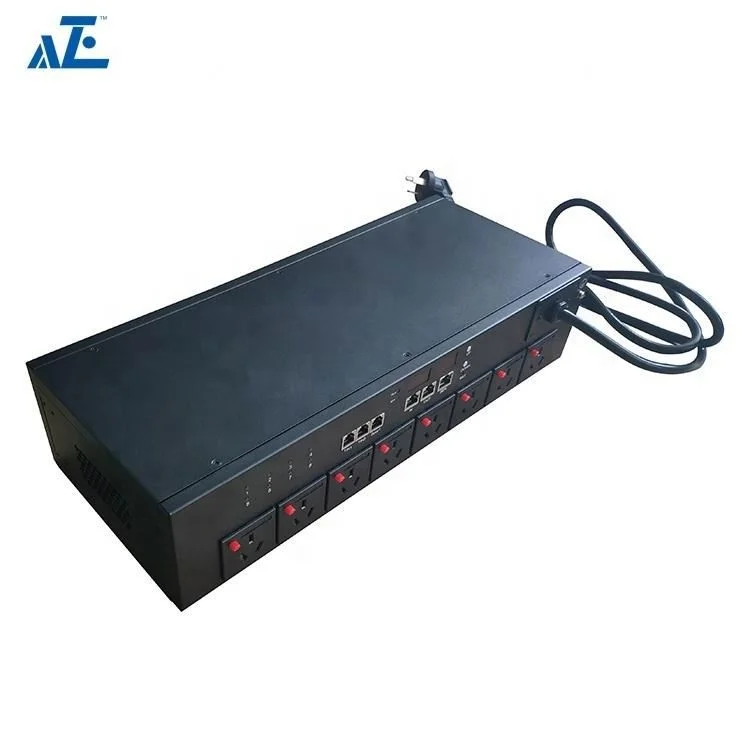

2U Horizontal Intelligent Rack PDU, Metered-by-outlet with switching, 10A,  (8) China Outlet

Technical Specifications
Model	RPNETH10-08CN
Physical Characteristics
PDU Mounting  Option	Mounting Bracket
Mounting Length/Direction	1U ,19inch/482.6mm
Housing Case,Color	Aluminum Alloy,Black
Plastic Flame Retardant Rating	UL94V-0 Grade
Input Parameters
Rated Input Voltage	250V, 50/60Hz
Power Cable	3*1.5mm²x2M
Plug Style	GB1002-1 10A,250Vac
Max.Input Current	10A
Output Parameters
Socket Style	GB1002-1
Output Socket Quantity	8
Rated Output Voltage	250Vac
Max. Output Current	10A
Max. Output Power	2500W
Functional Modules
Control	Metered,Switched by outlet
Protection	N/A

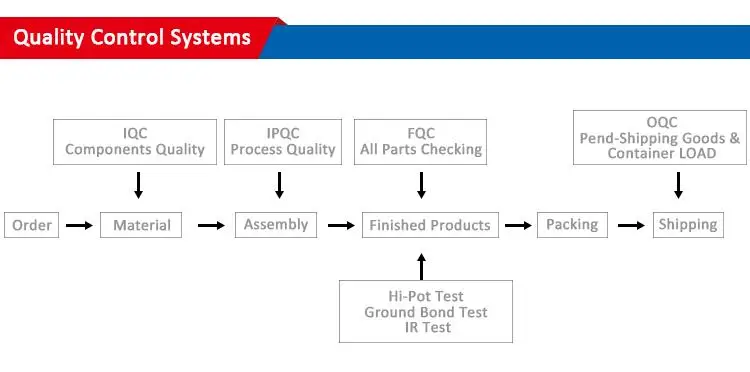

Testing Items & Certifications
Hi-Pot Test	Pass
Ground Bond Test	Pass
IR Test	Pass
Certifications	CE
Approval	RoHS
What's Included
1,PDU x 1pc ; 2,Mounting Hardware

Model	Description
RPNETH10-08CN	2U Horizontal Intelligent Rack PDU, Metered-by-outlet with switching, 10A,  (8) China Outlet
RPNETV36-24C13-P3	0U Vertical Intelligent Rack PDU, 3 Phase,Metered-by-outlet with switching, 63A,  (24) C13 Outlet
RPNETV33-21C1303C19	0U Vertical Intelligent Rack PDU, 3 Phase, Metered-by-outlet with switching, 32A,  (21) C13 Outlet and (3) C19 Outlet
RPNETH11-08C13	1U Horizontal Intelligent Rack PDU,Metered-by-outlet with switching, 16A,  (8) C13 Outlet
RPNETV33-24C13-P3	0U Vertical Intelligent Rack PDU, 3 Phase,Metered-by-outlet with switching, 63A,  (24) C13 Outlet
RPNETV11-16C13	0U Vertical Rack Intelligent PDU, 1 Phase,Metered-by-outlet with switching, 16A,  (16) C13 Outlet
