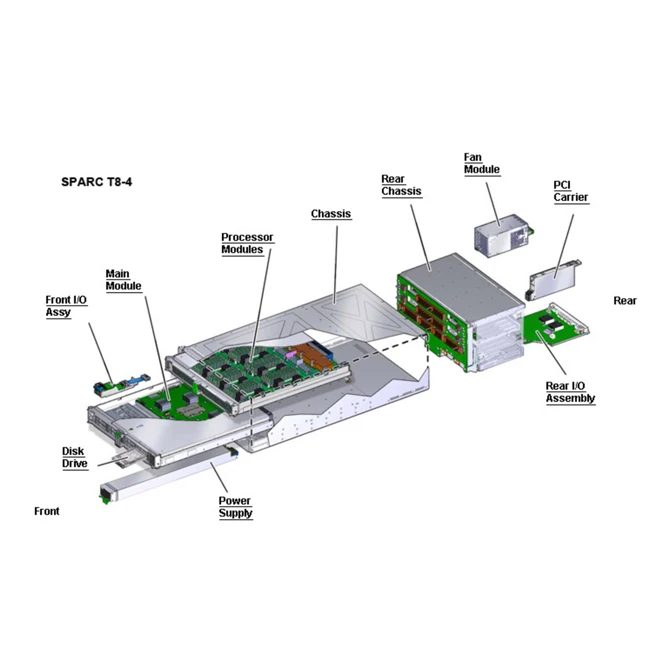

O racle SPARC T8 1/T8 2/T8 4 32 Core 5.000HZ CPU Mezzanine (With CPU 7335419) SPARC Server

Processor

 Thirty-two core, 5.0 GHz SPARC M8 processor  Up to 256 threads per processor (up to 8 threads per core)  Eight Data Analytics
Accelerator units per processor, each supporting four concurrent in-memory analytics engines with decompression
 Thirty-two
on-chip encryption instruction accelerators (one per core) with direct non-privileged support for 16 industry-standard
cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-3, SHA-384, and
SHA-512
 Thirty-two floating-point units and thirty-two O racle Numbers units per processor (one per core)  One random number
generator (one per processor)

Cache per Processor

Level 1: 32 KB instruction and 16 KB data per core  Level 2: 256 KB L2 I$ per four cores, 128 KB L2 D$ per core
 Level 3: 64 MB L3$ on chip

System Configuration

 SPARC T8-2 servers are always configured with two SPARC M8 processors; not expandable  Sixteen dual inline memory module
(DIMM) slots per processor supporting half and fully populated memory configurations using 16, 32, 64 or 128 GB DDR4 DIMMs  4 TB
maximum memory configuration with 128 GB DIMMs SPARC V9 architecture, ECC protected

Rack Height

3U rack server

POWER SUPPLIES

Two hot-swappable AC 2,000 W redundant (1 + 1) power supplies  Voltage 200 to 240 VAC, frequency 50/60 Hz
 Maximum operating
input current at 200 VAC: 10 A per cord
 Maximum operating input power at 200 VAC: 3,080 W

DIMENSIONS AND WEIGHT

 Height: 130 mm (5.1 in.); 3U  Width: 437 mm (17.2 in.)  Depth: 753 mm (29.6 in.)
 Weight: approx. 37.2 kg (82 lb.) without
rackmount kit

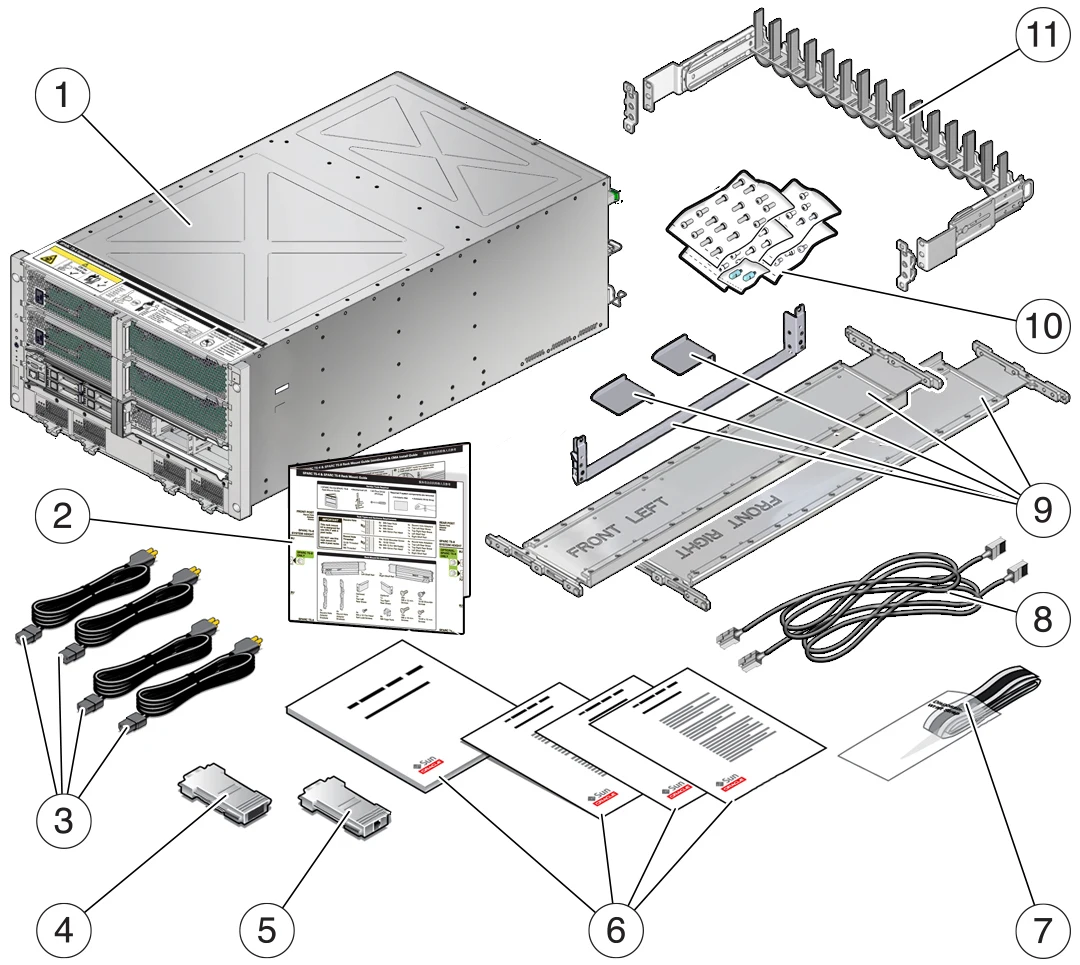

1

Server

7

Antistatic wrist strap

2

Rack card

8

Ethernet cable (quantity 2)

3

AC power cords (quantity 4)

9

Rackmount kit

4

DB-9 Adapter

10

Fasteners

5

DB-25 Adapter

11

Cable management assembly (CMA)

6

Printed documents
