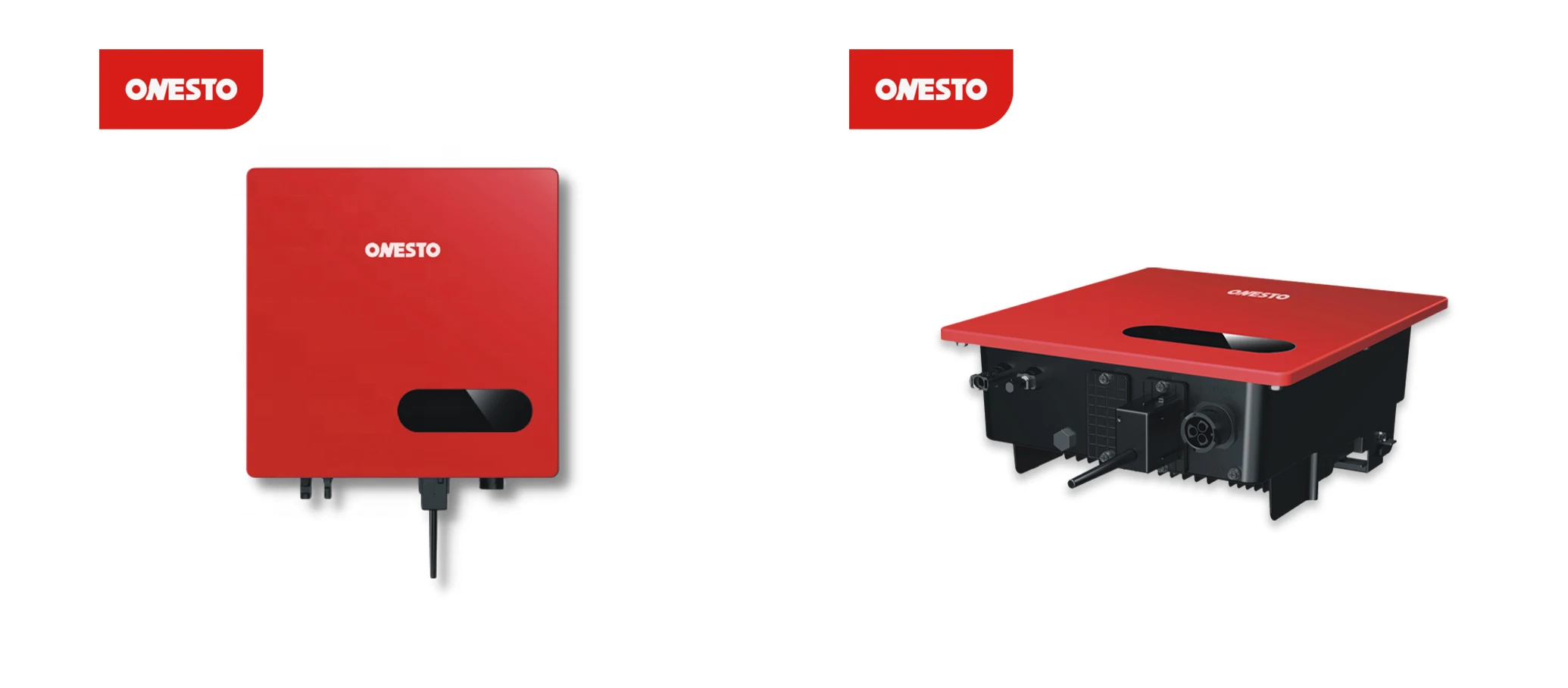

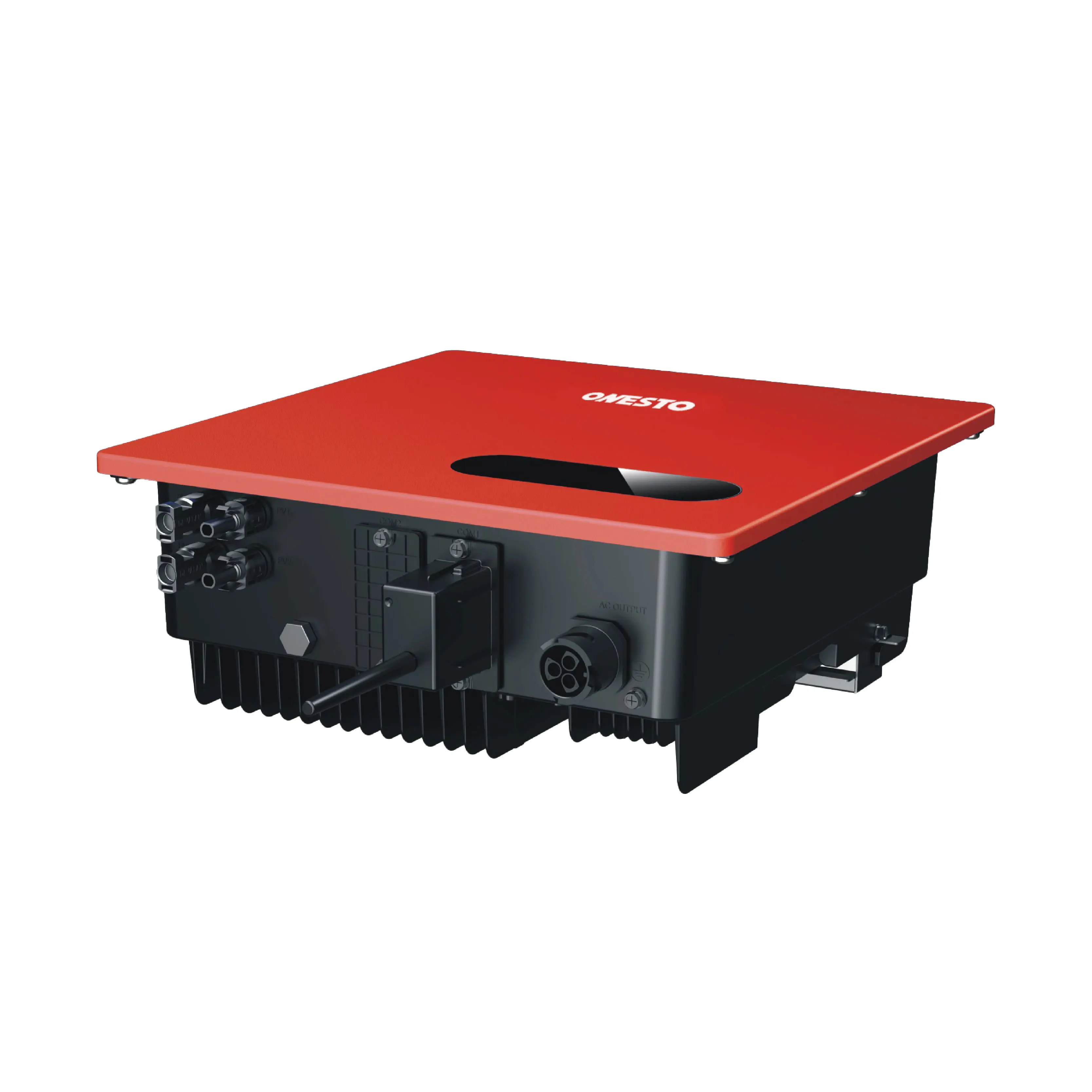

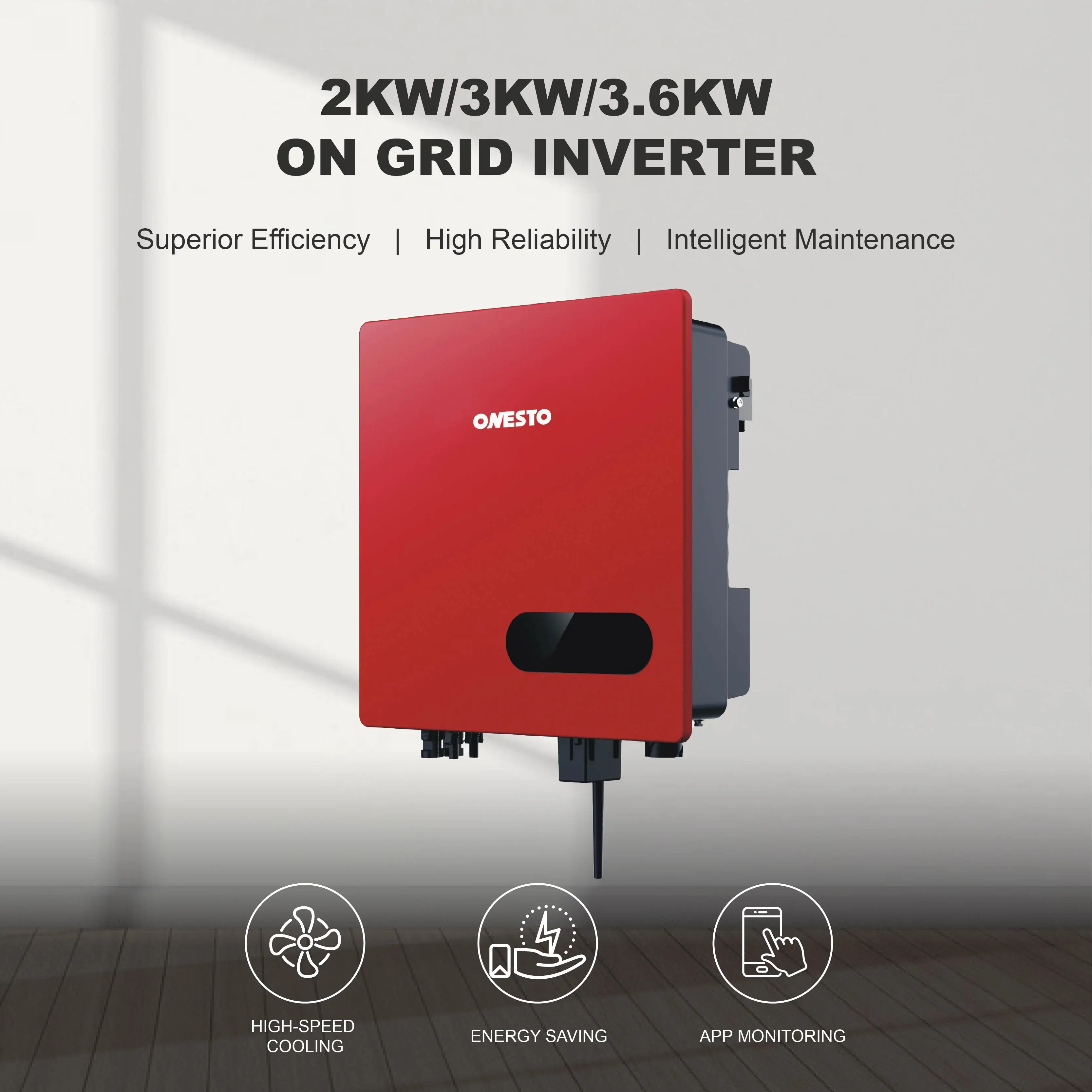

High quality 2kw 3kw solar grid tie inverter with limiter Waterproof IP65 low noise photovoltaic inverter
- Category: >>>
- Supplier: Zhejiang Onesto Electric Co. Ltd.
Share on (1600864516136):
Product Overview
Description

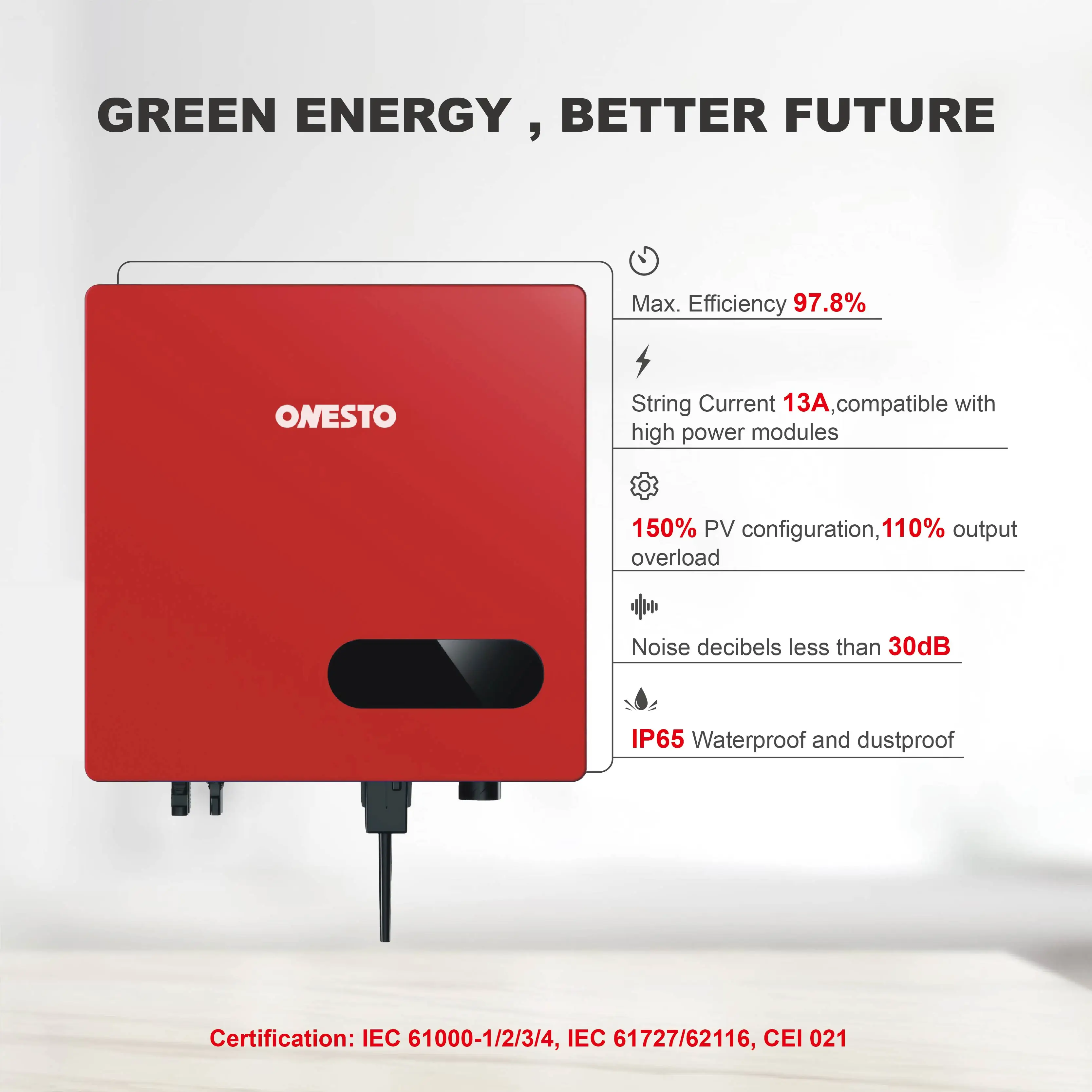

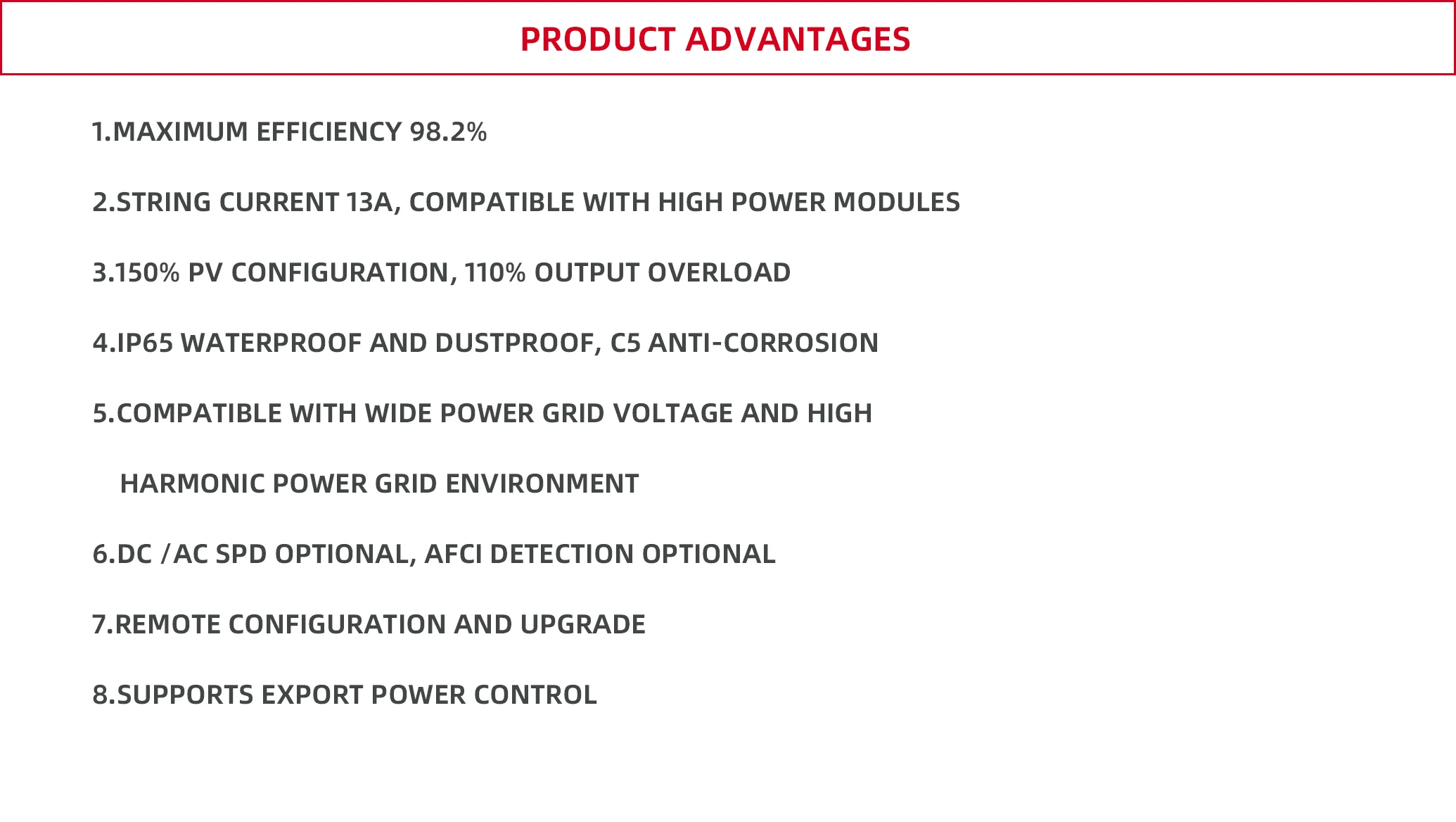

SUPERIOR EFFICIENCY
Maximum efficiency 97.8%
String current 15A, compatible with high power modules
150% PV configuration, 110% output overload
HIGH RELIABILITY
IP65 waterproof and dustproof, C5 anti-corrosion
Compatible with wide power grid voltage and high harmonic power
grid environment
grid environment
DC /AC SPD optional,AFCI detection optional
INTELLIGENT MAINTENANCE
Remote configuration and upgrade
Supports export power control

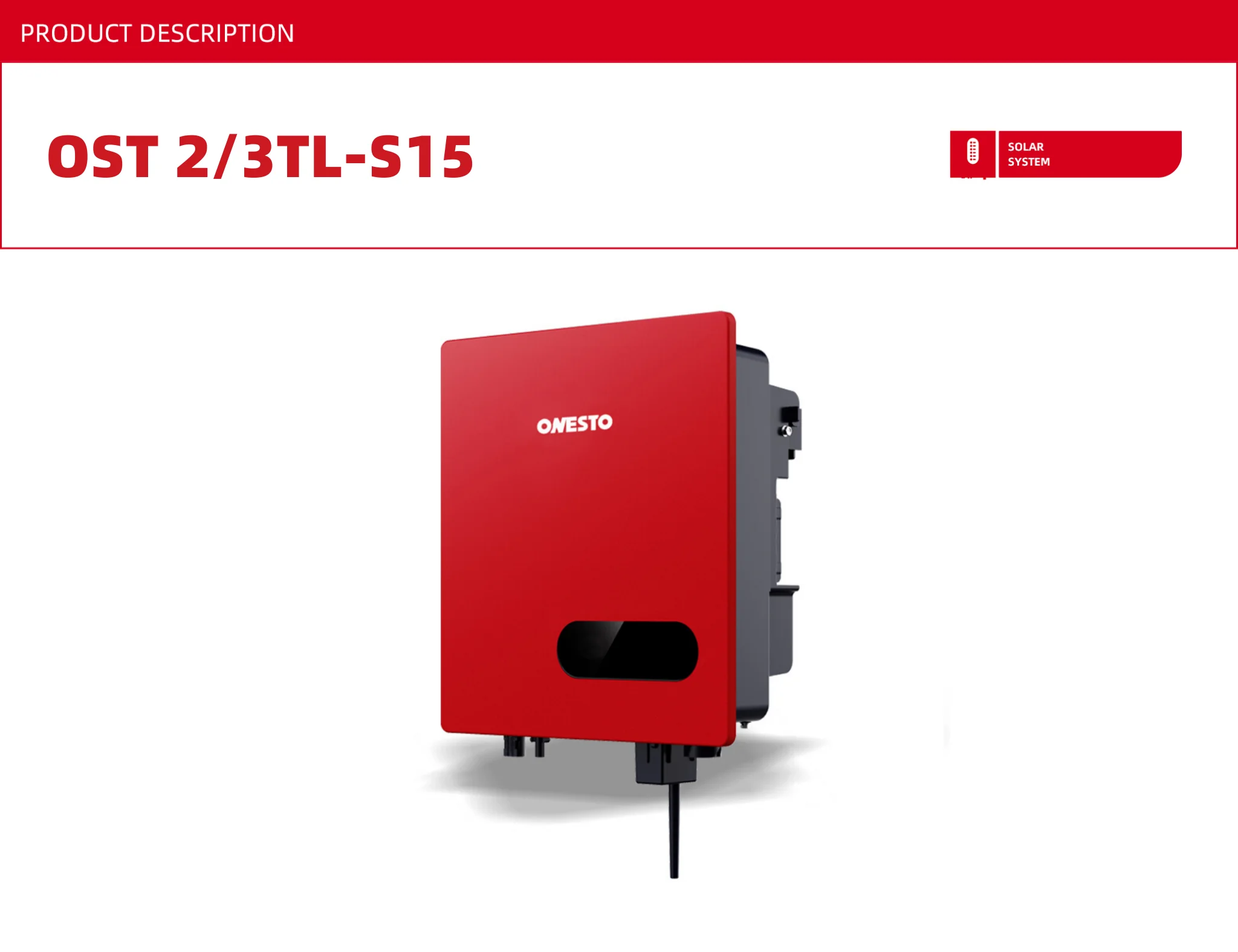

Model | OST 2KTL-S15 | OST 3KTL-S15 | |
Max. Efficiency | 97.5% | 97.8% | |
European Efficiency | 96.5% | 96.8% | |
Rated Grid Frequency | 550V | ||
Max. PV configuration (STC) | 150% | ||
Rated Input Voltage | 360V | ||
Max. Input Current | 15A | ||
Max.Short Circuit Current | 20A | ||
MPPT Operating Voltage Range | 70V | ||
Max. Number of PV Strings | 1 | ||
No. of MPPTs | 1 | ||
Rated AC Active Power | 2,000W | 3,000W | |
Max. AC Apparent Power | 2,200VA | 3,300VA | |
Max. AC Output Current | 10A | 15A | |
Rated AC Voltage | 220V/230V, L+N+PE | ||
AC Voltage Range | 160V-300V (Adjustable) | ||
Topology | Transformer less | ||
IP Rating | IP65 | ||
Night Self Consumption | <1W | ||
Noise (typical) | 30dB | ||
Dimensions (W*H*D) | 320mm*344mm*137mm | ||
Weight | 6.5Kg | ||
Display | Wireless & APP+LED, LCD (Optional) | ||
Communication | Optional: WiFi / GPRS / RS485 | ||
Grid Code | IEC 61000-1/2/3/4, IEC 61727/62116, CEI 021 | ||
Onesto was born in 2005. Over the years, our focus has been on offline development, and we have established agents in various countries. With the global trend, we started to venture into online stores after 2021 to strengthen our brand promotion.

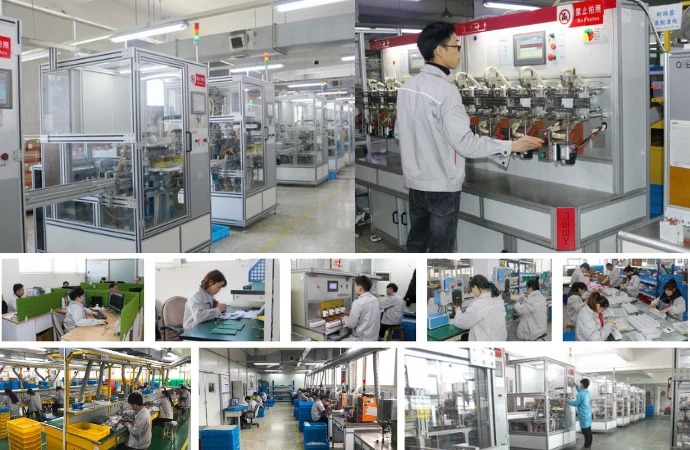

ONESTO is a brand of high quality low voltage electrical products integrating design, development and production.Our company has two areas for production, R&D and sales over 5000㎡. We operate under the ISO9001 Quality Management System and utilize automated production equipment to ensure the highest standards of quality.
