Product Overview

Description



Product Description

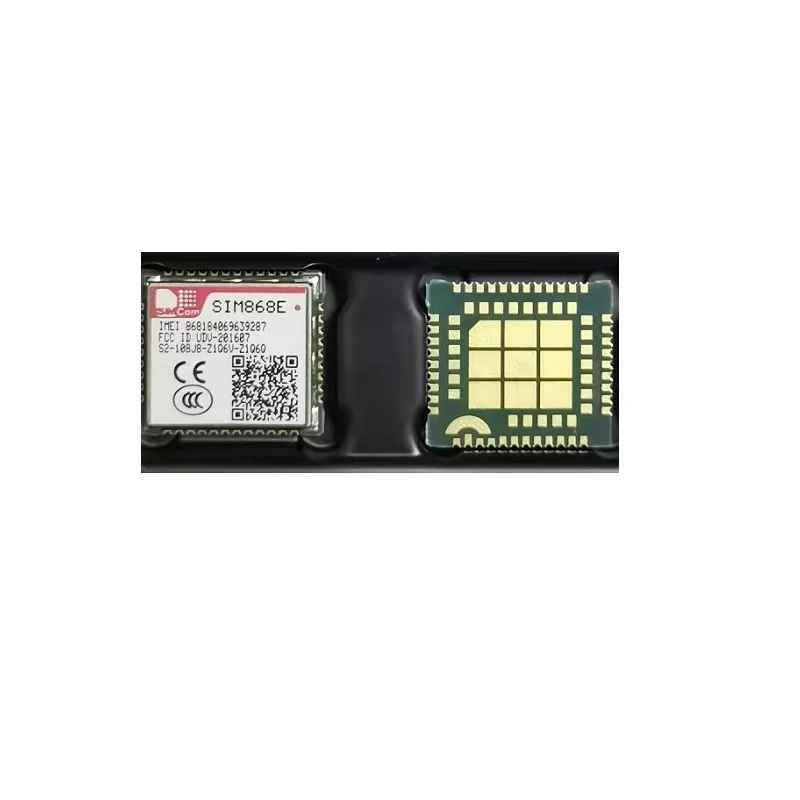

SIM868E module is a complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS)
technology for satellite navigation. The compact design with LCC and LGA pads will significantly save both time and costs
for customers to develop GNSS enabled applications. It is fully pin-to-pin compatible with SIM868, and supports both
BT4.0 and BT3.0 specifications. BLE (Bluetooth Low Energy) technology features ultra-low peak, average and idel mode
power consumption, Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked
seamlessly at any location and anytime with signal coverage.





General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Support GPS/GLONASS/BD
•Dimensions: 17.6*15.7*2.3mm
•Weight: 1.5g
•Control via AT commands (3GPP TS 27.007, 27.005
and SIMCom enhanced AT Commands)
•BT4.0 Current Consumption
Advertising : 1.46mA
Connection : 1.55mA
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
