PCI Express 10/100/1000M/2.5G Network Card Intel I225(PXE) Network Card Ethernet Adapter
- Category: >>>
- Supplier: Shenzhen Diewu Technology co. Ltd
Share on (1600864675647):
Product Overview
Description
1,Product specification
Model number | TXA109 |
Chipset | Intel/I225 |
Port number | 1* RJ45 |
Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz |
Network media | 10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP |
Data rate | 10/100/1G/2.5Gbps |
Interface | PCI Express 1x slot |
Auto MDIX | YES |
Full Duplex Support | YES |
MTBF | 376,212 Hours |
LED Indicator | 100M/1G/2.5G Link/Act, |
Dimension | 71.5*50*1.6mm |
Support OS | Windows®10(32/64), Win7 (32/64), Win8,8.1 (32/64) Windows Server® 2012, 2008 LINUX Mac OS |
Environment | Operating Temperature: 0 ℃-55 ℃ |
| Relative Humidity: 10%-90%(non-condensing) |
| Storage Temperature: -10℃-70℃ |
| Relative Humidity: 10%-90%(non-condensing) |
PXE function | Support |
Other features | Wake-On-LAN |

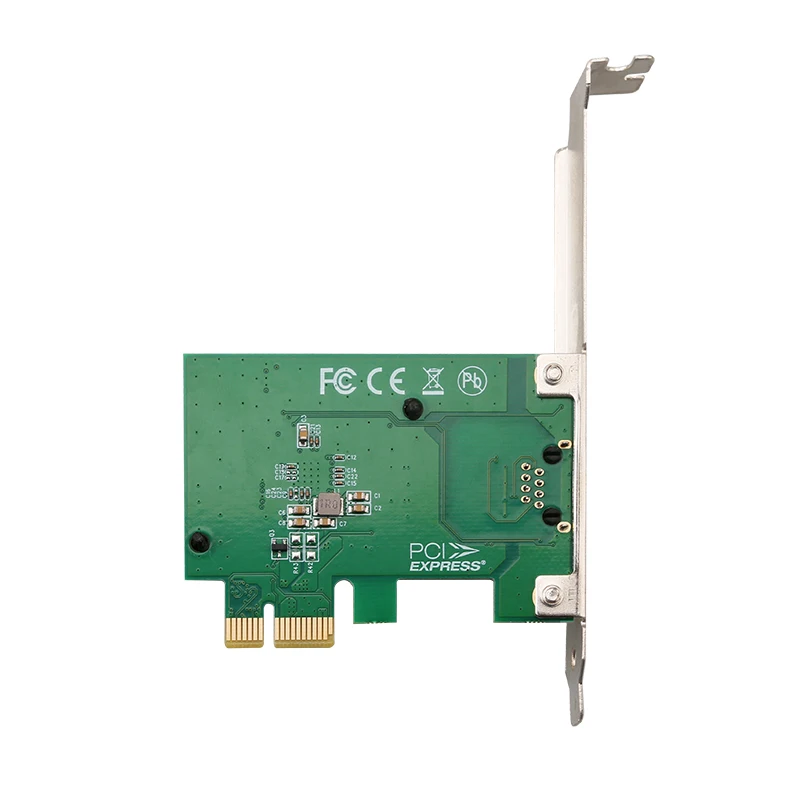

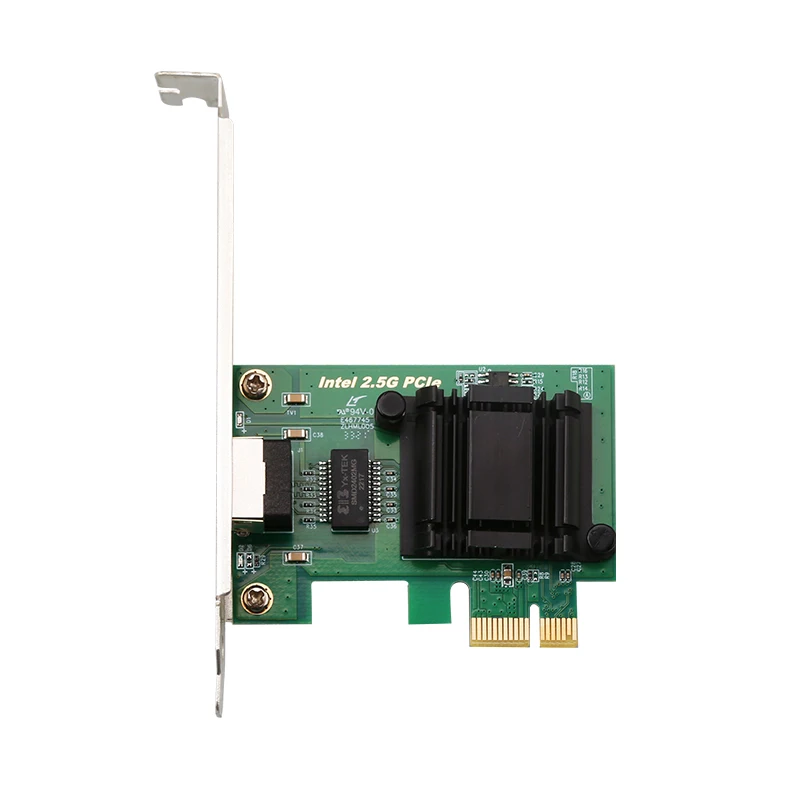

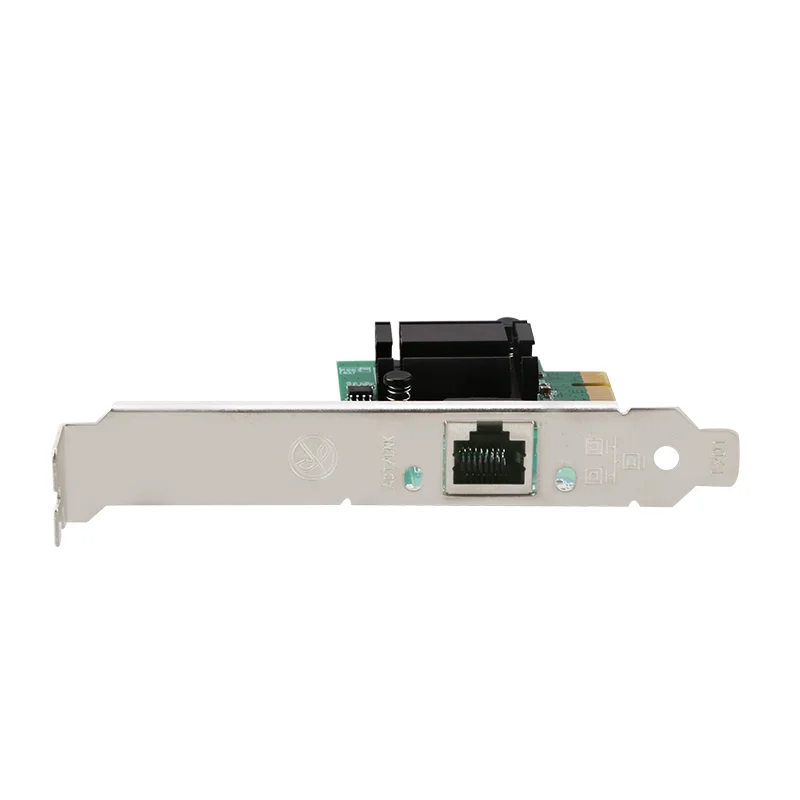

2. Product photos
3,Feature
Support PXE function.
Support Wake on LAN
Support 2.5G and 1G Lite mode
Compatible with NBASE-T Alliance PHY Specification
Supports PCI Express 2.1
Supports 1-Lane 2.5G/5Gbps PCI Express Bus
Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE802.3az(Energy Efficient Ethernet)
Supports IEEE802.3bz(2.5GBASE-T)
Supports Full Duplex flow control(IEEE 802 .3x)
