Price:$62.00 - $72.00

Quantity:


Product Overview

Description



Products Description


Operating voltage
9~36VDC
Maxinmum power consumption
0.8W/12VDC
Working temperature
-40℃~+85℃(Industry level)
Working humidity
5%~90%
Measurement range
Determined according to materials and thickness of the container; for a steel plate of 5mm thick, the measurement scope is 5~200cm.
Presssure bearing scope
≤0.8kg or 0.8MPa
Liquid measurement accuracy
±1%
Equipment interface

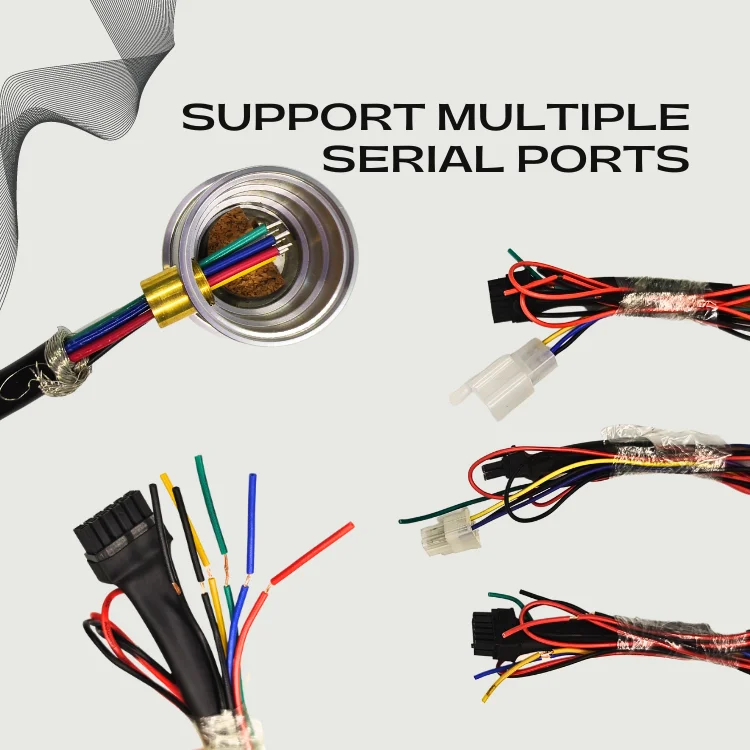

Provide output port of analog voltage/current, RS232, and RS485 data port.
Communication port parameters
The default baud rate is 9600. No check bit, 8-digit data bits, 1-digit stop bit, and no fluid control. The liquid level value measured by the sensor in a real-time manner is given per 10s after smoothing processing.

Note: The baud rate and interval of data transmission can be customized.
