Hot Sale Pull Rod Series KTC Electric Linear Actuator with Position Sensor 100mm Resistance Output for Injection Molding Machine
- Category: >>>
- Supplier: BGT Technology (Beijing) Co. Ltd.
Share on (1600864712853):
Product Overview
Description
**One-stop Emergency Solution Supplier**
1. Factory direct price.2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Product Information

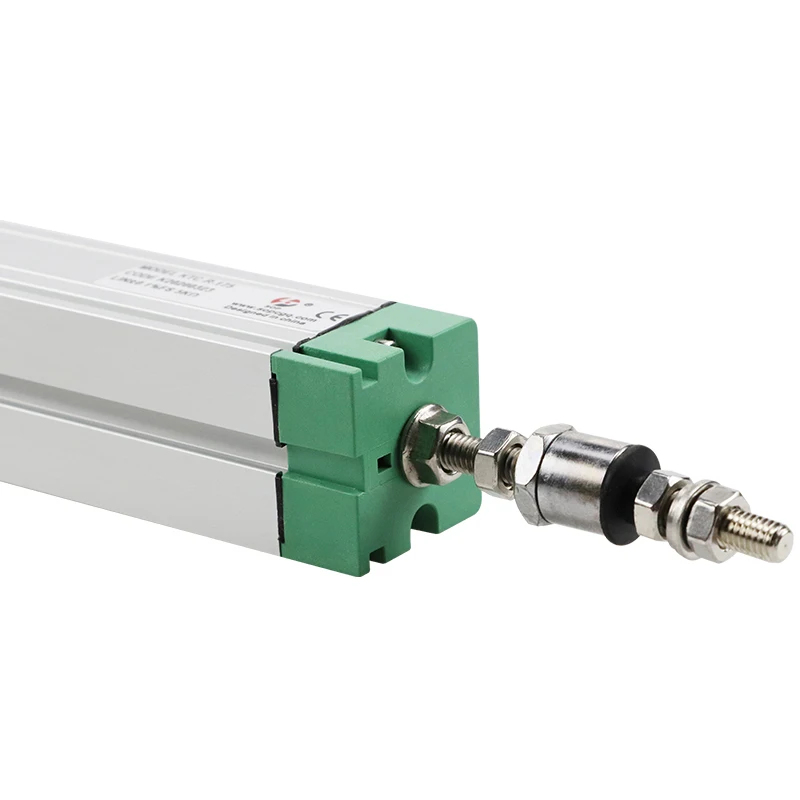

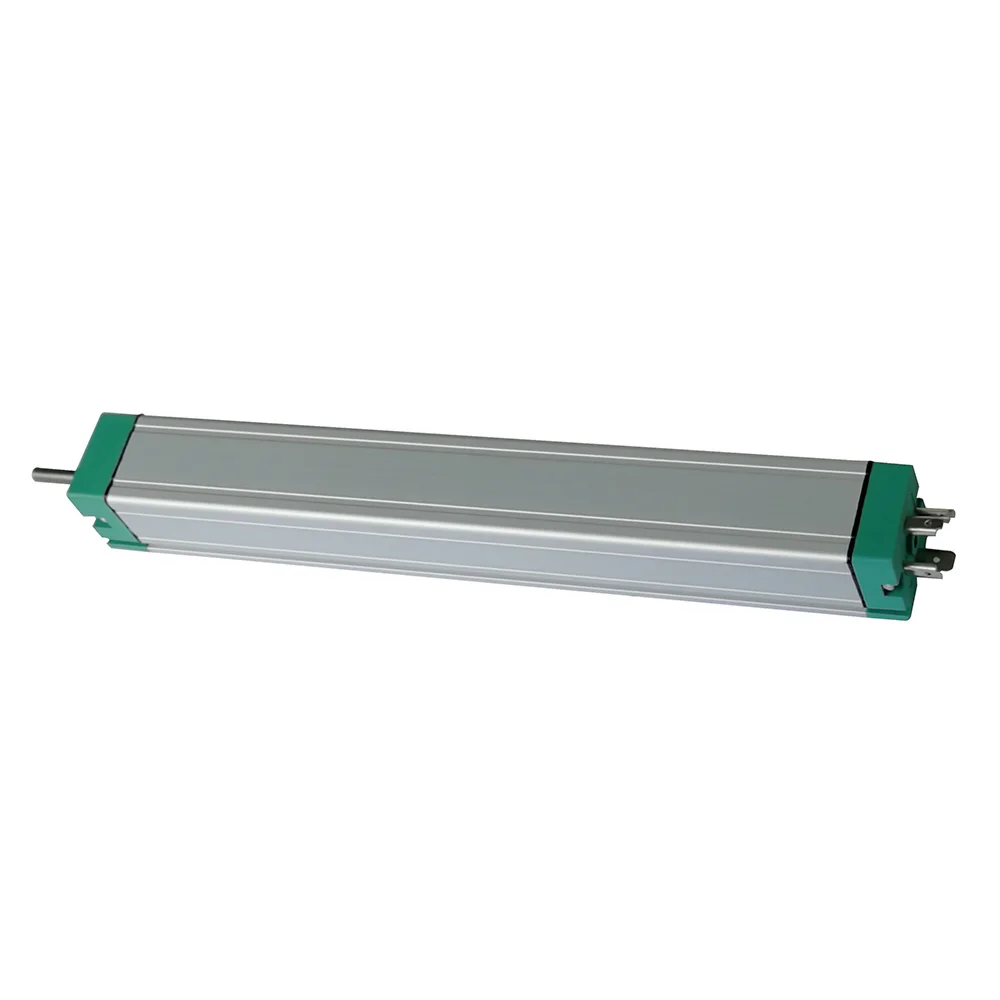

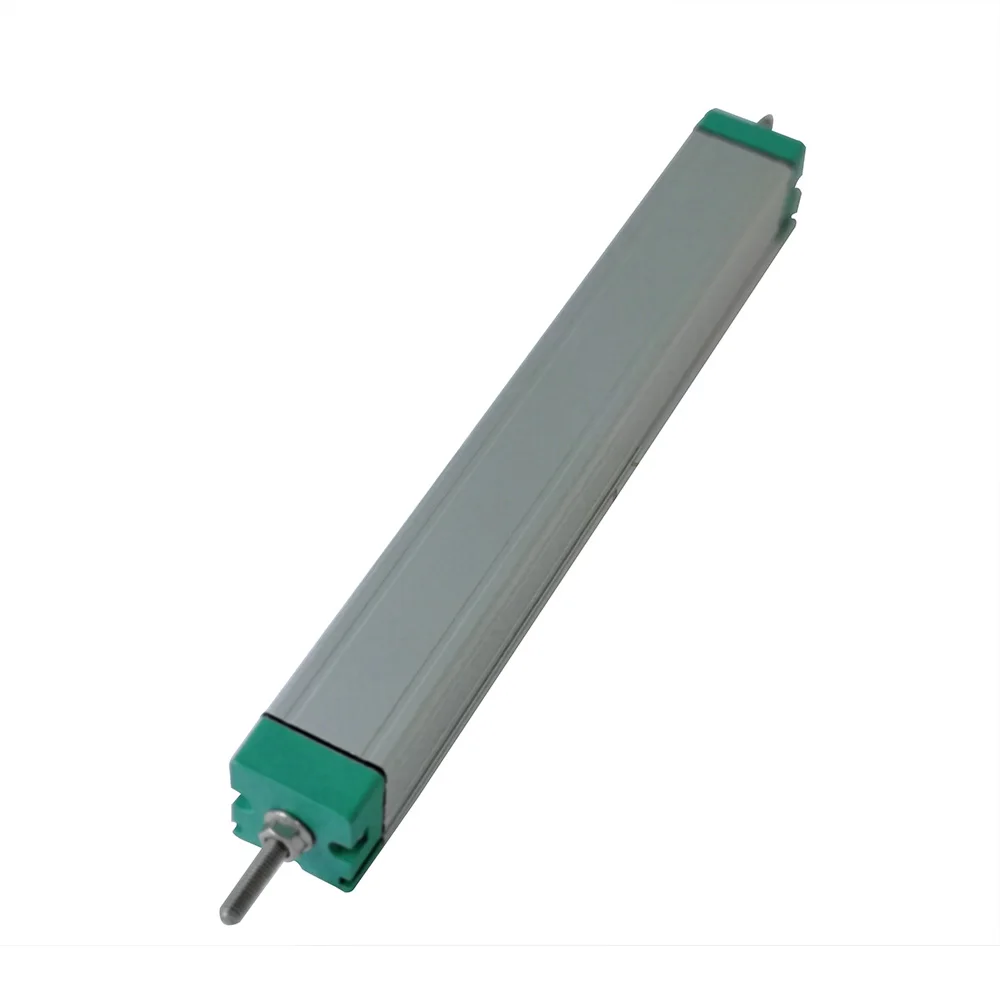

KTC position sensor is constitute by wiring box, housing, rod, placode, frame and screw and so on. KTC is for pulling rod series linear position sensor. It is measurement for position moving and length. The KTC measurement length is for 75-1250mm, both end have 4mm bounce-back stroke. KTC linear precision is for 0.15%-0.04% FS, Repetitive positioning accuracy is for 0.01mm. KTC position sensor can use for most automatic equipments, such as injection molding machines, blowing machines, die-casting machines, wood-working machines, printers, and so on.
Feature
1. Measurement range from 75~1250mm
2. Repeatability of 0.01mm and outstanding linearity of 0.04% FS maximum
3. Resolution is higherthan 0.01mm
4. Operating speed of 10m/s maximum
5. Din43650 standard plug and wire exit optional
6. IP65 standard protection class
7. Could equip with voltage and current module
2. Repeatability of 0.01mm and outstanding linearity of 0.04% FS maximum
3. Resolution is higherthan 0.01mm
4. Operating speed of 10m/s maximum
5. Din43650 standard plug and wire exit optional
6. IP65 standard protection class
7. Could equip with voltage and current module
Product Parameters
Output | Resistance |
Allow power supply voltage | 28V |
Measuring stoke | 100mm |
Resistance | 5KΩ |
Independent linearity | 0.04％-0.15％ |
Working speed | 10m/s |
Use life | 30*106 |
Resolution | Infinite |
Protection class | IP65 |
Operating temperature | -40℃/+80℃ |
Rod diameter | 6mm |
Shell material | Aluminum alloy |
Rod material | Stainless Steel |
Related product
Customer Testimonials
Company Profile
Our Factory
Production Process
Certificates
Payment Methods
Transportation
FAQ
Q1: Are you trading company or manufacturer?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing
Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products? A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products? A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the
product, we have after-sale team to serve you. And we offer 1 year warranty
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing
Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products? A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products? A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the
product, we have after-sale team to serve you. And we offer 1 year warranty
