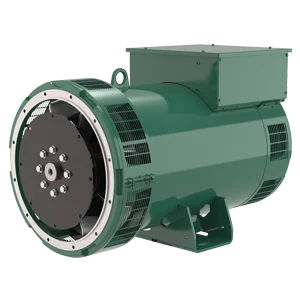

Industrial 50HZ 380V 480V 400V 220V 12kw 15kva Brushless LSA40S3 alternator brushless 1500rpm single bearing
- Category: >>>
- Supplier: Xiamen Ai Power Technology Co. Ltd.
Share on (1600864817634):
Product Overview
Description
Product Description
Industrial 12kw 15kva alternator generator to generate electricity
1.Overload protection for safe running
2.Top quality & Easy Maintenance
3. Stamford technology & high-quality materials
4. Single bearing or Double bearing
5. Easy to be connected with power networks or other generator sets
6. 4 POLE, Brushless, Self-excited, H class insulation, IP23, A.V.R. 100% Copper
7. AC Brushless alternators are conformity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, CSA C 22.2-100 standards
8. The 2/3 pitch windings avoid excessive neutral currents, ensure low waveform distortion.
9. Low-frequency protection & exterior voltage adjustments.
2.Top quality & Easy Maintenance
3. Stamford technology & high-quality materials
4. Single bearing or Double bearing
5. Easy to be connected with power networks or other generator sets
6. 4 POLE, Brushless, Self-excited, H class insulation, IP23, A.V.R. 100% Copper
7. AC Brushless alternators are conformity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, CSA C 22.2-100 standards
8. The 2/3 pitch windings avoid excessive neutral currents, ensure low waveform distortion.
9. Low-frequency protection & exterior voltage adjustments.
Brushless Alternator Specification
Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | ||||||||||
Alternator brand | Leroy somer | ||||||||||
Alternator model | LSA40S3 | ||||||||||
Control system | SELF EXCITED | ||||||||||
A.V.R. | Included | ||||||||||
Voltage regulation | ±1.0% | ||||||||||
Insulation system | Class H | ||||||||||
Protection | IP22 | ||||||||||
Rated power factor | 0.8 | ||||||||||
Winding pitch | Two thirds | ||||||||||
Winding leads | 12 | ||||||||||
Frequency (Hz) | 50 | ||||||||||
Voltage (V) | 400 | ||||||||||
Phase | 3 | ||||||||||
Output ratings (kVA/kW) | |||||||||||
----------------Cont.H-40°C | 15/12 | ||||||||||
----------------Standby-27°C | 16.5/13.2 | ||||||||||
THF | <5% | ||||||||||
TIF | <50 | ||||||||||
Max. overspeed (Rev/Min) | 2250 | ||||||||||
Bearing | Single | ||||||||||
Product Show
Products Details

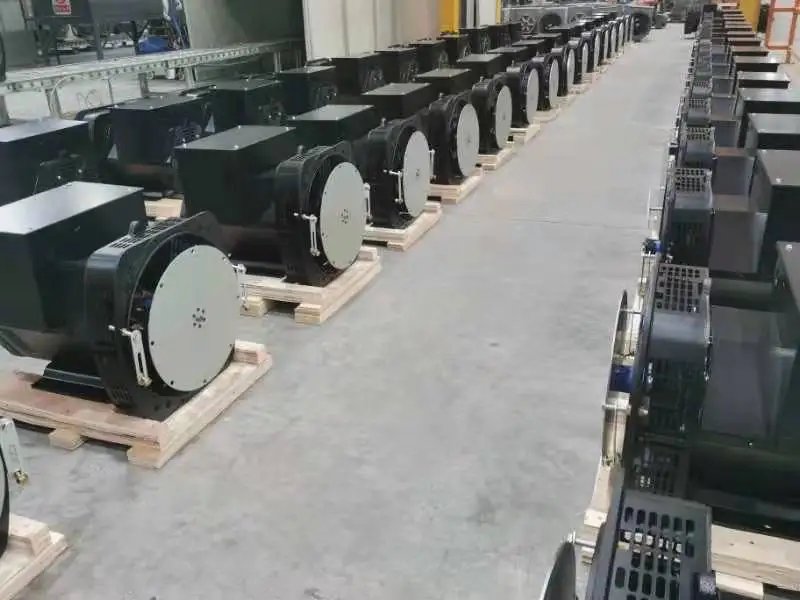

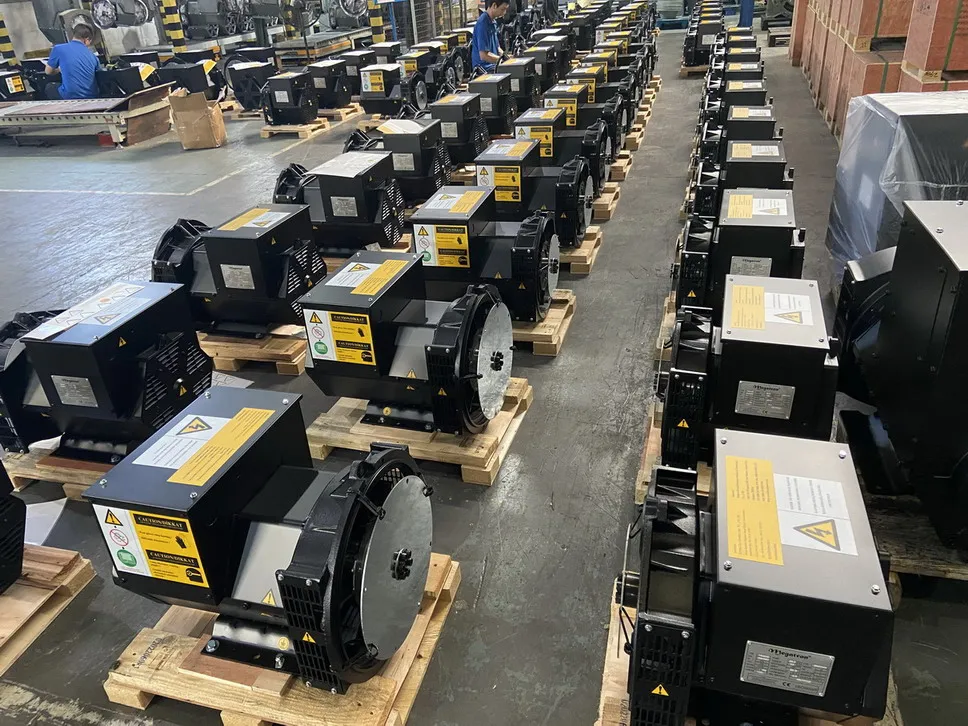

Our factory
AI POWER is the professional manufacturer of power generator in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Our certificate
Bussiness Partner
Related Products
Contact Us
Ms. Nancy Huang
Xiamen Ai Power Technology Co., Ltd.
Your Best Power Supplier, Your Reliable Partner!
Add: B15 Unit 502-3, No. 59, Chengyi North Street, Jimei District, Xiamen City, China
Email: nancy(@)aipowergen.com | www.aipowergen.com
Tel: | WhatsApp/Wechat: +86 13906008114
