Y2 4000D New design Zhejiang manufacturer water level electric press pump control
Y2-4000D New design Zhejiang manufacturer water level electric press pump control
Y2-4000D New design Zhejiang manufacturer water level electric press pump control
Y2-4000D New design Zhejiang manufacturer water level electric press pump control
Y2-4000D New design Zhejiang manufacturer water level electric press pump control
Y2-4000D New design Zhejiang manufacturer water level electric press pump control
Y2-4000D New design Zhejiang manufacturer water level electric press pump control

Y2 4000D New design Zhejiang manufacturer water level electric press pump control

Share on (1600864886042):


Price:

Quantity:


Product Overview

Description















Product Description

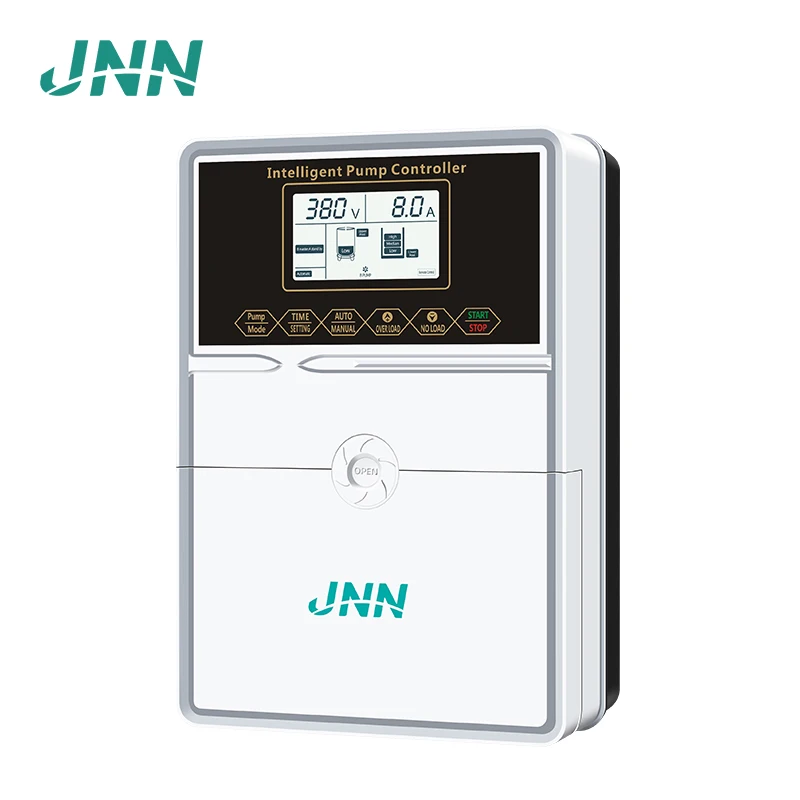

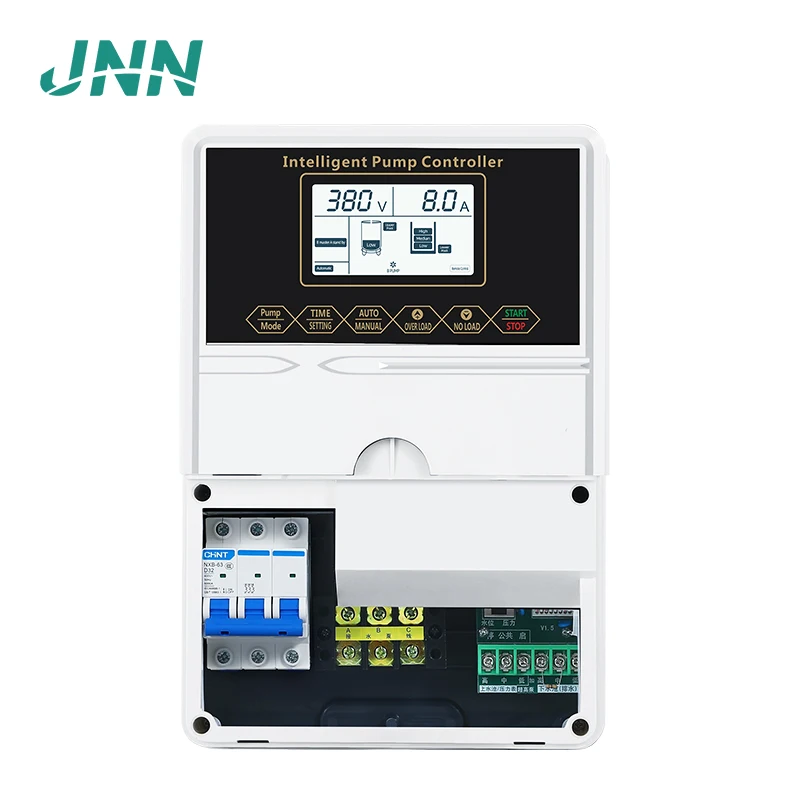

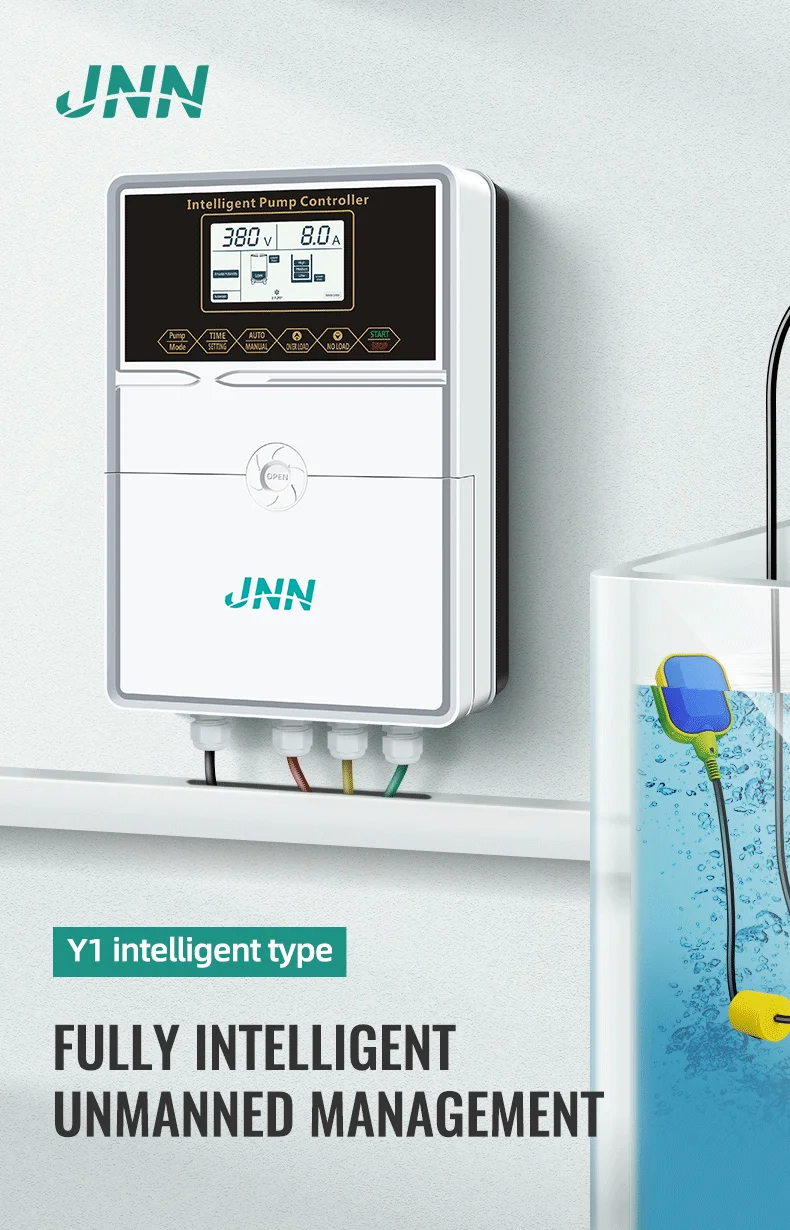

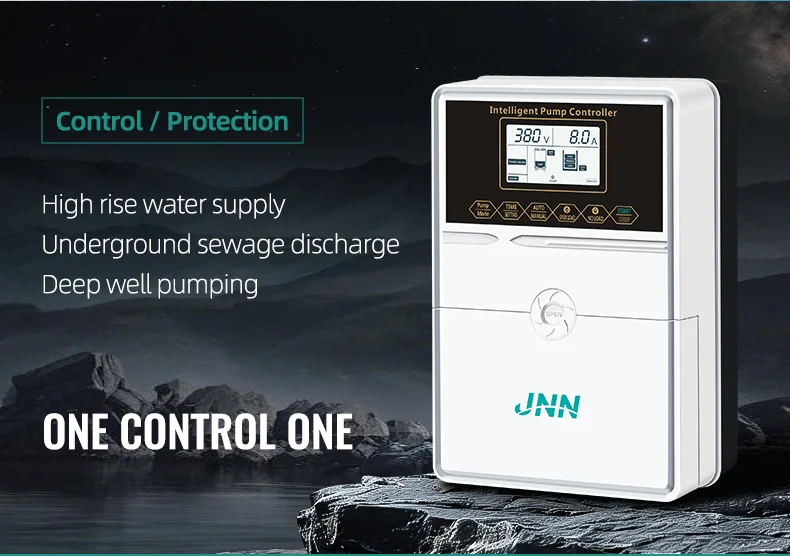

Y2 ABS plastic LCD display pump controller for two pumps up to 15kw with single and three phase options,adopts the original imported microcomputer single chip technology which guarantees powerful functions,and has the advantage as easy and convenient installation and operation.
We believe quality is the key to your satisfaction - and our success. This ensures reliability, longevity and minimal problems. We've standardized on the best components, equipment and processes based on more than twenty years of experience in control systems.All panel manufacturing is completed with 100% factory tested and inspected.


Specification


Type
Y2
Model
Y2-4KW
Y2-7.5KW
Y2-11KW
Y2-15KW
Y1-18.5KW
Y1-22KW
Rated Power
0.75-4KW
1.1-7.5KW
1.1-11KW
2.2-15KW
3-18.5KW
4-22KW
Rated Input Voltage
380+10%/50Hz or 60Hz
220V+10%/50Hz or 60Hz
Qty.of Controlled Pump
Two pumps
Display

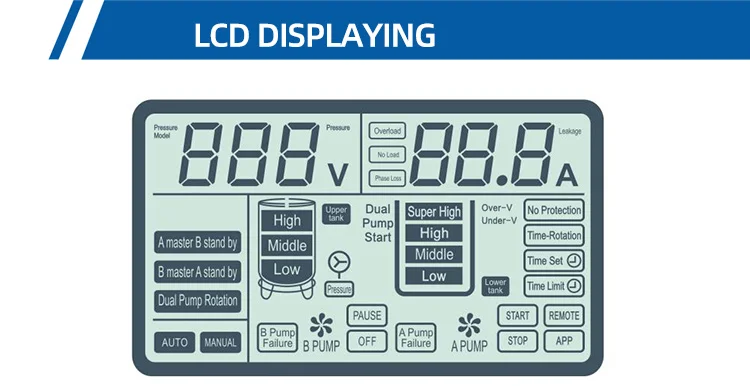

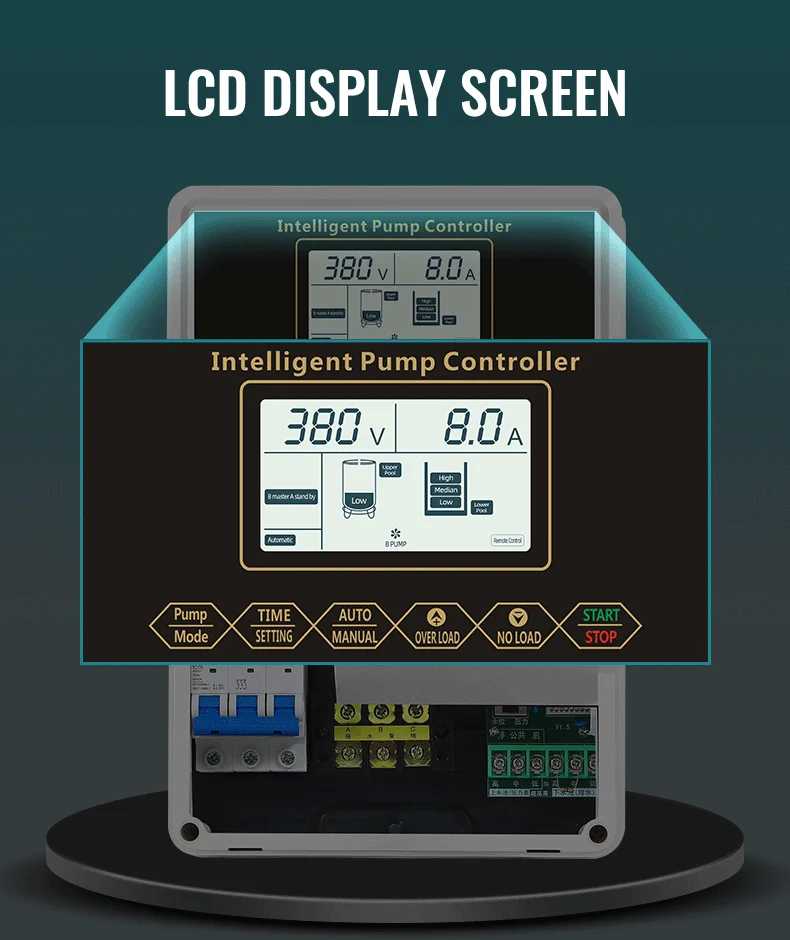

LCD display
Pump Mode
One duty one standby
Dual pump automatic switch in faults
Dual pumps alternate
Dual pump start
Main Parameters
1,Rated voltage:AC380V+10% or AC220V+10% (50Hz-60Hz)
2,Rated power:0.75KW-15KW
3,Static consumption power:<3W
4,Water level: High/Middle/Low
5,Water tank: upper tank for water supply,lower tank for drainage
6,Max. control distance:≤2000m without strong electric and electromagnetic fields
7,Time setting ON:0-99hours
8,Time setting OFF:0-999 minutes
9,Over-voltage/under-voltage: default AC304V-456V or AC176V-264V (adjustable) 10,Over-voltage/under-voltage trip time: ≤3 seconds
11,Overload/no load trip time: 0-600 seconds(adjustable)
12,Phase loss trip time:<2 seconds
13,IP rating: IP54
Main Functions

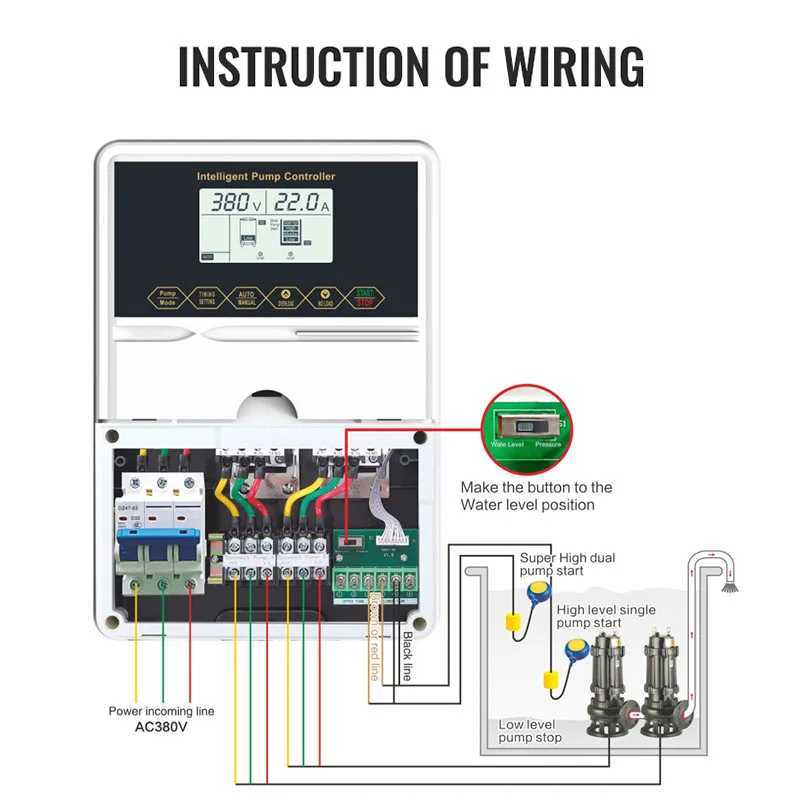

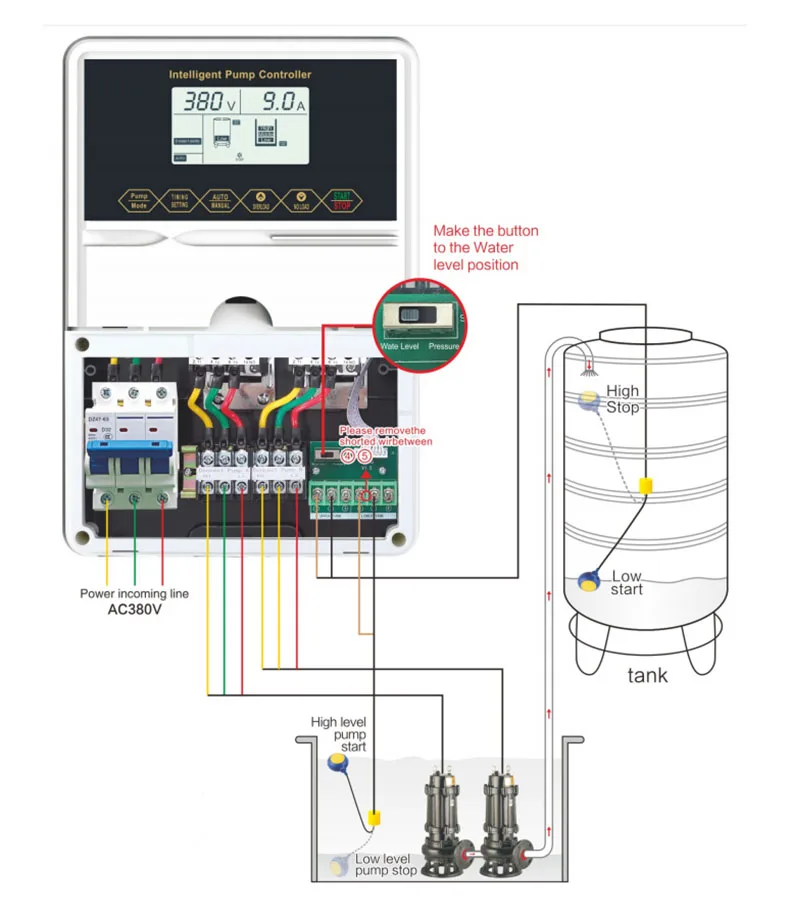

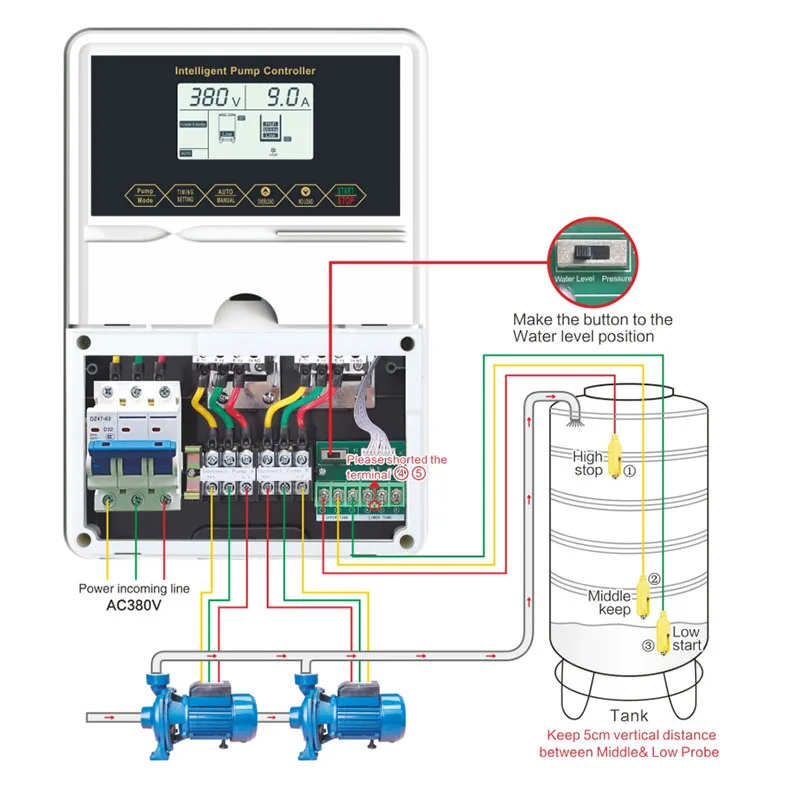

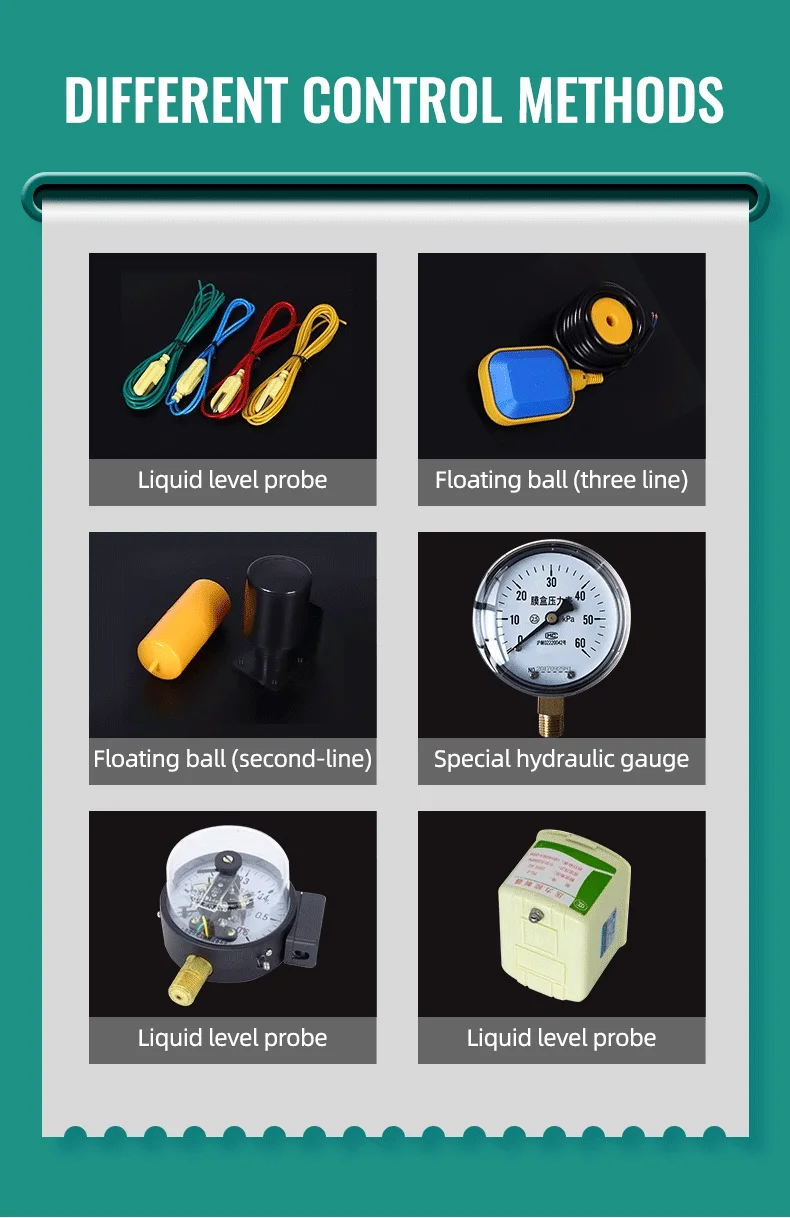

1,Water level control: level probes or float switch

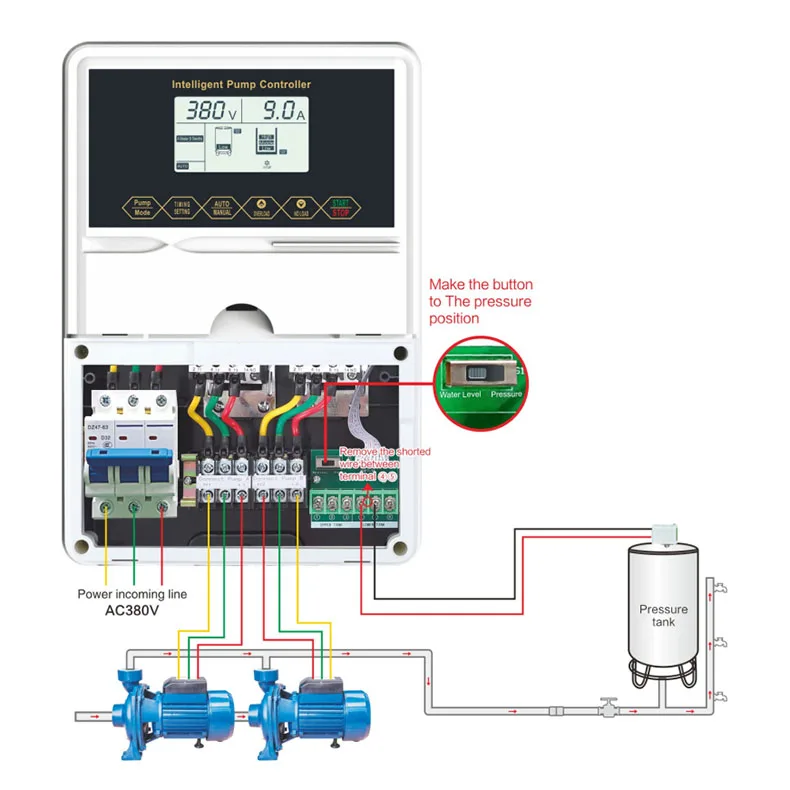

2,Pressure control: electric contact pressure gauge or pressure switch

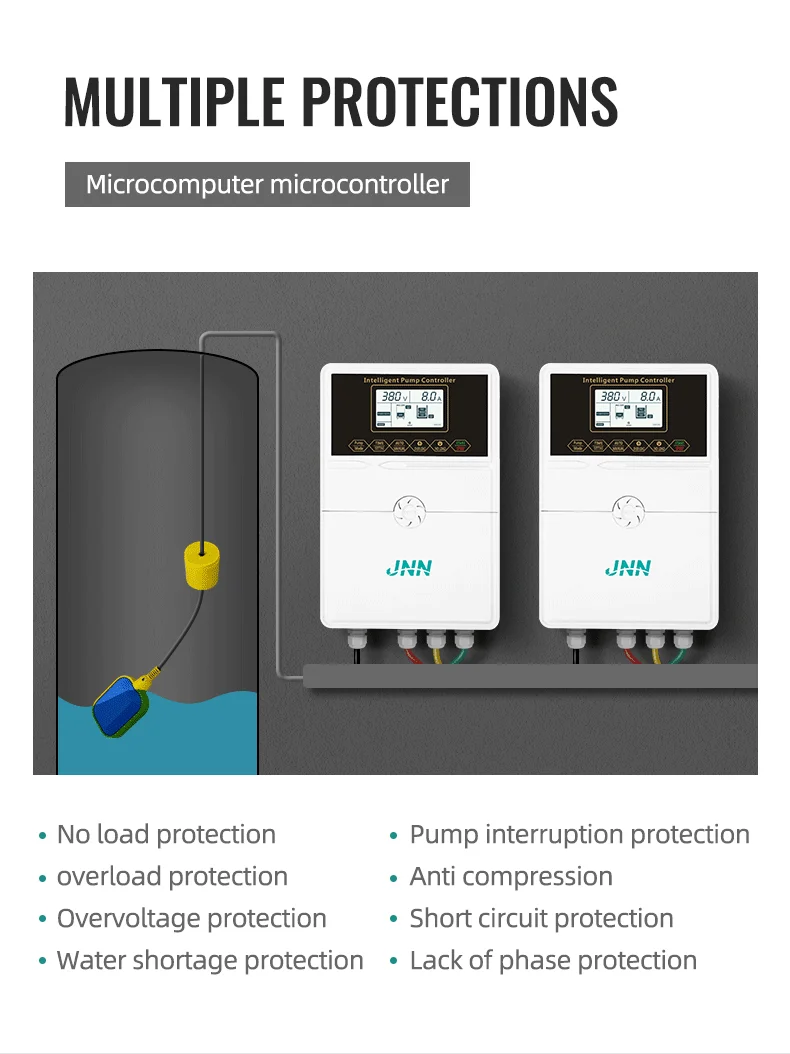

3,Multiple protections:no load,dry run,overload,overvoltage,undervoltage,short circuit,phase loss,anti-rust,and etc.
4,User interface: a user-friendly interface for configuring settings, monitoring operation, and accessing diagnostic information.
5,Operation mode: automatic/manual switch
6,Fault indication: failure record,latest 10 pump failure reasons
display,audio/light alarms.
7,Anti-rust protection,long-term non-use of the pump,15 days to start once for 3 seconds.
8,Setting protection current for motor overload/no-load,no-load delay restart time adjustable.
9,Automatic restart when voltage comes to normal rating after over-voltage/under-voltage protection.
10,Automatic restart after power failure recovery.
11,Automatic re-starting pump from dry running,restart time range 0-720 minutes adjustable.
12,Restore factory setting: press both "Overload"and "NO-Load"for 3 seconds.
Working temperature
Working humidity
Degree of protection
Install position
-20ºC-- +80ºC
20%--90%RH, no drips concreted
IP54
Wall mounting

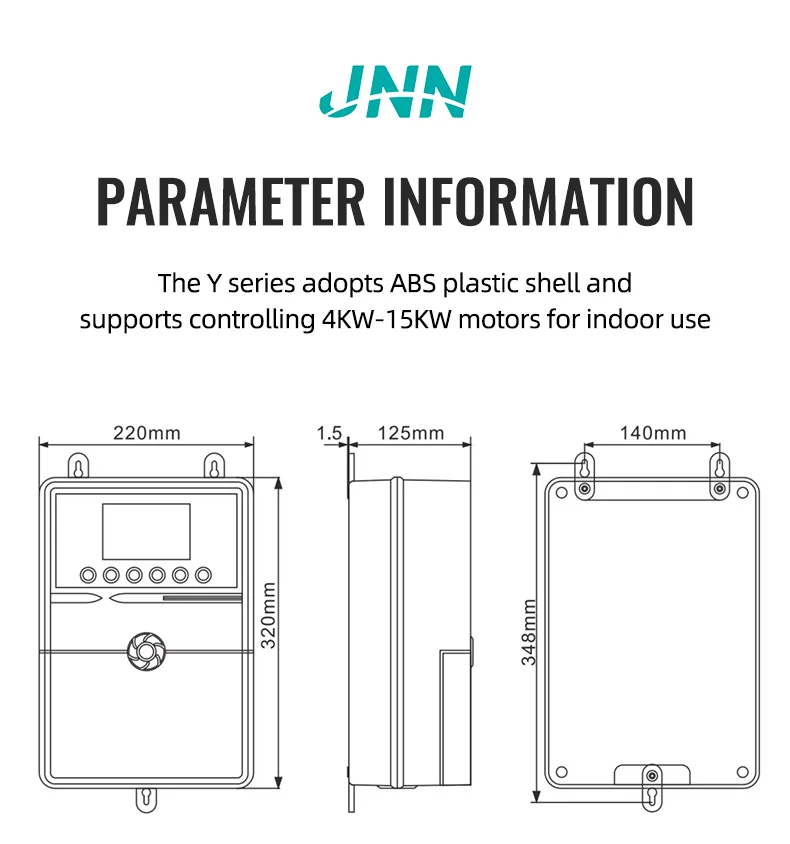

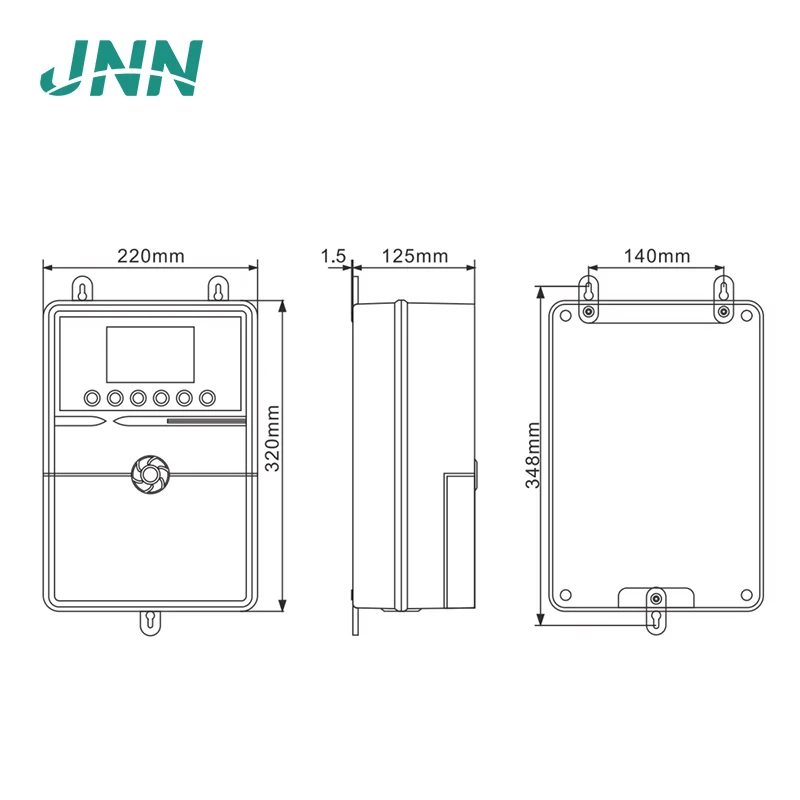

Product Size
320x220x125mm

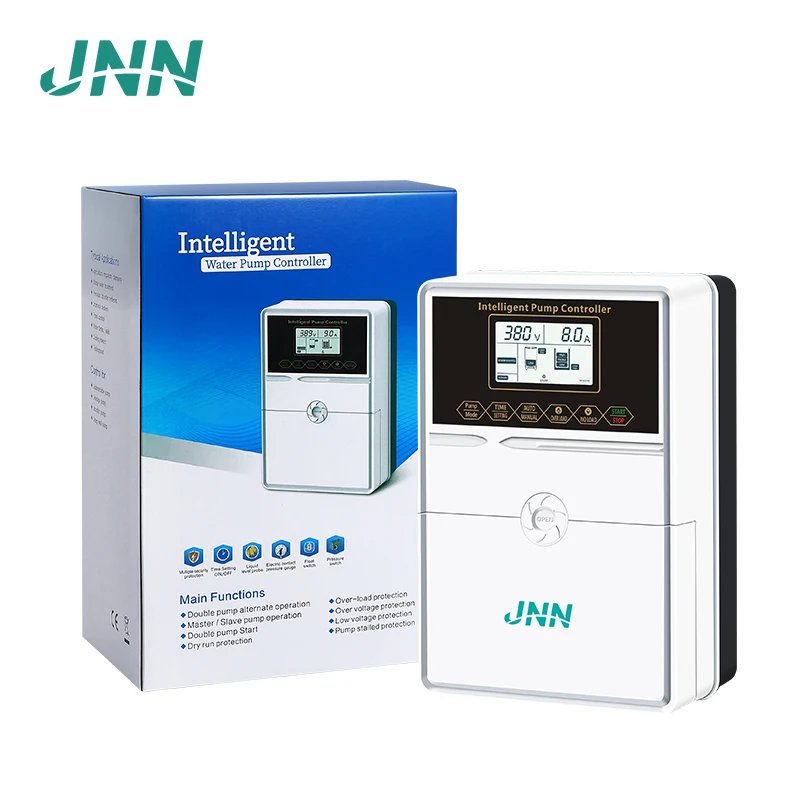

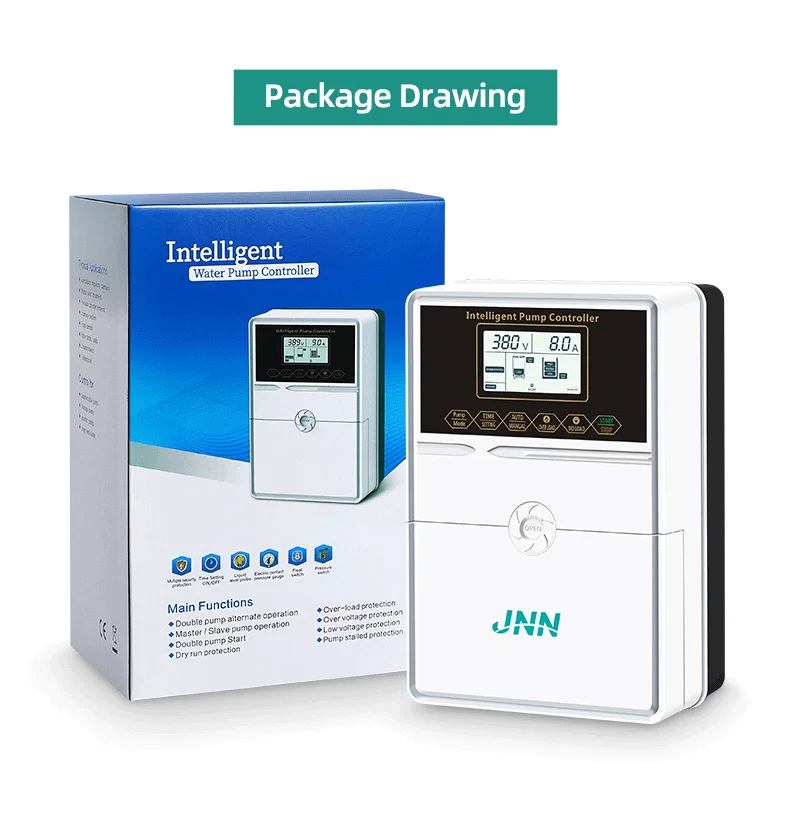

Package
Box size:26.2*17.2*38cm
Carton size:54*39.5*55.5cm
PCS/CTN:6


Parameter Setting and Instruction
P01--Over-load protection current setting
P02--No-load protection current setting
P03--Time setting ON
P04--Time Setting OFF
P05--Restart time setting after no-load protection
P06--Dual pump alternation time setting
P07--Over-voltage protection setting
P08--Under-voltage protection setting
P09--LCD backlight OFF time setting
P12--No load protection trip delay time setting
P13--Overload protection trip delay time setting
































1,What is your delivery time?
For sample order,it takes 1-3 days.Bulky order depends on the quantity.Our monthly ability is 15000pcs,and daily 500pcs.Custom panels depend.

2,How to match the power between the controller and the pump?
The power of controller should be bigger than that of the pump.

3,What is your warranty?
We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full 1-year warranty.

4,How about your quality control?
Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load conditions to exceed our customer's quality and fuctionality requirements.

5,What are your payment methods acceptable?
Western Union,T/T and L/C
