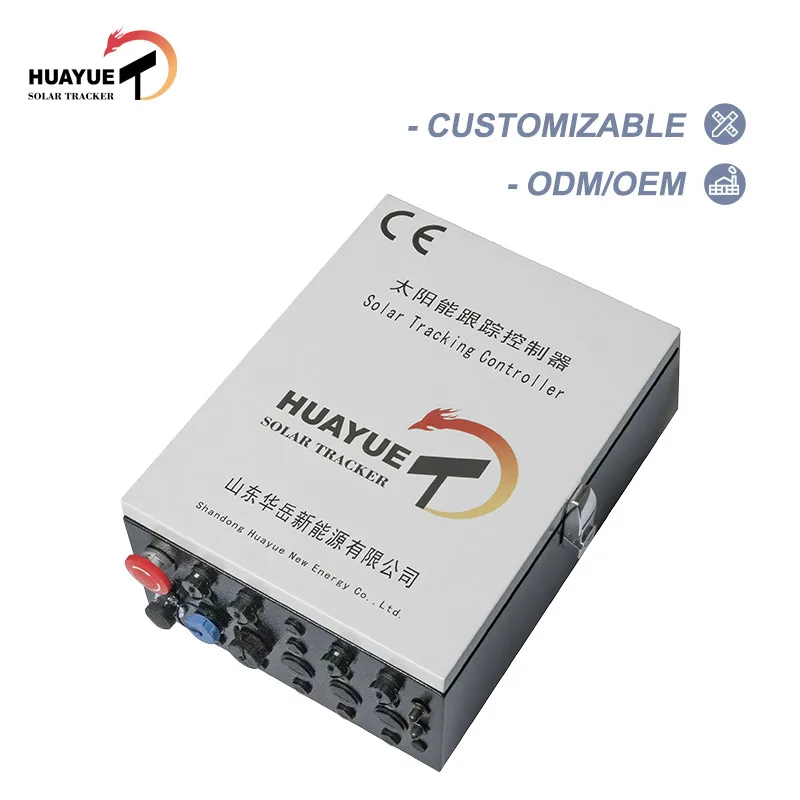

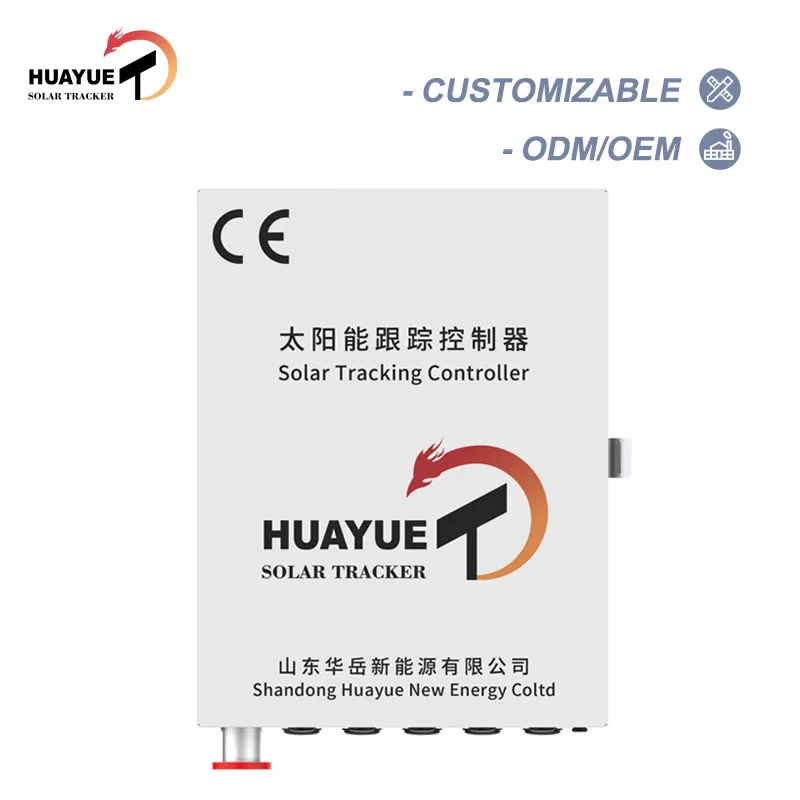

Huayue solar tracker dual axis two axis solar tracker tracking controller 2 axis sun tracking controller
- Category: >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (1600864910147):
Product Overview
Description
Product Paramenters
Dual Axis Drive Tracking Controller Parameters | ||||||
Control algorithm | Closed-loop control of astronomical algorithm + position sensor | |||||
Controller type | Singlechip | Communication type | RS485 | |||
Control core | MCU（32bit) | Gale protection | Have | |||
Night return mode | Have | Backtracking algorithm | Have | |||
Intelligent tracking of inverter | Customizable | Protection level | IP66 | |||
Anemometer | Have | Tracking accuracy (°) | ≤1° | |||
Network communication mode | RS485 | GPS | Have | |||
Rainwater cleaning mode | Optional | Snow removal mode | Optional | |||
Power supply mode | Self powered / external power supply | Network communication type | Bluetooth (customizable WiFi, 4G) | |||
system voltage | DC24 | Driving power (W) | 300W | |||
Altitude angle tracking range (°) | 0~60° | Azimuth tracking range (°) | -120 ° ~ + 120 ° / - 135 ° ~ + 135 ° (customizable) | |||
Rotate position protection mode | Sensor protection + software protection | |||||

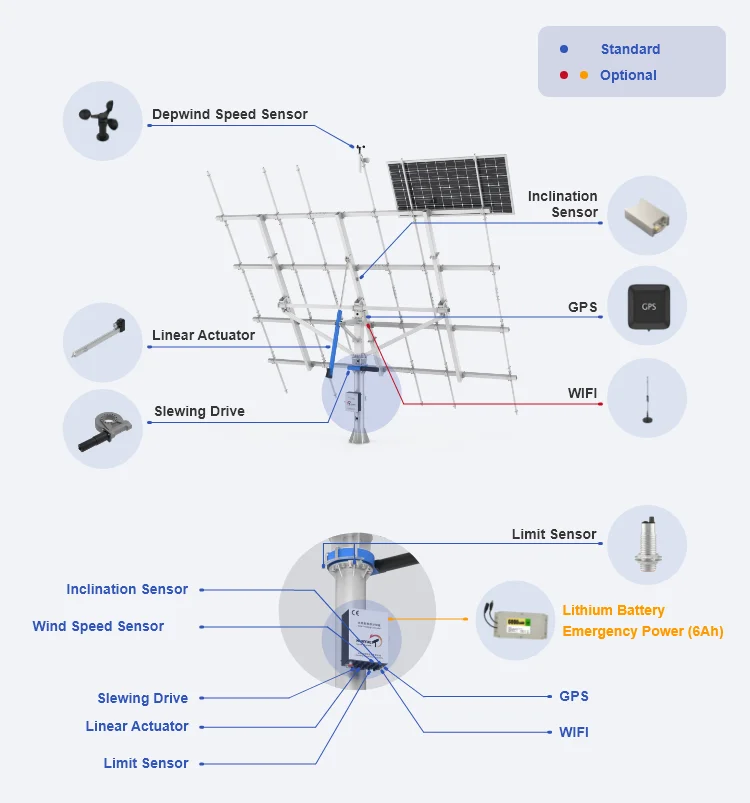

Driving device | Rotary drive +1* Linear drive (Optional) | |||||
System power supply | L+N (two-phase input) 100V ~ 240V AC (wide voltage input) (customizable PV series self-charging 1000V ~1500V, lithium battery for backup) | |||||
Warranty period | The whole machine is guaranteed for 5 years with bracket, and the controller purchased separately is guaranteed for 1 year (except for mechanical structure damage, man-made damage and force majeure) | |||||
Working temperature (℃) | General default configuration - 30 ℃ ~ + 70 ℃, special custom configuration - 50 ℃ ~ + 85 ℃ | |||||
Company Profile
FAQ
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below ...
