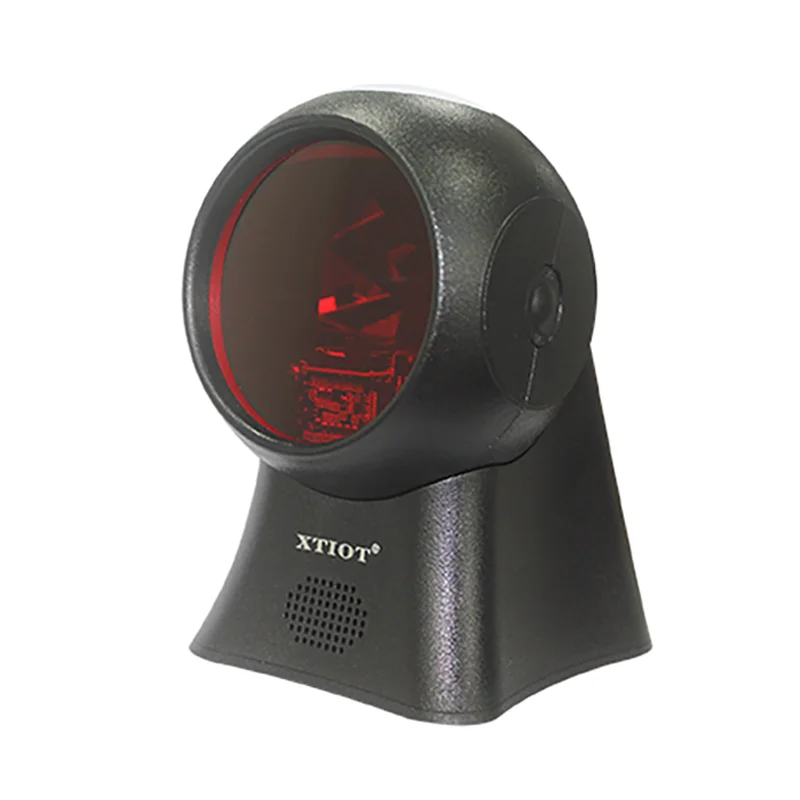

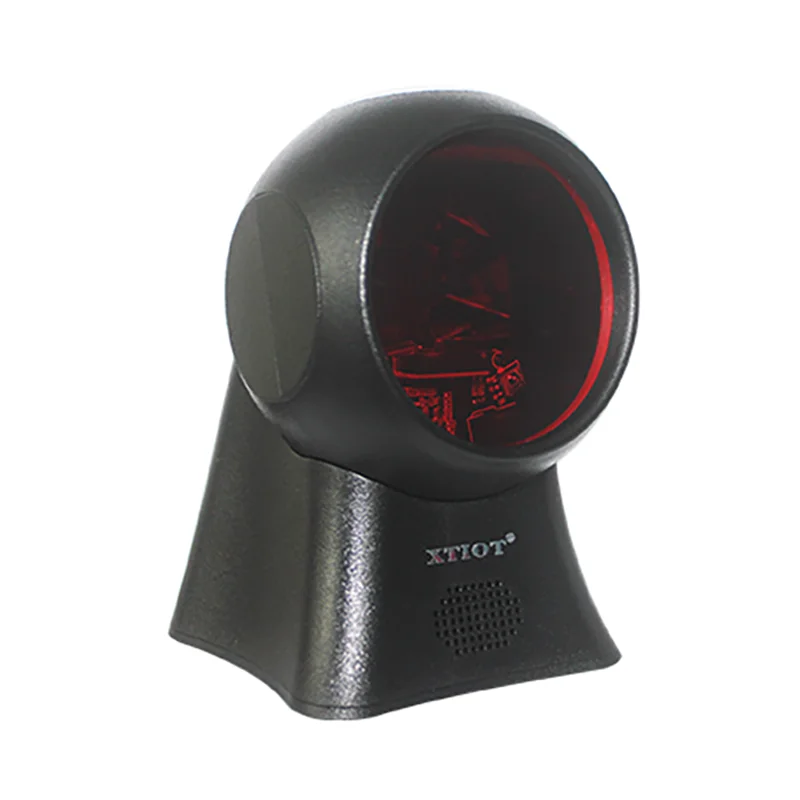

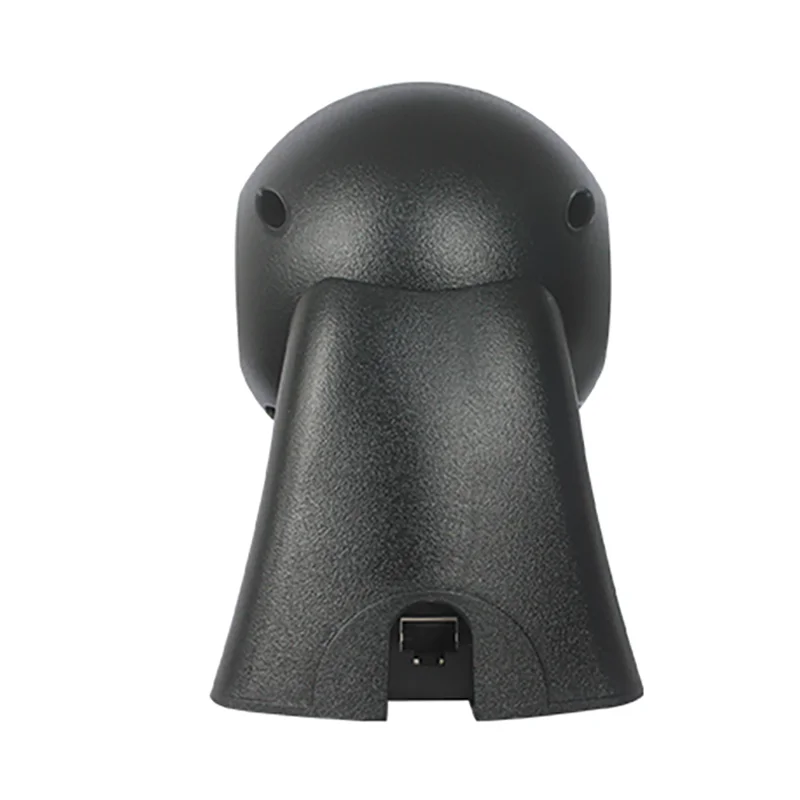

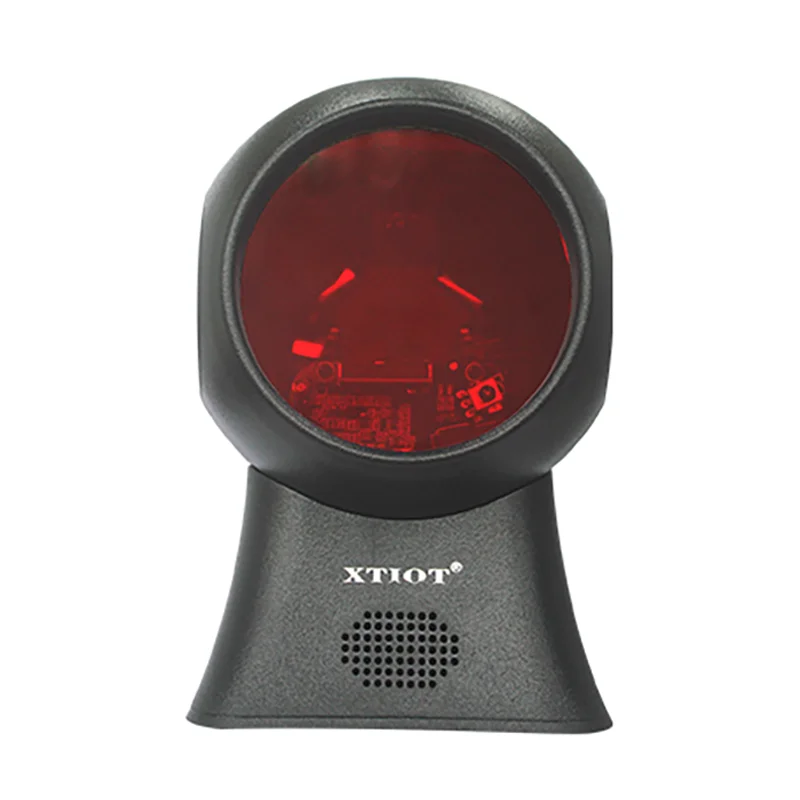

  • XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner
XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner
XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner
XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner
XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner
XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner

XT7120 1D Desktop Barcode Scanner XT7120 1D Desktop Barcode Scanner Omnidirectional 20 Lines Laser Barcode Scanner

Share on (1600864973704):


Price:

Quantity:


Product Overview

Description



Omnidirectional 20 Lines Laser Barcode Scanner


XT7120 is 20 lines laser barcode scanner which suitable for supermarkets, chain store, shopping malls, etc.
Communication: USB,RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: laser
Decoding Ability: 1D
Resolution: ≥5mil


Technical Specifications


Light Source
650nm laser diode (high intensity)
1D
EAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, UCC/EAN-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6,
ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, GS1-DataBar
Accuracy
≥5mil
Contrast Ratio
≥25% (UPC/EAN 100%)
1D EAN13
5mil 0-60mm
10mil 0-160mm
13mil 0-200mm
FOV Angle
Angle 45°
Elevation 45°
Scanning Speed
1500 lines/s
Error Rate
< 1/5,000,000
CPU Performance
32-bit dual-chip and strong decoding capacity
Prompt Method
Stereo speakers, LED
Scanning Mode
Sweep the whole line (20 lines, 5 directions); Single line scanning; Sleeping and working
Reading Mode
Key trigger mode, automatic scan mode
Application Update
USB/Serial Connection Online Update
Data Interface
USB, Virtual Serial Port, RS-232
Input Voltage
DC 5V ±10%
Operating Current @5VDC
230mA
Standby Current
100mA
Operating Temperature
0℃ ~ +50℃
Storage Temperature
-20℃ ~ +60℃
Relative Humidity
5% ~ 95% (RH)
Drop Height
It can still work normally after falling from a height of 1.2 meters to the cement floor (once for each of the 6 sides)
Ambient Light
0~4,000Lux (Fluorescent), 0~100,000Lux (Sun)
Electrical Safety
CE EN55022 Class B, EN55024 Class B, FCC Part 15 Class B
Laser Safety
IEC 60825-1: Class 1
Communication Interface
USB, RS 232, PS/2
Size
106(W)*111(D)*155(H) (mm)
Weight
354g
