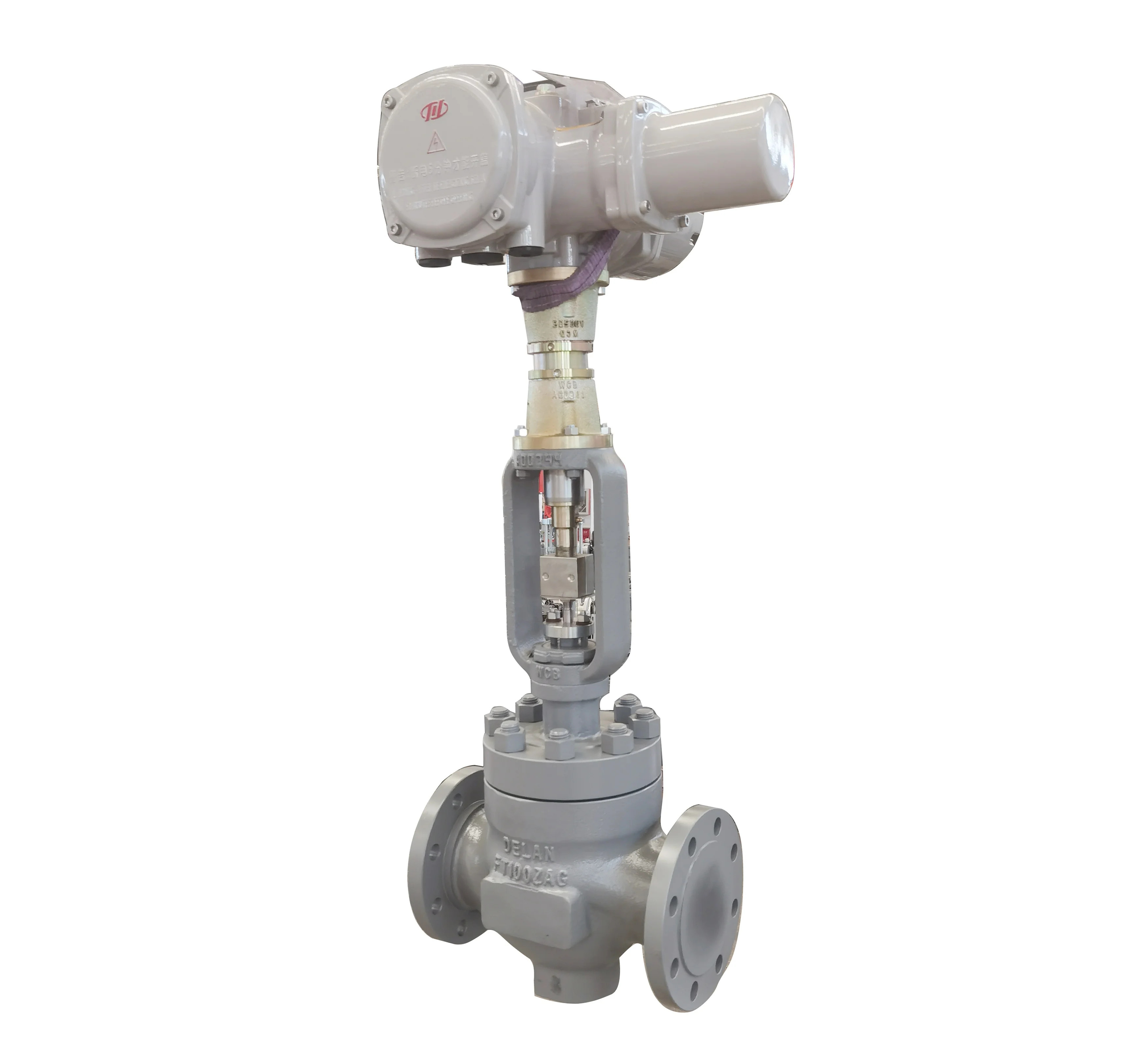

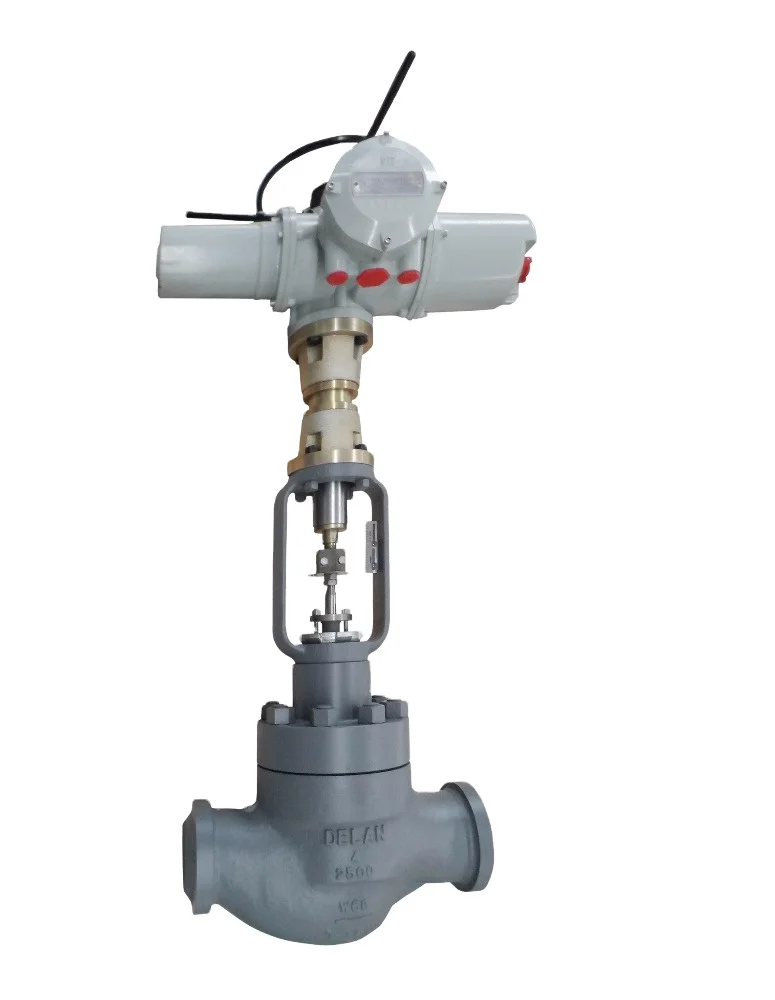

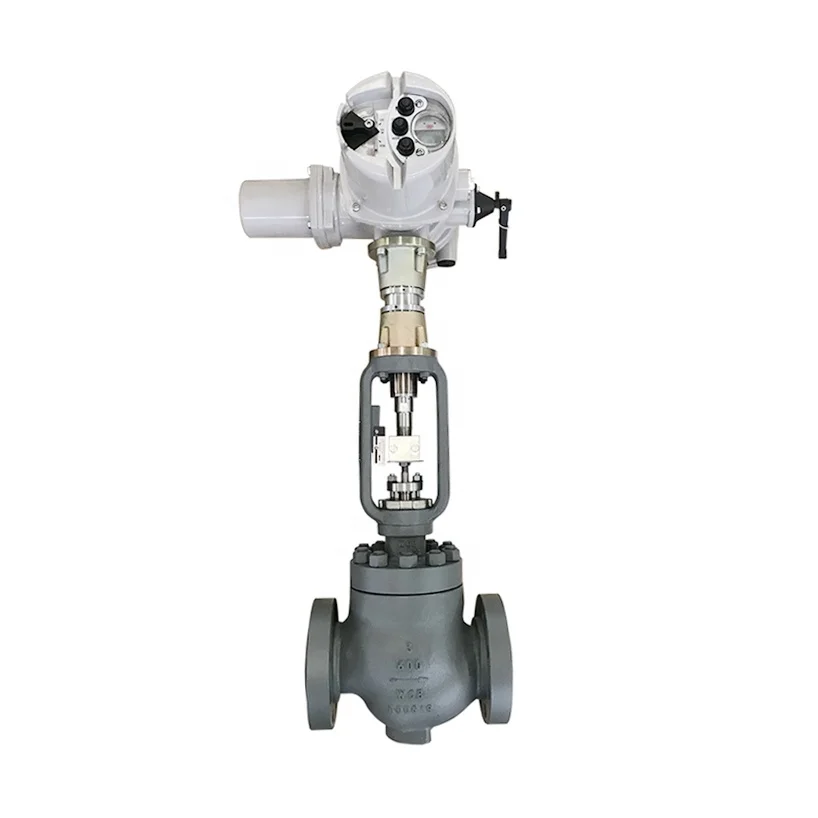

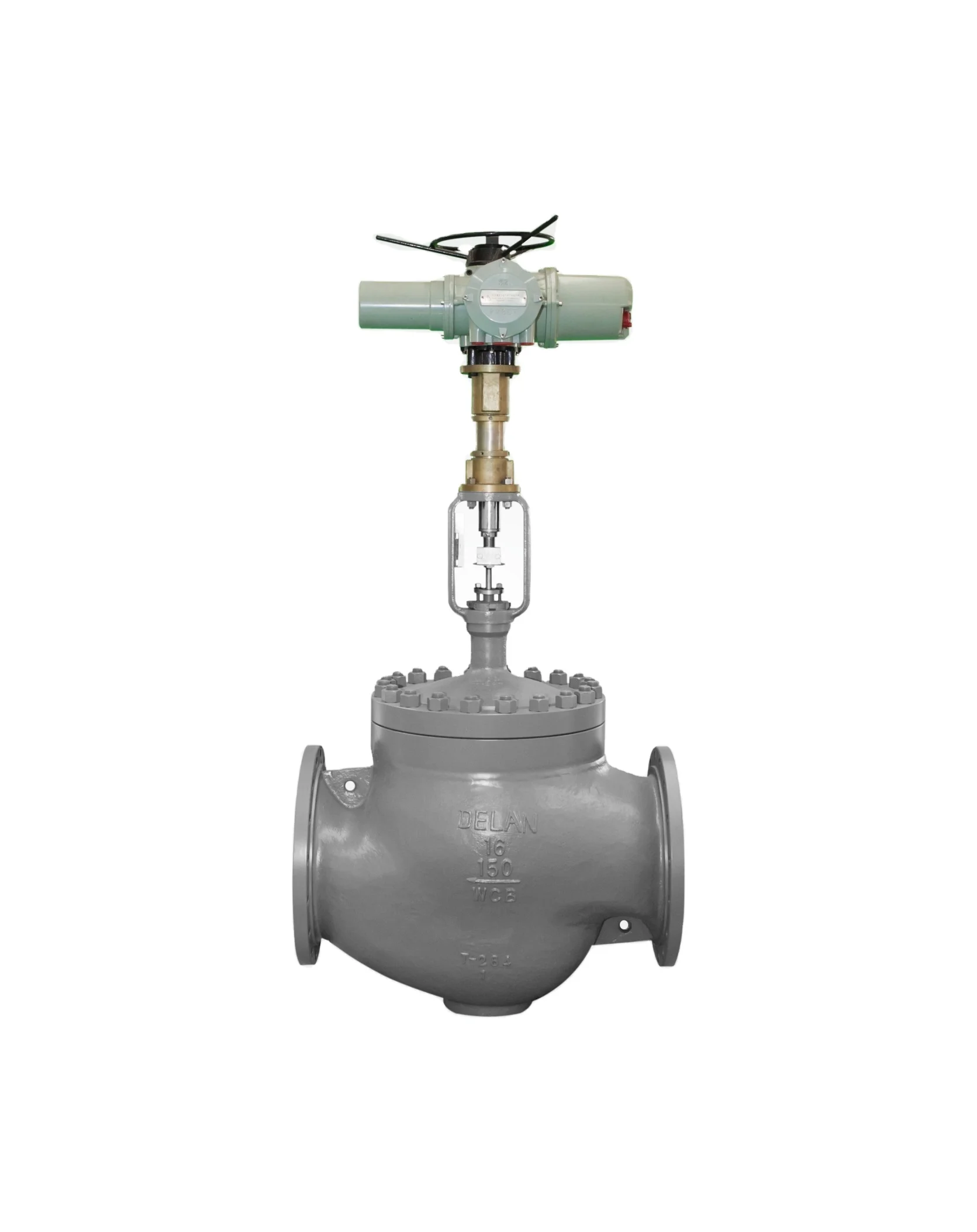

Open/close Type Proportional Type Electric Control Valves
- Category: >>>
- Supplier: Suzhou Delan Energy Science & Technology Co. Ltd.
Share on (1600864975936):
Product Overview
Description
Products Description
MJ Series Control Valve
Performance Parameters
◆Diameter：DN20~DN300
◆Pressure：PN100~PN420
◆Flow characteristics：
1、Linear
2、Equal percentage
◆Structure：
Main forgings , circulating convection
structure（one of our patents）
◆Body material：
A105/12Cr1MoV/F22/WC9/WB36 etc.
◆Typical valve：
boiler feed water recirculation, boiler exhaust steam, boiler continuous blow down system, desuperheating spray water etc
◆Diameter：DN20~DN300
◆Pressure：PN100~PN420
◆Flow characteristics：
1、Linear
2、Equal percentage
◆Structure：
Main forgings , circulating convection
structure（one of our patents）
◆Body material：
A105/12Cr1MoV/F22/WC9/WB36 etc.
◆Typical valve：
boiler feed water recirculation, boiler exhaust steam, boiler continuous blow down system, desuperheating spray water etc

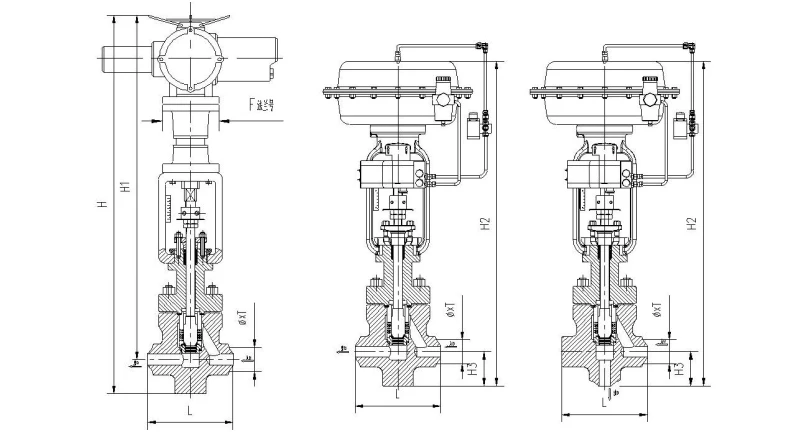

Product Paramenters
Nominal diameter | L | H | H1 | Flange | H2 | H3 | Φ×T | Weight | ||
Inch | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （kg） | |||
3/4" | 20 | 250 | 1050 | 950 | F10 | 884 | 100 | According to pipeline | 80 | |
1" | 25 | 250 | 1050 | 950 | F10 | 884 | 100 | 80 | ||
1-1/2" | 40 | 250 | 1050 | 950 | F10 | 884 | 100 | 80 | ||
2" | 50 | 250 | 1135 | 1035 | F14 | 1058 | 100 | 86 | ||
2-1/2" | 65 | 400 | 1255 | 1125 | F14 | 1158 | 90 | 140 | ||
3" | 80 | 498 | 1255 | 1125 | F14 | 1258 | 130 | 220 | ||
4" | 100 | 575 | 1420 | 1290 | F14 | 1332 | 168 | 340 | ||
6" | 150 | 700 | 1502 | 1290 | F14 | 1420 | 212 | 380 | ||
Item | Size | Operation Temperature | Type | Pressure Class | Body Material | Operation | Leakage Level |
Control Valve | 1/2" ~24" | -29℃ ~628℃ | Globe Angle | 150LB ~4500LB | WCB WC9 CF8 CF8M | Manual/ Pneumatic/ Electric/ Hydraulic | IV/V/VI |
Attemperator Spray Control Valve | 1/2" ~6" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | V |
Feedpump Recirculation Valve | 1" ~12" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | MSS-SP61 |
Globe Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Check Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Forged Steel Gate Valves | 1/2" ~30" | -29℃ ~628℃ | Parallel double gate | 150LB ~4500LB | WB36/A105/F22/F91/F92 | Manual/ Pneumatic/ Electric/ Hydraulic |
Recommend Products
●condensate pump recirculation control valve
●boiler feedpump recirculation control valve (minimum flow valve)
Packing & Delivery
Generally packed in export wooden boxes ,and also can be packed according to customer's requirements .
Contact Us Now
Warmly welcome to call or write to consult and negotiate details.
Installation Instructions
Installation site view
Our valves are always used in Steam power system such as Power plant, Petrochemical plant, Steam turbine and ship etc.
Pneumatic control valve in Indonesian chemical plant
Feedpump Recirculation Valve in Power plant(2*660MW)
Company Profile
● History: Since 1991, rich experience of manufacturing regulating valves, pneumatic high-pressure traps, and forged steel globe valves
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Testing facilities : Large-scale fluid laboratory, test range : 25-400mm diameter valves; 4 sets Hydraulic valves pump test desk; Handheld Spectrometer; Ultrasonic fault detector; Tensile testing machine; Shock testing machine etc.
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
FAQ
Q1: Are you a factory or trading company?
Q4: What is your hot items?
A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands.
Q5: How about the shipping method?
A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q6: How about the label and the logo?
A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
A1: We are a family business integrating manufacturing and trading, and our headquarters are in Suzhou, China
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q3: How can we guarantee quality?
A3: Always a pre-production sample before mass production; final Inspection before shipment;
A3: Always a pre-production sample before mass production; final Inspection before shipment;
Q4: What is your hot items?
A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands.
Q5: How about the shipping method?
A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q6: How about the label and the logo?
A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
