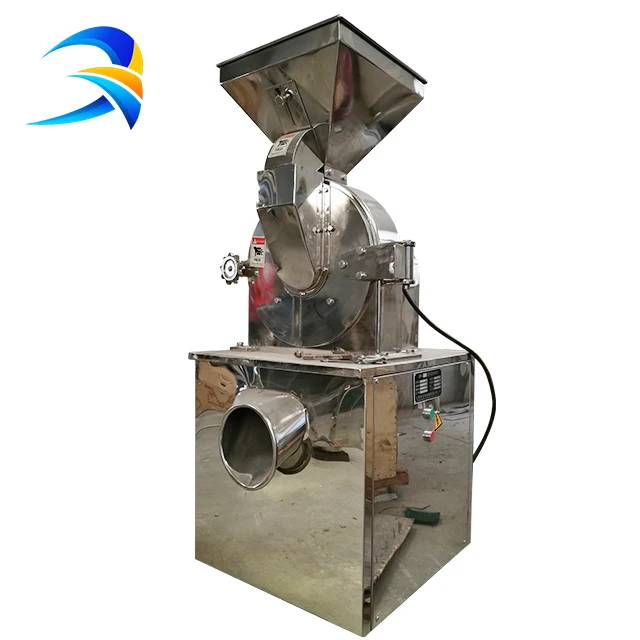

High speed powder grinder tea leaves fine powder grinder mill pulverizer machine for grinding medicinal herbs cereal powder
- Category: >>>
- Supplier: Jiangyin City Xuan Teng Machinery Equipment Co. Ltd.
Share on (1600865015491):
Product Overview
Description

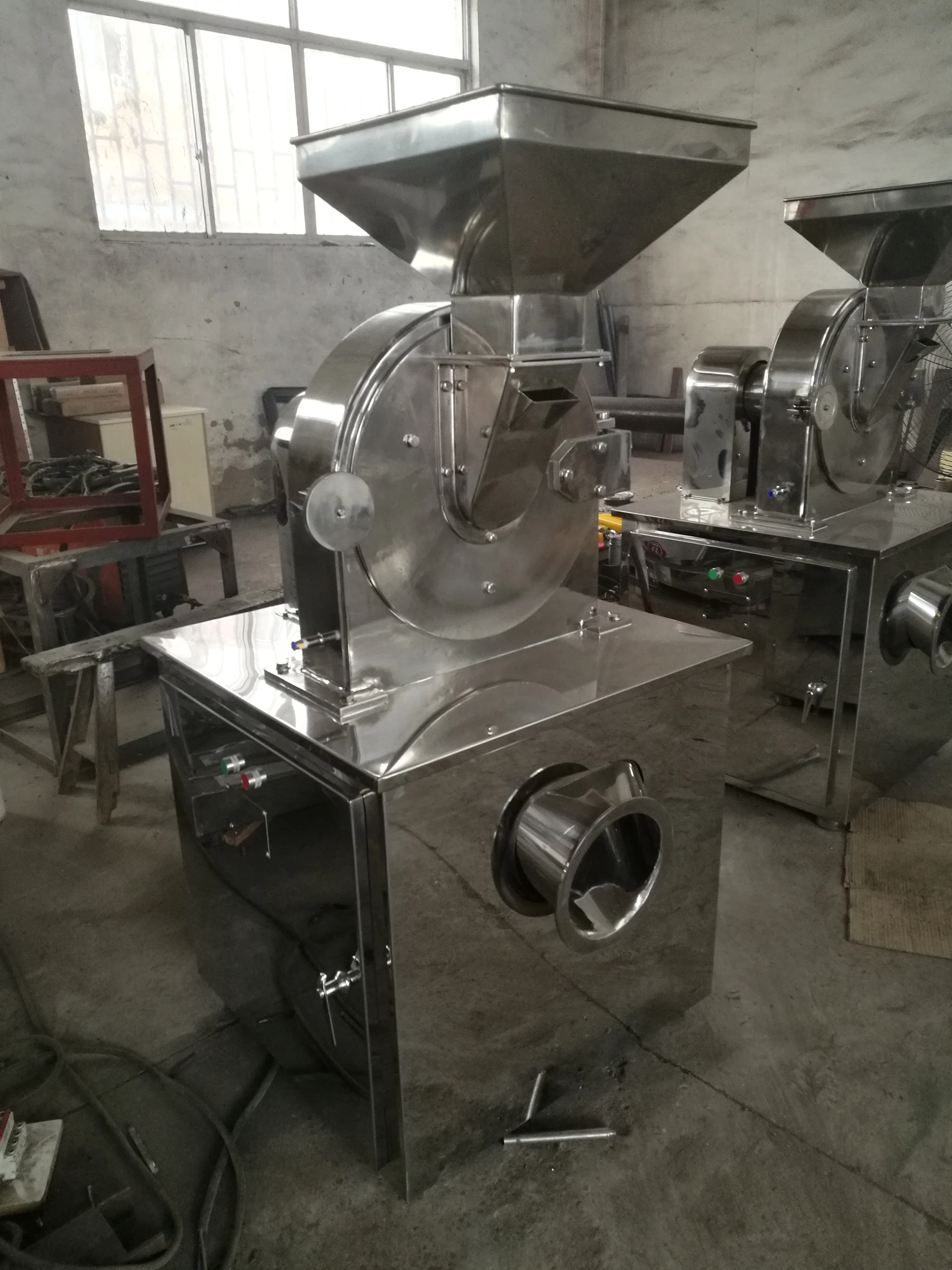

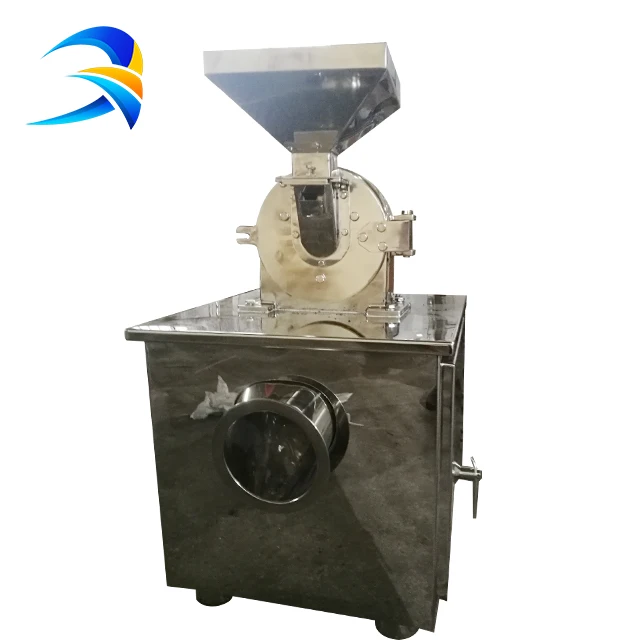

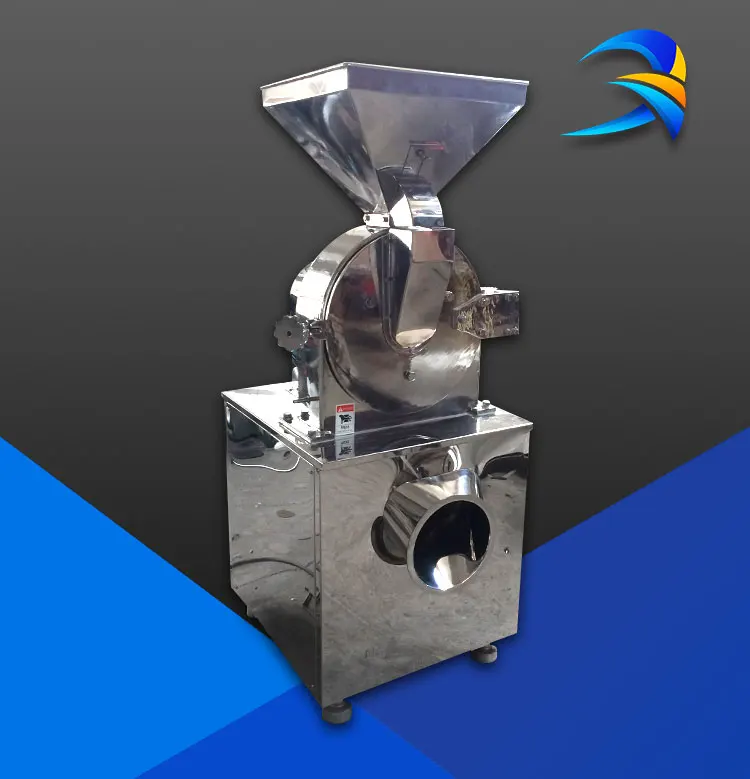

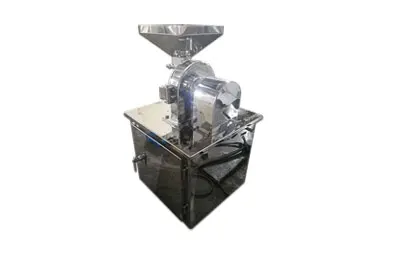

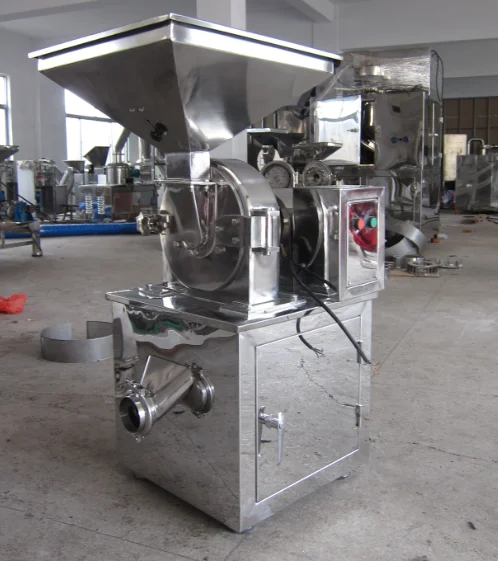

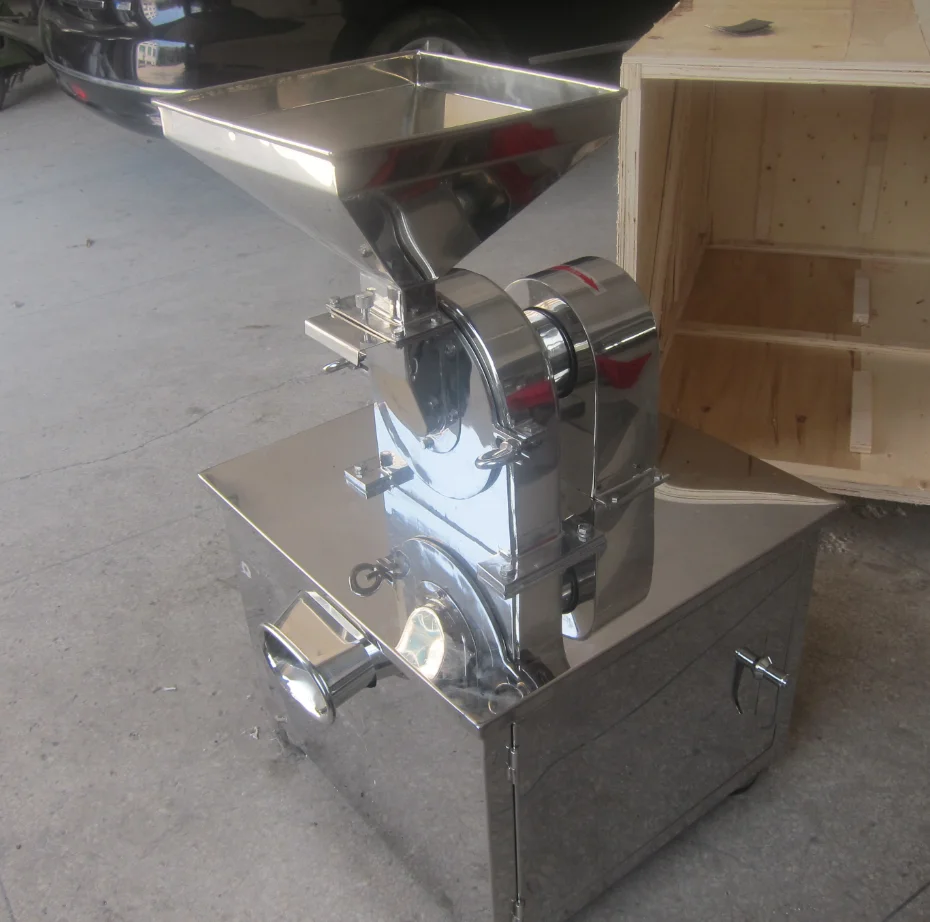

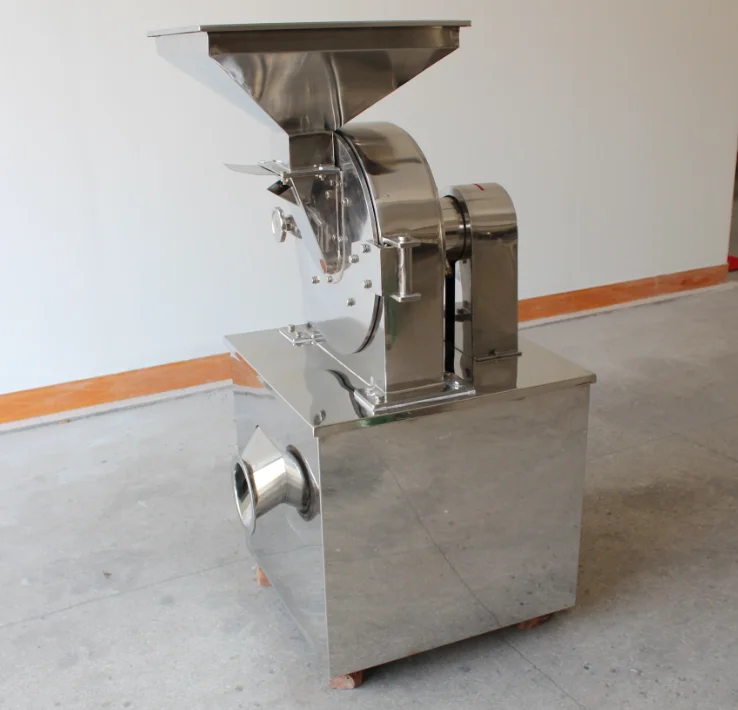

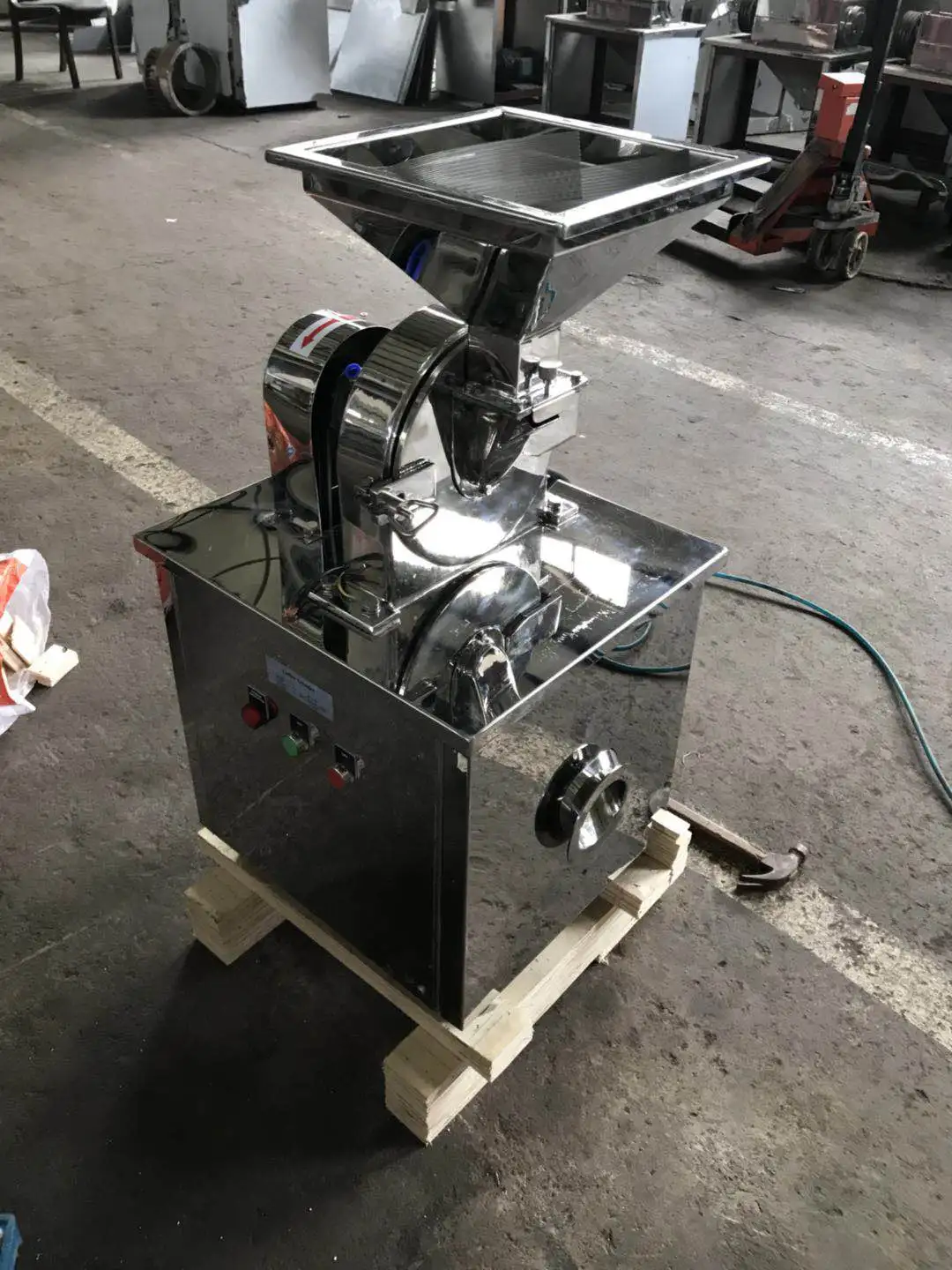

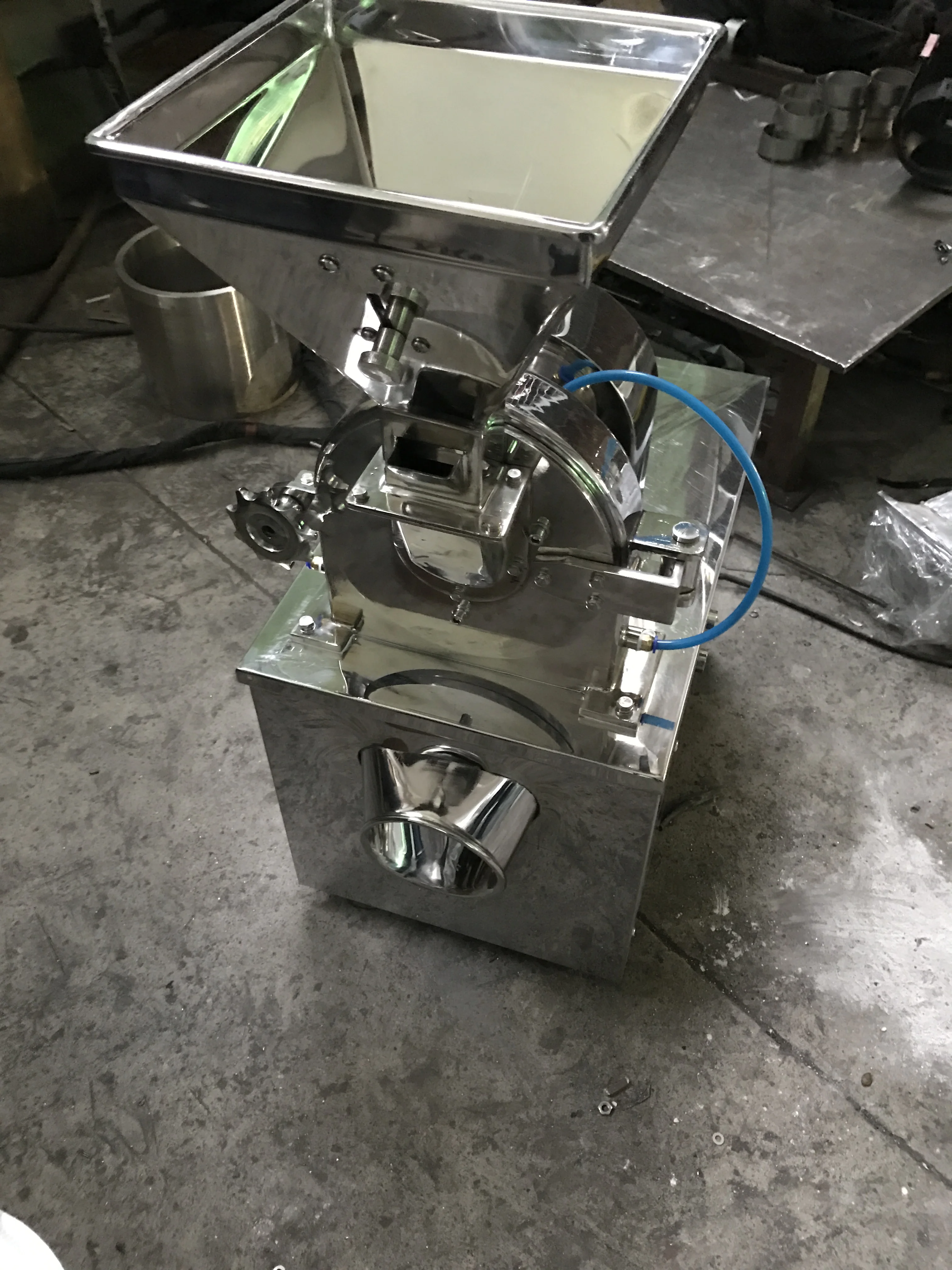

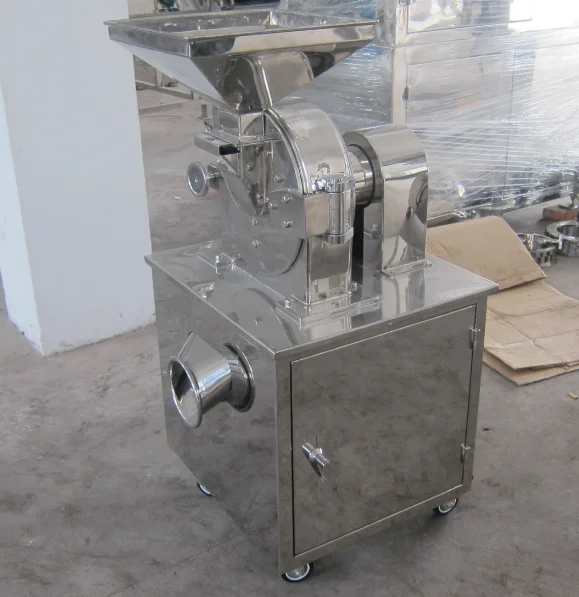

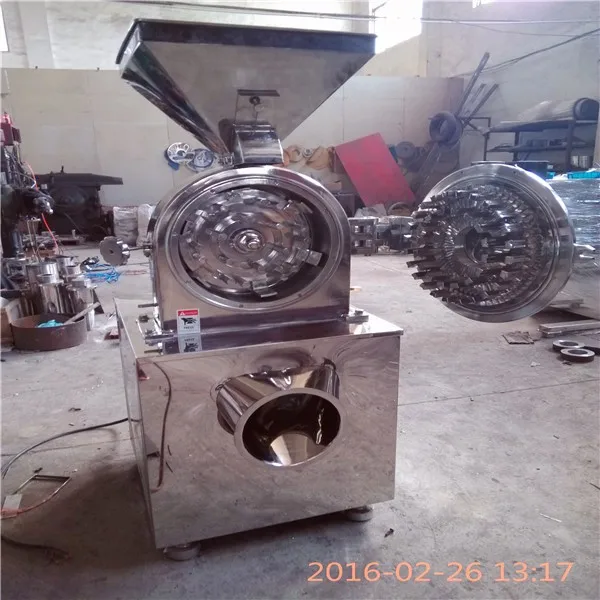

WF Series Universal Crusher

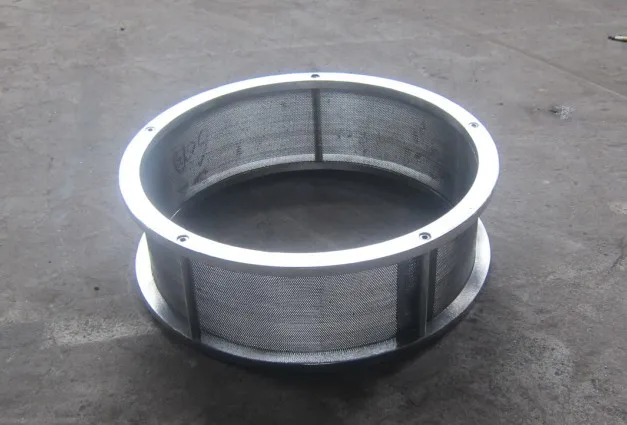

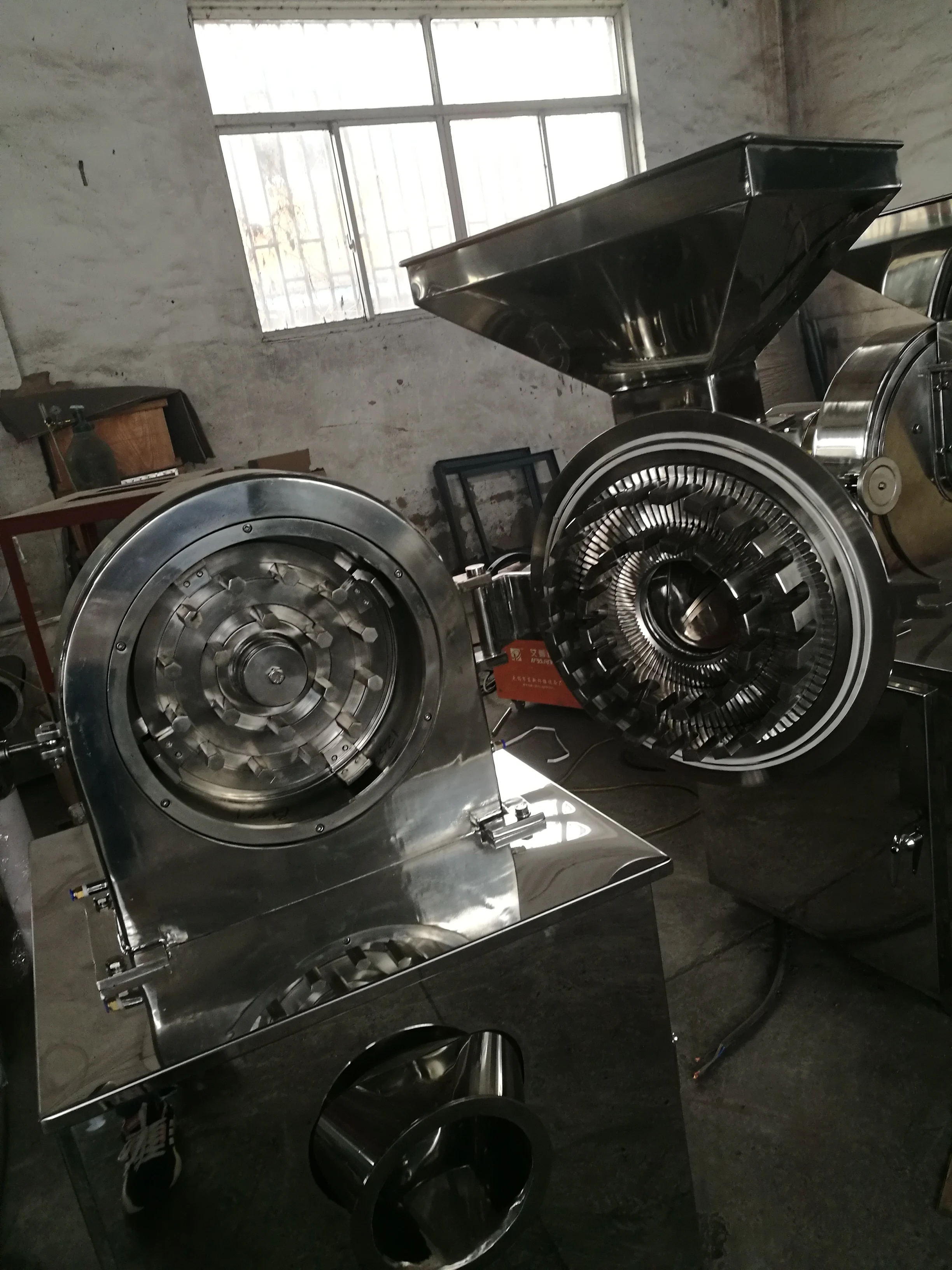

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen.The machine has the features of easy structure,solid, stable running and good efficiency. The crushed material is discharged directly from the grinding chamber of the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. Those pharmaceutical, chemical and food stuff products from the machine are in accordance with national requirement,achieving GMP standard.
Model | Mode180 | Model 20 | Model 30 | Model 40 | Model 60 |
Capacity(kg/h) | 10-30 | 20-150 | 30-300 | 40-800 | 60-1200 |
Speed of principal axis(r/min) | 6000 | 4500 | 3800 | 3400 | 2600 |
Size of input granules(mm) | <5 | <6 | <10 | <12 | <15 |
Fineness of products(mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 15 |
Weight(kg) | 80 | 250 | 320 | 550 | 600 |
Overall size(L×W×H)(mm) | 600×500 ×800 | 550×600 ×1250 | 600×750 ×1450 | 750×900 ×1550 | 950×100 ×1850 |

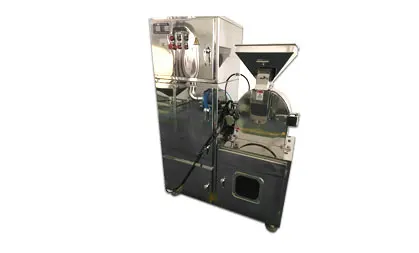

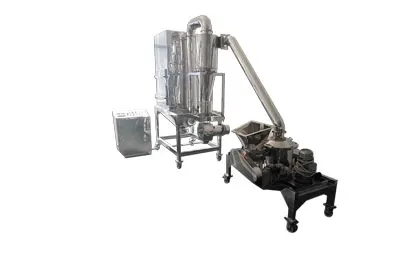

1.Dust removal to prevent dust flying.
2.There is water cooling system to prevent materials from heating.
2.There is water cooling system to prevent materials from heating.

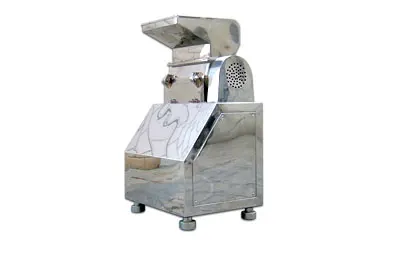

COARSE CRUSHER
1.Large material are broken into particle to prepare foe subsequent fine crushing. 2.Get particles of different sizes through
screen adjustment.
screen adjustment.

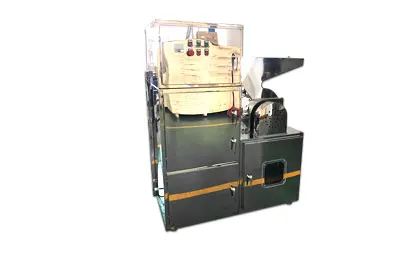

DUST ABSORPTION COARSE CRUSHER
1.Used for coarse crushing of large materials into particles.
2.Coarse crusher with dust removal function, prevent dust flying.
CHINESE HERBAL MEDICINE PULVERIZER
1.Suitable for crushing materials containing more fiber such as Chinese herbal medicine. 2.Through high-speed rotation of the
blade to crush the material, fineness can reach 200-250 mesh.
blade to crush the material, fineness can reach 200-250 mesh.

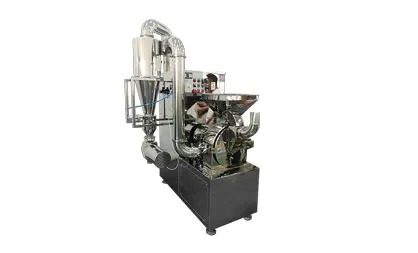

1.The fineness of pulverized powder can reach over 250 mesh.
2.with the capabilities of winnowing, non-sieve or mesh equality of granule size and continuous processing,etc.
1.Especially suitable for grinding slightly sticky materials such as spices.
2.The crushing chamber equipped with the wind wheel type high speed rotating cutter ,so that the airflow in the cavity is strong enough to eliminate any heat in the machine.

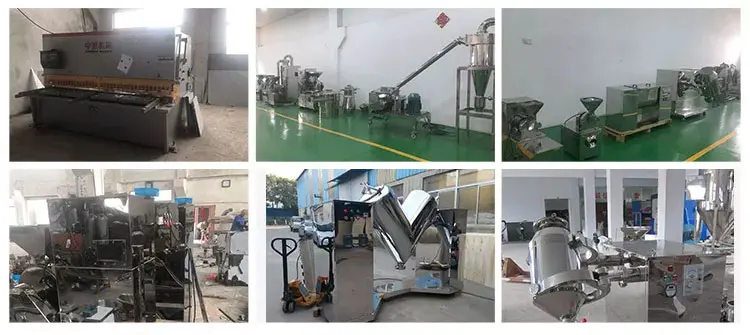

Jiangyin Xuanteng machinery equipment Co.,ltd is located in the site of taihu lake with the economic prosperity and beautiful scenery,jiangyin city,jiangsu province,China. We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulator and drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery. The enterprise sticks to the business purpose of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality.We will provide our customers with better service. Sincerely thank our new and old customers cooperation and support,welcome to contact us discuss business and create a better future together!
1. who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier
4. why should you buy from us not from other suppliers?
We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulatorand drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier
4. why should you buy from us not from other suppliers?
We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulatorand drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
