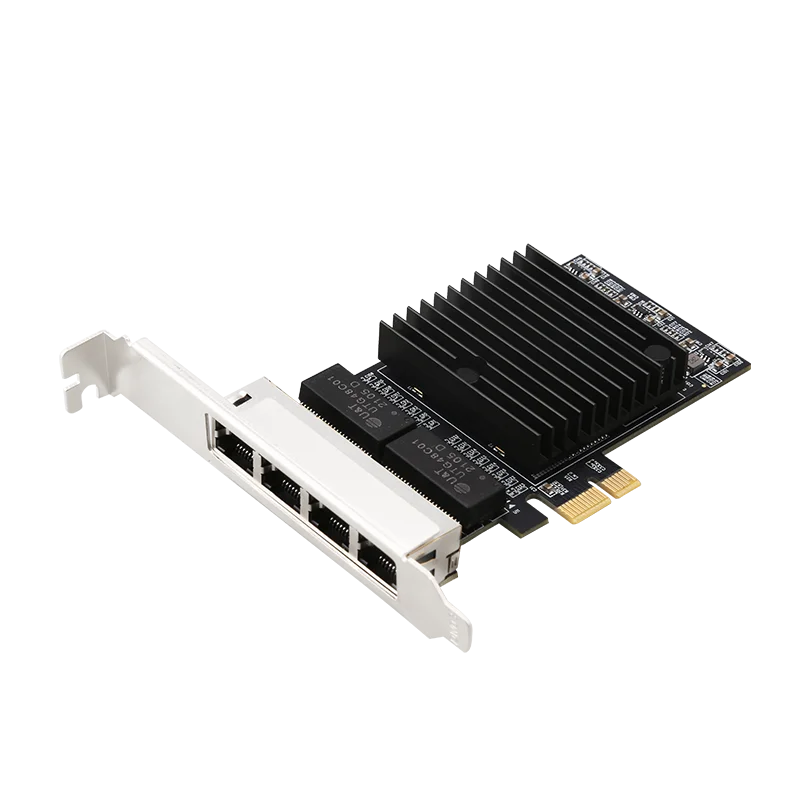

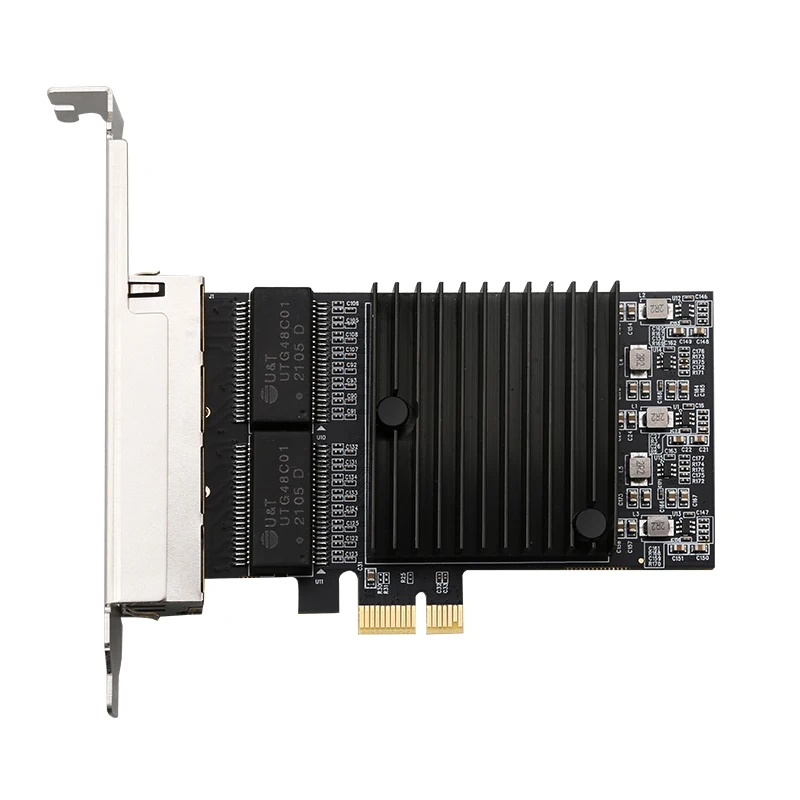

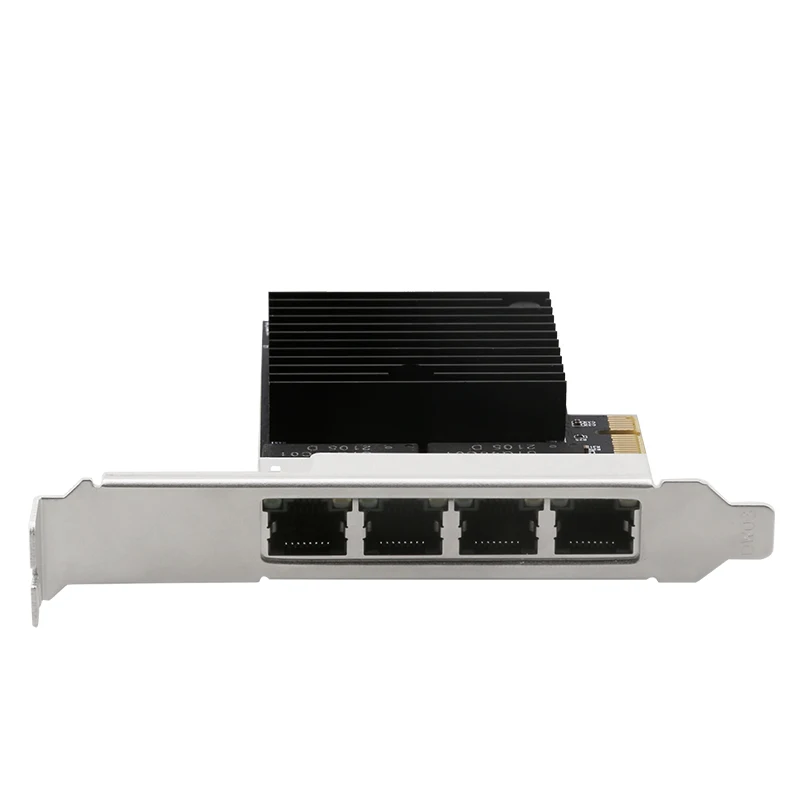

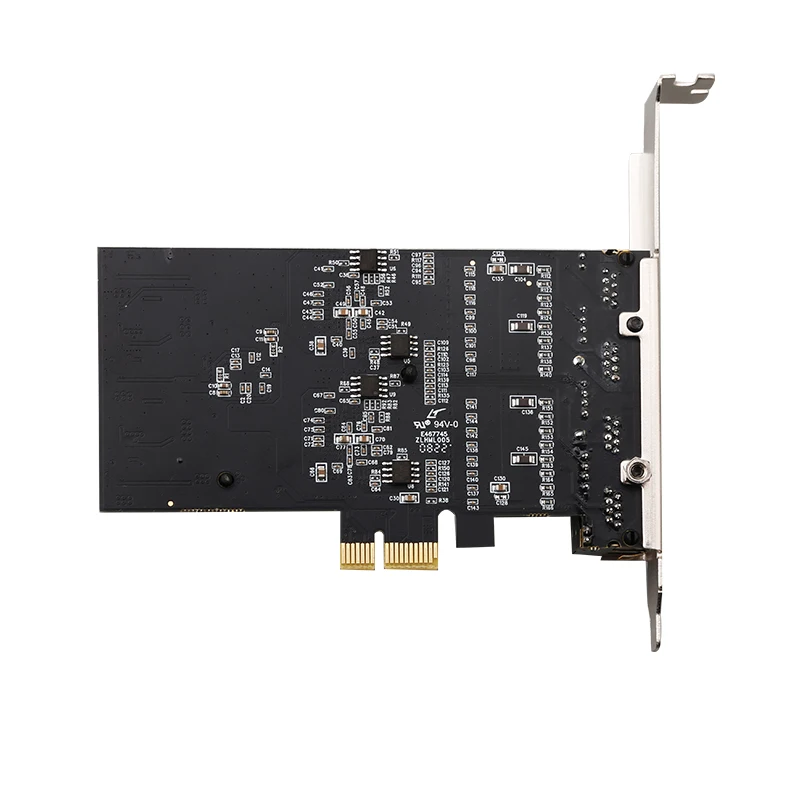

1Gbps PCI express e1X 4 Port lan Card NIC PCI Express to 10/100/1000M Ethernet Quad Lan Adapter Card 1000mbps Intel/I82571 for
- Category: >>>
- Supplier: Shenzhen Diewu Technology co. Ltd
Share on (1600865018560):
Product Overview
Description
Product Description
1,Product specification
Model number | TXA198 |
Chipset | ASMedia – ASM1182e Intel – 82571EB |
Port number | 4* RJ45 |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
Data rate | 10/100/1000Mbps |
Interface | PCI Express 1x slot |
| Bus Width | x1 lane PCI Express, operable in x1, x4, x8 and x16 slots |
Power Consumption | 1Gbps – 5.4W |
Special Notes / Requirements | System and Cable Requirements/ PCI Express enabled computer with an available PCI Express x1 slot Gen 1.0 or higher (x4, x8, x16) |
OS Compatibility | Software OS Compatibility Windows® 7, 8.x, 10, 11 Windows Server® 2008 R2, 2012, 2016, 2019 Linux 2.6.x to 5.x |
LED Indicator | 4 – Act LED (Orange) 4 – Link (Green) |
Environment | Humidity 20~80% RH |
Operating Temperature 5°C to 50°C (41°F to 122°F) | |
Storage Temperature -25°C to 70°C (-13°F to 158°F) |
The TXA198 PCIe Gigabit Network Card adds four 10/100/1000 Mbps compatible RJ45 Ethernet ports to
a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement
networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging, this
Gigabit NIC Adapter offers effective network performance.
Features
• Four 10/100/1000 Mbps compatible RJ45 Ethernet ports
• Link and Activity LED indicators
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
• Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
• Full and half duplex support
• PXE network boot support
• Jumbo frame supports up to 9Kbytes
• Complies with Microsoft and Linux platforms
