Class C fireproof glass transmittance 90% high temperature resistant high transparent non insulated single piece fireproof glass
- Category: >>>
- Supplier: Innoglass Technology (qingdao) Co. Ltd.
Share on (1600865046352):
Product Overview
Description
Product Description

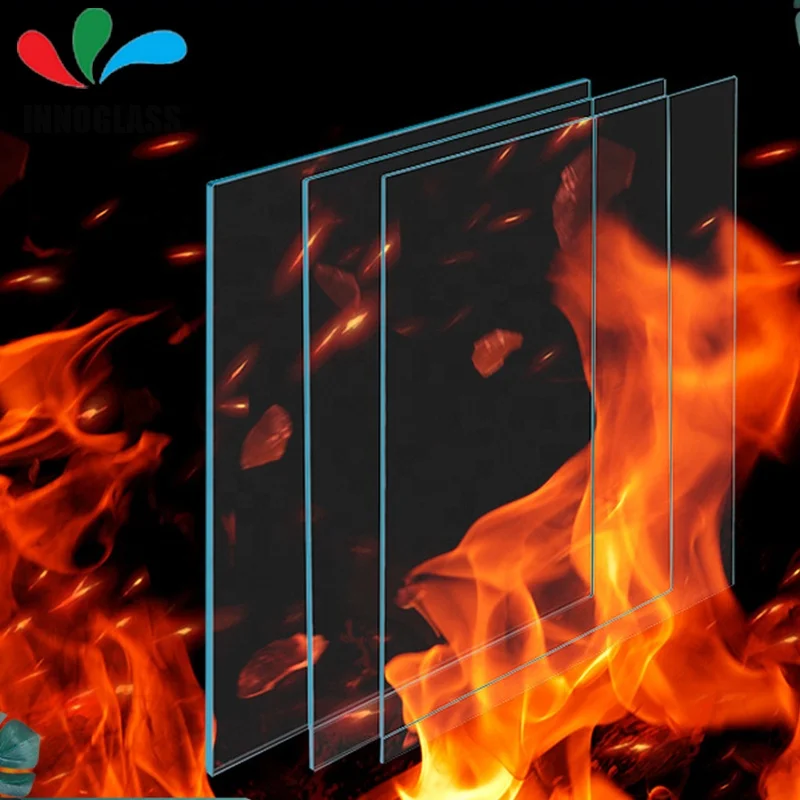

Fireproof glass

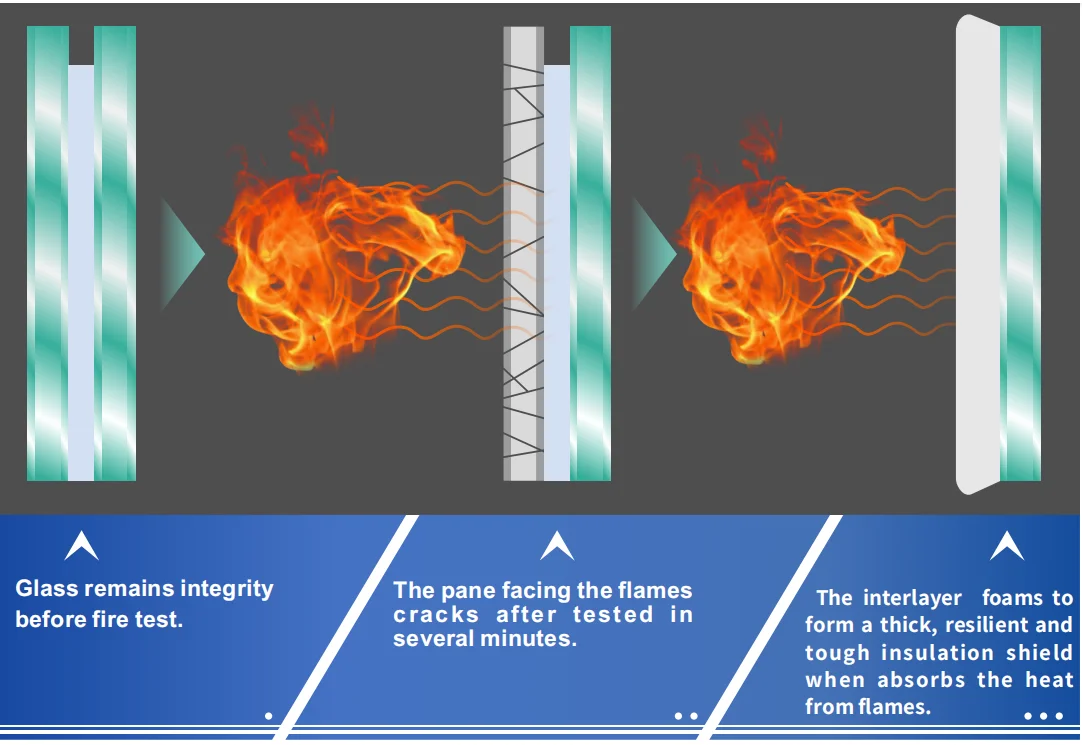

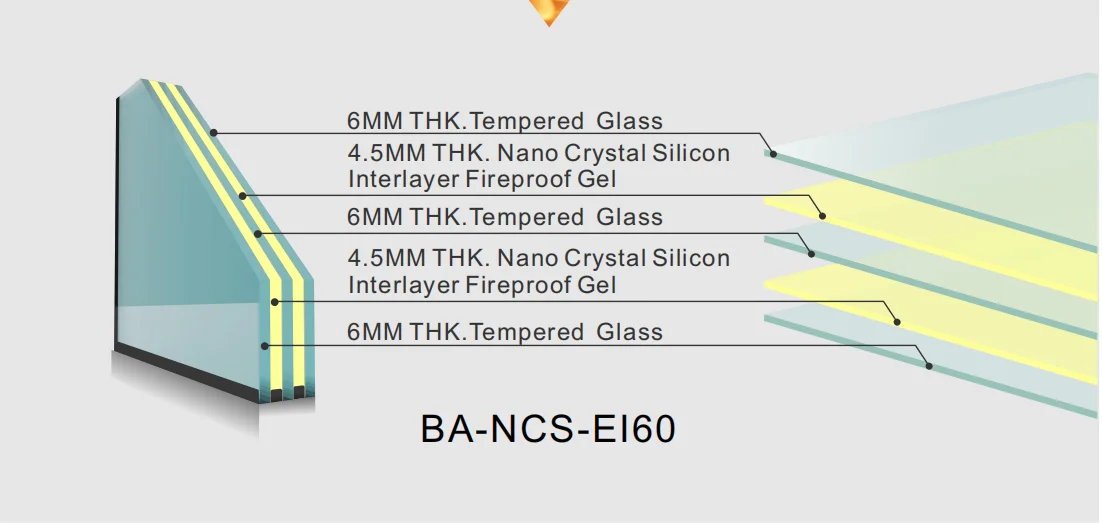

Composite insulation fire rated glass is composed of 2 or more layers of tempered glass,
which bonded and sealed with glass strips. The insulated fireproof glue grouted in the
middle spacer will become high transparent jelly which will form a thick, resilient and
tough insulation shield when absorbs the heat from flames to achieve corresponding fire
resistance level.
1.Excellent Fire-Protection
Withstands thermal shock.High Stability,Low expansion coefficent,oftening point reach 850 ℃. High percentage of boron and silicon (Boro 12.5% ~13.5%, silicon 78%~80%).
2.Acid And Alkali Resistance
High Transparency
Low iron glass.Visible light transmission above 87%.
Borosilicate Fire Rated Glass
Low iron glass.Visible light transmission above 87%.
Borosilicate Fire Rated Glass
3.High Stability
Low expansion coeffificent,
softening point reach 850 ℃.
softening point reach 850 ℃.
4. High Transparency
Low iron glass.
Visible light transmission
above 87%.
Visible light transmission
above 87%.
Detailed Images
Glass Range | Glass Type | Thickness(mm) | Integrity(mins) | Insulation(mins) | Weight(KG/M) | Max Size (mm) | |||
E-Fire Rated Glass | Borosilicate Glass | 6 | 30-120 | - | 15 | 2000*4500 | |||
8 | 30-120 | - | 20 | 2000*4500 | |||||
10 | 30-120 | - | 25 | 2000*4500 | |||||
12 | 30-120 | - | 30 | 2000*4500 |
Technical Data
Glass Range | Glass Type | Thickness (mm) | Integrity (mins) | Insulation (mins) | Weight (KG/M ) | Max Size (mm) |
Glass | Fire Rated Composite Insulation Glass | 20 | 30 | 30 | 34 | 1500*3600 |
22 | 45 | 45 | 37 | 1500*3600 | ||
27 | 60 | 60 | 46 | 1500*3600 | ||
32 | 90 | 90 | 54 | 1500*3600 | ||
42 | 120 | 120 | 71 | 1500*3600 |
Glass Type | Mulit-layer Nano Crystal Silicon Interlayered Fire Rated Glass | ||||
Thick Tolerance | +3/-2mm | ||||
Length Tolerance | +3/-2mm | ||||
UV Solidly (BSEN ISO 12543-2) | After 2000 hours anti uv testing ,no delamination . no bubble was found on the glass. | ||||
Temperature Area Of Application | +45/-5℃ | ||||
Dangerous Contents Material | None | ||||
Element Thickness | 27mm | 42MM | 47MM | ||
Dimensions Area | ≤2000mmX3000mm | ||||
Weight | 55kg/㎡ | 86kg/㎡ | 95kg/㎡ | ||
Light Transmission | 81% | 72% | 70% | ||
Light Reflflection (Enternal/Internal) | 8%/8% | 14%/14% | 14%/14% | ||
U-Value,w/m²k | 4.3 | 2.2 | 2.1 | ||
g-Value | 0.63 | 0.51 | 0.5 | ||
Energy Transmission | 53% | 37% | 36% | ||
Energy Reflflection Pe (Enternal/Internal) | 6%6% | 9%10% | 9%10% | ||
Acoustic Rating | STC35 | STC40 | STC45 | ||
Applications
Fire Resistance

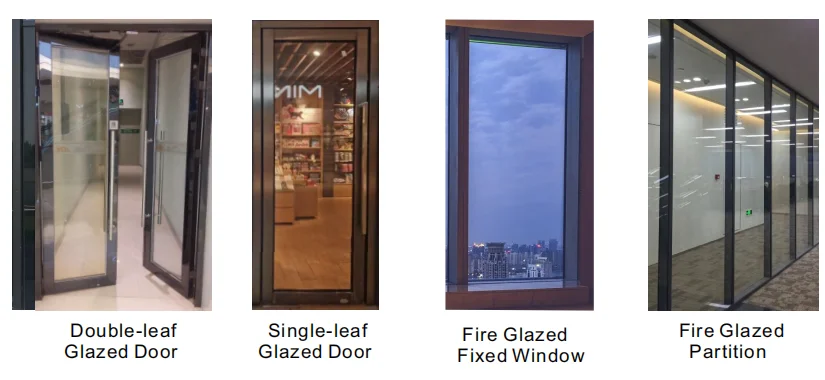

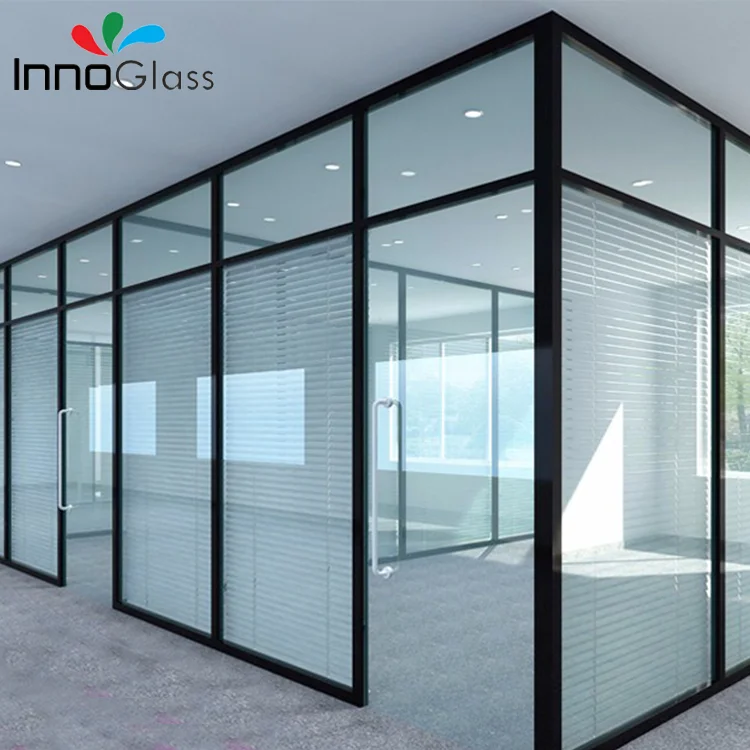

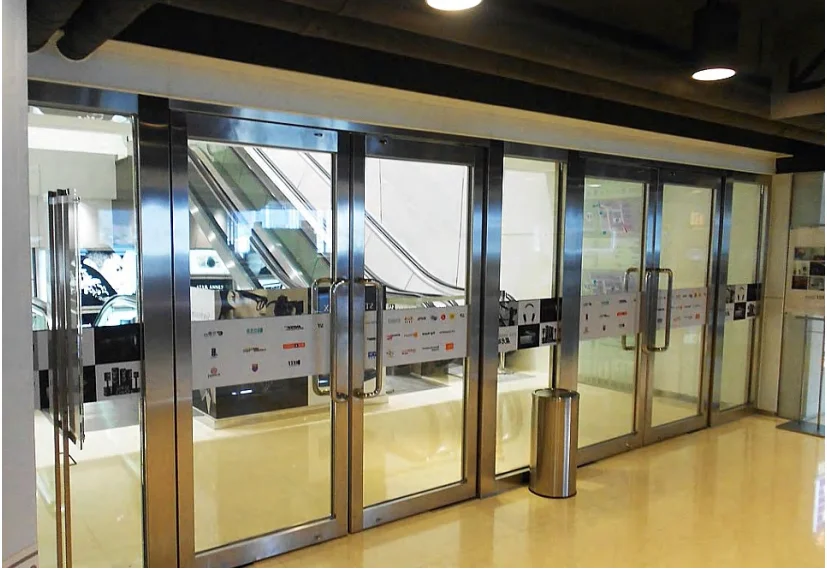

Glazed Door/Window/Partition System

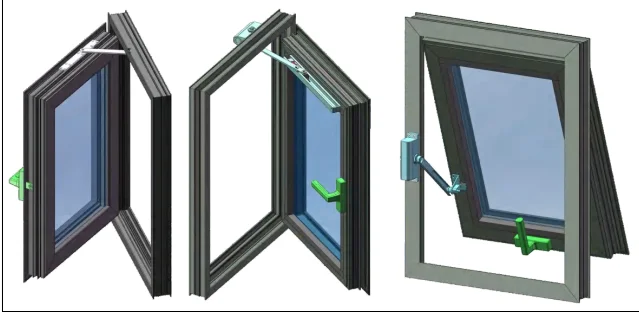

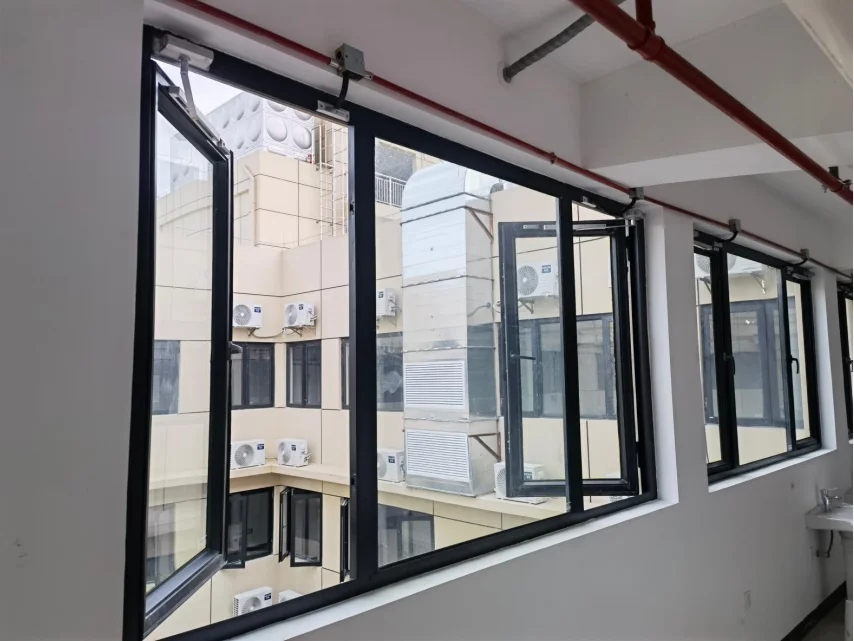

Openable Window and Fixed Panel System
Fire resistance openable window and fifixed panel system is composed of window frame, window sash and fifire rated glass. The whole system satisfy fifire-protection rating EI60 of BS EN 1634-1:2014+A1:2008 standard, which is conducive to indoor ventilation and lighting.
Packing & Delivery
Our Company

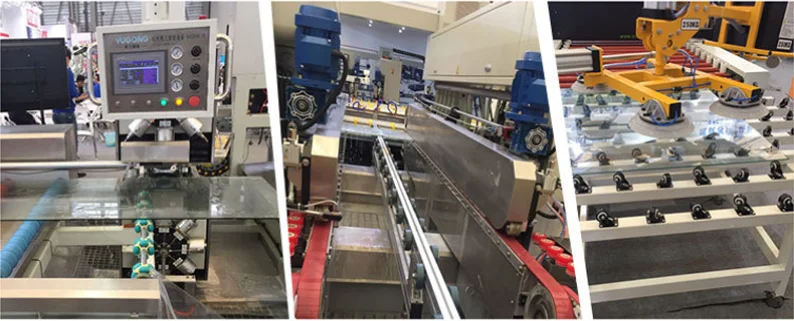

Qingdao Huichuang Trading Co., Ltd.InnoGlassandMirror is one professional glass manufacture Corporation ,we have rich production experience and advanced production equipment ,we supply rich glass products ,including clear glass, tempered glass,silver mirror, aluminum mirror, solar glass, float glass ,laminated glass, tinted glass, pattern glass ,reflective glass ,acid etched glass, painted glass ,louver glass ,low-e glass etc. Our products are mostly used for furniture, building , home appliance, solar PV panels, shower room etc. The products have been exported to countries all over the world including USA, Brazil, Spain, Russia, Korea etc.
Related Products
FAQ
Q: What is your minimum order quantity?
A: Our MOQ is one . Products of different size and specifications could be mixed in one container.
Q: How can I get samples and check your Quality?
A: We can offer samples for free.
Q: Can you do the production as customized?
A: Yes. We have a professional technique team, we could produce the glass depends on your requirements.
