Price:$3.80 - $8.00

Quantity:


Product Overview

Description

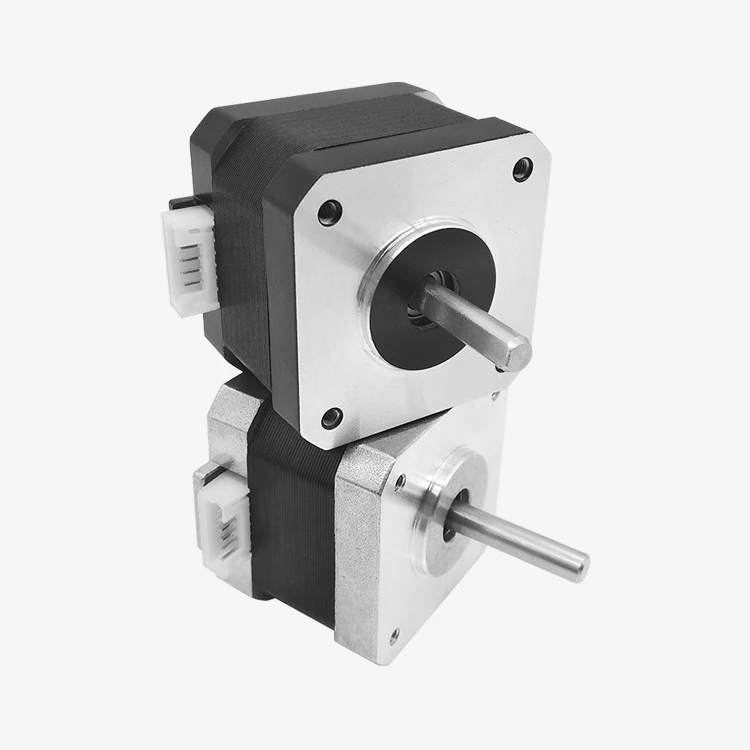

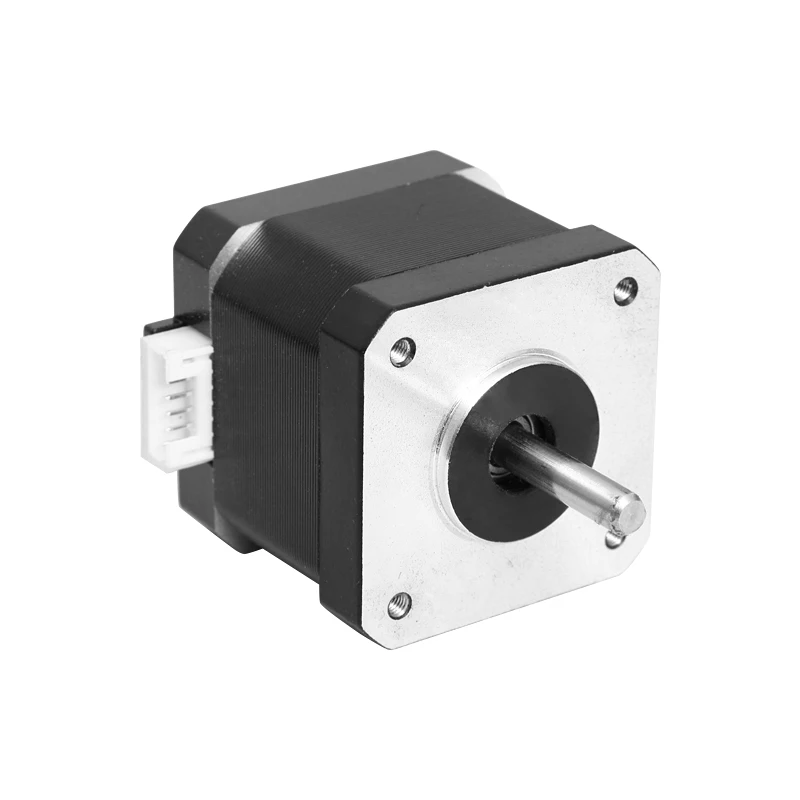

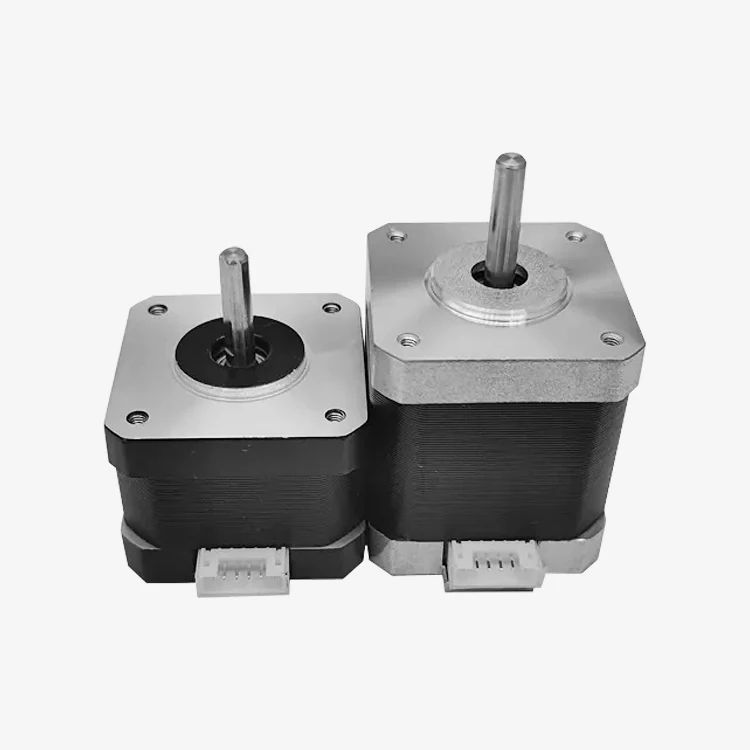

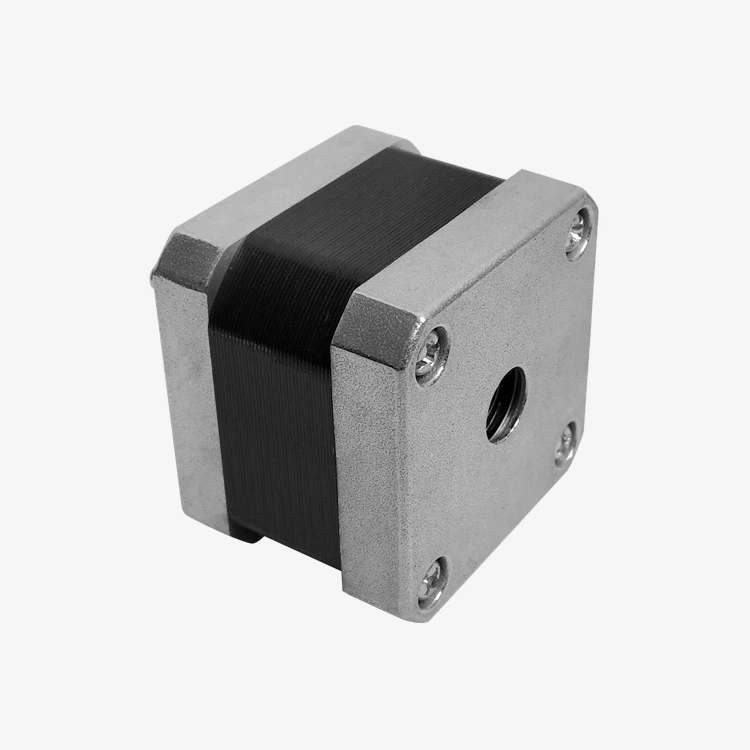

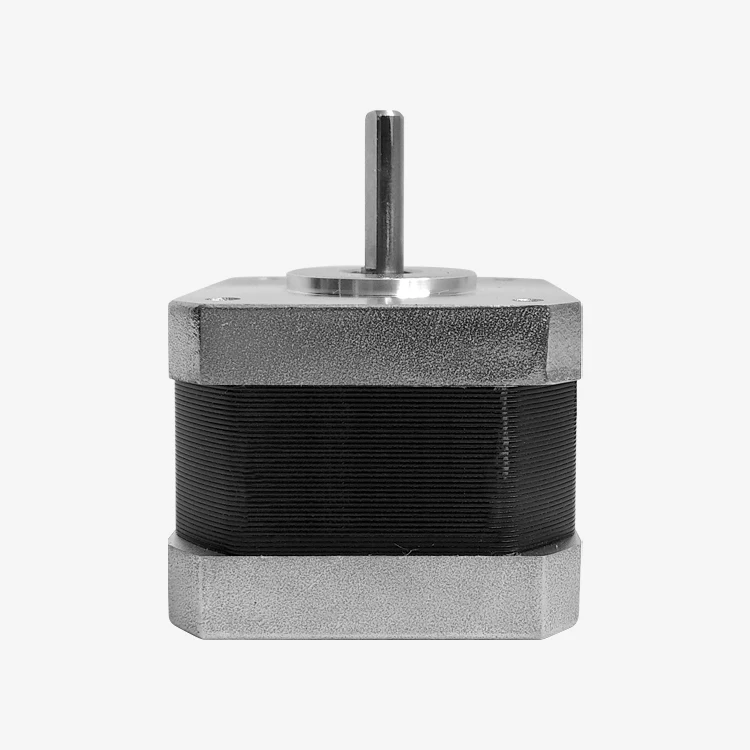

double shaft Stepper Motor Stepping Motor Nema 17


Product Description


Noted: If you need other motor, please send inquiry to us or contact us directly.


Features:
◆ Low noise
◆ Low fever
◆ Smooth operation
◆ Good acceleration performance


NEMA17 hybrid Stepper Motor


Motor Specification


Temperature Rise
80℃max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100 MΩ Min. ,500VDC
Dielectric Strength
500VAC for 1minute
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Max. radial force
28N (20mm from the flange)
Max. axial force
10N


Model No
Step Angle（°）
Rated Voltage（V）
Rated Current （A）
Phase Resistance（Ω）
Phase Inductance (mH)
Holding Torque (Kg.cm)
Motor Length (mm)
Leads No.
Motor Weight（Kg）
42HS29-0804
1.8
2.3
0.8
2.9
3
1.8
29
4
0.16
42HS34-0306
1.8
10.3
0.3
34.2
25.5
2.2
34
6
0.22
42HS34-0404
1.8
12.0
0.4
30
35
3.2
34
4
0.22
42HS34-0844
1.8
4.8
0.84
5.75
8
2.8
34
4
0.22
42HS34-1704
1.8
2.2
1.7
1.3
1.8
2.8
34
4
0.22
42HS40-0404
1.8
12.0
0.4
30
60
4.2
40
4
0.28
42HS40-0804
1.8
5.4
0.8
6.8
12
4.5
40
4
0.28
42HS40-1204
1.8
6.6
1.2
5.5
11
5.2
40
4
0.28
42HS40-1684
1.8
2.8
1.68
1.68
3.4
4
40
4
0.28
42HS40-1704
1.8
3.4
1.7
2
3
4
40
4
0.28
42HS40-1206
1.8
4.0
1.2
3.3
3.5
2.97
40
6
0.28
42HS48-0404
1.8
12.0
0.4
30
45
4.5
48
4
0.38
42HS48-1004
1.8
4.5
1
4.5
10
5
48
4
0.38
42HS48-1304
1.8
4.6
1.3
3.5
6.6
5.5
48
4
0.38
42HS48-1504
1.8
4.2
1.5
2.8
5.5
5.5
48
4
0.38
42HS48-1684
1.8
3.4
1.68
2
3.8
5.2
48
4
0.38
42HS48-0406
1.8
12.0
0.4
30
28
3.2
48
6
0.38
42HS52-1504
1.8
4.5
1.5
3
7
6.8
52
4
0.45
42HS60-1504
1.8
3.8
1.5
2.5
6
7
60
4
0.55


Above only for representative products, products of special request can be made according to the customer request.

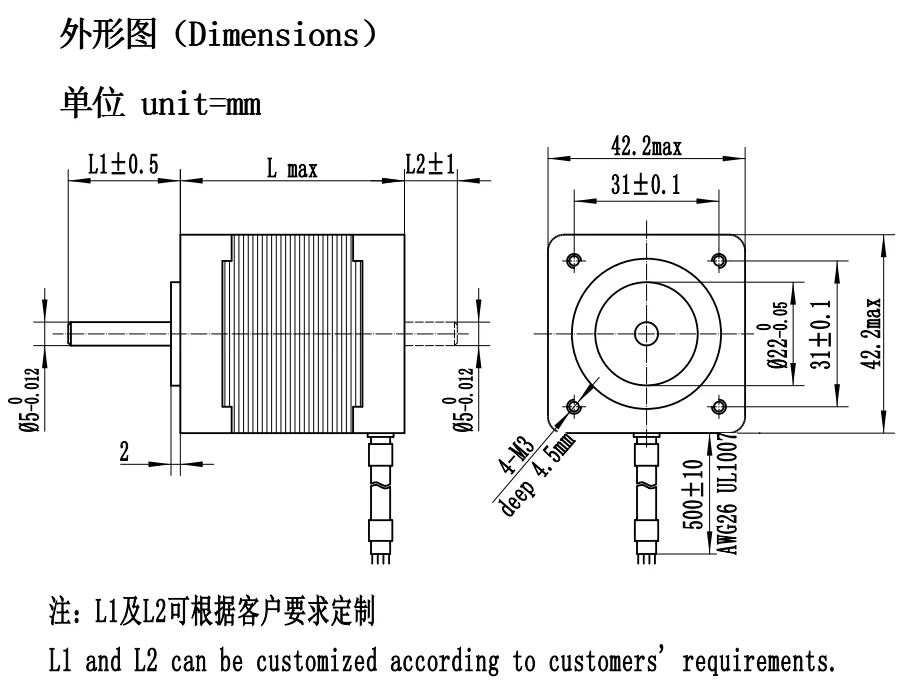

nema 17 flange Dimension (mm)

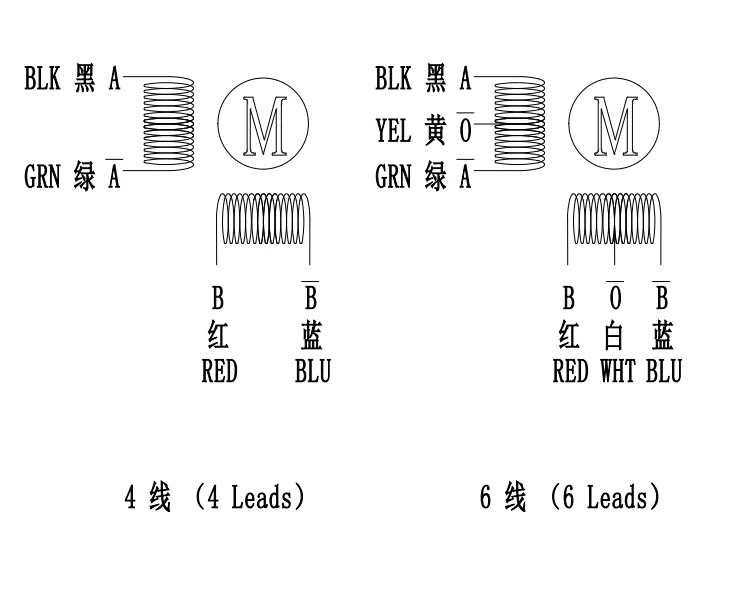

motor wiring diagram




Remark: Lead screw length and the nut for external type can be customized.


Motor Application:
Stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.


Customized Design




Packing & Delivery


Packing
Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.




Delivery
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptable.




Company Profile




Changzhou Maples Precision Electromechanical Co., Ltd is located in Changzhou close to Shanghai of China. It mainly sales hybrid stepper motors, stepper motor drives, brushless dc motors, brushless dc motor driver, and also agent servo motors, spindle motors, related drives, switching power supplies and accessories.
Our main goal is to become a professional supplier of mechanical and electrical products and provide customers with perfect after-sales service.
We have a professional technical team, who have extensive experience in the design and development of motor and motor drive products. We provide customers with a full range of services, including product customization and technical consultation. We have advanced equipment and experienced engineers that ensure our products meet customer needs and requirements. Our products are widely used in medical, industrial, commercial, and consumer applications. We strive to provide our customers with the highest quality products and services. We have a strict quality control system to ensure our products meet the industry standards. We are committed to providing our customers with the highest level of customer service. Our sales team is professional, knowledgeable, and dedicated to helping our customers achieve their goals.


FAQ


Q1: How to choose the suitable stepper motor?
A: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.
Q2: Any other methods to finalize the model?
A: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3: When can I get the drawing of stepper motor?
A: We will provide drawings of stepper motor after you place the order.
