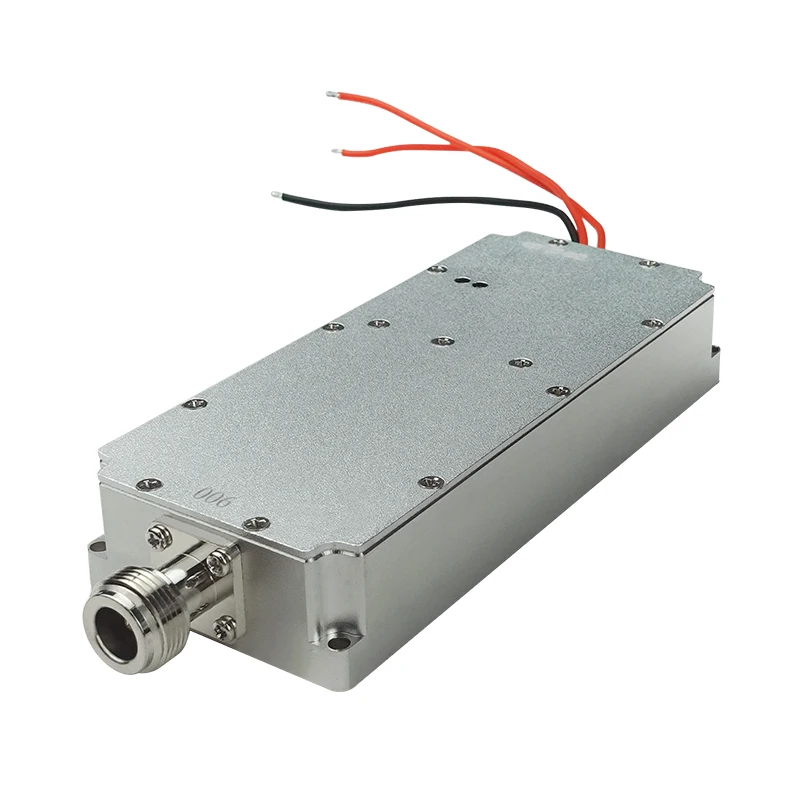

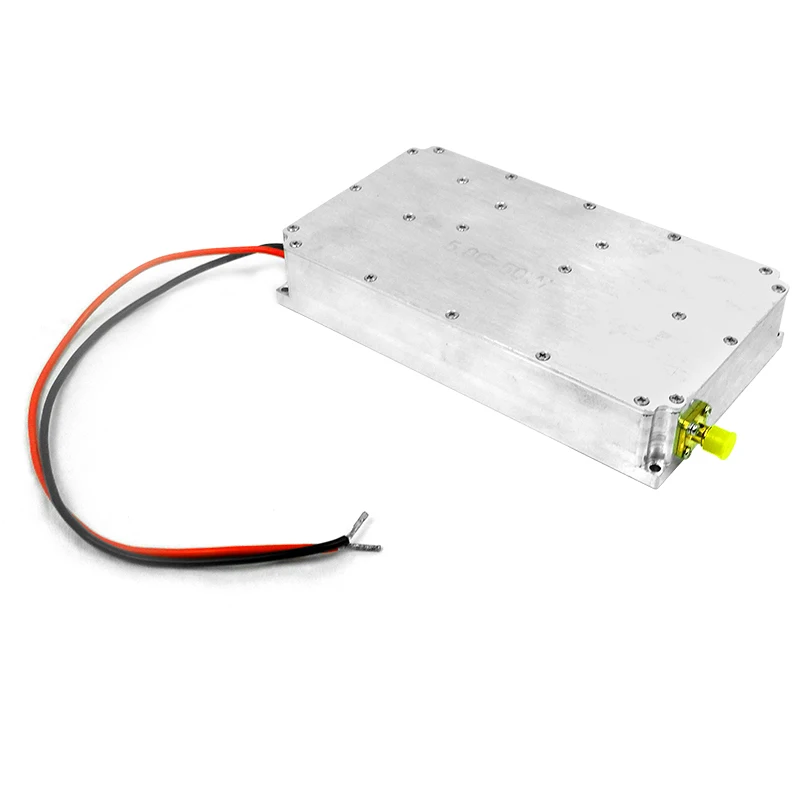

50W 47dBm UHF 1500 1650MHz RF PA for Anti Drone System
- Category: >>>
- Supplier: Shenzhen Rongxin Communications Co. Ltd.
Share on (1600865244688):
Product Overview
Description
Product Description
50W 47dBm UHF 1500-1650MHz RF PA for Drone Jammer
This module has the advantages of high average output power ( 50 W output in stable operation), good in-band flatness, and small offset between upper and lower sidebands.
Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）.
Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）.
Product details
Origin:Guangdong, China Brand :Rongxin
Name: Anti UAV module MHZ: 1.5G,Customize
Power: 50w KHZ:1550-1650
Quality Warranty:12 months Key word:Anti drone system
Name: Anti UAV module MHZ: 1.5G,Customize
Power: 50w KHZ:1550-1650
Quality Warranty:12 months Key word:Anti drone system
Main performance index
Index | Numerical value | Unit | Note | |||||||
Min | Typical | Max | ||||||||
Signal frequency | 2400 | 2500 | MHz | |||||||
Output power | 44.5 | 45 | 45.5 | dBm | ||||||
Band flatness | 1 | dB | ||||||||
Work current | 3.1 | A | ||||||||
Work voltage | 28 | 32 | V | |||||||
Work efficiency | 38 | % | ||||||||
Thermally offset of upper band | 8 | MHz | Module surface temperature: 85°C | |||||||
Thermally offset of bottom band | 8 | MHz | Module surface temperature: 85°C | |||||||
Weight | 0.22kg | |||||||||
Dimension | 131*60*18 mm | |||||||||
Note: 1. The positive terminal is connected to the core capacitor, and the negative terminal is connected to the edge of the shell. 2. Connect the power when the antenna is connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range. | ||||||||||
