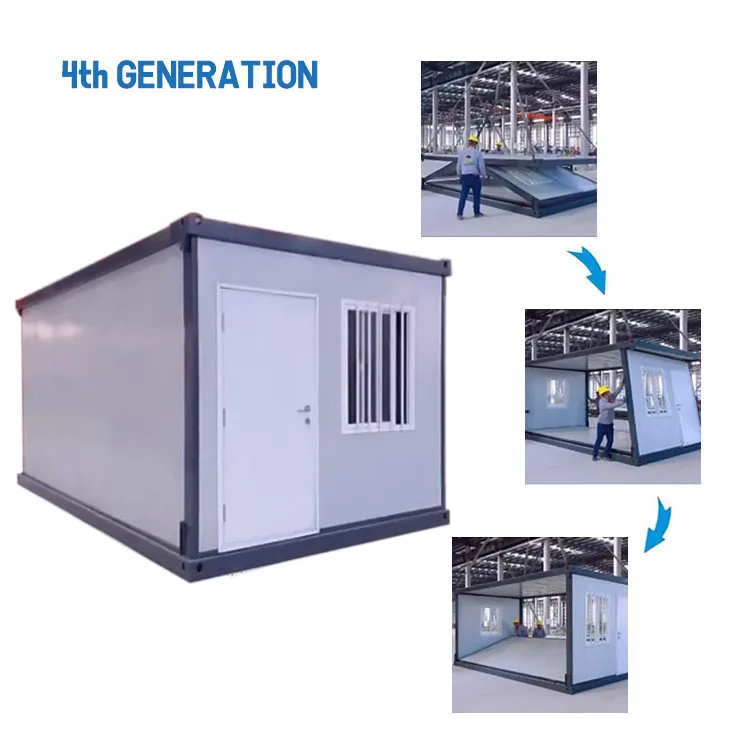

WinFair Foldable Shop Office Steel Fabricated Homes Modern Fold Out Folding Prefab Container Houses
- Category: >>>
- Supplier: GD WinFair Industrial Co. LTD
Share on (1600865253530):
Product Overview
Description
Products Description

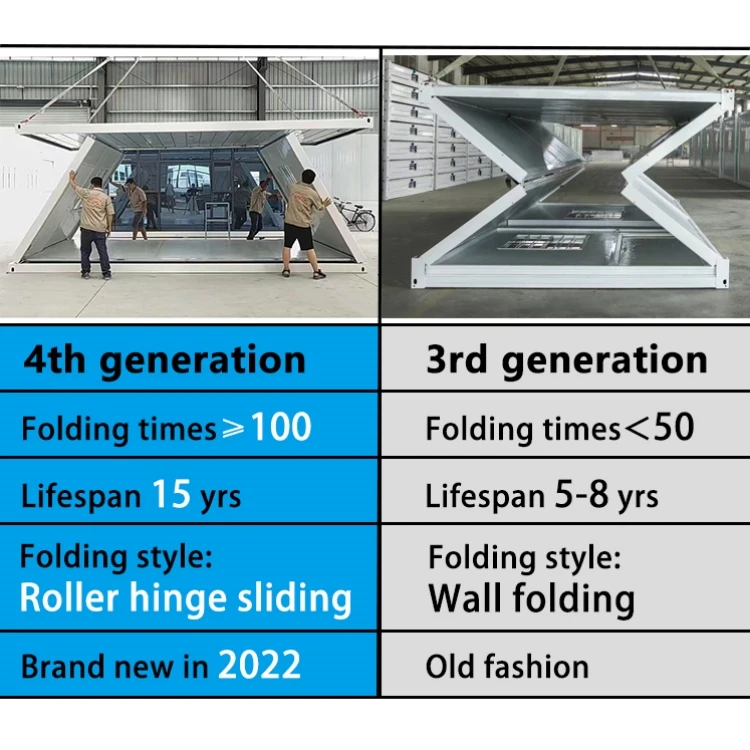

Folding container house （ 4th Generation） | ||||

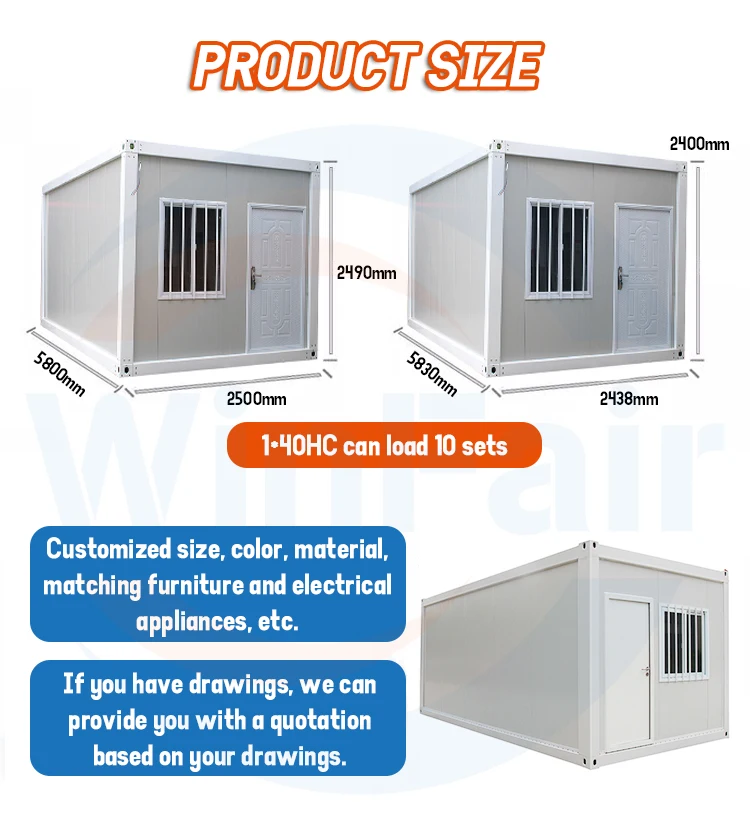

Product specifications | External dimension (mm) | 5800 *2500 *2490 / 5830*2438*2400 | ||
Internal dimension (mm) | 5600*2400*2400 | |||
Folding state (mm) | 5800*2500*440 | |||
Total mass (kg) | 1000~1300 Including doors and Windows and simple indoor electrical switch socket [1*40HQ It holds 10 sets] | |||

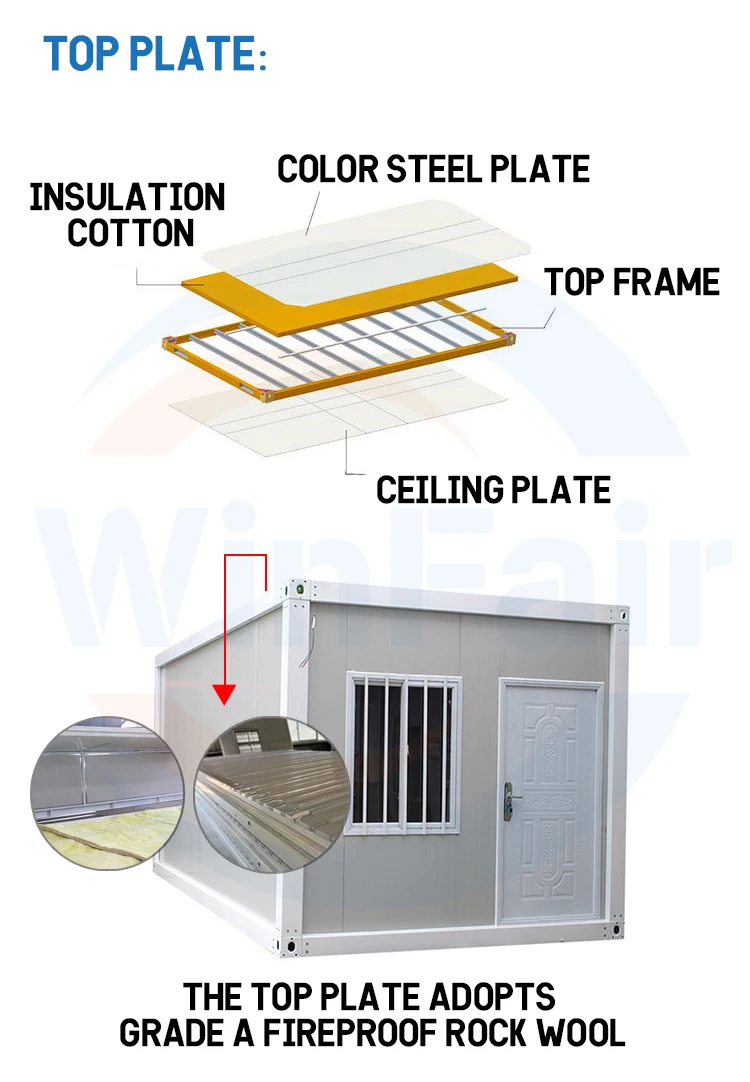

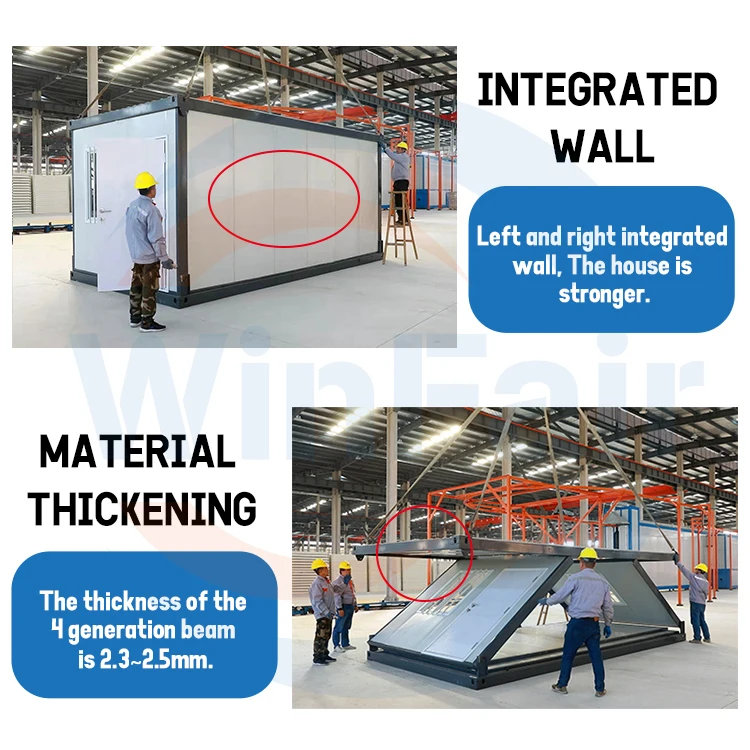

Main body frame2.3~2.5mm | Top frame | 2.3mm galvanized molding beam, zinc content 80g/㎡, 150 wide 5500mm long | ||
2.3mm galvanized molding beam, galvanized content 80g/㎡, 150 wide 2194mm long | ||||
Galvanized 30*50*1.2mm cross support, galvanized content 80g/㎡ | ||||
20*30*1.2mm galvanized square tube, zinc content 80g/square-meter | ||||
20*20*1.0mm galvanized square pipe, galvanized content 80g/㎡ | ||||
20-10mm 10mm galvanized square tube, zinc content 80g/square-meter | ||||
0.3mm 831 ceiling tile | ||||
Rolled cotton insulation layer | ||||
Type 50 lifting rail, 5595mm, galvanized content 80g/㎡ | ||||
Adapting piece | ||||

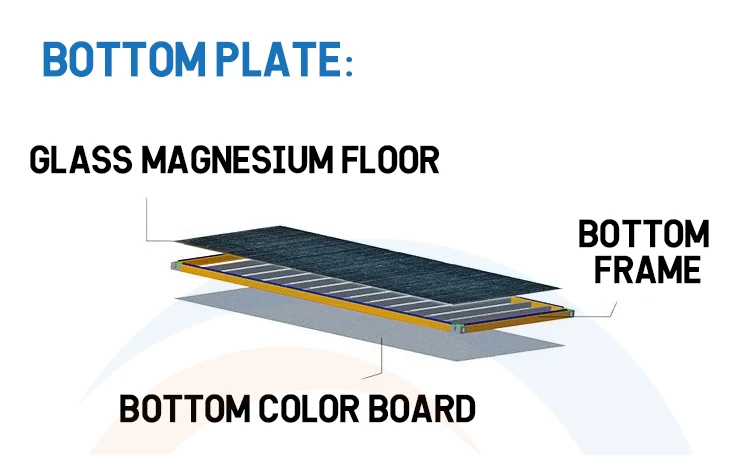

Bottom frame | 2.5mm galvanized molding beam, zinc content 80g/㎡, 150 wide 5800mm long | |||
2.5mm galvanized molding beam, galvanized content 80g/㎡, 150 width 2494mm long | ||||
Lower beam Angle steel flooding, 5800mm | ||||
Lower beam Angle steel flooding, 2494mm | ||||
Galvanized square pipe 40*60*1.7mm galvanized cross support, galvanized content 80g/㎡ | ||||
2.3mm galvanized column, galvanized content 80g/㎡ 150 wide, 150 wide 2195mm high | ||||
Connector 8.0mm, galvanized content 80g/㎡ | ||||
Alvanized Angle piece | 3.0mm Upper corner piece, galvanized content 80g/㎡ 150*150*150mm | |||
3.0mm Lower corner piece, galvanized content 80g/㎡ 150*150*150mm | ||||
Single tile capping | Skin top 0.4 color steel single shingle, vault, drainage around | |||
0.47mm color steel single tile, corrugated tile vault, special waterproof method | ||||
Moistureproof | Moisture-proof film, PE resin film 1.0mm | |||
Colour | Baking paint (electrostatic spray) | |||
Bolt | Inner hexagon | |||

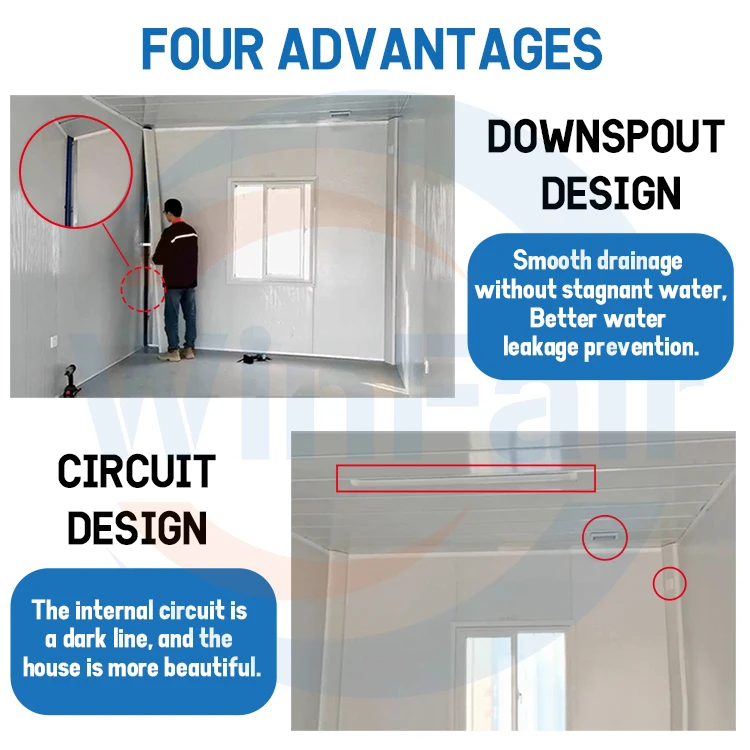

Downspout | Downspout | 50 Downspout | ||
Special Z parts | Z type part | The 0.8mmZ piece is fixed to the ceiling tile | ||
Ground | Cement fibrolite plate | 16mm thick, 1172*2815mm | ||
Plastic flooring | 1.6mm, floor leather | |||
Negative Angle line | Negative Angle line | PVC negative Angle wire | ||
Door | High grade steel door | 920*2030 steel door (950 wall panel) | ||
Window | Plastic steel window-proof window | 950*1200 single glass double push (950 type wall panel) | ||
Simple electric distribution | Simple electric distribution | Distribution box J-6 (1), 1 leak protection (32A), 2 five-hole 10A, 2 switches, 1 three-hole 16A, 2 strip cleaning lamps | ||
Wallboard | Model 1150 (Mouth H) | 50mm rock wool board, double-sided iron sheet 0.3MM bulk weight 50kg/m³ | ||
Load bearing/level | Roof bearing capacity | ≧50kg/m² | ||
Aisle bearing capacity | ≧200kg/m² | |||
Floor load bearing | ≧150kg/m² | |||
Wall side pressure | ≧80kg/m² | |||
Wall deformation coefficient | ≦300kg/m² | |||
Fire protection level | Class A | |||
Seismic grade | Level 10 | |||
Wind resistance rating | Level 11 | |||

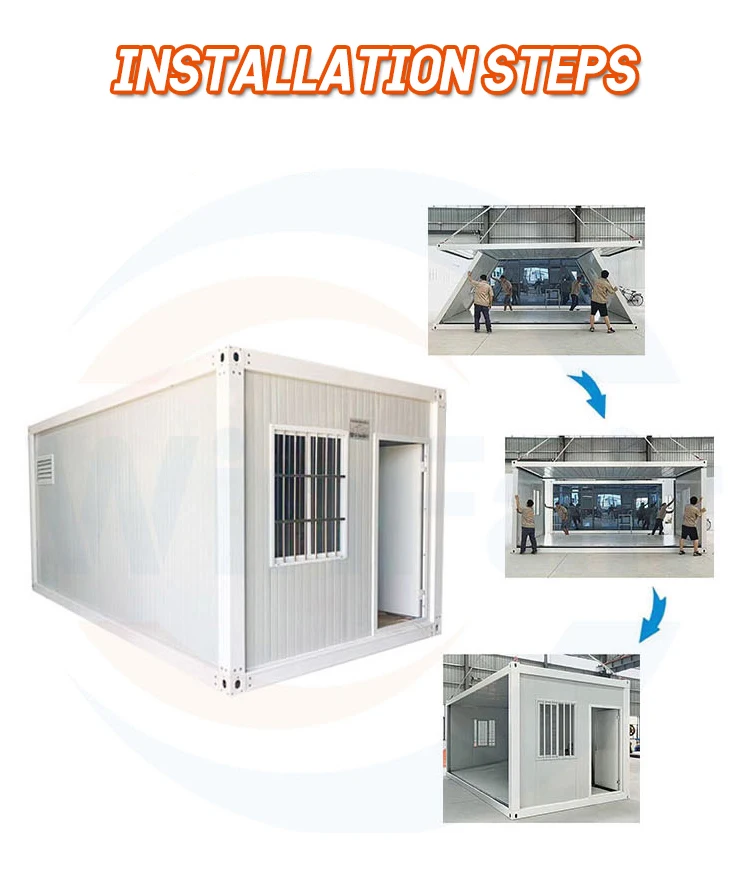

Product Installation

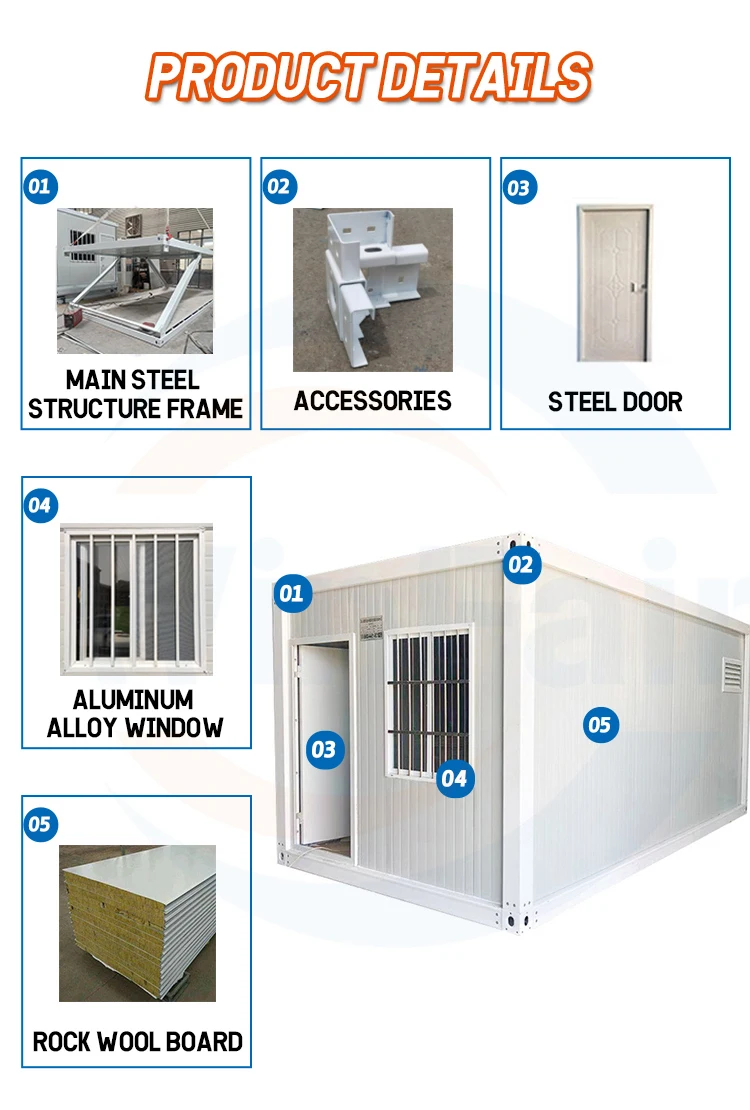

Product Details

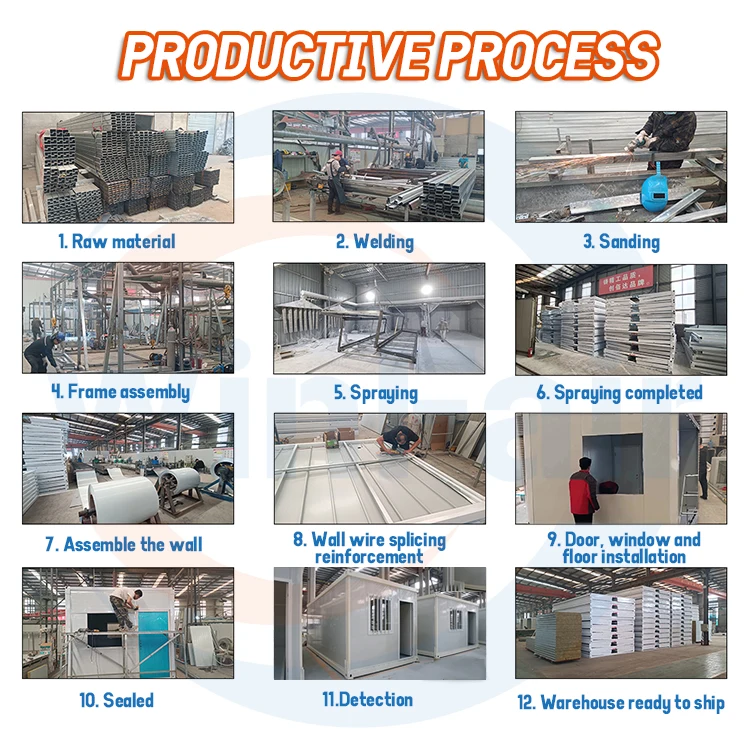

Product Production

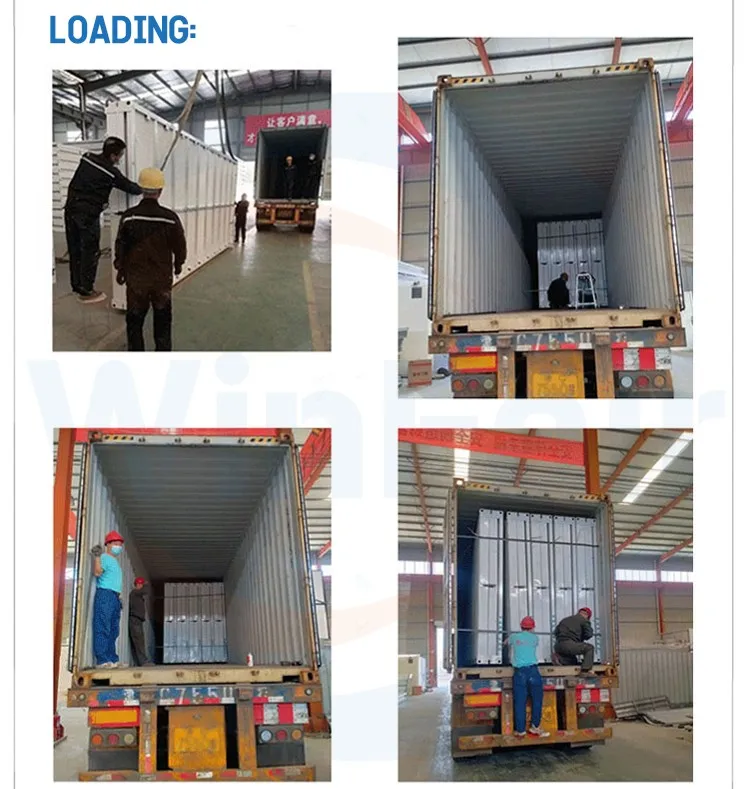

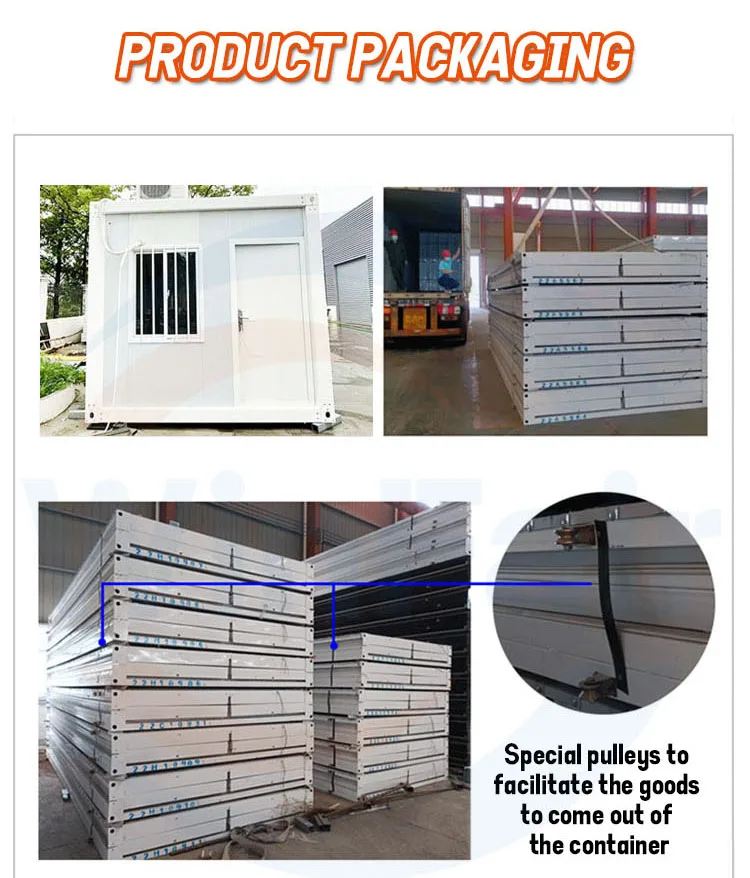

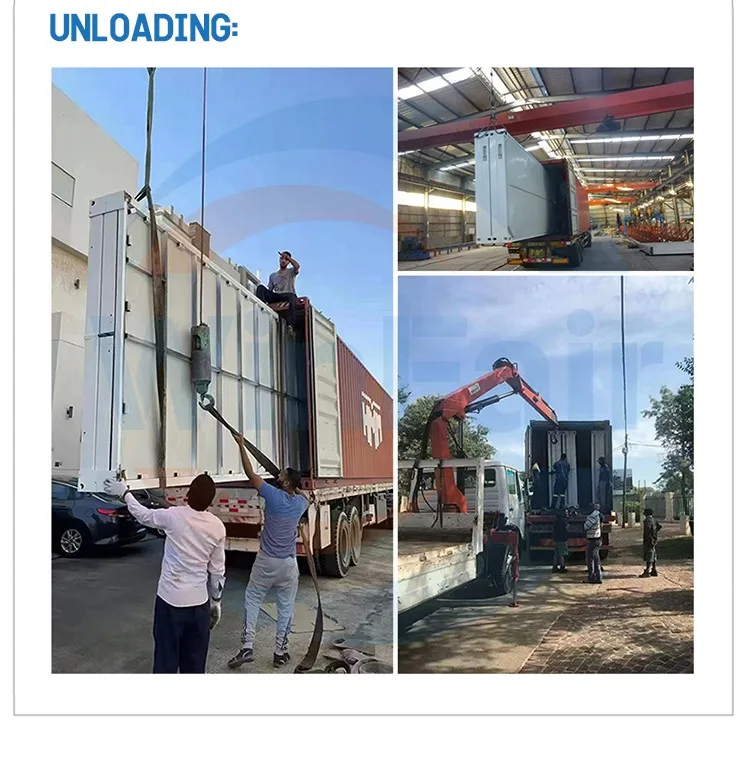

Packaging and Transportation

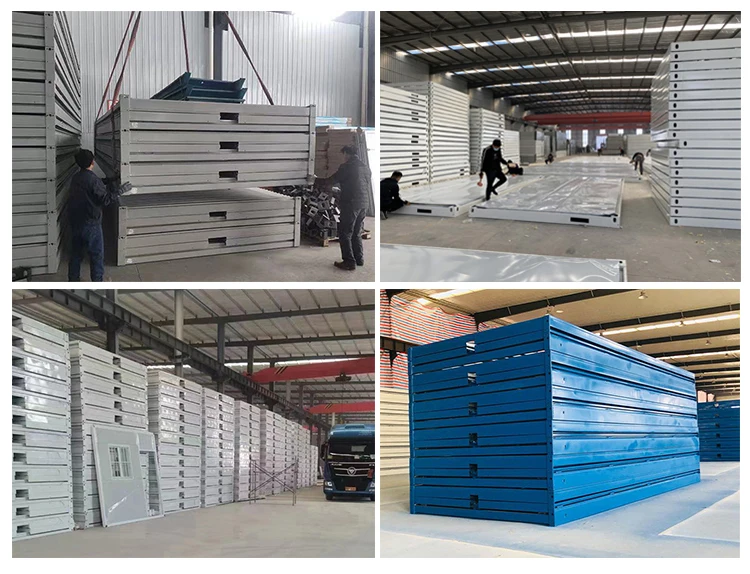

Product Workshop
Certifications
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3. What's your delivery time?
- subject to order quantity and order season.
4.What is your payment term?
- We only support wire transfer payment at present .
5.What is the shipping method?
-It can be transported by sea and land.
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price,please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3. What's your delivery time?
- subject to order quantity and order season.
4.What is your payment term?
- We only support wire transfer payment at present .
5.What is the shipping method?
-It can be transported by sea and land.
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
