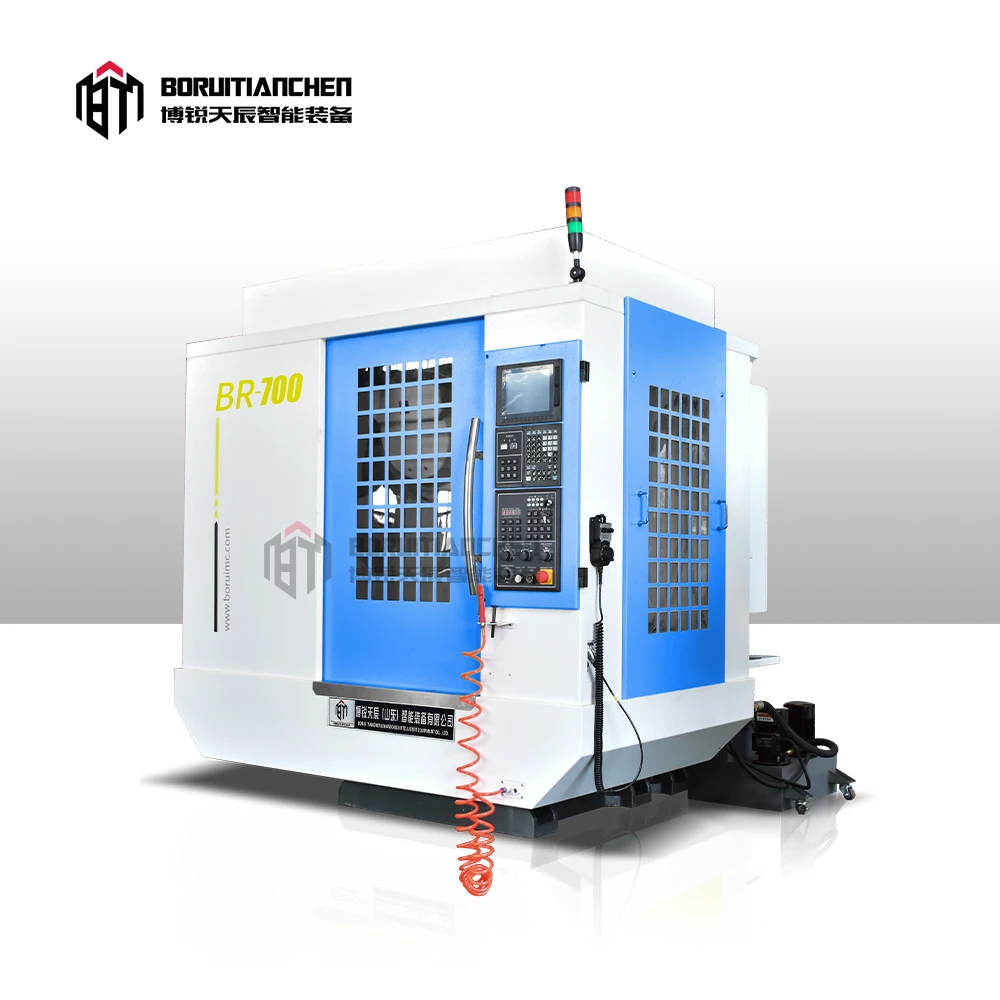

BR 700 CNC Turning Fast Drilling Machine Parts Service CNC Drilling And Milling Center
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600865293303):
Product Overview
Description
Products Description
Vertical drilling and tapping center is mainly used to process plate, disc, shell, mold and other parts with high precision,multiple processes and complex shape. It can continuously complete milling, drilling, reaming, reaming, boring, tapping and precise machining of two-dimensional three-dimensional curved surface and inclined plane in one clamping process. The processing is programmed and the production cycle is shortened, so that users can obtain good economic benefits.
Such cnc tapping center has following features:
1. the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology.
2. the inner metallographic structure is very steady.
3. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis.
4. the basic parts have high steel nature by collocating with the reinforcing rib.
5. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.

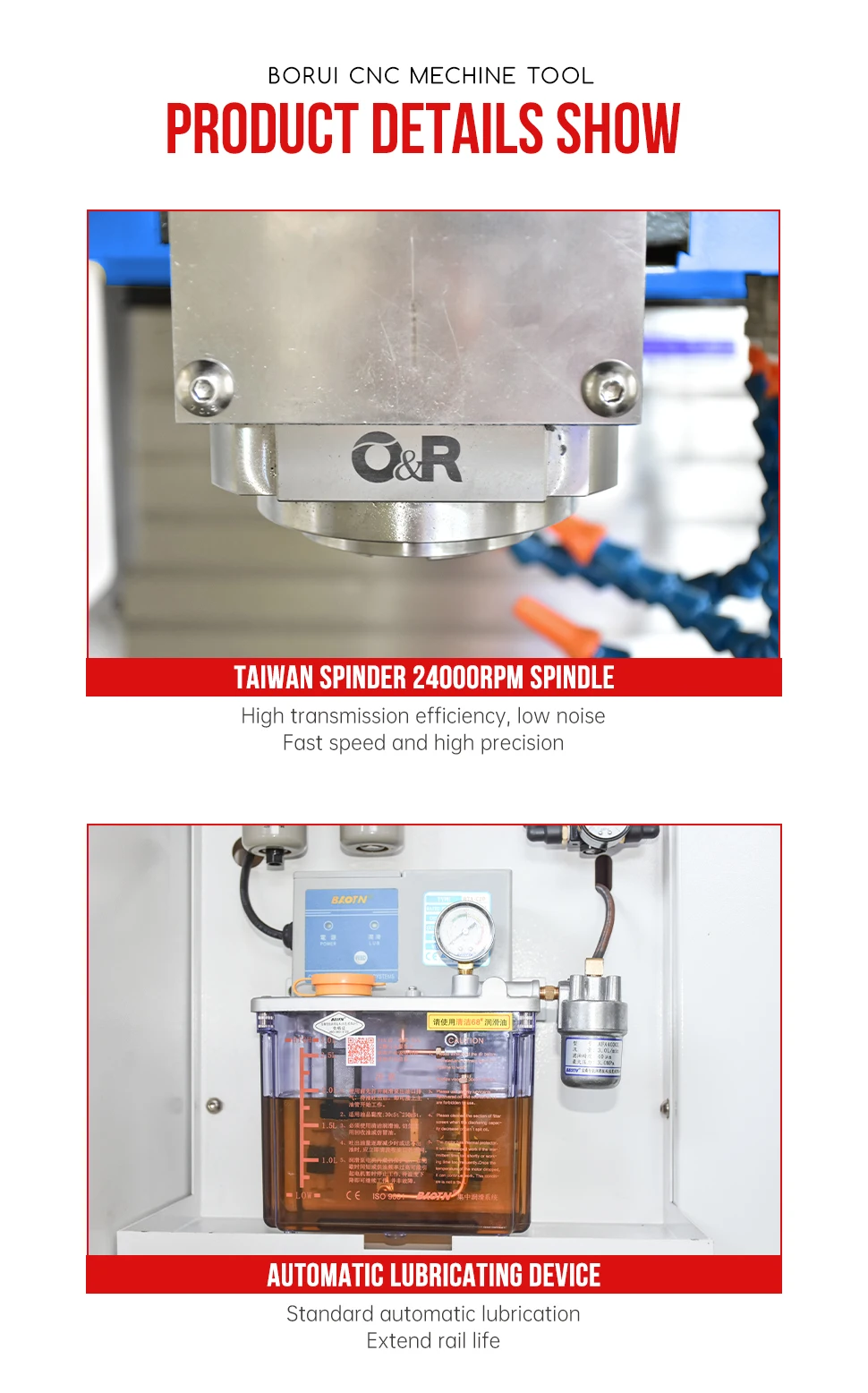

6. High speed and high precision spindle, max. can be 24000rpm.
7. CE Standard and CE Certificate.
1. the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology.
2. the inner metallographic structure is very steady.
3. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis.
4. the basic parts have high steel nature by collocating with the reinforcing rib.
5. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
6. High speed and high precision spindle, max. can be 24000rpm.
7. CE Standard and CE Certificate.
Product Parameters
Product name | Drilling and Tapping Center | ||||||
Model | Terms | BR—600 | BR—700 | ||||
X-axis Travel | mm | 600 | 700 | ||||
y-axis Travel | mm | 400 | 400 | ||||
Capacity | Z-axis Travel | mm | 350 | 350 | |||
Spindle nose to table surface | mm | 135-485 | 135-485 | ||||
Spindle | Spindle Speed | rpm | 20000/24000 | 20000/24000 | |||

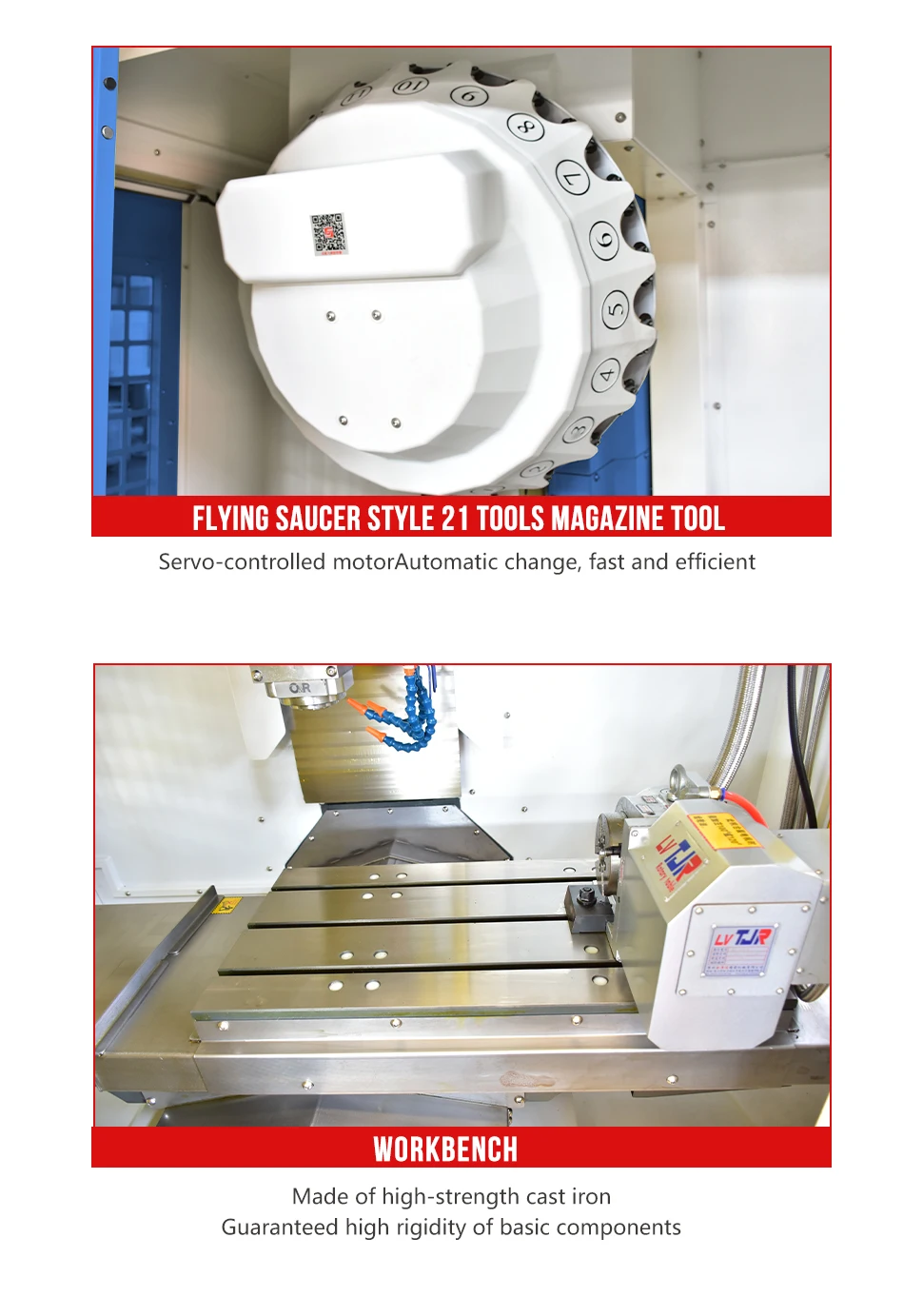

Tool storage capacity | PCS | 21 | 21 | ||||
Max.tool diameter (adjacent tools) | mm | 1200*600 | 1300*700 | ||||
A.T.C | Max tool length | mm | 250 | 250 | |||
Max tool weight | kg | 3 | 3 | ||||
Tool change time(T-T) | sec | 1.6 | 1.6 | ||||
Motor | Spindle power (30-minute stop-motion) | kw | 3.7/5.5 | 3.7/5.5 | |||
X/Y/Z-axis motor power | kw | 1.5/1.5/3.0 | 1.5/1.5/3.0 | ||||

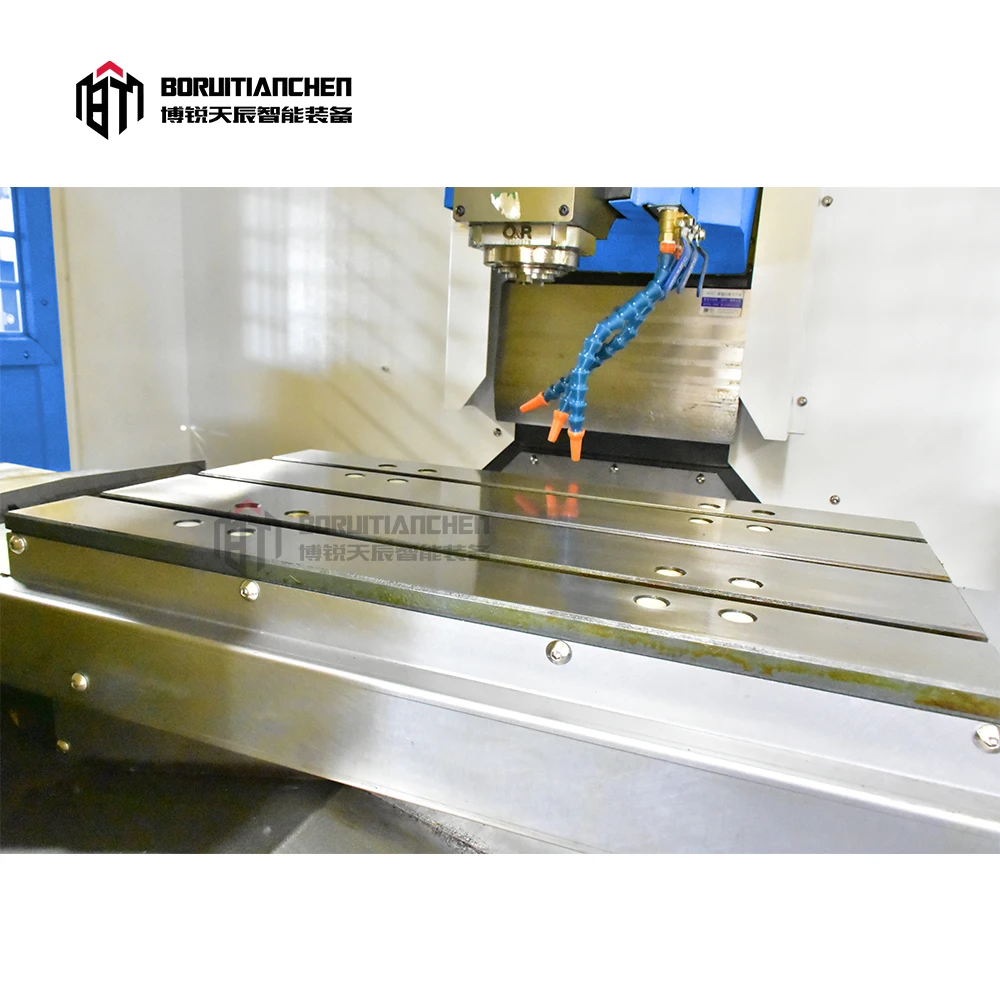

Worktable | Table size | mm | 700x420 | 700x420 | |||
Table T slot size (No. - width) | mm | 3*14*125 | 3*14*125 | ||||
Worktable-Loading | kg | 300 | 300 | ||||
Fast Rapid | X-axis fast rapid | m/min | 48 | 48 | |||
Y-axis fast rapid | m/min | 48 | 48 | ||||
Z-axis fast rapid | m/min | 48 | 48 | ||||
Cutting feed rate | Mm/min | 5-20000 | 5-20000 | ||||
Accuracy | Positioning accuracy | mm | ±0.003/300 | ±0.003/300 | |||
Repeatability positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ||||
Machine size | Weight | kg | 3500 | 3500 | |||
Power demand | KVA | 20 | 20 | ||||
Overall Size | mm | 2220X1900X2300 | 2220X1900X2300 | ||||
Tank capacity | L | 210 | 210 | ||||
Compressed air | Kg/m2 | 6--8 | 6--8 | ||||
Product Details
Recommend Products
Company Profile
Product Packaging
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
A: MOQ is one set, and warranty is one year.
2.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
A : FOB, CFR,CIF or others terms are all acceptable.
6. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
