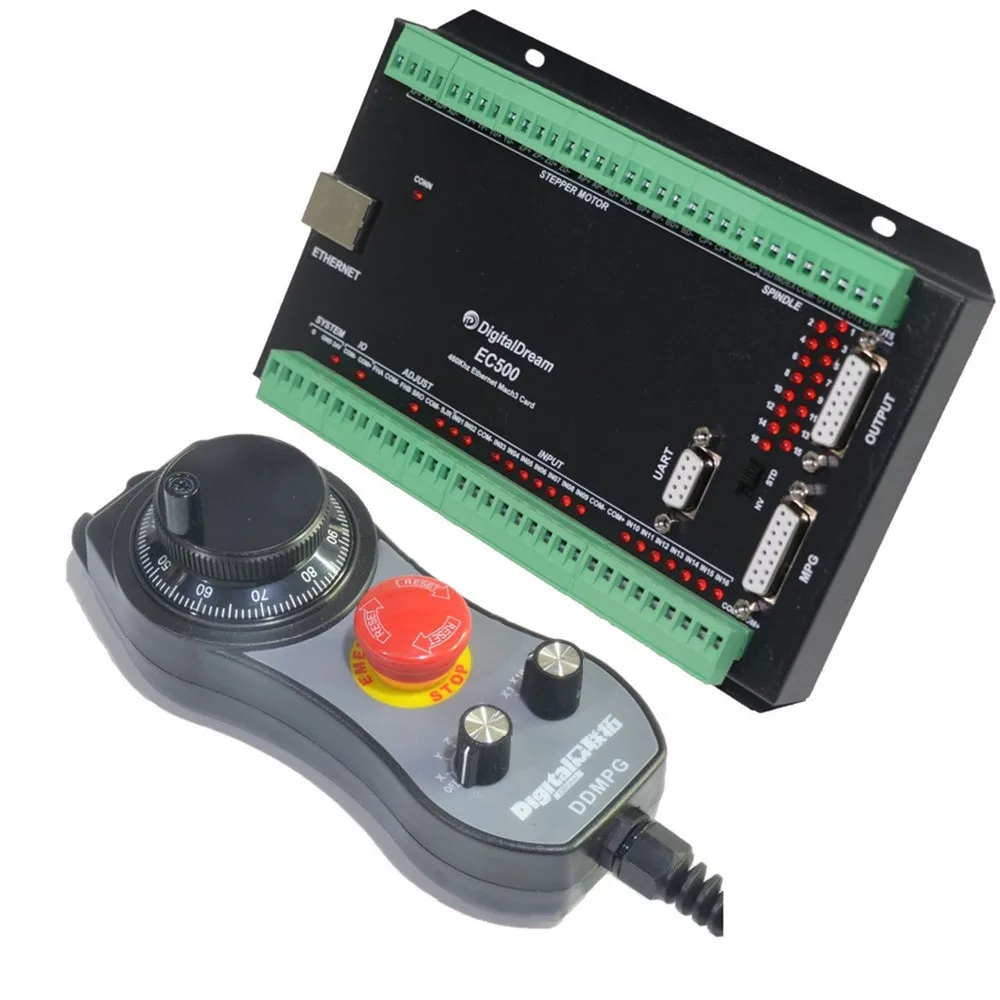

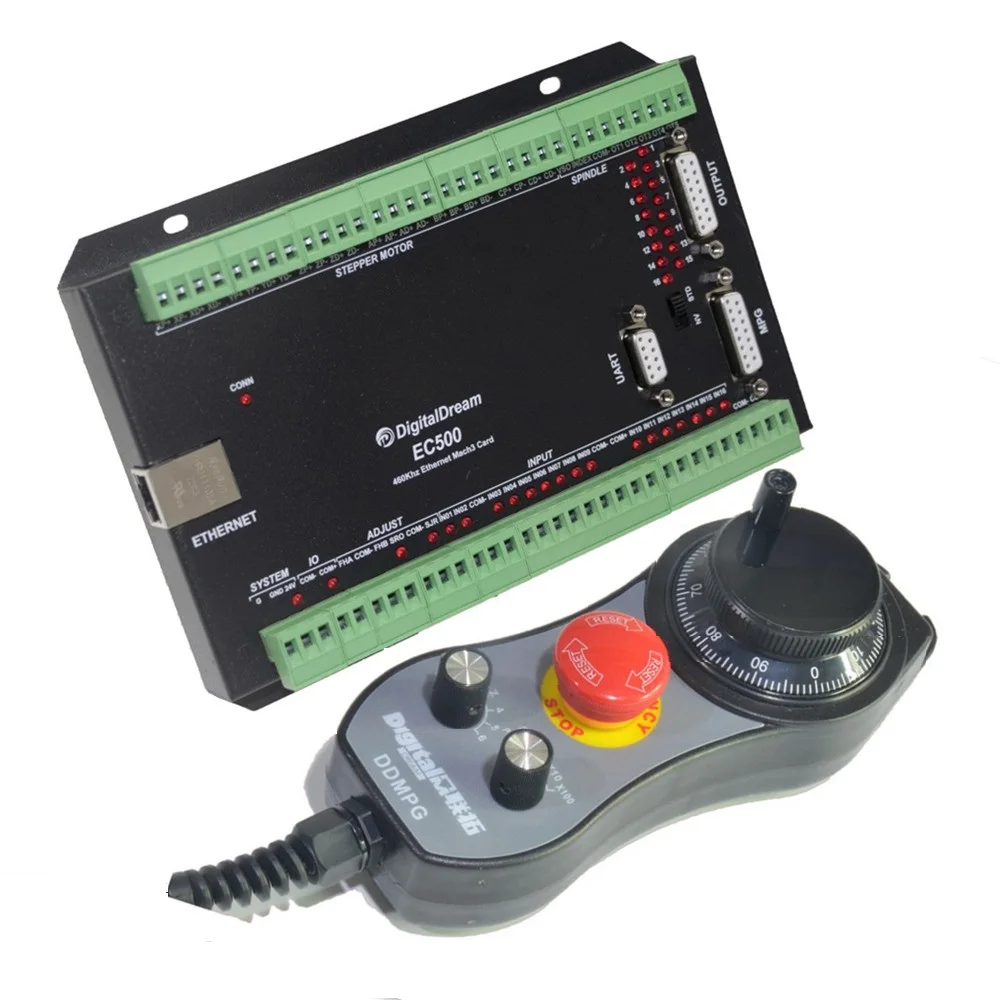

Mach3 Interface Board Ec500 CNC Ethernet Motion Controller 460Khz 6 Axis Control Card For Cnc Engraving And Milling Machines
- Category: >>>
- Supplier: Shenzhen Digital Dream Numerical Technology Co. Ltd.
Share on (1600865326435):
Product Overview
Description
Recommend Products

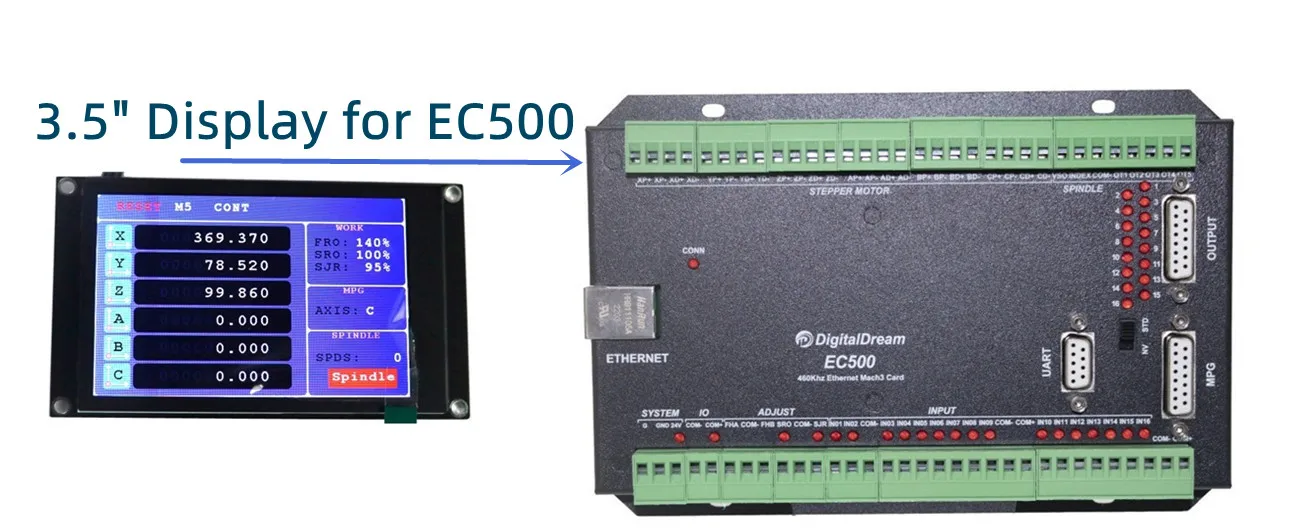

We designed and produced a display only for NEW EC500 Mach3 motion control card. Please click below picture for more details of the display. Please click the picture below to buy.
Products Description

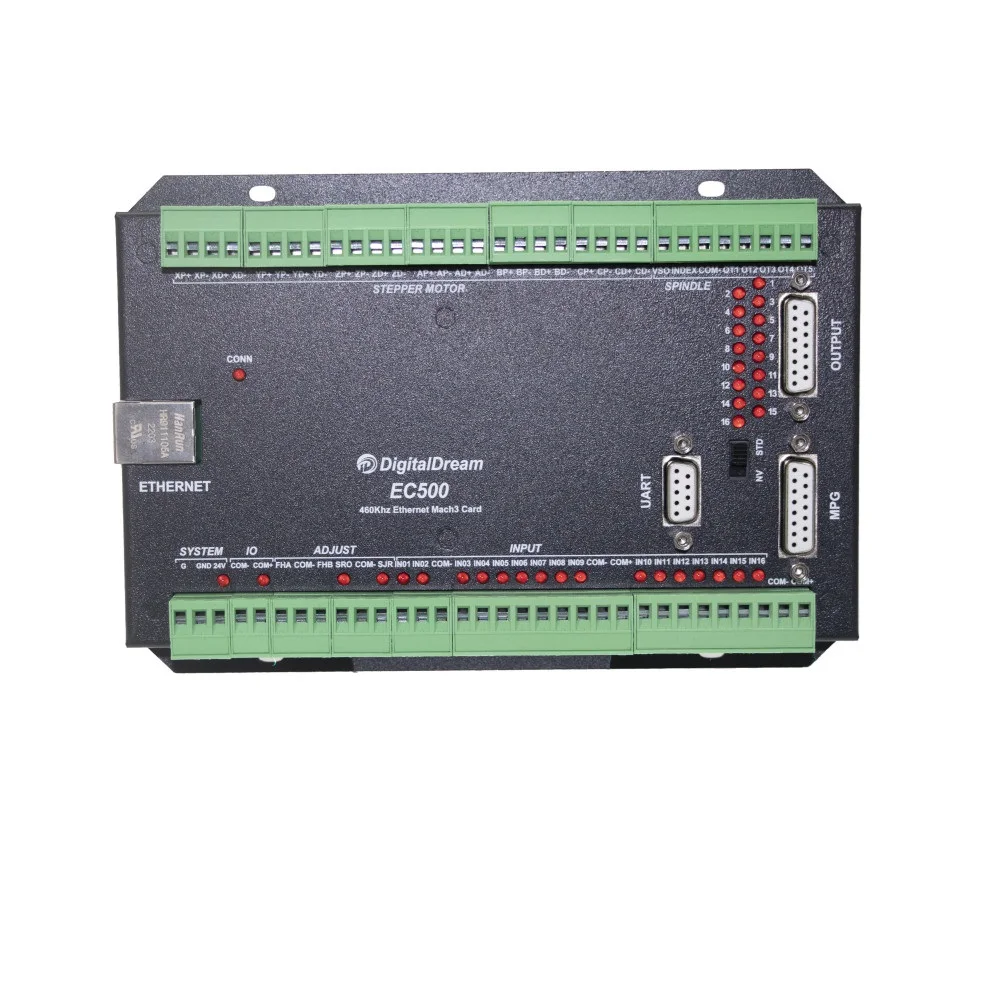

The EC500-V5 version is the newest upgraded 6axis CNC Motion controller for Stepper or Servo Motor controls, with pulse and direction interfaces & LED indicators, support 3/4/5 6 channels motor control systems, 460Khz pulse output for every axis, 2ms control cycle, the highest division is 256 and the highest current is 6A..etc. Has strong anti-interference ability, excellent design and convenient operation.
The EC500-V5 is a high-performance ethernet breakout board for Mach 3 software, through Ethernet to communicate with the connection of control computer's network. Compatible with MPG input, support stardand MPG & the digital display MPG of our company.
EC500V5 motion controller adopts the ARM design framework. Multi-Functional support the Mach3 software. With 18-channel optical coupler isolates common digital input interface, 16-channel optical coupler isolates common digital output interface, 1 channel 0-10v spindle speed regulating analog output interface which can be modified into PWM output.
The EC500-V5 is a high-performance ethernet breakout board for Mach 3 software, through Ethernet to communicate with the connection of control computer's network. Compatible with MPG input, support stardand MPG & the digital display MPG of our company.
EC500V5 motion controller adopts the ARM design framework. Multi-Functional support the Mach3 software. With 18-channel optical coupler isolates common digital input interface, 16-channel optical coupler isolates common digital output interface, 1 channel 0-10v spindle speed regulating analog output interface which can be modified into PWM output.
Brand: | Digital Dream | Warranty: | 1Year | ||
Item: | EC500 + DDMPG handwheel | Axis Optional: | 3Axis / 4Axis / 5Axis / 6Axis | ||
MOQ: | 1pc | Stock: | Rich | ||

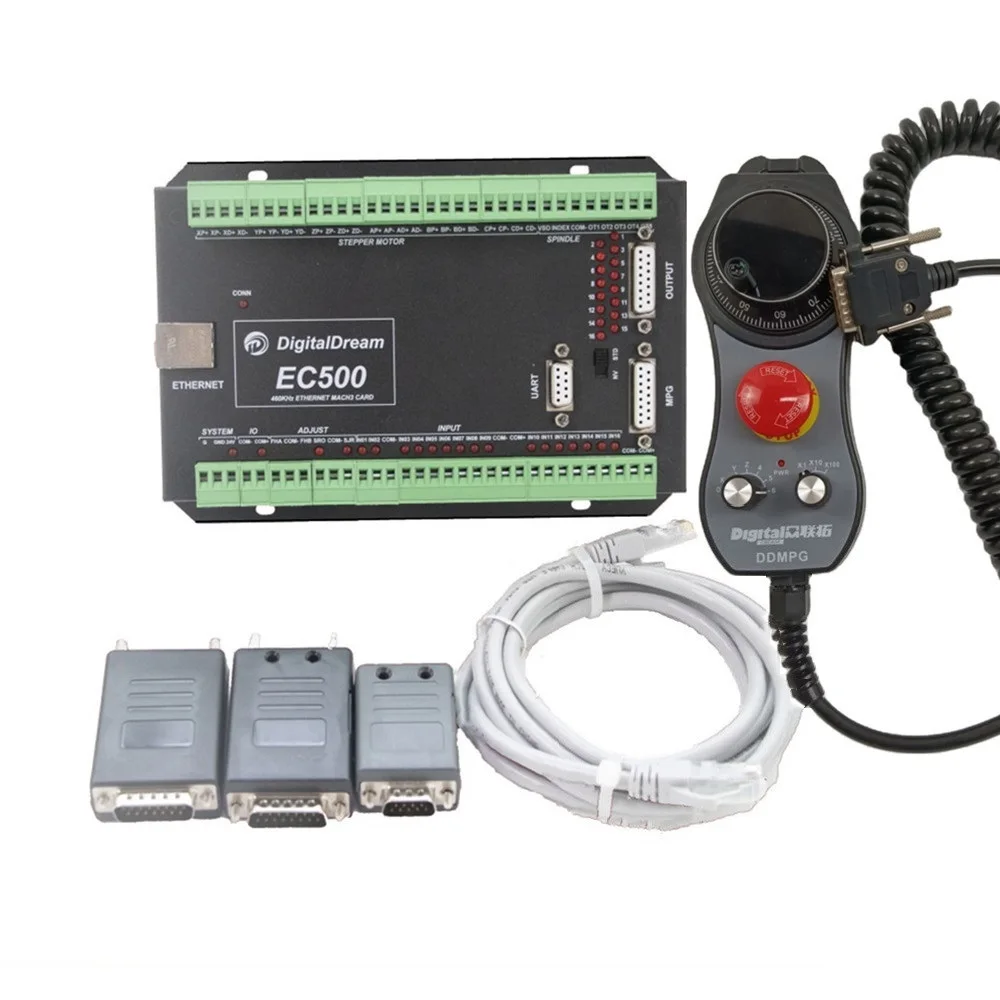

Package Includes: | * 1 x EC500 Motion Control Breakout Board (3/4/5/6 axis optionals) *1 x CNC 6 Axis DDMPG handwheel *1 x Hook(For DDMPG handwheel) * 1 x Standard Ethernet cable * 3 x Terminals (The User manual and DLL file will be provided, or also can download from our official website: www.ddcnc.com ) | ||||

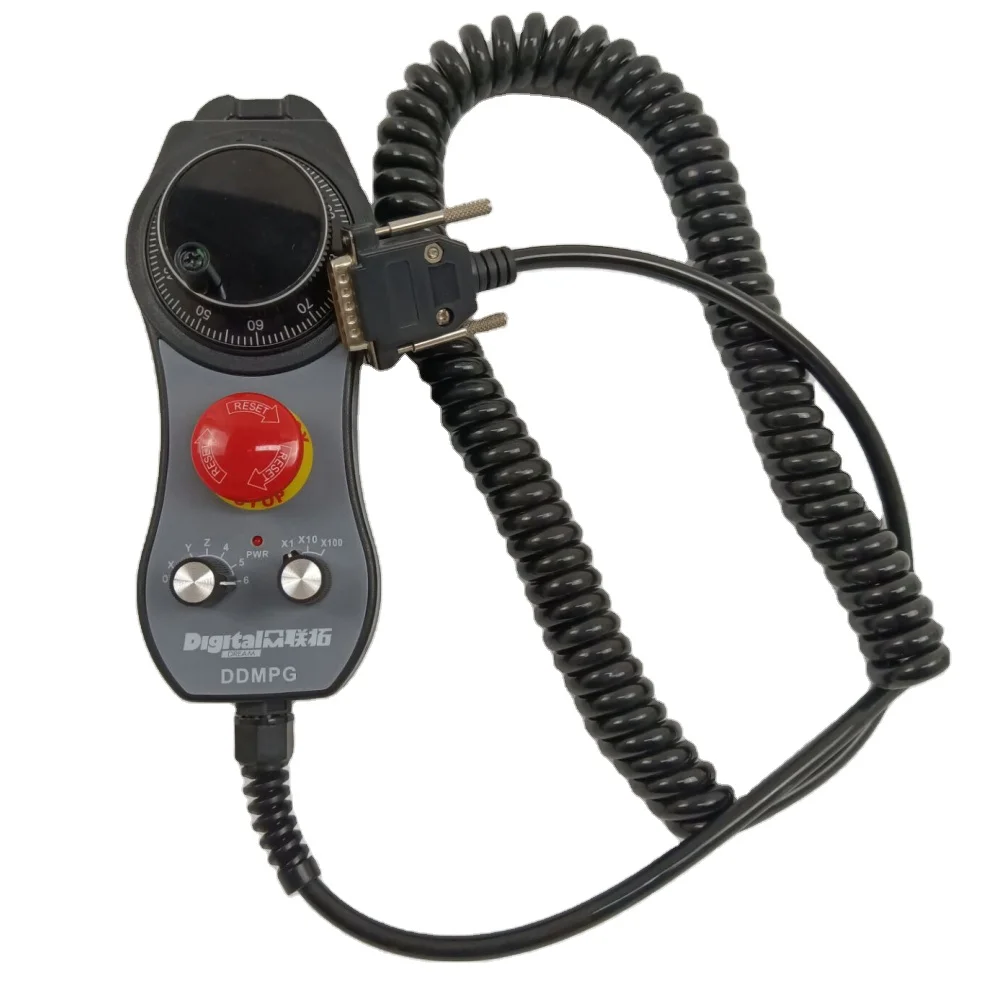

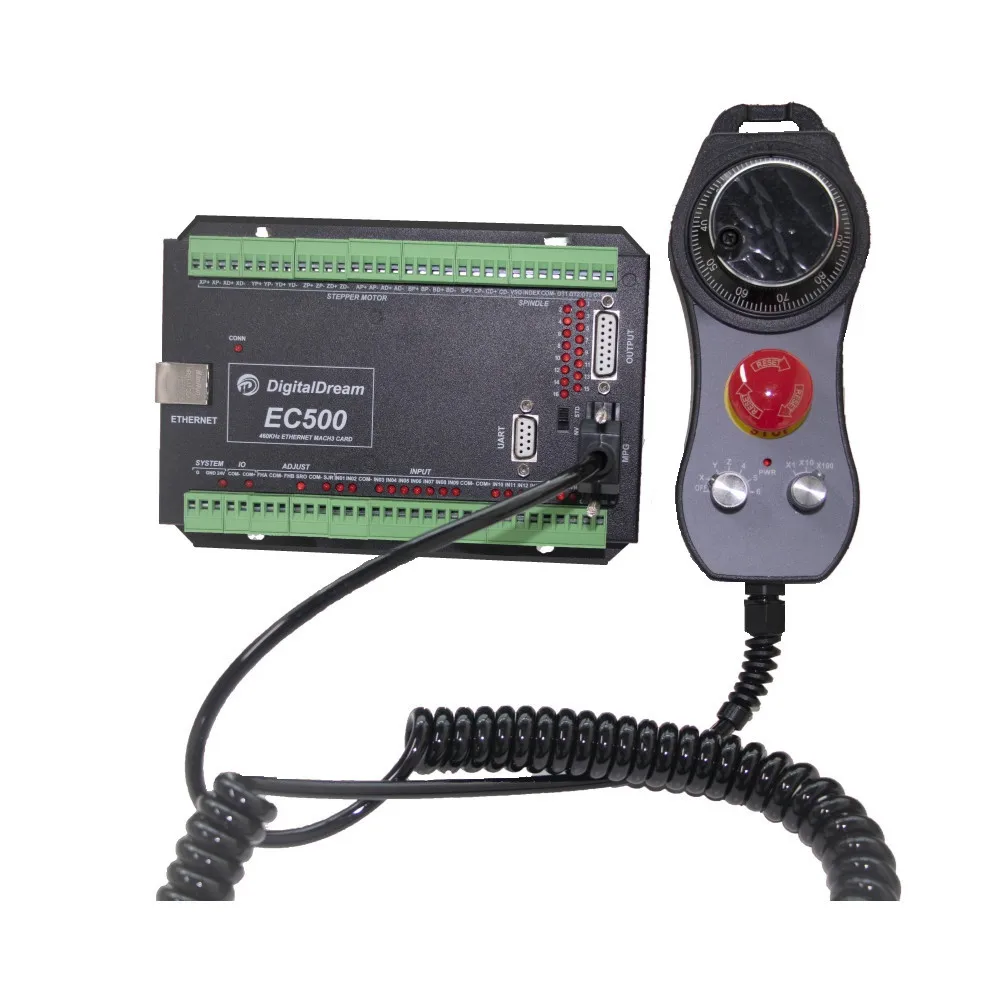

The DDMPG Handwheel---6Axis MPG Manual Pulse Generator compatible with EC500.

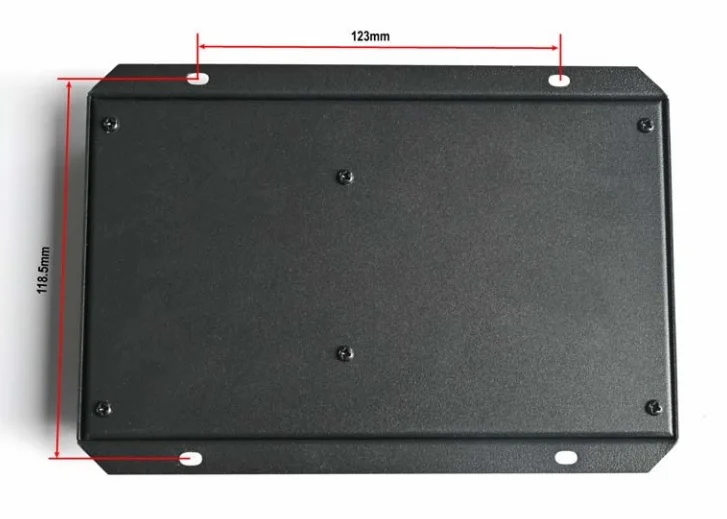

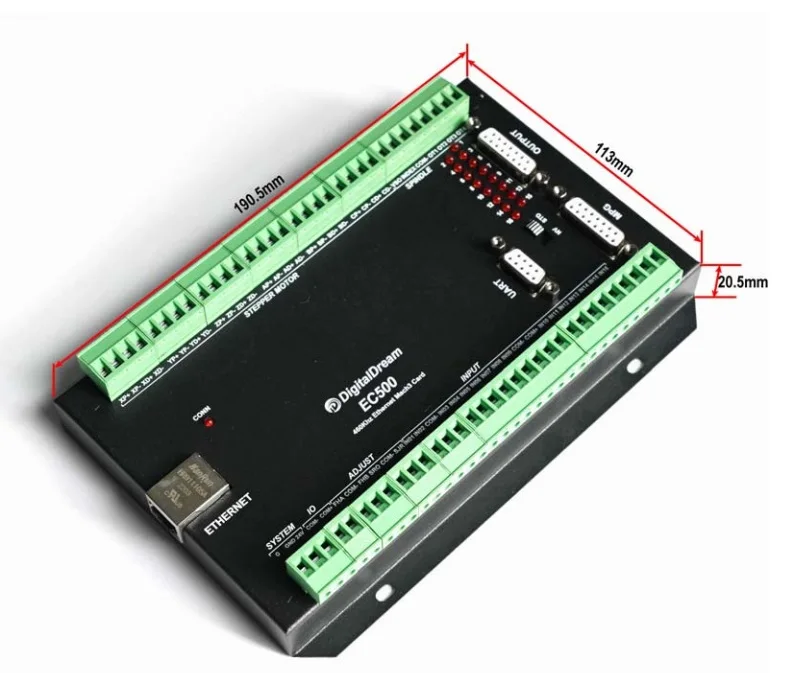

The EC500 motion controller is with the sealed shell structure, with 4pcs mounting holes around the controller. We can fix 4pcs 4mm diameter holes at the cabinet, and install the controller into the cabinet.

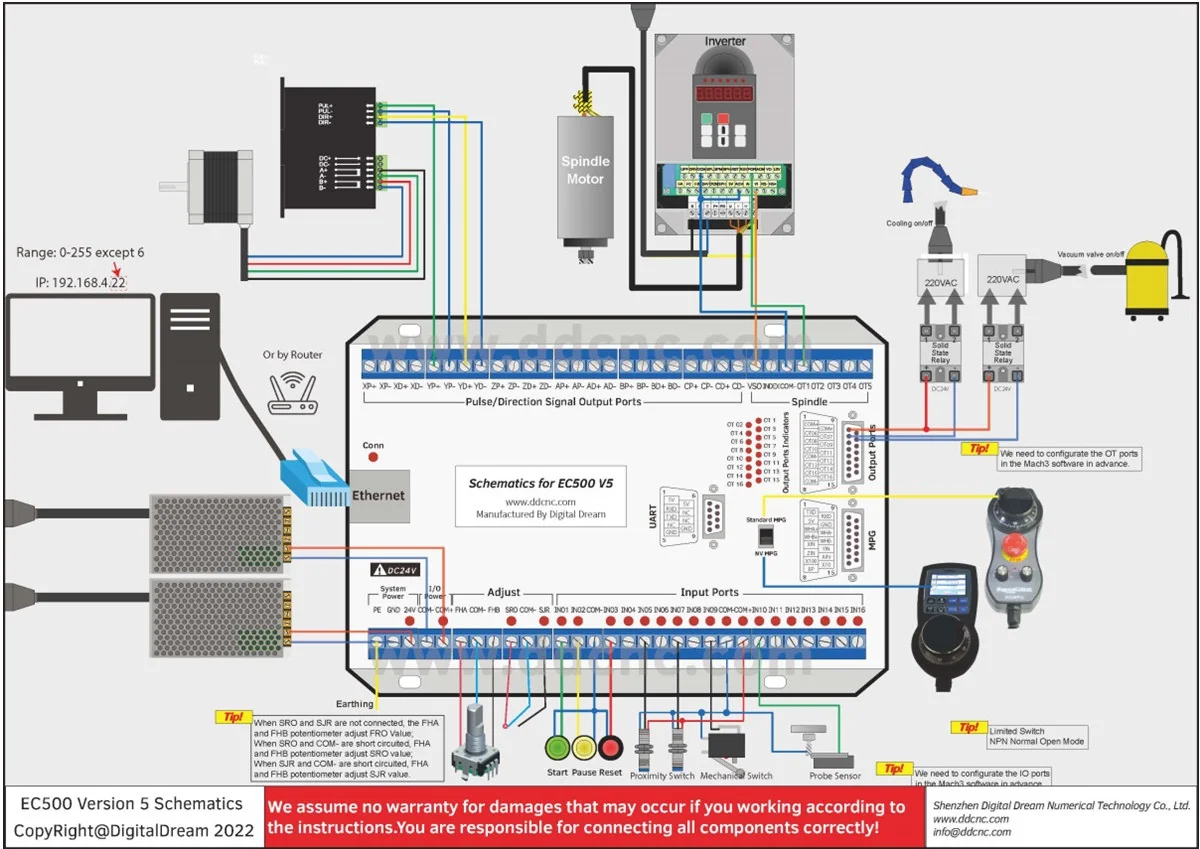

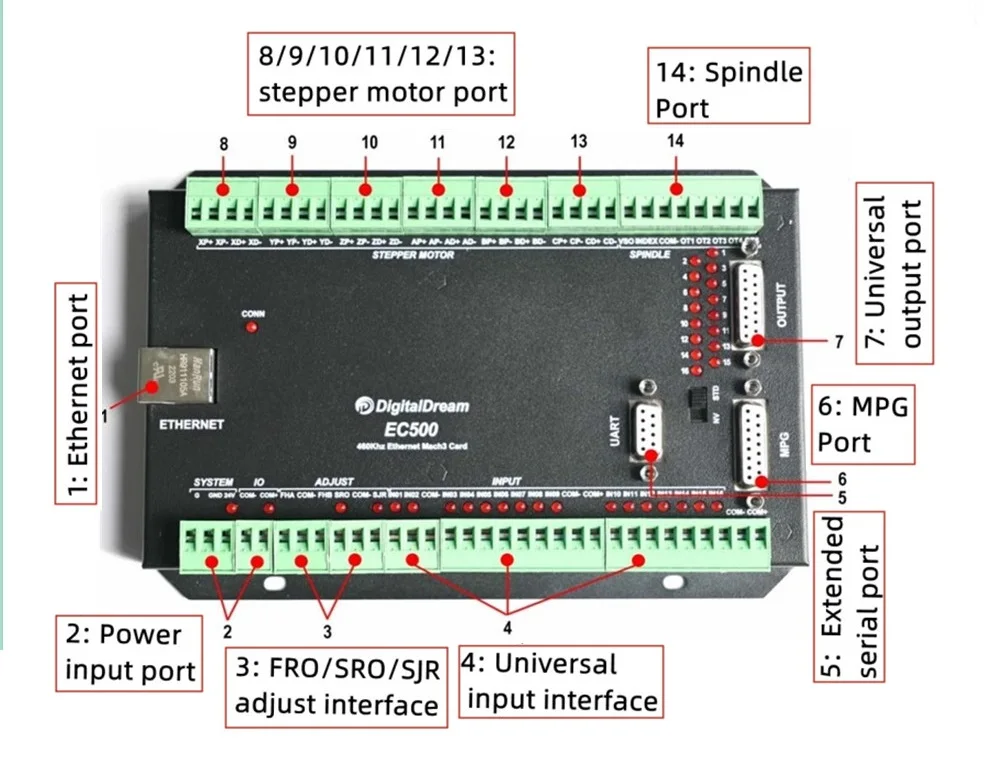

EC500 Wiring board define, the connection method Please check on the manual.
EC500 Wiring instruction
Warm Notice: Our Mach3 controllers do not support update for the moment, so please do not press " update" when you are using it.Or not, your controller may work not properly . Also, we do not support Mach 4 software.
Company Profile
China Manufacturer----Digital Dream has a 10 years history in the numerical control industry, specializing in the research,
development and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.
development and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.
Packaging & Shipping
Packaging----Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping---A. : Normally it takes 3-5 business days worldwide shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.) without delay.
If you are in the long distance area, it might be a little longer. If your country has special import policy, please contact us in
advance before confirming an order. In that case, we could negotiate a best shipping method for you.
B.: We can arrange shipment by sea. Minimum CBM requirements to be 1 CBM.
C.: .You can inform of us to use your own carrier account No., if it is convenient for you.
Shipping---A. : Normally it takes 3-5 business days worldwide shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.) without delay.
If you are in the long distance area, it might be a little longer. If your country has special import policy, please contact us in
advance before confirming an order. In that case, we could negotiate a best shipping method for you.
B.: We can arrange shipment by sea. Minimum CBM requirements to be 1 CBM.
C.: .You can inform of us to use your own carrier account No., if it is convenient for you.
Our Service
1.The friendly English Version manual is provided for free.
2. We offer 24 hours technical support on-line or you can send us your specific problem directly by email.
3.Warranty: 1 year limited and professional long-term technical support.
4.Free training to make sure you master the operating of our products.
5. We accept OEM/ODM, but the MOQ of OEM/ODM is 100 sets.
6. MOQ---1 set machine, mixed order is also welcomed.
2. We offer 24 hours technical support on-line or you can send us your specific problem directly by email.
3.Warranty: 1 year limited and professional long-term technical support.
4.Free training to make sure you master the operating of our products.
5. We accept OEM/ODM, but the MOQ of OEM/ODM is 100 sets.
6. MOQ---1 set machine, mixed order is also welcomed.
