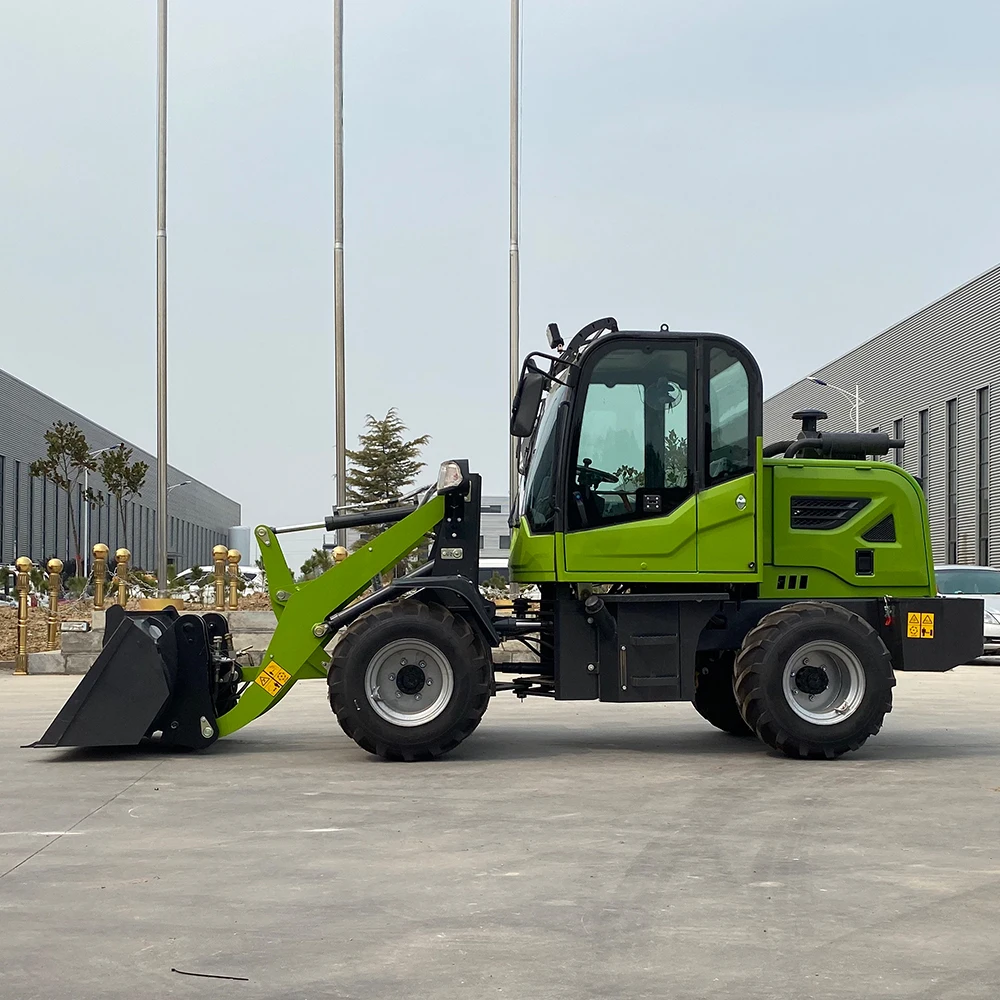

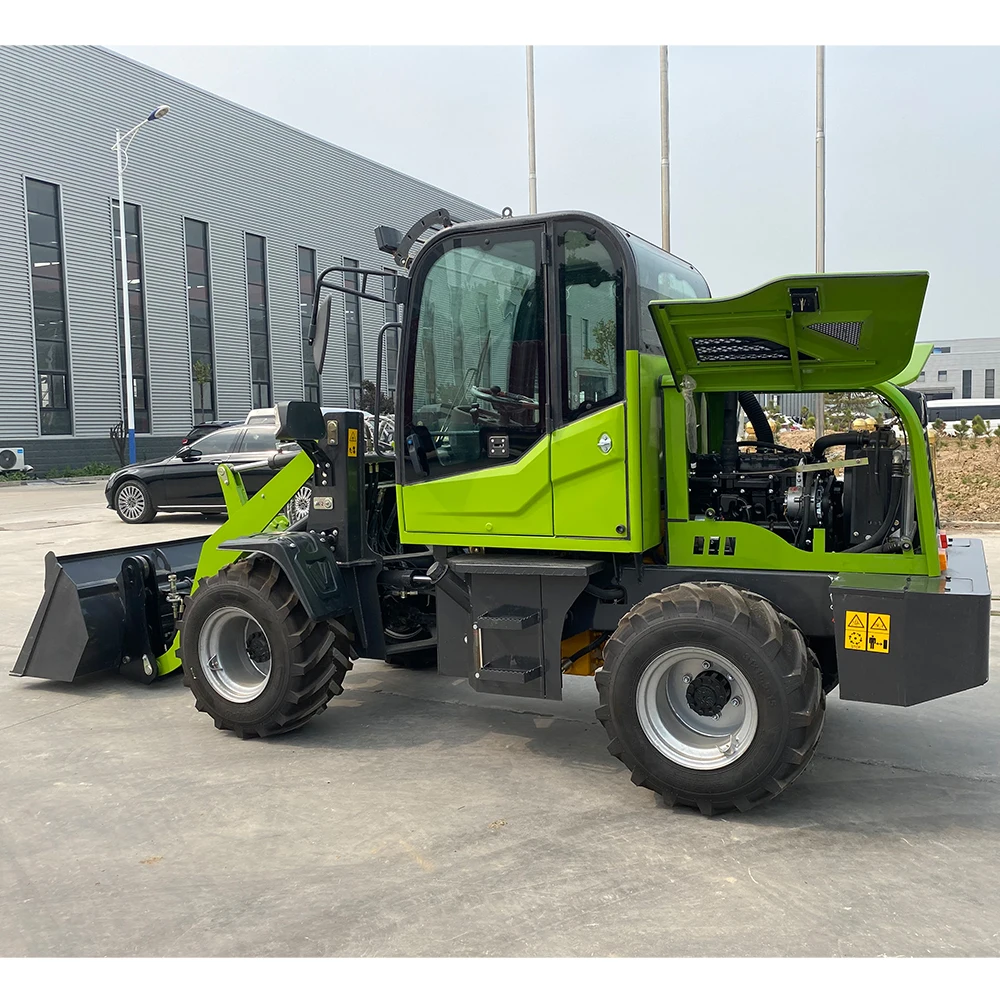

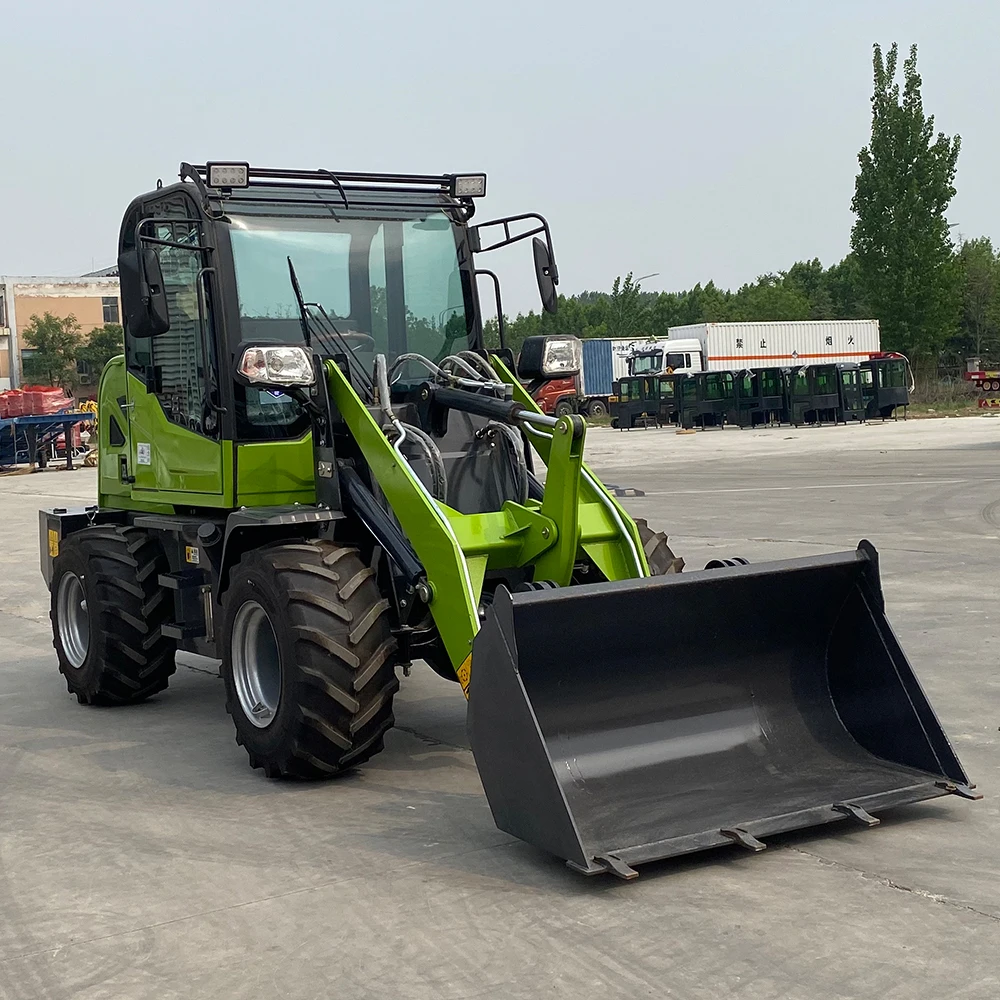

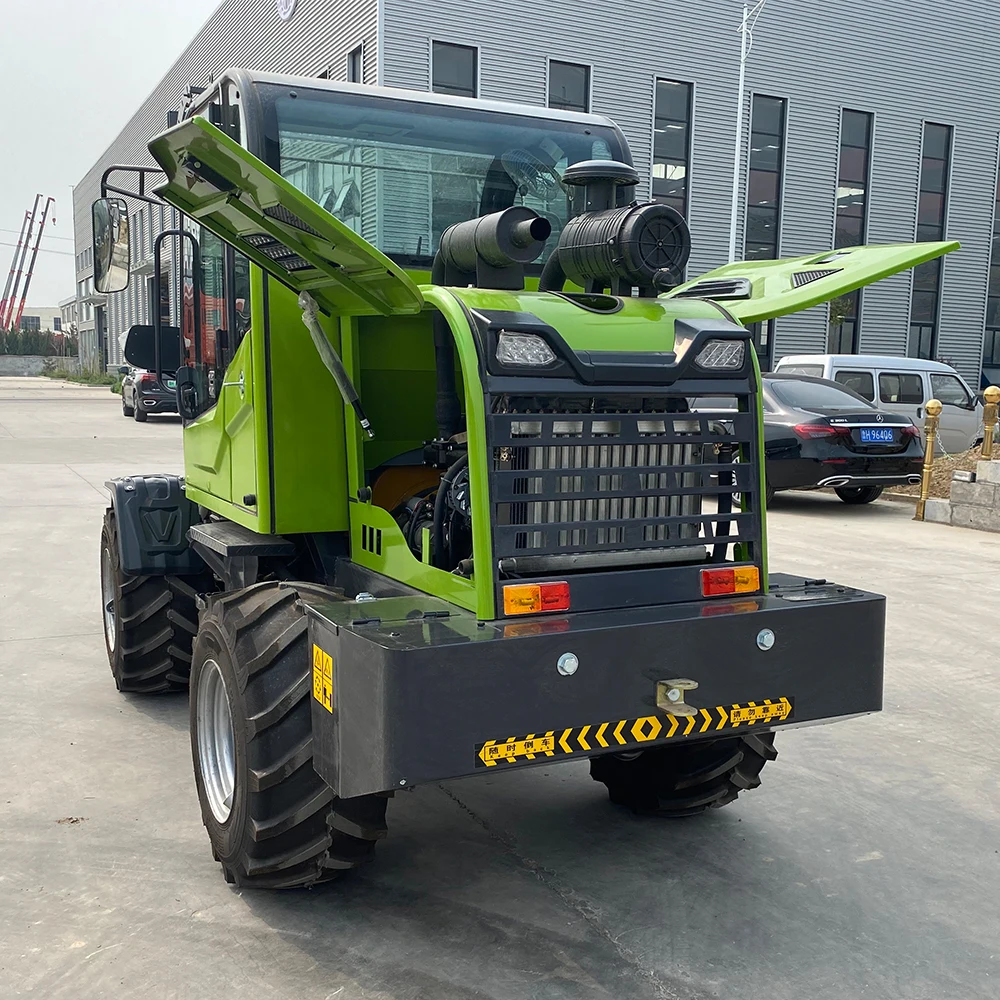

Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader
Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader
Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader
Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader
Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader
Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader
Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader

Chinese 910 915 Agricultural articulated 1.5 ton loader wheel payload front end mini wheel loader

Share on (1600865525820):


Price:$2,500.00 - $4,800.00

Quantity:


Product Overview

Description



Specification


Model
HT920
Rated contained mass
kg
2200
Total Weight
kg
5500
Bucket capacity
m³
0.78
Bucket width
mm
2020
Size(L×W×H)
mm
6270*1960*2690
Wheelbase
mm
1560
Axle spacing
mm
2445
Max.unloading height
mm
3500
Min.turning radius
mm
4900
Mini.ground clearance
mm
320
Boom lift
s
5.55
Boom down
s
4.74
Trinomial sum
s
10.83
Driving speed
LowⅠ(F/R)
km/h
6.5
LowⅡ(F/R)
km/h
11
HighⅠ(F/R)
km/h
21
HighⅡ(F/R)
km/h
35
Standard configuration
Engineering bucket, 265 split type high and low speed torque converter, four-wheel disc brake cast steel bridge on the middle wheel side
Engine
Model
416-88M22
Rated power
kW
74
Rated speed
r/min
2400
Emission Standards
Europe II
Origin
QUANCHAI


Product Description


Mini Wheel loader
Mainly used for shovel loading of bulk materials such as soil, sand, lime, etc. It can also carry out bulldozing, lifting and
loading and unloading of other materials such as wood by changing different auxiliary working devices. In roads, especially in high-grade highway construction, loaders are used for filling and excavating roadbed engineering, aggregate and loading of asphalt mixture and cement concrete yard. In addition, it can also carry out operations such as pushing soil, scraping the ground and pulling other machinery. Because the loader has the advantages of fast operation speed, high efficiency, good maneuverability, and
easy operation, it has become one of the main types of earthwork construction in engineering construction. Loader is a kind of earth and stone construction machinery widely used in highway, railway, construction, hydropower, port, mine and other construction projects.

A small loader is a kind of construction machinery that must be operated, maintained and maintained by personnel who are familiar with the characteristics of the loader and have relevant operating knowledge. The main workplaces of loaders are construction sites, cement prefabricated fields, lime kilns, stone plants, sand fields, coal fields, snow shoveling, as well as loading, unloading and stacking of bulk materials, and can also be used for large-scale farms to remove garbage. Small multi-function loader is suitable for small and medium construction.




Details Images


.Battey Min 70Ah Max 100Ah,60V
900mm Bucket

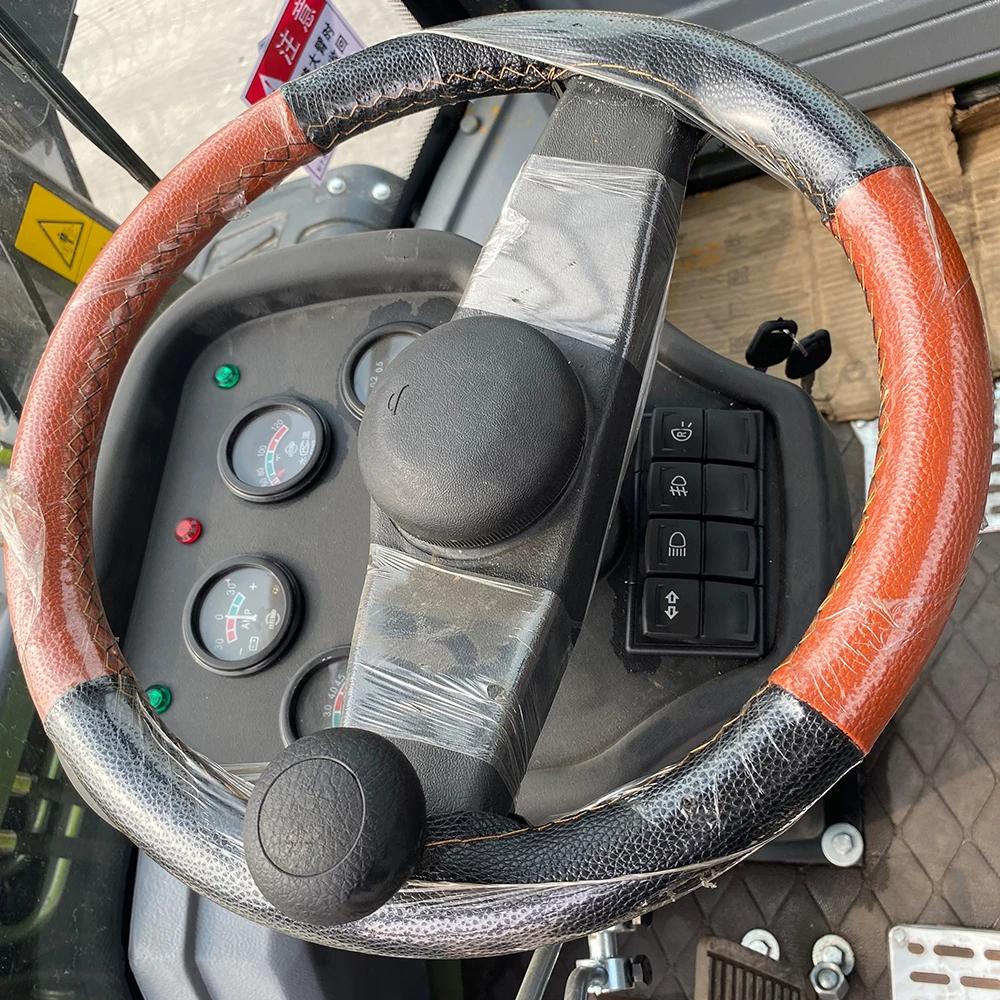

Seat: auto seat ,more comfortable


Safe brakes, portable start
Battery status People can check everytime working condition
Tyre Antiskid /500-12


Product packaging
