Factory Supply Titanium Anode For Copper Recovery In Etching Solution
- Category: >>>
- Supplier: Baoji Ruicheng Titanium Metal Co. Ltd.
Share on (1600865549875):
Product Overview
Description
Product Description
Specification
Place of Origin | Shaanxi,China |
Brand Name | Ruicheng |
Model Number | RC-0015TA |
Application | Recovery of Electrode |
Technique | electrolytic organic |
Grade | GR1 Ti |
Powder Or Not | Not Powder |
Ti Content (%) | 99.99% |
Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
Product Name | Mmo Coated Titanium Electrodes |
Available anode type | Ru-Ir/Ir-Ta/Platinum |

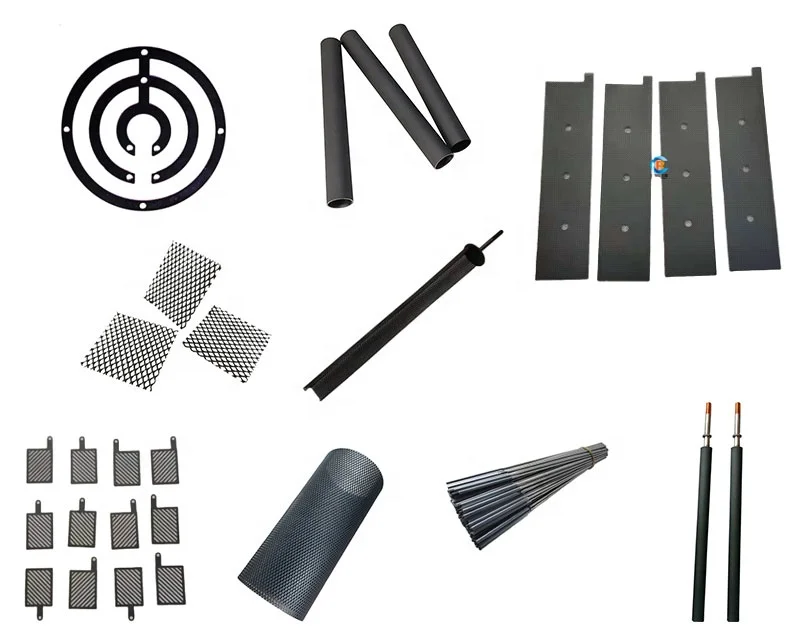

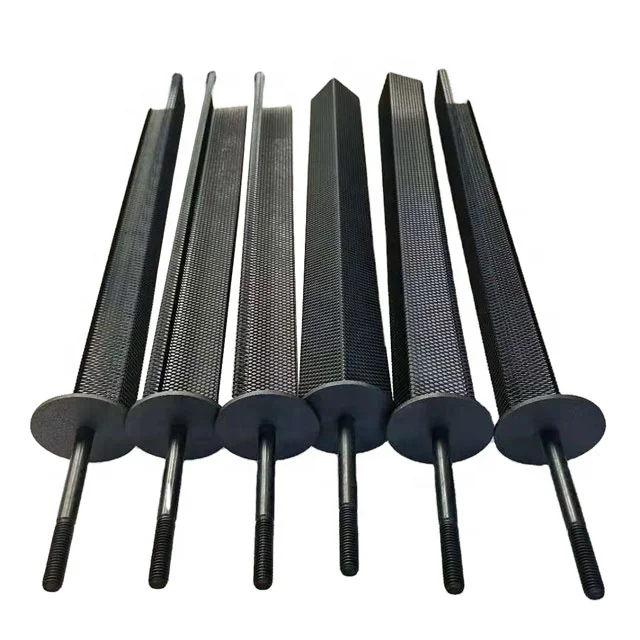

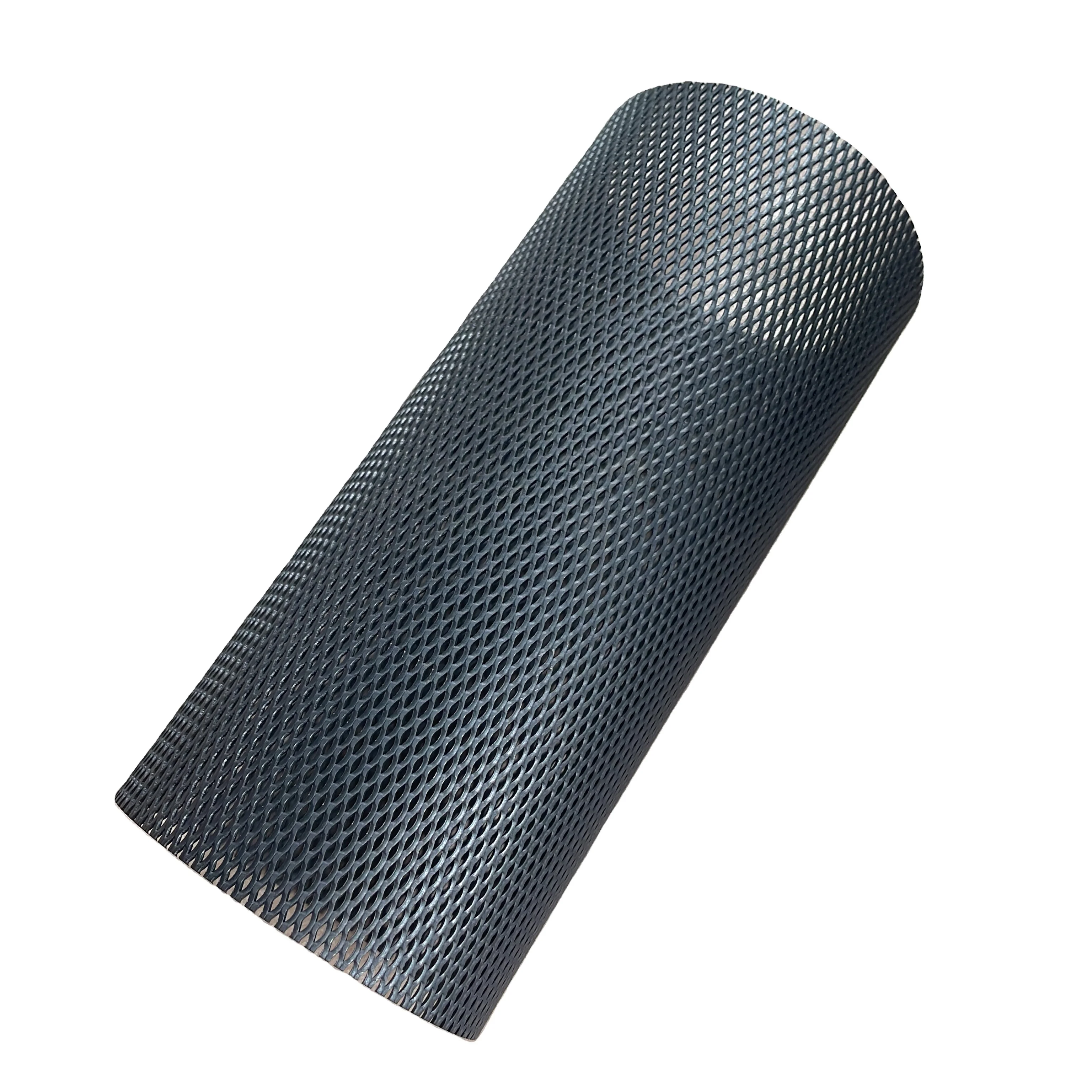

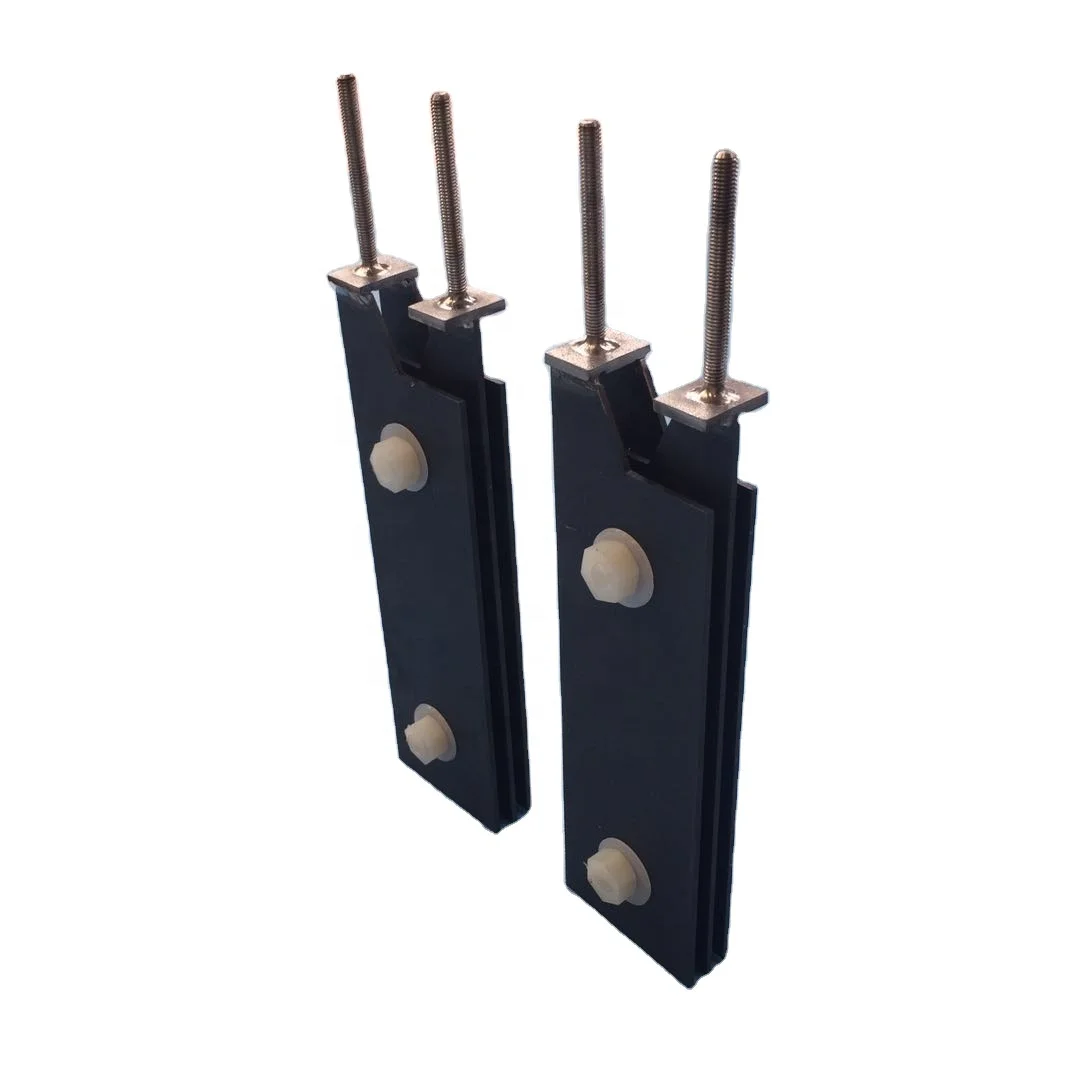

Shape | Plate Mesh Tubular Bar Wire |
Substrate | Pure Titanium |
Grade | Gr1 |
Size | Cusomized |
Advantage | Effective.long Working Life. |
Coating | Ru-Ir Ir-Ta Pt |
Coating thickness | 3~10 Micron |
Sample | Avaliable |
Anode Type
Titanium anodes belong to the anodic oxide is the anode of the titanium foundation oxide coating of titanium based. depending on the different surface catalytic coating,they are separated to the function of oxygen evolution and chlorine evolution. Generally,electrode materials should have good electrical conductivity, small change in pole pitch, high corrosion resistance, good mechanical strength and processing performance, long life, low cost, and good electro-catalytic performance for electrode reaction. Currently, titanium is the best metal to meet the above comprehensive requirements.Gr1/Gr2 titanium is generally used.
Classification | Ru-Coated | Ir-Coated | Pt-Coated | ||
Substrate | Gr1 Gr2 Titanium | ||||
Coating | RuO2/RuO2+IrO2+X | IrO2+Ta2O5 | Pt | ||
Specifications | · Rod type: diameter 10~50mm · Wire type: diameter 0.5~10mm · Tubular Type: diameter 10~200mm · Plate Type: thickness 0.5~5mm · Mesh Type: thickness 0.5-2.0mm | ||||
Parameter | Current range:<2000A/m2 Operating temperature:25-50C Ru-Ir content:10-15g/m2 Coating thickness:3-10um Applied environment: PH value 0-14(neutral electrolyte solution is recommended) | Current range:<2000A/m2 Operating temperature:25-60C Ir content:10-15g/m2 Coating thickness:3-10um Applied environment: PH value 0-14 | Current range:<5000A/m2 Operating temperature:25-80C Pt content:3-30g/m2 Coating thickness:0.3-3um Applied environment: PH value 0-14 | ||
Introduction | The product surface is black,with uniform coating,strong bonding,low chlorine potential,long service life,high current efficiency. | The surface is black,with uniform coating,firm combination,low oxygen evolution potential,acid resistance,corrosion resistance,long service life,through large surrent and so on. | The product surface is silver gray,Pt content 99%,with high corrosion resistance,stable operation under high voltage,high electrolysis efficiency,energy saving,no secondary pollution and so on. | ||
Applications | Chlor-alkali industry,chlorate industry,ionized water electrolysis,food tableware electrolysis,food tableware disinfection,electrolysis of seawater chlorine production,circulating water descaling,electrodealysis,sewage treatment and so on. | Metal foil,electrolytic electroplating,cathodic protection,organic electrolysis synthesis,cyclone electrolysis,hydrometallurgy,HHO generate,Sewage treatment and so on. | Electrolytic ionized water,acid oxidation potential water,electroplating,hydrogen generator and so on. | ||
Company Profile
Baoji Ruicheng Titanium Metals Co.,Ltd.
is located in High-tech Development Zone of Baoji City,Shaanxi P.R. of China,It has engaged in Titanium anodes filed for more than 19 years,including Ru-Coated,Ir-Coated,Pt-Coated tiatnium electrodes and anodes,electrolysis Cells as well as Hypochlorous acid generators which have already exported to many countries and regions.
